Yongnuo YN-622C E-TTL User Manual

User Manual

注意事项CONTENTS

Cautions . . . . . . . . . . . . . . . . . . 1

General Description . . . . . . . . . . . . . 2

Supported Functions List . . . . . . . . . . . 3

Compatibility List . . . . . . . . . . . . . . 4

Name of Parts . . . . . . . . . . . . . . . 5

Preparation Before Use . . . . . . . . . . . 6-7

Setting. . . . . . . . . . . . . . . . . . 8-9

Flash Awaking /Testing Flash . . . . . . . . . 10

Remote Control Mode. . . . . . . . . . . . 11

Automatic Flash (E-TTL II) . . . . . . . . . 12

Shutter Sync . . . . . . . . . . . . . . . 13

FEB/FEC . . . . . . . . . . . . . . . . 14

Zoom (Flash Coverage) . . . . . . . . . . 15

Manual/Multi Flash . . . . . . . . . . . . 16

Wireless Function . . . . . . . . . . . 17-20

Mix Control Mode . . . . . . . . . . . . . 21

Flash Triggering of Type B/C Camera . . . . . 22

PC Port Triggering . . . . . . . . . . . . . 23

References . . . . . . . . . . . . . . 24-25

Troubleshooting . . . . . . . . . . . . 26-27

Specifications . . . . . . . . . . . . . . . 28

vRead this user manual while also referring

to your camera's & flash's user manual before
using in order to correct use this product.

Please turn off power supplies of all equipment when

connecting or installing the product.

Please keep it dry. Be sure not to use wet hand to touch

the product. It is also not allowed to immerse the product
into waster or make it be exposed in the rain; otherwise it
may not work normally or even be damaged.

Do not use it in explosive situations; violation of this

warning may cause an explosion or fire.

This product involves batter y, please be in strict

accordance with the relevant provisions on the use of the
battery, other wise it would cause property damage or
personal injury.

Cautions

1

The functions described in this user manual are all under the
conditions that: all transceivers are set in the same channel,
power of all equipments is on, enabled the flash firing. This
product is a wireless transceiver, to express conveniently, in
this user manual, it is called (master control

unit) when being installed on the hot shoe of the camera,
while it is called (slave unit) when a flash is
installed or connected.

transmitter

receiver

Thank you for purchase the products of Yongnuo firstly.

YN -6 22C E -T T L wire les s fl ash t ri gger is a high

performance master and slave equipment of multiple
flashes photography, through digital FSK 2.4GHz radio
wireless transmission, and different photographic effects
can be realized through setting your flash at 360 degrees.
It design of transceiver, the distance of remote control
reaches 100M, supporting 7 wireless channels and A/B/C
three groups.

Remotely change the modes and parameters of the flash

quickly when using the Canon EOS series DSLR cameras
which supports external flash function , such as TTL ratio
or manually set each group of flash output. Support
high-speed sync, the max sync speed is 1/8000s*,
Support E-TTL, Manual and Multi flash modes. Support
E-TTL flash installing on the top of transmitter.

YN- 622 C 2 t ra n sce i ve r s k it c on s ist two sim i la r

transceivers, support one camera controlling multiple
flashes at the same time. Install the flashes with the
receiver additionally purchased to make them into an
application form of multiple-flashes, number of the
receivers is not limited.

※ Compatible cameras/flashes is needed when using TTL

function

※ The highest sync speed of some camera types is

1/4000s, some of flash or camera models may reach to
1/250s only or less if it doesn't support high sync
speed.

General Description

2

Compatible flash mode: E-TTL (II)/ Manual/ Multi
Compatible Shutter sync: 1st curtain, 2nd curtain,

high speed sync (HSS/FP), Max 1/8000s sync speed
Control remote flash using camera's flash control

menu screen(Remote Control Mode)
Support E-TTL / Manual/ Multi flash mode mix

using(Mix Control Mode)

Flash on hot-shoe of transmitter supports ETTL
Support Flash Exposure Compensation (FEC)
Support Flash Exposure Bracketing (FEB)
Support Flash Exposure Lock (FEL)
Support modeling Flash
Support E-TTL group ratio (ALL/ A:B/ A:B C)
Support Manual/Multi group (ALL/ A:B/ A:B:C)
Support flash zooming (auto, manual)
Support AF assist beam emitter(AF Lamp)

Support PC por t triggering strobe flashes and

support 1st, 2nd curtain/HSS (Super Sync)

Support LCD Live view triggering
Support high-speed continuous shooting trigger
Settings saved automatically
Compatible with ALL YongNuo/ Canon EXII series

flashes
Support single-contact of camera & flash triggering

(max sync speed is 1/250s)

Supported Functions List

3

List of Type A cameras

Canon EOS 5D Mark II/5DMark III,1Ds Mark III,1D Mark
IV/1D Mark III,7D,60D, 50D,40D
/650D/600D/550D/500D/450D/1100D/1000D

List of Type B cameras

Canon EOS 5D,10D,20D,30D,300D,350D,1D,1D Mark II

Compatible ETTL flash list (support wireless remote
control through camera menu)

Canon 600EX(RT)/580EXII/430EXII/320EX/270EXII
YongNuo YN565C/YN468C(II)/YN467C(II)/YN465C
430EX/580EX or other parts of the flash is not
supported remote control via the camera menu, need
to manually set the flash parameters.

※ When using general type manual flash or strobe

flash connect to PC port, flash output needs to be
set manually.

※ In this user manual, assumes that you are using the

type A camera and compatible ETTL flash, as for
type B/ C camera, please refer to page 22.

Compatibility List

4

Functions supported by the product depend on the
camera and flash used. According to different types of
cameras, in this user manual, the EOS DSLR camera

with external flash(speedlite) control menu is called

; while EOS DSLR camera without

external flash control menu is called ;
other camera brands with standard hot-shoe is called

.

type A camera

type B camera

type C camera

Name of Parts

※The protective film

can be torn out.

5

1).Standby state(red)

2).TX communicating state(green blinks)

3).RX communicating state(red blinks)

A

Channel indicator (p.8)

I PC port(p.23)

B

Group indicator (p.8/9)

J AF assist beam emitter(p.24)

C Channel setting button (p.8/9) K Locking ring (p.6/7)

D Group setting button(p.8/9) L Mounting foot(p.6/7)

E Test button(p.9/10) M locking pin(p.6)

F State indicator(p.5) N Eyelet

G Power switch(p.8) O Battery compartment cover(p.6)

H Hot shoe(p.6/7) P Battery compartment(p.6)

Indicator Blinking Keep Lighting

Channel Indicator

Communicating

（Remote control mode）

Mix Control Mode

Group Indicator

Firing group or

receiving group

Testing

Communicating

State Indicator(green) TX Communicating Testing Communicating

State Indicator(red) RX Communicating Standby State

1. Installing the Batteries

2.Installing the Transceiver on the Camera (As
Transmitter)

※ Remove the batteries when the product

is not used for long time.

※ Please replace the both two batteries at

the same time.

Open the cover and install two AA
batteries (excluded)according to
the + and - marks , rechargeable
batteries of 1.2V can be used.
Replace the batteries when the
product does not work stably.

1). Unscrew the locking ring of the transceiver.

2). Slip the mounting foot into the hot shoe of the camera.

3). Turn the locking ring according to the direction

of arrow, the locking pin will protrude from the
mounting foot.

※ It is supported that install a flash on the hot shoe of

the transmitter(on-top flash).(p.17)

Preparation Before Use

6

3.I nstall Flash on the Hot Shoe of the
Transceiver (as Receiver)

Preparation Before Use

7

1. Install the transceiver on the
mini stand or other fixing
equipment (excluded).

2. Loosen the locking ring of the
flash.

3. Slip the mounting foot of the

flash into the receiver.

4. Tightly lock the locking device
of the flash.

!

connected reliably before use, turn all equipments
on, setting the transceivers in the same channel,
set the group of receivers , test button can be used
to awaken and test whether the flash works before
shooting(refer to Page 10), trigger the flash until
flash recyling completely.

Check that all equipments are installed and

Caution! The hot shot of the
transceivers can only install
flash being applicable to DSLR
cameras, can not install high­v o l t a g e f l a s h , o r t h e
transceiver may be damaged.

1. Power Switch

Power on when the power switch slides
to [ON], channel and group indicators
shows that channel and receiving
group, power off when the power
switch slides to [OFF].
※ It is normal for the flash fire once

when turning on/off the transceiver.

2. Channel Setting (Press [CH SET] Button)

Press [CH SET] button and the channel indicator will keep
lighting for several seconds to indicate the current channel,
at this time shortly press [CH SET] button again to change
channel, and there are totally 7 channels. Set all the
transceivers at same channel.

Setting

Ch7

Ch6

Ch5

Ch4

Ch3

Ch2

Ch1

Press [GP SET] button to check the
cu rrent r ec e iv ing g ro up, th en
shortly press [GP SET] button again
to change among A/B/C three
groups. Group indicator and state

indic ator( red ) will blin k while
receive communicat ing a t t he
same time.

8

3. Receiving Group Setting (Press [GP SET] Button)

4.Flash Test Group Setting (Test + GP SET Button)

Set flash testing group
Type C camera uses the set firing group.

Setting

9

1. H o l d d o w n [ Te s t ] b u t t o n t h e n t h e g r o u p
indicators will keep lighting, the flash on the receiver
group having been selected will be woken up(p.10).

2. Hold down [Test] button and repeat to shortly
press [GP SET] button, selected groups of receivers to
testing flash, and there are totally 7 combinations.

3. When loosening [Test] button, the flash of the group
having been selected will fire a test flash(p.10).

※ Testing group is different from iring

g r o u p s e tti n g o f t y p e A ca m era r e f e r t o
page 18 while page 22 for type B.

firing group, f

When half-pressing the shutter button of the
camera, the hot-shoe flash on the receiver will be
awakened. (for A/B type camera only)
Under any connection type, [Test] button can be
pressed to awaken and test the flash on the transceiver
and other transceivers at the same channel.
Test flash with the mode set by the flash, and under
the mode of E-TTL it may fire in a lower output.
Refer to the following figure, the transmitter sets A
+B two groups of flash test, hold down the[Test] button,
the flash on A and B of the receiver will be awakened,
and when loosening [Test] button will fire a test flash.

Flash Awaking and Testing Flash

※ If the flash can not be awakened, manually

awaken the flash before shooting.

※ Using PC port to connect with flash without the

awakening function.

※ All the indicators going out when flash fires.

10

1. Press down [MENU] button on the camera, select flash
control-external flash function setting. When the off-camera
setting which is consistent with the camera’s menu, the AF
assist beam emitter of the receiver will blink twice to show
that the change is successfully.(p. 24)

2. Enabled the wireless flash function via the camera’s menu to
realize firing group control.(p.17)

3. Focus and shoot picture, the flash is fired according to the
parameters set of all groups. Support the function of AF assist
beam emitter of the transmitter. (p.24)

Remote Control Mode

11

※ Suggest disabled wireless flash function when using 2st

curtain sync only.

Remotely setting all the flashes through the external flash
function setting (camera menu) of the camera, just likes the flash
being directly installed on the camera. The settings of camera
menu is prior, settings will upgraded to the receiver after
pressing down camera confirmation button or half pressing
shutter button without needing to operate the flash control
panel, the flash’s screen will display the current setting. The
setting varies depending on the cameras/flashes. This control

mode is the default control mode, transmitter’s channel

indicator will goes out in standby state, the camera needs to be
set at P/AV/TV/M exposure mode, and it for type A cameras only.

1. Select flash mode as E-TTL II mode.

2. Half press camera's shutter button to focus, and on

the flash screen the aperture and effective range etc.

parameters will be displayed.

3. Ensure that the subject is in the effective flash range,
full press camera’s shutter button to shoot, the
flash will be fire according to the setting.

※ Exposure lever increments may set to 1/3-stop via

the camera.

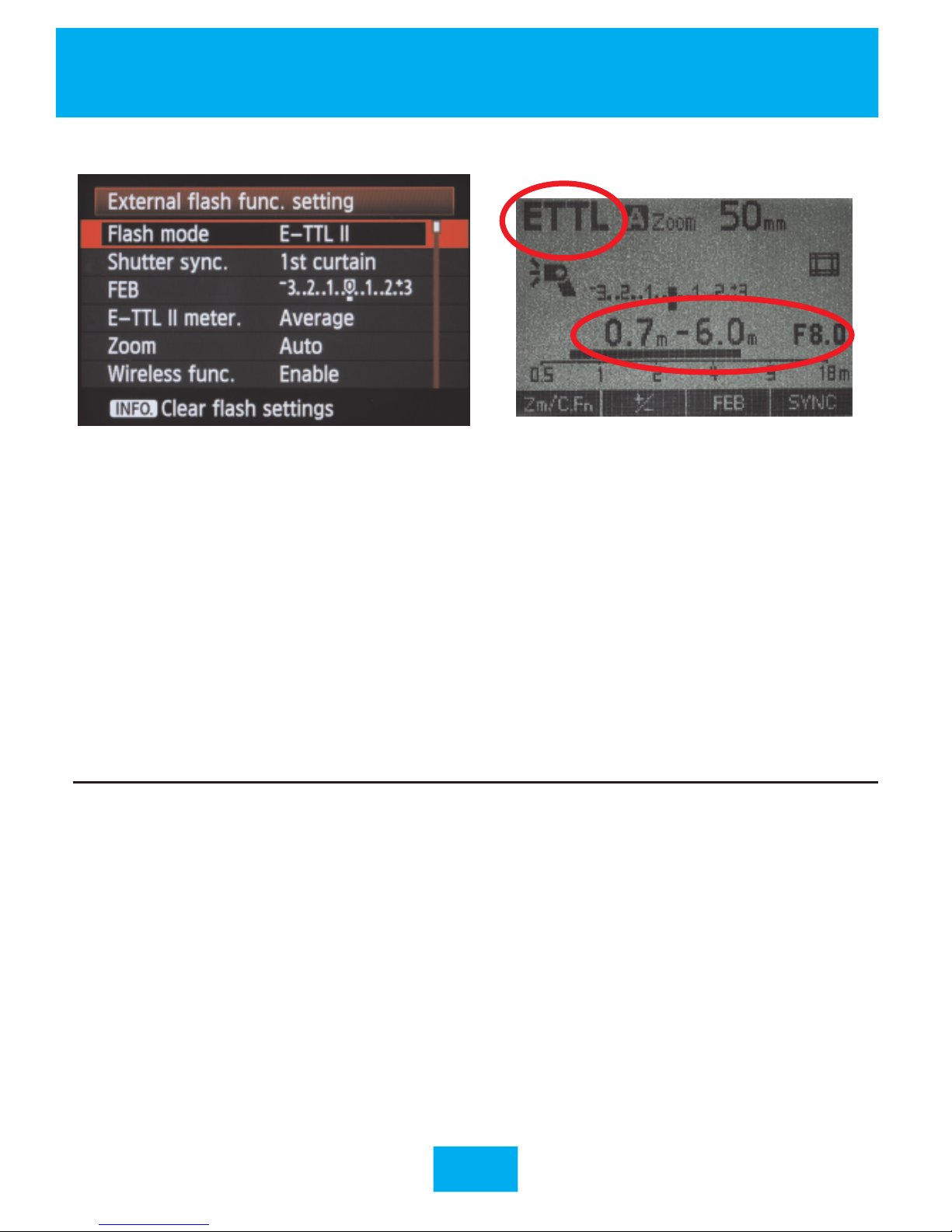

E-TTL II metering
FEL: Flash Exposure Lock
Modeling flash

Automatic Flash (E-TTL II)

 Fully-automatic Flash Shooting

12

vThe following E-TTL functions are advanced

application, please refer to the usermanual by the
manufacturer of the camera and flash.

2. 2nd curtain sync

The flash fires right before the shutter closes, lower shutter

speed needs to be used, support bulb 2nd curtain sync flash.

1. 1st Curtain sync

The normal flash sync.

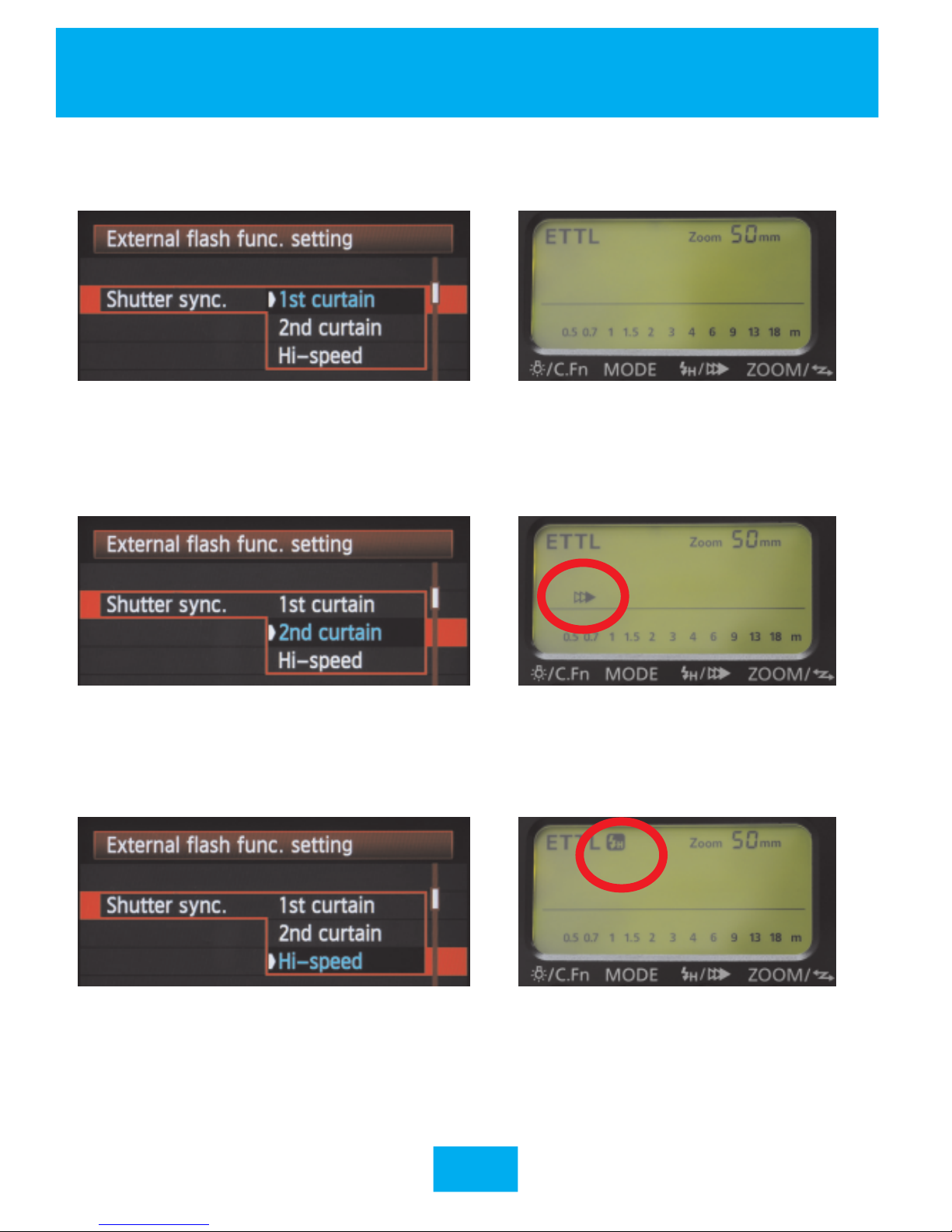

Shutter Sync

13

3. Hi-speed Sync(HSS/FP FLASH)

The flash can sync with all shutter speeds when . The

max speed is 1/8000s or 1/4000s（depends on the camera）.

using hss

※ Enable the wireless flash function, 2nd curtain sync will be

unable to use.

※ In case of using hot-shoe flash which does not support hi-

speed sync, the max sync speed is 1/250s or less.

2. FEC (Flash Exposure Compensation)



button of the camera can also be use.

Support 1/3-stop increments to set FEC within ±3. The FEC

※ The sequence of FEB is fixed at 0→ -→ +， even the FEB

sequence of the custom setting in flash is different, the
shoot sequence remains to 0→-→+ either.

※ FE B f uncti on wi ll be a utom atic ally can cell ed af ter

three shots are taken.

※ Even the E-TTL flash does not support FEB can also

realize this function.

FEB/FEC(E-TTL only)

14

!

pressing the shutter button. Till FEB and FEC of the flash are
set to 0, settings could be changed by remote control of
camera menu , and you can also set each of the flash FEB and
FEC via its control panel, compensation value shall be
superposed according to flash setting plus camera menu
setting, for example, the camera menu is set to -3, and the
flash is set to +3, then exposure compensation shall be 0.

Setting value will be show on the flash screen when half-

1. FEB (Flash Exposure Bracketing)

Support 1/3-stop increments to set FEB within ±3.

Zoom supports automatic/manual setting.

1. With automatic setting, focal length of the flash may
change with lens focal length.

2. With manual setting, focal length of the flash
supports manual setting within 24-105MM.

1. Automatic Setting

2. Manual Setting

Zoom (Flash Coverage)

3. Zoom Lock

15

Hold down the [CH SET] button of the receiver for
seconds until channel indicator keeps lighting (same to
set the mix control mode for the transmitter, p.21),
enable the zoom lock function for the receiver, then the
flash on the receiver will not be controlled by the
camera menu, adjust flash zoom settings with flash
control panel (automatic or manual), that means each
flash can be set with a different focal. Hold down the
[CH SET] for seconds again to cancel.

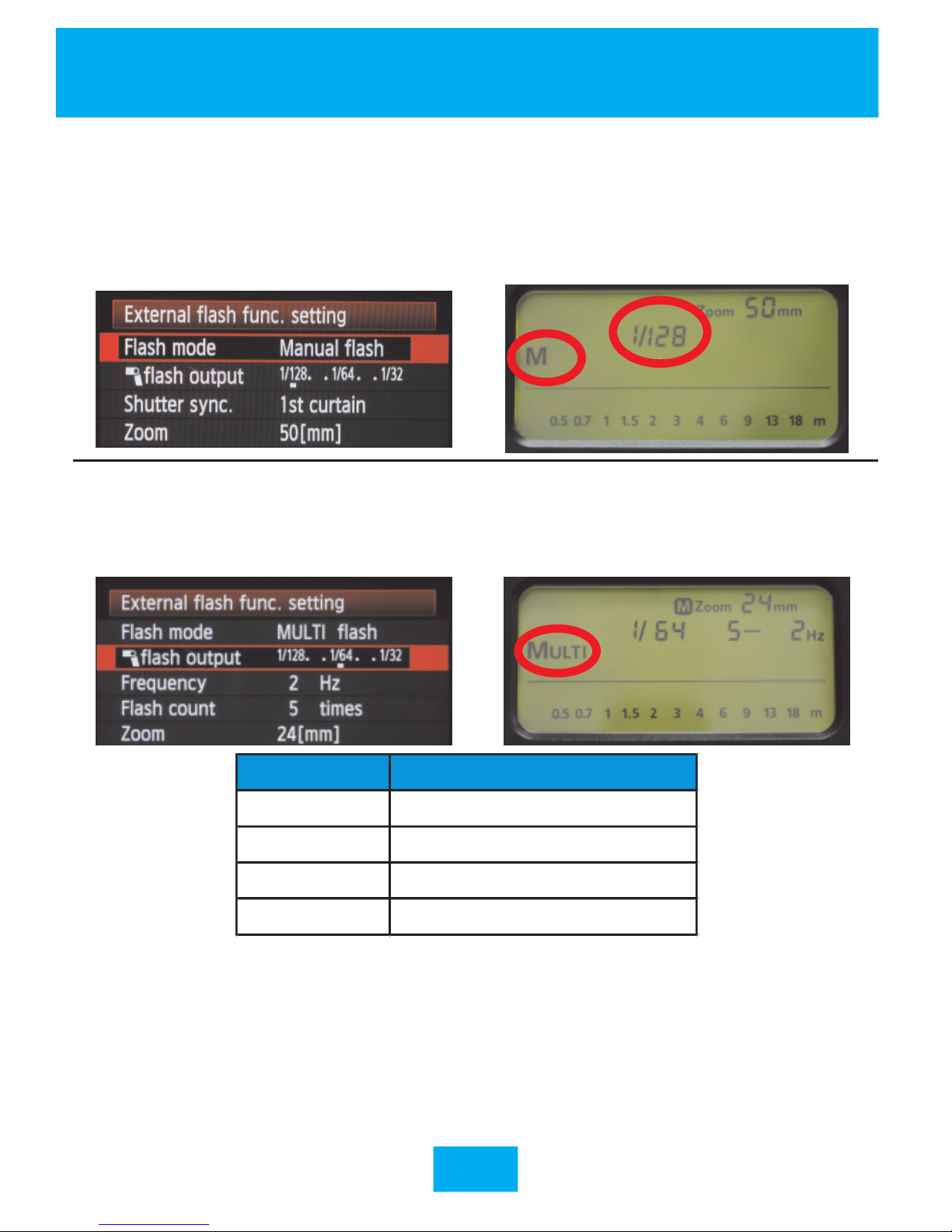

Manual / Multi Flash Flash

16

1.Manual Flash: Manually set flash output

(1/128~1/1 power 1/3-stop increments)

Select flash mode as Manual Flash Mode, setting
flash output ,shutter sync, zoom etc.

2.Multi Flash (Stroboscopic flash)



camera menu.

Select flash mode as Multi Flash, setting via the

! The three parameters of flash output, frequency,

and flash count may restrain each other, setting
details may be referred to user manual of flash
manufacturer. Factual output shall be subject to
the flash’s screen display.

Items Parameter

Flash Output Manual（Max1/4）

Frequency 1-199hz

Flash count 1-100times

zoom Auto/Manual（24-105mm）

17

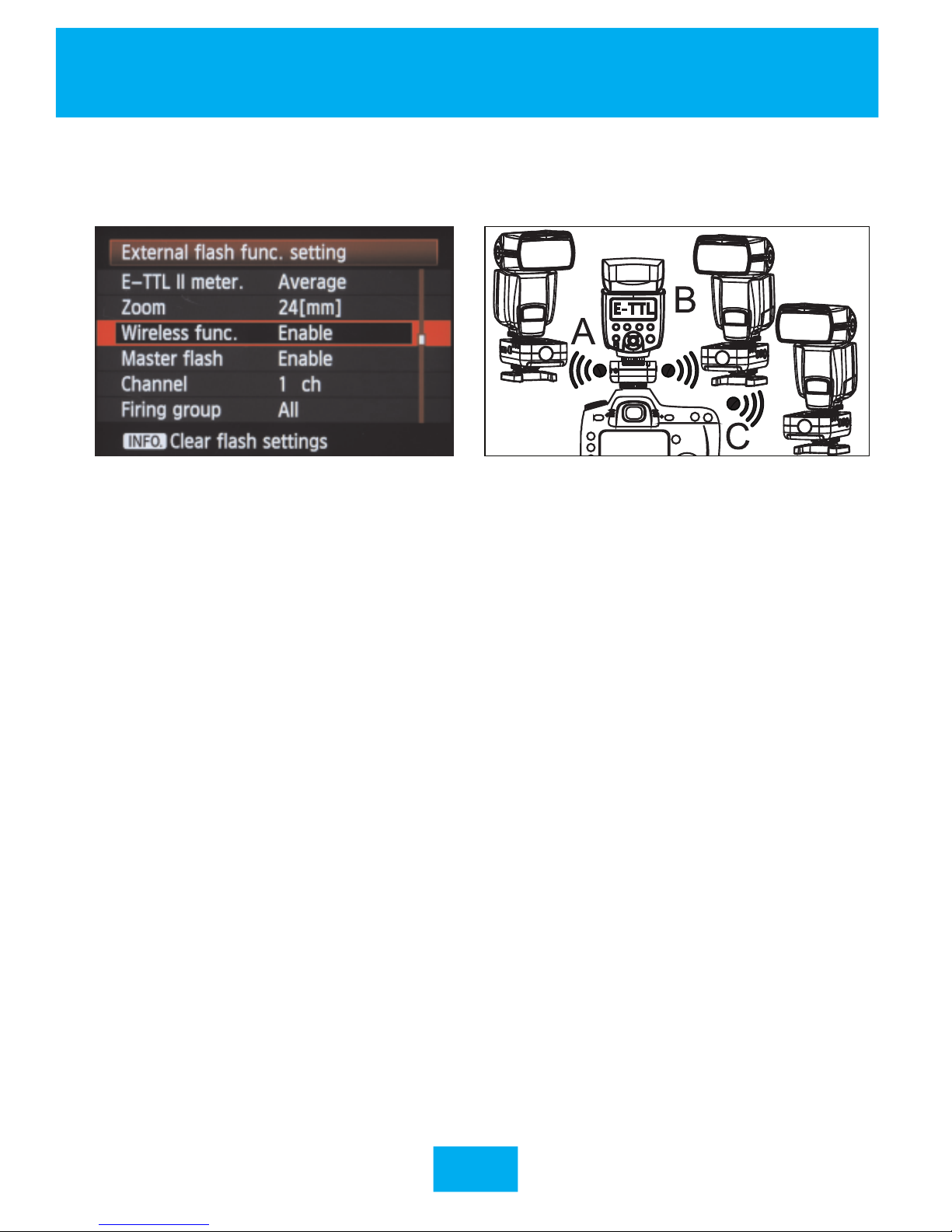

By setting the wireless flash function menu, in a different

flash mode or firing group, remotely set A / B / C, three
groups of flash ratio or flash output.

Wireless Function*

1. Enabled the wireless function via flash control menu.

2. Master Flash: Option for a flash which installed on the

trans mitt er(on- top fl ash) , s elec t e nabl e f or firi ng or
disable. On-top flash exposure setting as well as group A.



supports E-TTL, manual flash, multi flash mode and can
cooperate with other off-camera flash using. It supports the
function of AF assist beam emitter(p.24), disabled the wireless
function can also be used the on-top flash.

The zoom of the on-top flash will not be controlled by the

camera menu, adjust zoom settings with flash control panel (auto
or manual), that means you can make the zoom setting of the on­top flash different from other off-camera flash, such as auto set
for the on-top flash(via control panel), manual set for the off­camera flashes(via camera menu).

※ Enable the wireless flash function, 2nd curtain sync

function will be unable to use.

※ For 5D MarkIII, 650D and other new models, selecting the

optical transmission menu insteads of wireless function.

* YN-622 is corresponding to optical pulse transmission

wireless function.

The on-top flash just like a flash installed in receiver, which

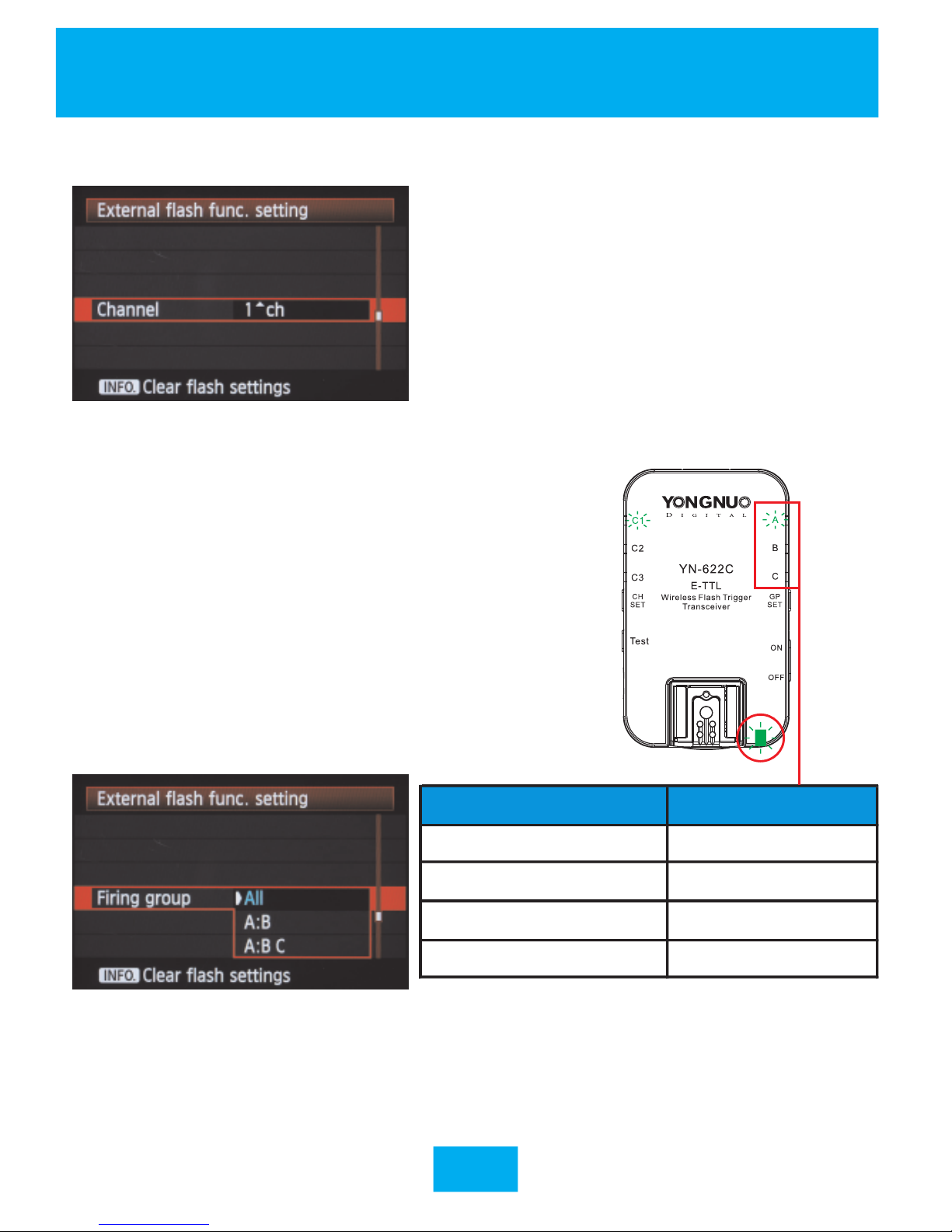

3.Channel Setting via Wireless Function

※ When disabled the wireless function via the camera menu,

in transmitting communications, group indicator will go
out, firing group consists of all (A+B+C), all groups of

flashes using the same setting.

4. Firing Group Setting via Wireless Function

Sets firing group of the transmitter via
wireless function setting, in transmitting
communications, state indicator and
group indicator both blinking green, the
following table shows that each group
indicator stands for different firing
group available.

Wireless Function

Set channel (CH1-CH4 only) of the
transmitter via wireless function
setting, the changed shall cover the
original setting. CH1-CH7 may also
be set by directly pressing [CH SET]
at the transmitter(p.8).

18

Group Indicator Firing Group

Indicator A blinks ALL（A+B+C）
Indicator B blinks （A:B）
Indicator C blinks A:BC or A:B:C

Indicator goes out ALL（A+B+C）

Flash Ratio with E-TTL II

19

1.All (A+B+C)

R a t i o o f f, A / B / C t h r e e
flashes automatically fire
with same output, flash
e x p o s u re c om p e n s a tio n
(FEC)can be set.

2.A:B

Set fire ratio (8:1-1:8， 1/2­stop increments) and flash
exposure compensation for
flashes of Group A and B,
Group C does not fire.

3.A:BC

Set fire ratio and FEC for
flashes of Group A and B,
FEC of Group C can be set
solely (Group C flash may
be o ve re xpo sur e to t he
subject , suitable for use as
a backlight).

Flash fire ratio and FEC of the A, B, C three firing

groups can be set under E-TTL II flash mode.

Manual/Multi Flash Output

20

Flash output for each group A/B/C can be

separately set under Manual/Multi flash mode.

1. All (A+B+C)-The three groups of flashes shall be set

with the same output.

2. A: B-Group A and B shall be separately set Group C

flash will not fire.

,

3. A: B: C-Group A, B, C shall be separately set.

※Flash output under menu root is same to Group A.

1. Hold down the [CH SET] button for several seconds of the

transmitter until the channel indicator blinks for 3 times and
then keep lighting, enable the mix control mode.

2. Flash mode of the transmitter will be fixed at E-TTL and the

zoom setting is disabled.

3. Set the parameters of each flashes via it own control panel.

Mix Control Mode

21

Set the flash on each receiver in different flash modes as

Manual/E-TTL/Multi for mix control, the settings of the flash
is prior , channel indicator of the transmitter will keep
lighting when enabled this control mode. Supports type A/B
cameras using.

In the mix control mode, set items via the flash it
supports: Flash mode (output), FEB, FEC, Zoom etc.

Set the shutter sync via camera menu and the flash

set is invalid (Type B camera defaults to hi-speed sync).

※ Disable the mix control mode by hold down [CH

SET] button again then it will return to remote
control mode (the channel indicator goes out in
standby state).(p.11)

22

Type B Cameras:

There is no flash control menu of such type of cameras

that some of function will be restricted. Enable the mix
control mode of the transmitter before using(P.21).

1. Setting of transmitting groups (set in the transmitter when
it in transmitting status):

Half press the camera’s shutter button then status indicator

blinks green. Press [GP SET] to set transmitting firing groups.

Flash Triggering of B/C Type Camera

Type C Cameras: Manually set the Flash Output

1. Transmitting group set (via the transmitter):

Set according to testing group of transmitter (p.9).

2. Flash mode set (via the flash control panel):

Set the manual(M) flash output via the control
panel of the flash, and trigger with transmitter's
main flash contact(single contact). Do not support
hi-speed sync or other TTL functions.(Max speed
sync is 1/250s or less)

2. Setting of flash mode (via the flash control panel):

1). Automatic (ETTL) mode supports automatic flash, supports

the settings of FEC and FEB, it defaults to hi-speed sync.

2). Manual (M) mode, manually set the flash output. It defaults to

hi-speed sync.

3). Multi mode, set according to the flash.

Group Indicator Firing Group

Indicator A blinks ALL（A+B+C）

Indicator B blinks （A:B）

Indicator C blinks ALL（A+B+C）

Purchase corresponding PC flash sync cord according to

the different ports of the flashes needs .

1. Use an end of PC sync cord with nut to connect to the receiver.

2. The other end of the PC sync cord connects to strobe
flashes or other flashes which supporting PC port.

3. Set the camera's shutter sync as 1st curtain or 2nd curtain.

4. Adjust shooting parameters and shoot.

* Super sync: Use the non-high speed sync flash to realize

higher sync speed, this function is more applicable to strobe
flashes whose flash duration is longer. (PC port output only)

1. Connect the receiver to flash via PC port and it may
needs setting at manual full-power flash output (1/1).

2 . Use manual exposure or shutter-priority mode, set the shutter

sync as hi-speed sync, the maximum shutter sync speeds can
reach to 1/8000s. Take photos and check whether the photos
are synchronous , it may see gradations or variations in the
photos, results depend on the camera and flash.

※ The PC port is for output using only.
※ Flashes on the hot shoe and connecting to the PC port

can be used at the same time.

※ For type C camera, the max PC sync speed is 1/250s or less.

PC Port Triggering (Support Super Sync *)

23

Caution! Do not connect to the PC
port any flash requiring trigger
voltage more than 300V, or the
transceiver may be damaged.

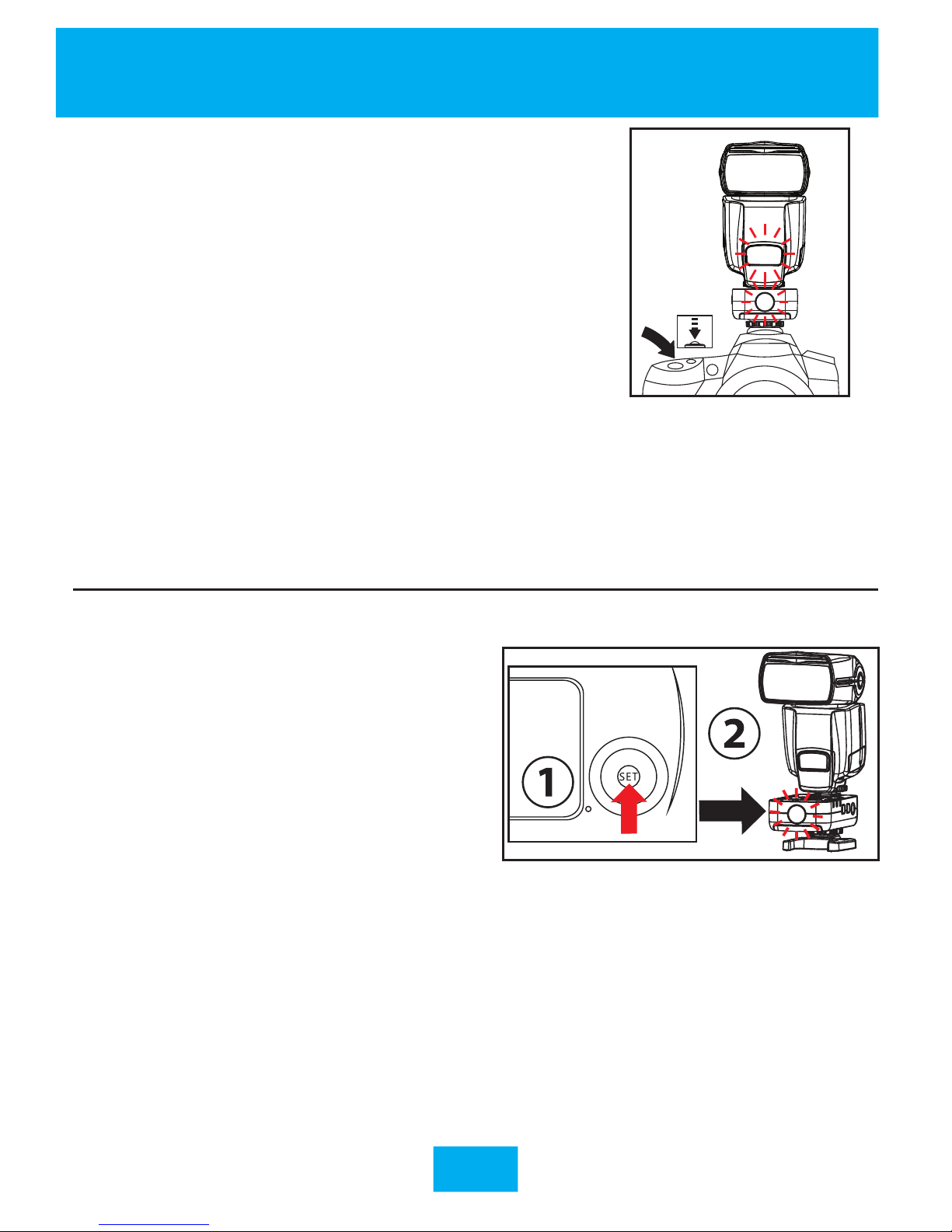

AF Assist Beam Emitter

When using AF under low-light, the

built-in AF-assist beam emitter of the
transmitter will be emitted automatically
to make it easier to autofocus, and the
flash on the transmitter which support AF
assist beam emitter function can also be
emitted at the same time.

References

※ It needs using single autofocus for the lens.
※ It needs enabled the AF assist beam function of camera

(flash) by custom functions setting. Can also disable this
function by custom functions setting(C.Fn8).

※ Both the receiver and the off-camera flash on the receiver

will not be emitted.

Feedback Function of the AF Assist Beam Emitter

24

※ Only when the flash which supports assist beam emitter

function is set in the receiver and the assist beam emitter is
available, can this function be used.

※ Install the receiver on the camera and set the assist beam

firing as disable via external flash custom function setting
camera menu to disable this function(sets will be saved).

※ If parameter which the flash doesn’t support had been set

(such as hi-speed sync), this function will be abnormal.

When the off-camera setting

which is consistent with the
camera’s menu, the AF assist
beam emitter of the receiver will
blink twice to show that the
change is successfully.

References

Factory Reset

1) Hold down the buttons [CH SET]

plus [GP SET] at the same time.

2) The state indicators will blink for

3 times in red-green alternately
then turn to keep lighting (red).

3) Release all the buttons then reset

the factory set.

25

About the Max Sync Speed

It needs the camera and flash both support hi-speed sync, and
the max sync speed is 1/8000s or 1/4000s. When using the hot
shoe flash which doesn’t support hi-speed sync, the max sync
speed is 1/250s or lower.

About Automatic Saving Function

The transceiver will automatically save the sets such as channel,
receiving group, AF assist beam. In the TTL set, some parameters
will not be saved, such as the set of fire ratio etc.

2 Transceiver Kit Packaged

one off-camera flash or one
off-camera flash plus one on­top flash can be used.

Multiple Transceivers

Multiple flashes application
by ad di ti on al ly p ur chase d
transceivers.

Applications

Troubleshooting

1. Fail to power on or automatic shutdown:

● The battery is loaded inversely or exhausted; it will power off

automatically when the battery is going to be exhausted in
case of being over discharged.

▲ Install the battery according to the correct direction the

battery compartment indicates and ensure the battery is full
and restart the power (refer to page 8).

2. The flash doesn't fire

Ensure the power of all equipments are full, the connection
among the transceiver, camera and the flash is reliable;
whether the indicator is set in the same channels and
controllable groups. Flashes recycle process, entering in the
state of overheating protection, ongoing zoom adjustment,
the flash enters into sleep status etc. may makes the flash
doesn't fire . Ensure the flash is in ready state, use the [Test]
button test the flash before using.

3. Fail to enable the 2nd curtain sync:

● That’s because the restriction of camera menu.

▲ It shall set the wireless function disabled if needs using the

2nd curtain sync.

4. Can't access into the external flash function menu or the

menu is displayed abnormally:

● The transmitter is not installed right , the contacts of the hot

shoe is stained or the power of the battery is exhausted.

▲ Reinstall the transmitter and clean the contacts ,

batteries.

5. The assist beam emitter doesn't work :

Refer to page 24.

6. The on-top flash doesn't fire：

Enabled the master flash via the wireless function setting.

replace the

26

7. Can't set the flash zoom via camera menu:

When the mix control mode has been set in the transmitter
(p.21) or zoom locking has been set in the receiver (p.15),
zoom can't be set via camera menu. Zoom setting of the on­top flash needs to be set separately(p.17).

8. Fail to set channel 5, 6, 7 via camera menu:

This is caused by the camera restriction and it can only set the
channel 1-4 in via camera menu, while other channels can be
set via channel button.

9. ETTL underexposure or overexposure:

Suggest enable wireless flash function when using ETTL flash
mode, and adjust the position of the flash, use FEC/FEL
function, check flash’s effective range. It may overexposure
when ETTL and manual flash are used at the same time, now
the manual flash suits to be used as a backlight.

10.Information of aperture, distance are not displayed on the
flash when half pressing the shutter:

Set compatiable flash mode/shutter sync with the flash on the
transmitter.

11.No effect of the flash exposure bracketing calculation on
receiver:

Set the flash mode which is compatible with the flash.

vIt is suggested using the following procedures to deal

with when other trouble occur during the using:

1). Restart all the equipments.

2). Replace the batteries of the transceivers.

3). Reset the factory set of the transceivers.

4). Reset the factory set of the camera.

5). Install the hot-shoe flash on the camera directly and clear the
custom function of external flash then install it on transceiver
again.

Troubleshooting

27

System type: Digital FSK 2.4GHz wireless transceiver
Distance: 100M
Channel: 7
Flash mode: E-TTL(II), Manual flash, Multi flash
Sync mode: 1st curtain, 2nd curtain, Hi-speed sync
Groups: 3Groups (A/B/C)
Sync speed: 1/8000s*
Input: Hot-shoe(TTL,main contact)
Output: Hoe shoe, PC port
Applicable battery: AAX2 (support 1.2 V rechargeable
battery)
Stand-by time: 60h
Dimensions: 89.5×53×39mm
Weight:78g

* Sync speed of part of cameras and flashes may be

lower.

※ All of the specification parameters are base on test

conditions of our company. All registered trademarks
are the property of their respective owners in this
usermanual. Specifications subject to change without
notic.

Specifications

28
