YJACK
Series
Wireless Probes

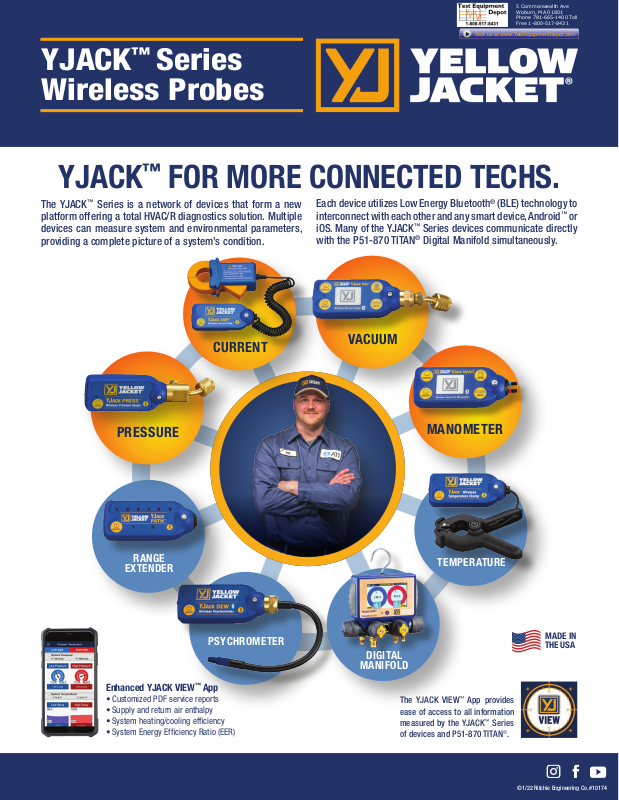

YJACK™ FOR MORE CONNECTED TECHS.
®
™
The YJACK™ Series is a network of devices that form a new
platform offering a total HVAC/R diagnostics solution. Multiple
devices can measure system and environmental parameters,
providing a complete picture of a system’s condition.
CURRENT
Each device utilizes Low Energy Bluetooth
interconnect with each other and any smart device, Android
iOS. Many of the YJACK
with the P51-870 TITAN
™
Series devices communicate directly
®
Digital Manifold simultaneously.
VACUUM
(BLE) technology to
™
or
PRESSURE
RANGE
EXTENDER
PSYCHROMETER
Enhanced YJACK VIEW™ App
• Customized PDF service reports
• Supply and return air enthalpy
• System heating/cooling efficiency
• System Energy Efficiency Ratio (EER)
DIGITAL
MANIFOLD
The YJACK VIEW™ App provides
ease of access to all information
measured by the YJACK
of devices and P51-870 TITAN
MANOMETER
TEMPERATURE
™
Series
MADE IN
THE USA
®
.
©1/22 Ritchie Engineering Co. #10174
Page 2
Network of Wireless Devices for a
Total HVAC/R Diagnostic Solution.
YJACK™ SERIES OVERALL FEATURES:
Compatible with YJACK VIEW™
App and P51-870 TITAN
(firmware version v4.0 or later)
[YJACK MANO™ not compatible with
P51-TITAN
Bluetooth® 4.2 compliant low
®
Digital Manifold]
energy radio
400 ft. line-of-sight signal range
Rapid response time
Rotating mounting magnet for
optimal Bluetooth
placement (not applicable on
™
YJACK PRESS
IP52 rated
Two-year warranty
and YJACK VAC™)
YJACK DEW™ Psychrometer 67063
Measures percent relative
humidity, dry bulb temperature,
wet bulb temperature and dew
point temperature
Features 8” flexible steel wand
Optimized sensor housing for increased
air exchange and better response time
®
devices
®
transmitter
MADE IN
THE USA
ort Manometer 67068
Static pressure measure-
ments up to +/- 80 inches
of water column
Pressure probe tips and
adapters included for
accurate duct and gas
pressure measurements
Accurately measure pressure drop with
included static pressure tips
Display readings on the local display or
™
remotely with the YJACK VIEW
App (v4.0+)
Soft case for convenient storage
YJACK PRESS™ Pressure Gauge 67065
System pressure measurement
up to 725 psig (50 bar)
Integrated charging port to easily
adjust refrigerant charge
Working Pressure: -14.7 to 725
psig (-1.01 to 50 bar gauge)
YJACK VAC™ Vacuum Gauge 67066
System vacuum meaurement from
atmospheric pressure to 1 micron
Robust sensor resists pressure
shock and oil contamination
Electronic display for clear
visibility – even in direct sunlight
YJACK PATH™ Range Extender 67060
Connects and rebroadcasts up to
(6) YJACK
TITAN
Adds up to additional 400 ft. line-of-
sight signal range per device
Amplifies signal strength through difficult to penetrate barriers
™
probes and (2) P51-870
®
Digital Manifolds
YJACK™ Temperature Clamp 67061
Measures surface temperature of
pipes up to 1.25" diameter
Temperature clamp provides strong,
secure connection to system
Flexible cable connection for easy access
YJACK™ Temperature Strap 67062
Measurements for surface
temperature of pipes up to
6" diameter
Quick release latch
Elastic strap for secure connection
YJACK AMP™ Current Probe 67067
Current measurement up to
50 Amps AC
Current Sensor Accuracy: +/-1%
of reading or +/- 0.15 amps
Measures inrush current to analyze
hard starts and to troubleshoot
blown fuses
YJACK VIEW™ HIGHLIGHTS:
Compatible with all YJACK™ and P51-870
®
TITAN
Freely navigate between available session types
and multiple sessions at one time
Psychrometric System Efficiency and Leak Test sessions and
communication capabilities with YJACK PRESS
and YJACK AMP
Easily place and monitor status of all YJACK™ and P51-870
TITAN
Adjustable datalog formatting, multiple sampling intervals
Generate customized and detailed service reports capturing
system readings and equipment information
devices (firmware version v4.0 or later)
™
in v3.0+; YJACK MANO update to v4.0+
®
devices from one screen
™
, YJACK VAC™
Page 3
YJACK VIEW™ SMART APPLICATION:
• Measure HVAC/R system pressure,
temperature, saturation temperature,
superheat and subcooling
• Monitor system evacuation status
• Check indoor air comfort and system
efficiency with psychromeric air
calculations: percent relative humidity,
dry bulb, wet bulb and dew point
temperature measurements
• Perform system leak tests and track
pressure change over time
• Measure system charge with scale
weight readings during charging and recovery operations
• Take electrical current measurements and analyze critical
system power information
• Identify duct pressure changes and measure regulator
gas pressures
• Generate highly customized and detailed service
reports capturing system readings and equipment
information
™
• Monitor status of all nearby YJACK
®
devices
TITAN
and P51-870
• Freely switch between multiple simultaneous sessions
without loss of data
• Customize data view for each measurement
• Create data logs to be saved or emailed from your
smart device
• Choose from 126 refrigerant profiles found in the
REFPROP database
• Available on iOS (version 10 or later) and Android
™
(version 8 or later) smart devices
CREATE SERVICE REPORTS
PRESSURE / TEMPERATURE View
system pressure and temperature data
as reported by any combination of
™
YJACK PRESS
devices or P51-870 TITAN
devices, temperature
®
units. Easily
select and favorite commonly-used
refrigerants for calculating system
properties including saturation
temperatures and calculated system
superheat/subcooling. Effortlessly
manipulate data view types, including
traditional large numeric format, analog
gauge (pressure only) or graphically.
PSYCHROMETRIC SYSTEM
EFFICIENCY
Analyze psychrometric data reported
by (2) YJACK DEW
maximum comfort through wireless
supply and return relative humidity, dry
bulb, wet bulb, dew point temperatures
and enthalpy calculations. Compare
system-rated capacity to actual
output for overall system efficiency.
View available data as traditional
large numeric format or graphically.
™
devices. Ensure
EVACUATION
Monitor system vacuum as reported
by a P51-870 TITAN
vacuum sensor or the YJACK VAC
Wireless Vacuum Gauge. Data can be
displayed as traditional large numeric
format, analog gauge or graphically.
Adjustable vacuum pressure target and
hold timer ensures all non-condensable
gases are removed from the system
during evacuation.
®
external wired
™
Service report feature creates highly
customizable PDF reports of system
measurements and service information
while storing previous jobs and reports.
ENHANCED DATA LOGGING
Record data from one or all current
session types. Choose from a variety
of sampling rates depending on
user need. Live updates to selected
devices, units, elevation and refrigerant
selection appended to existing data
logs. Start and stop data logging at will
–
save for later or share via email for
remote analysis.
STATIC PRESSURE SESSION
Displays pressure readings from
™
MANO
for measurement of duct
pressure changes and regulator gas
pressure.
YJACK
LEAK TEST
Monitor pressure changes during
nitrogen leak testing to verify that
system is tight. View system pressure
trends as traditional large numeric
format or graphically.
CHARGING & RECOVERY
Display scale readings from the
Wireless Charging Scale (P/N 68864)
to accurately charge systems or to
determine system charge amount
through recovery.
ELECTRICAL
Electrical session displays readings
from YJACK AMP
Probe while calculating power draw
and system Energy Efficiency Ratio
(EER).
™
Wireless Current
Page 4
YJACK™ KITS
67070
YJACK™ Temperature
Clamp Kit
YJACK™ Temperature/
67071
Humidity Kit
P51-870 TITAN® DIGITAL MANIFOLD KIT
WITH YJACK
40877 KIT INCLUDES:
67072
YJACK™
Charging Kit
Charging & Air
67073
YJACK™
67074
YJACK™ Charging &
Evacuation Kit
YJACK VIEW™ APP SUPPORTED YELLOW JACKET® DEVICES:
•
•
P51-870 TITAN® Digital Manifold
•
YJACK PATH™ Range Extender
•
YJACK PRESS™ Pressure Gauge
•
YJACK VAC™ Vacuum Gauge
•
YJACK AMP™ Current Probe
YJACK™ Temperature Clamp
•
YJACK™ Temperature Strap
•
YJACK DEW™ Psychrometer
•
YJACK MANO™ Manometer
•
Wireless Refrigerant Scale
(P/N 68864)
YJACK VIEW™ App
Apple/App Store
- iPhone and iPad are registered trademarks of Apple Inc., registered in the U.S. and other countries.
- Android is a trademark of Google Inc.
- The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such
marks by Ritchie Engineering is under license.
Test Equipment Depot - 800.517.8431 - 5 Commonwealth Ave, MA 01801 - TestEquipmentDepot.com
YJACK VIEW™ App
Android™/Google Play
Firmware Updates
• Vacuum sensor (P/N 67030)
Set of (6) 60” manifold hoses:
•
(3) RYB compact ball valves (P/N 29985)
Kit
(1) Y 3/8” str x 3/8” 45° (
Compact ball valve 1/4” x 5/16” (P/N 29425 and 29465)
(2)
• (2) YJACK
• USB charging cable
• Backpack carrying case (P/N 10146)
UPC # Description
67060
67061
67062
67063
67065
67066
67067
67068
67070
67071
67072
67073
67074
40877
YJACK PATH
YJACK™ Temperature Clamp
YJACK™ Temperature Strap
YJACK DEW™ Psychrometer
YJACK PRESS™ Pressure Gauge
YJACK VAC™ Vacuum Gauge
YJACK AMP™ Current Probe
YJACK MANO™ Dual Port Manometer
YJACK™ Temperature Clamp Kit: (2) YJACK™ Temperature
Clamps, (1) YJACK PATH
YJACK™ Temperature/Humidity Kit: (2) YJACK™ Temperature
Clamps, (2) YJACK DEW™ Psychrometers, (1) YJACK PATH
YJACK™ Charging Kit: (2) YJACK PRESS™ Pressure Gauges,
(2) YJACK™ Temperature Clamps
YJACK™ Charging & Air Kit: (2) YJACK PRESS™ Pressure
Gauges, (2) YJACK™ Temperature Clamps, (2) YJACK
DEW™
YJACK™ Charging & Evacuation Kit: (2) YJACK PRESS
Pressure Gauges, (2) YJACK™ Temperature Clamps,(1)
YJACK VAC™ Vacuum Gauge
P51-870 TITAN® Digital Manifold with (2) YJACK
Clamps, Ball Valve and 5/16” Hoses
™
TEMPERATURE CLAMPS
P/N 18160)
™
Temperature Clamps (P/N 67061)
™
™
Psychrometers
©1/22 Ritchie Engineering Co. #10174
