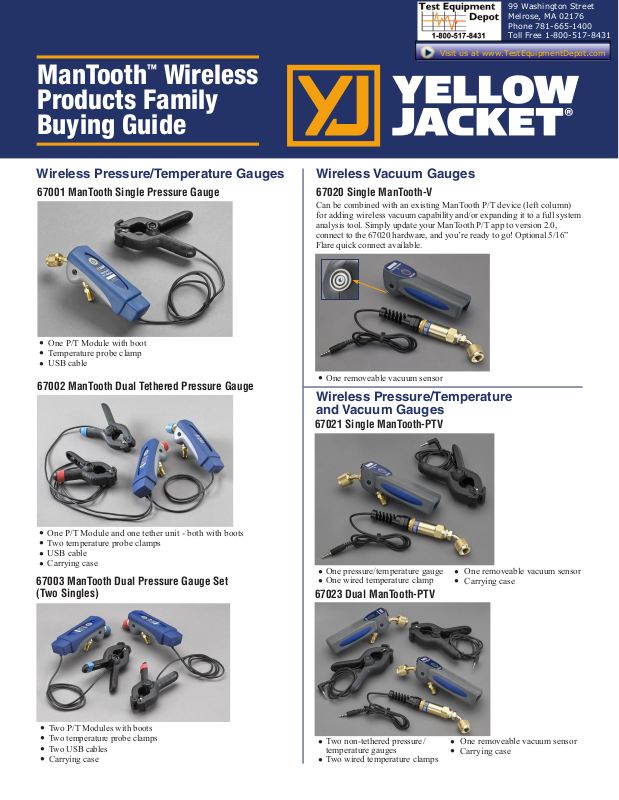

Page 1
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com
ManTooth™
Products
Wireless
Family
Buying Guide
Wireless Pressure/Temperature Gauges
67001
67002
ManTooth Single Pressure Gauge
●
One P/T Module with boot
●
Temperature probe clamp
●
USB cable
ManTooth Dual Tethered Pressure Gauge
Wireless Vacuum Gauges
67020 Single ManTooth-V
Can be combined with an existing ManTooth P/T device (left column)
for adding wireless vacuum capability and/or expanding it to a full system
analysis tool. Simply update your ManTooth P/T app to version 2.0,
connect to the 67020 hardware, and you’re ready to go! Optional 5/16”
Flare quick connect available.
●
One removeable vacuum sensor
Wireless Pressure/Temperature
and Vacuum Gauges
67021 Single ManTooth-PTV
●
One P/T Module and one tether unit - both with boots
●
Two temperature probe clamps
●
USB cable
Carrying case
●
67003
ManTooth Dual Pressure Gauge Set
(Two Singles)
●
Two P/T
●
Two temperature probe clamps
●
Two USB cables
●
Carrying case
Modules with boots
●
One pressure/temperature gauge
●
One wired temperature clamp
67023 Dual ManTooth-PTV
Two non-tethered pressure/
●
temperature gauges
●
Two wired temperature clamps
●
One removeable vacuum sensor
●
Carrying case
One removeable vacuum sensor
●
●
Carrying case
Page 2
XX
XX X
X X XX X
X X XX X
Product Comparisons
67020
Product Name ManTooth V
Description Side Grip Style Rubber Boot Style Side Grip Style Rubber Boot Style Rubber Boot Style Side Grip Style
Packaged Single Single Dual Tethered Dual Dual
Tethered X
Non-Tethered
Vacuum
Pressure
Temp
67001
ManTooth PT Single
67021 67002 67003 67023
ManTooth PTV Single ManTooth PT Dual ManTooth PT Dual ManTooth PTV Dual
Buyer’s Guide
I currently have I want to I need to purchase
67001
67002
67003
Nothing Measure pressure/temperature on one line 67001
Measure pressure/temperature on two lines 67001
Measure pressure/temperature on one line and get a vacuum reading
Measure pressure/temperature on two lines and get a vacuum reading 67021
Get a vacuum reading 67020
Get a vacuum reading 67020
Measure pressure/temperature on two lines 67002 or 67003
Measure pressure/temperature on one line and get a vacuum reading
Measure pressure/temperature on two lines and get a vacuum reading 67023
67020
67021
ManTooth App Version 2.0 Updates
●
Vacuum gauge
●
Data logging (one second increments); generates .csv report that you can easily send via email or text
●
Improved connectivity (self healing)
●
Select “favorites” on the refrigerants menu for fast look-up
●
“Quick start” feature
●
Predictive vacuum hold analysis to accelerate vacuum hold/leak test
●
Improved “readings” screen (new look)
●
English, Spanish, French, German and Dutch
UPC # Description
67001 ManTooth
67002 ManTooth
™ PT Single with Rubber Boot
™ PT Dual with Rubber Boot (Tethered)
Made for iPhone 6 Plus, iPhone 6, iPhone 5s,
iPad mimi 3, iPad with Retina display, iPad (4th generation), iPad (3rd generation), iPad 2
iPhone 5c, iPhone 5, iPhone 4s, iPhone 4, iPad Air 2,
67003 ManTooth™ PT Dual with Rubber Boot (Non-Tethered)
67020
67021
67023
ManTooth-V (Vacuum Only) with Side Grip
ManTooth-PTV Single with Side Grip
ManTooth-PTV Dual with Side Grip
- iPhone and iPad are registered trademarks of Apple Inc., registered in the U.S. and other countries.
- Android is a trademark of Google Inc.
- The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use
of such marks by Ritchie Engineering is under license. Other trademarks and trade names are those of their
respective owners.
UPC # Replacement Parts
67030 Replacment Sensor (67020, 67021, 67023)
67012 USB Cord
67013 Boot (67001, 67002)
67014 Carrying Case (67001, 67002, 67020, 67021, 67023)
93394 Tether Cap (67001, 67002, 67021, 67023)
19020 Hose Gaskets (10 pak)
19121 Straight
19221 90
19302 Valve Depressor (10 pak)
19305 Schrader Valve (10 pak)
5/16” Flare Quick Connect x 1/4” Male Flare Coupler
° 5/16” Flare Quick Connect x 1/4” Male Flare Coupler
Designed and
assembled in
the U.S.A
P/N 10035
