Operator’s Manual

English

Curved Shaft,

2-Cycle Trimmer

Model

YM25

IMPORTANT: Read safety rules and instructions carefully before operating equipment.

PRINTED IN U.S.A.



PART NO. 769-00570

(12/02)

TABLE OF CONTENTS

Content . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Page

Rules for Safe Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Know Your Trimmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Oil and Fuel Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Starting/Stopping Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Maintenance and Repair Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Cleaning and Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Inside Back Cover

FINDING MODEL NUMBER

This Operator’s Manual is an important part of your new trimmer. It will help you assemble, prepare and maintain the unit for best performance. Please read and understand what it says.

Before you start assembling your new equipment, please locate the model plate on the unit and copy the information from it onto the space provided below. The information on the model plate is very important if you need help from our Customer Support Department or an authorized dealer.

The model number is located on the engine. A sample model plate is shown and explained below. For future reference, please copy the model number and the serial number of the equipment in the space provided.



MODEL :

S/N :

ITEM :

Copy the model and parent part number here:

Copy the serial number here:

CALLING CUSTOMER SUPPORT

If you have difficulty assembling this product or have any questions regarding the controls, operation or maintenance of this unit, please call the Customer Support Department.

Call 1- (800)-345-8746, or 1- (800)-668-1238 in Canada, to reach a Customer Support representative. Please have your unit’s model number and serial number ready when you call. You will be asked to enter the serial number in order to process your call. This information is explained above.

VISIT OUR WEB SITE

Visit our web site at www.yardman.com for more information about our quality Yard Man products, customer service, parts, tips, literature and more.

2

SPARK ARRESTOR

NOTE: For users on U.S. Forest Land and in the states of California, Maine, Oregon and Washington. All U.S. Forest Land and the state of California (Public Resources Codes 4442 and 4443), Oregon and Washington require, by law that certain internal combustion engines operated on forest brush and/or grass-covered areas be equipped with a spark arrestor, maintained in effective working order, or the engine be constructed, equipped and maintained for the prevention of fire. Check with your state or local authorities for regulations pertaining to these requirements. Failure to follow these requirements could subject you to liability or a fine. This unit is factory equipped with a spark arrestor. If it requires replacement, ask your LOCAL SERVICE DEALER to install the accessory part #182747 Spark

Arrestor.

CALIFORNIA PROPOSITION 65 WARNING

WARNING

THE ENGINE EXHAUST FROM THIS PRODUCT CONTAINS CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER, BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM.

WARNING!

Read the Operator’s Manual and follow all warnings and safety instructions. Failure to do so can result in serious injury to the operator and/or bystanders.

FOR QUESTIONS, CALL 1-800-345-8746 IN U.S. OR 1-800-668-1238 in CANADA

SECTION 1: IMPORTANT SAFE OPERATION PRACTICES

The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and their explanations deserve your careful attention and understanding. The safety warnings do not by themselves eliminate any danger. The instructions or warnings they give are not substitutes for proper accident prevention measures.

SAFETY ALERT SYMBOL: Indicates danger, warning, or caution. Attention is required in order to avoid serious personal injury. May be used in conjunction with other symbols or pictographs.

NOTE: Advises you of information or instructions vital to the operation or maintenance of the equipment.

DANGER: Failure to obey a safety warning will result in serious injury to yourself or to others. Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury.

WARNING: Failure to obey a safety warning can result in injury to yourself and others. Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury.

CAUTION: Failure to obey a safety warning may result in property damage or personal injury to yourself or to others. Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury.

SECTION 1a: RULES FOR SAFE OPERATION

READ ALL INSTRUCTIONS

WARNING: When using the unit, you must follow the safety rules. For your own safety and that of bystanders, please read these instructions before operating the unit. Please keep the instructions for later use.

Before Operating

Read the instructions carefully. Be familiar with the controls and proper use of the unit.

Do not operate this unit when tired, ill or under the influence of alcohol, drugs or medication.

Children under the age of 15 must not use the unit; teens may operate the unit with adult guidance.

Inspect the unit before use. Replace damaged parts. Check for fuel leaks. Make sure all fasteners are in place and secure. Replace cutting attachment parts that are cracked, chipped or damaged in any way. Make sure the cutting attachment is properly installed and securely fastened. Be sure that the cutting attachment shield is properly attached, and positioned as recommended. Failure to do so can result in personal injury to the operator and bystanders, as well as damage to the unit.

Use only 0.080-inch (2.03 mm) diameter Genuine Factory Parts™ replacement line. Never use metalreinforced line, wire, chain or rope. These can break off and become dangerous projectiles.

3

Be aware of risk of injury to the head, hands and feet.

Clear the area to be cut before each use. Remove rocks, broken glass, nails, wire, string and other objects which may be thrown or become entangled in the cutting attachment. Clear the area of children, bystanders and pets; keep them outside a 50-foot (15 m.) radius, at a minimum. Even then, they are still at risk from thrown objects. Encourage bystanders to wear eye protection. If you are approached, stop the unit immediately.

Squeeze the throttle control and check that it returns automatically to the idle position. Make all adjustments or repairs before using the unit.

This unit was not designed to be used as a brushcutter. Do not attach or operate this unit with any type of brushcutting blade or brushcutting attachment.

Safety Warnings for Gas Trimmers

WARNING: Gasoline is highly flammable, and its vapors can explode if ignited. Take the following precautions:

Store fuel only in containers specifically designed and approved for the storage of such materials.

Always stop the engine and allow it to cool before filling the fuel tank. Never remove the fuel tank cap or add fuel when the engine is hot. Never operate the unit without the fuel cap securely in place. Loosen the fuel tank cap slowly to relieve any pressure in the tank.

Add fuel in a clean, well-ventilated outdoor area where there are no sparks or flames. Remove the fuel cap slowly, and only after the engine stops. Do not smoke while fueling or mixing fuel. Wipe up any spilled fuel from the unit immediately.

Avoid creating a source of ignition for spilled fuel. Do not start the engine until fuel vapors dissipate.

Move the unit at least 30 feet (9.1 m) from the fueling source and site before starting the engine. Do not smoke. Keep sparks and open flames away from the area while adding fuel or operating the unit.

While Operating

Never start or run the unit inside a closed room or building. Breathing exhaust fumes can be fatal. Operate this unit only in a well-ventilated outdoor area.

Wear safety glasses or goggles that meet ANSI Z87.1 standards and are marked as such. Wear ear/hearing protection when operating this unit. Wear a face or dust mask if the operation is dusty.

Wear heavy long pants, boots, gloves and a long sleeve shirt. Do not wear loose clothing, jewelry, short pants, sandals or go barefoot. Secure hair above shoulder level.

The cutting attachment shield must always be in place while operating the unit. Do not operate unit without both trimming lines extended, and the proper line installed. Do not extend the trimming line beyond the length of the shield.

This unit has a clutch. The cutting attachment remains stationary when the engine is idling. If it does not, have the unit adjusted by an authorized service technician.

Adjust the D-handle to your size in order to provide the best grip.

Be sure the cutting attachment is not in contact with anything before starting the unit.

Use the unit only in daylight or good artificial light.

Avoid accidental starting. Remain in the starting position whenever pulling the starter rope. The operator and unit must be in a stable position while starting. Refer to Starting/Stopping Instructions.

Use the right tool. Only use this tool for its intended purpose.

Do not overreach. Always keep proper footing and balance.

Always hold the unit with both hands when operating. Keep a firm grip on both handles or grips.

Keep hands, face, and feet at a distance from all moving parts. Do not touch or try to stop the cutting attachment when it rotates.

Do not touch the engine, gear housing or muffler. These parts get extremely hot from operation, even after the unit is turned off.

Do not operate the engine faster than the speed needed to cut, trim or edge. Do not run the engine at high speed when not cutting.

Always stop the engine when cutting is delayed or when walking from one cutting location to another.

If you strike or become entangled with a foreign object, stop the engine immediately and check for damage. Do not operate before repairing damage. Do not operate the unit with loose or damaged parts.

Stop the unit, switch the engine to off, and disconnect the spark plug for maintenance or repair.

Use only Genuine Factory Parts™ replacement parts and accessories for this unit. These are available from your authorized service dealer. Use of any unauthorized parts or accessories could lead to serious injury to the user, damage to the unit, and a voided warranty.

Keep unit clean of vegetation and other materials. They may become lodged between the cutting attachment and shield.

To reduce fire hazard, replace a faulty muffler and spark arrestor. Keep the engine and muffler free from grass, leaves, excessive grease or carbon build up.

Other Safety Warnings

Never store a fueled unit inside a building where fumes may reach an open flame or spark.

Allow the engine to cool before storing or transporting. Be sure to secure the unit while transporting.

Store the unit in a dry area, locked up or up high to prevent unauthorized use or damage, out of the reach of children.

Never douse or squirt the unit with water or any other liquid. Keep handles dry, clean and free from debris. Clean after each use, see Cleaning and Storage instructions.

Keep these instructions. Refer to them often and use them to instruct other users. If you loan someone this unit, also loan them these instructions.

SAVE THESE INSTRUCTIONS

4

SECTION 1b:SAFETY & INTERNATIONAL SYMBOLS

This operator's manual describes safety and international symbols and pictographs that may appear on this product. Read the operator's manual for complete safety, assembly, operating and maintenance and repair information.

SYMBOL

MEANING

SYMBOL

MEANING



• SAFETY ALERT SYMBOL



• THROWN OBJECTS AND



Indicates danger, warning or caution.



ROTATING CUTTER CAN





CAUSE SEVERE INJURY



May be used in conjunction with other



WARNING: Do not operate without



symbols or pictographs.







the cutting attachment shield in place.













Keep away from the rotating cutting



• WARNING - READ



attachment.









OPERATOR'S MANUAL





Read the operator’s manual(s) and follow all warnings and safety instructions. Failure to do so can result in serious injury to the operator and/or bystanders.

WEAR EYE AND HEARING PROTECTION

WARNING: Thrown objects and loud noise can cause severe eye injury and hearing loss. Wear eye protection meeting ANSI Z87.1 standards and ear protection when operating this unit.

Use a full face shield when needed.

• KEEP BYSTANDERS AWAY

WARNING: Keep all bystanders, especially children and pets, at least 50 feet (15 m) from the operating area.

• UNLEADED FUEL

Always use clean, fresh unleaded fuel.

• OIL

Refer to operator's manual for the proper type of oil.

• ON/OFF STOP CONTROL

ON / START / RUN

• ON/OFF STOP CONTROL

OFF or STOP

• HOT SURFACE WARNING

Do not touch a hot muffler, gear housing or cylinder. You may get burned. These parts get extremely hot from operation.

They remain hot for a short time after the unit is turned off.

• SHARP BLADE

WARNING: Sharp blade on cutting attachment shield. To prevent serious injury, do not touch line cutting blade.

5

SECTION 2: KNOW YOUR UNIT

Applications

As a trimmer:

Cutting grass and light weeds

Edging

Decorative trimming around trees, fences, etc.

Other optional accessories may be used with the YM25. Refer to Operating the EZ-Link System for a list of add-ons.

EZ-Start™ Lever

Fuel Cap

Starter Rope Grip

Shaft Grip

On/Off Stop Control

Throttle

Control

Shaft

Muffler Guard

Muffler

Spark Plug

EZ-Start

Lever

Line Cutting Blade



Stand

Muffler





Cutting Attachment



Spark Plug





Primer Bulb

6

SECTION 3: ASSEMBLY INSTRUCTIONS

On some units, the J-handle may be pre-installed. In this case you must loosen screws and adjust the handle to fit the operator. Go to step 4 if the J-handle is pre-installed.

Install and Adjust the D-handle

1.Remove the screws and bottom clamp piece that were installed on the D-handle for shipping.

2.Place D-handle the over the shaft housing and onto the bottom clamp. See Figure 1. Place it a minimum of 6 inches (15.24 cm) from the end of the shaft grip.

3.Start screws with a large Flat-head or T-25 Torx screwdriver. Do not tighten until you make the handle adjustment.

4.If it was pre-installed, loosen the screws on the D-handle just enough to move the D-handle.

Shaft Grip

(4) Screws

Shaft

Housing

On/Off Stop Control

Minimum 6 inches (15.24 cm)

D-Handle

Bottom Clamp

Figure 1

5.While holding the unit in the position the D-handle to the you the best grip. See Figure 2.

6.Tighten the clamp screws evenly, until the D-handle is secure.

Installing the Cutting Attachment Shield

Use the following instructions if the cutting attachment shield on your unit is not installed or if you ever need to re-install it.

WARNING: To prevent serious personal injury, never operate the trimmer without the cutting attachment shield in place.

1.Place the cutting attachment shield onto the shaft housing above the clamp assembly. See Figure 3.

2.Push the cutting attachment shield down to the top of the cutting attachment assembly and then rotate the cutting attachment shield until the screw holes align and the guard fits into the recessed pocket. See Figure 4.

3.Install the four (4) screws with a Phillips screwdriver. See Figure 5.

Clamp

Shaft Housing

Assembly



Cutting

Attachment

Assembly

Figure 3

Recessed

Pocket

Cutting Attachment

Shield

4

(4) Screws

Figure 2

Figure 5

7

SECTION 4: OIL AND FUEL INFORMATION

Oil and Fuel Mixing Instructions

Old and/or improperly mixed fuel is the main reason for improper unit performance. Be sure to use fresh, clean unleaded fuel. Follow the instructions carefully for the proper fuel/oil mixture.

Definition of Blended Fuels

Today's fuels are often a blend of gasoline and oxygenates such as ethanol, methanol, or MTBE (ether). Alcohol-blended fuel absorbs water. As little as 1% water in the fuel can make fuel and oil separate. It forms acids when stored. When using alcohol-blended fuel, use fresh fuel (less than 60 days old).

Using Blended Fuels

If you choose to use a blended fuel, or its use is unavoidable, follow recommended precautions:

Always use fresh fuel mix per your operator's manual

Always agitate the fuel mix before fueling the unit

Drain the tank and run the engine dry before storing the unit

Using Fuel Additives

Thoroughly mix the proper ratio of 2-cycle engine oil with unleaded gasoline in a separate fuel can. Use a 40:1 fuel/oil ratio. Do not mix them directly in the engine fuel tank. See the table below for specific gas and oil mixing ratios.

NOTE: One gallon (3.8 liters) of unleaded gasoline mixed with one 3.2 oz. (95 ml.) bottle of 2-cycle oil makes a 40:1 fuel/oil ratio.

+

UNLEADED GAS

2-CYCLE OIL

1 US. GALLON + 3.2 FL. OZ.

(3.8 LITERS)

(95 ml)

1 LITER + 25 ml

MIXING RATIO - 40:1

The bottle of 2-cycle oil that came with your unit contains a fuel additive which will help inhibit corrosion and minimize the formation of gum deposits. It is recommended that you use only our 2-cycle oil with this unit.

If unavailable, use a good 2-cycle oil designed for aircooled engines along with a fuel additive, such as STA-BIL® Gas Stabilizer or an equivalent. Add 0.8 oz. (23 ml.) of fuel additive per gallon of fuel according to the instructions on the container. NEVER add fuel additives directly to the unit's fuel tank.

CAUTION: For proper engine operation and maximum reliability, pay strict attention to the oil and fuel mixing instructions on the 2-cycle oil container. Using improperly mixed fuel can severely damage the engine.

WARNING: Gasoline is extremely flammable. Ignited vapors may explode. Always stop the engine and allow it to cool before filling the fuel tank. Do not smoke while filling the tank. Keep sparks and open flames at a distance from the area.

WARNING: Remove fuel cap slowly to avoid injury from fuel spray. Never operate the unit without the fuel cap securely in place.

WARNING: Add fuel in a clean, wellventilated outdoor area. Wipe up any spilled fuel immediately. Avoid creating a source of ignition for spilled fuel. Do not start the engine until fuel vapors dissipate.

NOTE: Dispose of the old fuel/oil mix in accordance to Federal, State and Local regulations.

8

SECTION 5: STARTING/STOPPING INSTRUCTIONS

Starting Instructions

WARNING: Operate this unit only in a wellventilated outdoor area. Carbon monoxide exhaust fumes can be lethal in a confined area.

WARNING: Avoid accidental starting. Make sure you are in the starting position when pulling the starter rope. See Figure 8. To avoid serious injury, the operator and unit must be in a stable position while starting.

To avoid serious personal injury, ensure any Add-On being used is installed correctly and secure before starting unit.

1.Mix gas with oil. Fill fuel tank with fuel/oil mixture. See Oil and Fuel Mixing Instructions.

2.Make sure the On/Off Stop Control is in the ON (I) position. See Figure 6.

3.Fully press and release the primer bulb 10 times, slowly, until FUEL IS VISIBLE IN THE PRIMER BULB. See Figure 7. If you can’t see fuel in the bulb, press and release the bulb as many times as it takes before you can see fuel in it.

4.Push the EZ-Start™ Lever to the left until it clicks and locks into place. See Figure 7.

5.With the unit in the starting position, DO NOT SQUEEZE THE THROTTLE CONTROL. See Figure 8. Pull the starter rope 5 times briskly, making sure the EZ-Start™ lever is pushed to the left. If the engine starts to run before the fifth pull, proceed to step 6. If the engine does not start, go back to step 3.

NOTE: When starting, the EZ-Start™ Lever will automatically click off when you squeeze the throttle control.

NOTE: If the outside temperature or engine temperature exceeds 90º F and the engine fails to start after 5 pulls, fully squeeze the throttle control and pull the starter rope briskly 3 to 8 more times. The engine should start within these pulls.

6.When the engine starts, squeeze the throttle control to warm up the engine for 5 to 10 seconds. The EZStart™ Lever will click off automatically. See Figure 7.

NOTE: if the engine stalls before you squeeze the throttle control, hold the throttle control and pull the starter rope until the trimmer starts.

NOTE: If the engine stalls while squeezing the throttle, go back to step 4.

NOTE: To start a warm engine, begin at step 4.

On/Off Stop Control

Stop/Off (O)

Start/On (I)

Throttle Control

Figure 6

Primer Bulb

EZ-Start™

Lever

Figure 7

Starter Rope

Throttle Control

Figure 8

Stopping Instructions

1.Release your hand from the throttle control. See Figure 8. Allow the engine to cool down by idling.

2.Push and hold the On/Off Stop Control in the OFF (O) position until the engine stops running. See Figure 6

9

SECTION 6: OPERATING INSTRUCTIONS

Operating the EZ-Link™ System

The EZ-Link™ system enables the use of these optional Add-Ons:

Blower/Vacuum . . . . . . . . . . . . . . . . . . . . . . . . . . BV720r Cultivator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GC720r Edger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LE720r Hedge Trimmer . . . . . . . . . . . . . . . . . . . . . . . . . . HS720r Snow Thrower . . . . . . . . . . . . . . . . . . . . . . . . . . . ST720r Straight Shaft Trimmer . . . . . . . . . . . . . . . . . . . . SS725r Tree Pruner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TP720r Turbo Blower . . . . . . . . . . . . . . . . . . . . . . . . . . . . TB720r

WARNING: Read and understand the operator’s manual for each add-on prior to operation.

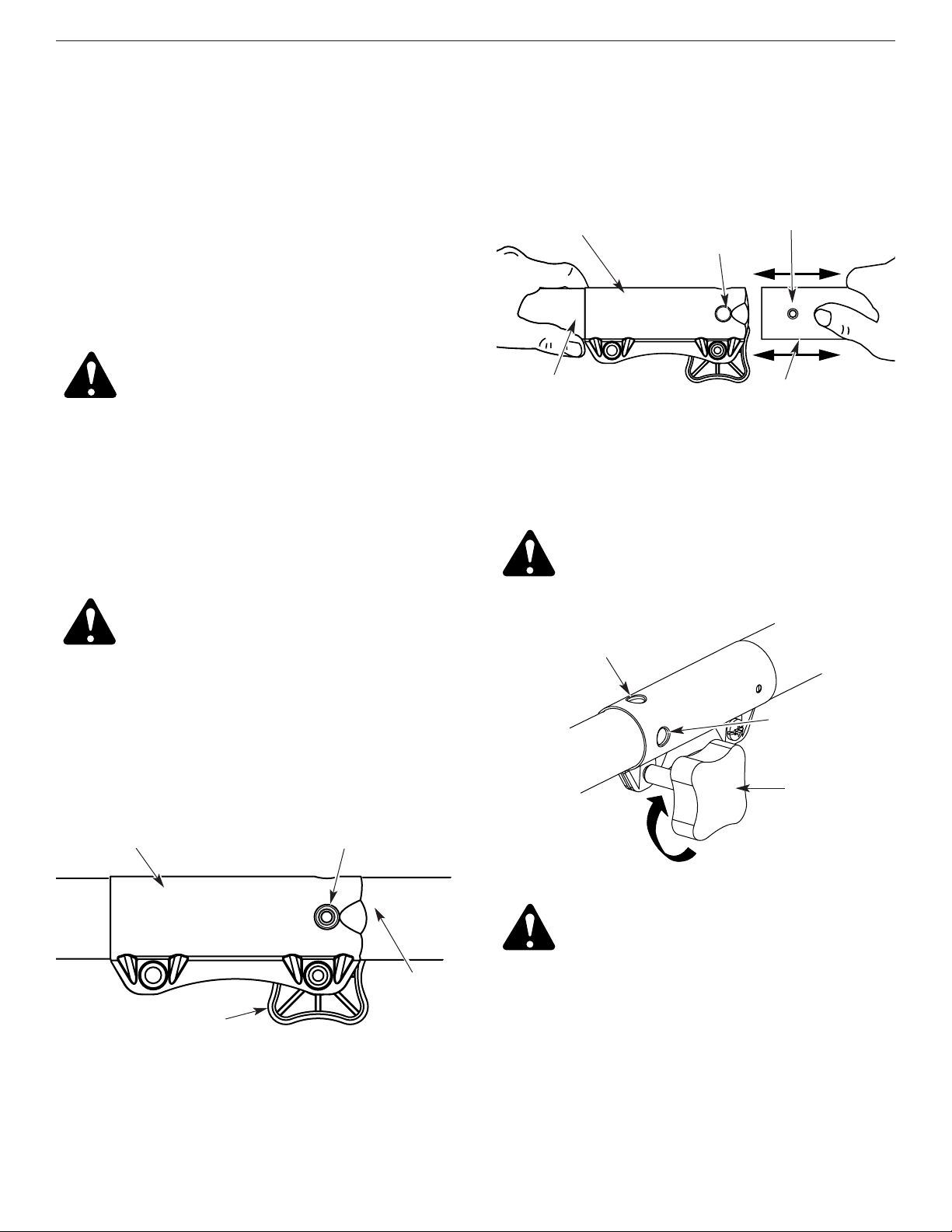

Removing the Cutting Attachment or Add-Ons

1.Turn the knob counterclockwise to loosen. See Figure 9.

2.Press and hold the release button. See Figure 9.

3.While firmly holding the upper shaft housing, pull the cutting attachment or add-on straight out of the EZ-Link™ coupler. See Figure 10.

Installing the Cutting Attachment or Add-On

WARNING: To avoid serious personal injury and damage to the unit, shut off the unit before removing or installing add-ons.

NOTE: Place the unit on the ground or on a work bench to make add-on installation or removal easier.

1. Turn knob counterclockwise to loosen.

EZ-Link™ Coupler

Release Button



Knob

Guide Recess

Figure 9

2.While firmly holding the add-on, push it straight into the EZ-Link™ coupler. See Figure 10.

NOTE: Aligning the release button with the guide recess will help installation. See Figure 9.

Release Button

EZ-Link™ Coupler

Primary Hole

Upper Shaft Housing

Lower Shaft Housing

Figure 10

3. Turn the knob clockwise to tighten. See Figure 11.

CAUTION: Lock the release button in the primary hole and securely tighten the knob before operating this unit

90˚ Edging Hole

(Trimmer Only)

180˚ Edging Hole

(Trimmer Only)

Knob

Figure 11

CAUTION: The cutting attachment and addons with the EZ-Link™ system are to be used in the primary hole unless stated otherwise in the specific add-ons operator’s manual.

Using the wrong hole could lead to personal injury or damage to the unit.

For edging (when using the line head cutting attachment with EZ-Link™ models), lock the release button of the cutting attachment into the 90° edging hole or the 180° edging hole. See Figure 11.

10

SECTION 6: OPERATING INSTRUCTIONS

Holding the Trimmer

WARNING: Always wear eye, hearing, foot and body protection to reduce the risk of injury when operating this unit.

Before operating the unit, stand in the operating position. See Figure 12. Check for the following:

The operator is wearing eye protection and proper clothing

With a slightly-bent right arm, the operator’s right hand is holding the shaft grip

The operator’s left arm is straight, the left hand holding the D-handle

The unit is at waist level

The cutting attachment is parallel to the ground and easily contacts the grass without the need to bend over

Figure 12

Adjusting Trimming Line Length

The Bump Head™ cutting attachment allows you to release trimming line without stopping the engine. To release more line, lightly tap the cutting attachment on the ground while operating the trimmer at high speed. See Figure 13.

NOTE: Always keep the trimming line fully extended. Line release becomes more difficult when the cutting line gets shorter.

NOTE: Do not rest the bump knob on the ground while the unit is running.

CAUTION: Do not remove or alter the line cutting blade assembly. Excessive line length may make the unit overheat.

Some line breakage will occur from:

Entanglement with foreign matter

Normal line fatigue

An attempt to cut thick, stalky weeds

Forcing the line into objects such as walls or fence posts

Tips for Best Trimming Results

For best trimming results, operate unit at full throttle.

Keep the cutting attachment parallel to the ground.

Do not force the cutting attachment. Allow the tip of the line to do the cutting, especially along walls. Cutting with more than the tip will reduce cutting efficiency and may overload the engine.

Cut grass over 8 inches (200 mm) tall by working from top to bottom in small increments to avoid premature line wear or engine drag.

Cut from right to left whenever possible. Cutting to the left improves the unit's cutting efficiency. Clippings are thrown away from the operator.

Slowly move the trimmer into and out of the cutting area at the desired height. Move either in a forward- to-backward or side-to-side motion. Cutting shorter lengths produces the best results.

Trim only when grass and weeds are dry.

The life of your cutting line is dependent upon:

Following the trimming techniques

What vegetation is being cut

Where vegetation is cut

For example, the line will wear faster when trimming against a foundation wall as opposed to trimming around a tree.

Figure 13

Each time the head is bumped, about 1 inch (25.4 mm) of trimming line releases. A blade in the cutting attachment shield will cut the line to the proper length if any excess line is released.

For best results, tap the bump knob on bare ground or hard soil. If you attempt a line release in tall grass, the engine may stall. Always keep the trimming line fully extended. Line release becomes more difficult when the cutting line gets shorter.

Decorative Trimming

Decorative trimming refers to the removal of vegetation around trees, posts, fences and more.

Rotate the whole unit so that the cutting attachment is at a 30° angle to the ground. See Figure 14.

Figure 14

11

SECTION 7: MAINTENANCE AND REPAIR INSTRUCTIONS

Maintenance Schedule

Perform these required maintenance procedures at the frequency stated in the table. These procedures should also be a part of any seasonal tune-up.

NOTE: Some maintenance procedures may require special tools or skills. If you are unsure about these procedures take your unit to any non-road engine repair establishment, individual or authorized service dealer.

WARNING: To prevent serious injury, never perform maintenance or repairs with unit running. Always service and repair a cool unit. Disconnect the spark plug wire to ensure that the unit cannot start.

NOTE: Maintenance, replacement, or repair of the emission control devices and system may be performed by any non-road engine repair establishment, individual or authorized service dealer.

In order to assure peak performance of your engine, inspection of the engine exhaust port may be necessary after 50 hours of operation. If you notice lost RPM, poor performance or general lack of acceleration, this service may be required. If you feel your engine is in need of this inspection, refer service to any non-road engine repair establishment, individual or authorized service dealer for repair. DO NOT attempt to perform this process yourself as engine damage may result from contaminants involved in the cleaning process for the port.

FREQUENCY

MAINTENANCE REQUIRED

REFER TO







Before starting engine

Fill fuel tank with fresh fuel

Page 8







Every 10 hours

Clean and re-oil air filter

Page 15







Every 25 hours

Check and clean spark arrestor

Page 16

Check spark plug condition and gap

Page 18









Every 50 hours

Inspect exhaust port and spark arrestor screen for clogging or

Page 16

obstruction to assure maximum performance levels











Line Installation

Always use Genuine Factory Parts™ 0.080 in. (2.03 mm) replacement line. Using line other than the specified may make the engine overheat or fail.

WARNING: Never use metal-reinforced line, wire, chain or rope. These can break off and become dangerous projectiles.

There are two methods to replace the trimming line:

Wind the inner reel with new line

Install a pre-wound inner reel

Winding the Inner Reel with New Line

NOTE: It is unnecessary to remove the bump knob to install new trimming line.

1.Cut two pieces of 0.080 inch (2.03 mm) trimming line, 10 feet (3 m) long.

2.Hold the outer spool and turn the inner reel counterclockwise to line up the arrows on the outer spool and inner reel. See Figure 15.

WARNING: Always use the correct line length when installing trimming line on the unit. The line may not release properly if the line is too long.

Top View Of The SpeedSpool®

Arrows

Outer Spool

Inner Reel

Bump Knob

Figure 15

12

SECTION 7: MAINTENANCE AND REPAIR INSTRUCTIONS

3.Pull old line out of the line loading and line locking holes. See Figure 16 and 17.

4.Insert a piece of trimming line straight into one of the two eyelets in the outer spool. Push it up through the line loading hole in the inner reel. See Figure 16. Do not bend the line when inserting it into the eyelet.

7.Repeat procedures 4-6 with the second piece of line.

8.Hold the outer spool. Wind the inner reel counterclockwise until approximately four (4) inches (102 mm) of line remain. See Figure 19.

NOTE: Do not wind the inner reel before installing the second piece of line.

Trimming Line

Eyelet

Line Loading Hole

Figure 16

Figure 19

5.Insert the line into the locking hole. Do not push the line more than a 1/2 inch (12.7 mm) into the line locking hole. The line will form a small loop when it is inserted correctly. See Figure 17.

9.If winding the line becomes difficult or if the line jams, pull the ends of the line from the spool. See Figure 20. Continue winding the inner reel counterclockwise.

Line Locking Hole

Figure 17

6.Pull the line from the outer spool until the line is tight against the inner reel. See Figure 18.

Figure 18

Figure 20

Installing a Pre-wound Reel

1.Turn the bump knob counterclockwise and remove the bump knob, spring and foam seal. See Figure 21.

Bump Knob

Foam Seal

Spring

Inner Reel

Figure 21

13

SECTION 7: MAINTENANCE AND REPAIR INSTRUCTIONS

2.Pull the old inner reel with existing line from the outer spool.

3.Insert the ends of the prewound inner reel line into the outer spool eyelets. See Figure 22. Push the new inner reel, arrow side up, into the outer spool.

4.Remove any existing line from the inner reel before cleaning. Remove any debris or grass from the knob, spring, inner reel and foam seal. Wash the inner reel with warm soapy water. See Figure 24.

Figure 22

4.Hold the inner reel in place and install the bump knob, spring and foam seal. Press down and turn the bump knob clockwise. Grasp the ends and pull firmly to release the line from the holding slots in the inner reel. See Figure 21.

Releasing the Inner Reel

If the SpeedSpool® does not release line correctly, pull the ends of the line firmly from the spool. See Figure 20. If this does not the release line, follow the Cleaning the SpeedSpool® instructions.

Cleaning the SpeedSpool®

Cleaning the SpeedSpool® may be necessary if:

A jammed or excessive line must be removed

The SpeedSpool® becomes difficult to wind or does not operate correctly when bumping the head on the ground

1.Hold the outer spool, and unscrew the bump knob counterclockwise. See Figure 23.

2.Pull out the bump knob, spring and foam seal.

Inner Reel

Figure 24

5.Clean the shaft and the inner surface of the outer spool. To clean the shaft underneath the plunger, press down on the plunger. See Figure 25. Remove any dirt or debris from the shaft.

Shaft

Plunger

Figure 25

NOTE: The inner reel must be totally dry before reinstalling it into the outer spool. Do not lubricate the inner reel or outer spool assembly.

6.Place the inner reel into the outer spool.

7.Place the bump knob, spring and foam seal into the inner reel. See Figure 21.

8.Press the bump knob down and tighten clockwise.

9.Install new line as described in Line Installation for the SpeedSpool®.

SpeedSpool® Replacement Parts

Refer to the Accessories/Replacement Parts section.

Figure 23

3.Pull the inner reel with existing line from the outer spool. See Figure 22.

14

SECTION 7: MAINTENANCE AND REPAIR INSTRUCTIONS

Air Filter Maintenance

Removing the Air Filter/Muffler Cover

WARNING: To avoid serious personal injury, always turn your trimmer off and allow it to cool before you clean or service it.

1.Remove the four (4) screws securing the air filter/ muffler cover. See Figure 26. Use a flat blade or T20 Torx bit screwdriver.

2.Pull the cover from the engine. Do not force.

EZ-Start™

Lever

Screws

Screws

Figure 26

Cleaning the Air Filter

WARNING: To avoid serious personal injury, always turn your trimmer off and allow it to cool before you clean it or perform any maintenance.

Clean and re-oil the air filter every 10 hours of operation. It is an important item to maintain. Failure to maintain the air filter will VOID the warranty.

1.Remove air filter/muffler cover. See Removing the Air Filter/Muffler Cover.

2.Turn cover over and look inside to locate the air filter. Remove the air filter from inside the air filter/muffler cover. See Figure 27.

3.Wash the filter in detergent and water. See Figure 28. Rinse the filter thoroughly. Squeeze out excess water. Allow it to dry completely.

4.Apply enough clean SAE 30 oil to lightly coat the filter. See Figure 29.

5.Squeeze the filter to spread and remove excess oil. See Figure 30.

Air Filter

Inside Muffler

Cover

Figure 27

Figure 28

Figure 29

Figure 30

15

SECTION 7: MAINTENANCE AND REPAIR INSTRUCTIONS

6.Replace the air filter inside the air filter/muffler cover. See Figure 27.

NOTE: Operating the unit without the air filter and air filter/muffler cover assembly, will VOID the warranty.

Reinstalling the Air Filter/Muffler Cover

1.Place the air filter/muffler cover over the back of the carburetor and muffler. Align the screw holes.

2.Insert the four (4) screws into the holes in the air filter/muffler cover and tighten. See Figure 26.

Do not over tighten.

Spark Arrestor Maintenance

1.Remove air filter/muffler cover. See Removing the Air Filter/Muffler Cover.

2.Locate muffler front and the two (2) bolts securing it to the engine. See Figure 31. Remove the two (2) bolts using a flatblade screwdriver or 5/16-inch socket or nut driver. Pull muffler off of the engine.

3.Turn muffler over to the back side and locate the exhaust gasket. Remove the muffler gasket from the muffler. See Figure 31.

NOTE: If the exhaust gasket is torn or damaged, replace it with a new gasket before reassembling muffler.

4.Using a small flatblade screwdriver, carefully pry up the spark arrestor from the recessed hole. See Figure 32. Remove the spark arrestor from the muffler.

5.Clean the spark arrestor with a wire brush. Replace it if it is damaged or if it is impossible to clean thoroughly. See Figure 32.

6.Reinstall the spark arrestor by pressing it into the recessed hole on the muffler's back side. Make sure it fits tightly against the muffler and is not raised up.

7.Place the exhaust gasket against muffler's back side. Align the gasket bolt holes with the bolt holes in the muffler. While holding exhaust gasket in place, insert the bolts into the muffler's front side. See Figure 31.

8.Place the muffler (with the exhaust gasket in place and bolts inserted), against the engine, aligning the bolt holes. Tighten the bolts to secure the muffler to the engine. If using a torque wrench torque to:

80-90 in.•lb. (9-10.2 N•m).

WARNING: If the muffler is not tightened securely, it could fall off causing damage to the unit and possible serious personal injury.

9. Reinstall the air filter/muffler cover.

Bolts

Spark

Exhaust



Arrestor

Gasket

Muffler - Front Side

Muffler - Back Side

Figure 31



Spark



Arrestor

Flat blade





Screwdriver

Spark Arrestor

Muffler - Back Side

Figure 32

16

SECTION 7: MAINTENANCE AND REPAIR INSTRUCTIONS

Carburetor Adjustment

The idle speed of the engine is adjustable through the air filter/muffler cover. See Figure 33.

NOTE: Careless adjustments can seriously damage your unit. An authorized service dealer should make carburetor adjustments.

Check Fuel Mixture

Old and/or improperly mixed fuel is usually the reason for improper unit performance. Drain and refill the tank with fresh, properly mixed fuel prior to making any adjustments. Refer to Oil and Fuel Information.

Clean Air Filter

The condition of the air filter is important to the operation of the unit. A dirty air filter will restrict air flow and change the air/fuel mixture. This is often mistaken for an out of adjustment carburetor. Check the condition of the air filter before adjusting the idle speed screw. Refer to Air Filter Maintenance.

Adjust Idle Speed

WARNING: The cutting attachment may spin during idle speed adjustments. Wear protective clothing and observe all safety instructions to prevent serious personal injury.

If, after checking the fuel mixture and cleaning the air filter, the engine still will not idle, adjust the idle speed as follows.

1.Start the engine and let it run at a high idle for a minute to warm up. See Starting/Stopping Instructions.

2.Release the throttle trigger and let the engine idle. If the engine stops, insert a small Phillips or flat blade screwdriver into the hole in the air filter/muffler cover. See Figure 33. Turn the idle speed screw in, clockwise, 1/8 of a turn at a time (as needed) until the engine idles smoothly.

NOTE: The cutting attachment should not rotate when the engine idles.

3.If the cutting attachment rotates when the engine idles, turn the idle speed screw counterclockwise 1/8 of a turn at a time (as needed), to reduce idle speed.

Checking the fuel mixture, cleaning the air filter, and adjusting the idle speed should solve most engine problems.

If this is not the case and the following are all true:

The engine will not idle

The engine hesitates or stalls on acceleration

There is a loss of engine power

Have the carburetor adjusted by an authorized service dealer.

WARNING: After turning the unit off, make sure the cutting attachment has stopped before setting the unit down. This helps prevent serious personal injury.

Idle Speed Screw

Figure 33

17

SECTION 7: MAINTENANCE AND REPAIR INSTRUCTIONS

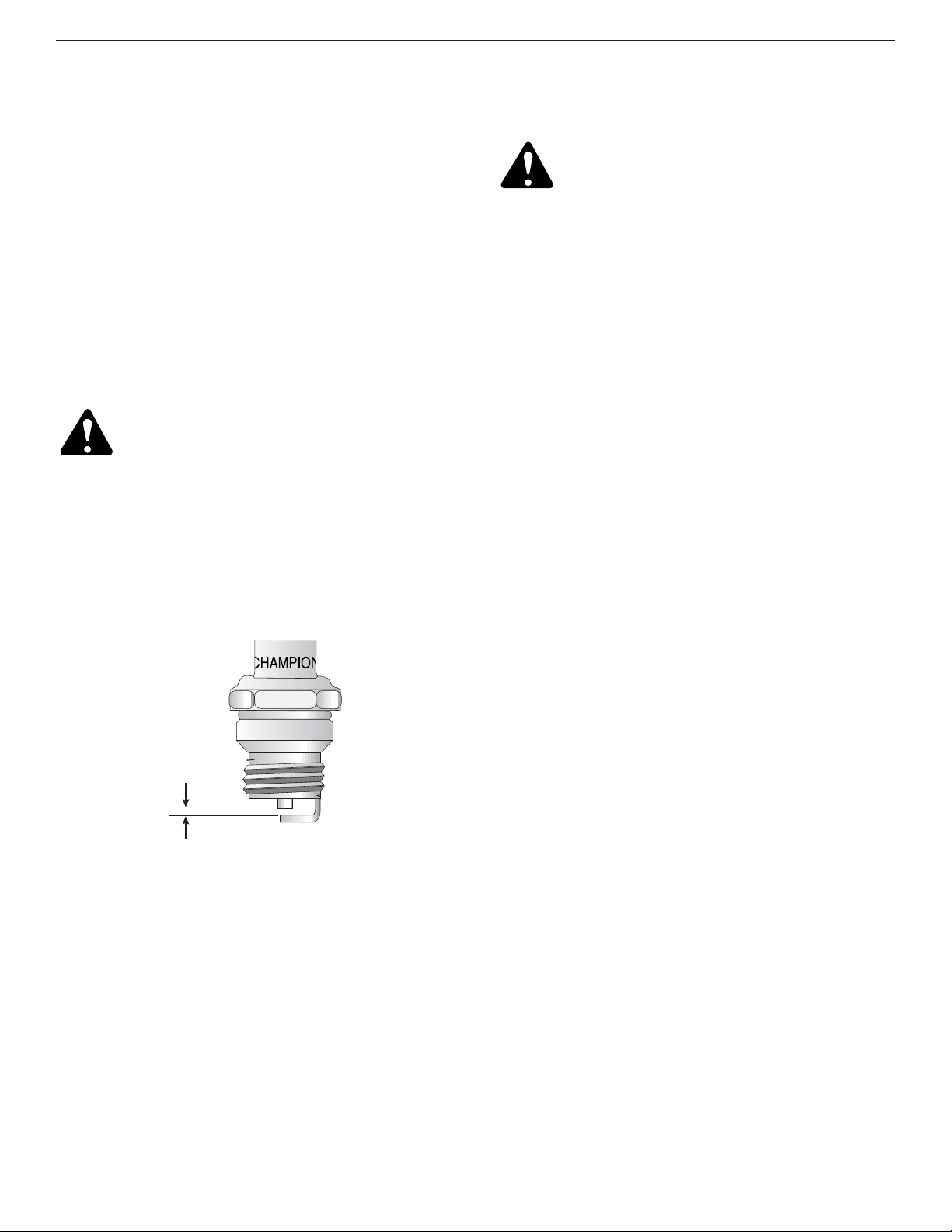

Replacing the Spark Plug

Use a Champion RDJ7Y spark plug (or equivalent). The correct air gap is 0.020 inch (0.5 mm). Remove the plug after every 25 hours of operation and check its condition.

1.Stop the engine and allow it to cool. Grasp the plug wire firmly and pull it from the spark plug.

2.Clean around the spark plug. Remove the spark plug from the cylinder head by turning a 5/8 in. socket counterclockwise.

3.Replace cracked, fouled or dirty spark plug. Set the air gap at 0.020 in. (0.5 mm) using a feeler gauge. See Figure 34.

CAUTION: Do not sand blast, scrape or clean electrodes. Grit in the engine could damage the cylinder.

4.Install a correctly-gapped spark plug in the cylinder head. Tighten by turning the 5/8 inch socket clockwise until snug.

If using a torque wrench torque to:

110-120 in.•lb. (12.3-13.5 N•m).

Do not over tighten.

Long Term Storage

If the unit will be stored for an extended time, use the following storage procedure:

1.Drain all fuel from the fuel tank into a container with the same 2-cycle fuel mixture. Do not use fuel that has been stored for more than 60 days. Dispose of the old fuel/oil mix in accordance to Federal, State, and Local regulations.

2.Start the engine and allow it to run until it stalls. This ensures that all fuel has been drained from the carburetor.

3.Allow the engine to cool. Remove the spark plug and put 1 oz. (30 ml) of any high quality motor oil or 2- cycle oil into the cylinder. Pull the starter rope slowly to distribute the oil. Reinstall the spark plug.

NOTE: Remove the spark plug and drain all of the oil from the cylinder before attempting to start the trimmer after storage.

4.Thoroughly clean the unit and inspect for any loose or damaged parts. Repair or replace damaged parts and tighten loose screws, nuts or bolts. The unit is ready for storage.



Transporting



• Allow the engine to cool before transporting.

0.020 in.

• Secure the unit while transporting.

(0.5 mm)

• Drain fuel from unit.





• Tighten fuel cap before transporting.



Figure 34

Cleaning

WARNING: To avoid serious personal injury, always turn your trimmer off and allow it to cool before you clean or service it.

Use a small brush to clean off the outside of the unit. Do not use strong detergents. Household cleaners that contain aromatic oils such as pine and lemon, and solvents such as kerosene, can damage plastic housing or handle. Wipe off any moisture with a soft cloth.

Storage

Never store the unit with fuel in the tank where fumes may reach an open flame or spark.

Allow the engine to cool before storing.

Store the unit locked up to prevent unauthorized use or damage.

Store the unit in a dry, well-ventilated area.

Store the unit out of the reach of children.

Accessories/Replacement Parts

2-Cycle Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147543

Spark Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610311

Spark Arrestor . . . . . . . . . . . . . . . . . . . . . . . . . . . .182747

Replacement Line . . . . . . . . . . . . . . . . . . . . . . . . 181472

Replacement Line Cartridge . . . . . . . . . . . . . . . . 181460

Inner Reel Spring . . . . . . . . . . . . . . . . . . . . . . . . . 181465

Outer Spool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181457

Inner Reel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181464

Bump Knob™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181468

Fuel Cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180000

Shoulder Strap . . . . . . . . . . . . . . . . . . . . . . . . . . . 682075

These replacement parts can be purchased from your local authorized dealer.

18

SECTION 8: TROUBLESHOOTING GUIDE

Trouble

Possible Cause(s)

Corrective Action







ENGINE WILL

• Empty fuel tank

• Fill fuel tank with properly-mixed fuel

NOT START

• Primer bulb wasn’t pressed enough

• Press primer bulb fully and slowly 10 times





• Engine is flooded

• Hold throttle control and pull starter rope until it starts



• Old or improperly mixed fuel

• Drain gas tank and add fresh fuel mixture



• Fouled spark plug

• Replace or clean spark plug



• Plugged spark arrestor

• Clean or replace the spark arrestor



• EZ-Start lever was not set

• Move lever to start







ENGINE WILL

• Air filter is plugged

• Replace or clean the air filter

NOT IDLE

• Old or improperly mixed fuel

• Drain gas tank and add fresh fuel mixture





• Improper carburetor adjustment

• Adjust according to the Carburetor Adjustment section







ENGINE WILL

• Old or improperly mixed fuel

• Drain gas tank and add fresh fuel mixture

NOT

• Improper carburetor adjustment

• Take to an authorized service dealer for adjustment

ACCELERATE

• Cutting attachment bound with grass

• Stop the engine and clean the cutting attachment





• Dirty air filter

• Clean or replace the air filter



• Plugged spark arrestor

• Clean or replace spark arrestor







ENGINE

• Old or improperly mixed fuel

• Drain gas tank and add fresh fuel mixture

LACKS

• Improper carburetor adjustment

• Take to an authorized service dealer for adjustment

POWER OR

• Fouled spark plug

• Replace or clean spark plug

STALLS WHEN

• Plugged spark arrestor

• Clean or replace the spark arrestor

CUTTING







CUTTING

• Cutting attachment bound with grass

• Stop the engine and clean cutting attachment

ATTACHMENT

• Cutting attachment out of line

• Refill with new line

WILL NOT

• Inner reel bound up

• Replace the inner reel

ADVANCE LINE

• Cutting head is dirty

• Clean inner reel and outer spool





• Line welded

• Disassemble, remove the welded section and rewind



• Line twisted when refilled

• Disassemble and rewind the line



• Not enough line is exposed

• Push the bump knob and pull out line until 4 inches





(102 mm) of line is outside of the cutting attachment







CUTTING LINE

• Oil is in the cutting head

• Clean the cutting head attachment

ADVANCES





WILDLY











If further assistance is required, contact your authorized service dealer

19

SECTION 9: SPECIFICATIONS

Engine*

Engine Type...........................................................................................................................................

Air-Cooled, 2-Cycle

Stroke ...................................................................................................................................................

1.25 in. (31.75 mm.)

Displacement.............................................................................................................................................

1.9 cu in. (31 cc.)

Operating RPM...................................................................................................................................................

7,200+ rpm

Idle Speed RPM .......................................................................................................................................

2,800 - 4,400 rpm

Ignition Type..........................................................................................................................................................

Electronic

Ignition Switch ...............................................................................................................................................

Rocker Switch

Spark Plug Gap ......................................................................................................................................

0.020 in. (0.5 mm.)

Lubrication...................................................................................................................................................

Fuel/Oil Mixture

Fuel/Oil Ratio..................................................................................................................................................................

40:1

Carburetor.......................................................................................................................................

Diaphragm, All-Position

Starter...............................................................................................................................................................

Auto Rewind

Muffler .....................................................................................................................................................

Baffled with Guard

Throttle...............................................................................................................................................

Manual Spring Return

Fuel Tank Capacity....................................................................................................................................

13.5 oz. (400 ml.)

Drive Shaft and Cutting Attachment*

Drive Shaft Housing ............................................................................................................................................



Steel Tube

Throttle Control ........................................................................................................................................



Finger-Tip Trigger

Approximate Unit Weight (No fuel, with string cutting head, string guard and D-handle)

............................. 13 lbs. (6 kg.)

Cutting Mechanism................................................................................................

SpeedSpool® Dual String Cutting Head

Shoulder Strap ........................................................................................................................................................



Optional

Line Spool Diameter....................................................................................................................................



3 in. (76.2 mm.)

Trimming Line Diameter ........................................................................................................................



0.080 in. (2.03 mm.)

Cutting Path Diameter ...............................................................................................................................



17 in. (43.18 cm.)

*All specifications are based on the latest product information available at the time of printing. We reserve the right to make changes at any time without notice.

20

EPA Emission Control Warranty Statement

Your Warranty Rights and Obligations

The Environmental Protection Agency and MTD LLC (MTD) are pleased to explain the emission control system warranty on your 2002 and later small off-road engine. New small off-road engines must be designed, built and equipped to meet stringent anti-smog standards. Yard Man must warrant the emission control system on your small off-road engine for the periods of time listed below provided there has been no abuse, neglect or improper maintenance of your small offroad engine.

Your emission control system may include parts such as the carburetor or fuel-injected system, the ignition system, and catalytic converter. Also included may be hoses, belts, connectors and other emission-related assemblies.

Where a warrantable condition exists, Yard Man will repair your small off-road engine at no cost to you including diagnosis, parts and labor.

The 2002 and later small off-road engines are warranted for two years. If any emission-related part on your engine is defective, the part will be repaired or replaced my Yard Man.

Owners Warranty Responsibilities

As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in your operator’s manual. Yard Man recommends that you retain all receipts covering maintenance on your small off-road engine, but Yard Man cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance.

As the small off-road engine owner, you however should be aware that Yard Man may deny you warranty coverage if your small off-road engine or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications.

You are responsible for presenting your small off-road engine to a Yard Man Authorized Service Center as soon as a problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.

If you have any questions regarding your warranty rights and responsibilities, you should call 1-800-345-8746.

Manufacturer’s Warranty Coverage

The warranty period begins on the date the engine or equipment is delivered to the retail purchaser.

The manufacturer warrants to the initial owner and each subsequent purchaser, that the engine is free from defects in material and workmanship which cause the failure of a warranted part for a period of two years.

Repair or replacement of warranted part will be performed at no charge to the owner at an Authorized Yard Man Service Center. For the nearest location please contact Yard Man at: 1-800-345-8746.

Any warranted part which is not scheduled for replacement, as required maintenance or which is scheduled for only for regular inspection to the effect of “Repair or Replace as Necessary” is warranted for the warranty period. Any warranted part which is scheduled for replacement as required maintenance will be warranted for the period of time up to the first scheduled replacement point for that part.

The owner will not be charged for diagnostic labor which leads to the determination that a warranted part is defective, if the diagnostic work is performed at an Authorized Yard Man Service Center.

The manufacturer is liable for damages to other engine components caused by the failure of a warranted part still under warranty.

Failures caused by abuse, neglect or improper maintenance are not covered under warranty.

The use of add-on or modified parts can be grounds for disallowing a warranty claim. The manufacturer is not liable to cover failures of warranted parts caused by the use of add-on or modified parts.

In order to file a claim, go to your nearest Authorized Yard Man Service Center. Warranty services or repairs will be provided at all Authorized Yard Man Service Centers.

Any manufacturer approved replacement part may be used in the performance of any warranty maintenance or repair of emission related parts and will be provided without charge to the owner. Any replacement part that is equivalent in performance or durability may be used in non-warranty maintenance or repair and will not reduce the warranty obligations of the manufacturer

The following components are included in the emission related warranty of the engine, air filter, carburetor, primer, fuel lines, fuel pick up/ fuel filter, ignition module, spark plug and muffler.

21

+ 47 hidden pages
