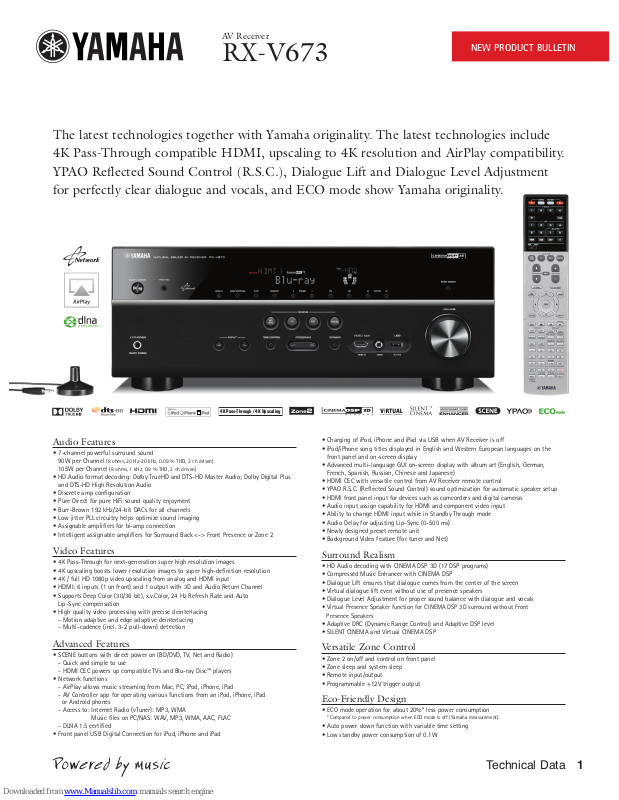

Yamaha RX-V673BL, RX-V673 Specifications

AV Receiver

RX-V673

NEW PRODUCT BULLETIN

Technical Data

1

• Charging of iPod, iPhone and iPad via USB when AV Receiver is off

• iPod/iPhone song titles displayed in English and Western European languages on the
front panel and on-screen display

• Advanced multi-language GUI on-screen display with album art (English, German,
French, Spanish, Russian, Chinese and Japanese)

• HDMI CEC with versatile control from AV Receiver remote control

• YPAO R.S.C. (Reflected Sound Control) sound optimization for automatic speaker setup

•

HDMI front panel input for devices such as camcorders and digital cameras

• Audio input assign capability for HDMI and component video input

• Ability to change HDMI input while in Standby Through mode

• Audio Delay for adjusting Lip-Sync (0-500 ms)

• Newly designed preset remote unit

• Background Video feature (for tuner and Net)

Surround Realism

• HD Audio decoding with CINEMA DSP 3D (17 DSP programs)

• Compressed Music Enhancer with CINEMA DSP

• Dialogue Lift ensures that dialogue comes from the center of the screen

• Virtual dialogue lift even without use of presence speakers

• Dialogue Level Adjustment for proper sound balance with dialogue and vocals

• Virtual Presence Speaker function for CINEMA DSP 3D surround without Front
Presence Speakers

• Adaptive DRC (Dynamic Range Control) and Adaptive DSP level

• SILENT CINEMA and Virtual CINEMA DSP

Versatile Zone Control

• Zone 2 on/off and control on front panel

• Zone sleep and system sleep

• Remote input/output

• Programmable +12V trigger output

Eco-Friendly Design

• ECO mode operation for about 20%* less power consumption

* Compared to power consumption when ECO mode is off (Yamaha measurement).

• Auto power down function with variable time setting

• Low standby power consumption of 0.1W

Audio Features

• 7-channel powerful surround sound
90W per Channel

(8 ohms, 20 Hz-20 kHz, 0.09 % THD, 2 ch driven)

105W per Channel (8 ohms, 1 kHz, 0.9 % THD, 2 ch driven)

• HD Audio format decoding: Dolby TrueHD and DTS-HD Master Audio; Dolby Digital Plus
and DTS-HD High Resolution Audio

• Discrete amp configuration

• Pure Direct for pure HiFi sound quality enjoyment

• Burr-Brown 192 kHz/24-bit DACs for all channels

• Low jitter PLL circuitry helps optimize sound imaging

• Assignable amplifiers for bi-amp connection

• Intelligent assignable amplifiers for Surround Back <-> Front Presence or Zone 2

Video Features

• 4K Pass-Through for next-generation super high resolution images

• 4K upscaling boosts lower resolution images to super high-definition resolution

• 4K / full HD 1080p video upscaling from analog and HDMI input

• HDMI: 6 inputs (1 on front) and 1 output with 3D and Audio Return Channel

• Supports Deep Color (30/36 bit), x.v.Color, 24 Hz Refresh Rate and Auto
Lip-Sync compensation

• High quality video processing with precise deinterlacing

- Motion adaptive and edge adaptive deinterlacing

- Multi-cadence (incl. 3-2 pull-down) detection

Advanced Features

• SCENE buttons with direct power on (BD/DVD, TV, Net and Radio)

- Quick and simple to use

- HDMI CEC powers up compatible TVs and Blu-ray Disc™ players

• Network functions

- AirPlay allows music streaming from Mac, PC, iPod, iPhone, iPad

- AV Controller app for operating various functions from an iPod, iPhone, iPad

or Android phones

- Access to: Internet Radio (vTuner): MP3, WMA

Music files on PC/NAS: WAV, MP3, WMA, AAC, FLAC

- DLNA 1.5 certified

• Front panel USB Digital Connection for iPod, iPhone and iPad

4K Pass-Through / 4K Upscaling

The latest technologies together with Yamaha originality. The latest technologies include
4K Pass-Through compatible HDMI, upscaling to 4K resolution and AirPlay compatibility.
YPAO Reflected Sound Control (R.S.C.), Dialogue Lift and Dialogue Level Adjustment
for perfectly clear dialogue and vocals, and ECO mode show Yamaha originality.

Technical Data

2

AV Receiver

RX-V673

NEW PRODUCT BULLETIN

P10023859UC-RXV673@NPB

Main Specifications

Audio Section

Rated Output Power (8 ohms, 20 Hz-20 kHz, 0.09 % THD, 2 ch driven)

Front L/R 90 W + 90 W
Center 90 W
Surround L/R 90 W + 90 W
Surround Back L/R 90 W + 90 W

Rated Output Power (8 ohms, 1 kHz, 0.9 % THD, 2 ch driven)

Front L/R 105 W + 105 W
Center 105 W
Surround L/R 105 W + 105 W
Surround Back L/R 105 W + 105 W

Dynamic Power/Ch (Front L/R, 8/6/4/2 ohms) 130/170/200/240 W

General

Standby Power Consumption

HDMI Control off, Standby Through off 0.1 W
HDMI Control on, Standby Through on 3.0 W
Network Standby Through on 2.0 W

Dimensions (W x H x D)

17-1/8” x 6-3/4” x 14-3/8”
435 x 171 x 364 mm

Weight 22.5 lbs.; 10.2 kg

• “Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not

responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance. AirPlay, the AirPlay logo, iPhone, iPod, iPod classic, iPod nano,
iPod touch, and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc. • Dolby and the double-D symbol are registered trademarks of Dolby Laboratories. • DTS, DTS-HD, the Symbol, & DTS or DTS-HD and the
Symbol together are registered trademarks of DTS, Inc. • HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. • Burr-Brown products are trademarks of Texas Instruments, Inc. • “x.v.Color” is
a trademark of Sony Corporation. • CINEMA DSP is a trademark of Yamaha Corporation. • SILENT CINEMA is a trademark of Yamaha Corporation. • Product designs and specifications are subject to change without notice.

Optional Accessories

AV receiver

BD Player

Internet

PC

NAS

YWA-10

Wireless

Router

Wireless

WiFi Adapter for Wireless Streaming of
Additional Music Sources

The YWA-10 makes it possible to stream music wirelessly to the
AV receiver from a PC, NAS and internet. 2 LAN port design
supports connection of other network device such as Blu-ray
player. Power is supplied from the AV receiver via USB.

Inputs

HDMI*1(Audio Input Assignable*2)6
Network 1
USB*1/*

3

2
Radio Antenna (FM/AM) 1 / 1
Optical Digital 2
Coaxial Digital 2
Analog Audio 4
Component Video (Audio Input Assignable) 2
Composite Video*

1

5
*1Including front panel terminals.
*

2

Front HDMI input is not assignable.

*

3

USB terminal on rear panel is only for optional accessory's power supply.

Outputs

HDMI 1
Analog Audio 1
Analog AV 1
Component Video Monitor 1
Composite Monitor 1
Composite AV 1
Speaker (without subwoofer)*4/*

5

7ch / 9 ter
Subwoofer 2 x mono
Headphone Jack 1
*4Assignable for surround back L/R to bi-amp (front L/R).
*

5

Extra speaker terminals are assignable to Zone 2 or Presence.

Others

Zone 2 Audio Out 1
Remote In/Out 1 / 1
+12V/0.1A Trigger Out 1

Extensive Connections

Network Functions Add More
Convenience: AirPlay and AV Controller

AirPlay allows music streaming
from Mac, PC, iPod, iPhone,
iPad. The AV Controller app
lets you easily operate
various functions from
an iPod, iPhone, iPad
or Android
device.

YPAO R.S.C. Automatically Optimizes
the Sound for Any Room

YPAO R.S.C. (Reflected Sound Control) analyzes room
acoustics, then precisely calibrates audio parameters
to match the acoustics of the room for optimum
sound. It corrects the negative effects of reflected
sounds to realize studio-grade sound.
DSP Effect Normalization helps
provide appropriate DSP effect
levels according
to the room’s
characteristics.

Non-4K signals

(standard def, etc.)

4K signal

4K signal

AV Receiver

4K compatible

TV

n-4K sig

non

als

No

a

ndard def, et

a

e

tc.

)

(

s

sign

a

BD player, game machine etc.

4K compatible video source

4

K

Upscaling

4K Pass
Through

WiFi Adapter
YWA-10

4K Pass-Through and Upscaling Supports
Latest High Resolution Video Formats

The RX-V673’s HDMI input/output supports 4K video
image pass-through. It also can perform 4K upscaling
to boost a lower resolution image to super high-def
resolution. This ensures compatibility with the latest
super high resolution video formats.
