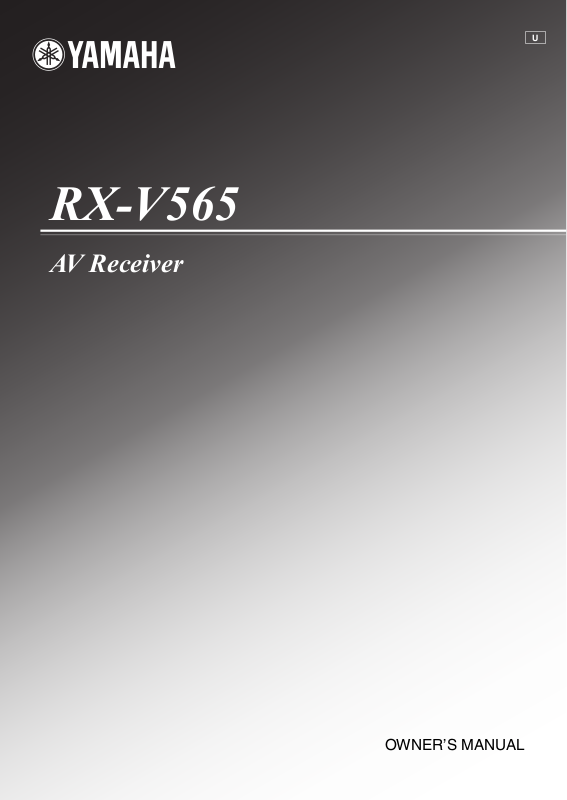

Yamaha RX V565 User Manual

RX-V565

AV Receive r

OWNER’S MANUAL

IMPORTANT SAFETY INSTRUCTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

• Explanation of Graphical Symbols

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

1 Read these instructions. 2 Keep these instructions. 3 Heed all warnings. 4 Follow all instructions. 5 Do not use this apparatus near water. 6 Clean only with dry cloth. 7 Do not block any ventilation openings. Install in accordance

with the manufacturer’s instructions.

8 Do not install near any heat sources such as radiators, heat

registers, stoves, or other apparatus (including amplifiers) that produce heat.

9 Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10 Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11 Only use attachments/accessories specified by the

manufacturer.

12 Use only with the cart, stand, tripod, bracket,

or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13 Unplug this apparatus during lightning storms or when

unused for long periods of time.

14 Refer all servicing to qualified service personnel. Servicing

is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

FCC INFORMATION (for US customers)

1 IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!

This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product.

2 IMPORTANT:

and/or another product use only high quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.

3NOTE:

the requirements listed in FCC Regulations, Part 15 for Class “B” digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices. This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices.

When connecting this product to accessories

This product has been tested and found to comply with

Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the unit “OFF” and “ON”, please try to eliminate the problem by using one of the following measures:

Relocate either this product or the device that is being affected by the interference.

Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s.

In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to coaxial type cable.

If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Electronics Corp., U.S.A. 6660 Orangethorpe Ave, Buena Park, CA 90620.

The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries.

Caution-i En

Caution: Read this before operating your unit.

1 To assure the finest performance, please read this manual

carefully. Keep it in a safe place for future reference.

2 Install this sound system in a well ventilated, cool, dry, clean

place – away from direct sunlight, heat sources, vibration, dust, moisture, and/or cold. Allow ventilation space of at least 30 cm on the top, 20 cm on the left and right, and 20 cm on the back of this unit.

3 Locate this unit away from other electrical appliances, motors,

or transformers to avoid humming sounds.

4 Do not expose this unit to sudden temperature changes from

cold to hot, and do not locate this unit in an environment with high humidity (i.e. a room with a humidifier) to prevent condensation inside this unit, which may cause an electrical shock, fire, damage to this unit, and/or personal injury.

5 Avoid installing this unit where foreign objects may fall onto

this unit and/or this unit may be exposed to liquid dripping or splashing. On the top of this unit, do not place: – Other components, as they may cause damage and/or

discoloration on the surface of this unit.

– Burning objects (i.e. candles), as they may cause fire,

damage to this unit, and/or personal injury.

– Containers with liquid in them, as they may fall and liquid

may cause electrical shock to the user and/or damage to this unit.

6 Do not cover this unit with a newspaper, tablecloth, curtain,

etc. in order not to obstruct heat radiation. If the temperature inside this unit rises, it may cause fire, damage to this unit, and/or personal injury.

7 Do not plug in this unit to a wall outlet until all connections

are complete.

8 Do not operate this unit upside-down. It may overheat,

possibly causing damage.

9 Do not use force on switches, knobs and/or cords. 10 When disconnecting the power cable from the wall outlet,

grasp the plug; do not pull the cable.

11 Do not clean this unit with chemical solvents; this might

damage the finish. Use a clean, dry cloth.

12 Only voltage specified on this unit must be used. Using this

unit with a higher voltage than specified is dangerous and may cause fire, damage to this unit, and/or personal injury. Yamaha will not be held responsible for any damage resulting from use of this unit with a voltage other than specified.

13 To prevent damage by lightning, keep the power cord and

outdoor antennas disconnected from a wall outlet or the unit during a lightning storm.

14 Do not attempt to modify or fix this unit. Contact qualified

Yamaha service personnel when any service is needed. The cabinet should never be opened for any reasons.

15 When not planning to use this unit for long periods of time

(i.e. vacation), disconnect the AC power plug from the wall outlet.

16 Install this unit near the AC outlet and where the AC power

plug can be reached easily.

17 Be sure to read the “Troubleshooting” section on common

operating errors before concluding that this unit is faulty.

18 Before moving this unit, press ASTANDBY/ON to set this

unit in the standby mode, and disconnect the AC power plug from the wall outlet.

19 VOLTAGE SELECTOR (Asia and General models only)

The VOLTAGE SELECTOR on the rear panel of this unit must be set for your local main voltage BEFORE plugging into the AC wall outlet. Voltages are:

.......AC 110/120/220/230–240 V, 50/60 Hz (General model)

.......................... AC 220/230–240 V, 50/60 Hz (Asia model)

20 The batteries shall not be exposed to excessive heat such as

sunshine, fire or like.

21 Excessive sound pressure from earphones and headphones can

cause hearing loss.

22 When replacing the batteries, be sure to use batteries of the

same type. Danger of explosion may happen if batteries are incorrectly replaced.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by ASTANDBY/ON. In this state, this unit is designed to consume a very small quantity of power.

FOR CANADIAN CUSTOMERS

To prevent electric shock, match wide blade of plug to wide slot and fully insert. This Class B digital apparatus complies with Canadian ICES-003.

POUR LES CONSOMMATEURS CANADIENS

Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu’au fond. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

IMPORTANT

Please record the serial number of this unit in the space below. MODEL: Serial No.: The serial number is located on the rear of the unit. Retain this Owner’s Manual in a safe place for future reference.

Caution-ii En

Contents

INTRODUCTION

Features.................................................................... 2

About this manual................................................... 3

Supplied accessories................................................3

Part names and functions ....................................... 4

Front panel ................................................................. 4

Rear panel .................................................................. 5

Front panel display..................................................... 6

Remote control........................................................... 7

Quick start guide.....................................................8

PREPARATION

Preparing remote control ....................................... 9

Installing batteries in the remote control ................... 9

Using the remote control............................................ 9

Connections ........................................................... 10

Placing speakers....................................................... 10

Connecting speakers ................................................ 11

Information on jacks and cable plugs ...................... 13

Connecting a TV monitor or projector .................... 14

Connecting other components ................................. 15

Connecting a Yamaha iPod universal dock or

Bluetooth™ wireless audio receiver.................... 16

Using the VIDEO AUX jacks on the front panel ....16

Connecting the FM and AM antennas ..................... 17

Connecting the power cable..................................... 17

Turning this unit on and off ..................................... 17

Optimizing the speaker setting for your listening

room (YPAO) .................................................... 18

Using Auto Setup..................................................... 18

When an error message is displayed during

measurement ........................................................ 20

When a warning message is displayed after

measurement ........................................................ 20

BASIC OPERATION

Playback................................................................. 21

Basic procedure........................................................ 21

Using the SCENE function ...................................... 21

Muting audio output temporarily (MUTE) ..............22

Adjusting high/low frequency sound (tone control) 22

Enjoying pure hi-fi sound ........................................ 22

Using the sleep timer ............................................... 22

Using your headphones............................................ 22

Displaying input signal information ........................ 23

Changing information on the front panel display .... 23

Enjoy the sound field programs .......................... 24

Selecting sound field programs................................ 24

Enjoying unprocessed input sources (Straight

decoding mode) ................................................... 27

Enjoying sound field programs without surround

speakers (Virtual CINEMA DSP) ....................... 27

Enjoy sound field programs with headphones

(SILENT CINEMA™) ........................................ 27

FM/AM tuning ...................................................... 28

Tuning in to the desired FM/AM station (Frequency

tuning).................................................................. 28

Registering FM/AM stations and tuning in (Preset

tuning).................................................................. 28

Using iPod™ .......................................................... 30

Controlling iPod™................................................... 30

Using Bluetooth™ components ........................... 32

Pairing the Bluetooth™ wireless audio receiver and

your Bluetooth component .................................. 32

Playback of the Bluetooth™ component ................. 32

ADVANCED OPERATION

Setting the option menu for each input source

(OPTION menu) ............................................... 33

OPTION menu items ............................................... 33

Editing surround decoders/sound field programs

............................................................................ 36

Selecting a decoder used with a sound field program

............................................................................. 36

Setting sound field parameters................................. 36

Sound field parameters ............................................ 36

Operating various settings for this unit

(Setup menu) ..................................................... 38

Basic operation of the setup menu ........................... 39

Speaker Setup .......................................................... 39

Sound Setup ............................................................. 41

Function Setup ......................................................... 42

DSP Parameter ......................................................... 43

Memory Guard......................................................... 43

Controlling other components with the remote

control................................................................ 44

Setting remote control codes.................................... 44

Resetting all remote control codes ........................... 44

Advanced setup ..................................................... 45

APPENDIX

Troubleshooting .................................................... 46

General..................................................................... 46

HDMI....................................................................... 49

Tuner (FM/AM) ....................................................... 49

Remote control......................................................... 50

iPod™ ...................................................................... 50

Bluetooth™.............................................................. 51

Auto Setup (YPAO)................................................. 51

Glossary ................................................................. 53

Sound field program information ....................... 55

Information on HDMI™...................................... 55

Specifications......................................................... 56

Index ...................................................................... 57

(at the end of this manual)

List of remote control codes...................................i

INTRODUCTION

PREPARATION

OPERATION

BASIC

OPERATION

ADVANCED

APPENDIX

English

1 En

INTRODUCTION

Features

■ Built-in 7-channel power amplifier

• Minimum RMS Output Power (1 kHz, 0.9% THD, 8 Ω)

• FRONT L/R: 90 W + 90 W

• CENTER: 90 W

• SURROUND L/R: 90 W + 90 W

• SURROUND BACK L/R: 90 W + 90 W

■ Speaker/Preout outputs

• Speaker jacks (7-channel), preout output jacks

(subwoofer)

■ Input/Output terminals

Input terminals

• HDMI input x 4

• Audio/Visual input

[Audio] Digital input (coaxial) x 2, digital input (optical) x 2, analog input x 2 [Video] Component video x 2, composite video x 4

• Audio input (analog) x 2

• Dock input x 1

• V-AUX input

[Audio] Analog x 1 [Video] Composite video x 1

Output terminals

• Monitor output

[Audio/Video] HDMI x 1 [Video] Component video x 1, Composite video x 1

• Audio/Visual output

[Audio] Analog x 1 [Video] Composite video x 1

• Audio output

Analog x 1

■ Proprietary Yamaha technology for the creation of sound fields

• CINEMA DSP

• Compressed Music Enhancer mode

• Virtual CINEMA DSP

• SILENT CINEMA

■ Digital audio decoders

• Dolby TrueHD, Dolby Digital Plus decoder

• DTS-HD Master Audio, DTS-HD High Resolution

Audio, DTS Express

• Dolby Digital/Dolby Digital EX decoder

• DTS, DTS 96/24 decoder, DTS-ES Matrix 6.1,

DTS-ES Discrete 6.1

• Dolby Pro Logic/Dolby Pro Logic II/Dolby Pro Logic

IIx decoder

• DTS NEO:6 decoder

■ HDMI™ (High-Definition Multimedia Interface)

• HDMI interface for standard, enhanced or high-

definition video as well as multi-channel digital audio. – Automatic audio and video synchronization (lip sync)

information capability

– Deep Color video signal (30/36 bit) transmission

capability

– “x.v.Color” video signal transmission capability – High refresh rate and high resolution video signals

capability

– High definition digital audio format signals capability

• Analog video to HDMI digital video up-conversion

(composite video → HDMI, component video → HDMI) capability for monitor out

• Analog video input up-scaling for HDMI digital video

output 480i or 480p → 720p, 1080i or 1080p

■ DOCK terminal

• DOCK terminal to connect a Yamaha iPod universal

dock (such as YDS-11, sold separately) or Bluetooth wireless audio receiver (such as YBA-10, sold separately)

■ Automatic speaker setup features

• “YPAO” (Yamaha Parametric Room Acoustic

Optimizer) for automatically optimizing speaker outputs suitable for listening environments.

■ Other features

• 192-kHz/24-bit D/A converter

• OSD (on-screen display) menus that allow you to

optimize this unit to suit your individual audiovisual system

• Direct mode for pure hi-fi sound for all sources

• Adaptive dynamic range controlling capability

• Sleep timer

■ Sophisticated FM/AM tuner

• 40-station random and direct preset tuning

• Automatic preset tuning

2 En

About this manual

• y indicates a tip for your operation.

• Some operations can be performed by using either the keys on the front panel or the ones on the remote control. In case the key names differ between

the front panel and the remote control, the key name on the remote control is given in parentheses.

• This manual is printed prior to production. Design and specifications are subject to change in part as a result of improvements, etc. In case of

differences between the manual and product, the product has priority.

• “ASTANDBY/ON” or “gHDMI 1” (example) indicates the name of the parts on the front panel or the remote control. Refer to the attached sheet

or the pages at the end of this manual for the information about each position of the parts.

• ☞ indicates the page describing the related information.

Bluetooth™

Bluetooth is a registered trademark of Bluetooth SIG and is used by

Manufactured under license from Dolby Laboratories.

Dolby, Pro Logic and the double-D symbol are trademarks of Dolby

Laboratories

Manufactured under license under U.S. Patent No’s:

5,451,942;5,956,674;5,974,380;5,978,762;6,226,616;6,487,535 &

other U.S. and worldwide patents issued & pending. DTS is a

registered trademark and the DTS logos, Symbol, DTS-HD and DTS-

iPod™

“iPod” is a trademark of Apple Inc., registered in the U.S. and other

countries.

Yamaha in accordance with a license agreement.

“HDMI,” the “HDMI” logo and “High-Definition Multimedia

Interface” are trademarks, or registered trademarks of HDMI

Licensing LLC.

x.v.Color™

“x.v.Color” is a trademark of Sony Corporation. “SILENT CINEMA”

is a trademark of Yamaha Corporation.

“SILENT CINEMA” is a trademark of Yamaha Corporation.

INTRODUCTION

PREPARATION

OPERATION

BASIC

Supplied accessories

Check that you received all of the following parts.

• Remote control

• Batteries (2) (AAA, R03, UM-4)

• Optimizer microphone

• AM loop antenna

• Indoor FM antenna

OPERATION

ADVANCED

INFORMATION APPENDIX

ADDITIONAL

3 En

English

Front panel

T D G

U PFE H

Part names and functions

THROUGH

HDMI

VOLUME

MEMORY

INFO

CONTROL

STANDBY

PHONES

/ON

SILENT

CINEMA

TONE

J MC OK N

A STANDBY/ON

Switches this unit between standby and on (see page 17).

B PHONES jack

For plugging headphones (see page 22).

C INFO

Changes information display screens on the front panel display (see page 23).

D MEMORY

Registers FM/AM stations as preset stations (see page 29).

E PRESET l / h

Selects an FM/AM preset station (see page 29).

F FM

Sets the FM/AM tuner band to FM (see page 28).

G AM

Sets the FM/AM tuner band to AM (see page 28).

H TUNING l / h

Changes FM/AM tuner frequencies (see page 28).

I SCENE

Switches between linked sets of input sources and sound field programs (see page 21).

J TONE CONTROL

Adjusts high-frequency/low-frequency output of speakers (see page 22).

K PROGRAM l / h

Changes sound field programs (see page 24).

L STRAIGHT

Changes a sound field program to straight decoding mode (see page 27).

PROGRAM

BD/DVD

PRESET

SCENE

STRAIGHT

EFFECT

DIRECT

RADIO

INPUT

OPTIMIZER

TUNING

AUX

MIC

VIDEO

AUDIO

PORTABLE

I RBLQS

M DIRECT

Changes a sound field program to direct mode (see page 22).

N INPUT l / h

Selects an input source (see page 21).

O OPTIMIZER MIC jack

For connecting the supplied optimizer microphone and adjusting output characteristics of speakers (see page 18).

P VOLUME control

Controls the volume of this unit (see page 21).

Q VIDEO (VIDEO AUX) jack

For connecting the video output cable of a camcorder or game console (see page 16).

R AUDIO L/R (VIDEO AUX) jack

For connecting the audio output cable of a camcorder or game console (see page 16).

S PORTABLE (VIDEO AUX) jack

For connecting the audio output cable of a portable music player (see page 16).

T Front panel display

Displays information on this unit (see page 6).

U HDMI THROUGH

Lights up during pass-through output of an HDMI signal input to this unit while this unit is on standby (see page 42).

4 En

Rear panel

abc

ef hgi j

(

)

BD/DVD

DOCK

COMPONENT

VIDEO

OPTICAL

(

VIDEO

COAXIAL

)

OPTICAL

(CD)

AV 2

AV 3

AV 4

a DOCK terminal

For connecting an optional Yamaha iPod universal dock (YDS-

11) or Bluetooth wireless audio receiver (YBA-10) (see page 16).

b HDMI OUT/HDMI 1-4

For connecting an HDMI-compatible video monitor or external components for HDMI inputs 1-4 (see page 15).

c ANTENNA jack

For connecting supplied FM and AM antennas (see page 17).

d SPEAKERS terminal

For connecting front right and left, center, surround and surround back speakers (see page 11).

e AV 1 - 6

For connecting external components for audio/visual inputs 1-6 (see page 15).

f AV O U T

Outputs audio/visual signals from a selected analog input source to an external component (see page 16).

g AUDIO 1/2

For connecting external components for audio inputs 1-2 (see page 16).

h MONITOR OUT

Outputs visual signals from this unit to a video monitor, such as a TV (see page 14).

i AUDIO OUT

Outputs audio signals from a selected analog input source to an external component (see page 16).

j PRE OUT

For connecting a subwoofer with a built-in amplifier (see page 11).

k Power Cable

For connecting this cable to an AC wall outlet (see page 17).

OUT

HDMI 1

HDMI

ANTENNA

COMPONENT

UNBAL.

AV 6

AV 5

VIDEO

GND

VIDEO

MONITOR OUT

AUDIO2

AUDIO1

OUT

HDMI 2 HDMI 3

FRONT

HDMI 4

Part names and functions

INTRODUCTION

SPEAKERS

SURROUND

BACK/

CENTER

SURROUND

BI-AMP

PREPARATION

AUDIO

OUT

SUBWOOFER

PRE OUT

OPERATION

BASIC

OPERATION

ADVANCED

INFORMATION APPENDIX

ADDITIONAL

English

5 En

Part names and functions

abcdef

Front panel display

gh ig

a HDMI indicator

Lights up during normal communication when HDMI is selected as an input source.

b CINEMA DSP indicator

Lights up when a sound field program that uses CINEMA DSP is selected.

c Tuner indicator

Lights up while receiving a radio broadcast signal from an FM/ AM station (see page 28).

d SLEEP indicator

Lights up when the sleep timer is activated (see page 22).

e VOLUME indicator

Displays volume levels.

f MUTE indicator

Flashes when audio is muted.

g Cursor indicators

Light up if corresponding cursors on the remote control are available for operations.

h Multi information display

Displays menu items and settings for the current operation.

i Speaker indicators

Indicate speaker terminals from which signals are currently output.

STEREO

TUNED

SLEEP

VOL.

MUTE

SW C

LR SL SR

SBL SB SBR

Subwoofer

Front L

Surround L

Surround back L

SW C

LR SL SR

SBL SB SBR

Center

Front R

Surround R

Surround back R

Surround back

6 En

Remote control

TRANSMIT

POWER

SOURCE

SLEEP

HDMI

1234

V-AU X

[ A ] [ B ] DOCK

TUNER

INFO

MOVIE

DVD

MEMORY

MUSIC

SCENE

ENTER

RETURN

TOP

REC

1234

INPUT

a Remote control signal transmitter

Transmits infrared signals.

b TRANSMIT

Lights up when a signal is output from the remote control.

c CODE SET

Sets remote control codes for external component operations (see page 44).

d SOURCE POWER

Switches an external component on and off.

e SLEEP

Switches the sleep timer operations (see page 22).

f POWER

Switches this unit on and standby.

MUTE

TV VOL

CODE SET

POWER

AUDIO

1256

PRESET

TUNING

ENHANCER SUR. DECODE

STEREO

DIRECTSTRAIGHT

RADIO

OPTIONSETUP

VOLUME

DISPLAY

7856

POWER

TV CH

MUTE

ENT

c f

Part names and functions

g Input selection keys

HDMI 1-4 AV 1 - 6 AUDIO 1/2 V-AUX

Selects HDMI inputs 1 through 4. Selects AV inputs 1 through 6. Selects AUDIO inputs 1 and 2. Selects the V-AUX jack on the front

panel of this unit.

[A]/[B]

To control external components using the rExternal component operation keys separately from

operations of this unit (see page 44).

DOCK

Selects a Yamaha iPod universal dock/

Bluetooth wireless audio receiver

connected to the DOCK jack.

TUNER

Selects the FM/AM tuner.

h Tuner keys

Switches a band between FM and AM.

AM MEMORY PRESET k / n TUNING k / n

Presets radio stations. Selects a preset station. Changes tuning frequencies.

i INFO

Changes the information shown on the front panel display (see page 23).

j Sound selection keys

Selects sound field programs (see page 24).

k SCENE

Switches between linked sets of input sources and sound field programs (see page 21).

l SETUP

Displays the setup menu (see page 39).

m OPTION

Displays the option menu (see page 33).

n Cursors k / n / l / h/ENTER/RETURN

Cursors k / n / l / h

Select menu items displayed on the

front panel display or on a video

monitor, or change settings.

ENTER RETURN

Confirms a selected item. Returns to the previous screen or

ends the menu display.

o VOLUME + /–

Adjust the volume of this unit (see page 21).

p DISPLAY

Changes the operation mode of the iPod connected to the Yamaha iPod universal dock (see page 30).

q MUTE

Turns the mute function of the sound output on and off (see page 22).

r External component operation keys

Operate recording, playback etc. of external components (see page 44).

s Numeric keys

Enter numbers.

t TV control keys

Operate a monitor such as a TV or projector.

INTRODUCTION

PREPARATION

OPERATION

BASIC

OPERATION

ADVANCED

INFORMATION APPENDIX

ADDITIONAL

English

7 En

Quick start guide

When you use this product for the first time, perform setup following the steps below. See the related pages for details on operations and settings.

Step 1: Prepare items for setup

Prepare speakers, DVD player, cables, and other items necessary for setup. For example, prepare the following items for setting up a

5.1-channel sound system.

Front right speaker

Video monitor

Front left speaker

Center speaker

Components

(such as DVD player)

Surround left speaker

Requirements qty.

Speakers Front speaker 2

Center speaker 1

Surround speaker 2

Active subwoofer 1

Speaker cable 5

Subwoofer cable 1

Reproduction component such as DVD player 1

Video monitor such as TV 1

Video cable or HDMI cable 2

Audio cable 2

• Prepare two speakers (for front). The priority of the requirement of other

speakers is as follows: 1 Two surround speakers 2 One center speaker 3 One (or two) surround back speaker(s)

• If your video monitor is a CRT, we recommend that you use magnetically

shielded speakers.

Subwoofer

Surround right speaker

Step 2: Set up your speakers

Place your speakers in the room and connect them to this unit.

• Placing speakers ☞P. 1 0

• Connecting speakers ☞P. 1 1

• This unit has a YPAO (Yamaha Parametric Room Acoustic Optimizer)

that automatically optimizes this unit based on room acoustic characteristics (audio characteristics of the speakers, speaker positions, and room acoustics, etc.). You can enjoy good balanced sound without special knowledge by using the YPAO technology (see page 18).

Step 3: Connect your components

Connect your TV, DVD player, or other components.

• Connecting a TV monitor or projector ☞P. 1 4

• Connecting other components ☞P. 1 5

• Connecting a Yamaha iPod universal dock or

Bluetooth wireless audio receiver ☞P. 1 6

• Connecting the FM and AM antennas ☞P. 1 7

Step 4: Turn on the power

Connect the power cable and turn on this unit.

• Connecting the power cable ☞P. 1 7

• Turning this unit on and off ☞P. 1 7

Step 5: Select the input source and start playback

Select the component connected in the step 3 as an input source and start playback.

• Basic procedure ☞P. 2 1

• Selecting sound field programs ☞P. 2 4

• This unit supports the SCENE function that changes the input source and

sound field program at one time. Four scenes are preset for different purposes for Blu-ray disc, DVD and CD, and you can select from a scene from those just by pressing a remote control key. See page 21 for details.

8 En

PREPARATION

Preparing remote control

Installing batteries in the remote control

1 Take off the battery compartment cover.

2 Insert the two supplied batteries (AAA, R03,

UM-4) according to the polarity markings (+ and –) on the inside of the battery compartment.

3 Snap the battery compartment cover back

into place.

Notes

• Change all batteries if you notice the following conditions: – the operation range of the remote control narrows – the transmit indicator does not flash or is dim

• Do not use old batteries together with new ones.

This may shorten the life of the new batteries or cause old batteries to leak.

• Do not use different types of batteries (such as alkaline and manganese batteries) together. Specification of batteries may be different even though they look the same.

• If you find leaking batteries, discard the batteries immediately, taking care not to touch the leaked material. If the leaked material comes into contact with your skin or gets into your eyes or mouth, rinse it away immediately and consult a doctor. Clean the battery compartment thoroughly before installing new batteries.

• Dispose of the old batteries correctly in accordance with your local regulations.

• If the remote control is without batteries for more than 2 minutes, or if exhausted batteries remain in the remote control, the contents of the memory may be cleared. In such a case, install new batteries and set the remote control code.

Using the remote control

The remote control transmits a directional infrared ray. Be sure to aim the remote control directly at the remote control sensor on this unit during operation.

Remote control sensor window

within 6 m (20 ft)

30 30

Notes

• Do not spill water or other liquids on the remote control.

• Do not drop the remote control.

• Do not leave or store the remote control in the following conditions: – places of high humidity, such as near a bath – places of high temperatures, such as near a heater or stove – places of extremely low temperatures – dusty places

• You can operate external components with this remote control by setting the remote control code. See page 44 for details.

INTRODUCTION

PREPARATION

OPERATION

BASIC

OPERATION

ADVANCED

INFORMATION APPENDIX

ADDITIONAL

9 En

English

Connections

Placing speakers

This unit supports up to 7.1-channel surround. We recommended the following speaker layout in order to obtain the optimum surround effect.

7.1-channel speaker layout

Speaker channels

80˚

SBL

30˚

60˚

30 cm (12 in) or more

6.1-channel speaker layout

30˚

60˚

80˚

5.1-channel speaker layout

30˚

60˚

80˚

SBR

■ Front left and right speakers (FL and FR)

The front speakers are used for the front channel sounds (stereo sound) and effect sounds. Place these speakers at

an equal distance from the ideal listening position. When using a screen, the appropriate top positions of the speakers are about 1/4 of the screen from the bottom.

■ Center speaker (C)

The center speaker is for the center channel sounds (dialog, vocals, etc.). Place it halfway between the left and right speakers. When using a TV, place the speaker just above or just under the center of the TV with the front surfaces of the TV and the speaker aligned. When using a screen, place it just under the center of the screen.

■ Surround left and right speakers (SL and SR)

The surround speakers are used for effect and surround sounds.

Place them at the rear left and rear right facing the listening position. To obtain a natural sound flow in the 5.1-channel speaker layout, place them slightly further back than in the 7.1channel speaker layout.

■ Surround back left and right speakers (SBL

and SBR) / Surround back speaker (SB)

The surround back left and right speakers are used for rear

effect sounds. Place them at the rear of the room facing the listening position at least 30 cm away from each other, ideally at the same distance as that between the front left and right speakers. In the 6.1-channel speaker layout, surround back left and right channel sound signals are mixed down and output from the single surround back speaker.

In the 5.1-channel speaker layout, surround back left and right channel sound signals are output from the surround

left and right speakers.

■ Subwoofer (SW)

The subwoofer speaker is used for bass sounds and lowfrequency effect (LFE) sounds included in Dolby Digital

and DTS signals. Use a subwoofer with a built-in amplifier, such as the Yamaha Active Servo Processing Subwoofer System. Place it exterior to the front left and right speakers facing slightly inward to reduce reflections from a wall.

10 En

Connecting speakers

DMI 3

AUDIO

OUT

Connections

When you connect speakers, connect them to the respective terminals as follows, according to your speaker layout.

■ 7.1-channel

Speakers Jacks on this unit

g f

a Front speaker L FRONT (L)

b Front speaker R FRONT (R)

SPEAKERS

c Center speaker CENTER

d Surround speaker L SURROUND (L)

e Surround speaker R SURROUND (R)

FRONT

CENTER

SURROUND

BACK/

BI-AMP

f Surround back speaker L SURROUND

BACK/BI-AMP (L)

g Surround back speaker R SURROUND

BACK/BI-AMP (R)

h Subwoofer SUB WOOFER

■ 6.1-channel

SUBWOOFER

e d

PRE OUT

a Front speaker L FRONT (L)

b Front speaker R FRONT (R)

c Center speaker CENTER

d Surround speaker L SURROUND (L)

e Surround speaker R SURROUND (R)

f Surround back speaker SURROUND

h Subwoofer SUB WOOFER

Speakers Jacks on this unit

BACK/BI-AMP (L)

INTRODUCTION

PREPARATION

OPERATION

BASIC

OPERATION

ADVANCED

INFORMATION APPENDIX

ADDITIONAL

■ 5.1-channel

Speakers Jacks on this unit

a Front speaker L FRONT (L)

b Front speaker R FRONT (R)

c Center speaker CENTER

d Surround speaker L SURROUND (L)

e Surround speaker R SURROUND (R)

h Subwoofer SUB WOOFER

English

11 En

Connections

Connecting the speaker cable

Caution

• A speaker cable is a pair of insulated cables running side by side in general. One of the cables is colored differently

or striped to indicate a polarity. Connect one end of the colored/striped cable to the “+” (red) terminal of this unit and the other end to that of your speaker, and connect one end of the other cable to the “–” (black) terminal of this unit and the other end to that of your speaker.

• Before connecting the speakers, be sure to disconnect the power cable.

• Do not let the bare speaker wires touch each other or any metal part of this unit. This could damage this unit and/or

speakers. If the circuit shorts out, “CHECK SP WIRES!” appears on the front panel display when this unit is turned on.

• Use magnetically shielded speakers. If images on the monitor are still distorted even when you use the magnetically

shielded speakers, place the speakers away from the monitor.

• Use speakers with an impedance of 6-ohm or larger. Set speaker impedance in “ADVANCED SETUP” before

connecting the speakers (see page 45).

■ Connecting to the FRONT terminals

1 Remove approximately 10 mm (0.4 in) of

insulation from the end of each speaker cable and then twist bare wires of the cable together so that they will not cause a short circuits.

10 mm (0.4 in)

2 Loosen the knob, insert the twisted bare

wires into the hole, and then tighten the knob.

Red: positive (+)

Black: negative (–)

■ Connecting to the CENTER, SURROUND, SURROUND BACK/BI-AMP terminals

1 Press down the tab and insert the bare end of

the speaker cable into the hole in the terminal.

Red: positive (+)

Black: negative (–)

2 Release the tab to secure the wire.

Using bi-amplification connections

You can connect speakers that support bi-amplification connections to this unit. Before connecting the speakers, set this unit to enable bi-amplification connections in “ADVANCED SETUP” (see page 45), and connect the speakers to this unit as shown below.

Front speakers

Right Left

Connecting the banana plug (Except U.K., Europe, Asia and Korea models)

Tighten the knob, and then insert the banana plug into the end of the terminal.

Banana plug

12 En

SURROUND

BACK/

FRONT

BI-AMP

This unit

Caution

Before making bi-amplification connections, remove any or cables that connect a woofer with a tweeter. Refer to the instruction manuals of speakers for details. When not making bi-amplification connections, make sure that the brackets or cables are connected before connecting the speaker cables.

Information on jacks and cable plugs

Connections

This unit has the following input and output jacks. Use jacks and cables appropriate for components that you are connecting.

■ Audio jacks

Jack and cables Description

AUDIO jacks To transmit conventional analog

(white)

AUDIO

(red)

COAXIAL jacks To transmit coaxial digital audio

(orange)

COAXIAL

OPTICAL jacks To transmit optical digital audio

OPTICAL

left and right audio signals. Use

stereo pin cables. Connect red

plugs to red jacks (R) and white

plugs to white jacks (L).

signals. Use pin cables for digital

audio signals.

signals. Use optical fiber cables for

optical digital audio signals.

■ Video/audio jacks

Jack and cables Description

HDMI jacks To transmit digital video and

digital audio signals. Use HDMI

HDMI

• We recommend that you use a commercially available 19-pin HDMI

cable no longer than 5 meters (16 feet) with the HDMI logo printed on it.

• You can check the potential problem about the HDMI connection (see

page 23).

• You can check error information on HDMI connections (see page 23).

HDMI

cables.

A video signal input to this unit is output from the output terminals in MONITOR OUT for the same kind of signal as the input signal. For example, if a VCR with a composite output signal and a DVD player with a COMPONENT VIDEO output signal are connected, connect both VIDEO jack and COMPONENT VIDEO jack in MONITOR OUT to the video monitor. If an HDMI input compatible monitor is connected, this

■ Video jacks

Jack and cables Description

VIDEO jacks To transmit conventional

VIDEO

(yellow)

composite video signals. Use video

pin cables.

unit automatically converts an analog signal that is input from a video input terminal to a digital video signal, and then output it from the HDMI OUT jack.

Input Output

HDMI

COMPONENT

VIDEO

HDMI

COMPONENT

VIDEO

INTRODUCTION

PREPARATION

OPERATION

BASIC

OPERATION

ADVANCED

INFORMATION APPENDIX

ADDITIONAL

COMPONENT VIDEO jacks

COMPONENT

VIDEO

(red)

(blue)

(green)

To transmit component video

signals that include luminance (Y),

chrominance blue (PB) and

chrominance red (PR) components.

Use component video cables.

VIDEO

Repeat Converted

VIDEO

English

13 En

Connections

GND

(

)

OPTICAL

(

)

UNBAL.

GND

COAXIAL

AV 3

(CD)

COAXIAL

OPTICAL

AV 4

AV 5

OUT

AUDIO1

VIDEO

AV 6

Connecting a TV monitor or projector

Connect a video monitor such as a TV or projector to an output terminal of this unit. You can select one of the following three types according to the input signal format supported by the video monitor.

Note

• When you connect this unit to the video monitor, make sure that this unit is on standby.

TV, or projector

PBYP

BD/DVD

COMPONENT

VIDEO

MONITOR OUT

HDMI 2 H

VIDEO

NBAL.

HDMI

OUT

■ To connect an HDMI video monitor

Jacks on components Jacks on this unit

a HDMI input HDMI OUT

Outputting sound of a TV from this unit

To output sound of a TV from this unit, make connection between the AV input 1-6 and an audio output terminal. If the TV supports an optical digital output, we recommend that you use the AV input 1. Connecting to the AV input 1 allows you to switch an input source to the AV input 1 with just a single key operation using the SCENE function (see page 21).

TV, or projector

Digital output

(optical)

■ To connect component video monitor

Note

• Only video signals input from this unit via the component input terminal

are output from the component output terminal.

Jacks on components Jacks on this unit

b Component video output MONITOR OUT

(COMPONENT VIDEO)

■ To connect composite video monitor

Note

• Only video signals input from this unit via the composite video input

terminal are output from the composite video output terminal.

Jacks on components Jacks on this unit

c Video input (composite) MONITOR OUT (VIDEO)

14 En

Connecting other components

MONITO

GND

DOC

HDMI

MONITOR OUT

Connections

This unit has input and output terminals for respective input and output sources. You can reproduce sound and movies from input sources selected with the front panel display or remote control.

Note

• When you connect this unit to the external components, make sure that this unit is on standby.

Audio / video input (AV 1-6) Audio / video output (AV OUT)

HDMI input (HDMI 1-4)

Audio output (AUDIO OUT)

COMPONENT

VIDEO

OPTICAL

(

)

BD/DVD

AV 6

NBAL.

HDMI 1

AUDIO1

OUT

VIDEO

COAXIAL

)

AV 2

OPTICAL

(CD)

AV 3

AV 4

AV 5

COMPONEN

IDE

AUDIO2

HDMI 2 HDMI 3

VIDE

FRON

HDMI 4

AUDIO

OUT

Audio input (AUDIO 1-2)

■ Audio and video player / Set-top box

Output jacks on the connected external component

External

components

External component

with HDMI output

Signals Output jacks

Audio/Video HDMI output HDMI 1 (BD/DVD) HDMI 1

HDMI 2 HDMI 2

HDMI 3 HDMI 3

HDMI 4 HDMI 4

External component

with component video

output

Audio Optical digital output AV 1 (TV) OPTICAL

Video Component video COMPONENT VIDEO

Audio Coaxial digital output AV 2 COAXIAL

Video Component video output COMPONENT VIDEO

External component

with composite video

output

Audio Coaxial digital output AV 3 (CD) COAXIAL

Video Composite output VIDEO

Audio Optical digital output AV 4 OPTICAL

Video Composite output VIDEO

Audio Analog audio output AV 5 AUDIO

Video Composite output VIDEO

Audio Analog audio output AV 6 AUDIO

Video Composite output VIDEO

• Input sources in parentheses are recommended to connect to the respective jacks. If your Yamaha component has the Remote in/out terminal, you can

switch the input source to that component with a single key operation using the SCENE function (see page 21).

• You can change the name of the input source displayed on the front panel display or the OSD on the video monitor as necessary (see page 43).

Input sources/jacks of this unit

INTRODUCTION

PREPARATION

OPERATION

BASIC

OPERATION

ADVANCED

INFORMATION APPENDIX

ADDITIONAL

English

15 En

Connections

DOCK

UNBAL

GND

HDMI

OUT

COMPO

OGRAM

INPUT

PRES

■ Audio player

Output jacks on the connected external component

External components Output jacks

External component with optical digital

output

External component with coaxial digital

output

External component with analog audio

output

Optical digital output AV 1 (TV) OPTICAL

AV 4 OPTICAL

Coaxial digital output AV 2 COAXIAL

AV 3 (CD) COAXIAL

Analog audio output AV 5 AUDIO

AV 6 AUDIO

AUDIO 1 AUDIO

AUDIO 2 AUDIO

• We recommend connecting the coaxial digital output terminal of a CD player to the AV3 jack.

Input sources/jacks of this unit

About audio/video output terminals

Among the analog audio and analog video signals input to this unit via input terminals, the audio/video signals of the selected input sources are output from the AV OUT jack and AUDIO OUT jack. An HDMI input signal, COMPONENT VIDEO input signal or digital audio input signal cannot be output. When using the AV OUT jack: connect an external component to the composite or analog audio terminal. When using the AUDIO OUT jack: connect an external component to the analog audio terminal.

Connecting a Yamaha iPod universal dock or Bluetooth™ wireless audio receiver

This unit has the DOCK jack, to which you can connect a Yamaha iPod universal dock (YDS-11, sold separately) or a Bluetooth wireless audio receiver (YBA-10, sold separately). You can play an iPod or a Bluetooth component with this unit by connecting it to the DOCK jack. Use a dedicated cable for connection between the dock/ receiver and this unit.

NENT

IDE

Yamaha iPod universal dock/Bluetooth wireless audio receiver

IDE

Using the VIDEO AUX jacks on the front panel

Use the VIDEO AUX jacks on the front panel to connect a game console or a video camera to this unit. Be sure to turn down the volume of this unit and other components before making connections.

VOLUM

PTIMIZERMI

UNIN

AUX

VIDEO

AUDIO

PORTABLE

RLAUDIO

Analog audio

output

ENE

D/DV

TRAIGHT

EFFE

Video output

DIRECT

VIDEO

RADI

Analog audio

output

Game console/Camcorder Music player

Note

• When external components are connected both the PORTABLE jack and

AUDIO jack, sound input from the PORTABLE jack is output.

16 En

Connections

COMPO

(

)

COMPO

Connecting the FM and AM antennas

An indoor FM antenna and an AM loop antenna are supplied with this unit. Connect these antennas properly to the respective jacks.

Indoor FM antenna

DOCK

NEN

VIDE

• The supplied antennas are normally sensitive enough to obtain good

reception.

• Position the AM loop antenna away from this unit.

• If you cannot get good reception, we recommend that you use an outdoor

antenna. For more details, consult the nearest authorized Yamaha dealer or service center.

• Always use the AM loop antenna even when the outdoor antenna is

connected.

Outdoor AM antenna Connect a 5 to 10 m (16 to 33 ft) vinyl-covered wire, and extend it outdoors (use the AM loop antenna together with this antenna).

D/DV

ANTENNA

UNBAL.

VIDE

Ground (GND terminal) The GND terminal is not for earth grounding. To reduce noises, connect a ground bar or a vinyl-covered wire with a copper plate at its tip, and place it in the moist ground.

NEN

VIDE

GND

MONITOR OUT

Assembling the AM loop antenna

AM loop antenna

VIDE

Connecting the power cable

After all connections are complete, plug the AC power cable of this unit into an AC wall outlet.

To the AC wall outlet

Power cable

Turning this unit on and off

1 Press ASTANDBY/ON on the front panel (or

fPOWER on the remote control) to turn on this unit.

2 Press ASTANDBY/ON (or fPOWER) again

to turn off this unit (standby mode).

• The unit needs a few seconds until ready to play back.

• You can also turn on this unit by pressing ISCENE (or kSCENE).

• This unit consumes a small amount of electricity even in the standby

mode. We recommend disconnecting the power cable from the AC wall outlet.

Caution

Do not unplug this unit while it is turned on. Doing so may damage this unit or cause the settings of this unit to be saved incorrectly.

INTRODUCTION

PREPARATION

OPERATION

BASIC

OPERATION

ADVANCED

INFORMATION APPENDIX

ADDITIONAL

Connecting the AM loop antenna

The wires of the AM loop antenna have no polarity. You can connect either wire to the AM terminal and the other to the GND terminal.

Press and hold ReleaseInsert

English

17 En

Optimizing the speaker setting for your listening room (YPAO)

This unit has a Yamaha Parametric Acoustic Optimizer (YPAO). With the YPAO, this unit automatically adjusts the output characteristics of your speakers based on speaker position, speaker performance, and the acoustic characteristics of the room. We recommend that you first adjust the output characteristics with the YPAO when you use this unit.

Caution

• Be advised that it is normal for loud test tones to be

output during the “Auto Setup” procedure. Do not allow small children to enter the room during the procedure.

• To achieve the best results, make sure the room is as

quiet as possible while the “Auto Setup” procedure is in progress. If there is too much ambient noise, the results may not be satisfactory.

• See page 39 for the “Manual Setup” procedure.

Using Auto Setup

1 Check the following points.

Before starting the automatic setup, check the following.

• All speakers and subwoofer are connected

properly.

• Headphones are disconnected from this unit.

• The video monitor is connected properly.

• This unit and the video monitor are turned on.

• This unit is selected as the video input source of the

video monitor.

• The connected subwoofer is turned on and the

volume level is set to about half way (or slightly less).

• The crossover frequency controls of the connected

subwoofer are set to the maximum.

CROSSOVER/

VOLUME

HIGH CUT

“MIC ON. View OSD MENU” appears on the front panel display. The following menu screen appears on the video monitor.

1 AutoSetup

EQ Type;;;;Natural

. Start



[

[]/[]:Up/Down

[ENTER]:Start

• You can bring up the above menu screen from the setup menu (see

page 39).

3 Place the optimizer microphone at your

normal listening position on a flat level surface with the omni-directional microphone heading upward.

Optimizer microphone

• It is recommended that you use a tripod or something similar to fix the

optimizer microphone at the same height as your ears would be when seated in your listening position. You can fix the optimizer microphone to the tripod with the attaching screw of the tripod.

4 To select a sound character for adjustment,

MIN MAX

Subwoofer

MIN MAX

2 Connect the supplied optimizer microphone

to the OPTIMIZER MIC jack on the front panel.

OPTIMIZER

MIC

VIDE

IDE

UDI

Optimizer microphone

PORTABLE

press nCursor k to select “EQ Type” and then press nCursor l / h.

If this unit does not work when you press nCursor, press lSETUP once and then operate this unit. This unit has a parametric equalizer that adjusts the output levels for each frequency range. The equalizer is adjusted to produce a cohesive sound field based on automatically measured speaker characteristics. In “EQ Type,” you can select the following parametric equalizer characteristics suitable for the desired sound characteristics.

Natural

This adjusts all speakers to achieve natural sound. Select this if sounds in the high frequency range seem too strong when “EQ Type” is set to “Flat.”

18 En
