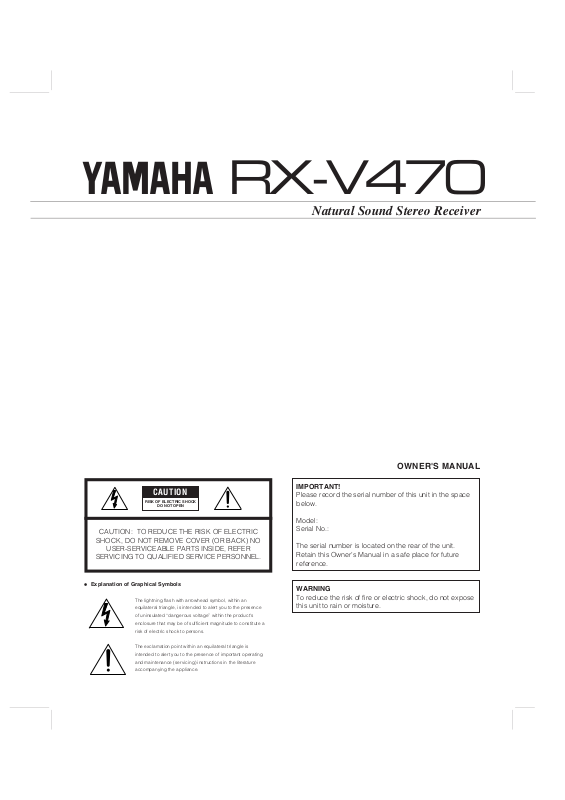

Yamaha RX-V470 User Manual

s RX-V470

Natural Sound Stereo Receiver

ENGLISH

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK) NO

USER-SERVICEABLE PARTS INSIDE, REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

÷ Explanation of Graphical Symbols

The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert you to the presence
of uninsulated “dangerous voltage” within the product's
enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.

The exclamation point within an equilateral triangle is
intended to alert you to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the appliance.

OWNER'S MANUAL

IMPORTANT!

Please record the serial number of this unit in the space
below.

Model:
Serial No.:

The serial number is located on the rear of the unit.
Retain this Owner’s Manual in a safe place for future
reference.

WARNING

To reduce the risk of fire or electric shock, do not expose
this unit to rain or moisture.

1

SAFETY INSTRUCTIONS

1 Read Instructions – All the safety and operating

instructions should be read before the appliance is
operated.

2 Retain Instructions – The safety and operating

instructions should be retained for future reference.

3 Heed Warnings – All warnings on the appliance and in

the operating instructions should be adhered to.

4 Follow Instructions – All operating and other instructions

should be followed.

5 Water and Moisture – The appliance should not be used

near water – for example, near a bathtub, washbowl,
kitchen sink, laundry tub, in a wet basement, or near a
swimming pool, etc.

6 Carts and Stands – The appliance should be used only

with a cart or stand that is recommended by the
manufacturer.

6A An appliance and cart combination

should be moved with care. Quick
stops, excessive force, and uneven
surfaces may cause the appliance
and cart combination to overturn.

7 Wall or Ceiling Mounting – The appliance should be

mounted to a wall or ceiling only as recommended by
the manufacturer.

8 Ventilation – The appliance should be situated so that its

location or position does not interfere with its proper
ventilation. For example, the appliance should not be
situated on a bed, sofa, rug, or similar surface, that may
block the ventilation openings; or placed in a built-in
installation, such as a bookcase or cabinet that may
impede the flow of air through the ventilation openings.

9 Heat – The appliance should be situated away from heat

sources such as radiators, stoves, or other appliances
that produce heat.

10 Power Sources – The appliance should be connected to

a power supply only of the type described in the
operating instructions or as marked on the appliance.

D.The appliance does not appear to operate normally or

exhibits a marked change in performance; or

E.The appliance has been dropped, or the cabinet

damaged.

16 Servicing – The user should not attempt to service the

appliance beyond those means described in the
operating instructions. All other servicing should be
referred to qualified service personnel.

17 Power Lines – An outdoor antenna should be located

away from power lines.

18 Grounding or Polarization – Precautions should be taken

so that the grounding or polarization is not defeated.

19 Outdoor Antenna Grounding – If an outside antenna is

connected to this unit, be sure the antenna system is
grounded so as to provide some protection against
voltage surges and built-up static charges. Article 810
of the National Electrical Code, ANSI/NFPA 70, provides
information with regard to proper grounding of the mast
and supporting structure, grounding of the lead-in wire
to an antenna discharge unit, size of grounding
conductors, location of antenna discharge unit,
connection to grounding electrodes, and requirements
for the grounding electrode.

EXAMPLE OF ANTENNA GROUNDING

MAST

GROUND CLAMP

ELECTRIC SERVICE
EQUIPMENT

NEC - NATIONAL ELECTRICAL CODE

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT
(NEC SECTION 810-20)

GROUNDING CONDUCTORS
(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)

11 Power-Cord Protection – Power-supply cords should be

routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying
particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the
appliance.

12 Cleaning – The appliance should be cleaned only as

recommended by the manufacturer.

13 Nonuse Periods – The power cord of the appliance

should be unplugged from the outlet when left unused
for a long period of time.

14 Object and Liquid Entry – Care should be taken so that

objects do not fall into and liquids are not spilled into the
inside of the appliance.

15 Damage Requiring Service – The appliance should be

serviced by qualified service personnel when:
A.The power-supply cord or the plug has been

damaged; or

B.Objects have fallen, or liquid has been spilled into the

appliance; or

C.The appliance has been exposed to rain; or

2

Note to CATV system installer:

This reminder is provided to call the CATV system
installer’s attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall be
connected to the grounding system of the building, as
close to the point of cable entry as practical.

We Want You Listening For A Lifetime

YAMAHA and the Electronic Industries Association's
Consumer Electronics Group want you to get the most out of
your equipment by playing it at a safe level.
One that lets the sound come through loud
and clear without annoying blaring or
distortion – and, most importantly, without
affecting your sensitive hearing. Since
hearing damage from loud sounds is often
undetectable until it is too late, YAMAHA and
the Electronic Industries Association's
Consumer Electronics Group recommend
you avoid prolonged exposure to excessive
volume levels.

We
Want You

LISTENING

For A Lifetime

FCC INFORMATION (U.S.A.)

1. IMPORTANT NOTICE: DO NOT MODIFY THIS
UNIT!

This product, when installed as indicated in the
instructions contained in this manual, meets FCC
requirements. Modifications not expressly approved
by Yamaha may void your authority, granted by the
FCC, to use the product.

2. IMPORTANT: When connecting this product to
accessories and/or another product use only high
quality shielded cables. Cable/s supplied with this
product MUST be used. Follow all installation
instructions. Failure to follow instructions could void
your FCC authorization to use this product in the
USA.

3. NOTE: This product has been tested and found to
comply with the requirements listed in FCC
Regulations, Part 15 for Class "B" digital devices.
Compliance with these requirements provides a
reasonable level of assurance that your use of this
product in a residential environment will not result in
harmful interference with other electronic devices.
This equipment generates/uses radio frequencies
and, if not installed and used according to the
instructions found in the users manual, may cause
interference harmful to the operation of other
electronic devices. Compliance with FCC
regulations does not guarantee that interference will
not occur in all installations. If this product is found
to be the source of interference, which can be
determined by turning the unit "OFF" and "ON",
please try to eliminate the problem by using one of
the following measures:

Relocate either this product or the device that is
being affected by the interference.

Utilize power outlets that are on different branch
(circuit breaker or fuse) circuits or install AC line
filter/s.

In the case of radio or TV interference, relocate/
reorient the antenna. If the antenna lead-in is 300
ohm ribbon lead, change the lead-in to coaxial type
cable.

If these corrective measures do not produce
satisfactory results, please contact your local retailer
authorized to distribute this type of product. If you
can not locate the appropriate retailer, please
contact Yamaha Electronics Corp., U.S.A. 6600
Orangethorpe Ave, Buena Park, CA90620

CAUTION: READ THIS BEFORE

OPERATING YOUR UNIT

1 To ensure the finest performance, please read this

manual carefully. Keep it in a safe place for future
reference.

2 Install your unit in a cool, dry, clean place – away from

windows, heat sources, and too much vibration, dust,
moisture or cold. Avoid sources of hum (transformers,
motors). To prevent fire or electrical shock, do not
expose to rain and water.

3 Do not operate the unit upside-down. It may overheat,

possibly causing damage.

4 Never open the cabinet. If a foreign object drops into

the set, contact your dealer.

5 Do not use force on switches, knobs or cords. When

moving the set, first turn the unit off. Then gently
disconnect the power plug and the cords connecting to
other equipment. Never pull the cord itself.

6 Do not attempt to clean the unit with chemical solvents;

this might damage the finish. Use a clean, dry cloth.

7 Always set the volume control to “– ” before starting

the audio source play: increase the volume gradually to
an appropriate level after the play is started.

8 To prevent lightning damage, pull out the power cord

and remove the antenna cable during an electrical
storm.

9 Be sure to read the “Troubleshooting” section on

common operating errors before concluding that your
unit is faulty.

10 Do not connect audio equipment to the AC outlets on

the rear panel if that equipment requires more power
than the outlets are rated to provide.

ENGLISH

The above statements apply ONLY to those
products distributed by Yamaha Corporation of
America or its subsidiaries.

3

Thank you for selecting this YAMAHA stereo receiver.

SUPPLIED ACCESSORIES

After unpacking, check that the following parts are
contained.

÷ AM Loop Antenna÷ Indoor FM Antenna

÷ Remote Control Transmitter

FEATURES

5-Speaker Configuration

Front: 50W + 50W (8 ) RMS Output Power,

0.04% THD, 20–20,000 Hz
U.S.A. and Canada models only:
55W + 55W (6 ) RMS Output Power,

0.06% THD, 20–20,000 Hz

Center: 50W (8 ) RMS Output Power, 0.01%

THD, 1,000 Hz

Rear: 15W + 15W (8 ) RMS Output Power,

0.5% THD, 1,000 Hz

Digital Sound Field Processor

4 Programs for Digital Sound Field Processing
2 Programs for Dolby Surround (DOLBY PRO
LOGIC and ENHANCED)

Automatic Input Balance Control for Dolby
Surround

40-Station Random Preset Tuning

Video Signal Input/Output Capability

÷ Batteries (size AA, R6, UM-3)

CONTENTS

Caution .........................................................3

Supplied Accessories ..................................4

Features........................................................4

Profile of This Unit.........................................5

Speaker Setting up for This Unit...................6

Sleep Timer

Remote Control Capability

Using Digital Sound Field

Processor (DSP) .......................................18

Setting the SLEEP Timer.............................22

Remote Control Transmitter........................23

Notes about the Remote Control

Connections .................................................7

Adjustment Before Operation .....................10

Playing a Source ........................................13

Recording a Source ...................................14

Adjusting the Balance and Tone ................15

Tuning Operations ......................................16

4

Transmitter ................................................24

Troubleshooting..........................................25

Specifications .............................................26

PROFILE OF THIS UNIT

You are the proud owner of a Yamaha RX-V470 stereo receiver –an extremely sophisticated audio component. The Digital
Sound Field Processor (DSP) built into this unit takes full advantage of Yamaha’s undisputed leadership in the field of digital
audio processing to bring you a whole new world of listening experiences. Follow the instructions in this manual carefully when
setting up your system, and this unit will sonically transform your room into a wide range of listening environments –movie
theater, concert hall, and so on. In addition, you get incredible realism from Dolby-encoded video sources using the built-in
Dolby Pro Logic Surround Decoder.
Rather than tell you about the wonders of digital sound field processing, however, let’s get right down to the business of setting
up the system and trying out its many capabilities. Please read this operation manual carefully and store it in a safe place for
later reference.

ENGLISH

Digital Sound Field Processing

What is it that makes live music so good? Today’s
advanced sound reproduction technology lets you get
extremely close to the sound of a live performance, but
chances are you’ll still notice something missing: the
acoustic environment of the live concert hall. Extensive
research into the exact nature of the sonic reflections that
create the ambience of a large hall has made it possible for
Yamaha engineers to bring you this same sound in your
own listening room, so you’ll feel all the sound of a live
concert.
What’s more, our technicians, armed with sophisticated
measuring equipment, have even made it possible to
capture the acoustics of a variety of venues such as an
actual concert hall, theater, etc. to allow you to accurately
recreate one of several actual live performance
environments, all in your own home.

Dolby Pro Logic Surround

The Dolby Pro Logic Surround Decoder program lets you
experience the dramatic realism and impact of Dolby
Surround movie theater sound in your own home. Dolby Pro
Logic gets its name from its professional-grade steering
logic circuitry, which provides greater effective channel
separation for a much higher degree of realism than the
“passive” Dolby Surround circuits found in today’s typical
home audio/video equipment. Dolby Pro Logic Surround
provides a true center channel, so that there are four
independent channels, unlike passive Dolby Surround
which has in effect only three channels: left, right, and rear.
This center channel allows listeners seated in even less­than-ideal positions to hear the dialog originating from
action on the screen while getting a stereo effect as well.
This Dolby Pro Logic Surround Decoder employs a digital
signal processing system. This system increases sound
stability at each channel and minimizes crosstalk between
channels compared to conventional analog Dolby signal
processing.
In addition, this unit features a built-in automatic input
balance control. This circuit always presents you the best
surround conditions without performing manual
adjustments.

“ENHANCED” Dolby Pro Logic Surround

The RX-V470 has a second mode of Dolby Pro Logic
Surround processing called “Enhanced Dolby Pro Logic
Surround” processing. Enhanced Dolby Pro Logic
Surround processing recreates the surround effect of a
movie theater, effectively duplicating its multiple surround
loudspeaker system, completely surrounding the listener
with the sounds of the action taking place on the screen.

5

SPEAKER SETTING UP FOR THIS UNIT

SPEAKERS TO BE USED

This unit is designed to provide the best sound-field quality
with a 5 speaker configuration. The speakers to be used
with this unit will be mainly front speakers, rear speakers,
and a center speaker. (You can omit the center speaker.
Refer to the “4-Speaker Configuration” shown below.)
The front speakers are used for the output of the main
source sound and the effect sound. They will probably be
the speakers of your present stereo speaker system. The
rear speakers are used for the output of the effect sound.
And the center speaker is used for the output of the center
sound (dialog etc.) encoded with the Dolby Surround. The
rear and center speakers do not need to be equal in power
to the front speakers. However, all the speakers should
have high enough power handling to accept the maximum
output of this unit.

SPEAKER CONFIGURATION

5-Speaker Configuration

This configuration is the most effective and is the one that is
recommended. In this configuration, the center speaker is
necessary as well as the rear speakers. If the digital sound
field program is in DOLBY PRO LOGIC or ENHANCED
mode conversations will be output from the center speaker
and the ambience will be excellent.
÷ Set the center mode to the “NORMAL” or “WIDE” position.

(For details, refer to page 11.)

Front L

Center

Dialogue

Front R

SPEAKER PLACEMENT

The recommanded speaker configuration, the 5-speaker
configuration, will require two speaker pairs: front speakers
(your normal stereo speakers), and rear speakers, plus a
center speaker. When you place these speakers, refer to
the following.

Center

Front R

TV set

Rear R

Front L

Rear L

Front: In normal position. (The position of your present

stereo speaker system.)

Rear: Behind your listening position, facing slightly

inward. Nearly six feet (approx. 1.8 m) up from the
floor.

Center: Precisely between the front speakers. (To avoid

interference with TV sets, use a magnetically
shielded speaker. If, however, it is not effective,
keep the speaker away from TV sets.)

Rear L

Surround sound

Rear R

4-Speaker Configuration

The center speaker is not used in this configuration. If the
digital sound field program is in the DOLBY PRO LOGIC or
ENHANCED mode, the center sound is output from the left
and the right front speakers. However, the sound effect of
other programs can be the same as that of the 5-speaker
configuration.
÷ Be sure to set the center mode to the “PHANTOM”

position. (For details, refer to page 11.)

Front L

Rear L

Surround sound

Front R

Rear R

6

CONNECTIONS

Before attempting to make any connections to or from this unit, be sure to first switch OFF the power to this unit and to any
other components to which connections are being made.

CONNECTIONS WITH OTHER COMPONENTS

When making connections between this unit and other components, be sure all connections are made correctly, that is to say
L (left) to L, R (right) to R, “+” to “+” and “–” to “–”. Also, refer to the owner’s manual for each component to be connected to
this unit.

ENGLISH

LD player

AUDIO OUT

Video cassette recorder

AUDIO IN

VIDEO OUT AUDIO OUT

VIDEO IN

Monitor TV

VIDEO IN

VIDEO OUT

See the next page.

R

REAR

+

OUT

–

TAPE PB REC OUT TAPE PB REC OUT

AUDIO SIGNAL

SPEAKERS

CENTER

TAPE

L

REAR

+

–

VCR

L

R

FM ANT GND

LD

AM ANT

VIDEO SIGNAL

VCR

IN

OUT

INPUT

PHONO CD LD

L

R

MONITOR

A

B

See the next page.

FRONT

+

–+–RL

(U.S.A. model)

AC OUTLETSSPEAKERS

A

B

Connecting the ground wire

GND terminal

of the turntable to this
terminal will minimize hum,
but in some cases better
results may be obtained
with the ground wire
disconnected.

OUTPUT

Turntable

OUTPUT

Compact disc player

LINE OUT

Tape deck

«

To AC outlet

LINE IN

7

CONNECTING SPEAKERS

Rear speakers
Right Left

SPEAKERS

L

R

CENTER

REAR REAR

+

+

–

–

VCR

TAPE

TAPE PB REC OUT TAPE PB REC OUT

AUDIO SIGNAL

Center speaker

A

L

R

B

Right Left

Front speakers B

Front speakers A

Right Left

FRONT

+

– +–RL

AC OUTLETSSPEAKERS

A

B

How to Connect

1 Raise (or press down) the tab.
2 Insert the bare wire. [Remove approx. 5mm (1/4")

insulation from the speaker wires.]

3 Press down (or raise) the tab to secure the wire.

Rear and center speaker terminalsFront speaker terminals

Black: Negative (–)

FRONT

L

–

3

–

R

+

1

A

B

2

Red: Positive (+)

+

1

Red: Positive (+)

L

CENTER

REAR

REAR

R

+

–

3

Black: Negative (–)

2

Connect the SPEAKERS terminals to your speakers with
wire of the proper gauge, cut to be as short as possible. If
the connections are faulty, no sound will be heard from the
speakers. Make sure that the polarity of the speaker wires
is correct, that is, + and – markings are observed. If these
wires are reversed, the sound will be unnatural and will lack
bass. Do not let the bare speaker wires touch each other
and do not let them touch the metal parts of this unit as this
could damage this unit and/or speakers.
÷ Use speakers with the specified impedance shown on the

rear of this unit.

Notes on front speakers connections

One or two speaker systems can be connected to this unit.
If you connect only one speaker system, connect it to either
the FRONT A or B terminals.

ABOUT THE AC OUTLETS

U.S.A., Canada, Europe and General models:

2 SWITCHED OUTLETS

Australia and U.K. models:

1 SWITCHED OUTLET

Use these to connect the power cords from your
components to this unit.

The power to the SWITCHED outlets is controlled with this
unit’s POWER switch or the provided remote-control
transmitter’s POWER key. These outlets will supply power
to any component whenever this unit is turned on.
The maximum power (total power consumption of
components) that can be connected to the SWITCHED AC
OUTLETS is 100 watts or 200 W (U.S.A. and General
models).

8

ANTENNA CONNECTIONS

÷ Each antenna should be connected to the designated terminals correctly, referring to the following figure.
÷ Both AM and FM indoor antennas are included with this unit. In general, these antennas will probably provide sufficient

signal strength. Nevertheless, a properly installed outdoor antenna will give clearer reception than an indoor one. If you
experience poor reception quality, an outdoor antenna may result in improvement.

Indoor FM antenna (included)

When connecting the indoor FM
antenna, make sure that the
grooved part of the connector

Outdoor FM antenna
If you need an outdoor
FM antenna to improve
FM reception quality,
either a 300-ohm feeder
or a coaxial cable may be
used. In locations
troubled by electrical
interference, a coaxial
cable is preferable.

300-ohm feeder

hole is facing downward.

LD

FM ANT GND

AM ANT

VIDEO SIGNAL

VCR

IN

PHONO CD

L

R

Outdoor AM antenna

MONITOR

OUT

OUT

INPUT

AM loop antenna (included)

ENGLISH

75-ohm coaxial cable

75-ohm/300-ohm
antenna adapter

Ground
For maximum safety and minimum
interference, connect the GND terminal
to a good grounding. A good grounding
is a metal stake driven into moist earth.

Connecting the AM loop antenna

1

GND

1

AM ANT

AM antenna cable

3

2

Place the AM antenna away from
the receiver and orient so that the
best reception is obtained.

2

÷ The antenna may be hung on a wall.
÷ The AM loop antenna should be kept connected, even if an outdoor AM antenna is connected to this unit.

9

ADJUSTMENT BEFORE OPERATION

61

–

VOLUME

CNCT VIDEO

6

+

7

ŸPRO LOGIC–ENHANCED

CENTER MODE

MONO MOVIE ROCK HALL

+

DELAY

TIME

–

ŸSURROUND

EFFECT

4325

Speaker balance adjustment

This procedure lets you adjust the sound output level balance between the front, center, and rear speakers using the built-in
test tone generator. With this adjustment, the sound output level heard at the listening position will be the same from each
speaker. This is important for the best performance of the digital sound field processor.

1 Turn off the power and set the VOLUME control to

the “ ” position.

VOLUME

0

–dB

2 Select the front speakers to be used.

SPEAKERS

A B

ON _ ON

OFF — OFF

÷ If you use two front speaker systems, press both the

A and B switches.

3 Set the BASS and TREBLE controls to the DEFEAT

position.

BASS

DEFEAT

–5

5+

TREBLE

DEFEAT

5+

–5

4 Set the BALANCE control to the 0 position.

BALANCE

0

5 Turn on the power.

POWER

6 Select the ŸPRO LOGIC or ENHANCED mode.

ŸPRO LOGIC — ENHANCED

÷ The PROGRAM button on the front panel can also be

used instead of the ŸPRO LOGIC or ENHANCED
button on the remote control transmitter. Turn on the
EFFECT button and then press the £ or ™ side of
the PROGRAM button so that the ŸPRO LOGIC or
ENHANCED indicator lights on the display.

7 Select the center mode according to your speaker

configuration by pressing the CENTER MODE button
on the remote control transmitter.
(Refer to “SPEAKER CONFIGURATION” on page 6.)

CENTER MODE

NORMAL

ms

NORMAL

WIDE

PHANTOM

10

L5

5R

On the feature of each mode, refer to “Note” shown
on the next page.

10

98

ENGLISH

8 Press the TEST button.

TEST

\

9 Turn up the volume.

VOLUME

–dB

TEST

Blinks.
The TEST indicator
continues blinking until the
TEST button is pressed
again to complete the
adjustment.

0

10Adjust the BALANCE control so that the sound

output level of the left front speaker and the right
front speaker are the same.

BALANCE

L5

0

5R

Adjust while the L or R indicator is lit.

TEST

CONTINUED

3

You will hear a test tone (like pink noise) from the left
front speaker, then the center speaker, then the right
front speaker, and then the rear speakers, for about
two seconds each. The display changes as shown
below.

Front (L) Center

TEST

»

* Rear (L

and R)

\

«

|

Front (R)

* The test tone from the left rear speaker and the

right rear speaker will be heard at the same time.

Note

In step 7, when you select the center mode, note the
following.

For 5-speaker configuration

NORMAL: Select this mode when you use a center

speaker that is smaller than the front speakers. In this
mode, the bass tone will be output from the front
speakers.
WIDE: Select this mode when you use the center
speaker approximately the same size as the front
speakers.

For 4-speaker configuration

PHANTOM: Select this mode when you do not use the

center speaker. The center sound will be output from
the left and right front speakers.

11

11 1213

11Make the sound output level of the center speaker

the same as that of the front speakers with the
CENTER level control. (When you selected the
PHANTOM mode in step 7, skip this step.)

CENTER

TEST

100

Adjust while the C indicator is llit.

12Make the sound output level of the rear speakers the

same as that of the front speakers with the REAR
level control.

REAR

TEST

Note

Once you have completed these adjustments, use only this
unit’s VOLUME control to adjust listening volume. Do not
change any other volume settings on this unit.

100

Adjust while the S indicator is lit.

13After completing the level adjustment, press the

TEST button.

TEST

12

PLAYING A SOURCE

2

Display

1 Set the VOLUME control to the “ ” position.

VOLUME

0

–dB

2 Turn on the power.

POWER

3 1,6

74

5 Play the source.

(If you want to tune in a station, refer to page 16.)

6 Adjust to the desired output level.

VOLUME

0

–dB

ENGLISH

3 Select the desired input source.

(For video sources, turn the TV/monitor ON.)

MONITOR

VCR TAPE

The corresponding indicator lights on the display.
(When TUNER is selected, the previously received
frequency appears on the display.)

LD TUNER CD PHONO

4 Select the front speakers to be used.

SPEAKERS

A B

ON _ ON

OFF — OFF

÷ If you use two front speaker systems, press both the

A and B switches.

7 If desired, adjust the BASS, TREBLE, BALANCE

controls, etc. (refer to page 15) and use the digital
sound field processor. (Refer to page 18.)

Notes

In step 3, if two or more program sources are selected at
the same time (by using input selectors), be sure to
remember the priority order of the input sources.

Priority order of audio sources: 1)TAPE MONITOR,

2)VCR MONITOR, 3)LD, TUNER, CD or PHONO.

Priority order of video sources: 1)VCR MONITOR and

2)LD.

÷ When selecting LD, TUNER, CD or PHONO, make sure

that TAPE MONITOR and VCR MONITOR are not
selected. To cancel VCR MONITOR or TAPE MONITOR,
press the corresponding button.

÷ If TAPE MONITOR and VCR MONITOR are selected at the

same time, the playback result will be the picture from the
VCR and the sound from the audio tape. In this case,
even if other input source (LD, TUNER, CD or PHONO) is
selected, the sound of the audio tape is output.

÷ If LD and TAPE MONITOR are selected at the same time,

the playback result will be the picture from the LD player
and the sound from the audio tape.

÷ Once you play the LD player, its picture will not be

interrupted even if other input selectors except VCR
MONITOR are selected.

13

1 Select the source to be recorded.

MONITOR

VCR TAPE

COPY3

LD TUNER CD PHONO

RECORDING A SOURCE

12

To monitor the audio and/or video signals being
recorded

Press the MONITOR button for the audio or video tape
recorder being used.

MONITOR

VCR TAPE

÷ To dub from tape to tape, you should record from the

component connected to the VCR jacks to the
component connected to the TAPE jacks.

÷ When selecting LD, TUNER, CD or PHONO, make

sure that the TAPE MONITOR and VCR MONITOR
input selectors are not selected.

2 Play the source and then turn the VOLUME control

up to confirm the input source.

÷ The VOLUME, BALANCE, BASS, TREBLE and DSP

(Digital Sound field Processor) control settings have
no effect on the recording.

3 Set the tape deck or VCR to the recording mode.

14

ADJUSTING THE BALANCE AND TONE

PHONES

TREBLE

BALANCEBASS

ENGLISH

To adjust the BALANCE control

Adjust the balance of the output volume to the left and right
speakers to compensate for sound imbalance caused by
speaker location or listening room conditions.

BALANCE

0

5R

L5

Note

These controls are effective only for the sound from the front
speakers.

To adjust the BASS and TREBLE controls

BASS: Turn this clockwise to increase (or counterclockwise

to decrease) the low frequency response.

BASS

DEFEAT

5+

–5

TREBLE: Turn this clockwise to increase (or counterclockwise to

decrease) the high frequency response.

TREBLE

DEFEAT

5+

–5

Note

These controls are effective only for the sound from the front
speakers.

When you listen to the sound with headphones

Connect the headphones plug to the PHONES jack. You
can listen to the sound from the front speakers with the
headphones. When listening with headphones privately, set
both the SPEAKERS A and B switches to the OFF position
and turn off the EFFECT button to cut off the sound from the
rear and center speakers.

15

TUNING OPERATIONS

Normally, if station signals are strong and there is no interference, quick automatic-search tuning (AUTOMATIC TUNING) is
possible. However, if signals of the station you want to select are weak, you must tune to it manually (MANUAL TUNING).

TUNER

AUTOMATIC TUNING

1 Press the TUNER button and select the reception

band (FM or AM) by pressing the FM/AM button.
The selected band appears on the display.

FM/AM

2 Press the TUNING MODE button so that the AUTO

indicator lights on the display.

TUNING MODE

AUTO/MAN'L MONO

\

FM

MHz

AUTO TUNING

Lights.

3 Tune in a desired station with the TUNING button.

To tune in a higher frequency, press the right side
(UP) once.
To tune to a lower frequency, press the left side
(DOWN) once.

DOWN TUNING UP

1/1

3/32/2

MANUAL TUNING

1 Press the TUNER button and select the reception

band (FM or AM) by pressing the FM/AM button.
The selected band appears on the display.

FM/AM

2 Press the TUNING MODE button so that the AUTO

TUNING indicator goes out.

TUNING MODE

AUTO/MAN'L MONO

3 Tune to the desired station manually with the

TUNING button.
To tune in a higher frequency, press the right side
(UP) sequentially.
To tune in a lower frequency, press the left side
(DOWN) sequentially.

DOWN TUNING UP

If the received station is not the desired one, press
UP or DOWN again.

÷ If the tuning search does not stop at the desired

station (because the signals of the station are weak),
change to the MANUAL TUNING method.

Display information

123

STEREO

FM

MHz

0 20 40 50 100

16

÷ To rapidly change the frequency, press and hold the

button.

Note

If you tune in an FM station manually, it is received in
monaural mode automatically to obtain the sound quality.

1 Displays the band and frequency of the received

station.

2 Lights when an FM stereo broadcast with sufficient

signal strength is received (in automatic tuning mode
only).

3 Indicates the signal level of the received station.

PRESET TUNING

This unit can store station frequencies (selected by tuning operation) by using preset station buttons. With this function, you
can select any desired station simply by specifying the corresponding preset station number. Up to 40 stations (8 stations
per page) can be stored.

ENGLISH

To store stations

1 Tune in the desired station.

(Refer to the previous page for tuning procedures.)

2 Press the MEMORY button.

MEMORY

\

FM

MEMORY

Blinks for about 5 seconds.

3 Select the desired page (A – E) by pressing the A/B/

C/D/E button.

A/B/C/D/E

\

PRESET

MEMORY

Appears.

FM

4 While the MEMORY indicator blinks, press the

PRESET STATIONS button so that the desired preset
station number (1 - 8) appears on the display.

PRESET STATIONS

DOWN UP

Selected preset station number

PRESET

\

MEMORY

FM

MHz

MHz

MHz

2/1

3,54/2

To recall a preset station

1 Select the page of the preset station to be received

by pressing the A/B/C/D/E button.

A/B/C/D/E

\

PRESET

FM

Appears.

2 Press the PRESET STATIONS button so that the

desired preset station number (1 - 8) appears on the
display.

PRESET STATIONS

DOWN UP

Notes

÷ A new setting can be stored in place of the former one.
÷ For presets, the setting of the reception mode (stereo or

monaural) is stored along with the station frequency.

MHz

5 Press the MEMORY button.

MEMORY

\

÷ Perform steps 1 through 5 to store other stations.

PRESET

FM

Shows the displayed station
has been stored in A1.

MHz

Memory back-up

The memory back-up circuit prevents the stored data from
being lost even if the POWER switch is turned off or the
power plug is disconnected from the AC outlet or the power
is cut due to temporary power failure. If, however, the
power is cut for more than two weeks, the memory may be
erased. If so, it can be re-stored simply by following the
PRESET TUNING steps.

17

USING DIGITAL SOUND FIELD PROCESSOR (DSP)

This unit incorporates a sophisticated, multi-program digital sound field processor, which allows you to expand and shape the
audio sound field from both the audio and video sources, for a theater-like experience in the listening/viewing room.
This digital sound field processor has 6 programs, including 2 programs for the Dolby Pro Logic Surround sound system (Ÿ
PRO LOGIC and ENHANCED). You can create an excellent audio sound field by selecting the suitable program and adding
desired adjustments. In addition, when the digital sound field program is in the Ÿ PRO LOGIC or ENHANCED mode, the built­in automatic input balance control functions. This presents you the best surround condition without adjusting it manually.
÷ To use the DSP function, it is necessary to adjust the sound output level balance between the front, rear and/or center

speakers beforehand. (Refer to "ADJUSTMENT BEFORE OPERATION".)

Controls and indicators for DSP

Main unit

Indicates your
selection on the DSP.

Displays the delay time.

∞

DELAY

TEST

Ÿ

PRO LOGIC
ENHANCED

CONCERT

VIDEO

NORMAL
WIDE
PHANTOM

ms

MOVIE CONCERT HALL

ROCK CONCERTMONO

DIGITAL SOUND FIELD PROCESSOR

™ PROGRAM £ EFFECT TEST

Digital sound field program selector
Each time the 3 side is pressed, the DSP program changes
in the following order, ŸPRO LOGIC = ŸPRO LOGIC
ENHANCED = CONCERT VIDEO = MONO MOVIE =
ROCK CONCERT = CONCERT HALL = ŸPRO LOGIC.
Each time the 2 side is pressed, the DSP program changes
in reverse order.

Remote control transmitter

3

Indicates the center mode
selected in "Speaker balance
adjustment".

∞

FRONT EFFECT

Turns on and off
the DSP effect.

(Sets the unit to the TEST mode. For details, refer
to "Speaker balance adjustment".)

(Selects the CENTER MODE. For details,
refer to "Speaker balance adjustment".)

CENTER MODE

ŸPRO LOGIC–ENHANCED

ŸSURROUND

MONO MOVIE ROCK HALL

+

Used to adjust sound output level
of each speaker. For details,
refer to the page 21.

CNCT VIDEO

REARCENTER

DSP program buttons

18

DELAY

TIME

EFFECT

–

–

VOLUME

+

Used to adjust the delay time. For
details, refer to the page 20.

Turns on and off
the DSP effect.

Description of Each Sound Field Program

ENGLISH

PROGRAM

ŸPRO LOGIC

ENHANCED

CONCERT VIDEO

MONO MOVIE

ROCK CONCERT

CONCERT HALL

This program is effective for playback of sources encoded with the Dolby Surround.
The employment of the digital signal processing system improves crosstalk and transfers the sound
source more smoothly and precisely, compared to the conventional type. A stable movie sound field
is recreated.

This program is effective for playback of sources encoded with the Dolby Surround.
Enhancing the “Normal” Dolby Pro Logic, the DSP technology simulates the multi-surround speaker
systems of a 35 mm film theater, thus widening the surrounded-sound field with greater presence.

This program is effective for music videos and gives excellent depth and clarity for vocals. For opera,
the orchestra and stage are ideally recreated, letting you feel as if you were in an actual concert hall.

This program is designed specifically to enhance mono source programs. Compared to a strictly
mono setting, the sound image created in this mode is wider and slightly forward of the speaker pair,
lending an immediacy to the overall sound. It is particularly effective when used with old mono
movies, news broadcasts and dialog.

This program is suitable for rock music. A big, powerful sound is reproduced lively and dynamically.

In this program, the center seems even more deeply behind the front speaker pair, creating an
expansive, large hall ambience.

Notes on Operation of Sound Field Programs

÷ In the CONCERT VIDEO, MONO MOVIE, ROCK

CONCERT and CONCERT HALL modes, no sound is
heard from the center speaker.

÷ When a monaural sound source is played in the DOLBY

PRO LOGIC or ENHANCED mode, no sound is heard
from the front speakers and the rear speakers. Sound is
heard only from the center speaker. However, if the
center mode is in the PHANTOM, the front speakers
output the sound of the center speaker.

÷ When this unit is in the Dolby Pro Logic Surround mode, if

the main-source sound is considerably altered by
overadjustment of the BASS or TREBLE controls, the
relationship between the center and rear channels may
produce an unnatural effect.

FEATURE

Description of ŸDolby Pro Logic Surround

This unit employs the Dolby Pro Logic Surround system.
This system is similar to professional Dolby Stereo decoders
used in movie theaters.
By employing a four-channel system, the Dolby Pro Logic
Surround system divides the input signals into four levels:
the left and right main channels, the center channel (to
characterize dialog), and the rear surround-sound channels
(to characterize sound effects, background noise and other
ambient noise).

Dolby Surround is encoded on the sound track of
commercially available video cassettes and video discs as
well. When you play a source encoded with Dolby
Surround on your home video system, the Dolby Pro Logic
Surround mode on this unit decodes the signal and feeds
the surround-sound effects.
The Dolby Pro Logic Surround mode may not be always
effective on video sources not encoded with Dolby
Surround.

Ÿ DOLBY SURROUND

Manufactured under license from Dolby Laboratories Licensing
Corporation. Additionally licensed under one or more of the
following patents: U.S. numbers 3,632,886, 3,746,792, and
3,959,590; Canadian numbers 1,004,603 and 1,037,877. “Dolby”
and the double-D symbol are trademarks of Dolby Laboratories
Licensing Corporation.

TM

19

To play a source with the digital sound
field processor

Delay time adjustment

÷ The delay time can be adjusted with the remote control

transmitter only.

–

VOLUME

CNCT VIDEO

2

+

ŸPRO LOGIC–ENHANCED

CENTER MODE

MONO MOVIE ROCK HALL

+

DELAY

TIME

–

ŸSURROUND

EFFECT

1 Play a source.

(Follow steps 1, 2, 3, 4, 5, and 6 shown in “PLAYING
A SOURCE” on page 13.)

2 Select the desired DSP program that is suitable for

the source.

ŸPRO LOGIC–

MONO MOVIE ROCK HALL

ENHANCED

ŸSURROUND

CNCT VIDEO

You can adjust the time difference between the beginning
of the source sound and the beginning of the effect sound
with the DELAY TIME controls.
The delay time adjustment is effective with all programs.
By applying more or less delay, sound effects, background
noise, and ambient noise coming at you from the rear
speakers can be enhanced or subdued for extra effect.

Delay time

DELAY

Ÿ

PRO LOGIC

NORMAL

ms

Delay time range

Program

ŸPRO LOGIC

+

DELAY

TIME

—

\

from 15 to 30 milliseconds
(Preset value: 20 milliseconds)

ENHANCED

from 15 to 30 milliseconds
(Preset value: 20 milliseconds)

CONCERT VIDEO

from 1 to 100 milliseconds
(Preset value: 25 milliseconds)

÷ The PROGRAM button on the front panel can also be

used instead of the DSP program buttons on the
remote control transmitter. Turn on the EFFECT
button and then press the ™ or £ side of the
PROGRAM button so that the desired DSP program
indicator appears on the display. When the EFFECT
button is turned on, the previously selected delay
time and DSP program indicator appear on the
display.

÷ If desired, adjust the delay time and the output level of

each speaker. (For details, refer to the corresponding
descriptions on this page and the next page.)

Note

If you prefer to cancel the DSP mode, press the EFFECT
button. The sound will be the normal 2-channel stereo
without surround sound effect.

MONO MOVIE

from 1 to 100 milliseconds
(Preset value: 25 milliseconds)

ROCK CONCERT

from 1 to 100 milliseconds
(Preset value: 15 milliseconds)

CONCERT HALL

from 1 to 100 milliseconds
(Preset value: 30 milliseconds)

÷ By continuously pressing the DELAY TIME + or – control,

the value changes continuously.
However, the value stops changing momentarily at the
preset point.

Notes

÷ Adding too much delay will cause an unnatural effect with

some sources. Experiment with the DELAY TIME controls
to create the effect that you find most suitable.

÷ The values of the DELAY TIME controls you set the last

time will remain memorized even when the power of this
unit is off.
However, if the power plug cord is kept disconnected for
more than two weeks, these values will be invalid.

20

Adjustment of the front effect level
(Except for ŸPRO LOGIC)

If desired, you can adjust the effect sound output level of
the front speakers with the FRONT EFFECT level control.

FRONT EFFECT

Adjustment of the rear level

If desired, you can adjust the sound output level of the rear
speakers with the REAR level control even if the output level
is already set in “Speaker balance adjustment” on page 10.

REAR

ENGLISH

100

÷ If any DSP program is not used, the FRONT EFFECT level

control does not function.

Adjustment of the center level
(Only for ŸPRO LOGIC and ENHANCED)

If desired, you can adjust the sound output level of the
center speaker with the CENTER level control even if the
output level is already set in “Speaker balance adjustment”
on page 10.

CENTER

100

100

÷ If any DSP program is not used, the REAR level control

does not function.

÷ If ŸPRO LOGIC or ENHANCED is not selected, the

CENTER level control does not function.

21

SETTING THE SLEEP TIMER

If you use the SLEEP timer of this unit, you can set this unit to be turned off automatically. When you are going to sleep while
enjoying a broadcast or other desired input source, this timer function is helpful.

Notes

÷ The SLEEP timer can be controlled only with the remote control transmitter.
÷ The components on which the SLEEP timer is effective are the sources connected to a SWITCHED OUTLET on the rear

panel of this unit.

To set the SLEEP timer

Display the desired time with the SLEEP button.

SLEEP

Each time the SLEEP button is pressed, the
time setting changes in the following order.

(minutes)

r®Y = ÊY = RY = tY

5

SLEEP time off

(No display appears when the
EFFECT button is turned off.
The delay time appears when the
EFFECT button is turned on.)

2

To cancel the SLEEP timer

Press the SLEEP button so that the SLEEP indicator goes
out.

SLEEP

SLEEP

Goes out.

SLEEP

Indicates the SLEEP time.

«

Returns to the display
before the SLEEP timer is
set after a while.

The unit will be turned off automatically after the passing of
the SLEEP time you selected.

Flashes for about 3 seconds.

«

Lights up.

22

REMOTE CONTROL TRANSMITTER

The remote control transmitter provided with this unit is designed to control all the most commonly used functions of the unit. If
the CD player and tape deck connected to this unit are YAMAHA components designed for remote control compatibility, then
this remote control transmitter will also control various functions of each component. Please consult your YAMAHA dealer for
information on which components are compatible with the remote control transmitter.

Button Functions

ENGLISH

To control this unit

Refer to “SETTING OF THE
SLEEP TIMER” on the

Turns the power on/off.

Used to select the preset station
number.
UP: Selects higher preset station

number.

DOWN: Selects lower preset station

number.

A/B/C/D/E: Selects the page (A - E)

of preset station buttons.

Used to select the center speaker mode.

Used to adjust the delay time.

Switches on/off digital sound
field processor.

SLEEP

POWER

SKIP

› PLAY CD

$

SEARCH ⁄PAUSE/STOP DISC SKIP

!

DOWN PRESET UP

DIR A

!

REC PAUSE

CENTER MODE

+

DELAY

TIME

–

A/B/C/D/E

DIR B

DECK A/B

PLAY

STOP REC MUTE

ŸPRO LOGIC–

ENHANCED

ŸSURROUND

MONO MOVIE ROCK HALL

EFFECT

⁄

–

VOLUME

PHONO

TUNER

LD

TAPE MON

VCR MON

CNCT VIDEO

+

previous page.

Used to select the input
source.

Used to select the digital
sound field program.

Used to turn the master
volume level up/down.

To control other components

Identify the remote control transmitter buttons with your component’s buttons. If these buttons are identical, their function will
be the same. On each button function, refer to the corresponding instruction on your component’s manual.

Compact disc player control
buttons

÷ DISC SKIP is applicable only to

compact disc auto changer.

Tape deck control buttons

÷ DIR A, B and DECK A/B are

applicable only to double
cassette tape deck. However,
the DIR A button can be used
as the direction button of the
single cassette tape deck with
auto reverse function.

STANDBY mode (Europe model only)

While the power is on, pressing the POWER button on the
remote control transmitter switches the unit to the STANDBY
mode. (In this mode, the indicator is dimly lit.)

SLEEP

POWER

SKIP

› PLAY CD

$

!

SEARCH ⁄PAUSE/STOP DISC SKIP

DOWN PRESET UP

DIR A

!

REC PAUSE

CENTER MODE

+

DELAY

TIME

–

A/B/C/D/E

DIR B

DECK A/B

PLAY

STOP REC MUTE

ŸPRO LOGIC–

ENHANCED

ŸSURROUND

MONO MOVIE ROCK HALL

EFFECT

POWER on mode

POWER

/STANDBY

⁄

–

VOLUME

5

PHONO

TUNER

LD

TAPE MON

VCR MON

CNCT VIDEO

+

STANDBY mode

∞

POWER

/STANDBY

23

NOTES ABOUT THE REMOTE CONTROL TRANSMITTER

Battery installation

Press the lid's locking tab down and, at the same time,

1

pull out the battery compartment lid in the direction of
the arrow.

2 Install the batteries (size AA, R6, UM-3) with correct

polarities. Follow the diagram in the compartment.

+

–

–

+

3 Position the bottom portion of the compartment lid in

place, and push the top portion of the lid in until it clicks
into place.

Remote control transmitter operation
range

Remote control sensor

Within approximately
7 m (23 feet)

30°

30°

Notes

÷ There should be no large obstacles between the remote

control transmitter and the main unit.

÷ If the remote control sensor is directly illuminated by

strong lighting (especially an inverter type of fluorescent
lamp etc.), it might cause the remote control transmitter
not to work correctly. In this case, reposition the main unit
to avoid direct lighting.

Battery replacement

If you find that the remote control transmitter must be used
closer to the main unit, the batteries are weak. Replace
both batteries with new ones.

Notes

÷ Use only AA, R6, UM-3 batteries for replacement.
÷ Be sure the polarities are correct. (See the illustration

inside the battery compartment.)

÷ Remove the batteries if the remote control transmitter will

not be used for an extended period of time.

÷ If batteries leak, dispose of them immediately. Avoid

touching the leaked material or letting it come in contact
with clothing, etc. Clean the battery compartment
thoroughly before installing new batteries.

24

TROUBLESHOOTING

If the unit fails to operate normally, check the following points to determine whether the fault can be corrected by the simple
measures suggested. If it cannot be corrected, or if the fault is not listed in the SYMPTOM column, disconnect the power cord
and contact your authorized YAMAHA dealer or service center for help.

SYMPTOM

The unit fails to turn on when the
POWER switch is pressed.

No sound or no picture.

The sound from all speakers or
only from the front speakers
suddenly goes off.

Only one side speaker outputs the
sound.

Amplifier

Sound “hums”.

The volume level is low while
playing a record.

No sound from the rear speakers.

No sound from the center speaker.

FM stereo reception is noisy.

There is distortion and clear

FM

reception cannot be obtained even
with a good FM antenna.

A desired station cannot be tuned
in with Auto tuning.

A desired station cannot be tuned
in with Auto tuning.

There are continuous crackling and
hissing noises.

AM

There are buzzing and whining
noises (especially in the evening).

The remote control transmitter
does not work.

The distance or range within which
the remote control transmitter can
be used decreases.

Remote control

transmitter

The sound is degraded when
monitoring is performed by using
the headphones connected to the
compact disc player or cassette
deck which are connected with this

Others

unit.

CAUSE

Power cord is not plugged in or is not completely
inserted.

Incorrect output cord connections.

Appropriate input selector is not pressed.

The protection circuit has activated because of short
circuit or over power, etc.

Incorrect setting of the BALANCE control.

Incorrect cord connections.

Incorrect cord connections.

The record is being played on a turntable with an MC
cartridge.

The sound output level of the rear speakers is 0.

The monaural sound source is played in DOLBY PRO
LOGIC or ENHANCED mode.

The sound output level of the center speaker is 0.

The center mode is in PHANTOM mode.

Incorrect sound field program selection.
No sound field program is selected.

Because of the characteristics of FM stereo broadcasts,
this is limited to cases where the transmitter is too far
away or the antenna input is poor.

There is multipath interference.

The station is too weak.

Weak signal or loose antenna connections.

Noises will result from ligtning, fluorescent lamps,
motors, thermostats and other electrical equipment.

A television set is being used nearby.

Direct sunlight or lighting (of an inverter type of
flourescent lamp etc.) is striking the remote control
sensor of the main unit.

The batteries of this remote control transmitter are too
weak.

Power cord of this unit is not plugged in.

Firmly plug in the power cord.

Connect the cords properly. If the problem
persists, the cords may be defective.

Press the appropriate input selector corresponding
to the input source.

All speakers: Check the speaker cords, turn the
unit off and then on. Operate the unit after
reducing the volume.
Front speakers: Check the speaker cords and
reduce the volume.

Adjust it to the appropriate position.

Connect the cords properly. If the problem
persists, the cords may be defective.

Firmly connect the audio plugs. If the problem
persists, the cords may be defective.

The player should be connected to the unit through
the MC head amplifier.

Turn up the sound output level with the REAR level
control.

Select another program suitable for the monaural
sound source.

Turn up the sound output level with the CENTER
level control.

Select NORMAL or WIDE.

Select the appropriate program.

Check the antenna connections.
Try using a multiple element FM antenna.

Adjust antenna placement to eliminate multipath
interference.

Use Manual tuning mode.
Use a high quality directional FM antenna.

Tighten the AM loop antenna connections and
rotate it for best reception.
Use Manual tuning mode.

Use an outdoor antenna and a ground wire. This
will help somewhat but it is difficult to eliminate all
noise.

Move the television away.

Change the position of the main unit.

Replace the batteries with new ones.

Plug in the power cord.

REMEDY

ENGLISH

25

SPECIFICATIONS

AUDIO SECTION

Minimum RMS Output Power per Channel
Front L,R

8 ohms, 20 Hz to 20 kHz, 0.04% THD ......................................... 50W+50W

6 ohms, 20 Hz to 20 kHz, 0.06% THD

[U.S.A. and Canada models] ...................................................... 55W+55W

Center

8 ohms, 1 kHz, 0.5% THD .....................................................................50W

Rear L, R

8 ohms, 1 kHz, 0.5% THD ........................................................... 15W+15W

Dynamic Power per Channel
(by IHF Dynamic Headroom measuring method)

8/6/4/2 ohms

[U.S.A. and Canada models] ...........................................85/110/125/150W

[General, Australia, Europe and U.K. models] ................ 84/100/114/130W

DIN Standard Output Power per Channel

4 ohms, 1 kHz, 0.7% THD

[Europe model only] ............................................................................. 70W

IEC Power

6 ohms, 1 kHz, 0.04% THD

[Europe model only] ............................................................................. 68W

Power Band With

8 ohms, 25 W, 0.1% THD ................................................... 10 Hz to 50 kHz

Damping Factor

8 ohms, 1 kHz .......................................................................................... 50

Input Sensitivity/Impedance

PHONO MM .................................................................... 2.5 mV/47 k-ohms

CD/TUNER/TAPE/LD/VCR ..............................................150 mV/50 k-ohms

Maximum Input Signal (1 kHz, 0.02% THD)

PHONO MM .......................................................................................80 mV

Subwoofer Output Power

[U.K. and Europe models only] ........................................... 2.8 V/700 ohms

Output Level/Impedance

REC OUT .........................................................................150 mV/550 ohms

Headphone Jack Rated Output/Impedance

RL=390 ohms, 0.04% THD

Output Level ......................................................................................... 0.4V

Impedance ....................................................................................... 8 ohms

Frequency Response (20 Hz to 20 kHz)

CD/TUNER/TAPE/LD/VCR .............................................................0±0.5 dB

RIAA Equalization Deviation

PHONO MM .................................................................................. 0±0.5 dB

Total Harmonic Distortion (20 Hz to 20 kHz)

PHONO MM (3V) ............................................................................... 0.01%

CD/TUNER/TAPE/LD/VCR to SP OUT (25W/8 ohms) ........................ 0.03%

Signal-to-Noise Ratio (IHF-A Network)

PHONO MM (5 mV Input Shorted) .................................... More than 82 dB

CD/TUNER/TAPE/LD/VCR (Input Shorted) ........................More than 93 dB

Residual Noise (IHF-A Network) .............................................................140 µV

Channel Separation (Vol. –30 dB)

PHONO MM (Input Shorted 1 kHz) .................................................... 55 dB

CD/TUNER/TAPE/LD/VCR

(Input 5.1 k-ohms Terminated 1 kHz) .................................................55 dB

Tone Control Characteristics

BASS: Boost/cut ............................................................. ±10 dB (50 Hz)

TREBLE: Boost/cut ........................................................... ±10 dB (20 kHz)

Gain Tracking Error (0 to –60 dB) .............................................................. 3 dB

VIDEO SECTION

Video Input Level/Impedance ......................................................... 1V/75 ohms

Video Output Level/Impedance ......................................................1V/75 ohms

FM SECTION

Tuning Range

[U.S.A., Canada and General models] ........................... 87.5 to 107.9 MHz

[Australia, Europe, U.K. and General models] ........... 87.50 to 108.00 MHz

50 dB Quieting Sensitivity (IHF, 75 ohms)
[Except for Europe model]

Mono ............................................................................... 1.55 µV (15.1 dBf)

Stereo .................................................................................21 µV (37.7 dBf)

Usable Sensitivity (75 ohms)

(30 dB S/N Quieting, 1 kHz, 100% mod.)

[Except for Europe model] ..................................................0.8 µV (9.3 dBf)

DIN, Mono (S/N 26 dB) [Europe model] ............................................ 0.9 µV

DIN, Stereo (S/N 46 dB) [Europe model] ............................................24 µV

Image Response Ratio

[Except for Europe model] ................................................................. 45 dB

[Europe model] ...................................................................................80 dB

IF Response Ratio

[Except for Europe model] ................................................................. 80 dB

[Europe model] ...................................................................................80 dB

Spurious Response Ratio .........................................................................70 dB

AM Suppression Ratio ..............................................................................55 dB

Capture Ratio .......................................................................................... 1.5 dB

Alternate Channel Selectivity [Except for Europe model] ........................ 85 dB

Selectivity (two signals, 40 kHz Dev.) [Europe model] ............................ 70 dB

Signal-to-Noise Ratio

(IHF) Mono/Stereo [Except for Europe model] ........................ 81 dB/76 dB

(DIN-Weighted, 40 kHz Dev.) mono/stereo [Europe model] .. 75 dB /70 dB

Harmonic Distortion

Mono/Stereo (1 kHz) ...................................................................... 0.1/0.2%

Mono/Stereo (40 kHz Dev.) ............................................................0.1/0.2%

Stereo Separation (1 kHz, for Europe model only: 1 kHz, 40 kHz Dev.) ..50 dB
Frequency Response

30 Hz to 13 kHz ...........................................................................0 ± 0.5 dB

20 Hz to 15 kHz ...........................................................................0 ± 1.5 dB

AM SECTION

Tuning Range

[U.S.A., Canada and General models] .............................530 to 1,710 kHz

[Australia, U.K., Europe and General models] ................. 531 to 1,611 kHz

Usable Sensitivity ............................................................................... 100 µV/m

Selectivity ................................................................................................. 32 dB

Signal-to-Noise Ratio ................................................................................50 dB

Image Response Ratio .............................................................................40 dB

Spurious Response Ratio .........................................................................50 dB

Harmonic Distortion ................................................................................... 0.3%

AUDIO SECTION

Output Level/Impedance

FM (100% mod., 1 kHz)

[Except for Europe model] ............................................500 mV/3.2 k-ohms

[Europe model (40 kHz Dev.)] ...................................... 400 mV/3.2 k-ohms

AM (30% mod., 400 Hz)

[Except for Europe model] ............................................150 mV/3.2 k-ohms

[Europe model (40 kHz Dev.)] ...................................... 150 mV/3.2 k-ohms

GENERAL

Power Supply

[U.S.A. and Canada models] ............................................. AC 120V, 60 Hz

[Australia and U.K. models] ............................................... AC 240V, 50 Hz

[Europe model] ...................................................................AC 230V, 50 Hz

[General model] ....................................... AC 110/120/220/240V, 50/60 Hz

Power Consumption

[U.S.A model] ..................................................................................... 190W

[Canada model] .................................................................... 290 VA, 235W

[General model] ..................................................................................190W

[Australia, Europe and U.K. models] .................................................. 190W

AC Outlets

[U.S.A. and General models] .....2 SWITCHED OUTLETS 200 W max. total

[Canada and Europe models] ... 2 SWITCHED OUTLETS 100 W max. total

[Australia and U.K. models] ......... 1 SWITCHED OUTLET 100 W max. total

Dimensions (W x H x D) .................................................... 435 x 131 x 292 mm

Weight .............................................................................7.2 kg (15 lbs. 14 oz.)

Accessories ............................................................................AM loop antenna

Specifications are subject to change without notice.

(17-1/8” x 5-3/16” x 11-1/2”)

Indoor FM antenna

Remote control transmitter

Batteries

26
