CONTENTS

INTRODUCTION

Features and capabilities...................................................3

About this manual.............................................................4

Supplied accessories.........................................................4

Part names and functions..................................................5

Front panel........................................................................5

Rear panel.........................................................................6

Front panel display ...........................................................7

Remote control .................................................................8

CONNECTIONS

Connecting speakers ..........................................................9

Speaker channels and functions........................................9

Speaker layout ................................................................10

Connecting speakers.......................................................10

Connecting external devices............................................12

Cable plugs and jacks .....................................................12

Connecting a TV monitor...............................................13

Connecting BD/DVD players and other devices............ 15

Connecting video cameras and portable audio players ..19

Transmitting input A/V to external devices.................... 19

Connecting the FM/AM antennas ..................................20

Set up the speaker parameters automatically

(YPAO)..............................................................................21

PLAYBACK

Basic playback procedure ...............................................25

Adjusting high/low-frequency sound (Tone control) .....25

Changing input settings with a single key

(SCENE function) ............................................................26

Registering input sources/sound field program ..............26

Enjoying sound field programs.......................................26

Selecting sound field programs and sound decoders...... 26

Sound field programs .....................................................28

FM/AM tuning ................................................................. 30

Selecting a frequency for reception (Normal tuning)..... 30

Registering and recalling a frequency (Preset tuning) ... 31

Clearing preset stations .................................................. 33

SETUP

Configuring the settings specific for each input source

(Option menu) .................................................................. 34

Option menu display and setup ...................................... 34

Option menu items ......................................................... 34

Setting various functions (Setup menu)......................... 36

Setup menu display and settings .................................... 36

Setup menu items ........................................................... 36

Manages settings for speakers........................................ 37

Setting the audio output function of this unit................. 40

Making the receiver easier to use................................... 42

Setting sound field program parameters......................... 43

Prohibiting setting changes ............................................43

Setting sound field program parameters....................... 44

Setting sound field parameters ....................................... 44

Controlling other components with the

remote control .................................................................. 46

Keys connecting external components........................... 46

Default remote control code settings.............................. 46

Registering remote control codes for external component

operations ....................................................................... 47

Resetting all remote control codes ................................. 48

Extended functionality that can be configured

as needed (Advanced Setup menu)................................. 49

Displaying/Setting the Advanced Setup menu............... 49

Avoiding crossing remote control signals when using

multiple Yamaha receivers .............................................50

Changing FM/AM frequency steps (Asia and General

models only)................................................................... 50

Initializing various settings for this unit......................... 50

APPENDIX

Troubleshooting ............................................................... 51

General........................................................................... 51

HDMI™ ......................................................................... 53

Tuner (FM/AM) ............................................................. 54

Remote control............................................................... 55

Glossary............................................................................ 56

Audio information.......................................................... 56

Sound field program information................................... 56

Video information.......................................................... 57

Information on HDMI™................................................. 58

About trademarks ........................................................... 58

Specifications.................................................................... 59

Index ................................................................................. 60

En 2

INTRODUCTION

Features and capabilities

■ Built-in high-quality, high-power 5-channel amplifier

■ 1-button input/sound field program switching (SCENE function) .......................26

■ Speaker connections for 2- to 5.1-channel configurations

– Speaker channels and functions .................................................................................................................9

– Speaker layout..........................................................................................................................................10

– Speaker cable connection.........................................................................................................................10

– Subwoofer cable connection ....................................................................................................................11

■ Acoustic parameter adjustment to match your speakers and listening environment

– Automatic settings for speaker acoustic parameters

(YPAO - Yamaha Parametric Room Acoustic Optimizer).......................................................................21

– Specifying the settings for each speaker..................................................................................................37

– Volume control for each speaker..............................................................................................................38

– Speaker distance settings .........................................................................................................................38

– Sound quality control with the equalizer <Graphic Equalizer> ..............................................................39

– Test tone speaker adjustment ...................................................................................................................39

– Bass and treble level adjustment <Tone Control> ...................................................................................25

■ External device connection and playback

– Cables and input/output jacks for this unit ..............................................................................................12

– TV connection..........................................................................................................................................13

– TV audio playback through this receiver.................................................................................................14

– Connections for BD/DVD players (recorders) and other devices............................................................ 15

– Audio signal output to the TV connected via the HDMI jack .................................................................41

– Correction of lag between audio and video signals <Lipsync>...............................................................40

– External audio and video recorder connections .......................................................................................19

– HDMI/AV video input combining other audio input...............................................................................35

– Front panel external device connections (for video cameras, portable music players, etc.)....................19

– Protective cover for front panel jacks ........................................................................................................4

– Changing the input source names <Input Rename>................................................................................42

– Configuring the settings specific for each input source <Option menu> ................................................34

– Playback from external devices ...............................................................................................................25

■ Multi-channel, multi-format playback

– Sound field effect selection......................................................................................................................26

– Playback without sound field effects .......................................................................................................27

– Stereo playback........................................................................................................................................27

– Sound field effect configuration ..............................................................................................................44

– Compressed-music playback ...................................................................................................................26

■ Front panel information display

– Front panel display information switching ................................................................................................7

– Front panel display brightness adjustment <Dimmer>............................................................................43

– Digital video/audio signal information display <Signal Info> ................................................................35

■ Volume/sound quality adjustment functions

– Easy listening at low volumes <Adaptive DRC> .................................................................................... 40

– Maximum volume settings.......................................................................................................................41

– Startup volume settings............................................................................................................................ 41

– Adjusting volume between input sources <Volume Trim> ..................................................................... 34

■ Remote control operation

– Remote control names and functions.........................................................................................................8

– Insert batteries into the remote control ......................................................................................................4

– External device operation with this unit’s remote control ....................................................................... 46

– Multiple Yamaha receiver operation without signal interference <Remote ID Switching>....................50

■ Other features

– Standby mode after prolonged non-operation <Auto Power Down function> ........................................ 43

– Standby mode after a specific amount of time <Sleep timer>...................................................................8

– Initializing various settings for this unit ..................................................................................................50

– Prohibiting setting changes <Memory Guard>........................................................................................43

■ FM/AM Tuner

– FM/AM broadcast listening .....................................................................................................................30

– Simple preset tuning ................................................................................................................................31

– Changing FM/AM frequency steps initializing various settings for this unit..........................................30

En 3

INTRODUCTION

Features and capabilities

About this manual

• This manual is printed prior to production. Design and

specifications are subject to change in part as a result of

improvements, etc. In case of differences between the manual and

product, the product has priority.

• “

dHDMI1” (example) indicates the name of the parts on the

remote control. Refer to the “Part names and functions” (☞

for the information about each position of the parts.

• J

1 indicates that the reference is in the footnote. Refer to the

corresponding numbers on the bottom of the page.

• ☞

indicates the page describing the related information.

• Click on the “ ” at the bottom of the page to display the

corresponding page in “Part names and functions.”

Front panel

Rear panel

Front panel display

Remote control

p. 5)

Supplied accessories

Check that you received all of the following parts.

• Remote control

• Batteries (AAA, R03, UM-4) x 2

• YPAO microphone

• AM loop antenna

• Indoor FM antenna

• VIDEO AUX input cover

■ Attaching the VIDEO AUX input cover (included)

To protect against dust, attach the supplied VIDEO AUX input cover to the VIDEO AUX jacks when you do not use the jacks. To remove the cover, push the left section of it.

Attach the cover

PUSH

Remove the cover

■ Installing batteries in the remote control

When inserting batteries in the remote control, remove the battery compartment cover from the reverse side of the remote control, and insert two AAA batteries into the battery compartment so that they match with the polarity markings (+ and -).

Battery compartment cover

Battery compartment

Replace the batteries with new ones if the following symptoms become evident:

• The remote control can only be operated within a narrow range.

•

bTRANSMIT does not light up, or only lights dimly.

NOTE

If there are remote control codes for external components registered to the remote control, removing the batteries for more than two minutes, or leaving exhausted batteries in the remote control, the remote control codes may be cleared. If this should occur, replace the batteries with new ones, and set the remote control codes.

En 4

Part names and functions

INTRODUCTION

Front panel

a A (Power)

Switches this unit between on and standby modes.

b YPAO MIC jack

Connect the supplied YPAO microphone and adjust the speaker balance automatically (☞

c INFO

Changes the information shown on the front panel display (☞

d MEMORY

Registers FM/AM stations as preset stations (☞

e PRESET j / i

Selects an FM/AM preset station (☞

f FM

Sets the FM/AM tuner band to FM (☞

p. 21).

p. 32). J1

p. 33). J1

p. 30). J1

YPAO MIC

p. 7).

g AM

Sets the FM/AM tuner band to AM (☞

p. 30). J1

h TUNING jj / ii

Changes FM/AM tuner frequencies (☞

p. 30). J1

i Front panel display

Displays information on this unit (☞

p. 7).

j PHONES jack

For plugging headphones in. Sound effects applied during playback can also be heard through the headphones.

k INPUT l / h

Selects an input source from which to playback. Press either the left or right key repeatedly to cycle through the input sources in order.

l SCENE

Switches the input source and the sound field program with a single button (☞

p. 26). Press this key when this unit is in standby mode to

switch on the unit.

c fe gd h

MEMORY

INFO

PRESET

DVD

FM AM

SCENE

RADIO

TUNING

m TONE CONTROL

Adjusts high-frequency/low-frequency output of speakers/headphones (☞

n PROGRAM l / h

Switches between the sound field effect (sound field program) you are using and the surround sound decoder (☞ or right key repeatedly to cycle through the input sources in order.

o STRAIGHT

Changes a sound field program to straight decoding mode (☞

p VIDEO AUX jacks

For connecting video cameras, game consoles, and portable music players to this unit temporarily. Attach the supplied VIDEO AUX input cover when not using this jack.

q VOLUME

Adjusts the volume level.

p. 25).

p. 26). Press either the left

p. 27).

VOLUME

1 : Usable when you have selected tuner input.

SILENT

PHONES

CINEMA

AUX

PORTABLE

VIDEO

AUDIO

TONE

INPUT

CONTROL

m ok n

lj q

PROGRAM

STRAIGHT

En 5

Rear panel

GND

(TV)

AV 1

AV 2

AV 3 AV 4

AV 5

( C

)

SURROU

( BD/

)

a HDMI OUT jack

For connecting an HDMI - compatible TV to output audio/video signals to (☞

b HDMI1-4 jacks

For connecting external components equipped with HDMIcompatible outputs to receive audio/video signals from (☞

c ANTENNA jacks

For connecting AM and FM antennas (☞

d COMPONENT VIDEO jacks

For connecting TV that are compatible with component video signals, using three cables to output video signal (☞

p. 13).

p. 20).

p. 13).

p. 15).

e AV1-5 jacks

For connecting to external devices equipped with audio/video outputs so that this unit can receive audio/video signals (☞

p. 16, p. 17).

f AV OUT jacks

For outputting audio/video signals received when analog inputs (AV35 or AUDIO1-2) are selected (☞

p. 19).

g AUDIO1-2 jacks

For connecting to external components equipped with analog audio outputs to input sound into this unit (☞

p. 18).

h MONITOR OUT jack

For connecting a TV capable of receiving video input, and outputting video signals to it (☞

p. 14).

INTRODUCTION

Part names and functions

i AUDIO OU T j acks

For outputting audio signals received when analog inputs such as the AV5 or AUDIO1-2 jacks are selected (☞

j SUBWOOFER jack

For connecting a subwoofer with a built-in amplifier (☞

k SPEAKER terminals

For connecting the front, center, and surround speakers (☞

l VOLTAGE SELECTOR

(Asia and General models only) Select the switch position according to your local voltage (Refer to Quick Reference Guide).

m Power cord

For connecting this unit to an AC wall outlet.

p. 19).

p. 11).

HDMI 2 HDMI 3

VIDEO

OPTICAL

(CD)

(

AV 4AV

HDMI 4

MONITOR OUT

OUT

AUD

)

AUDIO

OUT

AUD

IO 1

IO 2

(

)

BD/DVD

OUT

COMPONENT

VIDEO

MONITOR OUT

HDMI

d h

Y COMPONENT

VIDEO

OPTICAL

HDMI 1

COAXIAL

ef jgi k

SUBWOOFER

ANTENNA

SURROUND

Distinguishing the input and output jacks

The area around the audio/video output jacks is marked in white to prevent connection errors.

GND

SPEAKERS

CENTER

FRONT

110V120V

220V240V

VOLTAGE

SELECTOR

Use these jacks to output audio/video signals to a TV or other external component.

Output jacks

DVD

OUT

COMPONENT

VIDEO

HDMI

COMPONENT

HDMI 2HDMI

HDMI 1

IDE

AXIA

PTICA

PTICAL

SUBWOOFER

En 6

Front panel display

a HDMI indicator

Lights up during normal HDMI communication when any of the HDMI 1-4 inputs are selected.

b CINEMA DSP indicator

Lights up when a sound field effect that uses CINEMA DSP technology is selected.

c Tuner indicator

Lights up when receiving an FM/AM broadcast.

d SLEEP indicator

Lights up when the sleep timer is activated (☞

e MUTE indicator

Flashes when audio is muted.

f VOLUME indicator

Displays the current volume level.

abcdfe

p. 8).

g Cursor indicators

Light up if corresponding cursors on the remote control are available for operations.

h Multi information display

Displays a range of information on menu items and settings.

i Speaker indicators

Indicate speaker terminals from which signals are output.

Subwoofer

Front speaker L

Surround speaker L

SW C

LR SL SR

Center speaker

Front speaker R

Surround speaker R

INTRODUCTION

Part names and functions

■ Changing the front panel display

The front panel can display sound field programs and surround decoder names as well as the active input source. Press fINFO repeatedly to cycle through input source → sound field program → surround decoder in order. J1

Input source name

HDMI1

Straight

Sound field program (DSP program)

VOL.

SW C

L SL SR

gh ig

1 : While selecting a tuner input, the FM/AM frequency is displayed instead of the input source.

STEREO

TUNED

SLEEP

VOL.

MUTE

LR SL SR

En 7

Remote control

b c

TRANSMIT

SOURCE

HDMI

1234

V-AU X

[ A ] [ B ] [ C ]

TUNER

INFO

MEMORY

MOVIE MUSIC

SCENE

DVD

SETUP

ENTER

RETURN

TOP

REC

1234

INPUT

TV VOL TV CH

MUTE

SLEEP

ENHANCER

STRAIGHT

AUDIO

125

PRESET

STEREO

OPTION

DISPLAY

POP-UP

7856

RECEIVER

SUR. DECODE

VOLUM E

CODE SET

TUNING

RADIO

MUTE

ENT

n o

a Remote control signal transmitter

Transmits infrared signals.

b TRANSMIT

Lights up when a signal is output from the remote control.

c SOURCE A (SOURCE Power)

Switches an external component on and off.

d Input selector

Select an input source on this unit from which to playback.

HDMI1-4 HDMI1-4 jacks AV1 -5 AV1-5 jacks AUDIO1-2 AUDIO1-2 jacks V-AUX Front panel VIDEO AUX jacks [A]/[B]/[C] Changes the external component you operating

with the kExternal component operation

keys without changing inputs. J1

TUNER FM/AM tuner

e Tuner keys

Operates the FM/AM tuner. These keys are used when using the tuner input.

FM Sets the FM/AM tuner band to FM. AM Sets the FM/AM tuner band to AM. MEMORY Presets radio stations. PRESET F / G Selects a preset station. TUNING H / I Changes tuning frequencies.

f INFO

Cycles the information displayed on the front panel display (the name of the currently selected input source, the sound field program, the surround decoder, the FM/AM tuner frequency, etc.)(☞

p. 7).

g Sound selection keys

Switch between the sound field effect (sound field program) you are using and the surround decoder (☞

p. 26).

h SCENE

Switches the input source and the sound field program with a single button (☞

p. 26). Press this key when this unit is in standby mode to

switch on the unit.

i SETUP

Displays a detailed Setup menu for this unit (☞

p. 36).

INTRODUCTION

Part names and functions

j Cursor B / C / D / E, ENTER, RETURN

Cursor B / C / D / E Select menu items and change settings when

ENTER Confirms a selected item. RETURN Returns to the previous screen when setting

k External component operation keys

Operate recording, playback, and menu displays etc. for external components. J1

l Numeric keys

Enter numbers.

m TV control keys

Operate a monitor such as a TV.

n CODE SET

Sets remote control codes for external component operations (☞

p. 50

o RECEIVER A (RECEIVER Power)

Switches this unit between on and standby modes.

p SLEEP

Sets this unit to place itself in standby mode automatically after a specified period of time has elapsed (sleep timer). Press this key repeatedly to set the time for the sleep timer function. The front panel display indicator lights up when the sleep timer is activated.

Sleep 120min. Sleep 90min.

q OPTION

Displays the Option menu for each input source (☞

r VOLUME +/-

Adjusts the volume level (☞

s MUTE

Turns the mute function of the sound output on and off (☞

settings menus, etc are displayed.

menus are displayed, or ends the menu display.

Sleep 60min.Sleep 30min.Sleep Off

p. 34).

p. 25).

p. 46,

p. 25).

1 : You can use separate kExternal component operation keys for each input source to operate registered components. Remote control codes must be registered for

each input in advance if you wish to operate external components (☞

p. 46).

En 8

CONNECTIONS

Connecting speakers

This unit uses acoustic field effects and sound decoders to bring you the impact of a real movie theater or concert hall. These effects will be brought to you with ideal speaker positioning and connections in your listening environment.

■

Speaker channels and functions

■

Front left and right speakers

The front speakers are used for the front channel sounds (stereo sound) and effect sounds.

Ex.

Front speaker layout: Place these speakers at an equal distance from the ideal listening position in the front of the room. When using a projector screen, the appropriate top positions of the speakers are about 1/4 of the screen from the bottom.

■

Center speaker

The center speaker is for the center channel sounds (dialog, vocals, etc.).

Surround left and right speakers

The surround speakers are for effect and vocal sounds with the 5.1-channel speakers providing reararea sounds.

Ex.

Surround speaker layout: Place the speakers at the rear of the room on the left and right sides facing the listening position. They should be placed between 60 degrees and 80 degrees from the listening position and with the speaker tops at a height of 1.5 – 1.8 m from the floor.

■

Subwoofer

The subwoofer speaker is used for bass sounds and low-frequency effect (LFE) sounds included in Dolby Digital and DTS. Use a subwoofer that is equipped with an internal amplifier.

Ex.

Center speaker layout: Place it halfway between the left and right speakers. When using a TV, place the speaker just above or just under the center of the TV with the front surfaces of the TV and the speaker aligned. When using a screen, place it just under the center of the screen.

Ex.

Subwoofer speaker layout: Place it exterior to the front left and right speakers facing slightly inward to reduce echoes from the wall.

En 9

CONNECTIONS

Connecting speakers

Speaker layout

5.1-channel speaker layout (5 speakers + subwoofer)

Front speaker R

Front speaker L

Center speaker

60q

80q

60q

80q

Subwoofer

Surround speaker R

Connecting speakers

Connect your speakers to their respective terminals on the rear panel.

Front speaker

Surround speaker

R L

DMI 4

R OUT

AUDIO

OUT

AUDIO

SUBWOOFER

ANTENNA

GND

SPEAKERS

CENTER

SURROUND

R L

FRONT

Surround speaker L

• Connect at least two speakers (front left and right).

• If you cannot connect all five speakers, give priority to the surround speakers.

• The surround speakers should be placed between 60 degrees and 80 degrees from the listening position.

■ CRT monitors

We recommend that you use magnetically shielded speakers to avoid video distortion, especially for the front and center speakers near the screen. If your screen still gets interference from magnetically shielded speakers, move the speakers farther away from your TV.

Subwoofer Center speaker

CAUTION

• Remove the AC power cord of this unit from the power outlet before connecting the speakers.

• Generally speaker cables consist of two parallel insulated cables. One of these cables is a different

color, or has a line running along it, to indicate different polarity. Insert the different colored (or lined)

cable into the “+” (positive, red) terminal on this unit and the speakers, and the other cable into the “-”

(minus, black) terminal.

• Be careful that the core of the speaker cable does not touch anything or come into contact with the metal

areas of this unit. This may damage this unit or the speakers. If the speaker cables short circuit,

“CHECK SP WIRES!” will appear on the front panel display when this unit is switched on.

En 10

■

FRONT

KERS

FRONT

KERS

CENTER

SURROUND

SPEAKE

Connecting front speakers

CONNECTIONS

Connecting speakers

■

Connecting center speakers / surround speakers

■

Connecting the subwoofer

Remove approximately 10mm of insulation from the

ends of the speaker cables, and twist the bare wires of the cables together firmly so that they will not cause short circuits.

Loosen the speaker terminals.

Insert the bare wire of the speaker cable into the gap on the side of the terminal.

Tighten the terminal.

Connecting the banana plug (Except U.K., Europe, Asia and Korea models)

Tighten the knob, and then insert the banana plug into the end of the terminal.

Press the tab on the speaker terminal down.

Insert the speaker cable end into the terminal.

Lift the tab to fix the speaker cable in place.

Connect the subwoofer input jack to the

SUBWOOFER jack on this unit with an audio pin cable.

Set the subwoofer volume as follows.

Volume: Set to approximately half volume (or slightly less than half).

Crossover frequency (if available): Set to maximum.

CROSSOVER/

VOLUME

MIN MAX

Subwoofer examples

HIGH CUT

MIN MAX

Banana plug

En 11

Connecting external devices

Cable plugs and jacks

■

Audio jacks

CONNECTIONS

The main unit is equipped with the following input/output jacks. Use jacks and cables appropriate for components that you are going to connect.

■

Audio/Video jacks

HDMI jacks

Digital video and digital sound are transmitted through a single jack. Only use an HDMI cable.

HDMI cable

• Use a 19-pin HDMI cable with the HDMI logo.

• We recommend using a cable less than 5.0 m long to prevent signal quality degradation.

■

Analog video jacks

COMPONENT VIDEO jacks

The signal is separated into three components: luminance (Y), chrominance blue (P chrominance red (P Use component video pin cables with three plugs.

R).

Component video pin cable

B), and

VIDEO jack

This jack transmits conventional analog video signals. Use video pin cables.

Video pin cable

OPTICAL jacks

These jacks transmit optical digital audio signals. Use fiber-optic cables for optical digital audio signals.

Digital audio fiber-optic cable

AUDIO jacks

These jacks transmit conventional analog audio signals. Use stereo pin cables, connecting the red plug to the red R jack, and the white plug to the white L jack.

Stereo audio pin cable

COAXIAL jacks

These jacks transmit coaxial digital audio signals. Use pin cables for digital audio signals.

Digital audio pin cable

PORTABLE jack

This jack transmits conventional analog audio signals. Use a stereo mini-plug cable when connecting.

Stereo mini-plug cable

En 12

Connecting a TV monitor

HDMI 1

(

)

(

)

AV 1

AV 2

AV 3

AV 4

AV 5

AUDIO 1

AUDIO 2

(

)

HDMI 1

(

COMPO

OUT

(

)

AV 1

AV 2

AV 3

AV 4

AV 5

AUDIO 1

AUDIO 2

(

)

HDMI 1

(

)

OUT

This unit is equipped with the following three types of output jack for connection to a TV. HDMI OUT, COMPONENT VIDEO or VIDEO. Select the proper connection according to the input signal format supported by your TV.

HDMI OUT jack

■

Connecting an HDMI video monitor

Connect the HDMI cable to the HDMI OUT jack.

HDMI

)

D/DV

OUT

HDMI

NEN

IDE

HDMI

CONNECTIONS

Connecting external devices

HDMI input

HDMI

VIDEO

MONITOR OUT

HDMI

COMPONENT

IDEO

COMPONENT

COMPONENT VIDEO jacks

(MONITOR OUT)

IDE

DMI 3

MONITOR OUT

VIDEO jack

(MONITOR OUT)

D/DV

OUT

This unit will receive HDMI, component, or video signals in the same format as transmitted by the output devices. For example, these three output devices must be connected to the monitor by matching input/output jacks and cables, and then you must change the TV’s input mode to the proper setting.

Input Output

HDMI

COMPONENT

VIDEO

HDMI

COMPONENT

VIDEO

HDMI input

Component video input

Video input

NITOR

OMPONEN

IDE

MONITOR

AXIAL

AXIA

PTICA

AUDI

• Use a 19-pin HDMI cable with the HDMI logo.

• We recommend using a cable less than 5.0 m long to prevent signal quality degradation.

■

Connecting a component video monitor

Connect the component video cable to the COMPONENT VIDEO (MONITOR OUT) jacks.

Component video input

COMPONENT

VIDEO

COMPONENT

VIDEO

MONITOR OUT

BD/DV

HDM

COMPONENT

IDE

AXIAL

AXIA

PTICA

DMI

NITOR

PTICAL

UDI

En 13

■

(

)

AV 1

AV 2

AV 3

AV 4

AV 5

AUDIO 1

AUDIO 2

(

)

HDMI 1

(

)

COMPO

OUT

COMPO

AV 1

AV 2

AV 3

AV 5

UDIO

( C

)

(

)

HDMI 4

HDMI

OUT

Connecting a video monitor

Connect the video pin cable to the VIDEO (MONITOR OUT) jack.

BD/DV

HDM

NEN

IDEO

DMI

Video input

VIDEO

CONNECTIONS

Connecting external devices

MONITOR

COMPONENT

IDE

PTICA

IDE

AXIAL

AXIA

PTICAL

MONITOR OUT

UDI

■ Listening to TV audio

To transmit sound from the TV to this unit, connect its AV1-5 or AUDIO1-2 jacks to the TV’s AUDIO OUT jacks. If the TV supports optical digital audio output, we recommend that you connect the TV audio output to the receiver’s AV4 jack. Connecting to AV4 allows you to switch the input source to AV4 with just a single key operation using the SCENE function (☞

Audio output

(Optical)

OPTICAL

p. 26).

COMPONEN

IDE

MONITOR OU

BD/DV

NEN

VIDE

AXIAL

PTICA

HDMI

VIDE

AXIA

OPTICAL

NITOR OU

AUDI

You can control your TV using the receiver’s remote control by entering the TV’s remote control code (☞

p. 46).

En 14

856

9010

234

REC

SETUP

RETURN

VOLU

TRANSMI

TUNER

INFO

MEMO

PRES

MUTE

POP-UP

DIS

SOURC

[ C ]

[

]

[

]

(

)

AV 1

AV 2

AV 3

AV 4

AV 5

AUDIO 1

AUDIO 2

(

)

COMPO

( TV

)

AUDIO 1

AUDIO 2

( C

)

COMPO

HDMI

OUT

1234

V-AUX

VIE MUSI

ENTER

HDMI

LEE

ENE

ENHANCE

TERE

TRAIGHT

OPTION

RECEIVER

UDI

R. DECODE

RADI

PLA

TUNIN

CONNECTIONS

DE SE

Connecting BD/DVD players and other devices

This unit has the following input jacks. Connect them to the appropriate output jacks on the external components.

Input jack Video input Audio input

■ Receiving audio from other input sources

This unit can use the AV1-5 or AUDIO1-2 input jacks to receive audio signals from other audio input sources. For example, if an external device cannot produce audio signals from an HDMI jack, use the following method to change the audio input.

HDMI1 HDMI HDMI

HDMI2 HDMI HDMI

HDMI3 HDMI HDMI

HDMI4 HDMI HDMI

AV1 Component video Optical

AV2 Component video Coaxial digital

HDMI/Audio (Optical)

output

HDMI

OPTICAL

MONITOR OUT

AV3 Video Coaxial digital

AV4 Video Optical

AV5 Video Analog (Stereo)

AUDIO1 — Analog (Stereo)

Use the dInput selector to select the desired HDMI input source.

BD/DVD player

AUDIO2 — Analog (Stereo)

VIDEO AUX Video Analog (Stereo)

Press qOPTION to display the Option menu. J1

Connecting external devices

(

)

BD/DVD

NEN

IDE

HDMI 2 HDMI

HDMI

NEN

VIDEO

AXIAL

AXIA

PTICA

OPTICAL

MONITOR

UDI

■

NPUT

TV VOL TV CH

MUT

dInput selector jCursor C / D / E jENTER qOPTION

Connecting BD/DVD players and other devices with HDMI

Connect the device with an HDMI cable to one of the HDMI1-4 jacks. Select the HDMI input (HDMI1-4) that the external device is connected to for playback.

(

)

BD/DVD

DMI

NEN

HDMI output

HDMI

BD/DVD player

VIDEO

MONITOR OUT

COMPONENT

VIDE

OPTICAL

HDMI

VIDE

AXIAL

PTICAL

NITOR OUT

UDIO

Press jCursor C until “Audio In” is displayed, and then press

jENTER.

Press jCursor D / E to select the audio input source.

HDMI1

Audio;;;;;;AV1

If you have selected AV1 input audio (optical digital)

Once you have completed the setup, press qOPTION to close the Option menu.

1 : See the section on “Configuring the settings specific for each input source (Option menu)” for details on

the Option menu (☞

p. 34).

VOL.

L SL SR

En 15

■

(

)

AV 2

AV 3

AV 4

AV 5

AUDIO 1

AUDIO 2

(CD)

HDMI 1

)

COMPO

OUT

(

)

AV 1

AV 3

AV 4

AV 5

AUDIO 1

AUDIO 2

(CD)

HDMI 1

)

COMPO

OUT

(

)

AUDIO 1

AUDIO 2

(CD)

(

)

HDMI 2

HDMI 3

COMPO

OUT

Connecting BD/DVD players and other devices with component cables

Connect the device with a component video cable to one of the AV1-2 input jacks.

Using optical digital audio output sources

Select the AV1 input that the external device is connected to for playback.

Component video / Audio (Optical)

Using coaxial digital audio output sources

Select the AV2 input that the external device is connected to for playback.

output

COMPONENT

VIDEO

OPTICAL

BD/DVD player

VIDE

NENT

NITOR OUT

HDM

Y COMPONENT

VIDEO

VIDE

HDMI

MONITOR OUT

(

D/DVD

OPTICAL

AV 1

AXIA

AXIAL

PTICA

AUDIO

CONNECTIONS

Connecting external devices

■ Component connections to analog audio output devices

Component video / Audio

You can use the video input from the AV1-2 jacks in combination with the audio input from other AV inputs or AUDIO1-2. When connecting these devices, select the AV3-5 or the AUDIO1-2 jacks as the audio input for AV1 or AV2. See “Receiving audio from other input sources” (☞ Select the AV input source (AV1-2) that is connected by component video cable to the external device for playback.

output

COMPONENT

VIDEO

AUDIO

Game console

MONITOR

NEN

IDE

BD/DV

OUT

Y COMPONENT

VIDEO

PTICA

IDE

AXIAL

AXIA

PTICAL

NITOR

UDI

p. 15) for detailed setup guidance.

Component video / Audio (Coaxial)

output

COMPONENT

VIDEO

COAXIAL

VIDE

NENT

NITOR OUT

AV1

(

D/DVD

HDM

OMPONEN

VIDE

AXIA

COAXIAL

OPTICAL

AV 2

HDMI

MONITOR OUT

PTICA

AUDIO

Audio;;;AUDIO1

VOL.

SW C

L SL SR

BD/DVD player

En 16

CONNECTIONS

AV 1

AV 2

AV 3

AV 5

AUDIO 1

AUDIO 2

(CD)

HDMI 1

)

COMPO

OUT

(

)

AV 1

AV 2

AV 4

AV 5

AUDIO 1

AUDIO 2

HDMI 1

)

COMPO

OUT

(

)

AV 1

AV 2

AV 3

AV 4

AUDIO 1

AUDIO 2

(CD)

HDMI 1

)

COMPO

OUT

Connecting external devices

■

Connecting BD/DVD players and other devices with video cables

Connect the external device with a video pin cable to one of the AV3-5 input jacks.

Using optical digital audio output sources

Select the AV4 input that the external device is connected to for playback.

Video / Audio (Optical)

output

VIDEO

OPTICAL

VIDE

NENT

NITOR OUT

HDM

OMPONEN

VIDE

AXIA

AXIAL

OPTICAL

HDMI

MONITOR OUT

AUDIO

(

D/DVD

BD/DVD player

Using coaxial digital audio output sources

Select the AV3 input that the external device is connected to for playback.

(

D/DVD

Video / Audio (Coaxial)

output

VIDEO

COAXIAL

VIDE

NENT

NITOR OUT

HDM

OMPONEN

VIDEO

VIDE

COAXIAL

AXIAL

OPTICAL

(CD)

HDMI

MONITOR OUT

PTICA

AUDIO

Using analog stereo audio output sources

Select the AV5 input that the external device is connected to for playback.

Video / Audio

output

VIDEO

AUDI O

BD/DVD player

NENT

VIDE

NITOR OUT

(

D/DVD

HDM

OMPONEN

VIDE

AXIA

AXIAL

OPTICAL

HDMI

MONITOR OUT

PTICA

AV 5

AUDIO

BD/DVD player

En 17

CONNECTIONS

(

)

AV 1

AV 2

AV 3

AV 4

AV 5

(CD)

HDMI 1

)

COMPO

OUT

AV 2

AV 3

AV 5

AUDIO 1

AUDIO 2

(CD)

HDMI 1

)

COMPO

OUT

(

)

AV 1

AV 4

AV 5

AUDIO 1

AUDIO 2

HDMI 1

)

COMPO

OUT

Connecting external devices

■

Connecting CD players and other audio devices

Using analog stereo output sources

Select the audio input (AUDIO1-2) that the external device is connected to for playback.

(

D/DVD

HDM

NENT

VIDE

HDMI

Audio output

AUDI O

NITOR OUT

OMPONEN

VIDE

AXIA

AXIAL

OPTICAL

PTICA

MONITOR OUT

AUDIO 1

CD player

Using optical digital output sources

Select the AV input (AV1 or AV4) that the external device is connected to for playback.

(

D/DVD

HDM

NENT

VIDE

HDMI

Using coaxial digital output sources

Select the AV input (AV2 or AV3) that the external device is connected to for playback.

(

D/DVD

HDM

NENT

VIDE

HDMI

Audio (Coaxial) output

COAXIAL

NITOR OUT

OMPONEN

VIDE

COAXIAL

OPTICAL

AUDIO

AUDIO 2

PTICA

(CD)

MONITOR OUT

AUDIO

CD player

We recommend connecting audio devices with an coaxial digital output to the AV3 coaxial digital jack on this unit. This connection allows you to switch to the AV input 3 just by pressing the “CD” SCENE key (☞

p. 26).

Audio (Optical) output

OPTICAL

NITOR OUT

OMPONEN

VIDE

OPTICAL

VIDE

AXIA

AXIAL

OPTICAL

MONITOR OUT

AUDIO

CD player

En 18

CONNECTIONS

COMPO

(

)

AV 1

AV 2

AV 3

AV 4

AV 5

AUDIO 1

AUDIO 2

(CD)

(

)

HDMI

COMPO

Connecting external devices

Connecting video cameras and portable audio players

Use the VIDEO AUX jacks on the front panel to temporarily connect video cameras, game consoles, or portable audio devices to the receiver. Select the V-AUX input to use these connected devices.

RADIO

AUX

PORTABLE

VIDEO

AUDIO

AU D I O

Audio output

VIDEO

Video output

STRAIGHT

AUDIO OUT

Audio output

Portable audio player Video cameras

• Be sure to turn down the volume when connecting this unit and the other devices.

• When external components are connected to both the PORTABLE jack and the AUDIO jacks, the sound

output from the PORTABLE jack is transmitted.

Transmitting input A/V to external devices

This receiver can transmit selected incoming analog audio/video signals to external devices through the AV OUT and AUDIO OUT jacks. You can record these input audio and video signals to VCRs or similar devices, or send them to other TVs or external devices.

Video / Audio

input

VIDEO

AUDI O

BD/DV

NEN

VIDE

MONITOR OUT

NENT

VIDE

PTICAL

VIDE

AXIAL

PTICAL

Using the AV OUT jacks

Connect this jacks to the external device’s video input jack and analog audio input jacks.

VCR

NITOR OUT

OUT

AUDIO

OUT

Audio input

AUDI O

Audio recorder

Using the AUDIO OUT jacks

Connect this jack to the external device’s analog audio input jacks.

HDMI audio/video signals, component video signals, and digital audio signals cannot be transmitted from these jacks.

En 19

Connecting the FM/AM antennas

SURROUND

FRO

An indoor FM antenna and an AM loop antenna are included with this receiver. Connect these antennas properly to their respective jacks.

Indoor FM antenna

AM loop antenna

Position the AM antenna away from the receiver. The wires of the AM antenna have no polarity. You can connect either wire to the AM jack or the GND jack.

CONNECTIONS

DMI

GND

PEAKER

ENTER

Connecting the AM loop antenna

ReleaseInsertPress and hold

■ Improving FM reception

We recommend using an outdoor antenna. For more information, consult the nearest authorized dealer.

■ Improving AM reception

Connect this unit to an outdoor antenna with a 5-10 m vinyl-coated wire. Make sure the AM loop antenna is still connected. Connecting the GND jack can reduce noise. Connect the jack to a store-bought ground bar or copper plate with a vinyl-covered wire and bury this new attachment in moist ground. The GND jack is not to be connected to the ground socket of an electrical outlet.

En 20

CONNECTIONS

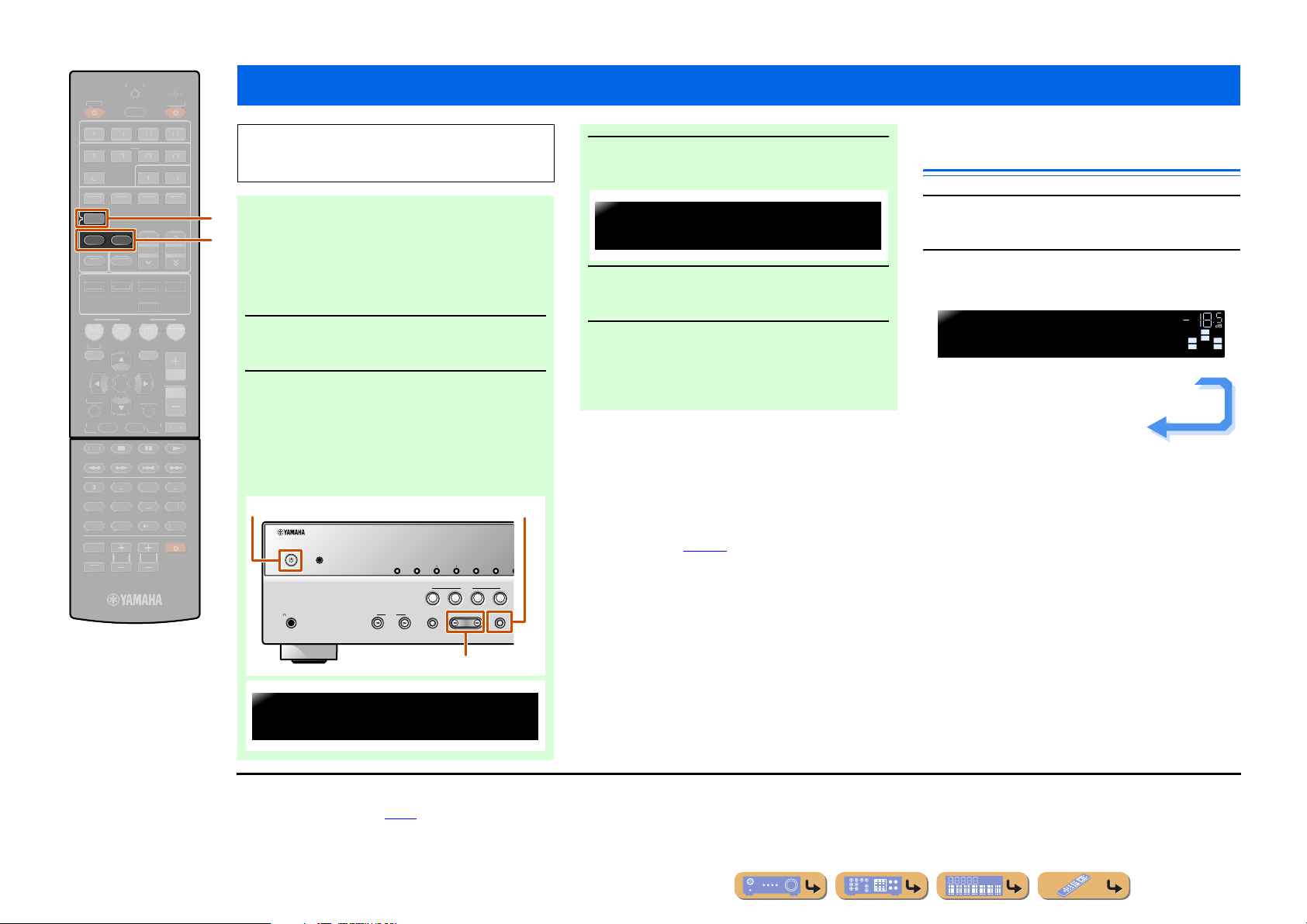

Set up the speaker parameters automatically (YPAO)

This unit is equipped with a YPAO (Yamaha Parametric Room Acoustic Optimizer) that adjusts the status, size, and volume balance of the speakers in order to provide an optimal sound field. Using YPAO allows you to automatically configure settings for which specialist knowledge is usually needed, such as adjusting speaker output and acoustic parameters to suit your listening room (the room in which this unit is placed). J1

When you use YPAO, a test tone will be output from the speakers for approximately three minutes and acoustic measuring will be performed. When using YPAO, be careful of the following.

• The test tone is output at high volume. Please refrain from using

this function at night when it may be a nuisance to others nearby.

• Please take care that the test tone does not frighten any small

children.

Check the following before using YPAO.

This unit

• The headphones are removed.

Subwoofer

• The power is turned on.

• Volume is set to approximately half, and the cross-over frequency (if

present) is set to maximum.

CROSSOVER/

VOLUME

MIN MAX

Subwoofer examples

HIGH CUT

MIN MAX

Place the supplied YPAO microphone at ear height in your listening position.

Face the head of the YPAO microphone upwards.

YPAO microphone

When positioning the microphone, we recommend that you use equipment that allows you to adjust the height (such as a tripod) as a microphone stand. When using a tripod, use the tripod screws to fix the microphone in place.

Switch this unit on.

Connect the YPAO microphone to the YPAO MIC jack on the front panel.

YPAO MIC

INFO

“MIC ON. YPAO START” appears on the front panel display, and then changes to display the following. J2

YPAO

Press[SETUP]

VOL.

SW C

L SL SR

Continues to the

1 : When you have changed the number of speakers or the locations in which they

are installed, first use YPAO to adjust the speaker balance.

2 : To cancel measurement, disconnect the YPAO microphone.

En 21

856

9010

234

REC

RETURN

VOLU

TRANSMI

TUNER

INFO

MEMO

PRES

MUTE

POP-UP

DIS

SOURC

[

]

[

]

LEE

DMI

V-AUX

ENHANCE

VIE MUSI

SETUP

NPUT

MUT

TRAIGHT

ENE

ENTER

TV VOL TV CH

TERE

PTION

PLA

iSETUP jCursor C / D / E jENTER

UDI

DE SE

RECEIVER

[ C ]

TUNIN

R. DECODE

RADI

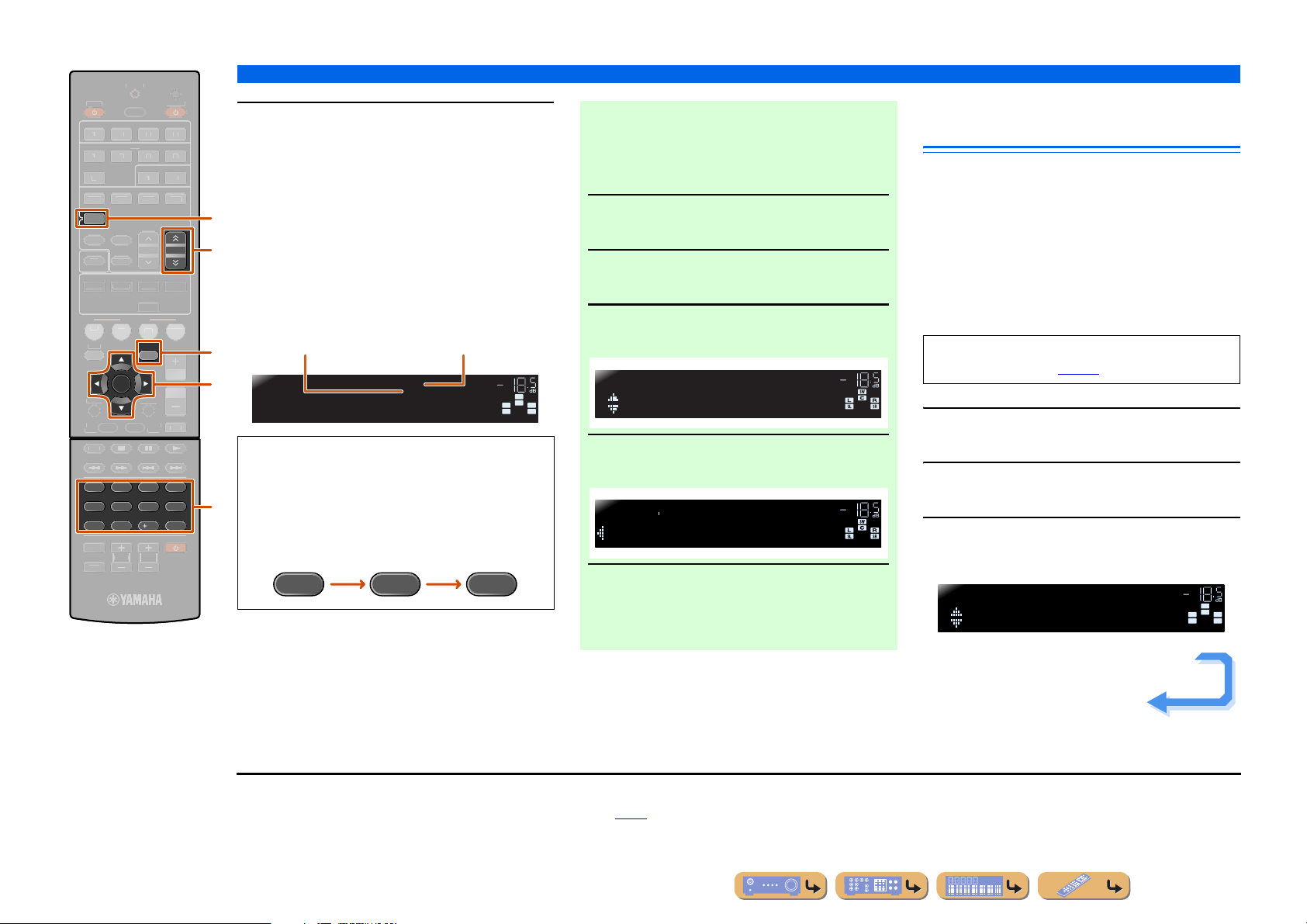

This completes preparations. To achieve more accurate results, be careful of the following when measuring.

• Measuring will take approximately three minutes.

Keep the room as quiet as possible during

measurement.

• Wait in the corner of the listening room during

measurement or leave it entirely, to avoid becoming an

obstruction between the speakers and the YPAO

microphone.

Press iSETUP to start measurement.

Display during measurement

YPAO

Progress00%

The following display appears if measurement finishes without any problems.

YPAO

YPAOComplete

NOTE

When a problem occurs, an error message or report appears either during or after measurement. Use the following page as a reference to solve the problem, and carry out YPAO again.

VOL.

SW C

L SL SR

SW C

L SL SR

CONNECTIONS

Set up the speaker parameters automatically (YPAO)

Press jENTER to apply the results of measurement.

YPAO

Disconnect MIC

You can use the following method to cancel measurement results if you want to redo the measuring. Press jCursor C to switch to the following display, the use jCursor D / E to select “Cancel” and press jENTER. After this operation, use the same procedure to carry out YPAO again.

YPAO

Set>Cancel

Remove the YPAO microphone.

YPAO finishes automatically when the YPAO microphone is removed.

The YPAO microphone is sensitive to heat. When you have finished measuring, store the microphone out of direct sunlight, and away from locations that may experience high temperatures, such as on top of AV equipment.

VOL.

SW C

L SL SR

SW C

L SL SR

En 22

856

9010

234

REC

SETUP

RETURN

VOLU

V-AUX

TUNER

INFO

MEMO

PRES

MUTE

POP-UP

DIS

SOURC

[

]

[

]

VIE MUSI

NPUT

MUT

TRANSMI

LEE

DMI

ENHANCE

TRAIGHT

ENE

ENTER

TV VOL TV CH

TERE

PTION

CONNECTIONS

DE SE

RECEIVER

■

When an error message appears

When “E-5” to “E-9” is displayed:

during measurement

Check the content of the message from the list of

UDI

messages (☞

p. 24) to resolve the problem, and carry out

the measurement process again.

[ C ]

YPAO

TUNIN

R. DECODE

E-9:CANCEL

Error message (example)

VOL.

Check the error code that appears in the display, and

RADI

carry out YPAO again by performing the following steps.

When “E-1” or “E-2” is displayed:

PLA

Press jENTER once, and then press

jCursor E to select “Exit.”

Check that the environment is suitable for accurate measurement.

Press jENTER to switch the display.

Check that “Retry” is selected, and then press jENTER to carry out YPAO again.

When “E-10” is displayed:

Press jENTER once, and then press

jCursor E to select “Exit.”

Press jENTER to finish YPAO.

Press jENTER to finish YPAO, and set the unit to standby mode.

Switch the unit to standby mode.

Check that the speakers are properly connected.

Turn on the unit, and then carry out YPAO again.

Turn on the unit again, and then carry out YPAO.

Set up the speaker parameters automatically (YPAO)

■

When a warning message appears after measurement

Check the content of the message from the list of messages (☞ confirm the speaker that has the problem when that speaker’s indicator lights up.

NOTE

Although you can apply the results of measurement when a warning message appears, doing so will not provide optimal sound. We recommend you resolve the problem and then carry out YPAO again.

Warning message (example) Speaker that has a

When multiple warning messages appear:

Use jCursor D / E to display other warning messages.

When applying the results of measurement:

Press jENTER to switch display, the use jCursor D

/ E to select “Set” and press jENTER.

When cancelling YPAO:

Press jENTER to switch display, the use jCursor D

/ E to select “Cancel” and press jENTER.

p. 24) to resolve the problem. You can

YPAO

W-3:LEVEL

problem.

VOL.

SL SR

jCursor D / E jENTER

En 23

CONNECTIONS

Set up the speaker parameters automatically (YPAO)

■

Message list

NOTE

If the following messages appear, resolve the problems that have occurred and carry out the measurement process again.

■ When a warning message appears before measurement

Connect MIC! The YPAO microphone is

not connected.

Unplug HP! The headphones are

connected.

Memory Guard! The settings of this unit

are protected.

Connect the YPAO

microphone to the YPAO

MIC jack on the front

panel.

Remove the headphones.

Set “Memory Guard” in

the Setup menu to “Off.”

■ Error message

E-1:FRONT SP The unit was not able to

find the front channel.

E-2:SUR. SP The unit was only able to

find one of side of the

surround channels.

Check that the left and

right front speakers are

connected correctly.

Check that the left and

right front surround

speakers are connected

correctly.

E-5:NOISY The noise is too loud,

preventing accurate

measurements from

being taken.

E-7:NO MIC The YPAO microphone

has been removed.

E-8:NO SIGNAL The YPAO microphone

could not distinguish a

test tone.

E-9:CANCEL You have carried out an

operation that has

cancelled the measuring

process.

E-10:INTERNAL An internal error has

occurred.

Measure again in quiet

surroundings. Turn off any

devices in the room that

may be emitting noise, or

place them further away

from the YPAO

microphone.

When this message is

displayed, selecting

“Proceed” will allow you

to continue measuring.

However, we recommend

resolving the problem and

measuring again, as

continuing measurement

without doing so will not

give accurate results.

While measuring, take

care not to touch the

YPAO microphone.

Check that the YPAO

microphone has been

installed correctly.

Check that each speaker

has been connected and

installed correctly.

The YPAO microphone

or the YPAO MIC jack

may be broken. Inquire at

the retailer where you

purchased this unit, or the

nearest Yamaha service

center.

Carry out the measuring

process again. Do not

operate this unit by, for

example, adjusting the

volume.

Carry out the measuring

process again. Contact a

Yamaha service center if

“E-10” appears again.

■ Warning message

W-1:PHASE The speakers displayed

are connected with the

opposite polarity.

Depending on the type of

speakers you are using

and the environment in

which you have them

installed, this message

may occur even if the

speakers are connected

correctly.

W-2:OVER 24m (80ft)

W-3:LEVEL The difference each

The speakers displayed

are separated from the

listening position by

more than 24m, and

cannot be adjusted

correctly.

channel is too loud or too

low, and cannot be

adjusted correctly.

Depending on the type of

speakers, “W-1” may

display even if the

speakers are connected

correctly.

Check that the speaker

polarity + (plus), and -

(minus) are correct. If

these are connected

correctly, you can use the

speakers normally even

this message appears.

Install the speakers with

24m of the listening

point.

Check that all speakers

are installed in the same

surroundings.

Check that the speaker

polarity + (plus), and -

(minus) are correct.

We recommend the same

speakers or speakers with

as similar specifications

as possible.

Adjust the volume of the

subwoofer.

If “W-2” or “W-3” appears, you can apply measurement results, but they will not give optimal results. We recommend that you resolve the problem and carry out the measurement process again.

En 24

856

9010

234

REC

SETUP

RETURN

TRANSMI

INFO

MEMO

PRES

POP-UP

DIS

SOURC

1234

V-AU X

TUNER

VIE MUSI

NTER

HDMI

RECEIVER

LEE

AUDIO

125

R. DECODE

ENHANCE

TERE

TRAIGHT

ENE

RADI

PTION

VOLUME

PLA

[ C ][ A ] [ B ]

TUNIN

MUTE

PLAYBACK

DE SE

Basic playback procedure

Adjusting high/low-frequency sound (Tone control)

You can adjust the balance of the high-frequency range (Treble) and low-frequency range (Bass) of sounds output from the front left and right speakers to obtain desired tone.

The tone control of the speakers or headphones can be set separately. Set the headphone tone control with the headphones connected.

Press TONE CONTROL on the front panel repeatedly to select “Treble” or “Bass.”

TONE CONTROL

Press PROGRAM l / h to adjust the output level in those frequency ranges.

Adjustable range -10.0 dB to +10.0 dB

Adjustment

2.0 dB

increments

The display returns to the previous display soon after you release the key.

If you set the balance extremely off, sounds may not match those from other channels well.

Turn on external components (TV, DVD player, etc.) connected to this unit.

Turn on this unit and select the input source using dInput selector.

The name of the selected input source is displayed for a few seconds. J1

Play the external component that you have selected as the source input, or select a

radio station on the tuner.

Refer to the instruction manuals provided with the external component for details on playback.

For details on how to tune in to FM/AM stations, refer to “FM/AM tuning” (☞

p. 30).

Press rVOLUME +/- to adjust the volume.

YPAO MIC

PHONES

SILENT

CINEMA

MEMORY

PRESET

INFO

TONE

INPUT

FM AM

SCENE

PROGRAM

RADIO

STRAIGHT

DVD

CONTROL

PROGRAM l / h

NPUT

MUT

TV VOL TV CH

To mute the output.

Press sMUTE to mute the audio output. Press sMUTE again to unmute.

The current setting is displayed on the front panel

dInput selector

display.

rVOLUME +/ - sMUTE

1 : You can change the input source name displayed on the front

panel display as necessary (☞

p. 42).

TONE

Treble 0.0dB

VOL.

SW C

L SL SR

SL SR

En 25

856

9010

234

SETUP

RETURN

VOLU

TRANSMIT

INFO

MEMO

PRES

MUTE

POP-UP

SOURCE

LEE

HDMI

1234

V-AU X

TUNER

MOVIE MUSIC

DVD

TOP

ENTER

SCENE

AUDIO

125

ENHANCER

STEREO

STRAIGHT

PTI

DISPLAY

SUR. DECODE

DE SET

RECEIVER

[ C ][ A ] [ B ]

TUNIN

RADIO

PLAYBACK

Changing input settings with a single key (SCENE function)

This unit has a SCENE function that allows you to turn the power on and change input sources and sound field programs with one key.

Four scenes are available for different uses, such as playing movies or music. The following input sources

and sound field programs are provided as the initial factory settings.

SCENE Input Sound field program

BD/DVD HDMI1 Straight

TV AV4 Straight

CD AV3 Straight

RADIO TUNER 5ch Enhancer

Enjoying sound field programs

This unit is also equipped with a Yamaha digital sound field processing (DSP) chip. You can enjoy multi-channel playback for almost any sound source using various sound field programs stored on the chip, and a range of sound decoders.

Registering input sources/sound field program

Use dInput selector to select the input source you want to register.

Use the gSound selection keys to select the sound field program you want to

Press the hSCENE key until “SET Complete” appears on the front panel

display.

SCENE1

SET Complete

Release the key when “SET Complete” is displayed.

When changing “SCENE,” you can also use switch between the external components that the remote control operates

(☞p. 46).

VOL.

SW C

L SL SR

NPUT

TV VOL TV

MUTE

dInput selector gSound selection keys gMOVIE gMUSIC gSTEREO gSUR. DECODE gSTRAIGHT hSCENE

Selecting sound field programs and sound decoders

This unit offers sound field settings (sound field programs) in many different categories suitable for movies, music and other uses. Choose a sound field program that sounds best with the source you are playing back, rather than relying on the name or explanation of the program.

• Sound field programs are stored for each input source.

When you change the input source, the sound field program previously selected for that input source is applied again.

Selects sound field program:

MOVIE category: Press gMOVIE repeatedly MUSIC category: Press gMUSIC repeatedly

Selects stereo reproduction:

Press gSTEREO repeatedly

Selects compressed music enhancer:

Press gSTEREO repeatedly

Selects surround decoder:

Press gSUR. DECODE repeatedly

Switches Straight decoding mode (☞p. 27):

Press gSTRAIGHT

Sound field program categories

MOVIE

Sci-Fi

VOL.

SW C

L SL SR

Program

• You can use the speaker indicators on the front panel

display to check what speakers are currently

outputting sound (☞

p. 7).

• You can adjust sound field elements (sound field

parameters) for each of the programs.

• If the sampling frequency of an input source is higher

than 96 kHz, this unit does not apply any sound field programs.

En 26

856

9010

234

SETUP

RETURN

VOLU

V-AUX

TUNER

INFO

MEMO

PRES

CDR

MUTE

POP-UP

SOURCE

[ C ]

[

]

[

]

MOVIE MUSIC

ENTER

TOP

PLAYBACK

DE SET

TRANSMIT

RECEIVER

LEE

DMI

UDI

TUNIN

SUR. DECODE

ENHANCER

STEREO

STRAIGHT

ENE

ADI

PTI

■

Enjoying unprocessed playback (Straight decoding mode)

Use straight decoding mode when you want to playback sound without sound field processing. You can playback as follows in straight decoding mode.

2-channel sources such as CD

Stereo sound plays through the front left and right speakers.

Multi-channel playback sources such as BD/ DVD

Plays back audio from a playback source without applying sound field effects, using an appropriate decoder to split the signal into multiple channels.

■

Enjoying stereo playback

Select “2ch Stereo” from the surround field programs when you want to playback 2-channel stereo sound (from the front speakers only), regardless of the playback source. Selecting “2ch Stereo” will playback as follows for the playback of CD and BD/DVD sources.

2-channel sources such as CD

Stereo sound plays back through the front speakers.

Multi-channel sources such as BD/DVD

Playback channels other than the front channels in the playback source are mixed with the front channels and played back through the front speakers.

■

Enjoying sound field programs without surround sound speakers

This unit allows you to use virtual surround speakers to enjoy sound field surround effects, even without any surround speakers (Virtual CINEMA DSP mode). You can even enjoy surround sound presence with just a minimal configuration of the front speakers only. This unit will switch to Virtual CINEMA DSP mode automatically when surround speakers are unavailable. J1

■

Enjoying sound field programs with headphones

Even when headphones are connected, you can enjoy the reproduction sound field presence with ease (SILENT

DISPLAY

Press gSTRAIGHT to activate the straight decoding mode.

Straight

VOL.

SW C

L SL SR

Press gSTEREO repeatedly to select “2ch Stereo.”

STEREO

2ch Stereo

VOL.

CINEMA mode). J2

Enjoying sound field programs

NPUT

TV VOL TV

MUTE

Sound selection keys

Press gSTRAIGHT again to exit straight decoding mode.

MOVIE

Sci-Fi

Previously selected program

VOL.

SW C

L SL SR

To deactivate stereo playback, press any of the gSound selection keys to select a

sound field program other than “2ch Stereo.”

MUSIC

VOL.

Hall in Vienna

SW C

L SL SR

gSTRAIGHT gSTEREO

1 : However, Virtual CINEMA DSP mode is not available in the

following conditions:

• When headphones are connected to this unit.

• When a “2ch Stereo” sound field program is selected.

• When straight decoding mode is selected.

2 : However, SILENT CINEMA mode is not available in the

following conditions:

• When a “2ch Stereo” sound field program is selected.

• When straight decoding mode is selected.

En 27

PLAYBACK

Enjoying sound field programs

Sound field programs

in the table indicates the sound field program for CINEMA DSP.

■

Category: MOVIE

Sound field programs optimized for viewing video sources such as movies, TV programs, and games.

Standard This program creates a sound field emphasizing the surround feeling without disturbing the

original acoustic positioning of multi-channel audio such as Dolby Digital and DTS. It has

been designed with the concept of an ideal movie theater, in which the audience is

surrounded by beautiful reverberations from the left, right and rear.

Spectacle This program represents the spectacular feeling of large-scale movie productions. It

reproduces a broad theater sound field that matches cinemascope and wider-screen movies

with an excellent dynamic range providing everything from very small sound effects to

large, impressive sounds.

Sci-Fi This program clearly reproduces the finely elaborated sound design of the latest science

fiction and special effects-featuring movies. You can enjoy a variety of cinematographically

created virtual spaces reproduced with clear separation between dialog, sound effects and

background music.

Adventure This program is ideal for precisely reproducing the sound design of action and adventure

movies. The sound field restrains reverberations but puts emphasis on reproducing a

powerful space expanded widely to the left and right. The reproduced depth is also

restrained relatively to ensure the separation between audio channels and the clarity of the

sound.

Drama This sound field features stable reverberations that match a wide range of movie genres from

serious dramas to musicals and comedies. The reverberations are modest but offer an

optimum 3D feeling, reproducing effects tones and background music softly but cubically

around clear words and center positioning in a way that does not fatigue the listener even

after long hours of viewing.

Mono Movie This program is provided for reproducing monaural video sources such as a classic movie in

an atmosphere of a good old movie theater. The program produces the optimum expansion

and reverberation to the original audio to create a comfortable space with a certain sound

depth.

Sports This program allows the listeners to enjoy stereo sport broadcasts and studio variety

programs with enriched live feeling. In sports broadcasts, the voices of the commentator and

sportscaster are positioned clearly at the center while the atmosphere of the stadium expands

in an optimal space to offer the listeners a feeling of presence in the stadium.

Action Game This sound field is suitable for action games such as car racing and FPS games. It uses

reflection data that limits the effects range per channel in order to offer a powerful playing

environment that makes the listener feel as if they are right there by enhancing various

effects tones while maintaining a clear sense of directions.

Roleplaying Game This sound field is suitable for role-playing and adventure games. It combines the sound

field effects for movies and the sound field designs for “Action Game” to represent the depth

and 3D feeling of the field during play, while offering movie-like surround effects in the

movie scenes in the game.

■

Category: MUSIC

This sound field is suitable when listening to music sources such as CDs.

Hall in Munich This sound field simulates a concert hall with approximately 2500 seats in Munich, using

stylish wood for the interior finishing as normal standards for European concert halls. Fine,

beautiful reverberations spread richly, creating a calming atmosphere. The listener’s virtual

seat is at the center left of the arena.

Hall in Vienna This is an approximately 1700-seat, middle-sized concert hall with a shoebox shape that is

traditional in Vienna. Pillars and ornate carvings create extremely complex reflections from

all around the audience, producing a very full, rich sound.

Chamber This program creates a relatively wide space with a high ceiling like an audience hall in a

palace. It offers pleasant reverberations that are suitable for courtly music and chamber

music.

Cellar Club This program simulates a live house with a low ceiling and homey atmosphere. A realistic,

live sound field features powerful sound as if the listener is in a row in front of a small stage.

The Roxy Theatre This is the sound field of a rock music live house in Los Angeles, with approximately 460

seats. The listener’s virtual seat is at the center left of the hall.

The Bottom Line This is the sound field at stage front in The Bottom Line, a famous New York jazz club once.

The floor can seat 300 people to the left and right in a sound field offering real and vibrant

sound.

Music Video This sound field offers an image of a concert hall for live performance of pop, rock and jazz

music. The listener can indulge oneself in a hot live space thanks to the presence sound field

that emphasizes the vividness of vocals and solo play and the beat of rhythm instruments,

and to the surround sound field that reproduces the space of a big live hall.

En 28

■

Category: STEREO

Suitable for listening to stereo sources.

2ch Stereo Use this program to mix down multi-channel sources to 2 channels. When multi-channel

signals are input, they are down mixed to 2 channels and output from the front left and right

speakers.

5ch Stereo Use this program to output sound from all speakers. When you play back multi-channel

sources, this unit down-mixes the source to 2 channels, and then outputs the sound from all

speakers. This program creates a larger sound field and is ideal for background music at

parties, etc.

■

Category: ENHNCR (Compressed music enhancer)

Suitable for listening to compressed audio, such as MP3.

Straight Enhancer Use this program to restore the original depth and dynamics of 2-channel or multi-channel

to compression audio.

5ch Enhancer Use this program to play back compression artifacts in 5-channel stereo.

■

Category: SUR.DEC (Surround decode mode)

Select this program to playback sources with selected decoders. You can playback 2-channel sources as

5.1-channel sound.

PLAYBACK

Enjoying sound field programs

q Pro Logic A Dolby Pro Logic decoder. Suitable for any source.

q PLII Movie A Dolby Pro Logic II decoder. Suitable for viewing any movie.

q PLII Music A Dolby Pro Logic II decoder. Suitable for listening to music.

q PLII Game A Dolby Pro Logic II decoder. Suitable for playing games.

En 29

856

9010

234

REC

SETUP

RETURN

VOLU

INFO

MEMO

PRES

MUTE

POP-UP

DIS

SOURC

[ C ]

[

]

[

]

V-AUX

TUNER

FM AM

VIE MUSI

NTER

TRANSMI

PLAYBACK

DE SE

RECEIVER

LEE

DMI

UDI

TUNIN

R. DECODE

ENHANCE

TERE

TRAIGHT

ENE

RADI

PTION

PLA

FM/AM tuning

When using the FM/AM tuner, adjust the direction of the FM/AM antenna connected to this unit to get the best reception.

(Asia and General models only)

The factory pre-set FM/AM tuner frequency steps are

9 kHz for AM and 50 kHz for FM. Carry out the following settings and select the frequency steps suitable for your listening environment.

Set this unit to the standby mode.

Press A while pressing and holding STRAIGHT on the front panel.

Release the keys when “ADVANCED SETUP” is displayed on the front panel display. After approximately 3 seconds, the top menu items are displayed. J1

STRAIGHT

Press PROGRAM h twice to display “TU.”

TU-AM9/FM50

Press STRAIGHT a few times to select a frequency steps.

Switch this unit to the standby mode, and then switch it on again.

The power turns on, with the settings you made configured.

The FM/AM tuner of this unit provides the following two modes for tuning.

Normal tuning

You can tune in to a desired FM/AM station by searching or specifying its frequency.

Selecting a frequency for reception (Normal tuning)

Press dTUNER to switch to the tuner input.

Press eFM or eAM to select a band to receive.

VOL.

SW C

FM87.50MHz

Continues to the

SL SR

NPUT

MUT

dTUNER eFM eAM

TV VOL TV CH

YPAO MIC

PHONES

SILENT

CINEMA

MEMORY

PRESET

INFO

TONE

INPUT

FM AM

SCENE

PROGRAM

RADIO

STRAIGHT

DVD

CONTROL

PROGRAM l / h

Preset tuning (☞p. 31)

You can preset the frequencies of FM/AM stations by registering them to specific numbers, and later just select those numbers to tune in.

REMOTEID-ID1

1 : For detailed information on the advanced setup menu see

“Extended functionality that can be configured as needed (Advanced Setup menu)” (☞

p. 49).

En 30

REC

SETUP

RETURN

VOLU

TRANSMI

INFO

MEMO

PRES

MUTE

POP-UP

DIS

SOURC

[ C ]

[

]

[

]

V-AUX

TUNER

VIE MUSI

ENTER

1234

NPUT

TV VOL TV CH

MUT

TUNER

RECEIVER

LEE

DMI

UDI

TUNING

R. DECODE

ENHANCE

TERE

TRAIGHT

ENE

RADI

OPTION

PLA

7856

ENT

eTUNING H / I jCursor B / C / D / E jENTER jRETURN lNumeric keys qOPTION

PLAYBACK

DE SE

Use eTUNING H / I to set a frequency to receive.

TUNING H

Increases the frequency. Press and hold this key for longer than a second to search automatically for a station on a higher frequency than the current one. J1

TUNING I

Decreases the frequency. Press and hold this key for longer than a second to search automatically for a station

■ When signal reception is poor

When you are receiving an FM broadcast and cannot obtain a stable stereo broadcast, you can force this unit to receive in a monaural mode.

Press dTUNER to switch to the tuner input.

Press qOPTION to display the Option menu. J3

on a lower frequency than the current one. J1

Lights up when receiving a broadcast from a station

FM98.50MHz

Lights up when receiving a stereo broadcast

STEREO

TUNED

VOL.

SW C

L SL SR

■ Entering a frequency number

In normal tuning mode, use the lNumeric keys on

Use jCursor B / C to select “FM Mode.”

OPTION

FMMode

Press jENTER and use the jCursor D /

E to select “Mono.”

VOL.

the remote control to enter a frequency. Leave the decimal point out when entering a number. J2

9850

VOL.

For example, enter as follows to select a station on

98.50MHz.

9 8

FMMode:Mono

When setting is completed, press

qOPTION to close the Option menu.

To return this unit to its original settings, use the

Registering and recalling a frequency (Preset tuning)

You can register up to 40 FM/AM stations as preset stations. There are two methods of presetting stations, “Auto Preset” and “Manual Preset.” Use one of these methods to register stations.

■

Presetting FM stations automatically (Auto Preset)

The tuner detects FM stations with strong signals and registers up to 40 automatically.

AM stations cannot be automatically registered. Use manual station preset (☞

Press dTUNER to switch to the tuner input.

p. 32).

Press qOPTION to display the Option menu. J3

Use jCursor B / C to select “Auto Preset.”

OPTION

Auto Preset

same procedure to return the settings to “Stereo.”

FM/AM tuning

VOL.

SW C

L SL SR

Continues to the

1 : When searching for a station, release the key once the search has

started.

2 : “Wrong Station!” appears on the front panel display when you

enter a frequency that is out of receivable range. Make sure that the frequency entered is correct.

3 : See the section on “Configuring the settings specific for each

input source (Option menu)” for details on the Option menu

p. 34).

(☞

En 31

856

9010

234

REC

SETUP

VOLU

V-AUX

TUNER

INFO

MUTE

POP-UP

DIS

SOURC

[

]

[

]

VIE MUSI

RETURN

NPUT

MUT

TRANSMI

LEE

DMI

MEMORY

ENHANCE

ENE

ENTER

TV VOL TV CH

PRESET

TERE

TRAIGHT

PTION

PLA

UDI

DE SE

RECEIVER

[ C ]

TUNIN

R. DECODE

RADI

Press jENTER, then press ePRESET F /

G or jCursor B / C to choose the preset

number from which to start the Auto Preset function.

Auto Preset will begin approximately 5 seconds after you select a preset number. If you do not select a preset number, Auto Preset will

begin approximately 5 seconds after “READY” is displayed.

Selecting a preset number

Status Frequency

READY

01:FM87.50MHz

Preset number

To cancel registration, press jRETURN.

During Auto Preset

SEARCH MEMORY

VOL.

L SL SR

Preset for stations

PLAYBACK

FM/AM tuning

■

Registering stations manually (Manual Preset)

Select stations by hand and register them as presets individually.

Tune in to the station you wish to register, referring to “Selecting a frequency for

reception (Normal tuning)” (☞

Use one of the following methods to register the station you are currently

receiving.

■ Registering to a preset number to which no station is registered

SW C

Press eMEMORY for 2 seconds or longer. The station will be registered automatically to the lowest open preset number (or the next number after the one registered most recently).

MEMORY

STEREO

TUNED

01:FM98.50MHz

Registered frequencies

p. 30).

VOL.

SW C

L SL SR

■ Designating a preset number for registration

Press eMEMORY once, to display “Manual Preset” on the front panel display. After a small wait, the preset number that the station has been registered to will appear.

Preset number

The newly registered frequency

9850

01:Empty

Blinks

Empty, or the frequency registered

VOL.

SW C

L SL SR

most previously.

Press ePRESET F / G to select the preset to register the station to, and then press eMEMORY to register.

To cancel registration, press jRETURN or do not operate the remote control for about 30 seconds.

MEMORY

ePRESET F / G jCursor B / C jENTER jRETURN

When Auto Preset is complete

FINISH

Auto Preset

VOL.

SW C

L SL SR

The Option menu closes automatically when presetting is complete. J1

1 : The preset with the lowest preset number will be selected

automatically immediately after presetting.

En 32

REC

SETUP

VOLU

V-AUX

INFO

MEMO

MUTE

POP-UP

DIS

SOURC

[

]

[

]

TUNER

VIE MUSI

RETURN

PLAYBACK

DE SE

TRANSMI

RECEIVER

LEE

DMI

UDI

[ C ]

PRESET

TUNIN

R. DECODE

ENHANCE

TERE

TRAIGHT

ENE

RADI

OPTION

■

Recalling a preset station

You can call preset stations registered by automatic station preset or manual station preset. J1

To select a registered station, press ePRESET

F / G to select the preset number of the

station. J2

Clearing preset stations

Press dTUNER to switch to the tuner input.

Use jCursor B / C to select the preset number you want to clear, and press

jENTER to clear it.

Repeat this operation to clear the registration of multiple numbers.

Press qOPTION to finish this operation.

Press qOPTION to display the Option

ENTER

PLA

menu. J3

Use jCursor B / C to display “Clear Preset” and press jENTER.

FM/AM tuning

1234

7856

NPUT

MUT

TV VOL TV CH

ENT

The number of the preset to be cleared

CLEAR

01:FM98.50MHz

VOL.

SW C

L SL SR

Blinks Registered frequencies

Press jRETURN to cancel the operation.

TUNER

ePRESET F / G jCursor B / C jENTER jRETURN lNumeric keys qOPTION

1 : Preset numbers to which no stations are registered will be

skipped. “No Presets” or “No Presets in Memory” is displayed when there are no stations are registered.

2 : To select a station by selecting a preset number, use the

lNumeric keys to enter the preset number of the station you

wish listen to. When an invalid number is entered, “Wrong Num.” appears on the front panel display. Check that you have entered the correct number.

3 : See the section on “Configuring the settings specific for each

input source (Option menu)” for details on the Option menu

p. 34).

(☞

En 33

856

9010

234

REC

SETUP

VOLU

TRANSMI

INFO

MEMO

PRES

MUTE

POP-UP

DIS

SOURC

1234

V-AU X

TUNER

VIE MUSI

HDMI

RECEIVER

LEE

AUDIO

125

R. DECODE

ENHANCE

TERE

TRAIGHT

ENE

RADI

OPTION

[ C ][ A ] [ B ]

TUNIN

SETUP

DE SE

Configuring the settings specific for each input source (Option menu)

This receiver has a unique option menu specific for each type of input source, such as volume trim for compatible input sources, audio/video data display for signals from external devices, and other frequently used menu items.

■

Option menu display and setup

Use the dInput selector on the remote control to select the Option menu you wish

to display.

Press qOPTION.

The Option menu appears for the desired input source.

To close the Option menu, press qOPTION.

For a few seconds after closing the Option menu, the remote control keys may not function. If this occurs, reselect the input source.

Option menu items

Adjusting volume between input sources

Volume Trim

Input source: All

Reduces any change in volume when switching between input sources by correcting volume differences in each input source. You can adjust this parameter for each input source.

ENTER

RETURN

NPUT

MUT

PLA

TV VOL TV CH

dInput selector jCursor B / C / D / E jENTER jRETURN qOPTION

Option menu

The following menu items are provided for each input source.

OPTION

VolumeTrim

Select the desired control/setup item using

jCursor B / C and press jENTER.

The displayed Option menu items differ depending on the input source. For details, read the following Option menu items section.

VOL.

SW C

L SL SR

HDMI1-4 Vo l u m e

Trim

AV1 -2 Vo l u m e

Audio In Signal Info

Trim

AV3 -4 Vo l u m e

Signal Info

Trim

AV5 Vo l u m e

Trim

AUDIO1-2 Vo l u m e

Adjustable range -6.0 dB to 0.0 dB to +6.0 dB

Default setting 0.0 dB

Adjustment

0.5 dB steps

increments

Trim

Select the desired menu item (or enable a function) using jCursor B / C / D / E and

jENTER.

Parameters of the selected item are displayed. The

V-A UX Vo l u m e

Trim

TUNER Vo l u m e

Trim

FM Mode Auto

Preset

Clear

Preset

parameters you can set differ depending on the menu items.

• You can also use jRETURN to return to the previous

screen or close the Option menu.

• Certain selected menu items may automatically close

the Option menu when their functions are enabled.

En 34

■

Combining HDMI/AV1-2 input source video and audio

Audio In

Input source: HDMI1-4, AV1-2

Combines video from HDMI or AV input sources with analog/ digital audio inputs in situations such as:

– an external device is connected with an HDMI cable but cannot

transmit audio through HDMI

– an external device with component video output and analog audio

output (such as certain game consoles) are connected to the

system

Inputs that change the audio source

HDMI1

Audio;;;;;;AV1

Assignable audio input jacks

To change assignments, select an input source (HDMI1-4 or AV1-2) as the video input first, and then select audio input jacks in this menu. Set as follows according on the desired combination of audio input jacks.

Audio inputs Settings method

Optical digital audio

input

Coaxial digital audio

input

Analog audio input Select one of AV5, AUDIO1, or AUDIO2. Connect

• For details of settings, refer to “Receiving audio from other input

sources” (☞

output devices” (☞

• To return audio inputs to their previous settings, display this item

again, and select the original input jack.

Select AV1 or AV4. Connect the external component

audio cable to the optical jack for the selected input.

Select AV2 or AV3. Connect the external component

audio cable to the coaxial jack for the selected input.

the external component audio cable to the audio jack

for the selected input.

p. 15) and “Component connections to analog audio

p. 16).

VOL.

SW C

L SL SR

Configuring the settings specific for each input source (Option menu)

■

Displaying information on audio/video signals

Signal Info

Input source: HDMI1-4, AV1-4

Displays information on digital audio and video signals on the front panel display. You can display the signal information by pressing jENTER on the menu item and using jCursor B / C.

Menu item

FORMAT

DolbyD

Information

Audio information

FORMAT Format of audio signals.

CHAN The number of input signal channels (front/surround/

LFE).

For example, if input signal channels are 3 front

channels, 2 surrounds and LFE, “3/2/0.1” is

displayed.

SAMPL The sampling frequency of analog-to-digital

conversion.

B RATE The bit rate of input signal per second.

Video information

V IN Format and resolution of video input signal.

V OUT Format and resolution of video output signal.

V.MSG

(appears only when an error has occurred)

Error messages about HDMI signals and components.

Error message

HDCP Error HDCP authentication failed. Device Over The number of connected HDMI

components is over the limit.

VOL.

SW C

L SL SR

SETUP

• “No Signal” is displayed when no signals are being received, and

“---” is displayed if this unit cannot recognize the incoming

signal.

• The bit rate may vary during playback.

■

Changing FM mode (Stereo/Monaural)

FM Mode

Input source: TUNER

Sets this unit to automatically match FM broadcast frequencies in stereo, or to convert the frequency to monaural (☞

■

Automatically presetting FM radio stations

Auto Preset

Input source: TUNER

Automatically detects radio stations in the FM frequency and registers them as preset stations (☞

■

Clearing preset FM stations

Clear Preset

Input source: TUNER

Clears the preset stations (☞p. 33).

p. 31).

En 35

SETUP

856

9010

234

REC

VOLU

TUNER

INFO

MEMO

PRES

MUTE

POP-UP

DIS

SOURC

[

]

[

]

DE SE

TRANSMI

RECEIVER

LEE

DMI

Setting various functions (Setup menu)

You can configure various function settings of this unit using the Setup menu.

UDI

V-AUX

VIE MUSI

SETUP

RETURN

NPUT

MUT

ENTER

TV VOL TV CH

[ C ]

TUNIN

R. DECODE

ENHANCE

TERE

TRAIGHT

ENE

RADI

PTION

PLA

iSETUP jCursor B / C / D / E jENTER jRETURN

Setup menu display and settings

Press iSETUP on the remote control.

SETUP

SpeakerSetup

Use the jCursor B / C to select the desired menu and press jENTER.

Setup menu categories

Speaker Setup Manages settings for speakers.

Sound Setup Manages settings for audio output.

VOL.

SW C

L SL SR

Use jCursor B / C to navigate the submenus to find the desired setting and

press jENTER.

HDMI

Audio;;;;;;Amp

When multiple items appear, use jCursor

B / C to select the desired item.

Press jCursor D / E to change the setting.

You can change other items by repeating step 4 and 5.

You can also use jRETURN to return to the previous screen.

VOL.

SW C

L SL SR

Func. Setup Manages settings to make receiver

operation easier, such as input source

labeling and auto-standby functions.

DSP Parameter Sets parameters for sound field programs.

Memory Guard Protects settings against accidental

alteration.

Press iSETUP to exit the Setup menu.

For a few seconds after closing the Setup menu, the remote control keys may not function. If this occurs, reselect the input source.

SOUND

Lipsync

VOL.

SW C

L SL SR

Ex: Sound Setup menu

Setup menu items

Setup menu

Speaker Setup

Config Subwoofer Front Center Sur. LR Crossover SWFR Phase Extra Bass Level Distance Equalizer Test Tone

Sound Setup

Lipsync HDMI Auto

Auto

Manual Adaptive DRC D.Range Max Volume Init.Volume HDMI Audio Out

Func. Setup

(speakers)

(unit and speakers)

(speakers and frequency bands)

Input Rename AutoPowerDown Dimmer

DSP Parameter Memory Guard

En 36

Manages settings for speakers

SETUP

SpeakerSetup

Speaker Setup submenu

Config Manually manages speaker configuration, such as

speaker size (sound production capacity), and bass

audio processing.

Level Manually adjusts the volume of each speaker.

Distance Manually adjusts the output of each speaker based on

distance to the listening point.

Equalizer Selects an equalizer to adjust speaker output

characteristics.

Test Tone Generates test tones.

VOL.

SW C

L SL SR

■

Manual speaker setup

Config

Adjusts the output characteristics of the speakers based on manually set parameters.

In the Config submenu, you can select the speaker size characteristic (Large or Small). Select the size (sound reproduction capacity) that matches your speakers.

Woofer diameter

• 16 cm or larger → Large

• 16 cm or smaller → Small

When speaker size is set to “Small,” low-frequency components of the speakers that you configured are produced from the subwoofer (or from the front speakers if there is no subwoofer).

SETUP

Setting various functions (Setup menu)

Front

Selects the size (sound reproduction capacity) of the front speakers. J2

Small (Default) Select this for small speakers. The subwoofer will

produce front channel low-frequency components. J3

Large Select this for large speakers. The front speakers will

produce all of the front channel frequency

components.

Center

Selects the size of the center speakers.

None Select this when there is no center speaker. The front

speakers will produce center channel audio.

Small (Default) Select this when a small center speaker is connected.

Large Select this when a large center speaker is connected.

Sur. LR

Selects the size of the surround speakers.

1 : Enabling the “Extra Bass” setting allows both the subwoofer and the front

speakers to produce bass audio.

2 : When “Subwoofer” is set to “None,” you can only choose “Large.” If the front

speaker setting is “Small” and you change “Subwoofer” to “None,” it will automatically change to “Large.”

Subwoofer

Confirms the subwoofer.

Yes (Default) Select this when you have a subwoofer connected.

During playback, the subwoofer will produce audio

from the LFE (low-frequency effect) channel and bass audio from other channels. J1

None Select this when you do not have a subwoofer

connected. The front speakers will produce audio

from the LFE (low-frequency effect) channel and bass

frequency audio from other channels.

3 : Enabling the “Crossover” setting allows you to set the frequency components

of audio signals transmitted from the front speakers to the subwoofer.

None Select this when no surround speakers are connected.

The front speakers will produce surround channel

audio signals.

Small (Default) Select this when the surround speakers are small.

Large Select this when the surround speakers are large.

En 37

Crossover

Sets the lower limit of low-frequency component output from speakers set to “Small.” Audio with a frequency below that limit will be produced from the subwoofer or the front speakers. J1

40Hz 110Hz

60Hz 120Hz

80Hz (Default) 160Hz

90Hz 200Hz

100Hz

SWFR Phase

Sets the phase of the subwoofer if the bass audio is lacking or unclear.

NRM (Default) Does not change the subwoofer phase.

REV Reverses the subwoofer phase.

Extra Bass

Allows the front channel low-frequency components to be produced exclusively by the subwoofer, or by both the subwoofer and the front speakers.

■

Controlling the volume of each speaker

Level

Separately adjusts the volume of each speaker. Use jCursor B /

C to select the desired speaker and adjust the volume with jCursor D / E.

FL Front speaker L

FR Front speaker R

C Center speaker

SL Surround speaker L

SR Surround speaker R

SWFR Subwoofer

Adjustable range -10.0 dB to +10.0 dB

Default setting 0 dB (FL / FR / SWFR)

-1.0 dB (C / SL / SR)

Adjustment increments

0.5 dB

SETUP

Setting various functions (Setup menu)

■

Manually setting speaker distance

Distance

Adjusts the timing at which the speakers produce audio so that sounds from the speakers reach the listening position at the same time.

Selecting adjustment units

Use jCursor B / C to display “Unit,” and then use jCursor D

/ E to choose the units of length (meters or feet).

Setting distances for each speaker

Use jCursor B / C to display the speaker you want to configure, and then use jCursor D / E to set the distance from the speaker to your listening position.

Unit Selects the distance unit (meters or feet).

Front L Front speaker L

Front R Front speaker R

Center Center speaker

Sur. L Surround speaker L

Sur. R Surround speaker R

SWFR Subwoofer

On The subwoofer and the front speakers produce the

front channel low-frequency components.

Off (Default) Depending on the size of the front speakers, either the

front speakers or the subwoofer produce the front

channel low-frequency components.

When the “Subwoofer” is set to “None,” the “Extra Bass” setting is disabled.

1 : If your subwoofer has a volume control or a crossover frequency control, set

the crossover frequency to maximum and the volume to half (or slightly less).

Adjustable range 0.30 m to 24.0 m (1.0 ft to 80.0 ft)

Default setting 3.00 m (10.0 ft) (Front L/Front R/SWFR)

2.60 m (8.5 ft) (Center)

2.40 m (8.0 ft) (Sur. L/Sur. R)

Adjustment increments

0.10 m (0.5 ft)

En 38

■

Adjusting sound quality with the equalizer

Equalizer

Adjusts sound quality of tone using a parametric or graphic equalizer.

EQ Select

Select an equalizer type.

PEQ Uses the parametric equalizer to adjust sound quality.

Selecting this setting applies the tone settings obtained using YPAO (☞p. 21). J1

GEQ (Default) Uses the graphic equalizer to adjust sound quality. By

pressing jENTER, you can adjust the

characteristics of the graphic equalizer.

Off Does not activate the equalizer.

■ Adjusting the graphic equalizer

When “EQ Select” is displayed, use jCursor D / E to select “GEQ” and press jENTER.

Press jCursor C repeatedly to select the frequency you want to adjust, then use jCursor D

/ E to adjust the volume.

Raising volume: Press jCursor E. Lowering volume: Press

GEQ

63Hz

Frequency band Setting the volume level for

Frequency range

Adjustable range

Default setting 0 dB

Adjustment increments

63 Hz/160 Hz/400 Hz/1 kHz/2.5 kHz/6.3 kHz/

16 kHz

-6.0 dB to 0 dB to +6.0 dB

0.5 dB

jCursor D.

the selected frequency

VOL.

L SL SR

SETUP

Setting various functions (Setup menu)

■

Generating test tones

Test Tone

Turns the test tone generator on or off.

Off (Default) Does not generate test tones.

On Generates test tones. While “On” is selected, test

SW C

You can use the test tone in a variety of circumstances. For example, you can adjust the volume balance settings for each speaker, or whenever you adjust the settings on the internal graphic equalizer, you can listen to the actual effect while operating this unit. Turn the test tone off when you have finished making adjustments.

tones are produced constantly.

Check that “Channel” appears and use jCursor

D / E to select the speaker for which you want to

adjust the equalizer.

GEQ

Channel;FRNT L

The speaker you are adjusting

1 : Using YPAO to carry out acoustic measurement selects “PEQ” automatically.

“PEQ” does not appear if the measurement process has not been carried out at least once.

VOL.

SW C

L SL SR

You can use jCursor B / C to select another frequency or return to step 2. Repeat steps 2-3 to adjust the tone to your liking.

When you have finished making adjustments, press iSETUP to close the Setup menu.

En 39

Setting the audio output function of this unit

SETUP

SoundSetup

Sound Setup submenu

Lipsync Adjusts the delay between video and audio output.

Adaptive DRC Auto-adjusting the sound level to make even low

volumes more audible.

D.Range Selects the dynamic range adjustment method for

digital audio playback.

Max Volume Sets the maximum volume for this receiver.

Init.Volume Sets the initial volume for when this receiver is turned

on.

HDMI Audio Out Selects audio signals received through the HDMI

input jack.

VOL.

SW C

L SL SR

■

Synchronizing audio/video output

Lipsync

Adjusts the delay between audio and video output (Lipsync function).

HDMI Auto

When connecting to a TV via HDMI, automatically adjusts output timing if the TV supports an automatic lipsync function.

Off (Default) Select this when the connected TV does not support

the automatic lipsync function or you do not wish to

use the automatic lipsync function. Set the correction

time in “Manual.”

On Select this when the TV supports the automatic

lipsync function. Fine-adjust the correction time in

“Auto.”

Auto

Fine-adjust the audio output timing by entering the correction time provided when “HDMI Auto” is set to “On.”

Adjustable range 0 ms to 240 ms

Adjustment increments

1 ms

SETUP

Setting various functions (Setup menu)

■

Auto-adjusting the sound level to make even low volumes more audible

Adaptive DRC

Adjusts the dynamic range in conjunction with the volume level (from minimum to maximum). When you play audio at night or at low volumes, it is a good idea to set parameter to “Auto.” J1

Auto Adjusts the dynamic range automatically.

Off (Default) Does not adjust the dynamic range automatically.

When the auto function is enabled, it adjusts the dynamic range as follows.

Auto

Off

Output Level

Input Level Input Level

Volume: low Volume: high

Off

Output Level

1 : The Adaptive DRC setting is also effective when you use headphones.

Manual

Manually adjusts the correction time. Select this when the TV does not support the automatic lipsync function or “HDMI Auto” is set to “Off.”

Adjustable range 0 ms to 240 ms

Adjustment increments

Default setting 0 ms

1 ms

En 40

■

Auto-adjusting Dolby Digital and DTS dynamic range

D.Range

Selects the dynamic range adjustment method for audio bitstream (Dolby Digital and DTS) playback.

■

Setting the startup volume

Init.Volume

Sets the initial volume for when this receiver is turned on. When this parameter is set to “Off,” the volume is set at the level when the receiver last entered standby mode. J1

SETUP

Setting various functions (Setup menu)

Max (Default) Produces audio without adjusting the dynamic range.

STD Sets the standard dynamic range suitable for home

use.

Min Sets the dynamic range at the lowest level for

playback. This is useful for low-volume audio.

■

Setting the maximum volume

Max Volume

Sets a maximum volume level so that the audio is not played too loudly. The default setting of +16.5 dB produces the highest volume.

Adjustable range -30.0 dB to +15.0 dB / +16.5 dB (Maximum volume)

Default setting +16.5 dB

Adjustment increments

5.0 dB

Adjustable range Off, Mute, -80 dB to +16.5 dB

Default setting Off

Adjustment increments

■

Changing the output destination of HDMI

0.5 dB

input audio signals

HDMI Audio Out

Choose whether to playback audio from an external component such as a BD/DVD player connected via HDMI through this unit or through a TV.

Amp (Default) Outputs audio through this unit only. When this

setting is selected, the external component outputs an

audio format compatible with this unit.

TV Outputs audio through a TV only. When this setting is

selected, the external component outputs an audio format compatible with the TV. J2

Amp+TV Outputs audio from the TV and this unit. When this

setting is selected, the external component outputs an

audio format compatible with this unit and TV.

1 : When you set the “Max Volume” at a lower level than “Init.Volume,” the “Max

Volume” setting has priority.

2 : When “TV” is selected, the speakers of this unit do not output sound.

En 41

856

9010

234

VOLU

V-AUX

TUNER

INFO

MEMO

PRES

MOVIE

MUSIC

CDR

MUTE

POP-UP

SOURCE

]

[

]

[

]

SETUP

RETURN

TOP

ENTER

TRANSMIT

LEE

DMI

ENE

ENHANCE

TERE

TRAIGHT

PTI

DISPLAY

SETUP

DE SET

RECEIVER

Making the receiver easier to use

Use jCursor D / E to select a new name from the following templates.

UDI

[ C

TUNIN

R. DECODE

SETUP

Func.Setup

Func. Setup submenu

Input Rename Changes the input source names.

VOL.

SW C

L SL SR

AutoPowerDown Goes into standby mode.

ADI

Dimmer Sets the Brightness of the front panel

■

Changing input source names

display.

Input Rename

Changes the input source names to be shown on the front panel display. You can change an input source name by choosing from a list of templates, or make one of your own.

Blu-ray Satellite

DVD VCR

SetTopBox Tape

Game MD

TV PC

DVR iPod

CD HD DVD

CD-R (blank)

Confirm the new display name by pressing jRETURN. Press iSETUP to

exit the Setup menu.

To cancel a name change, select the original name and then press

jRETURN to exit renaming.

Setting various functions (Setup menu)

Press jENTER.

HDMI1

HDMI1

Cursor

Use jCursor B / C to select the characters you wish to change, and use

jCursor D / E to enter those characters.

The following characters are available for input source.

• A to Z, a to z

• 0 to 9

• Symbols (#, *, -, +, etc.)

• Space

Repeat step 4 until you have entered the new input source name.

VOL.

SW C

L SL SR

NPUT

TV VOL TV

MUTE

iSETUP jCursor B / C / D / E jENTER jRETURN

■ Selecting a template

Select “Input Rename” from the Setup menu and press jENTER.

HDMI1

HDMI1

Renaming the input source

Select the input source that you want to rename using jCursor B / C.

VOL.

SW C

L SL SR

■ Entering an original name

Select “Input Rename” from the Setup menu and press jENTER.

HDMI1

HDMI1

Renaming the input source

VOL.

SW C

L SL SR

Confirm the new display name by pressing jENTER. Press iSETUP to

exit the Setup menu.

To cancel a name change, press jRETURN.

Select the input source that you want to rename using jCursor B / C.

En 42

■

Goes enter standby mode automatically when you leave it without operating

AutoPowerDown

If you do not operate this unit or use the remote control for an extended period of time, it will automatically go into standby mode (Auto Power Down function). This function’s default setting is “Off.” When you wish to activate this function, set the amount of time to pass before this unit will enter standby.

Off (Default) Auto Power Down function is disabled.

4hours Goes into standby mode, when you have not operated

this unit for four hours.

8hours Goes into standby mode, when you have not operated

this unit for eight hours.

12hours Goes into standby mode, when you have not operated

this unit for twelve hours.

Setting sound field program parameters

You can set the parameters for the sound field programs (☞p. 44).

SETUP

DSPParameter

VOL.

SW C

L SL SR

Prohibiting setting changes

SETUP

Memory Guard

Prohibits setting changes to prevent careless changes being made to the settings on Setup menu.

VOL.

SW C

L SL SR

SETUP

Setting various functions (Setup menu)

This unit starts a countdown of 30 seconds before entering the standby mode. Pressing any key of the remote control during the countdown cancels entering the standby mode and reset the timer.

■

Setting the brightness of the front panel display

Dimmer

Sets the brightness of the front panel display. Lowering the setting dims the display.

Adjustable range -4 to 0

Default setting 0

Off (Default) Settings are not protected.

On Prohibits changes to the settings on Setup menu until

it is returned to “Off.”

While set to “On,” the unit displays “Memory

Guard!” when an attempt is made to change the

settings.

En 43

856

9010

234

REC

RETURN

VOLU

TRANSMI

TUNER

INFO

MEMO

PRES

MUTE

POP-UP

DIS

SOURC

[

]

[

]

V-AUX

VIE MUSI

SETUP

NPUT

MUT

ENTER

TV VOL TV CH

RECEIVER

LEE

DMI

UDI

[ C ]

TUNIN

R. DECODE

ENHANCE

TERE

TRAIGHT

ENE

RADI

PTION

PLA

iSETUP jCursor B / C / D / E jENTER

SETUP

DE SE

Setting sound field program parameters

Although the sound field programs would satisfy you as they are with the default parameters, you can arrange the effect by setting the sound field elements (parameters). To adjust the sound effects suitable for acoustical conditions of audio/video sources or rooms, perform the following operations.

■

Setting sound field parameters

Press iSETUP to display the Setup menu.

Use jCursor B / C to select “DSP Parameter” and press jENTER.

SETUP

DSPParameter

Use jCursor D / E to choose the sound field program you want to edit.

DSPPRM

Sci-Fi

Sound field program to be edited

VOL.

SW C

L SL SR

SW C

L SL SR

Press jCursor B / C to select the parameter that you want to change, and

press jCursor D / E to change the parameter.

DSPPRM

DSPLevel;;0dB

Sound field parameter Choices

VOL.

SW C

L SL SR

When there are multiple parameters in the sound field program you are configuring, repeat step 4 as necessary to change other parameters.

Once you have completed editing, press

iSETUP to close the Setup menu.

■ To initialize the sound field parameters

To set the parameters of the sound field program back to default, press jCursor C repeatedly during editing to select “Initialize” and press jCursor E. When “Press Again >” is displayed, press jCursor

E again to initialize.

DSPPRM

Initialize

VOL.

SW C

L SL SR

CINEMA DSP parameters

DSP Level

Change the effect level (level of the sound field effect to be added). You can adjust the level of the sound field effect while checking the sound effect.

Adjustable range -6 dB to 0 dB to +3 dB

Default setting 0 dB

Adjust “DSP Level” as follows:

• The effect sound is too soft.

• There are no differences between effects of the sound

field programs.

→ Increase the effect level.

• The sound is dull.

• The sound field effect is added too much.

→ Reduce the effect level.

To cancel operations, press jCursor D when “Press Again” appears and return to the original display.

En 44

SETUP

Setting sound field program parameters

■

Parameters usable in certain sound field programs

2ch Stereo only

Direct

Automatically bypasses the DSP circuit and tone control circuit depending on the condition of tone control etc., when an analog sound source is played back. You can enjoy a higher quality sound.

Auto (Default) Outputs sound by bypassing the DSP circuit and tone

control circuit when both tone controls of “Bass” and

“Treble” are set to 0dB.

Off Does not bypass the DSP circuit and tone control

circuit.

5ch Stereo only

CT Level

Adjusts the center channel volume. J1

Adjustable range 0 to 100%

Default setting 100%

SL Level

Adjusts the volume of the surround L channel. J1

Straight Enhancer/5ch Enhancer only

EFCT LVL

Adjusts the effect level of the compressed music enhancer mode.

High (Default) Standard effect.

Low Sets when the high-frequency signals of the source are

emphasized excessively.

■

Parameters usable in surround decoder

q PLII Music only

Panorama

Adjusts the soundscape of the front sound field. Sends front left/ right channels sounds to the surround speakers as well as the front speakers for a wraparound effect.

Off (Default) Disables the effect.

On Enables the effect.

CT Width

Spreads the center channel sound to the front left and right speakers to suit your needs or preferences. Set this parameter to 0 for outputting the center sound from the center speaker only, or to 7 for outputting it from the front left/right speaker only.

Dimension

Adjusts the difference in level between the front sound field and the surround sound field. You can adjust the difference in level created by the software being played back to obtain the preferred sound balance. The surround sound gets stronger as you make the value more negative, and the front sound gets stronger as you make the value more positive.

Adjustable range -3 to STD to +3

Default setting STD (Standard)

Adjustable range 0 to 100%

Default setting 100%

SR Level

Adjusts the volume of the surround R channel. J1

Adjustable range 0 to 100%

Default setting 100%

1 : Not displayed when speakers are set to be inactive.

Adjustable range 0 to 7

Default setting 3

En 45

VOLU

INFO

MEMO

PRES

MUTE

DE SE

TRANSMI

SOURCE

1234

V-AU X

TUNER

VIE MUSI

SETUP

ENTER

RETURN

TOP

REC

1234

INPUT

TV VOL TV CH

MUTE

HDMI

RECEIVER

LEE

AUDIO

125

[ C ][ A ] [ B ]

TUNIN

R. DECODE

ENHANCE

TERE

TRAIGHT

ENE

RADI

OPTION

DISPLAY

POP-UP

7856

ENT

cSOURCE A dInput selector iSETUP jCursor B / C / D / E jENTER jRETURN kExternal component

operation keys

kDISPLAY lNumeric keys mTV control keys mINPUT mMUTE mTV VOL +/- mTV CH +/- mA qOPTION

SETUP

Controlling other components with the remote control

You can operate an external component such as TV and DVD player with the remote control of this unit by setting the code for external component (remote control code). The remote control code can be set for each input source. Individual setting allows you to switch external components seamlessly depending on the selected input source.

Selecting input source connected to DVD

player

DVD player

Playback/Stop

i q

Selecting input source connected to CD

CD player

player

DVD player

Playback/Stop

CD player

If you are unable to operate this unit after operating an external component, press iSETUP or qOPTION and then try operating the remote control again.

1 : You can register remote control codes for external components to

dInput selector and remote control codes for TVs in mA

mTV control keys).

( To register a TV remote control code to You can use the

jCursor, lNumeric keys, and mTV

control keys to control a TV you have registered.

dInput selector:

Keys connecting external components

The remote control keys for controlling external components are available only when the external components have corresponding control keys.

cSOURCE A

Switches an external component on and off.

Cursor, jENTER, jRETURN

Operates the menus of external components.

DISPLAY

Switches an external component display.

External component operation keys

Functions as a recording or playback key of an external component, or a menu display key.

lNumeric keys

Functions as numeric keys of an external component.

mTV control keys J1

mINPUT Switches video inputs of TV

mMUTE Mutes TV volume temporarily.

mTV VOL +/- Controls the volume of TV

mTV CH +/- Switches TV channels.

mA Turns on and off TV

To register a remote control code for a device other than a TV to

dInput selector:

You can use the external components, and the TVs registered in

jCursor and lNumeric keys etc to control

mTV control keys to control

mA.

Default remote control code settings

The following remote control codes are assigned to input sources as factory default settings. For a complete list of available remote control codes, please refer to “Remote

Control Code Search” in the CD-ROM.

Input Category Manufacturer

HDMI1 Blu-ray

Yamaha 2064

player/

recorder

HDMI2 —— —

HDMI3 —— —

HDMI4 —— —

AV1 —— —

AV2 —— —

AV3 CD player Yamaha 5095

AV4 —— —

AV5 —— —

AUDIO1 —— —

AUDIO2 —— —

V-A UX —— —

A/B/C J2 —— —

TUNER Tuner Yamaha 5085

2 : Use A/B/C for external component operations only. Set these keys

to remote control codes if you want to perform external component operations without linking to input source selection of this unit. For example, it may be convenient to assign remote control codes for devices such as TVs.

Remote

control code

En 46

CODE SET

REC

RECEIVER

SETUP

RETURN

VOLU

TUNER

INFO

MEMO

PRES

MUTE

POP-UP

DIS

SOURC

[ C ]

[

]

[

]

HDMI

SOURCE

TRANSMI

LEE

UDI

V-AUX

R. DECODE

ENHANCE

VIE MUSI

DVD

1234

INPUT

MUTE

TERE

TRAIGHT

SCENE

PTION

NTER

TV VOL TV CH

RADIO

PLA

7856

TUNIN

ENT

SETUP

Controlling other components with the remote control

Registering remote control codes

for external component operations

The following section describes how to register remote control code using an example of the registration of the remote control codes of a Yamaha BD player connected to HDMI2 jack.

• Perform each of the following steps within 1 minute.

Settings will be automatically stopped if more than 1

minute passes since the last operation. To reset, repeat

from step 2.

• Remote control code of an external component cannot

be set from the name or model number of a unit. Use

“Remote Control Code Search

search the available remote control codes from the

category or manufacturer of external components.

• If multiple remote control codes exist, first set the first

code in the list, if it does not work then try the other

codes.

Use “Remote Control Code Search” in the CDROM to search the available remote control

codes from the category or manufacturer of external components.

“2064” can be used for a Yamaha BD player.

” in the CD-ROM to

Press dHDMI2 on the remote control to switch the input source to HDMI2. J1

Perform the following steps to register the selected input source here to the remote control code.

Enter a remote control code “2064” using

lNumeric keys. J2

2 0

Once the remote control code is registered successfully the remote control will blink twice.

Registration successful: blinks twice

Registration failed: blinks 6 times

TRANSMIT

SLEE

ODE SE

ECEIVE

• If the registration fails, repeat the step 2.

• In case of an external component with multiple remote

control codes, the other remote control codes may be

supported. Repeat from step 2 with the other remote

control codes.

To switch between BD player linked to scene selections, press hSCENE and at the

same time press dHDMI2 and hold it for approximately 3 seconds.

Then you can operate the external components by switching the input source to HDMI2, or selecting HDMI2 in the registered scene.

Same steps for operating other external components, press

hSCENE and at the same time press the input

source key selected in step 3 and hold it for approximately 3 seconds.

dHDMI2 hSCENE lNumeric keys

Press nCODE SET on the remote control using a pointed object such as the tip of a

ballpoint pen.

mTV control keys mA

nCODE SET

1 : When you want to register a remote control code to the mTV

control keys, press

2 : When you want to register a remote control code to the mTV

mA (mTV control keys) in step 3.

control keys, enter the TV remote control code in step 4.

En 47

CODE SET

REC

RECEIVER

RETURN

VOLU

TUNER

INFO

MEMO

PRES

MUTE

POP-UP

DIS

SOURC

]

[

]

[

]

HDMI

SOURCE

HDMI

SOURCE

TRANSMI

LEE

DMI

UDI

V-AUX

R. DECODE

ENHANCE

VIE MUSI

SETUP

1234

NPUT

MUT

TRAIGHT

ENE

NTER

TV VOL TV CH

TERE

RADI

PTION

PLA

7856

[ C

TUNIN

ENT

SETUP

Controlling other components with the remote control

Resetting all remote control codes

Resetting all remote control codes for external components to the initial factory settings.

Perform each of the following steps within 1 minute. Settings will be automatically stopped if more than 1 minute passes since the last operation. To reset, repeat from step 2.

Press nCODE SET on the remote control using a pointed object such as the tip of a

ballpoint pen.

blinks twice

TRANSMIT

SLEE

ODE SE

ECEIVE

Press iSETUP on the remote control.

Enter “9981” using lNumeric keys.

9 9

Once the remote control code is registered successfully the remote control will blink twice.

Registration successful: blinks twice

Registration failed: blinks 6 times

TRANSMIT

SLEE

If setup fails, repeat from step 1.

ODE SE

ECEIVE

SETUP

i lNumeric keys nCODE SET

En 48

Extended functionality that can be configured as needed (Advanced Setup menu)

The Advanced Setup menu can be used for unit initialization and other useful extended functions. The Advanced Setup menu can be operated as follows.

SETUP

Displaying/Setting the Advanced Setup menu

Set this unit to the standby mode.

Press A while pressing and holding STRAIGHT on the front panel.

Release the keys when “ADVANCED SETUP” is displayed on the front panel display. After approximately 3 seconds, the top menu items are displayed.

YPAO MIC

PHONES

SILENT

CINEMA

MEMORY

INFO

INPUT

PRESET

BD DVD

TONE

CONTROL

PROGRAM l / h

PROGRAM

SCENE

STRAIGHT

FM AM

RADIO

STRAIGHT

Use PROGRAM to select the item to be set from the following items.

In the Advanced Setup menu, you can set the following settings.

REMOTE ID Changes the remote control ID of a receiver.

TU (Asia and

General models only)

INIT Initializes various settings for this unit.

Selects one of the following FM/AM frequency steps.

Press STRAIGHT a few times to select the value you wish to change.

Switch this unit to the standby mode, and then switch it on again.

The settings become effective and the unit is powered on. If initialization is selected, it will be performed when the unit is powered on again.

REMOTEID-ID1

En 49

REC

RECEIVER

RETURN

VOLU

TRANSMI

TUNER

INFO

MEMO

PRES

MUTE

POP-UP

DIS

SOURC

[

]

[

]

HDMI

SOURCE

LEE

DMI

V-AUX

ENHANCE

VIE MUSI

TRAIGHT

ENE

SETUP

NTER

1234

NPUT

TV VOL TV CH

MUT

SETUP

lNumeric keys nCODE SET

TERE

PTION

SETUP

CODE SET

Avoiding crossing remote control

■ To change the remote control ID

signals when using multiple

UDI

[ C ]

TUNIN

R. DECODE

Yamaha receivers

REMOTEID-ID1

The remote control of the unit can only receive signals from a receiver which has an identical ID (remote control ID). When using multiple Yamaha AV receivers,

RADI

you can set each remote control with a unique remote control ID for its corresponding receiver.

On the contrary, if you are setting the same remote

PLA

7856

ENT

control ID for all receivers, you can use one remote control to operate 2 receivers.

ID1 (Default) Receives the remote control signals set in

ID1.

ID2 Receives the remote control signals set in

ID2.

ID1 is set for both remote control and receiver by default. To avoid crossing remote control, change the remote control ID for both remote control and receiver.

Perform each of the following steps within 1 minute. Settings will be automatically stopped if more than 1 minute passes since the last operation. To reset, repeat from step 1.

Press nCODE SET on the remote control using a pointed object such as the tip of a

ballpoint pen.

Press iSETUP on the remote control.

Enter the desired remote control ID code.

To switch to ID1: Enter “5019” using

To switch to ID2: Enter “5020” using

Once the remote control code is registered successfully the remote control will blink twice.

Registration successful: blinks twice

Registration failed: blinks 6 times

• If setup fails, repeat from step 1.

• Returns to ID1 after the remote control code is

initialized (☞

Extended functionality that can be configured as needed (Advanced Setup menu)

Changing FM/AM frequency steps (Asia and General models only)

TU-AM9/FM50

You can select one of the following FM/AM frequency steps: J1

AM10/FM100 You can adjust the AM frequency by

steps of 10kHz and FM by steps of

100kHz.

AM9/FM50 (Default)

You can adjust the AM frequency by

steps of 9kHz and FM by steps of 50kHz.

Initializing various settings for this

lNumeric keys.

unit

INIT-CANCEL

Initializes various settings stored in this unit and sets it back to default. Select the items to be initialized from the following.

TRANSMIT

SLEE

p. 48).

ODE SE

ECEIVE

DSP PARAM Initializes all parameters for the sound

field programs.

ALL Resets this unit to default factory settings.

CANCEL (Default) Does not initialize.

1 : For details on setting FM/AM frequency steps, refer to “FM/AM

tuning” (☞

p. 30).

En 50

APPENDIX

Troubleshooting

Refer to the table below when this unit does not function properly. If the problem you are experiencing is not listed below, or if the instructions below do not help, turn off this unit, disconnect the power cable, and contact the nearest authorized Yamaha dealer or service center.

General

Problem Cause Remedy

The power will not turn on.

The unit enters standby mode soon after the power is turned on.

This unit cannot be turned off or does not work properly.

The unit enters standby mode.

After display of a countdown on the front panel, the unit goes into standby mode.

The protection circuitry operated

three times consecutively.

The power cable is not completely

inserted.

(When this unit is turned back on

and “CHECK SP WIRES!” is

displayed.) The protection

circuitry has been activated

because this unit was turned on

while a speaker cable was shorted.

The internal microcomputer is

hung-up due to an external electric

shock (such as lightning or

excessive static electricity) or by a

drop in power supply voltage.

The batteries in the remote control

may have lost their charge.

The protection circuitry has been

activated because of a short circuit,

etc.

If you do not use take any action,

the Auto Power Down function

operates.

As a safety precaution, when the protection

circuitry operates three times consecutively,

the capability to turn on the power is

disabled. Please contact your nearest

Yamaha dealer or service center to request

repair.

Connect the power cable properly to an AC

wall outlet.

Make sure that all speaker cables between

this unit and speakers are connected

properly.

Disconnect the power cable from the AC

wall outlet, wait about 30 seconds and then

plug it in again.

Replace all batteries. 4

Check that the speaker with an impedance

of at least 6Ω.

Turn on the unit, and play the source again. —

In the Setup menu “AutoPowerDown”

(“Func. Setup” → “AutoPowerDown”),

increase the time until switching to standby

mode, or turn off the Auto Power Down

function.

See

page

—

Problem Cause Remedy

“Internal Error” is displayed on the front panel display.

Sound/images suddenly go off.

An internal error has occurred. Please contact authorized Yamaha dealer or

service center to request repair.

The protection circuitry has been

activated because of a short circuit,

etc.

The sleep timer has turned off the

unit.

Check that the speaker wires are not

touching each other, then turn the unit back

on.

Turn on the unit, and play the source again. —

See

page

—

En 51

APPENDIX

Troubleshooting

Problem Cause Remedy

No sound. Incorrect input or output cable

connections.

If a DVI-HDMI cable is used to

connect the unit with an external

component, then it is necessary to

use an audio input jack for a

different input to output audio.

Speaker connections are not

secure.

The HDMI components connected

to the unit do not support the

HDCP copy protection standards.

The audio input into the device is

set to playback through the TV.

No appropriate input source has

been selected.

The volume is turned down or

muted.

Signals that this unit cannot

reproduce are being input from a

source component, such as a CD-

ROM.

No picture. A video jack (ex. Video input →

HDMI output) type different to the

input video is being used to try to

display content on the TV.

An appropriate video input is not

selected on the TV.

Connect the cables properly. If the problem

persists, the cables may be defective.

Display the HDMI Input Option menu for

the connected cable, select “Audio In,” and

select the jack to use for audio input.

Secure the connections. 11

Connect HDMI components that support the

HDCP copy protection standards.

In the Setup menu, set the HDMI Audio Out

(“Sound Setup” → “HDMI Audio Out”) to

other than “TV.”

Select an appropriate input source with

dInput selector (on the remote control).

Turn up the volume. —

Use an input source that has signals that can

be reproduced on this unit.

Use video jacks of the same type (ex. Video

input → Video output) to connect to the TV.

Select an appropriate video input on the TV. —

See

page

—

Problem Cause Remedy

No sound is output from a specific speaker.

Only the center speaker outputs substantial sound.

The speaker is malfunctioning.

Check the Speaker indicators on

the front panel display. If the

corresponding indicator lights up,

connect another speaker and check

if sound is output.

The playback component or

speakers are not connected

properly.

Output from that speaker is

disabled.

The volume of that speaker is set

to the minimum in “Speaker

Setup” in the Setup menu.

(If hardly any sound comes from

one channel)

Speaker output balance is not set

correctly.

Sound may not be output from

certain channels, depending on the

input source or sound field

program.

When a monaural source sound

field program is applied, for some

surround decoders, sound from all

channels is output from the center

speaker.

If sound is not output, the unit may be

malfunctioning.

Connect the cables properly. If the problem

persists, the cables may be defective.

Check the Speaker indicators on the front

panel display. If the corresponding indicator

is turned off, try the following.

1) Change to a different input source.

2) With the selected sound field program,

sound is not output from that speaker. Select

another sound field program.

3) “None” may have been selected for that

speaker on this unit. Display “Speaker

Setup” in the Setup menu, and set respective

parameters to enable output from that

speaker (“Speaker Setup” → “Config”).

Display “Speaker Setup” in the Setup menu

and adjust the volume (“Speaker Setup” →

“Level”).

Balance the volume of each speaker from

“Level” in the Setup menu (“Speaker Setup”

→ “Level”).

Try another sound field program. 26

See

page

11, 15

7, 37

En 52

APPENDIX

Troubleshooting

Problem Cause Remedy

No sound is heard from the surround speakers.

No sound is heard from the subwoofer.

The right combination of audio / video jacks to connect cannot be found.

The audio input sources cannot be played in the desired digital audio signal format.

There is noise interference from digital or radio frequency equipment.

This unit is in straight decoding

mode and a monaural source is

being played back.

Sound may not be output from

certain channels depending on

input sources or sound field

programs.

A subwoofer is not connected, or it

is disabled.

The subwoofer is turned off. Turn the subwoofer power on.

The source does not contain LFE

(☞p. 56) or low frequency signals.

Combine input connected to the

external component video output

with another input audio jack.

The connected component is not

set to output the desired digital

audio signals.

This unit does not support

playback of HD Audio (TrueHD,

Dolby Digital plus, DTS Master

Audio, etc.) or DTS 96/24, etc.

This unit is too close to other

digital or radio frequency

equipment.

Press gSTRAIGHT (on the remote

control) to exit straight decoding mode.

Try another sound field program. 26

Check that a subwoofer is connected

correctly, and from the Setup menu

“Subwoofer” (“Speaker Setup” → “Config”

→ “Subwoofer”), set the subwoofer to

“On.”

If the subwoofer includes an Auto Power

Off function, then lower the Auto Power Off

sensitivity settings.

Select a desired input source (HDMI1-4 or

AV1-2) as a video input and select a audio

input source from “Audio In” in the Option

menu.

Set the playback component properly

referring to its instruction manual.

Signals, such as HD Audio and DTS 96/24,

can be played by standard decoders (Dolby

Digital, DTS Digital Surround, etc.).

Move this unit further away from such

equipment.

See

page

—

Problem Cause Remedy

Noise/hum noise is heard.

The volume cannot be increased, or the sound is distorted.

Incorrect cable connection.

Connect the audio cables properly.

A DTS-CD is being played back. If a DTS bitstream signal is not properly

The component connected to the

output jacks of this unit is not

turned on.

“Max Volume” is set to a low

value.

If the problem persists, the cables may be

defective.

input to this unit, only noise is output.

Connect the playback component to this

unit by digital connection and play back the

DTS-CD.

If the condition is not resolved, the problem

may result from the playback component.

Consult the manufacturer of the playback

component.

When the component connected to the

output jacks of this unit is not turned on, the

sound may be distorted, or the volume may

decreased due to the nature of AV receivers.

Turn on all components connected to this

unit.

Set it to a higher value. 41

HDMI™

Problem Cause Remedy

The front panel display HDMI indicator is flashing.

No picture or sound. The number of components is over

An error with the HDMI

connection has occurred.

the limit.

The connected HDMI component

does not support high-bandwidth

digital copyright protection

(HDCP).

Try re-inserting the HDMI cable. —

Confirm that HDMI video that is not

supported by the unit is not being input

(HDMI Input → Option menu → “Signal

Info”).

Disconnect some of the HDMI components. —

Connect an HDMI component that supports

HDCP.

See

page

—

See

page

—

En 53

Tuner (FM/AM)

FM AM

APPENDIX

Troubleshooting

Problem Cause Remedy

FM stereo reception is noisy.

There is distortion, and clear reception cannot be obtained even with a good FM antenna.

The desired station cannot be tuned into with the automatic tuning method.

“No Presets” is displayed.

“Wrong Station” is displayed.

You are too far from the station

transmitter, or the input from the

antenna is weak.

There is multi-path interference. Adjust the antenna height or orientation, or

You are in an area far from a

station, or input from the antenna

is weak.

No preset stations are registered. Register stations you wish to listen to as

An invalid FM/AM frequency has

been input.

Check the antenna connections. 20

Switch to monaural mode. 31

Replace the outdoor antenna with a more

sensitive multi-element antenna.

place it in a different location.

Replace the outdoor antenna with a more

sensitive multi element antenna.

Use eTUNING H / I (on the remote

control) to manually select the station.

preset stations before operation.

Input a frequency that can be received. —

See

page

—

Problem Cause Remedy

The desired station cannot be tuned into with the automatic tuning method.

Automatic station preset does not work.

Continuous crackling and hissing noises are heard.

Buzzing and whining noises are heard.

The signal is weak, or the antenna

connections are loose.

Automatic station preset is not

available for AM stations.

The supplied AM loop antenna is

not connected.

The noises may be caused by

lightning, fluorescent lamps,

motors, thermostats, or other

electrical equipment.

A TV set is being used nearby. Move this unit away from the TV set. —

Adjust the AM loop antenna orientation. 20

Use the manual tuning method. 30

Use manual station preset. 32

Connect the AM loop antenna correctly

even if you use an outdoor antenna.

It is difficult to completely eliminate noise,

but it can be reduced by installing and

properly grounding an outdoor AM antenna.

See

page

En 54

Remote control

APPENDIX

Troubleshooting

Problem Cause Remedy

The remote control does not work or function properly.

External components cannot be controlled using the remote control.

Wrong distance or angle. The remote control will function within a

maximum range of 20 ft / 6 m, and no more

than 30 degrees off-axis from the front

panel.

Direct sunlight or lighting (from

an inverter type of fluorescent

lamp, strobe light, etc.) is striking

the remote control sensor of this

unit.

The batteries are weak. Replace all batteries. 4

The remote control ID of the

remote control and this unit do not

match.

The remote control code is not

correctly set.

Adjust the lighting angle, or reposition this

unit.

Match the remote control ID of this unit and

the remote control.

Set the remote control code correctly using

“Remote control code search” on the CD-

ROM.

Try setting another code for the same

manufacturer using “Remote control code

search” on the CD-ROM.

If this unit does not work when you press

jCursor B / C / D / E (on the remote

control), do the following.

When the key does not work during DVD disc menu operation: press the dInput

selector (on the remote control) again.

When the key does not work during Option

menu/Setup menu operation: press the key

corresponding to the current menu operation

again.

Even if the remote control code is correctly

set, there are some models that do not

respond to the remote control.

See

page

—

En 55

Glossary

APPENDIX

Audio information

Audio and video synchronization (lip sync)

Lip sync, an abbreviation for lip synchronization, is a technical term that involves both a problem, and the capability of maintaining audio and video

signals synchronized during post-production and transmission. Whereas the audio and video latency requires complex end-user adjustment, HDMI version 1.3 incorporates an automatic audio and video

syncing capability that allows devices to perform this synchronization automatically and accurately without user interaction.

Dolby Digital

Dolby Digital is a digital surround sound system that gives you completely

independent multi-channel audio. With 3 front channels (front L/R and center), and 2 surround stereo channels, Dolby Digital provides 5 full-range audio channels. With an additional channel especially for bass effects,

referred to as LFE (Low-Frequency Effect), the system has a total of 5.1channels (LFE is counted as 0.1 channel). By using 2-channel stereo for the surround speakers, more accurate moving sound effects and surround sound

environments are possible than with Dolby Surround. The wide dynamic range from maximum to minimum volumes that are reproduced by the 5 full-range channels, and the precise sound orientation generated using

digital sound processing provides listeners with unprecedented excitement and realism. With this unit, any sound environment from monaural up to a

5.1-channel configuration can be freely selected for your enjoyment.

Dolby Pro Logic II

Dolby Pro Logic II is an improved technique used to decode vast numbers of existing Dolby Surround sources. This new technology enables a discrete 5-channel playback with 2 front left and right channels, 1 center channel,

and 2 surround left and right channels, instead of only 1 surround channel for conventional Pro Logic technology. There are three modes available: “Music mode” for music sources, “Movie mode” for movie sources, and

“Game mode” for game sources.

Dolby Surround

Dolby Surround uses a 4-channel analog recording system to reproduce

realistic and dynamic sound effects: 2 front left and right channels (stereo), a center channel for dialog (monaural), and a surround channel for special sound effects (monaural). The surround channel reproduces sound within a

narrow frequency range. Dolby Surround is widely used with nearly all video tapes and laser discs, as well as in many TV and cable broadcasts. The Dolby Pro Logic decoder built into this unit employs a digital signal

processing system that automatically stabilizes the volume on each channel to enhance moving sound effects and directionality.

DTS Digital Surround

DTS Digital Surround was developed to replace the analog soundtracks of

movies with a 5.1-channel digital sound track, and is now rapidly gaining popularity in movie theaters around the world. DTS, Inc. has developed a home theater system so that you can enjoy the depth of sound and natural

spatial representation of DTS Digital Surround in your home. This system produces practically distortion-free 5.1-channel sound (technically, left, right and center channels, 2 surround channels, plus an LFE 0.1 channel as

a subwoofer, for a total of 5.1-channels).

DSD

Direct Stream Digital (DSD) technology stores audio signals on digital storage media, such as Super Audio CDs. Using DSD, signals are stored as

single bit values at a high-frequency sampling rate of 2.8224 MHz, while noise shaping and oversampling are used to reduce distortion, a common occurrence with very high quantization of audio signals. Due to the high

sampling rate, better audio quality can be achieved than that offered by the PCM format used for normal audio CDs. The frequency is equal to or higher than 100 kHz, with a dynamic range of 120 dB. This unit can

transmit or receive DSD signals via the HDMI jack.

LFE 0.1 channel

This channel reproduces low-frequency bass signals, and has a frequency

range from 20 Hz to 120 Hz. This channel is counted as 0.1, because it only enforces a low-frequency range compared to the full-range reproduced by the other 5 channels in Dolby Digital or DTS 5.1-channel systems.

PCM (Linear PCM)

Linear PCM is a signal format under which an analog audio signal is

digitized, recorded and transmitted without using any compression. This is used as a method of recording CDs and DVD audio. The PCM system uses a technique for sampling the size of the analog signal per very small unit of

time. Standing for “Pulse Code Modulation,” the analog signal is encoded as pulses and then modulated for recording.

Sampling frequency and number of quantized bits

When digitizing an analog audio signal, the number of times the signal is

sampled per second is called the sampling frequency, while the degree of accuracy when converting the sound level into a numeric value is called the number of quantized bits. The range of rates that can be played back is

determined based on the sampling rate, whereas the dynamic range representing the sound level difference is determined by the number of quantized bits. In principle, the higher the sampling frequency, the wider

the range of frequencies that can be played back, and the higher the number of quantized bits, the more accurately the sound level can be reproduced.

Sound field program information

CINEMA DSP

Since the Dolby Surround and DTS systems were originally designed for

use in movie theaters, their effect is best felt in a theater having many speakers designed for acoustic effects. Since home conditions, such as room size, wall material, number of speakers, and so on, can differ so

widely, it is inevitable that there are differences in the sound that is heard. Based on a wealth of actually measured data, Yamaha CINEMA DSP uses Yamaha’s original DSP technology to combine Dolby Pro Logic, Dolby

Digital, and DTS systems to provide the audiovisual experience of a movie theater in the listening room of your own home.

Compressed music enhancer

The Compressed music enhancer feature of this unit enhances your

listening experience by regenerating the missing harmonics in compression artifacts. As a result, it compensates for flattened complexity due to the loss of high-frequency fidelity as well as lack of bass due to the loss of low-

frequency bass, providing improved performance for the overall sound system.

En 56

APPENDIX

Glossary

SILENT CINEMA

Yamaha has developed a natural, realistic sound effect DSP algorithm for headphones. Parameters for headphones have been set for each sound field program, so that accurate representations of all the sound field programs

can be enjoyed on headphones.

Virtual CINEMA DSP

Yamaha has developed a Virtual CINEMA DSP algorithm that allows you to enjoy DSP surround effects even without any surround speakers, by

using virtual surround speakers. It is even possible to enjoy Virtual CINEMA DSP using a minimal two-speaker system that does not include a center speaker.

Video information

Component video signal

With the component video signal system, the video signal is separated into the Y signal for luminance and the P Color can be reproduced more faithfully with this system because each of

these signals is independent. The component signal is also called the “color difference signal” because the luminance signal is subtracted from the color signal. A monitor with component input jacks is required in order to output

component signals.

Composite video signal

With the composite video signal system, the video signal comprises the three basic elements of a video picture: color, brightness and

synchronization data. A composite video jack on a video component transmits these three elements combined.

Deep Color

Deep Color refers to the use of various color depths in displays, up from the

24-bit depths in previous versions of the HDMI specification. This extra bit depth allows HDTVs and other displays increase from millions of colors to billions of colors and eliminate on-screen color banding for smooth tonal

transitions and subtle gradations between colors. The increased contrast ratio can represent many times more shades of gray between black and

white. Additionally, Deep Color increases the number of available colors within the boundaries defined by the RGB or YCbCr color space.

B and PR signals for chrominance.

HDMI

HDMI (High-Definition Multimedia Interface) is the first industry supported, uncompressed, all-digital audio/video interface. Providing an interface between any sources (such as set-top boxes or AV receivers) and

audio/video monitors (such as digital TV), HDMI supports standard, enhanced or high-definition video as well as multichannel digital audio using a single cable. HDMI transmits all ATSC HDTV standards and

supports 8-channel digital audio, with bandwidth to spare to accommodate future enhancements and requirements. When used in combination with HDCP (High-bandwidth Digital Content

Protection), HDMI provides a secure audio/video interface that meets the security requirements of content providers and system operators. For further information on HDMI, visit the HDMI website at “http://

www.hdmi.org/.”

“x.v.Color”

A color space standard supported by HDMI version 1.3. It is a more extensive color space than sRGB, and allows the expression of colors that

were not hitherto possible. While remaining compatible with the color gamut of sRGB standards, “x.v.Color” expands the color space, and can thus produce more vivid, natural images. It is particularly effective for still

pictures and computer graphics.

En 57

Information on HDMI™

APPENDIX

■ HDMI signal compatibility

Audio signals

Audio signal types Audio signal formats Compatible media

2ch Linear PCM 2ch, 32-192 kHz, 16/20/24 bit CD, DVD-Video, DVD-Audio, etc.

Multi-ch Linear PCM 8ch, 32-192 kHz, 16/20/24 bit DVD-Audio, Blu-ray Disc, HD DVD,

etc.

DSD 2/5.1ch, 2.8224 MHz, 1 bit SACD, etc.

Bitstream Dolby Digital, DTS DVD-Video, etc.

• If the input source component can decode the bitstream audio signals of audio commentaries, you can play back the audio

sources with the audio commentaries mixed down by using the digital audio input (optical or coaxial) connections.

• Refer to the supplied instruction manuals of the input source component, and set the component appropriately.

About trademarks

NOTES

• When CPPM copy-protected DVD-Audio is played back, video and audio signals may not be output,

depending on the type of the DVD player.

• This unit is not compatible with HDCP-incompatible HDMI or DVI components.

• Refer to the supplied instruction manuals for details.

To decode audio bitstream signals on this unit, set the input source component appropriately so that the

component outputs the bitstream audio signals directly (does not decode the bitstream signals on the

component).

• This unit is not compatible with the audio commentary features (for example, the special audio contents

downloaded via Internet) of Blu-ray Disc or HD DVD. This unit does not play back the audio

commentaries of the Blu-ray Disc or HD DVD content.

Video signals

This unit is compatible with the video signals of the following resolutions:

– 480i/60 Hz – 576i/50 Hz – 480p/60 Hz – 576p/50 Hz

– 720p/60 Hz, 50 Hz – 1080i/60 Hz, 50 Hz – 1080p/60 Hz, 50 Hz, 24 Hz

Manufactured under license from Dolby Laboratories. “Dolby,” “Pro Logic,” and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and DTS Digital Surround are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. ©1996-2008 DTS, Inc. All Rights Reserved.

“HDMI,” the “HDMI” logo and “High-Definition Multimedia Interface” are trademarks, or registered trademarks of HDMI Licensing LLC.

“SILENT CINEMA” is a trademark of Yamaha Corporation.

En 58

Specifications

APPENDIX

■ HDMI specification

• Deep Color

• x.v.Color

• Auto Lip sync

■ INPUT/OUTPUT

Input jacks

• HDMI input x 4

• AV input x 5

[Audio] Digital input (optical) x 2, digital input (coaxial) x 2, analog input x 1

[Video] Component video jacks x 2, video jacks x 3

• AUDIO input x 2

[Audio] Analog jack x 2

• VIDEO AUX input x 1

[Audio] Analog x 1, stereo mini jack x 1

[Video] Video jack x 1

Output jacks

• TV output (monitor output) x 3

[Audio/Video] HDMI x 1

[Video] Component video jack x 1, video jack x 1

• AV output x 2

[Audio] Analog jack x 1

[Video] Video jack x 1

• AUDIO output x 1

[Audio] Analog jack x 1

■ AUDIO SECTION

• Surround Decoder

Dolby Digital, Dolby Pro Logic, Dolby Pro Logic II

DTS Digital Surround

DSD

• Minimum RMS Output Power for Front, Center, Surround

[U.S.A. and Canada models] (1 kHz, 0.9% THD, 8 Ω)

FRONT L/R........................................................................100 W/ch

CENTER .................................................................................100 W

SURROUND L/R...............................................................100 W/ch

[Other models] (1 kHz, 0.9% THD, 6 Ω)

FRONT L/R........................................................................100 W/ch

CENTER .................................................................................100 W

SURROUND L/R...............................................................100 W/ch

• Dynamic Power (IHF)

[U.S.A. and Canada models]

Front Speakers 8/6/4/2 Ω ..................................110/130/160/180 W

[Other models]

Front Speakers 6/4/2 Ω ............................................ 105/130/150 W

• Maximum Useful Output Power (JEITA) [China, Korea, General and Asia models]

1 kHz, 10% THD, 6 Ω ............................................................135 W

• Maximum Output Power [U.K., Europe and Asia models]

1 kHz, 0.7% THD, 4 Ω ...........................................................120 W

• IEC Output Power [U.K., Europe and Asia models]

Front Speakers 1 kHz, 0.9% THD, 8 Ω .........................95 W+95 W

• Dynamic Headroom [U.S.A. and Canada models]

8 Ω.........................................................................................0.23 dB

• Input Sensitivity/Input Impedance

AV5, etc..................................................................... 200 mV/47 kΩ

• Maximum Input Voltage

AV5, etc. (1 kHz, 0.5% THD) ..................................... 2.3 V or more

• Rated Output Voltage/Output Impedance

AUDIO OUT............................................................ 200 mV/1.2 kΩ

SUBWOOFER (2ch Stereo & Front: Small) ............... 1.0 V/1.2 kΩ

• Headphone Jack Rated Output/Impedance

AV5, etc. (1 kHz, 50 mV, 8 Ω) ..................................100 mV/470 Ω

• Frequency Response

AV5 to FRONT .....................................10 Hz to 100 kHz, +0/-3 dB

• Total Harmonic Distortion AV 5 , e tc . to FRO N T

[U.S.A. and Canada models] (1 kHz, 50 W, 8 Ω)........ 0.06% or less

[Other models] (1 kHz, 50 W, 6 Ω) ............................. 0.06% or less

• Signal to Noise Ratio (IHF-A Network) AV5, etc. Input Shorted (250 mV to Front Speakers)

................................................................................. 98 dB or more

• Residual Noise (IHF-A Network)

Front Speakers ........................................................... 150 µV or less

• Channel Separation (1 kHz/10 kHz)

AV5, etc. (5.1 kΩ shortened) ...........................60 dB/45 dB or more

• Volume Control ...................................... MUTE / -80 dB to +16.5 dB

• Tone Control (Front Speakers)

BASS Boost/Cut ............................................ ±10 dB/2 dB at 50 Hz

BASS Turnover Frequency.................................................... 350 Hz

TREBLE Boost/Cut ..................................... ±10 dB/2 dB at 20 kHz

TREBLE Turnover Frequency.............................................. 3.5 kHz

• Filter Characteristics (fc=40/60/80/90/100/110/120/160/200 Hz)

H.P.F. (Front, Center, Surround) .......................................12 dB/oct.

L.P.F. (Subwoofer) ............................................................ 24 dB/oct.

■ VIDEO SECTION

• Video Signal Type

[U.S.A., Canada, Korea and General models] ........................ NTSC

[Other models] ............................................................................PAL

• Signal Level

Composite ..................................................................... 1 Vp-p/75 Ω

Component....................... 1 Vp-p/75 Ω (Y), 0.7 Vp-p/75 Ω (P

• Maximum Input Level (Video Conversion Off) ....... 1.5 Vp-p or more

• Signal to Noise Ratio.................................................... 50 dB or more

• Frequency Response [MONITOR OUT]

Component (Video Conversion Off)............5 Hz to 60 MHz, ±3 dB

B/PR)

En 59

APPENDIX

■ FM SECTION

• Tuning Range

[U.S.A. and Canada models] ...............................87.5 to 107.9 MHz

[Asia and General models] ........... 87.5/87.50 to 108.0/108.00 MHz

[Other models].................................................87.50 to 108.00 MHz

• 50 dB Quieting Sensitivity (IHF)

Mono..................................................................... 3.0 µV (20.8 dBf)

• Signal to Noise Ratio (IHF)

Mono/Stereo ................................................................. 74 dB/69 dB

• Harmonic Distortion (1 kHz)

Mono/Stereo ....................................................................... 0.3/0.3%

• Antenna Input (unbalanced) .........................................................75 Ω

Index

Advanced Setup menu ................................................................. 49

AM tuning .................................................................................... 30

Antenna connection ..................................................................... 20

Cable plug .................................................................................... 12

Connections.................................................................................... 9

External device connection .......................................................... 12

FM tuning..................................................................................... 30

Front panel ..................................................................................... 5

Front panel display......................................................................... 7

■ AM SECTION

• Tuning Range

[U.S.A. and Canada models]...................................530 to 1710 kHz

[Asia and General models]..................... 530/531 to 1710/1611 kHz

[Other models] ........................................................531 to 1611 kHz

■ GENERAL

• Power Supply

[U.S.A. and Canada models] .................................. AC 120 V, 60 Hz

[General models].........................AC 110-120/220-240 V, 50/60 Hz

[China model].........................................................AC 220 V, 50 Hz

[Korea model] ........................................................ AC 220 V, 60 Hz

[Australia model] ................................................... AC 240 V, 50 Hz

[U.K. and Europe models] ..................................... AC 230 V, 50 Hz

[Asia models] ............................................ AC 220-240 V, 50/60 Hz

Option menu................................................................................ 34

Rear panel...................................................................................... 6

Remote control, Controlling other components.......................... 46

Remote control, Part names and functions.................................... 8

SCENE function.......................................................................... 26

Setup menu.................................................................................. 36

Sound field program.................................................................... 26

Sound field program parameter setting ....................................... 44

Speaker connection ....................................................................... 9

Speaker setting ............................................................................ 21

Supplied accessories...................................................................... 4

• Power Consumption

[U.S.A. and Canada models] .....................................250 W/320 VA

[Other models] ........................................................................250 W

• Standby Power Consumption

[General models] ..........................................................1.0 W or less

[Other models] ..............................................................0.5 W or less

• Dimensions (W x H x D) 435 x 151 x 315 mm (17-1/8 x 6 x 12-3/8 in)

• Weight

7.5 kg (16.5 lbs)

* Specifications are subject to change without notice.

Jack .............................................................................................. 12

En 60

YC434B0/OMEN3

Yamaha RX-V367 Owner Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

INTRODUCTION

Features and capabilities

About this manual

Supplied accessories

Part names and functions

Front panel

Rear panel

Front panel display

Remote control

CONNECTIONS

Connecting speakers

Speaker channels and functions

Connecting speakers

Speaker layout

Connecting external devices

Cable plugs and jacks

Connecting a TV monitor

Connecting BD/DVD players and other devices

Connecting video cameras and portable audio players

Transmitting input A/V to external devices

Connecting the FM/AM antennas

Set up the speaker parameters automatically (YPAO)

PLAYBACK

Basic playback procedure

Adjusting high/low-frequency sound (Tone control)

Changing input settings with a single key (SCENE function)

Enjoying sound field programs

Registering input sources/sound field program

Selecting sound field programs and sound decoders

Sound field programs

FM/AM tuning

Selecting a frequency for reception (Normal tuning)

Registering and recalling a frequency (Preset tuning)

Clearing preset stations

SETUP

Configuring the settings specific for each input source (Option menu)

Option menu display and setup

Option menu items

Setting various functions (Setup menu)

Setup menu display and settings

Setup menu items

Manages settings for speakers

Setting the audio output function of this unit

Making the receiver easier to use

Setting sound field program parameters

Prohibiting setting changes

Setting sound field program parameters

Setting sound field parameters

Controlling other components with the remote control

Keys connecting external components

Default remote control code settings

Resetting all remote control codes

Extended functionality that can be configured as needed (Advanced Setup menu)

Displaying/Setting the Advanced Setup menu

Changing FM/AM frequency steps (Asia and General models only)

APPENDIX

Troubleshooting

General

HDMI™

Tuner (FM/AM)

Remote control

Glossary

Audio information

Sound field program information

Video information

Information on HDMI™

About trademarks

Specifications

Index
