Yamaha RX-V1 User Manual

UCA

RX-V1

Natural Sound AV Receiver Ampli-Tuner Audio-Video

DIGITAL

DOLBY

CINEMA DSP

DIGITAL

SURROUND

INPUT SELECTOR

INPUT MODE

6CH IMPUT

EFFECT

A/B/C/D/E

BALANCE

EXTENSION

11 22 33

PRESET/TUNING

FM/AM MEMORY

TUNING MODE

MANL/AUTO FM

AUTO/MANL MONO

EDIT

REC OUT/ZONE 2

BASS

PROCESSOR

DIRECT

ON OFF

SOURCE/REMOTE

D-TV CBL/SAT TAPE VCR 1

VCR 2 CD VIDEO AUX

DVD

PHONOVCR 3

MD TUNER

VIDEO AUX

S VIDEO VIDEO L RAUDIO

STANDBY/ON

NATURAL SOUND AV RECEIVER

SPEAKERS

PHONES BASS TREBLE

RX-V1

PROGRAM PRESET/TUNING

–

VOLUME

TRANSMIT RE-NAME CLEAR

SYSTEM

POWER

VCR 1 VCR 2 VCR 3 LD DVD

SELECT

POWER REC STOP PAUSE PLAY

10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB

EX/ES

CHP/INDEX

TV VOL

MACRO

MACROLEARN

OFF ON

STANDBY

V-AUX TAPE PHONO

D-TV CBL/SAT TUNER MD CD

6CH INPUT

TITLE

ENTER

SOURCE

SOUND

DISPLAY

SEARCH CHAPTER

+–

$*#$

1234

ROCK

ENTER-

CONCERT

TAINMENT

VIDEO 2

VIDEO 1

5678

MOVIE

/DTS

THEATER

THEATER 2

THEATER 1

SUR.

9101112

0 +10 +100

A / B / C / D / E

PRESET

++ +

TV INPUT

MUTE

VOLUME

TV MUTE

EFFECT

–– –

DISC

OWNER’S MANUAL

MODE D’EMPLOI

SAFETY INSTRUCTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

• Explanation of Graphical Symbols

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

8 Ventilation – The unit should be situated so that its

location or position does not interfere with its proper ventilation. For example, the unit should not be situated on a bed, sofa, rug, or similar surface, that may block the ventilation openings; or placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.

9 Heat – The unit should be situated away from heat sources

such as radiators, stoves, or other appliances that produce heat.

10 Power Sources – The unit should be connected to a power

supply only of the type described in the operating instructions or as marked on the unit.

11 Power-Cord Protection – Power-supply cords should be

routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the unit.

12 Cleaning – The unit should be cleaned only as

recommended by the manufacturer.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

1 Read Instructions – All the safety and operating

instructions should be read before the unit is operated.

2 Retain Instructions – The safety and operating instructions

should be retained for future reference.

3 Heed Warnings – All warnings on the unit and in the

operating instructions should be adhered to.

4 Follow Instructions – All operating and other instructions

should be followed.

5 Water and Moisture – The unit should not be used near

water – for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc.

6 Carts and Stands – The unit should be used only with a

cart or stand that is recommended by the manufacturer.

6A A unit and cart combination should be moved

with care. Quick stops, excessive force, and uneven surfaces may cause the unit and cart combination to overturn.

13 Nonuse Periods – The power cord of the unit should be

unplugged from the outlet when left unused for a long period of time.

14 Object and Liquid Entry – Care should be taken so that

objects do not fall into and liquids are not spilled into the inside of the unit.

15 Damage Requiring Service – The unit should be serviced

by qualified service personnel when: A. The power-supply cord or the plug has been

damaged; or

B. Objects have fallen, or liquid has been spilled into the

unit; or

C. The unit has been exposed to rain; or D. The unit does not appear to operate normally or

exhibits a marked change in performance; or

E. The unit has been dropped, or the cabinet damaged.

16 Servicing – The user should not attempt to service the unit

beyond those means described in the operating instructions. All other servicing should be referred to qualified service personnel.

17 Power Lines – An outdoor antenna should be located away

from power lines.

18 Grounding or Polarization – Precautions should be taken

so that the grounding or polarization is not defeated.

7 Wall or Ceiling Mounting – The unit should be mounted to

a wall or ceiling only as recommended by the manufacturer.

19 For US customers only:

Outdoor Antenna Grounding – If an outside antenna is connected to this unit, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

FCC INFORMATION (for US customers only)

EXAMPLE OF ANTENNA GROUNDING

MAST

GROUND CLAMP

ELECTRIC SERVICE EQUIPMENT

NEC

– NATIONAL ELECTRICAL CODE

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT (NEC SECTION 810–20)

GROUNDING CONDUCTORS (NEC SECTION 810–21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250. PART H)

1. IMPORTANT NOTICE : DO NOT MODIFY THIS UNIT!

This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product.

2. IMPORTANT : When connecting this product to accessories

and/or another product use only high quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.

3. NOTE : This product has been tested and found to comply

with the requirements listed in FCC Regulations, Part 15 for Class “B” digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices.

This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices.

We Want You Listening For A Lifetime

Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the unit “OFF” and “ON”, please try to eliminate the problem by using one of the following measures:

Relocate either this product or the device that is being affected by the interference.

Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s.

In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to coaxial type cable.

If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Electronics Corp., U.S.A. 6660 Orangethorpe Ave, Buena Park, CA 90620.

The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries.

YAMAHA and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion – and, most importantly, without affecting your sensitive hearing.

Since hearing damage from loud sounds is often undetectable until it is too late, YAMAHA and the Electronic Industries Association’s Consumer Electronics Group recommend you to avoid prolonged exposure from excessive volume levels.

CAUTION: READ THIS BEFORE OPERATING YOUR UNIT.

1. To assure the finest performance, please read this manual carefully. Keep it in a safe place for future reference.

2. Install this unit in a cool, dry, clean place – away from windows, heat sources, sources of excessive vibration, dust, moisture and cold. Avoid sources of humming (transformers, motors). To prevent fire or electrical shock, do not expose the unit to rain or water.

3. Never open the cabinet. If something drops into the set, contact your dealer.

4. Do not use force on switches, controls or connection wires. When moving the unit, first disconnect the power plug and the wires connected to other equipment. Never pull the wires themselves.

5. The openings on the cover assure proper ventilation of the unit. If these openings are obstructed, the temperature inside the unit will rise rapidly. Therefore, avoid placing objects against these openings, and install the unit in a well-ventilated area to prevent fire and damage.

6. The voltage used must be the same as that specified on this unit. Using this unit with a higher voltage than specified is dangerous and may result in fire or other accidents. YAMAHA will not be held responsible for any damage resulting from the use of this unit with a voltage other than that specified.

7. Digital signals generated by this unit may interfere with other equipment such as tuners, receivers and TVs. Move this unit farther away from such equipment if interference is observed.

This unit is not disconnected from the AC power source as long as it is connected to the wall outlet, even if this unit itself is turned off. This state is called the standby mode. In this state, this unit is designed to consume a very small quantity of power.

IMPORTANT

Please record the serial number of this unit in the space below. MODEL: Serial No.: The serial number is located on the rear of the unit. Retain this Owner’s Manual in a safe place for future reference.

FOR CANADIAN CUSTOMERS

To prevent electric shock, match wide blade of plug to wide slot and fully insert.

This Class B digital apparatus complies with Canadian ICES-003.

Manufactured under license from Dolby Laboratories. “Dolby”, “AC3”, “Pro Logic”, “Surround EX” and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works.  1992-1997 Dolby Laboratories, Inc. All rights reserved.

8. Do not attempt to clean the unit with chemical solvents; this might damage the finish. Use a clean, dry cloth.

9. Be sure to read the “Troubleshooting” section regarding common operating errors before concluding that the unit is faulty.

10. When not planning to use this unit for a long period of time (e.g., a vacation), disconnect the AC power plug from the wall outlet.

11. To prevent lightning damage, disconnect the AC power plug and disconnect the antenna cable when there is an electrical storm.

12. Grounding or polarization – Precautions should be taken so that the grounding or polarization of the unit is not defeated.

13. AC outlet Do not connect audio equipment to the AC outlet on the rear panel if that equipment requires more power than the outlet is rated to provide.

Manufactured under license from Digital Theater Systems, Inc. US Pat. No. 5,451,942 and other world-wide patents issued and pending. “DTS”, “DTS Digital Surround” and “DTS ES” are trademarks of Digital Theater Systems, Inc. Copyright 1996 Digital Theater Systems, Inc. All Rights Reserved.

III

Contents

Introduction 2

English

Features ............................................................................................................... 3

Getting Started .................................................................................................... 5

Controls and Functions ....................................................................................... 6

Preparations 12

Speaker System Configurations ........................................................................ 13

Speaker Placement ............................................................................................ 14

Hookups ............................................................................................................ 15

On-Screen Displays (OSD) ............................................................................... 26

Speaker Settings ................................................................................................ 27

Speaker Output Levels ...................................................................................... 27

Basic Operation 30

Basic Playback .................................................................................................. 31

AM/FM Tuner................................................................................................... 35

Basic Recording ................................................................................................ 39

Advanced Operation 40

SET MENU Items ............................................................................................. 41

Remote Control Features .................................................................................. 54

Adjusting the Levels of the Effect Speakers ..................................................... 67

Setting the Sleep Timer..................................................................................... 67

ZONE 2 ............................................................................................................. 68

Addtional Information 70

Digital Sound Field Processing (DSP).............................................................. 71

Hi-Fi DSP-Sound Field Program ...................................................................... 72

CINEMA-DSP .................................................................................................. 73

CINEMA-DSP Sound Field Program ............................................................... 75

Sound Field Program Parameter Editing .......................................................... 77

Digital Sound Field Parameter Descriptions..................................................... 78

Appendix 82

Troubleshooting ................................................................................................ 83

Reference Chart for the INPUT and OUTPUT Jacks ....................................... 87

CINEMA - EQ Frequency Characteristics ....................................................... 87

Specifications .................................................................................................... 88

Introduction

Features 3

Introduction ......................................................................................................... 3

Dolby Digital and Dolby Digital Surround EX .................................................. 3

DTS and DTS ES ................................................................................................ 3

Comparing Surround Technologies .................................................................... 3

Digital Sound Fields (DSP) ................................................................................ 4

Multi-function remote control............................................................................. 4

Various Input and Output Jacks .......................................................................... 4

Built-in 8-channel power amplifier..................................................................... 4

Custom installation facility ................................................................................. 4

Getting Started 5

Checking the Package Contents .......................................................................... 5

Installing Batteries in the Remote Control.......................................................... 5

Using the Remote Control .................................................................................. 5

Controls and Functions 6

Front Panel .......................................................................................................... 6

Opening and Closing the Front Panel Door ........................................................ 7

Remote Control ................................................................................................... 8

Front Panel Display........................................................................................... 10

Rear Panel ......................................................................................................... 11

Features

Introduction

Welcome to the exciting world of digital home entertainment. The RX-V1 is the most complete and advanced AV receiver available. Though some of the more advanced features of this unit may not be familiar to you, they are easy to use. Incorporated state-of-the-art technology such as Dolby Digital and DTS can bring the same audio experience to your home as they have brought to feature films in quality theaters around the world. To make the listening experience even more enjoyable, the RX-V1 includes a number of exclusive, digitally created listening environments known as digital sound fields. Choosing a sound field program is like transporting yourself to such venues as an outdoor arena, an European church, or a cozy jazz club. Take some time now to read more about these features and enjoy the new experiences the RX-V1 brings to your home theater.

Dolby Digital and Dolby Digital Surround EX

The RX-V1 is equipped with a Dolby Digital decoder which reproduces industry standard Dolby Digital surround sound for a cinematic audio experience in your home. Dolby Digital is a 5.1 channel format because it uses five discrete channels (left and right Main channels, Center channel, and left and right Rear channels) and a special low frequency channel (that is used only enough to merit the “0.1” channel rating) to create incredibly realistic 360˚ surround effects. Recently, Dolby Digital Surround EX was introduced in movie theaters as an advanced surround technology. The addition of a Rear Center channel makes front-to-back transitions more realistic. You can enjoy the newest Dolby Digital Surround EX software with the CINEMA DSP programs in the RX-V1 such as Dolby Digital/ Matrix 6.1.

DTS and DTS ES

The RX-V1 is also equipped with a DTS decoder, which uses a 5.1 channel system to create a full surround sound environment. It was developed as a way to replace the analog soundtracks of movies with six channels of digital sound. In comparison with Dolby Digital, DTS uses less compression to store the sound information. The newly presented DTS ES system reproduces digital sound similar to Dolby Digital Surround EX. The use of the Rear Center speaker along with the existing 5.1 channel speakers provides a fully immersive cinematic audio experience.

English

Comparing Surround Technologies

To enjoy dynamic feature film sound at home, you should have the appropriate sound reproduction system for your home theater. The traditional standard for home surround systems was called Dolby Surround and consisted of four channels (left and right Main channels, a Center channel, and a Surround channel for effects). The new home theater standard is Dolby Digital and consists of 5.1 channels (left and right Main channels, a Center channel, left and right Rear channels, and an LFE (low frequency effect) channel). The newer DTS surround technology also makes use of a 5.1 channel system. The 6.1 channel system which adds a Rear Center channel to the 5.1 channel configuration is the latest advancement in surround sound technology, and is employed by Dolby Digital Surround EX and DTS ES.

LRLCR

and DTS ES

Reproduction Channel System

LSCR

Dolby Surround

(Pro Logic)

4 channels Left (L) and right (R) Main,

Center (C), and Surround (S) channels

LRLCR

Dolby Digital

and DTS

5.1 channels Left (L) and right (R) Main,

Center (C), left and right Rear (RL and RR), and Subwoofer (SW) channels

Dolby Digital Surround EX

6.1 channels Left (L) and right (R) Main,

Center (C), left and right Rear (RL and RR), Rear Center (RC), and Subwoofer (SW) channels

Features

Introduction

Digital Sound Fields (DSP)

Technological advances in sound reproduction over the last 30 years have enhanced the listening experience with improved clarity, precision, and power. However, something has been missing: the atmosphere and acoustic ambience of the public venue. Our Yamaha engineers have extensively researched the nature of sound acoustics and the way sound reflects inside a room. We sent these engineers to famous theaters and concert halls around the world to measure the acoustics of those venues with sophisticated microphones. The data they collected is used to recreate these environments in digital sound fields. Some of these digital sound fields have been created using data measured at the original venue; others have been created from combinations of data to form unique environments for specific purposes. Some have been designed especially for music, and others especially for movies. Of course, this only solves half of the problem. Because these engineers have no way of knowing the acoustics of your entertainment room, we have made it possible for you to adjust the various parameters of this data to tailor each virtual venue to your taste. You can use these sound fields to enhance any source and in combination with any of the following surround sound technologies.

CINEMA-DSP: Dolby Digital + DSP and DTS + DSP

The Dolby Digital system and DTS system show their full capability in large movie theaters, because feature film soundtracks are designed to be reproduced in such environments. It is difficult to recreate a sound environment similar to a movie theater in your entertainment room because of the room size, wall materials, and the number of speakers in your entertainment system. Yamaha DSP technology makes it possible for you to enjoy nearly the same sound experience as that of a large movie theater in your entertainment room by compensating for lack of presence and dynamics in your entertainment room with Yamaha’s original digital sound fields combined with Dolby Digital or DTS soundtracks.

Virtual CINEMA DSP and HP CINEMA DSP

Yamaha developed the Virtual CINEMA DSP algorithm which allows you to experience the virtual sound fields without surround speakers. This makes it possible for the RX-V1 to produce a full surround sound catering to the number of speakers you have. The RX-V1 also has an HP (Headphones) CINEMA DSP algorithm which is achieved by the crosstalk processing applying the precise Head Related Transfer Function. You can therefore enjoy listening to the CINEMA DSP soundfields on headphones.

Multi-function remote control

The remote control can operate other audio-video components once you program the remote control using the manufacturer code and Learn feature.

Various Input and Output Jacks

The RX-V1 has various output jacks for audio and video signals as well as a digital recording output jack. Many input jacks are also available for connection to multiple audio-video sources. All the video inputs and outputs have S-video jacks in addition to standard composite video jacks for improved video picture quality. Component video input and output jacks are also available to deliver the excellent video signals from DVD players and other high quality video sources. The coaxial and optical digital signal jacks (provided for direct transmission of digital signals) automatically detect Dolby Digital, DTS, and PCM signals. A demodulator circuit is built into the Dolby Digital RF input so you can connect it directly to the Dolby Digital RF signal output on your LD player. Additionally, there are six audio inputs for disscrete multichannel reproduction from an external decoder. The RX-V1 also comes with a monaural subwoofer jack and split subwoofer jacks which can reproduce delicate but powerful low frequency effects.

Built-in 8-channel power amplifier

Main: 110 W + 110 W (8Ω) RMS Output Power, 0.015% THD, 20-20,000 Hz Center: 110 W (8Ω) RMS Output Power, 0.015% THD, 20-20,000 Hz Rear: 110 W + 110 W (8Ω) RMS Output Power, 0.015% THD, 20-20,000 Hz Front: 35 W + 35 W (8Ω) RMS Output Power, 0.05% THD, 1 kHz Rear Center: 110 W (8Ω) RMS Output Power, 0.015% THD, 20-20,000 Hz

Custom installation facility

You can make up a multi-room audio-video system with this unit. With this feature, you can set this unit to reproduce separate input sources in the main room and in a second (ZONE 2) room using the supplied remote control in the second room.

Getting Started

Checking the Package Contents

Check your package to make sure it has the following items.

MACRO

TRANSMIT RE-NAME CLEAR

MACROLEARN

OFF ON

SYSTEM

POWER

STANDBY

V-AUX TAPE PHONO

D-TV CBL/SAT TUNER MD CD

VCR 1 VCR 2 VCR 3 LD DVD

6CH INPUT

TITLE

ENTER

SOURCE

SOUND

DISPLAY

SELECT

SEARCH CHAPTER

1 2 3 4

ROCK

CONCERT

5 6 7 8

THEATER

9 10 11 12

A / B / C / D / E

TV INPUT

TV MUTE

ENTER-

TAINMENT

MOVIE

THEATER 1

0 +10 +100

PRESET

DISC

+–

* #

CONCERT

VIDEO 2

VIDEO 1

MOVIE

/DTS

THEATER 2

SUR.

MUTE

VOLUME

EFFECT

POWER REC STOP PAUSE PLAY

10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB

EX/ES

CHP/INDEX

+ + +

TV VOL

– – –

Remote Control

Alkaline Batteries (3) (LR6)

Quick Reference Card

Power Buttons

Display Window

Source Select

Program/10Key Section

Others

Setup Section

Programming Section

Input Section

Operation Section

Volume Section

DISPLAY

PRESET NUMBER 1~8

(Preset Group) E (Preset Group) D (Preset Group) C PRESET + / –

(Preset Group) A/B/C/D/E

DECK A / DECK B

DIRECTION A/B PLAY STOP

POWER STOP

INDEX

DISPLAY

SEARCH POWER REC PAUSE

POWER

(Preset Group) A (Preset Group) B

FAST FORWARD REWIND REC / PAUSE

Quick Reference Guide

SKIP SEARCH PLAY PAUSE (YAMAHA : PAUSE / STOP) 1~9

CLEAR +10

0 DISC SKIP

SKIP SEARCH PLAY PAUSE STOP 1~9

+10 0

FM Antenna

AM Loop Antenna

Antenna Adapter

(U.S.A. and Canada Models only)

Installing Batteries in the Remote Control

Insert the batteries in the correct direction by aligning the + and – marks on the batteries with the polarity illustrations (+ and –) inside the battery compartment. Change the batteries periodically. Do not use old batteries together with new ones. Do not use different types of batteries (such as alkaline and manganese batteries) together. Read the packaging carefully as these different types of batteries may have the same shape and color.

English

■ About Changing Batteries

As the batteries wear out, the operating range of the remote control decreases and the TRANSMIT indicator does not flash or its light becomes dim. When you notice any of these conditions, change all of the batteries.

Reset button

Notes:

• If the remote control is without batteries for more than 20 minutes, or if worn out batteries remain in the unit, the contents of the memory may be cleared. If the memory is cleared, insert new batteries and reprogram any functions that may have been cleared.

• After you insert new batteries, be sure to push RESET in the battery compartment using a ball point pen or similar object before using the remote control. (This does not clear the contents of the memory.)

Using the Remote Control

The remote control transmits a directional infrared beam. Be sure to aim the remote control directly at the remote control sensor on the main unit during operation. When the sensor is covered or there is a large object between the remote control and the main unit, the sensor cannot receive signals. The sensor may not be able to receive signals properly when it is exposed to direct sunlight or a strong artificial light (such as a fluorescent or strobe light). In this case, change the direction of the light or reposition the main unit to avoid direct lighting.

RX-V1

NATURAL SOUND AV RECEIVER

STANDBY/ON

SPEAKERS

PROGRAM PRESET/TUNING

PHONES BASS TREBLE

–

30° 30°

DIGITAL

DOLBY

CINEMA DSP

DIGITAL

11 22 33 44

–

SURROUND

INPUT MODE

6CH IMPUT

EFFECT

A/B/C/D/E

BALANCE

REC OUT/ZONE 2

BASS

PROCESSOR

SOURCE/REMOTE

EXTENSION

DIRECT

DVD

D-TV

CBL/SAT TAPE

VCR 1

VCR 2 CD

PHONOVCR 3

VIDEO AUX

ON OFF

VOLUME

INPUT SELECTOR

PRESET/TUNING

FM/AM MEMORY

TUNING MODE

EDIT

MANL/AUTO FM

AUTO/MANL MONO

VIDEO AUX

S VIDEO VIDEO L RAUDIO MD TUNER

Approximately 6m (20 feet)

■ About handling the remote control

Handle the remote control with care. Do not spill water or other liquids on the remote control. Do not drop the remote control. Do not leave or store the remote control in the following types of conditions:

• high humidity or temperature such as near a heater, stove or bath; or

• dusty places; or

• in places subject to extremely low temperatures.

Front Panel

Introduction

NATURAL SOUND AV RECEIVER

Controls and Functions

DOLBY

CINEMA DSP

RX-V1

DIGITAL

SURROUND

INPUT SELECTOR

VOLUME

STANDBY/ON

SPEAKERS

PHONES BASS TREBLE

PROGRAM PRESET/TUNING

–

~ STANDBY/ON

Turns this unit on (On mode) and off (Standby mode). When you turn on this unit, you will hear a click and there will be a four to five to second delay before this unit can reproduce sound. In Standby mode, this unit consumes a small amount of power so it can respond to the remote control.

Ÿ Remote Control Sensor

Receives signals from the remote control.

EFFECT

–

6CH IMPUT

BALANCE

22 33 44

INPUT MODE

A/B/C/D/E

BASS

EXTENSION

ON OFF

PROCESSOR

DIRECT

REC OUT/ZONE 2

CBL/SAT TAPE

VCR 1

VCR 2 CD VIDEO AUX

SOURCE/REMOTE

D-TV

DVD

MD TUNER

PHONOVCR 3

PRESET/TUNING

FM/AM MEMORY

EDIT

VIDEO AUX

S VIDEO VIDEO L RAUDIO

‹ SPEAKERS A/B

When pushed in (ON), these buttons turn on the set of Main speakers connected to the A and/or B terminals on the rear panel.

MANL/AUTO FM

PRESET/TUNING

EDIT

TUNING MODE

AUTO/MANL MONO

FM/AM MEMORY

MANL/AUTO FM

TUNING MODE

AUTO/MANL MONO

! Front Panel Display

Shows information about the operational status of this unit (see page 10).

⁄ INPUT MODE

Selects the mode of input for sources that output two or more types of signals to this unit (see page 33). You cannot control the input mode when you select 6CH INPUT as the input source.

@ INPUT SELECTOR

Selects the input source (DVD, LD, D-TV, CBL/SAT, VCR 1, VCR 2, VCR 3, V-AUX, PHONO, CD, TUNER, TAPE, MD) you want to listen to or watch.

¤ VOLUME

Controls the output level of all audio channels. This does not affect the REC OUT level.

# PHONES

Outputs audio signals for private listening using headphones. When you connect headphones, no signals are output to the PREOUT jacks or the speakers.

$ BASS

Adjusts the low frequency response for the left and right Main speaker channels. Turn the control to the right to increase the low frequency response and turn the control to the left to decrease the low frequency response. If you increase or decrease the low frequency sound to an extreme level, the tonal quality from the Center, Front Effect, Rear Center, and Rear speakers may not match that of the left and right Main speakers.

› PROGRAM /

Selects the sound field program (see page 34). Selecting a sound field program turns on the effect.

% TREBLE

Adjusts the high frequency response for the left and right main channels. Turn the control to the right to increase the high frequency response and turn the control to the left to decrease the high frequency response. If you increase or decrease the high frequency sound to an extreme level, the tonal quality from the Center, Front Effect, Rear Center, and Rear speakers may not match that of the left and right Main speakers.

Controls and Functions

ﬁ EFFECT

Switches the effect speakers (Center, Front Effect, Rear and Rear Center) on and off. If you turn off the output of these speakers using EFFECT, all DTS and Dolby Digital audio signals are directed to the Main left and right channels except for the LFE channel. When DTS or Dolby Digital signals are mixed, the left and right Main channel signal levels may not match.

^ 6CH INPUT

Switches between 6CH INPUT mode and normal input modes. 6CH INPUT mode takes priority over the source selected with INPUT SELECTOR. You cannot use DSP sound field programs while using an external decoder.

ﬂ BALANCE

Controls the balance of the sound levels coming from the right and left Main speaker(s). Setting this control to the center position “0” is appropriate for most situations.

& A/B/C/D/E

Selects one of the five preset station groups.

‡ BASS EXTENSION ON/OFF

When pushed in (ON), this feature boosts the bass frequency of the left and right main channels by +6 dB (60 Hz) while maintaining overall tonal balance. This boost is useful if you do not use a subwoofer. However, this boost may not be noticeable if the main speakers are set to “SMALL” and the bass output mode is set to “SW.”

* PROCESSOR DIRECT ON/OFF

When pushed in (ON), BASS, TREBLE, BALANCE, and BASS EXTENSION are bypassed, eliminating any

alteration of the original signal.

° PRESET/TUNING /

Selects preset stations when the colon “:” appears next to the band indication in the display, and selects the tuning frequency when the colon “:” does not appear.

( REC OUT/ZONE2

Selects the source you want to direct to the audio/video recorder and ZONE 2 outputs independent of the source you are listening to in the main room. When set to the SOURCE/ REMOTE position, the input source is directed to all outputs.

· VIDEO AUX

Inputs audio and video signals from a portable external source such as a video camera. To reproduce source signals from these jacks, select V-AUX as the input source. To direct this source to the VCR 1 output jacks, select VIDEO AUX using REC OUT/ZONE 2.

) PRESET/TUNING (EDIT)

Switches the function of PRESET/TUNING / (the colon “:” turns on or off). This button is also used to exchange the places of two preset stations with each other.

‚ FM/AM

Switches the reception band between FM and AM.

_ MEMORY (MAN’L/AUTO FM)

Enters a station into memory. See “Manually presetting stations” on page 36 for details. Hold down this button for more than three seconds to start automatic preset tuning. See “Automatically presetting stations” on page 37 for details.

— TUNING MODE (AUTO/MAN’L MONO)

Switches the tuning mode between automatic and manual. To select the automatic tuning mode, press this button so that the AUTO TUNING indicator appears in the front panel display (the STEREO indicator also appears if receiving a stereo broadcast). To select the manual tuning mode, press this button so that the AUTO TUNING indicator does not appear.

English

Opening and Closing the Front Panel Door

When you are not operating the controls behind the front panel door, close the door.

Remote Control

Introduction

Controls and Functions

Power Buttons

Turn the power on and off. Press SYSTEM POWER to turn on the power and STANDBY to turn off (Standby mode) the power to the main unit.

Display Window

Shows the source component that you select to control.

Source Select

Selects the source component without switching the input.

Program/10-Key Section

Functions as the numeric buttons or DSP program group buttons.

Others

Functions vary depending on your components that are set up with the manufacturer code.

TRANSMIT RE-NAME CLEAR

SYSTEM

POWER

STANDBY

D-TV CBL/SAT TUNER MD CD

VCR 1 VCR 2 VCR 3 LD DVD

V-AUX TAPE PHONO

TITLE

SOURCE

DISPLAY

SELECT

POWER REC STOP PAUSE PLAY

10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB

CONCERT

6.1/ES

THEATER

CHP/INDEX

A / B / C / D / E PRESET

++ +

TV INPUT

TV VOL

TV MUTE

–– –

SEARCH CHAPTER

1234

ROCK

ENTER-

CONCERT

TAINMENT

5678

MOVIE

THEATER 2

THEATER 1

9101112

0 +10 +100

MUTE

EFFECT

DISC

MACRO

MACROLEARN

OFF ON

6CH INPUT

ENTER

SOUND

+–

CONCERT

VIDEO 2

VIDEO 1

MOVIE

/DTS

SUR.

VOLUME

Programming Section

Provides a selection of programming types you can utilize to conveniently operate your other components.

Input Section

Selects the input source. Press an input button repeatedly to select the input mode.

Operation Section

Provides functions such as play, stop, skip, etc. for operating your other components.

Volume Section

Controls the volume.

Setup Section

Sets speaker output levels, SET MENU, DSP parameters, etc.

ON SCREEN

SLEEP TEST

LEVEL

PARAMETER

SET MENU

~ Infrared window

Outputs infrared control signals. Aim this window at the component you want to operate.

Ÿ CLEAR

Used for clearing functions acquired using the Learn and Rename features, programmed macros, and preset manufacturer codes (see pages 65, 66).

Controls and Functions

English

ﬂ +/–

PRESET +/– selects a preset station. CH +/– selects the next or previous channel. DISC +/– skips to the next or previous disc.

& MUTE

Mutes the sound. Press again to restore audio output at the previous volume level.

! RE-NAME

Used for changing the source name in the display window (see page 65).

⁄ LEARN

Used for setting up the manufacturer code or programming the functions of other remote controls (see pages 61, 62).

@ MACRO

Used to program a series of operations onto a single button (see page 63).

¤ MACRO ON/OFF

Turns the macro function on and off.

# TRANSMIT

Flashes while the remote control is sending signals.

‹ 6CH INPUT

Switches to the 6CH INPUT mode when using an external decoder.

$ LIGHT

Turns the light on or off. When you press this button once, the light turns on for about ten seconds. Press again to turn off the light.

› 10KEY/DSP

Selects the numeric button (10KEY) mode or DSP mode. You can use the 13 buttons to select numbers or DSP programs directly according to the position of this switch.

% DSP program group/Numeric buttons

Select DSP programs or numbers according to the position of 10KEY/DSP. (Press a button repeatedly to select a DSP program within that group.)

ﬁ A/B/C/D/E

Selects one of the five preset station groups.

TV operation buttons

TV INPUT switches between TV and VCR mode. TV MUTE mutes the TV sound.

^ TV VOL +/–

Increases or decreases the TV volume level.

‡ VOLUME +/–

Increases or decreases the volume level.

* EFFECT

Switches the effect speakers (center, front, rear, and rear center) on and off. If the output of these speakers is switched off, all DTS and Dolby Digital audio signals are directed to the main left and right channels except for the LFE channel.

° Cover

Slides down to show the setup buttons.

( LEVEL

Selects the effect speaker channels (center, front, rear and subwoofer) so you can adjust their level independently. Press this button repeatedly to select the effect speaker channel you want to adjust, then use + or – to adjust the level.

· ON SCREEN

Selects the On-Screen Display mode for your video monitor.

) SLEEP Timer

Sets the Sleep Timer. Press repeatedly to set the amount of time before the main unit is automatically turned off.

‚ TEST

Selects the test mode (see page 27).

_ PARAMETER/SET MENU

Selects the PARAMETER mode or SET MENU mode. You can use the cursor % / % / + / – buttons to adjust DSP program parameter values or SET MENU items according to the position of this switch.

— Cursor buttons % / % / + / –

Selects and adjusts DSP program parameters and SET MENU items according to the position of PARAMETER/SET MENU.

+ RESET

Press this button after you exchange batteries or when the remote control stops working properly. (Pressing RESET does not clear acquired functions.)

Front Panel Display

Introduction

Controls and Functions

VIRTUAL

DIGITAL

PRO LOGIC

DSP

PCM

SPEAKERS

~ DTS indicator

Lights up when the built-in DTS decoder is on.

Ÿ VIRTUAL indicator

Lights up when using Virtual Cinema DSP (See page 34.)

! Multi-information display

Shows the current DSP program and other information when adjusting or changing settings.

DVD MD TAPE TUNER CD PHONO

SLEEP

STEREO AUTO

TUNING

MEMORY

D-TV

CBL/SAT

VCR 1 VCR 2 VCR 3

V-AUX

# DSP indicator

Lights up when you select a digital sound field program.

‹ Headphones indicator

Lights up when headphones are connected.

$ SPEAKERS A/B indicator

Lights up according to which set of main speakers are selected. Both indicators light up when both sets of speakers are selected.

⁄ STEREO indicator

Lights up when the AUTO TUNING indicator is on and the unit is receiving a strong signal for an FM stereo broadcast.

@ Input source indicator

Shows the current input source with the arrow-shaped cursor.

¤ DIGITAL and PRO LOGIC

indicators

Light up according to the type of Dolby signals this unit is reproducing. “

DIGITAL” lights up when the built-in Dolby Digital decoder is on. “

PRO LOGIC” lights up when the built-in Dolby Pro Logic Decoder is on.

› PCM indicator

Lights up when this unit is reproducing PCM (Pulse Code Modulation) digital audio signals.

% AUTO TUNING indicator

Shows that the Tuner is in automatic tuning mode.

ﬁ MEMORY indicator

Flashes to show a station can be saved.

^ SLEEP indicator

Lights up while the Sleep Timer is on.

Controls and Functions

Rear Panel

English

~ RF (AC-3) input jack

Connect to the RF output terminal of your LD player.

Ÿ Audio equipment jacks

Refer to page 16 for hookup information.

! Video equipment jacks

Refer to page 18 for hookup information.

⁄ Antenna input terminals

Refer to page 25 for hookup information.

@ Speaker terminals

Refer to page 20 for hookup information.

¤ AC OUTLETS

Use these outlets to supply power to your other audio/video equipment.

# AC power cord

Connect to a power outlet.

‹ IMPEDANCE SELECTOR

Use this switch to match the amplifier output to your speaker impedance. Turn off the power before you change the setting of this switch (see page 22).

$ DIGITAL OPTICAL/COAXIAL jacks

Refer to page 15 for detailed information.

› 6CH INPUT jacks

Refer to page 24 for hookup information.

% ZONE 2 OUT/VIDEO OUT jacks

Refer to page 68 for hookup information.

ﬁ REMOTE 1 IN/OUT/REMOTE 2 IN

jacks

Refer to page 68 for hookup information.

^ RS232C/CTRL OUT +5V terminals

These are control expansion terminals for commercial use. Consult your dealer for details.

ﬂ PRE OUT/MAIN IN jacks

Refer to page 23 for hookup information.

Preparations

Speaker System Configurations 13

Eight or Seven Speaker Configuration –Full Cinema DSP– ............................ 13

Six Speaker Configuration –Hi Fi DSP– .......................................................... 13

Five Speaker Configuration –Standard 5.1 Channel–....................................... 13

Four Speaker Configuration –Minimum Requirement– ................................... 13

Speaker Placement 14

Placing the Main Speakers ................................................................................ 14

Placing the Center Speaker ............................................................................... 14

Placing the Front Effect, Rear and Rear Center Speakers ................................ 14

When You Use a Projection Screen .................................................................. 14

Placing the Subwoofers..................................................................................... 14

Hookups 15

Connecting to Digital Jacks .............................................................................. 15

About the Video Jacks ...................................................................................... 15

About the RF (AC-3) Signal Input Jack ...................................................... 15

Connecting Audio Components ........................................................................ 16

Connecting Video Components ........................................................................ 18

Connecting Speakers......................................................................................... 20

Connecting External Amplifiers ....................................................................... 23

Connecting an External Decoder ...................................................................... 24

Connecting Power Supply Cords ...................................................................... 24

Connecting the Antennas .................................................................................. 25

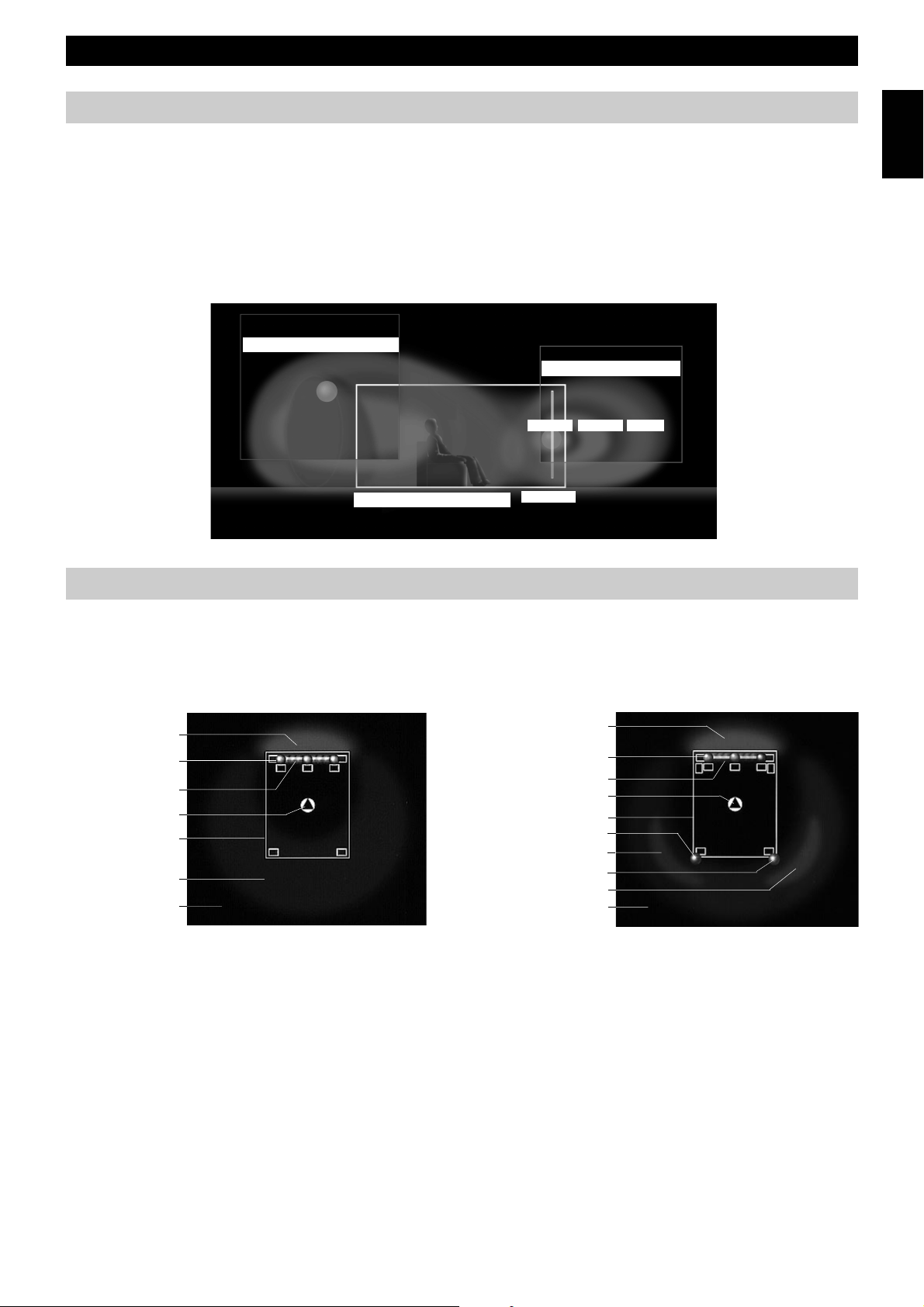

On-Screen Displays (OSD) 26

OSD Modes....................................................................................................... 26

Selecting the OSD Mode .................................................................................. 26

Speaker Settings 27

Before You Begin ............................................................................................. 27

Speaker Output Levels 27

Dolby Surround Test......................................................................................... 28

DSP Test ........................................................................................................... 29

Speaker System Configurations

The most complete speaker configuration consists of eight speakers: the left and right Main speakers, a Center speaker, the left and right Rear speakers, the left and right Front Effect speakers, and a Rear Center speaker. If you do not use eight speakers, you can direct the signals for speakers that are not in your system to other speakers in your configuration. A Subwoofer can be used with any of these configurations to produce a fuller sound.

Front Effect Speakers

Front Effect Speakers Rear Speakers

Main Speakers

Center Speaker

Front Subwoofer

Rear Subwoofer

Rear Speakers

Rear Center Speaker

Rear Subwoofer

English

( )

■ Eight or Seven Speaker Configuration –Full Cinema

DSP–

When you reproduce feature film software, this configuration fullly expresses the powerful and realistic sound qualities of 70 mm multitrack audio. The dialogue is positioned as if it were coming from directly on the screen, the sound effect is positioned slightlly behind the screen, and the soundtrack music is positioned even further behind the screen to express the width and depth of the overall presentation. This configuration makes the most of this unit’s capability.

The Rear Center speaker is useful for playback of Dolby Digital Surround EX or DTS ES.

■ Six Speaker Configuration –Hi Fi DSP–

This configuration is used the most for audio playback with HiFi DSP. It does not position the dialogue sound as well as a seven or eight speaker configuration. However, it creates a dynamic DSP (Digital Sound Field Processor) sound field which adds depth to the sound.

For this speaker configuration, change SET MENU item 1A. CENTER SP to “NONE” and 1D. REAR CT SP to “NONE” (see page 41).

■ Five Speaker Configuration –Standard 5.1 Channel–

This configuration does not express the height of the sound field as well as the seven or eight speaker configuration. However, it positions the dialogue sound as coming directly from the screen.

For this speaker configuration, change SET MENU item 1F. FRNT EFCT SP to “NONE” and 1D. REAR CT SP to “NONE” (see page 41).

■ Four Speaker Configuration –Minimum

Requirement–

In this configuration, the Center speaker signals and Front Effect speaker signals are directed to the left and right Main speakers.

For this speaker configuration, change SET MENU item 1A. CENTER SP to “NONE,” item 1F. FRNT EFCT SP to “NONE,” and item 1D. REAR CT SP to “NONE” (see page 41).

Speaker Placement

Where you place your speakers has a tremendous effect on how well your system sounds.

Preparations

Main

speaker

approx.

(3ft) (1~3ft) (5~15ft) (1~3ft) (3ft)

TV or Video

monitor

TV or Video

monitor

Center speaker

0.5~1m 0.5~1m1.5~3m

Main

speaker

approx.

■ Placing the Main Speakers

Place the left and right Main speakers an equal distance from the main listening position.

If you have a TV or video monitor in your system, the distance of each speaker from each side of the TV or video monitor should be the same.

■ Placing the Center Speaker

If you have a TV or video monitor in your system, align the front face of the Center speaker with the front face of the monitor. Place the speaker as close to the monitor as possible, such as directly over or under the monitor. If you place the speaker under the monitor, the Front Effect speakers can adjust the height of the sound to correspond with the action on the screen (depending on the listener’s position). If you have a projection screen in your system, place the Center speaker under the screen. Be sure to align the speaker with the center of the screen.

■ Placing the Front Effect, Rear and Rear Center

Speakers

These speakers should be placed about 0.5~1m (1~3 feet) outside the Main speakers and in the front of the room. They should be turned toward the main listening position. Place the Rear speakers in the back of the room so they face the main listening position. The Rear speakers can be placed farther apart than the Front Effect speakers. The Front Effect and Rear speakers should be placed about

1.8m (6 feet) above the floor. Once you begin listening to programs, continue to adjust the speaker placement

until you obtain a balanced sound from the Main speakers and the Front Effect and Rear speakers.

■ When You Use a Projection Screen

Place the speakers as shown in the illustration.

1/4

The Main speakers should be placed about one-quarter of the way up from the bottom of the screen.

Place the Center speaker in the center and directly under the screen. The Center speaker provides precise dialogue localization.

When you use a projection screen with your system, the Front Effect speakers provide better effect quality. The CINEMA-DSP sound field programs (see page

34) raise the sound from the Center speaker upward and provide natural sound corresponding with the video images.

■ Placing the Subwoofers

Place the Front Subwoofer near the Main speakers. Turn it slightly toward the center of the room to reduce wall reflections. If you use a Rear Subwoofer, place it behind the main listening position. The placement of the Rear Subwoofer is not critical because of

the ultralow frequencies of the sound being reproduced. By adding a high quality Subwoofer to the speaker configurations shown on pages 21 and 22, you can enjoy more powerful and realistic

movie effects, even if your Main speakers are large.

Note:

Front Effect speakers

Front Effect Speakers

Front Subwoofer

Main speakers

Center speaker

Rear speakers

Rear Speakers

Rear Center Speaker

Rear Subwoofer

Rear Center speaker

• If you use different brands of speakers (with different tonal qualities) in your configuration, the tone of a moving human voice and other types of sound may not shift smoothly. We recommend that you use speakers from the same manufacturer or speakers with the same tonal quality.

You can also adjust the output levels and equalization of your effect speakers using the SET MENU (see page 41).

If you are using small speakers, the addition of a Subwoofer will reinforce the sound effects of movies (see page 21).

Hookups

Connecting to Digital Jacks

The RX-V1 has digital jacks for direct transmission of digital signals through either coaxial or fiber optic cables. You can use the digital jacks to input PCM, DTS and Dolby Digital bitstreams. When you connect components to both the COAXIAL and OPTICAL jacks (for CD, DVD, and CBL/SAT) priority is given to the input signals from the COAXIAL jack. All digital input jacks are acceptable for 96 kHz/24 bit digital signals.

■ About the Dust Protection Cap

Pull out the cap from the optical jack before you connect the fiber optic cable. Do not discard the cap. When you are not using the optical jack, be sure to put the cap back in place. This cap protects the jack from dust.

About the Video Jacks

There are three types of video jacks. Video signals input through the VIDEO jacks are the conventional composite video signals. Video signals input through the S VIDEO jacks are separated into luminance (Y) and color (C) video signals. The S-video signals achieve high quality color reproduction. Video signals input through the COMPONENT VIDEO jacks are separated into luminance (Y) and color difference (PB/CB, PR/CR) video signals. The jacks are also separated into three for each signal. The description of the component video jacks may be different depending on the component (e.g. Y, CB, CR / Y, PB, PR / Y, B-Y, R-Y/ etc.). Component video signals provide the best quality in picture reproduction.

Composite VIDEO terminal

S VIDEO terminal

COMPONENT VIDEO terminals

PR/CRPB/CBY

Note:

• Each type of video jack works independently. Signals input through the composite video, S-video, and component jacks are output through the corresponding composite video, S-video, and component jacks respectively.

Caution:

• Use a commercially available S-video cable when connecting to the S VIDEO jacks, and commercially available video cables when connecting to the COMPONENT VIDEO jacks.

• When you are using the COMPONENT VIDEO jacks, check the details in the owner’s manual that came with the component being connected.

English

About the RF (AC-3) Signal Input Jack

If your LD player has an RF (AC-3) signal output jack, connect it to the RF (AC-3) input jack on this unit. If RF (AC-3) and analog signals are input at the same time, priority is given to the RF signals. When you want to reproduce RF (AC-3) signals, set the input mode to “D.D. RF” using INPUT MODE.

Note:

• RF (AC-3) signals cannot be output using the REC OUT selector. When you record

RF(AC-3)

sound or images from an LD player, be sure to connect the player to either the DIGITAL OPTICAL or analog AUDIO jacks.

Caution:

• Even if you connect an LD player with an RF (AC-3) output jack to this unit, you cannot reproduce Dolby Digital sound from all LD discs. You must playback an LD disc encoded with Dolby Digital signals in order to take advantage of the Dolby Digital sound.

Hookups

Connecting Audio Components

Before you connect any components, disconnect the power supply to all the components you plan to connect including the RX-V1 and determine which jacks are for the left and right channels and for input and output. When you connect other YAMAHA audio equipment (such as a CD player or changer, MD deck, or tape deck, connect to terminals with the same number labels. Yamaha applies this labelling system to all its products. In the hookup illustrations on the following pages:

indicates signal direction,

indicates coaxial cables,

indicates left side analog cables,

indicates right side analog cables,

indicates optical cables; and,

Preparations

After you finish all hookups, check them again to make sure they are correct.

indicates S-video cables.

Turnable

Optical Output

Coaxial Output

RF(AC-3)

COAXIAL OPTICAL

GND

DVD

CD player

GND

DVD

CBL

(PLAY)

/SAT

TAPE

OUT

(REC)

(PLAY)

PLAY)

(

OUT

(REC)

MAIN

Ground

AUDIO PHONO

Output

AUDIO VIDEO

S VIDEO

VIDEO

DVD

D-TV

CBL

Analog Output

L R

AUDIO VIDEO

S VIDEO

VIDEO

DVD

D-TV

CBL /SAT

VCR 1

OUT

VCR 2

OUT

COMPONE

REMOTE 1

■ Connecting a Turntable

Connect the left and right signal output cords to the PHONO L and

R jacks.

Note:

• These jacks are for connecting a turntable with an MM or high output MC cartridge. If you have a turntable with a low output MC cartridge, use an inline boosting transformer or MC-head amplifier when connecting to these jacks.

Caution:

• The GND terminal does not electrically ground the turntable. It simply reduces noise in the signal. In some cases, you may hear less noise if you do not connect to the GND terminal.

■ Connecting a CD Player

Connect the left and right analog signal output jacks on your CD

player to the CD 1 L and R jacks.

Notes:

• The COAXIAL CD and OPTICAL CD jacks are available for a CD player which has coaxial or optical digital outputs.

• When you connect a CD player to both the COAXIAL CD and OPTICAL CD jacks, priority is given to the input signals from the COAXIAL CD jack.

• The OPTICAL jacks on this unit conform to the EIA standard. If you use a fiber optic cable that does not conform to this standard, the RX-V1 may not function properly.

Hookups

R L

Analog

Input

Optical

Input

Optical Output

Tape Deck

RF(AC-3)

COAXIAL OPTICAL

AUDIO

GND

PHONO

DVD

CBL

(PLAY)

/SAT

TAPE

OUT

(REC)

(PLAY)

(

PLAY)

OUT

(REC)

MAIN

DVD

MD or DAT Deck

RF(AC-3)

COAXIAL OPTICAL

AUDIO

GND

PHONO

DVD

CBL

(PLAY)

/SAT

TAPE

OUT

(REC)

(PLAY)

PLAY)

(

OUT

(REC)

MAIN

DVD

Analog Output

AUDIO VIDEO

Analog

Input Analog

Output

AUDIO VIDEO

■ Connecting a Tape Deck

S VIDEO

VIDEO

DVD

D-TV

CBL /SAT

VCR 1

OUT

VCR 2

OUT

Connect the left and right signal output jacks on your tape deck to

the TAPE 3 (PLAY) L and R jacks.

Connect the left and right signal input jacks on your tape deck to the

TAPE 4 (REC) L and R jacks.

Notes:

• You can monitor audio recordings if you connect a three-head tape deck to the

TAPE 3 (PLAY) jacks.

• When you connect a tape deck to the RX-V1, keep the deck’s power on while using

the RX-V1. If the power is off, the RX-V1 may distort the sound from other equipment.

English

• When you record from source equipment connected to the RX-V1 while the

RX-V1’s power is off, the recorded sound may be distorted. To avoid this problem, turn on the RX-V1.

■ Connecting an MD or DAT Deck

Connect the left and right analog signal output jacks on your MD or

L R

S VIDEO

VIDEO DVD

D-TV

CBL /SAT

VCR 1

OUT

VCR 2

OUT

DAT deck to the MD 3 (PLAY) L and R jacks.

Connect the left and right analog signal input jacks on your MD or

DAT deck to the MD 4 (REC) L and R jacks.

Connect the optical digital signal output jack on your MD or DAT

deck to the OPTICAL MD (PLAY) jack.

Connect the optical digital signal input jack on your MD or DAT deck to the OPTICAL MD (REC) jack.

Note:

• When you connect your MD or DAT deck to both the analog and digital input and

output jacks, priority is given to the digital signals.

Hookups

M N

Connecting Video Components

Note:

• If you make S-video connections to this unit, it is not necessary to make composite video connections. If both types of connections are made, this unit gives priority to the S-video signal.

Optical Output

RF-Signal

Output

Preparations

RF(AC-3)

COAXIAL OPTICAL

DIGITAL

LD Player

Analog Audio Output

AUDIO

GND

PHONO

DVD

CBL

(PLAY)

/SAT

TAPE

OUT

(REC)

(PLAY)

(

PLAY)

OUT

(REC)

MAIN

DVD

SURROUND

SUB

D-TV

WOOFER

6CH INPUT

CENTER CBL /SAT

ZONE 2 OUT VIDEO

VCR 1

S-video Output

Video Output

AUDIO VIDEO

S VIDEO

VIDEO DVD

D-TV

CBL /SAT

VCR 1

OUT

VCR 2

OUT

VCR 3

OUT

MONITOR

OUT 1

OUT

MONITOR

OUT 2

L R

COMPONENT VIDEO

PB/CBY

REMOTE 1

OUT

REMOTE 2

RS-

232C

CTRL

OUT +5V

100Ω

20mA

MONO

REAR CTR

PREOUT/MAIN IN

■ Connecting an LD Player

Connect the left and right audio signal output jacks on your LD

PR/C

DVD

D-TV

CBL /SAT

MONITOR

OUT

FRONT

REAR

(SURROUND)

SUB

WOOFER

SPLIT

CENTER

OUT

MAIN

MAIN OUT

player to the LD L and R jacks.

If your LD player has an RF signal or optical digital signal outputs, you can connect them to this unit. Connect the RF signal output jack on your LD player to the LD jack. Connect the optical digital signal output jack on your LD player to the OPTICAL LD jack.

Connect the composite video signal output jack on your LD player to

the LD VIDEO jack.

If your LD player has an S-video output, you can connect it to this unit. Connect the S-video signal output jack on your LD player to the LD S VIDEO jack.

RF (AC-3)

Optical Output

RF(AC-3)

COAXIAL OPTICAL

DIGITAL

Optical Output

Coaxial Output

RF(AC-3)

COAXIAL OPTICAL

Digital TV/

AUDIO

GND

PHONO

DVD

CBL

(PLAY)

/SAT

TAPE

OUT

(REC)

(PLAY)

(

PLAY)

OUT

(REC)

MAIN

DVD

SURROUND

SUB

D-TV

WOOFER 6CH INPUT

CENTER CBL /SAT

ZONE 2 OUT VIDEO

VCR 1

Satellite/Cable TV

GND

DVD

CBL

(PLAY)

/SAT

TAPE

OUT

(REC)

(PLAY)

(

PLAY)

OUT

(REC)

MAIN

DVD

SURROUND

SUB

D-TV

WOOFER

6CH INPUT CBL /SAT

VCR 1

DIGITAL

AUDIO VIDEO

OUT

Tuner

Video Output

AUDIO

AUDIO VIDEO

PHONO

CENTER

ZONE 2 OUT VIDEO

Analog Audio Output

L R

Video Output

COMPONENT VIDEO

S VIDEO

VIDEO DVD

CBL /SAT

OUT

REMOTE 1

OUT

REMOTE 2

OUT

100Ω

L R

S VIDEO

VIDEO

DVD

D-TV

CBL /SAT

VCR 1 OUT

VCR 2

OUT

IN VCR 3 OUT

MONITOR

OUT 1

MONITOR

OUT 2

MONITOR

OUT 1

MONITOR

OUT 2

OUT

D-TV

VCR 1

VCR 2

VCR 3

S-video Output

Component Output

OUT

MONO

REAR CTR

RS-

232C

CTRL

OUT +5V

20mA

PREOUT/MAIN IN

PR/CRPB/CBY

DVD

D-TV

CBL

/SAT

MONITOR

OUT

(SURROUND)

WOOFER

CENTER

75Ω

UNBAL.

FRONT

REAR

SUB

SPLIT

OUT

MAIN

–

MAIN OUT

Analog Audio Output

S-video Output

Component Output

COMPONENT VIDEO

PREOUT/MAIN IN

REMOTE 1

OUT

REMOTE 2

MONO

REAR CTR

RS232C

CTRL

OUT +5V

100Ω

20mA

PR/CRPB/CBY

DVD

D-TV

CBL

/SAT

MONITOR

OUT

FRONT

(SURROUND)

WOOFER

CENTER

75Ω

UNBAL.

REAR

SUB

SPLIT

OUT

MAIN

MAIN OUT

■ Connecting a TV or Digital TV

Connect the left and right analog signal output jacks on your TV to

the D-TV L and R jacks.

If your TV has an optical digital signal output, you can connect it to this unit. Connect the optical digital signal output jack on your TV to the OPTICAL D-TV jack.

Connect the composite video signal output jack on your TV to the

D-TV VIDEO jack.

If your TV has an S-video output or component video output, you can connect it to this unit. Connect the S-video signal output jack on your TV to the D-TV S VIDEO jack or connect the component signal output jacks on your TV to the D-TV COMPONENT VIDEO jacks.

■ Connecting a Satellite Tuner or Cable TV Tuner (Set

Top Box)

Connect the left and right audio signal output jacks on your tuner to

the CBL/SAT L and R jacks.

If your tuner has coaxial or optical digital signal outputs, you can connect them to this unit. Connect the coaxial digital signal output jack on your tuner to the COAXIAL CBL/SAT jack. Connect the optical digital signal output jack on your tuner to the OPTICAL CBL/SAT jack.

Connect the composite video signal output jack on your tuner to the

CBL/SAT VIDEO jack.

–

If your tuner has an S-video or component video output, you can connect it to this unit. Connect the S-video signal output jack on your tuner to the CBL/SAT S VIDEO jack or connect the component signal output jacks on your tuner to the CBL/SAT COMPONENT VIDEO jacks.

Hookups

Audio Input

R L

Audio Output

RF(AC-3)

GND

DVD

CBL

(PLAY)

/SAT

COAXIAL

TAPE

OPTICAL

(REC)

(PLAY)

(

PLAY)

OUT

(REC)

Video Input

VCR

S-video Input S-video Output

Video Output

AUDIO

AUDIO VIDEO

PHONO

OUT

VCR 1

VCR 2

COMPONENT VIDEO

S VIDEO

VIDEO

DVD

D-TV

CBL /SAT

OUT

REMOTE 1

PR/CRPB/CBY

DVD

D-TV

CBL /SAT

MONITOR

OUT

PREOUT/MAIN IN

FRONT

REAR

(SURROUND)

■ Connecting a VCR

Connect the left and right audio signal output jacks on your VCR to

the VCR 1 IN L and R jacks.

Connect the left and right audio signal input jacks on your VCR to

the VCR 1 OUT L and R jacks.

Connect the composite video signal output jack on your VCR to the

VCR 1 VIDEO IN jack.

If your VCR has an S-video input, you can connect it to this unit. Connect the S-video signal output jack on your VCR to the VCR 1 IN S VIDEO jack.

Connect the composite video signal input jack on your VCR to the

English

VCR 1 VIDEO OUT jack.

If your VCR has an S-video input, you can connect it to this unit. Connect the S-video signal input jack on your VCR to the VCR 1 OUT S VIDEO jack.

Notes:

• You can connect other VCRs to the RX-V1 using the VCR 2 and VCR 3 jacks.

• If your VCR has an optical digital signal output jack, connect it to the OPTICAL VCR 1 jack of this unit.

Analog Audio Output

Optical Output

S-video Output

Component Output

DVD player

VIDEO

DVD

D-TV

CBL /SAT

VCR 1

OUT

VCR 2

OUT

VCR 3

OUT

MONITOR

OUT 1

MONITOR

OUT 2

D-TV

CBL /SAT

VCR 1 OUT

VCR 2

OUT

IN VCR 3 OUT

MONITOR

OUT 1

MONITOR

OUT 2

Video

Monitor

Video Output

COMPONENT VIDEO

S VIDEO

REMOTE 1

OUT

REMOTE 2

RS-

232C

CTRL

OUT +5V

100Ω

20mA

REMOTE 1

OUT

REMOTE 2

RS-

232C

CTRL

OUT +5V

100Ω

20mA

S-video Input

Component Input

MONO

REAR CTR

MONO

REAR CTR

PREOUT/MAIN IN

PR/CRPB/CBY

MONITOR

DVD

D-TV

CBL /SAT

OUT

FRONT

REAR

(SURROUND)

WOOFER

CENTER

CBL /SAT

OUT

FRONT

REAR

(SURROUND)

SUB

WOOFER

SPLIT

CENTER

OUT

MAIN

OUT

SUB SPLIT

OUT

MAIN

MAIN OUT

Coaxial Output

C C

O S

AUDIO

RF(AC-3)

GND

DVD

CBL

(PLAY)

/SAT

COAXIAL

TAPE

OPTICAL

OUT

(REC)

(PLAY)

(

PLAY)

OUT

(REC)

MAIN

DVD

SURROUND

SUB

D-TV

WOOFER

6CH INPUT CBL /SAT

VCR 1

DIGITAL

DVD

CBL

(PLAY)

/SAT

COAXIAL

TAPE

OPTICAL

OUT

(REC)

(PLAY)

(

PLAY)

MD MD

OUT

(REC)

MAIN

DVD

SURROUND

SUB

D-TV

WOOFER

6CH INPUT CBL /SAT

VCR 1

DIGITAL

PHONO

ZONE 2 OUT VIDEO

CENTER

ZONE 2 OUT VIDEO

CENTER

AUDIO VIDEO

OUT

Video Input

■ Connecting a DVD Player

Connect the left and right analog signal output jacks on your DVD

player to the DVD L and R jacks.

If your DVD player has coaxial or optical digital outputs, you can connect one or both of them to this unit.

75Ω

UNBAL.

FM ANT

GND

AM ANT

Connect the coaxial digital signal output jack on your DVD player to the COAXIAL DVD jack. Connect the optical digital signal output jack on your DVD player to the OPTICAL DVD jack.

Connect the composite video signal output jack on your DVD player

to the DVD VIDEO jack.

–

If your DVD player has an S-video output or component video output, you can connect it to this unit. Connect the S-video signal output jack on your DVD player to the DVD S-VIDEO jack or connect the component signal output jacks on your DVD player to the DVD COMPONENT VIDEO jacks.

■ Connecting a Video Monitor

Connect the composite video signal input jack on your monitor to

MONITOR OUT 1 VIDEO jack.

If your video monitor has an S-video input, you can connect it to this unit. Connect the S-video signal input jack on your video monitor to the MONITOR OUT 1 S-VIDEO jack. If your video monitor has component video signal inputs, you can connect them to the COMPONENT VIDEO MONITOR OUT jacks.

Note:

• You can connect another monitor to this unit using the MONITOR OUT 2 jacks.

Hookups

AMAINB

–

Connecting Speakers

This section explains how to connect speakers to the RX-V1. After you finish connecting your speakers, use the SET MENU to change the signal output settings according to the number and size of the speakers in your configuration.

■ Using Speaker Cords

A speaker cord is actually a pair of insulated cables running side by side. One of the cables is colored or shaped differently, perhaps with a stripe, groove or ridge. To make sure you always connect speakers with the correct polarity, determine the difference between the cables of your speaker cord, make a note of which cable you plan to use for which polarity (+ and –), and always connect the speaker cords consistently.

Strip off 9 mm (3/8 in.) of an inch of insulation from the ends of the

cables.

Twist the exposed wires of the cable together to prevent short

Preparations

BANANA PLUG

circuits.

Loosen the terminal knob by turning it counterclockwise.

Insert only the exposed portion of the cable into the slot in the side of

the terminal, and tighten the terminal knob.

Note:

• If your speaker cords have banana plugs, tighten the terminal knob and insert the plug into the end of the terminal.

Caution:

• Connect the speaker cords with care to avoid creating a short circuit. If you turn on the power and there is a short circuit, this unit may be damaged even though the protection circuit automatically shuts off the power.

Right Main Speaker A

Right Main Speaker B

Center Speaker

Left Main Speaker A

Left Main Speaker B

■ Connecting the Main Speakers

Before connecting any speaker cords, identify which terminals are for the right and left channels and also the + and – polarities. If you connect speakers with the wrong polarity (+ to –), the RX-V1 will not reproduce clear sound.

Connect the + and – terminals of your right and left Main speakers to the L and R MAIN + and – terminals on this unit.

■ Connecting the Center Speaker

Connect the + terminal of your Center speaker to the CENTER +

SPEAKERS

FRONT

–

REAR

–

CENTER REAR CENTER

–

terminal and the – terminal of your Center speaker to the CENTER – terminal.

Hookups

Right Front

Effect Speaker

SPEAKERS

FRONT

–

CENTER REAR CENTER

SPEAKERS

FRONT

–

REAR

–

CENTER REAR CENTER

Left Front

■ Connecting the Front Effect Speakers

English

Effect Speaker

Connect the + and – terminals of your right and left Front Effect speakers to the L and R FRONT + and – terminals on this unit.

–

REAR

–

■ Connecting the Rear and Rear Center Speakers

Connect the + and – terminals of your right and left Rear speakers to

the L and R REAR + and – terminals on this unit.

Connect the + terminal of your Rear Center speaker to the REAR

CENTER + terminal and the – terminal of your Rear Center speaker to REAR CENTER – terminal.

Right Rear

Speaker

Right

Subwoofer

system

Rear Center Speaker

Subwoofer system

PREOUT/MAIN IN

FRONT

REAR

REMOTE 1

REMOTE 2

100Ω

(SURROUND)

OUT

RB-

2320

232C

CTRL OUT

+5V

20mA

MONO

REAR CTR

WOOFER

SPLIT

CENTER

OUT

MAIN

MAIN OUT

SUB

Left Rear Speaker

Left

Subwoofer

system

■ Connecting a Front Subwoofer

Connect the signal input jack on your subwoofer to the PRE OUT/ MAIN IN SUBWOOFER MONO jack.

By connecting two Subwoofers to the SUBWOOFER SPLIT jacks, this unit can reproduce subtle directional changes in the low frequency sounds. When you use two Subwoofers, connect both of them to the SUBWOOFER SPLIT jacks using pin plugs.

Caution:

• The SUBWOOFER jacks (output) have a built-in high cut-off filter (90 Hz). When using a powered subwoofer, set the high cut-off frequency to “MAX” on your Subwoofer.

Hookups

Right Rear

Preparations

Speaker

SPEAKERS

FRONT

–

REAR

–

CENTER REAR CENTER

Left Rear

Speaker

■ Connecting a Rear Subwoofer

By using both Front and Rear Subwoofers, the CINEMA-DSP sound field programs can produce realistic movie effects with powerful, dynamic sound. To take advantage of this dynamic sound, be sure to set the 1C. REAR L/R SP item in the SET MENU to “LARGE” (see page 41), and connect your Rear speakers and Subwoofer as shown below.

Connect the right + input terminal on your Subwoofer to the REAR

–

R + terminal, and the right – input terminal on your Subwoofer to the REAR R – terminal with speaker cords.

Connect the left + input terminal on your Subwoofer to the REAR

L + terminal, and the left – input terminal on your Subwoofer to the REAR L – terminal with speaker cords.

Connect your Rear speakers to the output terminals on the Rear

Subwoofer.

Subwoofer

system

Be sure to connect the Rear speakers to the Subwoofer with the correct polarity.

Note:

• Adjust the speaker volume for the Subwoofer with the controls on the Subwoofers, not on the RX-V1.

■ Impedance Selector switch

WARNING

Do not change the IMPEDANCE SELECTOR switch setting while the power to

this unit is on, otherwise this unit may be damaged.

IF THIS UNIT FAILS TO TURN ON WHEN THE STANDBY/ON SWITCH IS PRESSED:

The IMPEDANCE SELECTOR switch may not be set to either end. If so, set the switch to either end when this unit is in the standby mode.

IMPEDANCE SELECTOR

SET BEFORE POWER ON

FRONT REAR REAR CENTER CENTER MAIN A OR B A + B

VOLTAGE SELECTOR

Select the position whose requirements your speaker system meets.

(Upper position)

Front Effect:

The impedance of each speaker must be 6Ω or higher.

Rear: The impedance of each speaker must be 4Ω or higher. Rear Center:

The impedance of the speaker must be 4Ω or higher.

Center:The impedance of the speaker must be 4Ω or higher. Main: If you use one pair of main speakers, the impedance of each

speaker must be 4Ω or higher. If you use two pairs of main speakers, the impedance of each speaker must be 8Ω or higher.

(Lower position)

Front Effect:

The impedance of each speaker must be 8Ω or higher.

Rear: The impedance of each speaker must be 8Ω or higher. Rear Center:

The impedance of the speaker must be 8Ω or higher.

Center:The impedance of the speaker must be 8Ω or higher. Main: <Except Canada model>

If you use one pair of main speakers, the impedance of each speaker must be 8Ω or higher. If you use two pairs of main speakers, the impedance of each speaker must be 16Ω or higher.

The impedance of each speaker must be 8Ω or higher.

Hookups

Connecting External Amplifiers

If you want to increase the power output to the speakers, or want to use another amplifier, connect an external amplifier to the PRE OUT/ MAIN IN terminals as follows.

PREOUT/MAIN IN

FRONT

REAR

(SURROUND)

SUB

WOOFER

MONO

REAR CTR

~ MAIN jacks

MAIN OUT jack ....... Main channel line output jacks.

The signals output through these jacks are affected by BASS, TREBLE, BALANCE, and BASS EXTENSION settings.

MAIN IN jacks .......... Line input to the RX-V1 Main channel

amplifiers.

Ÿ CENTER jacks

CENTER OUT jack . Center channel line output jacks.

CENTER IN jack ..... Line input to the RX-V1 Center channel

amplifier.

! REAR CT jack

Rear Center channel line output jack.

SPLIT

CENTER

OUT

MAIN

OUT

⁄ SUBWOOFER jacks

Subwoofers reinforce very low frequencies.

MONO .................... Main, Center and Rear channel

frequencies below 90 Hz are output through this jack. You can also direct DTS and Dolby Digital LFE signals to this output.

SPLIT ..................... The SPLIT jacks output stereo separation

for the Main and Rear channels and a split mono signal for the Center and LFE channels.

Adjust the volume level of the subwoofer with the control on the subwoofer. Subwoofer volume cannot be adjusted from this unit. Depending on the settings in SET MENU items

1. SPEAKER SET, 3A. LFE LEVEL and 4A. LFE LEVEL, some signals may not be output from the SUBWOOFER jacks.

@ FRONT

Front Effect channel line output jacks.

English

¤ REAR (SURROUND)

Rear channel line output jacks.

Note:

• When RCA pin plugs are connected to the PRE OUT/MAIN IN output jacks for output to external amplifiers, the corresponding internal amplifiers will be

muted.

Hookups

Connecting an External Decoder

The RX-V1 is equipped with six additional input jacks (left and right MAIN, CENTER, left and right SURROUND and SUBWOOFER) for discrete multi-channel input from an external decoder, sound processor, or pre-amplifier.

Connect the output jacks on your external decoder to the 6CH INPUT jacks.

Be sure to match the left and right outputs to the left and right input jacks for the main and surround channels. To listen to the sound from your external decoder, press 6CH INPUT on this unit or the remote control.

Note:

• When you select 6CH INPUT as the input source, this unit automatically turns off

the digital sound field processor, and you cannot listen to DSP programs.

Preparations

DVD

D-TV

CBL /SAT

VCR 1

DIGITAL

Subwoofer Output

External Decoder

MAIN

SURROUND

SUB

WOOFER 6CH INPUT

CENTER

ZONE 2 OUT VIDEO

OUT

Center Output

Main OutputSurround Output

Connecting Power Supply Cords

IMPEDANCE SELECTOR

AC OUTLETS

AC Power Cord

AC OUTLETS

■ Connecting the AC Power Cord

After completing all connections, plug the AC power cord into a convenient AC outlet.

■ AC OUTLETS

Use these to connect the power cords from your other components to this unit. The power to the switched outlets is controlled by this unit’s STANDBY/ON (SYSTEM POWER ON or STANDBY on the remote). These outlets will supply power to any connected unit whenever this unit is turned on. The maximum power (total power consumption of components) that can be connected to AC OUTLETS is 100 W (U.S.A. and Canada model) or 120 W (Australia model).

Hookups

Connecting the Antennas

Both AM and FM indoor antennas are included with this unit. These antennas should provide sufficient signal strength in most situations. However, a properly installed outdoor antenna provides clearer reception. If you experience poor reception quality using the indoor antennas, an outdoor antenna may improve the reception. Connect each antenna as shown below.

Outdoor FM antenna

75Ω coaxial cable

Antenna adapter to match with F-type connector (included for U.S.A. and Canada Models)

■ Optional outdoor FM antenna

Consult your dealer or authorized service center about the best method of selecting and erecting an outdoor FM antenna.

Indoor FM antenna (included)

VIDEO

PR/CR

/CB

PREOUT/MAIN IN

75Ω/300Ω antenna adapter

300Ω ribbon

MONO

REAR CTR

cable

■ Connecting the indoor FM antenna

Connect the included indoor antenna to the 75Ω UNBAL. FM ANT terminal.

SPEAKERS

DVD

D-TV

CBL /SAT

MONITOR

OUT

FRONT

REAR

(SURROUND)

WOOFER

SPLIT

CENTER

MAIN

75Ω

UNBAL.

ANT

GND

ANT

SUB

OUT

–

FRONT

–

REAR

–

CENTER REAR CENTER

–

AMAINB

■ Optional outdoor AM antenna

If this unit is in a steel building or at a great distance from the transmitter, it may be necessary to install an outdoor AM antenna.

AM loop antenna (included)

Ground

English

Antenna stand

Loop Antenna

■ Connecting the AM loop antenna

Press the tab to unlock the terminal hole.

Insert the AM loop antenna lead wires to the AM ANT and GND

terminals.

Lift the tab to its original position to lock the lead wires.

Lightly pull on the lead wires to confirm a good connection.

Attach the loop antenna to the antenna stand.

Orient the AM loop antenna so that the best reception is obtained.

Notes:

• The AM loop antenna should be placed away from this unit. The antenna may be hung on a wall.

• The AM loop antenna should remain connected, even if an outdoor AM antenna is connected to this unit.

• To minimize the influence of automobile ignition noise, locate the antenna as far from heavy traffic as possible.

• Keep the ribbon cable or coaxial cable as short as possible.

Do not bundle or roll up excess cable.

• The antenna should be at least 1.8m (6 feet) from reinforced concrete walls and metallic structures.

+ 66 hidden pages
