©YAMAHA
OWNER’S MANUAL
RX10RX
RX10RTRX
RX10MTX
RX10MTAX
RX10LTX
LIT-12628-02-63 8FP-28199-13
ESU10040
A WARNING
The engine exhaust from this product
contains chemicals known to the
State of California to cause cancer, birth
defects or other reproductive harm.
AAHA LIT-CALIF-65-01
ESU10120
Congratulations on your purchase of a
Yamaha snowmobile. This model is the result
of Yamaha’s vast experience in the production of fine sporting and touring snowmobiles.
It represents the high degree of craftsmanship
and reliability that have made Yamaha a
er in these fields.
This manual will give you an understanding of
the operation, inspection, and basic maintenance of this snowmobile. If you have any
questions concerning the operation or maintenance of your snowmobile, please consult a
Yamaha
To maintain the high quality and performance
of this snowmobile, it is important that you and
your Yamaha dealer pay close attention to the
recommended maintenance schedules and
operating instructions contained within this
manual.
dealer.
RX10RX
RX10RTRX
RX10MTX
RX10MTAX
RX10LTX
OWNER’S MANUAL
©2007 by Yamaha Motor Corporation,
U.S.A.
1st Edition, March 2007
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Corporation,
is expressly prohibited.
Printed in Japan.
P/N LIT-12628-02-63
lead-
U.S.A.
Introduction
Important manual information
ESU10150 EWS00020
EWS00010
PLEASE READ AND UNDERSTAND THIS
MANUAL COMPLETELY BEFORE OPERATING THE SNOWMOBILE.
NOTE:
• Yamaha continually seeks advancements
in product design and quality. Therefore,
while this manual contains the most current
product information available at the time of
printing,
between your snowmobile and this manual.
If there is any question concerning this
manual,
• This manual should be considered a permanent part of this snowmobile and should
remain with the snowmobile when resold.
there may be minor discrepancies
please consult a Yamaha dealer.
Failure to follow WARNING instructions
could result in severe injury or death to the
snowmobile operator, a bystander, or a
person inspecting or repairing the snowmobile.
ECS00010
CAUTION:
A CAUTION indicates special precautions
that must be taken to avoid damage to the
snowmobile.
NOTE:
A NOTE provides key information to make
procedures easier or clearer.
Particularly important information is distinguished in this manual by the following notations.
/f\ The Safety Alert Symbol means ATTENTION!
BECOME ALERT! YOUR SAFETY IS
INVOLVED!
Contents
Safety information 1
Location of the important labels 4
Description 7
Control functions 10
Main switch 10
Throttle lever 10
Engine overheating
prevention system 10
Throttle override system
(T.O.R.S.) 10
Speedometer unit 12
High beam indicator light 14
Low coolant temperature
indicator light 14
Fuel meter and grip/
thumb warmer level indicator .... 14
Fuel level warning indicator 16
Oil level warning indicator 16
Coolant temperature warning
indicator 16
Self-diagnosis device 16
Engine stop switch 17
Headlight beam switch
“LIGHTS” 17
Grip/thumb warmer
adjustment switch 17
Auxiliary DC jack 18
Brake lever 18
Parking brake lever 19
Shift lever (RX10R / RX10RTR /
RX10MT / RX10LT) 20
Rear suspension damping force
remote adjustment dial
(RX10R / RX10LT) 20
Shroud and covers 21
Drive guard 21
V-belt holders 22
Storage compartment 22
Rear carrier
(RX10MT / RX10MTA) 22
Fuel 22
Suspension 23
Pre-operation checks 31
Pre-operation check list 31
Operation 33
Starting the engine 33
Break-in 33
Riding your snowmobile 34
Maximizing drive track life 37
Strap (RX10MT / RX10MTA) 38
Driving 38
Stopping the engine 40
Transporting 40
Periodic maintenance 41
Periodic maintenance chart for
the emission control system 41
General maintenance and
lubrication chart 43
Tool kit 45
Removing and installing
the shroud and covers 45
Checking the spark plugs 47
Adjusting the engine
idling speed 48
Adjusting the throttle cable
free play 48
Checking the throttle
override system (T.O.R.S.) 50
Checking the air filter 50
High-altitude settings 52
Valve clearance 52

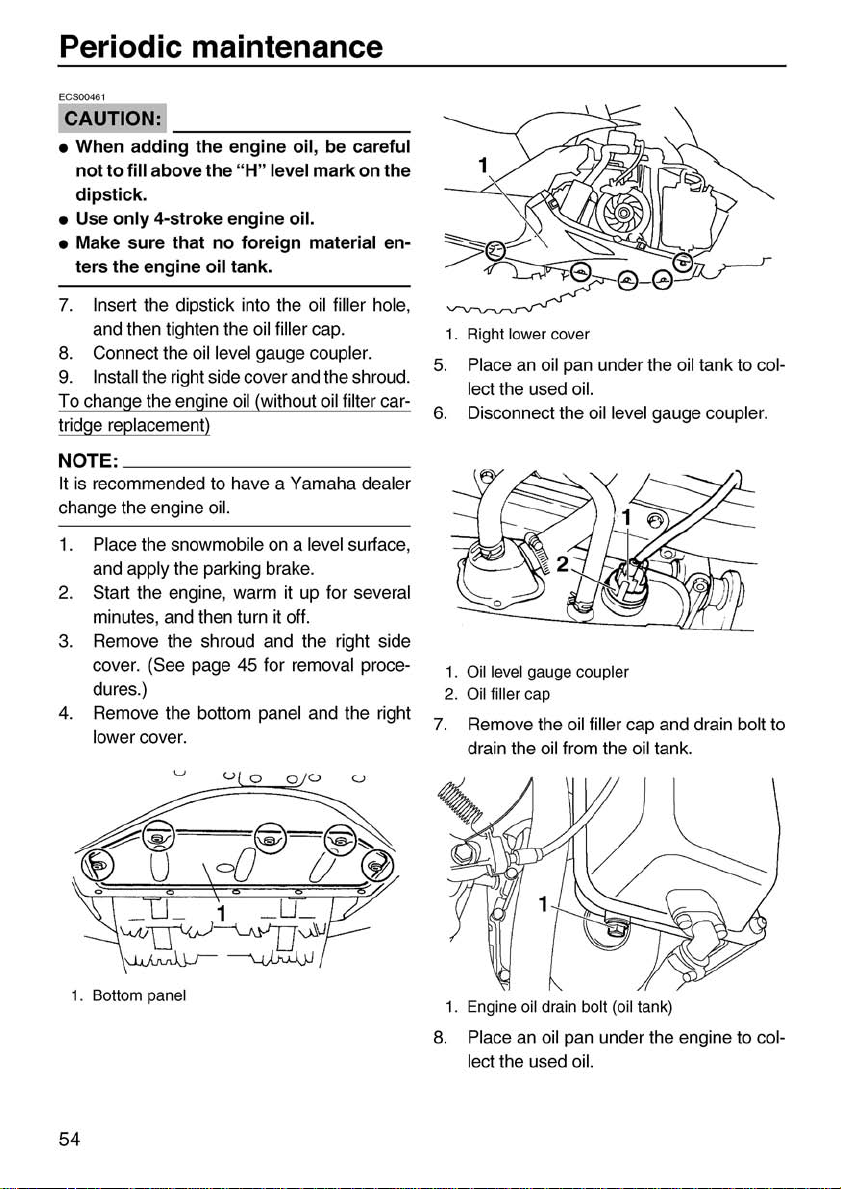

Engine oil and oil filter cartridge ... 52

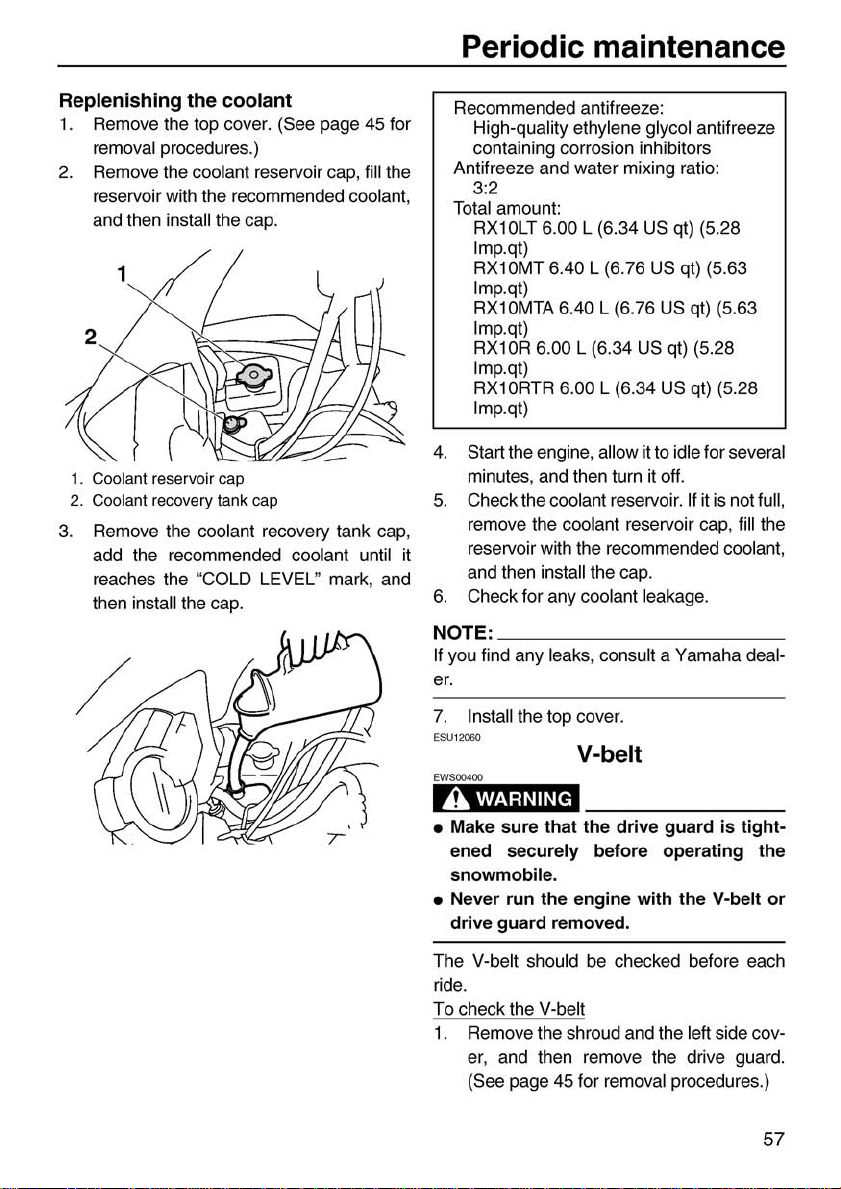

Cooling system 56
V-belt 57
Drive chain housing 60
Brake and parking brake 62
Skis and ski runners 64
Steering system 65
Drive track and slide runners 65
Contents
High-profile pattern drive track 68
Lubrication 68
Replacing a headlight bulb 69
Adjusting the headlight beams 71
Fittings and fasteners 71
Battery 71
Replacing a fuse 71
Troubleshooting 75
Storage 79
Specifications 81
Consumer information 83
Identification number records 83
YAMAHA MOTOR
CORPORATION,
SNOWMOBILE LIMITED
WARRANTY 84
YAMAHA EXTENDED SERVICE
(Y.E.S.) 87
U.S.A.
A Safety information
ESU10180
When you ride your snowmobile, you must
know and use the following for your safety.
Severe injury or death may result if you ignore
any of the following.
Before operating
1.
Read the Owner’s Manual and all labels
before operating this snowmobile. Become familiar with all of the operating
controls and their function. Consult a
Yamaha dealer about any control or function you do not understand.
2.
This snowmobile was not manufactured
for use on public streets, roads, or
ways.
Such use is prohibited by law, and
you could collide with another vehicle.
3. This snowmobile is designed to carry the
OPERATOR ONLY.
Passengers are prohibited. Carrying a
passenger can cause loss of control.
high-
4.
Do not operate the snowmobile after
drinking alcohol or taking drugs. Your
ability to operate the snowmobile is reduced by the influence of alcohol or
drugs.
5. For safety and proper care of the snowmobile, always perform the pre-operation
checks on page
gine.
Check the
ing for proper operation every time before
starting the engine. Make sure that the
throttle lever moves freely and it returns
to the home position when it is released.
6. Apply the parking brake before starting
the engine. Never drive the snowmobile
with the parking brake applied. This may
overheat the brake disc and reduce braking ability.
7. Do not allow anyone to stand behind the
snowmobile when starting, inspecting, or
adjusting the snowmobile. A broken
track, track fittings, or debris thrown by
the track could be dangerous to the operator or bystanders.
8. Handle fuel with care; it is HIGHLY
FLAMMABLE.
• Never add fuel when the engine is
ning or hot. Allow the engine to cool for
several minutes after running.
• Use an approved fuel container.
31
before starting the en-
throttle,
brake,
and steer-
run-
1
A Safety information
• Fill the fuel tank outdoors with extreme
care.
Never remove the fuel cap in-
doors.
Never fill the fuel tank indoors.
• Never refuel while smoking or in the vicinity of an open flame.
• Make sure that the fuel tank cap is
closed securely after refueling. Wipe
up any spilled fuel immediately.
9. If you swallow some gasoline, inhale a lot
of gasoline vapor, or get some gasoline
into your eyes, see your doctor immediately. If any gasoline spills on your skin or
clothing,
soap and water, and change your
clothes.
10.
Wear protective clothing. Wear an ap-
proved helmet, and a face shield or
gles.
snowmobile suit, boots, and a pair of
gloves or mittens that will permit use of
your thumbs and fingers for operation of
the controls.
immediately wash your skin with
gog-
Also, wear a good quality
Operation
1.
Do not run the engine indoors, except
when starting the engine to transport the
snowmobile in or out of the building.
Open the outside doors; exhaust fumes
are dangerous.
2.
Be careful where you ride. There may be
obstacles hidden beneath the snow. Stay
on established trails to minimize your exposure to hazards. Ride slowly and
tiously when you ride off of established
trails.
Hitting a rock or stump, or running
into wires could cause an accident and
injury.
3. This snowmobile is not designed for use
on surfaces other than snow or ice. Use
on dirt, sand, grass, rocks, or bare pavement may cause loss of control and may
damage the snowmobile.
4.
Avoid operating on glare ice, or on snow
which has a lot of dirt or sand mixed in.
Operation under such conditions will
damage or result in rapid wear of ski
ners,
drive track, slide runners, and drive
sprockets.
5. Always ride with other snowmobilers
when going on a
if you run out of
damage your snowmobile.
6. Many surfaces such as ice and
packed snow require much longer stopping distances. Be alert, plan ahead and
ride.
You may need help
fuel,
have an accident, or
cau-
run-
hard-
2
begin decelerating early. The best braking method on most surfaces
the throttle and apply the brake gently—
not suddenly.
is
to release
Maintenance and storage
1.
Do not leave the snowmobile on its left
side for an extended period of time. Fuel
may leak out from the fuel breather hose.
2.
Modifications made to the snowmobile
not approved by Yamaha, or the removal
of original equipment may render your
snowmobile unsafe for use that may
cause severe personal injury. Modifications may also make the snowmobile illegal
to use.
3. Never store the snowmobile with fuel in
the fuel tank inside a building where
tion sources are present such as hot water and space heaters, an open flame,
sparks, clothes dryers, and the like. Allow
the engine to cool off before storing the
snowmobile in an enclosed space.
4.
Always refer to the “STORAGE” section
on page 79 if the snowmobile is to be
stored for an extended period.
5. Maintain or replace safety and instruction
labels, as necessary.
igni-
A Safety information
3
A Safety information
ESU10231
Location of the important labels
Please read the following labels carefully before operating this snowmobile.
NOTE:
Maintain or replace safety and instruction labels, as necessary.
4
A Safety information
5
A Safety information
NOTE:
The following suspension adjustment charts are included with the Owner’s Manual.
6
ESU10260
Description
1.
Battery
2.
Main fuse
3. Air filter
4.
Oil filler cap
5. Fuse box
6. Coolant reservoir
7. Coolant recovery tank
8. Strap (RX10MT / RX10MTA)
9. Tool kit
10.
Storage compartment
11.
Tail/brake lights
12.
Rear carrier (RX10MT / RX10MTA)
13.
Slide rail suspension
14.
Rear suspension damping force remote ad-
justment dial (RX10R / RX10LT)
15.
Drive track
16.
V-belt holder
17.
Idle adjusting screw
7
Description
11
1 234 56789
16 18 22 24 26
27
1.
Brake lever
2.
Parking brake lever
3. Grip warmer adjustment switch
4.
Headlight beam switch
5. Engine stop switch
6. Thumb warmer adjustment switch
7. Throttle lever
8. Main switch
9. Shift lever (RX10R / RX10RTR / RX10MT /
RX10LT)
10.
Auxiliary DC jack
11.
Tachometer
12.
“MODE” button
13.
“RESET” button
14.
“SELECT” button
15.
Fuel meter and grip/thumb warmer level in-
dicator
16.
Fuel meter indicator
17.
Self-diagnosis warning indicator
18.
Rear suspension indicator (not applicable)
8
29 28
19.
Coolant temperature warning indicator
20.
Grip warmer indicator
21.
Fuel level warning indicator
22.
Thumb warmer indicator
23.
Oil level warning indicator
24.
Clock
25.
Low coolant temperature indicator light
26.
High beam indicator light
27.
Warning light
28.
Speedometer
29.
Odometer/tripmeter/barometer
Description
NOTE:
• The snowmobile you have purchased may differ slightly from those shown in the figures of
this manual.
• Design and specifications are subjected to change without notice.
9
Control functions
ESU10281
Main switch
The main switch controls the ignition and
lighting systems. The various positions are
described below.
1.
Off
2.
On
3. Start
Off
The ignition circuit is switched off.
The key can be removed only in this position.
On
The ignition circuit is switched on.
Start
The starting circuit is switched on.
The starter motor cranks the engine.
ECS00020
CAUTION:
Release the switch immediately after the
engine starts.
NOTE:
The headlights, meter lighting, and taillights
come on after the engine is started.
ESU10310
Throttle lever
Once the engine is running cleanly, squeezing the throttle lever will increase the engine
speed and cause engagement of the drive
system.
bile by varying the throttle position. Because
Regulate the speed of the snowmo-
the throttle is spring-loaded, the snowmobile
will decelerate, and the engine will return to
idle when it is released.
1.
Throttle lever
EWS00030
Check the throttle, brake, and steering for
proper operation before starting the engine.
(See page 31.)
ESU10321
Engine overheating prevention
system
This model is equipped with a system, which
prevents overheating when the engine is
idling.
When the engine has been idling for 3
minutes or longer and the coolant temperature
has risen above 100 °C (212 °F), the engine
automatically stops to prevent overheating.
NOTE:
The engine can be started after it stops.
ESU10343
Throttle override system
EWS00040
• If the T.O.R.S. is activated, make sure
that the cause of the malfunction has
been corrected and that the engine can
be operated without a problem before
restarting the engine.
(T.O.R.S.)
10
Control functions
• Be sure to use the specified spark plug
and spark plug cap. Otherwise, the
T.O.R.S. will not work properly.
If the throttle bodies or throttle cable malfunctions during operation, the T.O.R.S. will operate when the throttle lever is released.
The T.O.R.S. is designed to override the fuel
injection and limit the engine speed to less
than the clutch engagement speed if the throttle valves fail to return to the idle position
when the throttle lever is released. (See page
81 for the clutch engagement speed.)
Idling /
starting
Throttle
switch
Throttle
position
sensor
Engine
Idling / starting
Closed
Off
Run
Running
On
Open
Run
Trouble
Off
Open
T.
O.
R .
will oper-
ate.
S.
Running
1.
Throttle position sensor (throttle valve open
position)
2.
Throttle switch (on)
Trouble
N
Q
—£Z
1
H
1-
W I o,
1.
Throttle position sensor (throttle valve open
position)
2.
Throttle switch (off)
•Jfc1 1
H
2
1.
Throttle position sensor (throttle valve
closed position)
2.
Throttle switch (off)
3. Throttle cable
NOTE:
• When the T.O.R.S. is activated, the warn-
ing light and self-diagnosis warning indicator will
flash,
and the two-digit code “84” will
flash in the clock display.
• The T.O.R.S. monitors the condition of the
throttle position sensor, speedometer assembly, and speed sensor, and will operate
if any of the monitored items is disconnected or is malfunctioning.
11
Control functions
1.
Warning light
2.
Self-diagnosis warning indicator “CSi”
3. Two-digit code “84”
ESU10361
The speedometer unit is equipped with the
following:
• a digital speedometer (which shows the
riding speed)
• an odometer (which shows the total dis-
tance traveled)
• two tripmeters (which show the distance
traveled since they were last set to zero)
• a barometer (which shows the ambient
barometric pressure)
• a clock
• warning indicators (which show self-diagnosis,
coolant temperature, fuel level, and
oil level warnings)
• a fuel meter (which shows the fuel remaining in the fuel tank)
• a grip/thumb warmer level indicator (which
shows the grip warmer level or the thumb
warmer level)
• a display brightness control function
After the engine is started, the tachometer
makes one sweep, and the low coolant
perature indicator light, the warning light, and
all segments of the meter display turn on and
off once.
“/jj\”
Speedometer unit
tem-
1.
Tachometer
2.
Low coolant temperature indicator light
3. Warning light “/K”
4.
Meter display
The grip warmer level is initially displayed for
5 seconds, then the display switches to the
fuel meter.
Odometer, tripmeter, and barometer
modes
Pushing the “SELECT” button switches the
display between the odometer mode “ODO”,
tripmeter modes “TRIP A” and “TRIP B”, and
barometer mode “BARO”.
1.
“SELECT” button
To reset a tripmeter, push the “RESET” button
for at least 1 second while the tripmeter is displayed.
NOTE:
• To switch the speedometer, odometer, and
tripmeter displays between kilometers and
miles,
select the odometer mode “ODO”,
12
Control functions
and then push the “SELECT” button for at
least 10 seconds while the snowmobile is
stopped.
• To switch the barometer display between
hectopascal “hPa” and inches of mercury
“inHg”,
select the barometer mode “BARO”,
and then push the “SELECT” button for at
least 3 seconds while the snowmobile is
stopped.
Clock
To set the clock
1.
Push the “SELECT” button and “RESET”
button simultaneously until the hour digits
start flashing.
3. Push the “RESET” button to change the
minute setting, and then push the “SELECT” button. The clock starts when the
“SELECT” button is released.
NOTE:
The clock must be set again when the battery
is disconnected.
Display brightness control
This function allows you to adjust the brightness of the meter display to suit the outdoor
lighting conditions.
To adjust the display brightness
1.
Turn the main switch to the off position.
2.
Push and hold down the “SELECT” but-
ton.
1.
“SELECT” button
2.
“RESET” button
2.
Push the “RESET” button to change the
hour setting, and then push the “SELECT”
button.
The minute digits will start
flashing.
1.
“SELECT” button
2.
“RESET” button
3. Display brightness level
3. Turn the main switch to the on position,
and
then,
after 5 seconds, release the
“SELECT” button.
4.
Push the “RESET” button to select the
desired display brightness
push the “SELECT” button. The normal
display returns when the “SELECT” button is released.
NOTE:
If the main switch is turned to the off position
or the engine is started before completing the
procedure, the setting is not applied.
level,
and then
13
Control functions
ESU10410
High beam indicator light “ ID ” NOTE:
The high beam indicator light comes on when While the low coolant temperature indicator
the high beams of the headlights are switched light is
on.
(See page 17 for headlight beam switch the engine speed from rising even if the throt-
operation.) tle lever is pressed.
1.
High beam indicator light “ EQ”
ESU10470
Low coolant temperature
indi-
cator light “7s”
The low coolant temperature indicator light
comes on when the coolant temperature is
low and informs the rider that the snowmobile
must be warmed up. After the engine is started,
warm it up until the indicator light goes off.
on,
the engine control system prevents
ESU10421
Fuel meter and grip/thumb
warmer level indicator
The fuel meter and grip/thumb warmer level
indicator have eight segments which show
the amount of fuel remaining in the fuel tank,
the grip warmer level, or the thumb warmer
level.
1.
Fuel meter and grip/thumb warmer level in-
dicator
Fuel meter
The display segments of the fuel meter disappear towards “E” (Empty) as the fuel level decreases. When only one segment is left near
“E”,
the fuel level warning indicator and the
warning light come on.
1.
Low coolant temperature indicator light
“7”
The snowmobile can be operated normally after the indicator light goes off.
14
DOi ©
(•DO
1.
Fuel level warning indicator “£5”
2.
Warning light “/t\”
If the fuel level warning indicator and the
warning light come on, refuel as soon as possible.
NOTE:
The snowmobile must be stopped on a level
surface to obtain an accurate fuel meter
ing,
since the reading changes according to
the movement and inclination of the snowmobile.
Grip/thumb warmer level indicator
When the grip warmer adjustment switch is
pressed,
and the display switches to the grip warmer
level.
When the thumb warmer adjustment switch is
pressed,
on and the display switches to the thumb
warmer level.
the grip warmer indicator comes on
the thumb warmer indicator comes
read-
Control functions
1.
Grip warmer adjustment switch
1.
Thumb warmer adjustment switch
NOTE:
• The grip/thumb warmer level is displayed
for 5 seconds after releasing the grip/thumb
warmer adjustment
switches to the fuel meter.
• The top segment of the grip/thumb warmer
level indicator flashes once when the
grip/thumb warmer adjustment reaches the
maximum
grip/thumb warmer level indicator flashes
once when the grip/thumb warmer adjustment reaches the minimum level.
• When the engine is started, the grip/thumb
warmer levels are set to the levels selected
when the engine is stopped.
level.
switch,
then the display
The bottom segment of the
1.
Grip warmer indicator “[J|”
2.
Thumb warmer indicator
“Gf”
15
Control functions
ESU10450
Fuel level warning indicator “g”
The fuel level warning indicator indicates a
malfunctioning sensor, disconnected coupler,
broken
lead,
or short circuit when detected by
the self-diagnosis device of the snowmobile.
The fuel level warning indicator, warning light,
and all segments of the fuel meter warn the
rider of the above problems by flashing
tinuously.
When this occurs, have a Yamaha dealer inspect the snowmobile as soon as possible.
1.
Fuel level warning indicator “)5”
2.
Warning light “/f\”
3. Fuel meter
ESU10460
con-
Oil level warning indicator “^ ”
The oil level warning indicator and the warning light come on when the engine oil level is
low.
If the oil level warning indicator and the warning light come on, place the snowmobile on a
level surface and allow it to idle for one
minute.
If the oil level warning indicator and the warning light go off, the engine oil level is sufficient,
however it is getting low. Add engine oil as
soon as possible.
If the oil level warning indicator and the warning light do not go off, check the engine oil level in the oil tank (see page 52 for engine oil
level checking procedures), and add engine
oil if necessary.
ESU10510
Coolant temperature warning
indicator “ i”
If the engine overheats, the coolant temperature warning indicator and the warning light
come on. When this occurs, stop the engine
immediately and allow the engine to cool
down,
and then check the coolant level in the
coolant reservoir. (See page 16 for checking
procedures.)
1.
Oil level warning indicator “ t^ ”
2.
Warning light “/jj\”
16
1.
Coolant temperature warning indicator
2.
Warning light “/jj\”
ECS00040
“dt”
CAUTION:
Do not operate the engine if it overheats.
ESU12680
Self-diagnosis device
This model is equipped with a self-diagnosis
device for various electrical circuits.
Control functions
If any of those circuits are
ing light and the self-diagnosis warning
defective,
the warn-
indicator will flash, and a two-digit error code will
flash slowly in the tripmeter/odometer display.
1.
Warning light
2.
Self-diagnosis warning indicator “CSi”
3. Two-digit error code
EWS00650
“/jj\”
If the self-diagnosis warning indicator and
warning light flash continuously, and an
error code is displayed during operation,
there may be some problem with an electrical circuit, couplers, etc.
Note the error code, and then have a
Yamaha dealer inspect the snowmobile as
soon as possible in order to avoid engine
damage.
ESU10530
Engine stop switch “^”
The engine stop switch is used to stop the engine in an emergency. Simply push the stop
switch to stop the engine. To start the engine,
pull the stop switch and proceed with starting
the engine. (See pages 33 for engine starting
procedures.)
1.
Engine stop switch“j^j”
During the first few rides, practice using the
stop switch so that you can react quickly in an
emergency.
ESU10661
Headlight beam switch
“LIGHTS”
Push the headlight beam switch to change the
headlight to high beam “HI” or to low beam
“LO”.
1.
Headlight beam switch “LIGHTS”
2.
High beam “HI”
3. Low beam “LO”
ESU12650
Grip/thumb warmer adjustment
switch
The grip warmer adjustment switch and the
thumb warmer adjustment switch control the
electrically heated handlebar grips and throttle lever respectively.
17
Control functions
1.
Grip warmer adjustment switch
1.
Thumb warmer adjustment switch
To raise the temperature, press the respective switch to “HI”. To lower the temperature,
press the switch to “LO”.
ESU10690
Auxiliary DC jack
The auxiliary DC jack is located in the front
panel and can be used for accessories.
NOTE:
The auxiliary DC jack cannot be used if the
engine is not running.
To use the auxiliary DC jack
1.
Start the engine.
2.
Open the auxiliary DC jack cap, and then
insert the accessory power plug into the
jack.
1.
Auxiliary DC jack cap
2.
Auxiliary DC jack
NOTE:
After using the auxiliary DC jack, be sure to
remove the accessory power plug from the
jack and close the auxiliary DC jack cap.
ECS00120
CAUTION:
• Do not use accessories requiring more
than the maximum rated capacity for the
auxiliary DC jack. This may overload the
circuit and cause the fuse to blow. (See
page 71 for the specified amperage.)
• Do not use an automotive cigarette light-
er or other accessory with a plug that
gets hot because the jack can be damaged.
Maximum rated capacity:
DC,
12
V,
2.5 A (30 W)
ESU10560
Brake lever
The snowmobile is stopped by braking the entire drive system.
Squeeze the brake lever towards the handlebar grip to stop the snowmobile.
18
1.
Brake lever
NOTE:
When the brake lever is operated, the brake
light will illuminate.
ECS00060
CAUTION:
Make sure that the brake lever end does
not project out over the handlebar end.
This will help prevent brake lever damage
when the snowmobile is placed on its side
for service.
Control functions
3. Tighten the locknut securely after adjust-
ing the brake lever.
ESU10580
Parking brake lever
When parking the snowmobile or starting the
engine,
apply the parking brake by moving the
parking brake lever to the left.
1.
Parking brake lever
To release the parking brake, move the parking brake lever to the right.
The brake lever is equipped with a position
adjuster.
To adjust the brake lever position:
1.
Loosen the locknut.
2.
While lightly pushing the brake lever in di-
rection (a), finger tighten the adjusting
bolt to set the brake lever to the desired
position.
1.
Locknut
2.
Adjusting bolt
EWS00060
• Always set the parking brake before at-
tempting to start the engine.
• Never run the snowmobile with the park-
ing brake applied. This may overheat the
brake disc and reduce braking ability.
19
Control functions
ESU10590
Shift lever (RX10R / RX10RTR /
RX10MT / RX10LT)
The shift lever is used to put the snowmobile
into forward or reverse. After coming to a
complete stop, pull the shift lever out, slide it
to “FWD” or to “REV” until it stops, and then
release it.
1.
Shift lever
1.
Pull out.
2.
Slide to “REV” (reverse).
3. Release.
ECS00070
CAUTION:
Do not shift from “FWD” to “REV” or from
“REV” to “FWD” while the snowmobile is
moving.
Otherwise, the drive system
could be damaged.
ESU12530
Rear suspension damping
force remote adjustment dial
(RX10R / RX10LT)
Turn the remote adjustment dial to adjust the
rear suspension damping
for adjustment procedures.)
force.
(See page 27
1.
Pull out.
2.
Slide to “FWD” (forward).
3. Release.
20
1.
Rear suspension damping force remote ad-
justment dial
Control functions
ESU10720
Shroud and covers
Securely fasten the shroud and covers before
operating the snowmobile. (See page 45 for
removal and installation procedures.)
1.
Shroud
2.
Right side cover
EWS00090
• Do not drive the snowmobile with the
shroud or covers unfastened or removed.
• Keep your body and clothing away from
rotating parts when servicing the snowmobile with the shroud or covers removed.
• Do not touch the hot muffler and engine
during or immediately after operation.
ECS00370
CAUTION:
Make sure that all cables, leads, etc., are
routed properly before installing the
shroud and covers.
ESU10750
Drive guard
The drive guard is designed to cover the Vbelt clutch and V-belt in case parts break or
come loose.
1.
Left side cover
1.
Top cover
1.
Drive guard
EWS00400
• Make sure that the drive guard is tight-
ened securely before operating the
snowmobile.
• Never run the engine with the V-belt or
drive guard removed.
21
Control functions
ESU10760
V-belt holders
Keep a spare V-belt for emergency use by
placing it into the V-belt holders provided.
1.
V-belt holder
ECS00180
CAUTION:
Make sure that the V-belt is installed securely in the holders.
ESU10810
Storage compartment
Open the storage compartment to store the
tool kit, spare parts, or other small items.
Maximum load limit:
10 kg (22 lb)
EWS00140
Do not use the rear carrier to lift the snowmobile. The snowmobile could
fall,
which
could result in severe injury or death.
ESU10600
Fuel
Make sure that there is sufficient fuel in the
fuel tank.
EWS00070
1.
Storage compartment
ESU10840
Rear carrier (RX10MT /
RX10MTA)
The rear carrier is located at the rear of the
snowmobile.
22
• Fuel is HIGHLY FLAMMABLE and
poisonous. Check the “SAFETY INFORMATION” section carefully before refueling.
(See page 1.)
• Do not fill the fuel tank above the bottom
of the filler tube. Fuel could overflow if
the snowmobile is tilted or if the ambient
temperature rises, causing the fuel to
warm up and expand.
• Make sure that the fuel tank cap is
closed securely after refueling. Leaking
fuel can catch fire.
1.
Filler tube
2.
Fuel level
Control functions
ECS00080
CAUTION:
• Oxygenated fuels (gasohol) containing
a maximum 5% of ethanol can be used,
although richer jetting may be required
to prevent engine damage. Consult a
Yamaha dealer. Gasohol containing
methanol is not recommended.
• Make sure that snow or ice does not en-
ter the fuel tank when refueling.
• Do not use alcohol deicers or water ab-
sorbing additives with oxygenated
• The fuel tank should be filled with
straight gasoline as specified.
ESU10870
Suspension
The suspension can be adjusted to suit rider
preference. A softer
provide greater rider comfort, while a harder
setting may allow more precise handling and
control over certain types of terrain or riding
conditions.
EWS00150
setting,
for example, may
fuel.
Recommended
fuel:
REGULAR UNLEADED GASOLINE
ONLY
Fuel tank capacity:
35.6 L
(9.41
US gal) (7.83 Imp.gal)
Your Yamaha engine has been designed to
use regular unleaded gasoline with a pump
octane number [(R+M)/2] of 86 or higher, or a
research octane number of 91 or higher.
Be sure to have a Yamaha dealer make this
adjustment.
This shock absorber contains highly pressurized nitrogen gas. It could explode by
improper handling, causing injury, or
property damage.
• Do not tamper with or attempt to open
the shock absorber.
• Do not subject the shock absorber to an
open flame or other high heat source,
which could cause it to explode.
• Do not deform or damage the shock ab-
sorber in any way.
• Do not dispose of a worn or damaged
shock absorber by yourself. Take the
unit to a Yamaha dealer.
23
Control functions
ESU10900
Adjusting the ski spring preload (RX10R / RX10MT / RX10 LT)
ECS00250
CAUTION:
The left and right ski spring preload must
be set to the same setting. Uneven settings can cause poor handling and loss of
stability.
The spring preload can be adjusted by turning
the spring preload adjusting
1.
Spring preload adjusting ring
2.
Spring seat length
Spring preload setting (spring seat length
or spring preload adjusting ring position):
Minimum (soft):
RX10R / RX10LT
RX10MT 134.6 mm (5.30 in)
Standard:
RX10R / RX10LT 134.5 mm (5.30 in)
RX10MT 134.6 mm (5.30 in)
Maximum (hard):
RX10R / RX10LT 144.5 mm (5.69 in)
RX10MT 144.6 mm (5.69 in)
* The spring seat length changes ap-
proximately 1.5 mm (0.06 in) with each
full turn of the adjusting
ring.
130.1
ring.
mm (5.12 in)
ESU12550
Adjusting the front shock absorber air pressure (RX10RTR / RX10MTA)
ECS00700
CAUTION:
The left and right shock absorber air pressure must be set to the same setting. Uneven settings can cause poor handling
and loss of stability.
This snowmobile is equipped with FOX shock
absorbers as standard equipment.
The air pressure of the shock absorbers can
be adjusted using the shock absorber pump
included with your snowmobile.
1.
Shock absorber pump
To adjust the air pressure
EWS00620
Support the snowmobile securely on a
suitable stand before adjusting the shock
absorbers.
ECS00710
CAUTION:
Make sure that there is no load on the
shock absorbers and that they are fully extended before making any air pressure adjustments.
1.
Place the snowmobile on a level surface
and apply the parking brake.
2.
Lift the front of the snowmobile onto a
suitable stand to raise the skis off the
ground.
3. Remove the air valve cap from the shock
absorber.
Air valve cap
4.
Install the hose connector of the shock
absorber pump onto the air valve of the
shock absorber and tighten it approximately six turns until the pressure registers on the pump gauge.
Control functions
5. To increase the air pressure, operate the
pump a few times. The pressure should
increase slowly. If the pressure increases
rapidly, check to make sure that the
pump is properly connected and tightened onto the air valve. To decrease the
air pressure, push the black bleed valve
button.
1.
Hose connector
ECS00720
CAUTION:
Do not overtighten the connector onto the
air valve as this will damage the connector
seal.
NOTE:
If the shock absorber has no air pressure, the
gauge reading will be zero.
1.
Bleed valve button
NOTE:
To allow pressure to escape from the pump
and the shock absorber, push the button
way down and hold it. To allow only a small
amount of pressure to escape, push the button all the way down and quickly release it.
6. Remove the hose connector from the air
valve.
half-
25
Control functions
NOTE:
When removing the connector, the sound of
air escaping may be
heard,
but this is from the
pump hose, not the shock absorber.
Air pressure range:
345 kPa (3.4 kgf/cm², 50 psi) to 1,034
kPa (10.3 kgf/cm², 150 psi)
Recommended air pressure:
RX10RTR 483 kPa (4.8 kgf/cm², 70
psi)
RX10MTA 379 kPa (3.8 kgf/cm², 55
psi)
ECS00730
CAUTION:
Do not exceed 1,034 kPa (10.3 kgf/cm², 150
psi).
7. Install the air valve cap.
NOTE:
If the front suspension bottoms too easily or
rolls too much during cornering, increase the
air pressure by 34 kPa (0.3 kgf/cm², 5 psi). If
the suspension is too firm and you want a
more compliant ride, decrease the air pressure by 34 kPa (0.3 kgf/cm², 5 psi).
ESU10970
Adjusting the rear suspension spring preload
The rear suspension spring preload can be
adjusted by turning the spring preload adjusting ring on the shock absorber (RX10R /
RX10LT) or by turning the spring preload adjusting ring on the center shock absorber and
the spring preload adjuster on the rear shock
absorber (RX10RTR / RX10MT / RX10MTA).
RX10MT / RX10MTA
1.
Spring preload adjusting ring
RX10RTR
1.
Spring preload adjusting ring
2.
Spring seat length
Spring preload setting at the center shock
absorber (spring seat length or spring
preload adjusting ring position):
Minimum (soft):
RX10MT / RX10MTA 1
RX10RTR 112.5 mm (4.43 in)
Standard:
RX10MT / RX10MTA 3
RX10RTR 113.5 mm (4.47 in)
Maximum (hard):
RX10MT RX10MTA 5
RX10RTR 123.5 mm (4.86 in)
* The spring seat length changes ap-
proximately 1.5 mm (0.06 in) with each
full turn of the adjusting
ring.
26
Control functions
RX10RTR / RX10MT / RX10MTA
1.
Spring preload adjuster
Spring preload setting at the rear shock
absorber (spring preload adjuster
tion):
Minimum (soft):
S
Standard:
M
Maximum (hard):
H
RX10R / RX10LT
posi-
NOTE:
The rear suspension spring preload can be
further adjusted by changing the position of
the spring seat.
Have a Yamaha dealer make this adjustment
as it requires special tools.
ESU11001
Adjusting the rear suspension damp-
ing force
(RX1
0R / RX10RTR / RX10LT)
RX10R / RX10LT
EWS00160
Do not turn the remote adjustment dial
while the snowmobile is moving as this
could cause loss of control, an accident,
and injury.
ECS00290
CAUTION:
Be sure to stop the remote adjustment dial
at a marked position around the dial where
there is a click.
The rebound damping force can be adjusted
by turning the rear suspension damping force
remote adjustment
dial.
To increase the rebound damping force, turn
the adjustment dial in direction (a). To decrease the rebound damping force, turn the
adjustment dial in direction (b).
1.
Spring preload adjusting ring
Spring preload setting (spring seat length
or spring preload adjusting ring position):
Minimum (soft):
RX10R / RX10LT 1
Standard:
RX10R / RX10LT 4
Maximum (hard):
RX10R / RX10LT 7
* The spring seat length changes ap-
proximately 1.5 mm (0.06 in) with each
full turn of the adjusting
ring.
1.
Rear suspension damping force remote ad-
justment dial
2.
Standard position
27
Control functions
Rebound damping setting:
Minimum (soft):
22 click(s) in direction (a)*
Maximum (hard):
0 click(s) in direction (b)*
* With the adjustment dial in the
stan-
dard position
RX10RTR
The compression damping force can be adjusted by turning the adjusting screw.
To increase the compression damping force,
turn the adjusting screw in direction (a). To
decrease the compression damping force,
turn the adjusting screw in direction (b).
1.
Compression damping force adjusting
screw
Compression damping setting:
Minimum (soft):
20 click(s) in direction (b)*
Standard:
11 click(s) in direction (b)*
Maximum (hard):
1 click(s) in direction (b)*
* With the adjusting screw fully turned
lightly in direction (a)
ECS00300
CAUTION:
• Do not continue to turn the adjusting
screw in direction (a) after it stops. The
shock absorber can be damaged and
damping force adjustments cannot be
made.
• Do not turn the adjusting screw in direc-
tion (b) more than 20 click(s). Even if the
adjusting screw is continually turned after 20 click(s), there will be no change in
the damping force.
• Be sure to stop the adjusting screw at a
position where there is a click.
ESU11040
Adjusting the control rods
The weight transfer can be adjusted by
ing the control rod adjuster or adjusting nut.
RX10R / RX10LT
1.
Loosen the locknut.
2.
Turn the control rod adjuster in direction
(a) to increase weight transfer or direction
(b) to decrease weight transfer.
1.
Locknut
2.
Control rod adjuster
EWS00180
Never adjust the control rod beyond the
range of the scale on the special wrench.
3. Check the control rod adjuster length us-
ing the scale on the special wrench in-
cluded in the owner’s tool kit as shown.
Make sure that the rim of the control rod
body is within the range of the scale.
turn-
28
1.
Special wrench
2.
Adjuster length
3. Rim
4.
Scale range
4.
Tighten the locknut while holding the
con-
trol rod adjuster in place.
Locknut tightening torque:
35 Nm (3.5 m·kgf, 25 ft·lb)
ECS00320
CAUTION:
When using the special wrench, make
sure that it is situated at a right angle to
the control rod, and that it is tightly fitted
to the locknut or the control rod adjuster.
RX10RTR / RX10 MT / RX10MTA
1.
Loosen the locknut while holding the
trol rod adjusting nut.
2.
Turn the control rod adjusting nut in direc-
tion (a) to increase weight transfer or direction (b) to decrease weight transfer.
con-
Control functions
1.
Locknut
2.
Control rod adjusting nut
EWS00170
Never adjust the control rods beyond the
maximum range indicated on the rods with
red paint.
1.
Red paint area
2.
Adjustable range
3. Standard position
29
Control functions
3. Tighten the locknut while holding the
trol rod adjusting nut in place.
Locknut tightening torque:
25 Nm (2.5 m·kgf, 18 ft·lb)
ECS00310
con-
CAUTION:
• When using the two wrenches included
in the owner’s tool kit, make sure that
they are situated at a right angle to the
control rod as shown, and that they are
tightly fitted to the locknut and the
trol rod adjusting nut.
• The left and right adjusting nuts must be
set to the same position. Uneven settings can cause poor handling and loss
of stability.
con-
30
Pre-operation checks
ESU11070
The condition of a snowmobile is the owner’s responsibility. Vital components can start to deteriorate quickly and unexpectedly, even if the snowmobile remains unused (for example, as a
result of exposure to the elements). Any damage or fluid leakage could have serious consequences. Therefore, it is very important, in addition to a thorough visual inspection, to check
the following points before each ride.
NOTE:
Pre-operation checks should be made each time the snowmobile is used. Such an inspection
can be accomplished in a very short time; and the added safety it assures is more than worth
the time involved.
EWS00190
iWARNING
If any item in the pre-operation check list is not working properly, have it inspected and
repaired before operating the snowmobile.
ESU11080
Pre-operation check list
Fuel
Engine oil
Coolant
V-be lt
Drive guard
Brake
Air filter
ITEM
• Check fuel level.
• Refuel if necessary.
• Check fuel line for leakage.
• Check oil level in engine.
• If necessary, add recommended oil to specified
level.
• Check vehicle for oil leakage.
• Check coolant level.
• Add if necessary.
• Check for wear and damage.
• Replace if necessary.
• Make sure that drive guard is tightened securely.
• Check the drive guard mounts for damage.
• Make sure that the drive guard is firmly in place.
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hy-
draulic system.
• Check brake pads for wear.
• Replace if necessary.
• Check fluid level in master cylinder.
• If necessary, add recommended brake fluid to
specified level.
• Check hydraulic system for leakage.
• Check that there is no snow under the air filter ele-
ment.
• If necessary, brush off the snow.
CHECKS
PAGE
22
52
56
57
21
62
50
31
Pre-operation checks
ITEM
Tool kit and recommended
equipment
Shroud and covers
Skis and ski runners
Drive track
Slide runners
Steering
Strap (RX10MT / RX10MTA)
Lights,
signals and switch-
es
Throttle lever
Throttle override system
(T.O.R.S.)
CHECKS
• Check for proper placement.
• Make sure that the shroud and covers are securely
fastened.
• Check for wear and damage.
• If necessary, have Yamaha dealer replace skis or
ski runners.
• Check for deflection, wear and damage.
• If necessary, have Yamaha dealer replace track.
• Check for wear and damage.
• If necessary, have Yamaha dealer replace slide
runners.
• Check for excessive free play.
• Check for damage.
• Replace if necessary.
• Check operation.
• Correct if necessary.
• Make sure that operation is smooth and spring
back to its home position when released.
• Check the T.O.R.S. for proper operation.
• If system is defective, have Yamaha dealer check
vehicle.
PAGE
17, 17,
45
21
64
65
65
65
38
10
50
69,
71
32
ESU11300
Starting the engine
EWS00200
fWARNING
• Be sure to check the “SAFETY INFOR-
MATION” section carefully before starting the engine.
• Make sure that the parking brake is ap-
plied.
NOTE:
Make sure that the engine stop switch is in the
on
position.
ated when the engine stop switch is in the off
position.
Turn the main switch to the start position.
Warm up the engine until it does not run
roughly.
The starter motor cannot be oper-
Operation
1.
Start
ECS00330
CAUTION:
• Release the switch immediately after the
engine starts.
• If the engine fails to start, release the
switch,
wait a few seconds, then try
again.
Each attempt should be as short
as possible to preserve the battery. Do
not crank the engine more than 10 seconds on any one attempt.
ESU11310
Break-in
There is never a more important period in the
life of your engine than the period between 0
and 500 km (300 mi). For this reason, you
should read the following material carefully.
Since the engine is brand new, do not put an
excessive load on it for the first 500 km (300
mi).
The various parts in the engine wear and
polish themselves to the correct operating
clearances. During this
throttle operation or any condition that might
result in engine overheating must be avoided.
Operating your snowmobile for the
first time
Start the engine and let it idle for 15 minutes.
0–160
km (0–100 mi)
Avoid prolonged operation above 6000 r/min.
160–500 km (100–300 mi)
Avoid prolonged operation above 8000 r/min.
period,
prolonged
full-
33
Operation
500 km (300 mi) and beyond
The snowmobile can now be operated normally.
ECS00340
CAUTION:
• After 800 km (500 mi) of operation, the
engine oil must be changed and the oil
filter cartridge replaced.
• If any engine trouble should occur dur-
ing the engine break-in period, immediately have a Yamaha dealer check the
snowmobile.
ESU11331
Riding your snowmobile
Getting to know your snowmobile
A snowmobile is a rider active vehicle, and
your riding position and your balance are the
two basic factors of maneuvering your snowmobile.
Riding your snowmobile requires skills acquired through practice over a period of time.
Take the time to learn the basic techniques
well before attempting more difficult maneuvers.
Riding your new snowmobile can be a very
enjoyable activity, providing you with hours of
pleasure. However, it is essential to familiarize yourself with the operation of the snowmobile to achieve the skill necessary to enjoy
riding safely. Before operating the snowmobile,
read this Owner’s Manual completely
and understand the operation of the controls.
Pay particular attention to the safety information on page 1.
Please read all warning and caution labels on
your snowmobile. Also, read the Snowmobiler’s Safety Handbook that is supplied with
your snowmobile.
Learning to ride your snowmobile
Before you
ation checks listed on page
spent checking the condition of the snowmo-
ride,
always perform the pre-oper-
31.
The short time
bile will be rewarded with added safety and a
more reliable snowmobile. Always wear the
proper clothing for both warmth and to help
protect you from injury if an accident occurs.
Become familiar with operating your snowmobile at low speeds, even if you are an experienced rider. Do not attempt to operate at
maximum performance until you are totally fa-
miliar with the snowmobile’s handling and
performance characteristics.
The beginning operator should select a large
flat area to become familiar with the snowmobile.
Make sure that this area is free of obstacles and other traffic. You should practice
control of the throttle and brake, and master
turning techniques in this area before trying
more difficult terrain.
Set the parking brake and follow the instructions on page 33 to start the engine. Once the
engine has warmed up, you are ready to begin riding your snowmobile.
To start out and accelerate
1.
With the engine idling, release the park-
ing brake.
2.
Apply the throttle slowly and smoothly.
The V-belt clutch will engage and you will
start to accelerate.
EWS00210
EWARNING
The operator should always keep both
hands on the handlebar. Never put your
feet outside the running boards. Avoid
high speeds until you have become thoroughly familiar with your snowmobile and
all of its controls.
Braking
When slowing down or stopping, release the
throttle and apply the brake gently—not
denly.
sud-
34
Operation
EWS00220
WWARNING
• Many surfaces such as ice and hard-
packed snow require much longer stopping distances. Be alert, plan ahead, and
begin decelerating early.
• Improper use of the brake can cause the
drive track to lose traction, reduce
trol,
and increase the possibility of an
accident.
Turning
For most snow surfaces, “body English” is the
key to turning.
As you approach a curve, slow down and begin to turn the handlebar in the desired direction.
As you do so, put your weight on the
running board to the inside of the turn and
lean your upper body into the
turn.
con-
If your snowmobile begins to tip while turning,
lean more into the turn to regain balance. If
necessary, gradually let off on the throttle or
steer to the outside of the
Remember:
Avoid higher speeds until you are thoroughly
familiar with the operation of your snowmobile.
Riding uphill
You should practice first on gentle slopes. Try
more difficult climbs only after you have developed your
celerate before you start the climb, and then
reduce the throttle to prevent track slippage. It
is also important to keep your weight on the
uphill side at all times. On climbs straight up
the
hill,
forward and, on steeper inclines, standing on
the running boards and leaning forward over
the handlebar. (Also see “Traversing a
slope”.)
skill.
this can be accomplished by leaning
turn.
As you approach a
hill,
ac-
This procedure should be practiced at low
speeds many
obstacles. Once you have learned this
nique,
er speeds or in tighter curves. Lean more as
the turn gets sharper or is made at higher
speeds.
Improper riding techniques such as abrupt
throttle changes, excessive braking, incorrect
body movements, or too much speed for the
sharpness of the turn may cause the snowmobile to tip.
times,
in a large flat area with no
you should be able to perform it at
tech-
high-
Slow down as you reach the crest of the
and be prepared to react to obstacles, sharp
drops,
or other vehicles or people which may
be on the other side. If you are unable to
tinue up a
engine and set the parking brake. Then pull
the rear of the snowmobile around to point the
snowmobile back down the
snowmobile is pointed downhill, mount your
hill,
do not spin the track. Stop the
hill.
hill,
con-
When the
35
Operation
snowmobile from the uphill side. Restart the
engine, release the parking brake, and descend the
EWS00230
ET
Side hills and steep slopes are not recommended for a novice snowmobiler.
Riding downhill
When riding downhill, keep speed to a
mum.
throttle to keep the clutch engaged while descending the
gine compression to help slow the
snowmobile, and to keep the snowmobile
from rolling freely down the
brake frequently, with light pressure.
EWS00240
EJ
Use extra caution when applying the brake
during a descent. Excessive braking will
cause the drive track to lock, causing a
loss of control.
Traversing a slope
EWS00250
ET
Traversing slopes is not recommended for
a novice snowmobiler.
Traversing a slope requires you to properly
position your weight to maintain proper
ance.
your body to position your weight towards the
hill.
WARNING
mini-
It is important to apply just enough
hill.
This will allow you to use en-
hill.
Also apply the
WARNING
WARNING
bal-
As you travel across the slope, lean
uphill side. A recommended riding position is
to kneel with the knee of your downhill leg on
the seat and the foot of your uphill leg on the
running board. This position will make it
er for you to shift your body weight as needed.
Snow and ice are slippery, so be prepared for
the possibility that your snowmobile could begin to slip sideways on the slope. If this happens,
steer in the direction of the slide if there
are no obstacles in your
proper balance, gradually steer again in the
direction you wish to travel.
If your snowmobile starts to tip, steer down
the hill to regain balance.
EWS00260
WARNING
ET
If you are unable to maintain correct
ance,
and your snowmobile is going to tip
over, dismount your snowmobile immediately on the uphill side.
Ice or icy surface
Operating on ice or icy surfaces can be very
dangerous. Traction for
starting is much less than that on snow.
EWS00270
WARNING
ET
When you have to operate on ice or icy
surfaces, drive slowly and cautiously.
Avoid accelerating, turning, and braking
rapidly. Steering is minimal and uncontrolled spins are an ever-present danger.
path.
turning,
As you regain
stopping,
easi-
bal-
and
36
Operation
Hard-packed snow
It can be more difficult to negotiate on
packed snow as both the skis and drive track
do not have as much traction as when the
snowmobile is operated on fresh snow. Avoid
rapid acceleration, turning, and braking.
hard-
Operation on surfaces other than snow or ice
Operation of your snowmobile on surfaces
other
than
snow or ice should be avoided. Op-
eration under such conditions will damage or
result in rapid wear of the ski runners, drive
track, slide runners, and drive sprockets. Operation of the snowmobile on the following
surfaces should be avoided at all times:
• Dirt
• Sand
• Rocks
• Grass
• Bare pavement
Other surfaces that should be avoided for the
sake of drive track and slide runner life are:
• Glare ice surfaces
• Snow mixed with a lot of dirt and sand
All of the above surfaces have one thing in
common in regard to drive track and slide
ners:
little or no lubricating ability. Drive track
and all slide rail systems require lubrication
(snow or water) between the slide runners
and the slide metal. In the absence of lubrication,
the slide runners will rapidly wear and in
severe cases, literally melt away, and the
drive track
Also traction aids such as studs, cleats, etc.,
may cause further track damage or failure.
EWS00280
will
be subject to damage or failure.
run-
EWARNING
Drive track damage or failure could result
in loss of braking ability and snowmobile
control,
which could cause an accident.
• Always check the drive track for damage
or maladjustment before operating the
snowmobile.
• Do not operate the snowmobile if you
find damage to the drive track.
ECS00350
CAUTION:
Ride on fresh snow frequently. Operating
on ice or hard-packed snow will rapidly
wear the slide runners.
ESU11350
Maximizing drive track life
Recommendations
Track tension
During initial break-in, the new drive track will
tend to stretch quickly as the track settles. Be
sure to correct the track tension and alignment frequently. (See page 65 for adjustment
procedures.) A loose track can slip (ratchet),
derail or catch on suspension parts causing
severe damage. Do not overtighten the drive
track, otherwise it may increase the friction
between the track and the slide runners, resulting in the rapid wear of both components.
Also,
this may put an excessive load on the
suspension components, resulting in component failure.
Marginal snow
The drive track and the slide runners are
cated and cooled by snow and water. To prevent the drive track and slide runners from
overheating, avoid sustained high-speed usage in areas such as icy trails, frozen lakes
and rivers that have minimal snow coverage.
An overheated track will be weakened internally, which may cause failure or damage.
Off-trail riding
Avoid off-trail riding until there is sufficient
snow coverage. It generally takes several feet
of snow to provide a good overall base to
properly cover debris, such as rocks, logs,
lubri-
37
Operation
etc. If snow coverage is not sufficient, stay on
trails to avoid impact damage to the drive
track.
Studded track
In general, track life will be shortened when
studs are installed. Drilling stud holes into the
drive track will cut the internal fibers, which
weakens the track. Avoid spinning the drive
track. Studs may catch on an object and pull
out of the track, leaving tears and damage
around the already weakened area. To
minimize possible damage, consult your stud
manufacturer for installation and stud pattern
recommendations.
Yamaha does not recommend track stud-
ding.
ESU11360
Strap (RX10MT / RX10MTA)
The strap should be used only by experienced
operators to assist them when traverse (sidehill) riding.
• Keep the right hand on the right handle-
bar grip for steering, and grip the strap
with the left hand to shift weight uphill
for balance during traverse riding.
• Ride cautiously while using the strap.
Do not accelerate or decelerate abruptly
while holding onto the strap.
• Do not use the strap to lift the snowmo-
bile.
• Do not use the strap as a mounting point
for cargo or accessories.
ESU11380
Driving
EWS00300
Be sure to read the “SAFETY INFORMATION” section on page 1 and the “Riding
your snowmobile” section on page 34
carefully before operating the snowmobile.
NOTE:
Make sure that the engine is warmed up
enough before riding.
1.
Strap
EWS00290
Improper use of the strap on the handlebar
can result in severe injury or death.
• Use the strap only as an operator grip
point when needed to shift weight uphill
to maintain balance during traverse
(side-hill) riding. Only experienced operators should traverse slopes steep
enough to require strap use.
38
RX10MTA
1.
Release the parking brake by moving the
parking brake lever to the right.
2.
Press the throttle lever slowly to move the
snowmobile.
3. Turn the handlebar in the desired direction.
4.
Squeeze the brake lever to stop the
snowmobile.
5. Apply the parking brake by moving the
parking brake lever to the left.
RX10R / RX10RTR / RX10MT / RX10LT
EWS00310
WWARNING
• Make sure that the throttle lever is fully
released and the snowmobile is at a full
stop before shifting.
• Be sure to slide the shift lever to “FWD”
or “REV” until it stops completely and
only while the engine is idling.
• Make sure that the area behind the
snowmobile is clear before reversing.
Watch behind.
• Reduce speed and avoid sharp turning
when operating the snowmobile in reverse.
1.
To select the desired operating position,
pull the shift lever out, slide it to “FWD” or
to “REV” until it stops, and then release it.
Operation
1.
Pull out.
2.
Slide to “REV” (reverse).
3. Release.
ECS00070
CAUTION:
Do not shift from “FWD” to “REV” or from
“REV” to “FWD” while the snowmobile is
moving.
could be damaged.
NOTE:
The reverse buzzer beeps while the shift lever
is in reverse.
Otherwise, the drive system
1.
Pull out.
2.
Slide to “FWD” (forward).
3. Release.
2.
Release the parking brake by moving the
parking brake lever to the right.
3. Press the throttle lever slowly to move the
snowmobile.
4.
Turn the handlebar in the desired direc-
tion.
5. Squeeze the brake lever to stop the
snowmobile.
39
Operation
6. Apply the parking brake by moving the
parking brake lever to the left.
ESU11410
Stopping the engine
Turn the main switch to the off position to stop
the engine.
1.
Off
EWS00330
wWARNING
• Push down the engine stop switch to
stop the engine in an emergency.
• Make sure that the key is removed from
the main switch whenever the operator
leaves the snowmobile, to prevent
dental starting.
acci-
• If transporting the snowmobile in an open
trailer or truck, put a tight fitting cover on the
snowmobile. A cover specifically designed
for your snowmobile is best. This will help
keep foreign objects out of the cooling
vents,
and also help protect the snowmobile against damage from debris on the
road.
• If transporting the snowmobile in an open
trailer or truck in areas where road salt is
used,
coat metal suspension surfaces lightly with oil or another protectant. This will
help protect against corrosion. Be sure to
clean the snowmobile when you get to your
destination to remove any corrosive salts.
ESU11430
Transporting
When transporting your snowmobile on a
er or in a truck, observe the following recommendations to help protect it from damage:
40
trail-
Periodic maintenance
ESU11450
Safety is an obligation of the owner. Periodic inspection, adjustment, and lubrication will keep
your snowmobile in the safest and most efficient condition possible. The most important points
of snowmobile inspection, adjustment, and lubrication are explained on the following pages.
Maintenance, replacement, or repair of the emission control devices and systems may
be performed by any repair establishment or individual that is certified (if applicable).
EWS00340
iWARNING
If you are not familiar with maintenance work, have a Yamaha dealer do it for you.
PROPER PERIODIC MAINTENANCE OF YOUR SNOWMOBILE IS IMPORTANT IN ORDER
TO ENJOY LONG, PLEASURABLE SERVICE. ESPECIALLY IMPORTANT ARE THE MAINTENANCE SERVICES RELATED TO EMISSION CONTROL. THESE CONTROLS NOT
ONLY FUNCTION TO ENSURE CLEANER AIR, BUT ARE ALSO VITAL TO PROPER ENGINE OPERATION AND MAXIMUM PERFORMANCE. IN THE FOLLOWING PERIODIC
MAINTENANCE CHARTS, THE SERVICES RELATED TO EMISSION CONTROL ARE
GROUPED SEPARATELY. THESE SERVICES REQUIRE SPECIALIZED DATA, KNOWL-
EDGE,
AND EQUIPMENT. YAMAHA DEALERS ARE TRAINED AND EQUIPPED TO PER-
FORM THESE PARTICULAR SERVICES.
ESU11460
Periodic maintenance chart for the emission control system
ITEM
Spark plugs
*
Valve clearance
Crankcase breather
*
system
*
Fuel filter
*
Fuel line
*
Idle speed
*
Fuel injection
REMARKS
• Check condition.
• Adjust gap and clean.
• Replace if necessary.
• Check and adjust valve clear-
ance when engine is
• Check breather hose for cracks
or damage.
• Replace if necessary.
• Check condition.
• Replace if necessary.
• Check fuel hose for cracks or
damage.
• Replace if necessary.
• Check and adjust idle speed.
• Adjust synchronization.
cold.
INITIAL
1 month
or 800 km
(500 mi)
(40 hr)
Every 40000 km (25000
•
•
EVERY
Seasonally
4000 km
(2500 mi)
(200 hr)
•
mi)
or
PAG E
47
52
—
—
—
48
—
41
Periodic maintenance
ITEM
*
Exhaust system
* It is recommended that these items be serviced by a Yamaha
• Check for leakage.
• Tighten or replace gasket if
necessary.
REMARKS
INITIAL
1 month
or 800 km
(500 mi)
(40 hr)
dealer.
EVERY
Seasonally
or
4000 km
(2500 mi)
(200 hr)
•
PAG E
—
42
ESU11560
ITEM
Engine oil
Engine oil filter car-
*
tridge
*
Cooling system
Primary and sec-
*
ondary clutches
*
Drive chain
*
Drive chain oil
Brake and parking
*
brake
Control cables
Disc brake installa-
*
tion
*
Slide runners
Skis and ski
*
ners
Periodic maintenance
General maintenance and lubrication chart
run-
REMARKS
• Change (warm engine before
draining)
• Replace.
• Check coolant level.
• Air bleed the cooling system if
necessary.
• Check engagement and shift
speed.
• Adjust if necessary.
• Inspect sheaves for wear and
damage.
• Inspect weights/rollers and
bushings for wear for primary.
• Inspect ramp shoes/bushings
for wear for secondary.
• Replace if necessary.
• Lubricate with specified
grease.
• Check chain slack.
• Adjust if necessary.
• Check oil level.
• Change.
• Adjust free play and/or replace
pads if necessary.
• Change brake
• Make sure that operation is
smooth.
• Lubricate if necessary.
• Check for slight free play.
• Lubricate shaft with specified
grease as required.
• Check for wear and damage.
• Replace if necessary.
• Check for wear and damage.
• Replace if necessary.
fluid.
INITIAL
1 month
or 800 km
(500 mi)
(40 hr)
•
•
Whenever operating ele-
vation is changed.
Initial at 500 km (300 mi)
and every 800 km (500
mi) thereafter.
•
See NOTE following this
Every 1600 km (1000
EVERY
Seasonally
or
4000 km
(2500 mi)
(200 hr)
•
Every
20000 km
(12000 mi)
•
•
•
•
•
•
•
chart.
•
mi)
•
•
PAG E
52
52
56
—
—
—
—
60
60
60
62
62
68
—
65
64
43
Periodic maintenance
ITEM
*
Steering system
*
Steering bearings
Ski and front sus-
*
pension
Suspension compo-
*
nent
Fittings and fasteners
*
Battery
*
It is
recommended that these items be serviced by a Yamaha dealer.
• Check toe-out.
• Adjust
• Check bearing assemblies
looseness.
• Lubricate with specified
grease.
• Lubricate with specified
grease.
• Lubricate with specified
grease.
• Make sure that all nuts, bolts
and screws are properly tightened.
• Tighten
• Check condition.
• Charge
REMARKS
if
necessary.
if
necessary.
if
necessary.
for
INITIAL
1 month
or 800 km
(500 mi)
(40 hr)
•
EVERY
Seasonally
or
4000
km
(2500 mi)
(200 hr)
NOTE:
Brake system:
•
After disassembling the master cylinder or caliper cylinder, always change the brake
Regularly check the brake fluid level and add fluid if necessary.
•
Replace the oil seals of the master cylinder and caliper cylinder every two years.
•
Replace the brake hose every four years, or if cracked or damaged.
PAG E
65
—
68
68
71
71
fluid.
44
ESU11740
Tool kit
The owner’s tool kit has the tools which are
sufficient for most periodic maintenance and
minor repairs. A torque wrench is also necessary to properly tighten nuts and bolts.
1.
Tool kit
ECS00360
CAUTION:
Before starting the engine, make sure that
the tool kit is properly seated in its holder
and is securely fastened.
NOTE:
If you do not have a torque wrench available
during a service operation requiring one, take
your snowmobile to a Yamaha dealer to
check the torque settings and adjust them if
necessary.
ESU11750
Removing and installing the
shroud and covers
Shroud
To remove the shroud
Loosen the
and then unhook the shroud from the shroud
stay.
fasteners,
slowly raise the shroud,
Periodic maintenance
1.
Fastener
1.
Shroud
To install the shroud
Hook the end of the shroud onto the shroud
stay, slowly lower it to the original position,
and then tighten the fasteners.
1.
Shroud stay
Left and right side covers
To remove a side cover
Loosen the fasteners, and then remove the
side cover.
45
Periodic maintenance
1.
Fastener
2.
Right side cover
1.
Fastener
2.
Left side cover
To install a side cover
Place the side cover in the original position,
and then tighten the fasteners.
NOTE:
Be sure to fit the projection on the rear of the
side cover into the hole in the lower side cover.
Top cover
To remove the top cover
1.
Remove the screws, and then remove
the cable guide.
1.
Screw
2.
Cable guide
2.
Remove the bolts, disconnect the main
switch coupler and auxiliary DC jack
cou-
pler, and then remove the top cover.
1.
Bolt
2.
Top cover
To install the top cover
1.
Connect the main switch coupler and
auxiliary DC jack coupler, place the top
cover in the original
position,
and then in-
stall the bolts.
2.
Pass all of the cables, etc., through the
cable guide, place the cable guide in the
original position, and then install the
screws.
EWS00090
46
• Do not drive the snowmobile with the
shroud or covers unfastened or removed.
Periodic maintenance
• Keep your body and clothing away from
rotating parts when servicing the snowmobile with the shroud or covers removed.
• Do not touch the hot muffler and engine
during or immediately after operation.
ECS00370
CAUTION:
Make sure that all cables, leads, etc., are
routed properly before installing the
shroud and covers.
NOTE:
When installing the shroud and covers, be
sure to tighten the fasteners and the top cover
bolts securely.
ESU11780
Checking the spark plugs
The spark plug is an important engine component and is easy to inspect. The condition of
the spark plug can indicate the condition of
the engine.
Check the coloration on the white porcelain
insulator around the center electrode. The
ideal coloration at this point is a medium to a
light tan color for a snowmobile that is being
ridden normally. If a spark plug shows a distinctly different color, there could be something wrong with the engine. For example, a
very white center electrode porcelain color
could indicate an intake track air leak or carburetion problem for that cylinder. Do not attempt to diagnose such problems yourself.
Instead,
dealer for inspection and possible repairs.
You should periodically remove and inspect
the spark plug because heat and deposits will
cause a spark plug to slowly break down and
erode.
changing to a different type of spark
take the snowmobile to a Yamaha
Consult a Yamaha dealer before
plug.
Specified spark
Manufacturer:
NGK
Model:
CR9EB
Spark plugs are produced in several different
thread lengths. The thread length or reach is
the distance from the spark plug gasket seat
to the end of the threaded
is too
long,
may result. If the reach is too short, spark plug
fouling and poor performance may result. Also,
if the reach is too
the exposed threads resulting in combustion
chamber hot spots and thread damage. Always use a spark plug with the specified
reach.
Spark plug reach:
19.0 mm (0.75 in)
1.
Spark plug gap
2.
Spark plug reach
Before installing any spark
electrode gap with a wire thickness gauge
and adjust to specification.
Spark plug gap:
0.7–0.8
plug:
portion.
overheating and engine damage
short,
mm (0.028–0.031 in)
If the reach
carbon will form on
plug,
measure the
47
Periodic maintenance
When installing the spark
the gasket surface. Wipe off any grime from
the threads and tighten the spark plug to the
specified torque.
Spark plug tightening torque:
12.5 Nm (1.25 m·kgf, 9 ft·lb)
ECS00380
plug,
always clean
CAUTION:
Make sure that the spark plug caps are securely installed. Otherwise the spark plug
caps could be damaged due to engine vibration.
ESU11801
Adjusting the engine idling
ECS00400
CAUTION:
• Be sure to have a Yamaha dealer make
this adjustment.
• Make sure that the throttle lever moves
smoothly.
1.
Remove the shroud, the left and right
side
covers,
45 for removal procedures.)
2.
Start the engine and warm it up.
3. Remove the headlight unit
lift up the headlight unit.
speed
and the top cover. (See page
bolts,
and then
1.
Idle adjusting screw
Standard engine idling speed:
1400–1600
5. Install the headlight unit, making sure to
insert the projections on the headlight
unit stay into the slots on the bottom of
the headlight unit.
6. Install the headlight unit bolts, and then
tighten them to the specified torque.
r/min
1.
Headlight unit bolt
4.
Turn the idle adjusting screw in or out to
adjust the engine idling speed.
48
Headlight unit bolt tightening torque:
3 Nm (0.3 m·kgf, 2.2 ft·lb)
7. Install the top cover, the left and right side
covers, and the shroud.
ESU11831
Adjusting the throttle cable free
play
1.
Remove the
moval procedures.)
shroud.
(See page 45 for re-
2.
Remove the headlight unit bolt on each
side of the snowmobile and the bolts
shown on the top cover.
1.
Headlight unit bolt
Periodic maintenance
1.
Locknut
2.
Throttle cable free play adjusting bolt
3. Throttle cable free play
Throttle cable free play:
2.0–3.0 mm (0.08–0.12 in)
6. Tighten the locknut.
7. Connect the speedometer coupler and
headlight couplers, and then install the
headlight unit, making sure to insert the
projections on the headlight unit stay into
the slots on the bottom of the headlight
unit.
1.
Bolt
3.
Disconnect the speedometer coupler and
headlight couplers, and then remove the
headlight unit.
4.
Loosen the locknut.
5.
Turn the adjusting bolt in or out until the
specified throttle cable free play is obtained.
8. Install the headlight unit bolts, and then
tighten them to the specified torque.
Headlight unit bolt tightening torque:
3 Nm (0.3 m·kgf, 2.2 ft·lb)
9. Install the bolts on the top cover.
10.
Install the shroud.
49
Periodic maintenance
ESU11861
Checking the throttle override
system (T.O.R.S.)
Check the T.O.R.S. for proper operation.
EWS00351
WARNING
When checking the T.O.R.S.:
• Make sure that the parking brake is ap-
plied.
• Make sure that the throttle lever moves
smoothly.
• Do not rev the engine to the point that
the clutch engages, otherwise the snowmobile could start moving, which could
cause an accident.
1.
Start the engine.
NOTE:
Refer to the “Starting the engine” section on
page 33.
2.
Hold the pivot point of the throttle lever
away from the throttle switch by putting
your thumb (above) and forefinger (below) between the throttle lever pivot and
the engine stop switch housing.
While holding the pivot point as described
above,
press the throttle lever gradually.
1.
Throttle lever pivot
2.
Engine stop switch housing
3. Throttle lever
The T.O.R.S. will be activated and the
engine speed will be limited to less than
the clutch engagement
81 for the clutch engagement speed.)
EWS00361
WARNING
ra
If the engine speed does not decrease to
less than the clutch engagement speed,
stop the engine by turning the main switch
to the off position and consult a Yamaha
dealer.
ESU11881
speed.
(See page
Checking the air filter
Always check that there is no snow under the
air filter element frame.
1.
Remove the
moval procedures.)
2.
Unhook the air filter case cover fasteners.
shroud.
(See page 45 for re-
50
3. Remove the headlight unit bolt on each
side of the snowmobile and the bolts
shown on the top cover.
1.
Headlight unit bolt
Periodic maintenance
6. Place the air filter element frame in the
original position, and then install the air
filter case cover.
7. Install the air filter case cover by hooking
the fasteners.
8. Install the headlight unit, making sure to
insert the projections on the headlight
unit stay into the slots on the bottom of
the headlight unit.
1.
Bolt
4.
Slightly lift up the headlight unit, and then
remove the air filter case cover.
5. Lift up the air filter element frame and
check the air filter element. If there is any
snow on the air filter element, remove the
element, brush off the snow, and then install the air filter element.
9. Install the headlight unit bolts, and then
tighten them to the specified torque.
51
Periodic maintenance
Headlight unit bolt tightening torque:
3 Nm (0.3 m·kgf, 2.2 ft·lb)
10.
Install the bolts on the top cover.
11.
Install the shroud.
NOTE:
After riding the snowmobile, make sure that
there is no snow under the air filter element
frame.
ESU11930
High-altitude settings
Operating at high altitude reduces the performance of a gasoline engine about 3% for every 305 m (1000 ft) of elevation. This is
because there is less air as altitude increases.
Less air means less oxygen available for
combustion.
Your snowmobile utilizes an electronic fuel injection system that delivers the optimal
el ratio required by the engine. Therefore, the
fuel injection system does not need to be adjusted,
even for operation at high altitude.
Remember:
Less air at higher altitude means there is less
horsepower available, even with the optimal
air/fuel ratio. Expect acceleration and top
speed to be reduced at higher altitudes.
To overcome operating with less power at
high altitudes, your snowmobile may also require different settings for the drive chain
gears and V-belt clutch to avoid poor performance and rapid wear. If you plan to operate
your snowmobile at an altitude different from
the area where you bought it, be sure to
sult a Yamaha dealer. The dealer can tell you
if there are any changes necessary for the altitude where you plan to ride.
air/fu-
con-
ECS00430
CAUTION:
The drive chain gears and V-belt clutch
should be adjusted when operating above
a high altitude of 900 m (3000 ft). Consult a
Yamaha dealer.
ESU11950
Valve clearance
The valve clearance changes with use, result-
ing in improper air-fuel mixture and/or engine
noise.
To prevent this from occurring, the
valve clearance must be adjusted by a
Yamaha dealer at the intervals specified in
the periodic maintenance chart.
ESU11962
Engine oil and oil filter cartridge
The engine oil level should be checked before
each use. In addition, the oil must be changed
and the oil filter cartridge replaced at the intervals specified in the periodic maintenance
and lubrication chart.
EWS00370
wWARNING
Engine oil is extremely hot immediately after the engine is turned off. Coming into
contact with or getting any engine oil on
your clothes could result in burns.
ECS00440
CAUTION:
• Do not run the engine with too much or
not enough oil in the oil tank. Oil could
spray out or the engine could be damaged.
• Be sure to change the engine oil after
the first 800 km (500 mi) of operation,
and every 4000 km (2500 mi) thereafter
or at the start of a new season, otherwise the engine will wear quickly.
52
Periodic maintenance
• The oil filter cartridge should be re-
placed every 20000 km (12000 mi) of operation.
the oil filter cartridge.
To check the engine oil level
1.
Place the snowmobile on a level surface
2.
Start the engine, warm it up for 10–15
Have a Yamaha dealer replace
and apply the parking brake.
minutes, and then turn it off.
NOTE:
• The engine can also be warmed up by operating the snowmobile for 10–15 minutes.
• After operating the snowmobile, allow the
engine to idle for at least 10 seconds before
turning it off.
ECS00451
CAUTION:
Disconnect the oil level gauge coupler before removing the oil filler cap, otherwise
the cable could twist and break.
5. Remove the oil filler
clean,
insert it back into the oil filler hole
(without screwing it in), and then remove
it again to check the oil level.
1.
Oil filler cap
2.
Dipstick
NOTE:
The engine oil should be between the “H” and
“L” level marks on the dipstick.
cap,
wipe the dipstick
3. Remove the shroud and the right side
cover. (See page 45 for removal procedures.)
4.
Disconnect the oil level gauge coupler.
1.
Oil level gauge coupler
2.
Oil filler cap
H
L
1.
“H” level mark
2.
“L” level mark
6. If the engine oil is below the “L” level
mark, add sufficient oil of the recommended type to raise it to the “H” level
mark. (See page 81 for the recommended oil.)
53
Periodic maintenance
ECS00461
CAUTION:
• When adding the engine oil, be careful
not to
fill
above the “H”
dipstick.
• Use only 4-stroke engine oil.
• Make sure that no foreign material en-
ters the engine oil tank.
7. Insert the dipstick into the oil filler hole,
and then tighten the oil filler cap.
8. Connect the oil level gauge coupler.
9. Install the right side cover and the shroud.
To change the engine oil (without oil filter cartridge replacement)
NOTE:
It is recommended to have a Yamaha dealer
change the engine oil.
1.
Place the snowmobile on a level surface,
and apply the parking brake.
2.
Start the engine, warm it up for several
minutes, and then turn it off.
3. Remove the shroud and the right side
cover. (See page 45 for removal procedures.)
4.
Remove the bottom panel and the right
lower cover.
level
mark on the
1.
Right lower cover
5. Place an oil pan under the oil tank to
col-
lect the used oil.
6. Disconnect the oil level gauge coupler.
1.
Oil level gauge coupler
2.
Oil filler cap
7. Remove the oil filler cap and drain bolt to
drain the oil from the oil tank.
1.
Bottom panel
54
1.
Engine oil drain bolt (oil tank)
8. Place an oil pan under the engine to
lect the used oil.
col-
Periodic maintenance
9. Remove the engine oil drain bolt to drain
the oil from the crankcase.
1.
Engine oil drain bolt (crankcase)
NOTE:
Dispose of used oil according to local regulations.
10.
Install the engine oil drain bolts, and then
tighten them to the specified torques.
Tightening torques:
Engine oil drain bolt (crankcase):
30 Nm (3.0 m·kgf, 22 ft·lb)
Engine oil drain bolt (oil tank):
16 Nm (1.6 m·kgf, 11 ft·lb)
11.
Add 2.0 L (2.1 US qt, 1.8 Imp.qt) of the
recommended engine oil to the oil tank,
and then install and tighten the oil filler
cap.
Recommended engine oil:
See page
Oil quantity:
With oil filter cartridge replacement:
Without oil filter cartridge replacement:
Total amount:
3.8 L (4.02 US qt) (3.34 Imp.qt)
12.
Start the engine, warm it up for several
minutes, and then turn it off.
81.
3.0 L (3.17 US qt) (2.64 Imp.qt)
2.8 L (2.96 US qt) (2.46 Imp.qt)
13.
Add sufficient oil of the recommended
type to raise it to the “H” level mark on the
dipstick. (See above for checking procedures.)
ECS00461
CAUTION:
When adding the engine oil, be careful
not to
fill
above the “H”
dipstick.
• Use only 4-stroke engine oil.
• Make sure that no foreign material en-
ters the engine oil tank.
14.
Start the engine, and then let it idle for
several minutes while checking it for oil
leakage. If oil is
the engine off and make sure that the engine oil drain bolt, oil tank drain bolt, and
the oil filler cap are installed correctly.
15.
Turn the engine off, and then connect the
oil level gauge coupler.
16.
Install the bottom panel and the right low-
er cover, and then install the right side
cover and the shroud.
ECS00470
leaking,
level
mark on the
immediately turn
CAUTION:
If oil is leaking or the oil level warning
cator comes on when the engine is
ning,
immediately turn the engine off and
have a Yamaha dealer check the snowmo-
indi run-
55
Periodic maintenance
bile.
Continuing to operate the engine under such conditions could cause severe
engine damage.
ESU12010
Cooling system
The coolant level should be checked before
each ride. In addition, the cooling system
must be bled of air at the intervals specified in
the periodic maintenance and lubrication
chart.
EWS00380
wWARNING
Do not remove the coolant reservoir cap
when the engine is hot. Scalding hot fluid
and steam may be blown out under pressure,
which could cause serious injury.
When the engine has cooled, place a thick
rag or towel over the coolant reservoir
cap,
and slowly rotate the cap counterclockwise to the detent. This procedure allows any residual pressure to escape.
When the hissing sound has stopped,
press down on the cap while turning counterclockwise and remove it.
To check the coolant level
1.
Remove the top cover. (See page 45 for
removal procedures.)
2.
Check the coolant level in the coolant re-
covery tank
coolant level is below the “COLD LEVEL”
mark, add soft water until it reaches the
“COLD LEVEL” mark. (See the following
section “Replenishing the coolant” for
more details.)
when
the engine is
cold.
If the
1.
“COLD LEVEL” mark
ECS00490
CAUTION:
• Hard water or salt water is harmful to the
engine parts. You may use boiled or distilled water, if soft water is not available.
• Tap water can be used temporarily in an
emergency.
Bleeding the cooling system
The cooling system must be bled of air if the
coolant reservoir becomes
seen in the cooling system, or if there is a
cooling system leak. Consult a Yamaha
er.
ECS00500
empty,
if air can be
deal-
CAUTION:
Operating the engine with an improperly
bled cooling system can cause overheating and severe engine damage.
56
Periodic maintenance
Replenishing the coolant
1.
Remove the top cover. (See page 45 for
removal procedures.)
2.
Remove the coolant reservoir cap, fill the
reservoir with the recommended coolant,
and then install the cap.
1.
Coolant reservoir cap
2.
Coolant recovery tank cap
3. Remove the coolant recovery tank cap,
add the recommended coolant until it
reaches the “COLD LEVEL” mark, and
then install the cap.
Recommended antifreeze:
High-quality ethylene glycol antifreeze
containing corrosion inhibitors
Antifreeze and water mixing ratio:
3:2
Total amount:
RX10LT 6.00 L (6.34 US qt) (5.28
Imp.qt)
RX10MT 6.40 L (6.76 US qt) (5.63
Imp.qt)
RX10MTA 6.40 L (6.76 US qt) (5.63
Imp.qt)
RX10R 6.00 L (6.34 US qt) (5.28
Imp.qt)
RX10RTR 6.00 L (6.34 US qt) (5.28
Imp.qt)
4.
Start the engine, allow it to idle for several
minutes, and then turn it off.
5. Check the coolant reservoir. If it is not
remove the coolant reservoir cap, fill the
reservoir with the recommended coolant,
and then install the cap.
6. Check for any coolant leakage.
NOTE:
If you find any leaks, consult a Yamaha
er.
deal-
full,
7. Install the top cover.
ESU12060
V-belt
EWS00400
• Make sure that the drive guard is tight-
ened securely before operating the
snowmobile.
• Never run the engine with the V-belt or
drive guard removed.
The V-belt should be checked before each
ride.
To check the V-belt
1.
Remove the shroud and the left side cov-
er, and then remove the drive guard.
(See page 45 for removal procedures.)
57
Periodic maintenance
2.
Check the V-belt for wear and damage.
Replace if necessary.
1.
V-belt wear limit
New V-belt width:
34.1
mm (1.34 in)
V-belt wear limit width:
32.5 mm (1.28 in)
3. Install the drive
guard,
and then install the
left side cover and the shroud.
To replace and adjust the V-belt
EWS00410
• Never run the engine with the V-belt or
drive guard removed.
• When installing the new V-belt, make
sure that it is positioned properly. Other-
wise,
the V-belt clutch engagement
speed will be changed and the snowmobile may move unexpectedly when the
engine is started, which could cause an
accident.
• Have a Yamaha dealer make this adjust-
ment.
1.
Edge of the secondary sheave assembly
2.
Spacer
ECS00510
CAUTION:
As the V-belt wears, adjustment may be
necessary. To ensure proper clutch performance, the V-belt position should be
adjusted by adding a spacer on each adjusting bolt when the V-belt position
reaches 1.5 mm (0.06 in) below the edge of
the secondary sheave assembly.
Have a Yamaha dealer make this adjustment.
NOTE:
Apply the parking brake before replacing the
V-belt.
1.
Remove the shroud and the left side cov-
er, and then remove the drive guard.
(See page 45 for removal procedures.)
58
2.
Rotate the secondary sliding sheave
clockwise and push it so that it separates
from the secondary fixed sheave.
1.
Secondary sliding sheave
2.
Secondary fixed sheave
3. Pull the V-belt up over the secondary
fixed sheave.
Periodic maintenance
1.
Edge of the secondary sheave assembly
2.
V-belt position
1.
V-belt
4.
Remove the V-belt from the secondary
sheave assembly and primary sheave
assembly.
5.
Temporarily install the new V-belt on the
secondary sheave assembly only, and
then measure the V-belt position. Do not
force the V-belt between the
sheaves;
secondary sliding and fixed sheaves
must touch each other.
Standard V-belt position:
From 1.5 mm (0.06 in) above the edge
of the secondary sheave assembly to
0.5 mm (0.02 in) below the edge.
6. If the V-belt position is incorrect, adjust it
by removing or adding a spacer on each
V-belt position adjusting bolt.
the
59
Periodic maintenance
1.
V-belt position adjusting bolt
2.
Spacer
9. Rotate the secondary sliding sheave
clockwise and push it so that it separates
from the secondary fixed sheave.
1.
Secondary sliding sheave
2.
Secondary fixed sheave
10.
Install the V-belt between the secondary
sliding and fixed sheaves.
V-belt position
More than 1.5 mm
(0.06 in) above the
edge
From 1.5 mm (0.06 in)
above the edge to 0.5
mm (0.02 in) below
the edge
More than 0.5 mm
(0.02 in) below the
edge
Adjustment
Remove spacer
Not necessary (It is
correct.)
Add spacer
7. Tighten the V-belt position adjusting
bolts.
V-belt position adjusting bolt tightening
torque:
10 Nm (1.0 m·kgf, 7.2 ft·lb)
8. Install the V-belt over the primary sheave
assembly.
60
1.
V-belt
11.
Install the drive
guard,
and then install the
left side cover and the shroud.
ESU12100
Drive chain housing
EWS00430
The engine, oil tank, brake disc, and coolant hoses will be very hot after the engine
has been run. Avoid contact while they are
still hot with any part of your body or clothing during inspection or repair.
To check the drive chain housing oil level
1.
Place the snowmobile on a level surface.
2.
Remove the shroud and the right side
cover. (See page 45 for removal procedures.)
3. Remove the dipstick, wipe it off with a
clean rag, and then insert it back into the
filler hole.
1.
Dipstick
4.
Remove the dipstick and check that the
oil is between the maximum and
mum level marks. If the oil is below the
minimum level mark, add sufficient oil of
the recommended type to raise it to the
maximum level mark.
RX10MTA
mini-
Periodic maintenance
RX10R / RX10RTR / RX10MT / RX10LT
1
2
1.
Maximum level mark
2.
Minimum level mark
Recommended drive chain oil:
SAE 75W or 80W API GL-4 Gear oil
R
ffl
1.
Maximum level mark
2.
Minimum level mark
1
2
ECS00530
CAUTION:
Make sure that no foreign material enters
the drive chain housing.
5. Install the dipstick, making sure to align
the notch in the dipstick handle with the
projection on the drive chain housing.
61
Periodic maintenance
Notch
Projection
6. Install the right side cover and the shroud.
To adjust the chain tension
1.
Remove the shroud and the right side
cover. (See page 45 for removal procedures.)
2.
Loosen the locknut.
3.
Turn the chain tension adjusting bolt
clockwise until it is finger tight, and then
loosen it 1/4
4.
Hold the chain tension adjusting bolt in
place while tightening the locknut.
turn.
• Do not operate the snowmobile if you
find any problems in the brake system.
You could lose braking ability, which
could lead to an accident. Ask a Yamaha
dealer to inspect and repair the brake
system.
ECS00060
CAUTION:
Make sure that the brake lever end does
not project out over the handlebar end.
This will help prevent brake lever damage
when the snowmobile is placed on its side
for service.
Test the brake at a low speed when starting
out to make sure that it is working properly. If
the brake does not provide proper braking
performance, inspect the brake for wear or
brake fluid
for more details.)
Checking the brake pads
Check the brake pads for wear.
If the brake pads reach the wear limit, ask a
Yamaha dealer to replace them.
leakage.
(See the following section
1.
Locknut
2.
Chain tension adjusting bolt
5. Install the right side cover and the shroud.
ESU12130
Brake and parking brake
EWS00440
• A soft, spongy feeling in the brake lever
indicates a failure in the brake system.
62
1.
Brake
pad
wear indicator
2.
Brake
pad
wear limit
Brake pad wear limit:
4.7 mm (0.19 in)
Checking the parking brake pads
Check the parking brake pads for wear by
measuring the thickness of the pads. If the
parking brake pads reach the wear limit, ask a
Yamaha dealer to replace them.
1.
Parking brake pad wear limit
Parking brake pad wear limit:
1.2 mm (0.047 in)
To adjust the parking brake
As the parking brake pads wear, adjustment
may be necessary to ensure proper brake
performance.
EWS00450
Periodic maintenance
1.
Parking brake
2.
Parking brake
3. Parking brake cable locknut
4.
Parking brake cable adjusting bolt
5. Parking brake cable length
Parking brake cable length:
43.5–46.5 mm (1.713–1.831 in)
4.
Tighten the parking brake cable locknut.
5. Turn the parking brake pad adjusting bolt
in or out to adjust the clearance between
the parking brake pads and the brake
disc.
pad
locknut
pad
adjusting bolt
Be sure to have a Yamaha dealer make this
adjustment.
1.
Loosen the parking brake pad locknut
and the parking brake pad adjusting bolt.
2.
Loosen the parking brake cable locknut.
3. Turn the parking brake cable adjusting
bolt in or out to adjust the cable length.
1.
Parking brake pad
2.
Brake disc
Parking brake pad to brake disc clearance (a) + (b):
1.5–2.0
6. Tighten the parking brake pad locknut.
mm (0.059–0.079 in)
63
Periodic maintenance
Checking the brake fluid level
EWS00460
WWARNING
Be careful that water does not enter the
master cylinder when refilling. Water will
significantly lower the boiling point of the
fluid and may result in vapor lock.
If the brake fluid level goes down, consult
a Yamaha dealer.
ECS00550
CAUTION:
Brake fluid may deteriorate painted surfaces or plastic
If any is spilled, clean it up immediately.
Place the snowmobile on a level surface.
Check that the brake fluid is above the lower
level and replenish when necessary.
parts.
Never spill any fluid.
• All oil seals of the master cylinder and
per cylinder
• The brake hose
ESU12141
cali-
Skis and ski runners
Check the skis and ski runners for wear and
damage. Replace if necessary.
1.
Ski runner wear limit
1.
Lower level
Specified brake
DOT 4
fluid:
Changing the brake fluid
EWS00470
WARNING
E
Make sure that the brake fluid and the
above parts are replaced by a Yamaha
dealer.
Brake fluid replacement is necessary when
the following components are replaced during
the periodic maintenance or if they are damaged or leaking.
64
1.
Ski wear limit
Ski runner wear limit:
8 mm
(0.31
Ski wear limit:
RX10R / RX10RTR / RX10LT 12 mm
(0.47 in)
RX10MT / RX10MTA 24 mm (0.94 in)
ECS00560
CAUTION:
Avoid scratching the skis when loading
and unloading the snowmobile, when
riding in areas with little or no snow, or on
sharp edges such as concrete, curbs, etc.
This will wear or damage the skis.
in)
Periodic maintenance
To align the skis
1.
Turn the handlebar so the skis face
straight ahead.
2.
Check the following for ski alignment:
• Skis are facing forward.
• Ski toe-out (distance A – distance B) is
within specification.
1.
Distance A
2.
Distance B
Ski toe-out (distance A – distance B):
0.0–15.0
mm (0.00–0.59 in)
3. If the alignment is not correct, consult a
Yamaha dealer.
ESU12151
Steering system
Check the handlebar for excessive free play.
To check the handlebar
1.
Push the handlebar up and down and
back and forth.
2.
Turn the handlebar slightly to the right
and left.
If excessive free play is
felt,
consult a Yamaha
dealer.
ESU12171
Drive track and slide runners
Drive track
EWS00480
A broken track, track fittings or debris
thrown by the drive track could be dangerous to an operator or bystanders. Observe
the following precautions:
• Do not allow anyone to stand behind the
snowmobile when the engine is running.
• When the rear of the snowmobile is
raised to allow the drive track to spin, a
suitable stand must be used to support
the rear of the snowmobile. Never allow
anyone to hold the rear of the snowmobile off the ground to allow the drive
track to spin. Never allow anyone near a
rotating drive track.
• Inspect the drive track condition fre-
quently. Replace damaged slide metal.
Replace the drive track if it is damaged
to the depth where fabric reinforcement
material is visible or support rods are
broken.
ure could result in loss of braking ability
and snowmobile control, which could
cause an accident.
Checking the drive track
EWS00490
Otherwise, track damage or
fail-
Do not operate the snowmobile if you find
damage to the drive track, or if it has been
maladjusted. Drive track damage or failure
could result in loss of braking ability and
snowmobile control, which could cause
an accident.
Check the drive track for
deflection,
wear, and
damage.
65
Periodic maintenance
Adjust or replace if necessary. (See the
lowing section for more details.)
Measuring the drive track deflection
1.
Lay the snowmobile on its side.
2.
Measure the drive track deflection with a
spring
scale.
Pull at the center of the drive
track with a force of 100 N (10
|YWWVr-,
1.
Spring scale
kg,
fol-
22 lb).
NOTE:
Measure the gap between the slide runner
and the edge of the track window. Measure
both sides.
1.
Drive track deflection
Standard drive track deflection:
RX10LT 25.0–30.0 mm (0.98–1.18 in)
RX10MT 30.0–35.0 mm (1.18–1.38 in)
RX10MTA 30.0–35.0 mm (1.18–1.38
in)
RX10R 30.0–35.0 mm (1.18–1.38 in)
RX10RTR 30.0–35.0 mm (1.18–1.38
in)
3. If the deflection is incorrect, adjust the
drive track.
Adjusting the drive track
EWS00500
• Be sure to have a Yamaha dealer make
this adjustment.
• Support the snowmobile securely on a
suitable stand before working underneath the snowmobile.
• Operate the engine in a well-ventilated
area.
1.
Lift the rear of the snowmobile onto a suit-
able stand to raise the drive track off the
ground.
2.
Loosen the rear axle nut.
66
1.
Rear axle nut
3. Start the engine and rotate the drive track
one or two turns. Stop the engine.
4.
Check the drive track alignment with the
slide
runners.
If the alignment is incorrect,
align the drive track by turning the left and
right adjusting nuts.
Periodic maintenance
1.
Left adjusting nut
2.
Right adjusting nut
Shifted to right
1.
Slide runner
Drive track
alignment
Left adjusting
nut
Right adjusting nut
Shifted to
right
Tu
r n
o u t
Turn in
Shifted to left
Tu
r n
in
Turn out
1.
Forward
2.
Gap
3. Slide runner
4.
Drive track
5. Slide metal
Shifted to left
Forward
Gap
Slide runner
Drive track
Slide metal
5
67
Periodic maintenance
5. Adjust the drive track deflection to specification.
Drive track
deflection
Left adjusting
nut
Right adjusting nut
ECS00591
More than
specified
Turn in
Turn in
Less than
specified
Turn out
Turn out
CAUTION:
The right and left adjusting nuts should be
turned an equal amount.
6. Recheck alignment and
deflection.
If necessary, repeat steps 3 to 5 until the proper adjustment is achieved.
7. Tighten the rear axle nut.
Rear axle nut tightening torque:
75 Nm (7.5
m·kgf,
54 ft·lb)
Slide runners
Check the slide runners for wear and damage.
If the slide runners reach the wear limit, they
should be replaced.
ECS00350
CAUTION:
Ride on fresh snow frequently. Operating
on ice or hard-packed snow will rapidly
wear the slide runners.
ESU12180
High-profile pattern drive track
RX10MT / RX10MTA
This snowmobile is originally equipped with a
51-mm (2.0-in) high-profile pattern drive track
specifically for use in deep snow riding conditions.
Therefore, avoid prolonged operation on hard
surfaces such as ice, hard-packed snow, dirt,
etc., to extend the life of the track and slide
runners.
1.
Slide runner
2.
Wear limit height
Slide runner wear limit height:
10.5 mm
(0.41
in)
68
ECS00610
CAUTION:
• Only use in deep snow riding condi-
tions.
• Operation on areas with light snowfall,
ice,
hard-packed snow, dirt, or grass will
result in rapid wear or damage to the
track and slide runners from lack of
snow which serves as a lubricant.
ESU12190
Lubrication
Lubricate the following points with the specified grease.
EWS00510
WARNING
• Apply a dab of grease onto the cable end
only. Do not grease the throttle cable because it could become frozen, which
could cause loss of control.
• Be sure to have a Yamaha dealer lubri-
cate the front and rear suspensions.
Lubricant:
Low-temperature grease
1.
Throttle cable end
Periodic maintenance
1.
Lubrication point
1.
Lubrication point
ESU12220
Replacing a headlight bulb
EWS00530
WARNING
Keep flammable products and your hands
away from the hot bulb until it has cooled
down.
1.
Lubrication point
1.
Remove the top
cover.
(See page 45 for
removal procedures.)
2.
Remove the screws, and then remove
the headlight access panel.
69
Periodic maintenance
1.
Screw
1.
Screw
2.
Headlight access panel
3. Disconnect the headlight coupler.
4.
Remove the bulb holder cover.
1.
Bulb holder
6. Remove the bulb.
7. Install the new bulb, and then hook the
bulb holder onto the headlight unit.
Bulb type:
Halogen bulb
ECS00620
CAUTION:
Keep oil and your hands away from the
glass part of the bulb or its life and illumination will be affected.
If the glass is oil stained, thoroughly clean
it with a cloth moistened with alcohol or
lacquer thinner.
1.
Headlight coupler
2.
Bulb holder cover
5. Unhook the bulb holder by pushing it in,
then clockwise.
70
1.
Do not touch the glass part of the bulb.
8. Install the bulb holder cover, and then
connect the headlight coupler.
9. Install the headlight access panel and the
top cover.
Periodic maintenance
ESU12270
Adjusting the headlight beams
1.
Remove the top cover. (See page 45 for
removal procedures.)
2.
Use a Phillips screwdriver to turn the
headlight beam adjusting screw and adjust the headlight beams. To lower the
headlight beams, turn the headlight
beam adjusting screw in direction (a). To
raise the headlight beams, turn the headlight beam adjusting screw in direction
(b).
1.
Headlight beam adjusting screw
3. Install the top cover.
ESU12290
Fittings and fasteners
Check the tightness of the fittings and fasteners.
Tighten in proper sequence and torque if necessary.
ESU12300
Battery
This snowmobile is equipped with a sealedtype (MF) battery, which does not require any
maintenance. There is no need to check the
electrolyte or to add distilled water.
To charge the battery
Have a Yamaha dealer charge the battery as
soon as possible if it seems to have discharged.
to discharge more quickly if the snowmobile is
equipped with electrical accessories.
Keep in mind that the battery tends
EWS00540
Battery electrolyte is poisonous and
dangerous. It contains sulfuric acid and can
cause severe burns. Avoid contact with
skin,
eyes, or clothing.
ANTIDOTE:
• EXTERNAL: Flush with water.
• INTERNAL: Drink large quantities of wa-
ter or milk. Follow with milk of magnesia,
beaten egg, or vegetable oil. Call
physician immediately.
• EYES: Flush with water for 15 minutes
and get prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flame, cigarettes, etc. away. Ventilate when charging or using in an enclosed space. Always shield your eyes
when working near batteries.
KEEP OUT OF THE REACH OF CHILDREN.
ESU12331
EWS00550
Replacing a fuse
Be sure to use the specified fuse. A wrong
fuse could cause electrical system damage or A FIRE HAZARD.
ECS00631
CAUTION:
Be sure to turn the main switch to the off
position and disconnect the negative battery lead to prevent accidental short-circuiting.
1.
Remove the shroud, the left and right
side covers, and the top cover. (See page
45 for removal procedures.)
2.
Remove the headlight unit bolts, discon-
nect the headlight couplers and speed-
ometer coupler, and then remove the
headlight unit.
71
Periodic maintenance
1.
Headlight unit bolt
3. Unhook the air filter case fastener and
disconnect the air temperature sensor
coupler.
1.
Crankcase breather hose clamp
2.
Bypass air hose clamp
3. Crankcase breather hose
4.
Bypass air hose
6. Slide the clamp down, and then disconnect the air filter case drain hose.
1.
Fastener
2.
Air temperature sensor coupler
4.
Loosen the joint clamp screws.
1.
Joint clamp screw
5. Slide the clamps away from the air filter
case,
and then disconnect the crankcase
breather hose and the bypass air hose.
72
1.
Air filter case drain hose clamp
2.
Air filter case drain hose
7. Remove the air filter case.
8. Disconnect the negative battery
lead.
9. Replace the blown fuse with one of the
proper amperage.
1.
Spare fuse
2.
Fuel injection system fuse
3. Main fuse
Periodic maintenance
Specified fuses:
Main fuse:
40.0 A
Fuel injection system fuse:
10.0 A
“HEAD” (headlight) fuse:
20.0 A
“SIG” (signal) fuse:
10.0 A
“DC TERM” (auxiliary DC jack) fuse:
3.0 A
“IGN” (ignition) fuse:
20.0 A
“BACK UP” (backup) fuse:
3.0 A
“FA N ” (radiator fan) fuse:
4.0 A
“ECS” (electronically controlled rear
shock absorber) fuse:
10.0 A
Spare fuses:
20.0 A, 10.0 A, 4.0 A, 3.0 A
10.
Connect the negative battery
11.
Install the air filter case by reversing the
removal steps.
12.
Connect the headlight couplers and
speedometer coupler, and then install the
headlight unit, making sure to insert the
projections on the headlight unit stay into
the slots on the bottom of the headlight
unit.
lead.
1.
“HEAD” (headlight) fuse
2.
“SIG” (signal) fuse
3. “DC TERM” (auxiliary DC jack) fuse
4.
“IGN” (ignition) fuse
5. “BACK UP” (backup) fuse
6.
“FA N
” (radiator fan) fuse
7. Spare fuse
8. “ECS” (electronically controlled rear shock
absorber) fuse
13.
Install the headlight unit bolts, and then
tighten them to the specified torque.
73
Periodic maintenance
Headlight unit bolt tightening torque:
3 Nm (0.3 m·kgf, 2.2 ft·lb)
14.
Install the top cover, the left and right side
covers, and the shroud.
NOTE:
If the fuse immediately blows again, ask a
Yamaha dealer to inspect the snowmobile.
74
Troubleshooting
ESU12381
Engine turns over but does not start
1.
Fuel system
No fuel supplied to combustion chamber
• No fuel in tank: Supply
fuel.
• Clogged fuel line: Clean fuel line.
• Clogged injector: Ask a Yamaha dealer to
inspect.
Fuel supplied to combustion chamber
• Flooded engine: Crank engine or wipe
the spark plugs dry.
2.
Electrical system
Poor spark or no spark
• Spark plugs are dirty with carbon or are
wet: Remove carbon or wipe the spark
plugs dry. Replace if necessary.
• Faulty ignition system: Ask a Yamaha
dealer to inspect.
• T.O.R.S. malfunction: Disconnect the
throttle switch connectors and connect
the wire harness connectors together to
bypass the T.O.R.S.
EWS00560
• Before bypassing the T.O.R.S., make
sure that the throttle returns properly to
the fully closed position.
• The T.O.R.S. is an important safety de-
vice;
in the case of a malfunction, take
the snowmobile to a Yamaha dealer im-
mediately for repair.
3. Compression
Insufficient
• Loose cylinder head nuts: Tighten nuts
properly.
• Worn or damaged gasket: Replace gas-
ket.
• Worn or damaged piston and cylinder:
Ask a Yamaha dealer to inspect.
Discharged battery
If the battery is discharged, the engine can be
started using a fully-charged 12-volt battery
and jumper cables. Two connecting leads
have been provided for jump-starting the
snowmobile. Due to the rubber engine mounting,
the snowmobile frame is not a suitable
grounding point for jump-starting the engine.
EWS00570
• Connect the jumper cables only to the
connecting lead terminals. Do not
connect them to the frame or any wire or
other lead.
• When connecting the jumper cables, do
not contact the jumper cables or
connecting lead terminals to each other or
to the frame or any metal part of the
snowmobile. This can cause electrical
system damage or A FIRE HAZARD.
• Be sure to pull the lead covers back over
the terminals completely. If the terminals are exposed, they could come into
contact with the frame or a metal part of
the snowmobile and this can cause electrical system damage or A FIRE HAZARD.
ECS00650
CAUTION:
Use the connecting leads to jump-start the
snowmobile only. Do not use the connecting leads for any other purpose.
75
Troubleshooting
To start the engine using the booster battery
1.
Apply the parking brake and turn the
main switch to the off position.
2.
Remove the shroud and the right side
cover. (See page 45 for removal procedures.)
3. Remove the red (+) connecting lead from
the lead holder and move it away from
the black (–) connecting
ECS00660
CAUTION:
Be sure to connect the red (+) jumper cable to the red (+) connecting lead and the
black (–) jumper cable to the black (–)
necting lead. Do not reverse the connections.
lead.
con-
5. Connect the other end of the red (+)
jumper cable to the positive (+) terminal
of the booster battery.
6. Connect the black (–) jumper cable to the
negative (–) terminal of the booster battery.
7. Pull the black (–) connecting lead cover
to expose the terminal through the slit in
the cover, and then connect the black (–)
jumper cable to the black (–) connecting
lead.
4.
Pull the red (+) connecting lead cover to
expose the terminal through the slit in the
cover, and then connect the red (+) jumper cable to the red (+) connecting
lead.
76
8. Start the engine.
9. Disconnect the black (–) jumper cable
from the black (–) connecting
then pull the cover completely over the
lead terminal.
10.
Disconnect the black (–) jumper cable
from the negative (–) terminal of the battery used to jump start the engine.
11.
Disconnect the red (+) jumper cable from
the positive (+) terminal of the battery
used to jump start the engine.
12.
Disconnect the red (+) jumper cable from
the red (+) connecting
the cover completely over the lead terminal.
13.
Install the red (+) connecting lead into the
lead holder.
14.
Install the right side cover and the shroud.
lead,
lead,
and
and then pull
Troubleshooting
NOTE:
Make sure that both the red (+) connecting
lead and the black (-) connecting lead are
seated securely in the lead holders.
Electric starter does not operate or
operates slowly
• Engine stop switch is pushed in: Pull it out.
• Faulty wire connections: Check connections or ask a Yamaha dealer to inspect.
• Discharged battery: Charge battery or see
“Starting the engine with a discharged battery” above.
• Seized engine: Seizure is caused by poor
lubrication,
Ask a Yamaha dealer to inspect.
Engine power is low
• Low coolant temperature indicator light is
flashing:
• Faulty spark plugs: Clean or replace the
spark plugs.
• Improper fuel flow: See “Engine turns over
but does not start-Fuel system” above.
• Incorrect V-belt clutch settings for altitude
or conditions: Ask a Yamaha dealer to inspect.
Engine constantly backfires or mis-
fires
• Faulty spark plugs: Replace the spark
plugs.
• Clogged fuel system: See “Engine turns
over but does not start-Fuel system”
above.
• Malfunctioning T.O.R.S.: See “Engine turns
over but does not start-Electrical system”
above.
Engine overheats
• Insufficient coolant: Add coolant.
• Air in cooling
tem or ask a Yamaha dealer to inspect.
• Leaking coolant: Ask a Yamaha dealer to
inspect.
inadequate
Warm the engine up.
system:
fuel,
or an air leak.
Bleed the cooling sys-
77
Troubleshooting
Snowmobile does not move •
• Malfunctioning V-belt
dealer to inspect.
• Drive track does not
caught
in the
have melted to the slide metal due to lack of
lubrication.
• Tight, loose,
Yamaha dealer
V-belt twists
• Improper V-belt: Replace with the correct Vbelt.
• Incorrect V-belt clutch offset: Ask a Yamaha
dealer to inspect.
• Loose
Yamaha dealer
V-belt slips
• Oily
or
ary sheave assembly surfaces: Clean.
• Problem with
twists” above.
Engine does
properly
• Worn
belt
or
• Incorrect V-belt clutch settings
or conditions:
spect.
• Worn
Ask a Yamaha dealer
• Worn or sticking secondary sheave assembly: Ask a Yamaha dealer
Noise
or
chain and sprockets
• Broken V-belt clutch components:
Yamaha dealer
• Worn or damaged bearings: Ask a Yamaha
dealer to inspect.
• Worn or damaged V-belt with flat
place.
• Worn
Ask a Yamaha dealer
or
or
broken engine mount(s):
or
dirty V-belt
not
or
engages harshly
or
damaged V-belt: Replace
ask a Yamaha dealer
or
sticking primary sheave assembly:
excessive vibration
or
damaged idler wheels
clutch:
Ask a Yamaha Yamaha dealer
move:
Foreign object is
drive track,
broken drive chain:
to
inspect.
to
inspect.
becomes extremely
the
upshift
Ask a
to
inspect.
or
slide runners
or
primary and second-
driveline:
Yamaha dealer
to
to
See
or
downshift
to
inspect.
inspect.
to
inspect.
inspect.
for
in
spots:
or
Ask a
Ask a
hot
“V-belt
the V-
altitude
to in-
drive
Ask a
Re-
shafts:
Worn
or
damaged drive track:
to
inspect.
Ask a
78
Storage
ESU12430
Long-term storage requires some preventive
procedures to guard against deterioration.
Cleaning
Thoroughly clean the snowmobile, inside and
out, to remove the corrosive salts and acids
that can accumulate. Use Yamaha Mud,
Grease,
product, to loosen mud, grease, and grime.
Wash with mild soap, then rinse and dry completely.
Lubrication
Lubricate moving parts, suspension linkage,
and pivot points. Use the grease or lubricant
specified in the MAINTENANCE section, or
Yamaha Lube-Zall general-purpose lubricant.
Proper lubrication fights corrosion while it reduces friction.
Fuel system
Add Yamaha Fuel Stabilizer and Conditioner,
or an equivalent stabilizer, to the fuel tank to
help prevent fuel oxidation and gum and varnish deposits, and to inhibit corrosion in the
fuel system and injectors. In areas where oxygenated fuel (gasohol) is used, consult a
Yamaha dealer.
Engine
Proper storage of the engine is essential to
prevent costly rust and corrosion damage to
internal engine components. This is more important in areas where oxygenated fuel (gasohol) is used, because the alcohol content in
the fuel increases the chance for water to enter the engine. Use Yamaha Stor-Rite Engine
Fogging Oil, or an equivalent fogging oil, to
protect both the combustion chamber and
crankshaft from corrosion. An alternate method is to remove the intake silencer and squirt
oil into the throttle bodies while the engine is
running.
and Engine Cleaner, or an equivalent
ECS00680
CAUTION:
Do not attempt to store the snowmobile by
simply starting the engine occasionally
during the storage period. This can cause
more harm than good! Moisture and acids
form during combustion which can actual-
ly increase the chance for corrosion damage during the storage period.
Surface protection
Apply a coat of wax to painted surfaces. Apply
suitable protectants to the exterior of the engine,
drive track, and to other metal, plastic,
and rubber parts.
Battery
EWS00610
wWARNING
• Never smoke around the battery while it
is being charged. Sparks may ignite the
hydrogen gas created by the battery.
• Disconnect the negative lead first, then
the positive lead from the battery.
• Connect the positive lead first, then the
negative lead to the battery when installing the battery.
• Never connect the battery to or discon-
nect it from the snowmobile while it is
being charged. Sparks may ignite the
hydrogen gas created by the battery.
• Make sure that the battery terminals are
tight.
Remove the battery from the snowmobile.
Store it in a
(32 °F), but less than 30 °C (90 °F). Check the
condition of the battery once a month, and
charge it as necessary.
ECS00690
CAUTION:
• Always keep the battery charged. Stor-
ing a discharged battery can cause permanent battery damage.
cool,
dry place that is above 0 °C
79
Storage
• To charge a sealed-type (MF) battery, a
special (constant-voltage) battery
charger is required. Using a conventional battery charger will damage the battery. If you do not have access to a
sealed-type (MF) battery charger, have a
Yamaha dealer charge your battery.
• Do not charge the battery quickly.
Charge the battery for 10 hours at 1.2
amperes.
Drive track
Loosen the drive track and block up the chassis so that the track is suspended above the
ground.
V-belt
Remove the V-belt and store separately.
Storage
Store the snowmobile in a dry, well-ventilated
place out of direct sunlight. Put a fabric cover
over the snowmobile, preferably one that is
designed for it. Do not use a plastic or vinyl
cover—condensation could be trapped underneath which could increase the chances of
rusting.
Returning to service after storage
When returning your snowmobile to service,
install the V-belt and battery and adjust the
drive track.
Remove the spark plugs and clean or replace
them if necessary. Perform all other pre-operation and seasonal maintenance checks listed in the periodic maintenance chart.
NOTE:
Before installing the battery, have a Yamaha
dealer inspect and fully charge it.
For peak performance, it is recommended
that you have your snowmobile checked and
tuned by a Yamaha dealer. The dealer has
the experience and training to help you get
the maximum performance and use out of
your Yamaha snowmobile.
80
Specifications
ESU12462
Dimensions:
Overall length:
RX10LT 3000 mm (118.1 in)
RX10MT 3335 mm (131.3 in)
RX10MTA 3335 mm (131.3 in)
RX10R 2805 mm (110.4 in)
RX10RTR 2805 mm (110.4 in)
Overall width:
RX10LT 1225 mm (48.2 in)
RX10MT 1165 mm (45.9 in)
RX10MTA 1165 mm (45.9 in)
RX10R 1225 mm (48.2 in)
RX10RTR 1225 mm (48.2 in)
Overall height:
RX10LT 1160 mm (45.7 in)
RX10MT 1185 mm (46.7 in)
RX10MTA 1185 mm (46.7 in)
RX10R 1160 mm (45.7 in)
RX10RTR 1075 mm (42.3 in)
Dry weight:
RX10LT 262.0 kg (578 lb)
RX10MT 281.0 kg (619 lb)
RX10MTA 277.0 kg (611 lb)
RX10R 255.0 kg (562 lb)
RX10RTR 253.0 kg (558 lb)
Ski stance:
RX10LT 1086 mm (42.8 in)
RX10MT 980 mm (38.6 in)
RX10MTA 980 mm (38.6 in)
RX10R 1086 mm (42.8 in)
RX10RTR 1086 mm (42.8 in)
Engine:
Type:
Liquid cooled 4-stroke, 20 valves
Cylinder arrangement:
Backward-inclined parallel 4-cylinder
Displacement:
998.0 cm³
Bore × stroke:
74.0
× 58.0
mm
Idling speed:
1400–1600
Engine oil:
Recommended grade:
API service SG type or
standard MA
Type:
SAE 0W-30
(2.91 ×
r/min
2.28 in)
higher,
JASO
Fuel injection:
Model × quantity:
39EIDW × 2
Manufacturer:
MIKUNI
Fuel:
Type:
REGULAR UNLEADED GASOLINE
ONLY
Minimum pump octane (R+M)/2:
86
Starting system:
Electric starter
Chassis:
Drive track:
Material:
Molded rubber, fiberglass-rod reinforced
Type:
Internal drive type
Width:
RX10LT
381
RX10MT 406 mm (16.0 in)
RX10MTA 406 mm (16.0 in)
RX10R
RX10RTR
Deflection:
RX10LT 25.0–30.0 mm (0.98–1.18 in)
RX10MT 30.0–35.0 mm (1.18–1.38 in)
RX10MTA 30.0–35.0 mm (1.18–1.38 in)
RX10R 30.0–35.0 mm (1.18–1.38 in)
RX10RTR 30.0–35.0 mm (1.18–1.38 in)
Length on ground:
RX10LT 960 mm (37.8 in)
RX10MT 1201 mm (47.3 in)
RX10MTA 1201 mm (47.3 in)
RX10R 768 mm (30.2 in)
RX10RTR 723 mm (28.5 in)
Rear suspension:
Suspension type:
Slide rail suspension
Track sprocket wheel:
Material:
Polyethylene
Number of teeth:
RX10LT 9
RX10MT 7
RX10MTA 7
RX10R 9
RX10RTR 9
mm (15.0 in)
381
mm (15.0 in)
381
mm (15.0 in)
81
Specifications
Transmission:
Clutch type:
Automatic centrifugal engagement
Ratio range:
3.80–1.00
Sheave distance:
267.0–270.0 mm (10.51–10.63 in)
Sheave offset:
13.5–16.5 mm (0.53–0.65 in)
Engagement speed (Subject to change
according to elevation settings.):
3300–3700
Shift speed [Subject to change according to
elevation settings. Usually achieved after
approximately 800m (0.5 mi) traveled.]:
10250–10750
Drive chain type:
Silent chain enclosed in oil bath
Reverse system:
RX10LT Yes
RX10MT Yes
RX10MTA No
RX10R Yes
RX10RTR Yes
Secondary reduction ratio:
RX10LT 38/23 (1.65)
RX10MT 40/20 (2.00)
RX10MTA 40/20 (2.00)
RX10R 38/24 (1.58)
RX10RTR 38/22 (1.73)
Secondary reduction ratio [R]:
RX10LT 2.17
RX10MT 2.50
RX10R 2.08
RX10RTR 2.27
Fuel tank capacity:
35.6 L (9.41 US gal) (7.83 Imp.gal)
Engine oil quantity:
With oil filter cartridge replacement:
3.0 L (3.17 US qt) (2.64 Imp.qt)
Without oil filter cartridge replacement:
2.8 L (2.96 US qt) (2.46 Imp.qt)
Total amount:
3.8 L (4.02 US qt) (3.34 Imp.qt)
Brake:
Type:
Hydraulic disc type (ventilated disc)
Operation:
Handle
:1
r/min
r/min
lever,
left-hand operated
Throttle:
Operation:
Handle
lever,
right-hand operated
Electrical system:
Ignition system:
T.C.I.
Spark
plug:
Manufacturer:
NGK
Model:
CR9EB
Gap:
0.7–0.8
Battery:
Model:
Voltage, capacity:
Ten-hour rate amperage:
Bulb voltage, wattage × quantity:
Headlight:
Headlight bulb type:
Tail/brake light:
Meter lighting:
High beam indicator light:
Coolant temperature indicator light:
Warning light:
Low coolant temperature indicator light:
mm (0.028–0.031 in)
YTX14-BS
12
V,
12.0
Ah
1.2 A
12 V, 60/55 W × 2
Halogen bulb
LED
LED
LED
LED
LED
LED
82
ESU12480
Identification number records
Record the frame serial number, engine serial
number (Primary ID), and key identification
number in the spaces provided for assistance
when ordering spare parts from a Yamaha
dealer.
Also,
record and keep the ID numbers in a
separate place in case the snowmobile is stolen.
Frame serial number
The frame serial number is the seventeendigit number stamped on the frame of the
snowmobile.
Consumer information
1.
Engine serial number
Key identification number
The key identification number is stamped in
the location as shown.
1.
Frame serial number
Engine serial number (Primary ID)
The engine serial number is stamped in the
location as shown.
1.
Key identification number
83
Consumer information
SU12500
YAMAHA MOTOR CORPORATION,
ED WARRANTY
Yamaha Motor Corporation,
new Yamaha snowmobiles purchased from
rized Yamaha snowmobile dealer in the continental United
States will be free from defects in material and workmanship for the period
stated limitations.
WARRANTY PERIOD:
1.
All
Yamaha snowmobiles shall
term
a special early-season extension
2.
All Yamaha snowmobile clutch components are war-
ranted against abnormal wear
the date
extension
DURING
thorized Yamaha snowmobile dealer
repair or replace, at Yamaha’s option, any part adjudged
defective
material from the factory. Parts used
will
be
warranted
warranty period.
come the property
GENERAL EXCLUSIONS
include any failures to the machine caused by:
1.
Competition,
use.
2.
Operation on surfaces other than snow
3. Installation
itatively equivalent to genuine Yamaha parts.
4.
Abnormal strain, neglect,
5. Lack
6. Accident
7. Modification
of
of
one (1) year from the date
of
purchase, plus a special early-season
(if
applicable).
THE
PERIOD
by
Yamaha
for the
All
racing,
of
parts or accessories that are not
of
proper maintenance.
or
collision damage.
to
U.S.A.
hereby warrants that
time stated
parts replaced under warranty
of
Yamaha Motor Corporation,
original parts.
herein,
subject to certain
be
warranted
of
purchase, plus
(if
applicable).
for
one
(1)
OF
WARRANTY any au-
will,
free
due to
faulty workmanship
in
balance
or non-Yamaha authorized rental
or
warranty repairs
of the
snowmobile’s
from this warranty shall
or
abuse.
an
autho-
for a
year from
of
charge,
or
be-
U.S.A.
ice.
qual-
U.S.A.
2.
Give notice
dealer
days after discovery, and make
able
dealer’s place
nearest authorized Yamaha dealer through your
local telephone directory.
WARRANTY TRANSFER: To
ing warranty from
quent purchaser,
inspected and registered
Yamaha snowmobile dealer.
to remain in effect, this inspection and registration must
take place within ten (10) days after ownership transfer.
An inspection and registration fee will be charged for this
service.
SNOWMOBILE LIMIT-
to an
of
at
that time
authorized Yamaha snowmobile
any and all apparent defects within ten (10)
for
inspection and repairs
of
business.
the
original purchaser
it is
imperative that
for
the
machine avail-
You may
transfer any remain-
to
the
warranty
by
order
an authorized
for
In
locate your
any subse-
machine
this warranty
at
such
be
EMISSION CONTROL SYSTEM WARRANTY
Yamaha Motor Corporation,
ultimate purchaser and each subsequent purchaser
each 2006
ered
and equipped
all U.S. emissions standards applicable
manufacture and that
and workmanship which would cause
these standards within
below. Failures other than those resulting from defects
in material
result
nance are not covered by this warranty.
All Models
Thirty (30) months from the original purchase date
and
by
of
later model Yamaha snowmobile cov-
this warranty that the vehicle
so as to
or
workmanship which arise solely
owner abuse and/or lack
USA
also warrants
is
at
the time
of
designed, built,
of
at the
it not to
proper mainte-
conform
it is
free from defects in materials
the
period listed immediately
to the
of
sale with
time
of
meet
as a
SPECIFIC EXCLUSIONS
include parts replaced
maintenance including oil, spark plugs, clutch drive belts,
slide runners, and track.
THE CUSTOMER’S RESPONSIBILITY under this
warranty shall be to:
1.
Operate and maintain the snowmobile as specified
the appropriate Owner’s Manual.
from this warranty shall
due to
normal wear
or
routine
84
in
Consumer information
YAMAHA MOTOR CORPORATION,
MAKES NO OTHER
EXPRESSED OR IMPLIED. ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND
NESS FOR A PARTICULAR PURPOSE WHICH
EXCEED THE OBLIGATIONS AND TIME LIMITS
STATED
DISCLAIMED BY YAMAHA MOTOR CORPORATION,
WARRANTY.
SOME STATES DO NOT ALLOW LIMITATIONS
ON HOW LONG AN IMPLIED WARRANTY
LASTS, SO THE ABOVE LIMITATION MAY
NOT APPLY TO YOU. ALSO EXCLUDED FROM
THIS WARRANTY ARE ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES INCLUDING
LOSS OF USE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE EXCLUSION MAY NOT
APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE
OTHER RIGHTS WHICH VARY FROM STATE
TO STATE.
SPECIAL EARLY-SEASON WARRANTY EXTENSION
A special warranty extension
Yamaha snowmobiles purchased between June
December 1.
All new Yamaha snowmobiles purchased between June
1
November 30
U.S.A.
and
December 1 will have
YAMAHA MOTOR CORPORATION,
WARRANTY
IN
THIS WARRANTY
AND EXCLUDED FROM THIS
is
available
the
of
the following year.
Cypress, California 90630
warranty extended
Post Office Box 6555
U.S.A.
OF ANY KIND,
FIT-
ARE
HEREBY
for all new
1 and
U.S.A.
to
WARRANTY QUESTIONS AND
ANSWERS
Q. What costs are my responsibility during the warranty
period?
A.
The
customer’s responsibility includes
normal maintenance services, non-warranty repairs,
accident and collision damages, as well as oil, spark
plugs,
clutch drive belts, and slide runners.
Q. What
are
some examples
glect,
or
A. These terms are general and overlap each other
Q. May I perform any
A. Yes,
Q. Under what conditions
A. Clutches
Q. Will
A.
No. The
abuse?
areas.
Specific examples include: Running
chine
out of
snow, operation on surfaces other than snow
operating
part which causes another part
you have
maintenance, please contact your dealer for advice.
tenance shown
having the dealer do them?
follow
Service Manual.
items requiring special tools or equipment be done by
a Yamaha snowmobile dealer.
warranty?
use.
service
wear is, however, covered
date
possesses criteria
wear.
operate
specified
“voided” or “canceled.” However,
is caused by operation
shown in the Owner’s Manual, that failure may not be
covered under warranty.
oil, hitting
the
machine with a broken
any
specific questions
in the
if
you are a qualified snowmobile mechanic and
the
procedures specified
We do
as
well
Normal wear is not covered under warranty such
is the
customer’s responsibility. Abnormal
of
purchase. Your Yamaha snowmobile dealer
the
warranty
or
maintain
in
the Owner’s Manual?
warranty
of
“abnormal” strain,
an
object submerged under
or
all
of
the recommended main-
Owner’s Manual instead
recommend, however, that
is
the clutch
as
clutch components wear with
for
as to
what constitutes abnormal
be
void
or
my new
on a new
or
maintenance other than
all
costs
the ma-
or
to
in the
one
canceled
Yamaha exactly
Yamaha cannot
damaged
fail,
and
so
on
operation
Owner’s
not
covered
(1)
year from
if I do not
if
a particular failure
or
of
ne-
in
ice,
on.
or
of
and
by
the
as
be
as
If
85
Consumer information
Q. What responsibility does my dealer have under this
warranty?
A. Each Yamaha snowmobile dealer is expected to:
1.
Completely set up every new machine before sale.
2.
Explain the operation, maintenance, and warranty
requirements to your satisfaction at the time of sale,
and upon your request at any later date.
3. In addition, each Yamaha snowmobile dealer is held
responsible for his setup, service and warranty repair
work.
Q. Whom should I contact if I have further questions
about this warranty?
A. Your Yamaha snowmobile dealer has the informa-
tion and experience necessary to answer almost any
questions about this warranty. If the dealer is not able
to do so, he is expected to contact Yamaha Motor
Corporation,
U.S.A.,
for clarification or assistance.
CUSTOMER SERVICE
If your machine requires warranty service, you must take
it to any authorized Yamaha snowmobile dealer within
the continental United States. Be sure to bring your
warranty identification card or other valid proof of the
original date of purchase. If a question or problem arises
regarding warranty, first contact the owner of the dealership.
Since all warranty matters are handled at the dealer
level,
this person is in the best position to help
are still not satisfied and require additional assistance,
please write:
you.
If you
When contacting Yamaha Motor Corporation,
U.S.A.
be sure to include the model,
serial number, names, dates, and receipts.
CHANGE OF ADDRESS
The federal government requires each manufacturer of a
motor vehicle to maintain a complete, up-to-date list of all
first purchasers against the possibility of a safety-related
defect and recall. This list is compiled from the purchase
registrations sent to Yamaha Motor Corporation,
by the selling dealer at the time of your purchase.
If you should move after you have purchased your new
snowmobile, please advise us of your new address by
sending a postcard listing your snowmobile model name,
engine serial number, dealer number (or dealer’s name)
as it is shown on your warranty registration identification,
your name and new mailing address. Mail to:
YAMAHA MOTOR CORPORATION,
WARRANTY DEPARTMENT
P.O. Box 6555
Cypress, California 90630
This will ensure that Yamaha Motor Corporation,
has an up-to-date registration record in accordance with
federal law.
U.S.A.
U.S.A.
U.S.A.
YAMAHA MOTOR CORPORATION,
CUSTOMER RELATIONS
DEPARTMENT
P.O. Box 6555
Cypress, California 90630
86
U.S.A.
ESU12510
YAMAHA EXTENDED SERVICE (Y.E.S.)
Keep your Yamaha protected even after your
warranty expires with genuine Yamaha Extended
Service (Y.E.S.).
• Y.E.S. is designed and administered by
Yamaha Motor Corporation to provide maximum owner satisfaction. You get uninter-
rupted factory-backed coverage for extra
peace of mind.
• Y.E.S. is
• Y.E.S. is designed and administered by the
• You don't have to pay anything for covered
• In addition, Travel and Recreation Interruption
• Y.E.S. coverage is honored at any authorized
• Y.E.S. coverage is transferable to a new
flexible.
for you: 12 months, 24 months, 36 months, or
every 48 months (on selected models) beyond
your warranty period.
same Yamaha people who handle your war-
ranty—and it shows in the comprehensive
coverage benefits. There are no mileage
tations, and Y.E.S. covers manufacturing
defects just like the warranty. See the sample
contract at your Yamaha dealer to see how
comforting uninterrupted factory-backed protection can be.
repairs. There's no deductible to pay, and
repairs aren't "pro-rated." You don't have any
"out-of pocket" expenses for covered repairs.
Protection (TRIP) is included at no extra cost.
TRIP gives you up to $150 reimbursement
per occurrence for any reasonable expenses
you incur because your Yamaha needs covered service: replacement vehicle rental,
emergency towing, phone calls, even food
and lodging when you are away from home.
This superb coverage goes into effect when
you purchase Y.E.S., so it applies to any war-
ranty repairs as well as covered repairs during your entire Y.E.S. plan period.
Yamaha dealer nationwide.
owner if you sell or trade-in. That can make
your Yamaha much more valuable!
You choose the plan that's right
limi-
Consumer information
This excellent Y.E.S. plan coverage is only available to Yamaha owners like you, and only while
your Yamaha is still within the Yamaha Limited
Warranty period. So visit your authorized
Yamaha dealer to get all the facts. He can show
you how easy it is to protect your investment with
Yamaha Extended Service.
We urge you to act now. You'll get the excellent
benefits of TRIP coverage right away, and you'll
rest easy knowing you'll have strong factorybacked protection even after your Yamaha
ited Warranty expires. See your dealer today!
A special note:
If visiting your dealer isn't convenient, contact
Yamaha toll free at 1-866-937-3983 (866 YESEXTD) or visit our web site. All you need to do is
provide your vehicle's Primary ID number (your
Tunnel number). We'll be happy to help you get
the Y.E.S. coverage you need.
Yamaha Service Marketing
P.O. Box 6555
Cypress, CA 90630
1-866-937-3983
www.yamaha-motor.com
YAMAHA EXTENDED SERVICE
Lim-
87
Index
A
Air
filter,
checking 50
Auxiliary DC jack 18
B
Battery 71
Brake and parking brake 62
Brake lever 18
Break-in 33
C
Control rods, adjusting 28
Coolant temperature warning indicator
Cooling system 56
D
Drive chain housing 60
Drive guard 21
Drive track and slide runners 65
Drive track, high-profile pattern 68
Drive track life, maximizing 37
Driving 38
E
Engine idling speed, adjusting 48
Engine oil and oil filter cartridge 52
Engine overheating prevention system
Engine stop switch 17
F
Fittings and fasteners 71
Front shock absorber air pressure,
adjusting (RX10RTR / RX10MTA) 24
Fuel 22
Fuel level warning indicator 16
Fuel meter and grip/
thumb warmer level indicator 14
Fuse,
replacing 71
G
General maintenance and
lubrication chart 43
Grip/thumb warmer adjustment switch 17
H
Headlight beam switch 17
Headlight beams, adjusting 71
Headlight bulb, replacing 69
High beam indicator light 14
High-altitude settings 52
I
Identification numbers 83
....
....
L
Label locations 4
Low coolant temperature indicator light
Lubrication 68
M
Main switch 10
O
Oil level warning indicator 16
P
Parking brake lever 19
16
Part locations 7
Periodic maintenance chart
for the emission control system 41
Pre-operation check list 31
R
Rear carrier (RX10MT / RX10MTA) 22
Rear suspension damping force,
adjusting
(RX10R / RX10RTR / RX10LT) 27
Rear suspension damping force remote
adjustment dial (RX10R / RX10LT) 20
Rear suspension spring preload,
10
adjusting 26
Riding your snowmobile 34
S
Safety information 1
Self-diagnosis device 16
Shift lever (RX10R / RX10RTR /
RX10MT / RX10LT) 20
Shroud and covers 21
Shroud and covers,
removing and installing 45
Ski spring preload, adjusting
(RX10R / RX10MT / RX10 LT) 24
Skis and ski runners 64
Spark plugs, checking 47
Specifications 81
Speedometer unit 12
Starting the engine 33
Steering system 65
Stopping the engine 40
Storage 79
Storage compartment 22
Strap (RX10MT / RX10MTA) 38
Suspension 23
...
14
T
Throttle cable free play, adjusting 48
Throttle lever 10
Throttle override system (T.O.R.S.) 10
Throttle override system (T.O.R.S.),
checking 50
Tool kit 45
Transporting 40
Troubleshooting 75
V
Valve clearance 52
V-belt 57
V-belt holders 22
Index
YAMAHA
YAMAHA MOTOR CO., LTD.
PRINTED IN JAPAN
2007.03-0.4x1 CR PRINTED ON RECYCLED PAPER
Loading...
