YAMAHA F80A ’02, F100A’02 PARTS CATALOGUE 02

F80A ’02(67G1) F100A’02(67F1)

2A67G–300F1

FOREWORD

ThisParts Catalogueisrelatedtotheparts forthemodel(s)inthebelow frame. Whenyouare orderingreplacement parts, please refer tothis Parts Catalogue and quote both part numbers andpart namescorrectly.

F80A’02(67G1), F100A’02(67F1)

1. Modifications or additions which have been made after issue of the Parts Catalogue will be announced in the Yamaha Parts News. It is advisable that you make necessary corrections tothe Parts Catalogue according to the Yamaha Parts News.

2. Abbreviations The Following abbreviations are used in this Parts Catalogue.

“UR” Use specified parts number. “UN” Use as many as needed. “AP” Alternate Parts “LM” Local Made

(Parts need to be ordered locally)

“O/S”Over Size

3. Parts, which are to be supplied in an assembly,are listed with a dot(.) in front of the part name as shown below.

EXAMPLE

CARBURETOR ASSY .JET, PILOT .NOZZLE, MAIN

4. Number ofcomponent for assembly The numeral appearing to the right of each component part indicates the quantity of parts for each assembly unit.

EXAMPLE

PART NO. DESCRIPTION REMARKS 6E0–85500–70 C.D.I. MAGNETO ASSY 1 6E0–85550–70 .ROTOR ASSY 1 6E0–15723–00–94..PULLY, STARTER 1

EHT

5. Quantity Column Information

NAME for Q’TY COLUMN

F80 F80AET F100 F100AET

6. Applicable Starting Serial No. and Color Code

1) Engine Starting Sserial No.

F80AET 67G L :307147

2) Color Code

Color Code

004D DARK BLUISH GRAY METALLIC 2 DBNM2

7. Note that the illustrations for reference in finding parts numbers, not to be used forassembling. When assembling, please use the applicable service manual.

8. The asterisk (*) before a reference number indicates modification items after the first edition.

Color Name Abbreviation

APPLICABLE MODEL

F100AET 67F L :314787

SHEET 1/2

TOP COWLING A4.....................................

CYLINDER. CRANKCASE 1 A5..........................

CRANKSHAFT. PISTON A7..............................

CYLINDER. CRANKCASE 2 B1..........................

VALVE B3.............................................

INTAKE B6............................................

CARBURETOR 1 B7....................................

CARBURETOR 2 C3....................................

CARBURETOR 3 C4....................................

FUEL 1 C5............................................

FUEL 2 C7............................................

GENERATOR D1.......................................

ELECTRICAL 1 D2.....................................

ELECTRICAL 2 D4.....................................

ELECTRICAL 3 D6.....................................

STARTING MOTOR E1..................................

BOTTOM COWLING E3.................................

STEERING 1 E5.......................................

STEERING 2 F1.......................................

STEERING FRICTION F3...............................

CONTROL F4.........................................

BRACKET 1 F6........................................

INDEX

NUMERICAL INDEX G1.................................

SHEET

BRACKET 2 A4*........................................

OPTIONAL PARTS A6*..................................

POWER TRIM & TILT ASSY 1 A7*.........................

POWER TRIM & TILT ASSY 2 B4*.........................

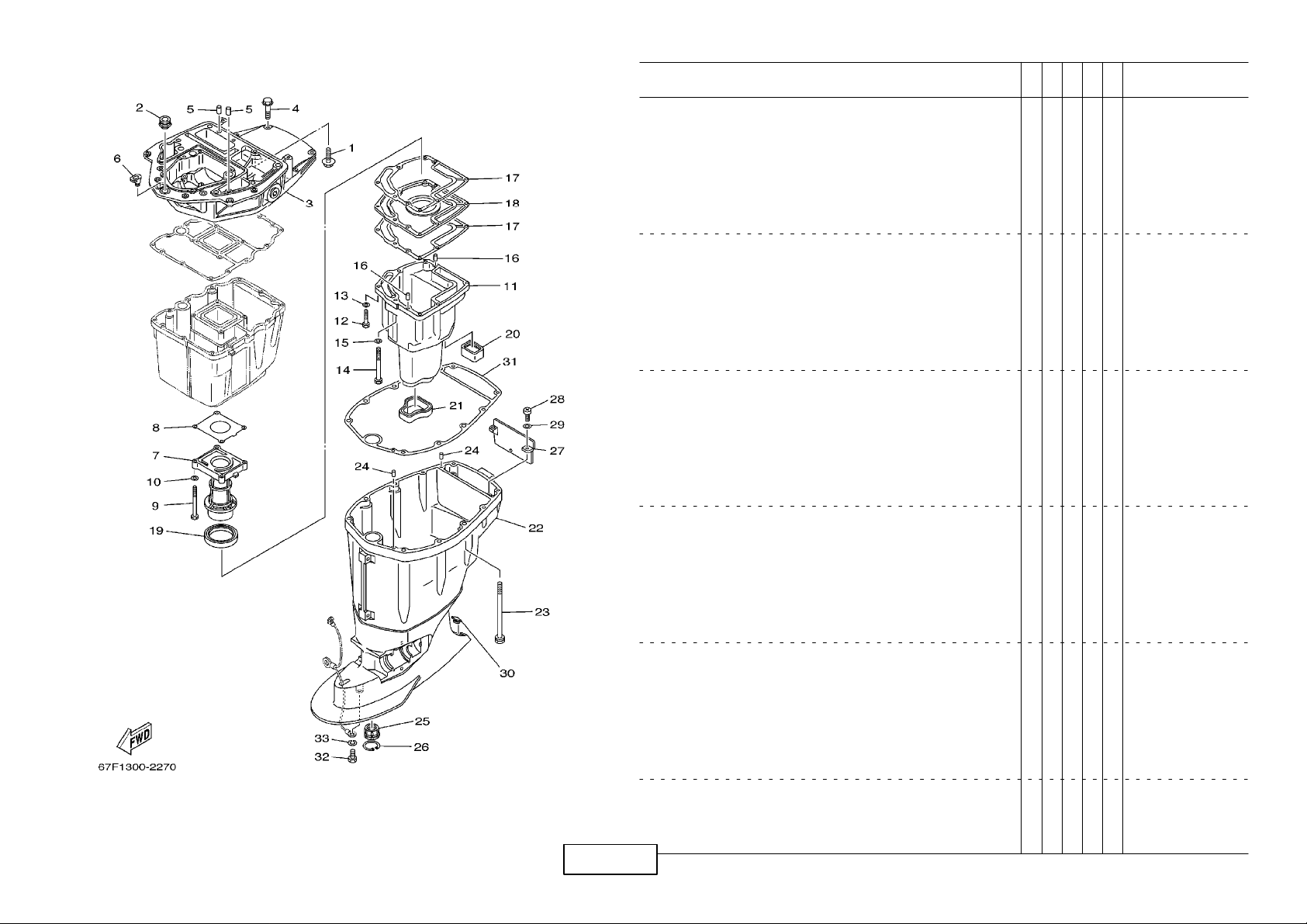

UPPER CASING B5*....................................

OIL PAN B7*............................................

LOWER CASING. DRIVE 1 C1*...........................

LOWER CASING. DRIVE 2 C4*...........................

FUEL TANK C6*........................................

STEERING GUIDE C7*..................................

REMOTE CONTROL BOX D1*............................

REMOTE CONTROL ASSY D2*...........................

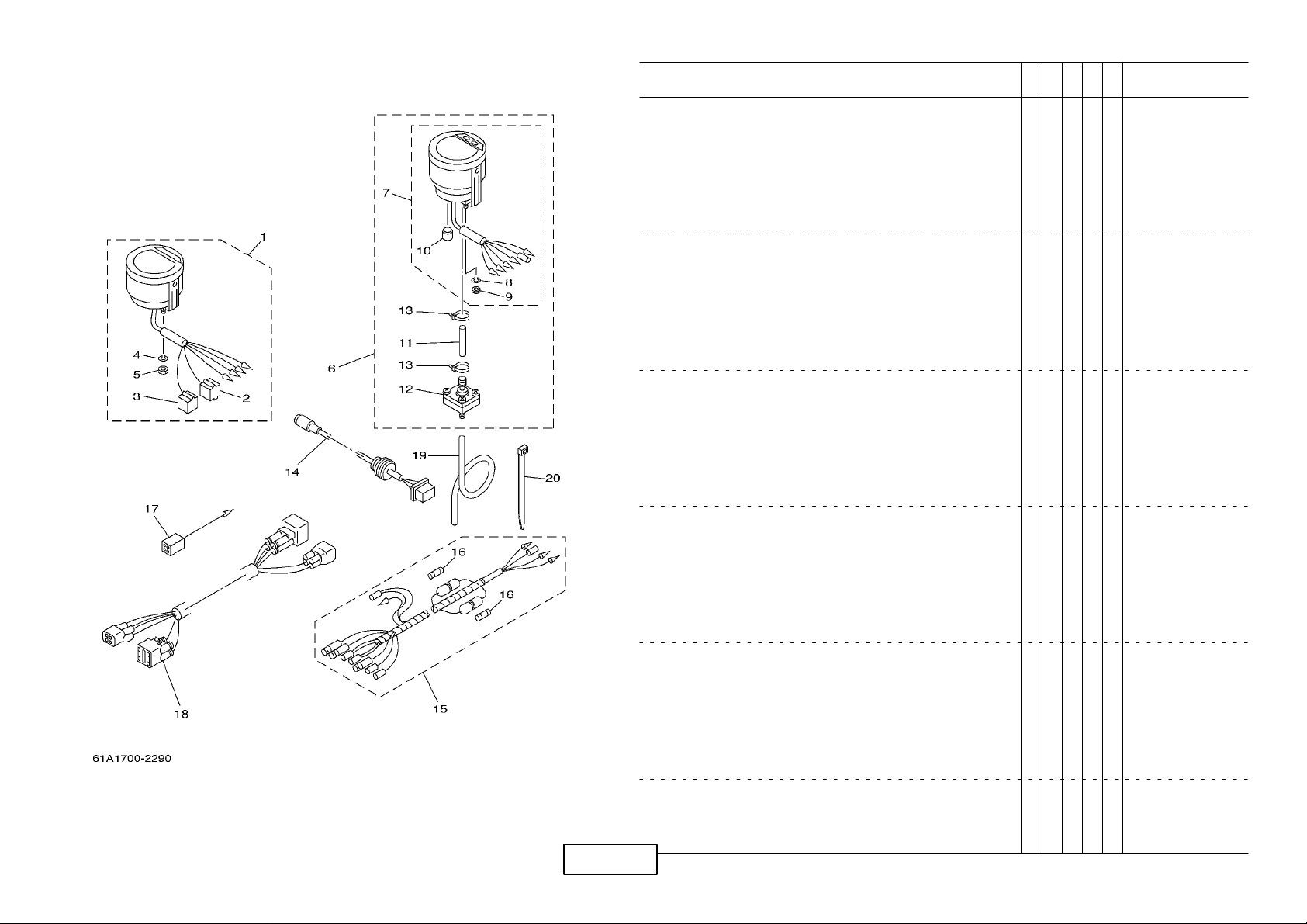

METER D5*............................................

REPAIR KIT 1 D6*.......................................

REPAIR KIT 2 D7*.......................................

REPAIR KIT 3 E1*.......................................

2/2

INDEX

NUMERICAL INDEX G1*.................................

FIG. 1 TOP COWLING CAPOT SUPERIEUR

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 67F–42610–10–4D TOP COWLING ASSY 1

CAPOT (ENS.)

67G–42610–10–4D T OP COWLING ASSY 1

CAPOT (ENS.)

2 67F–42647–00 .HOLDER, CLAMP BAND 1 1

.SUPPORT, SANDOW DE SERRAGE

3 92990–06100 .WASHER, SPRING 4 4

.RONDELLE, GROWER

4 95380–06600 .NUT, HEXAGON 4 4

.ECROU

5 67F–42652–00 .HOOK 2 2

.CROCHET

6 97095–06012 .BOLT 4 4

.BOULON

7 92995–06600 .WASHER 4 4

.RONDELLE

8 67F–42649–00 .HOLDER, CLAMP BAND 1 1

.SUPPORT, SANDOW DE SERRAGE

9 67F–42662–00 .DAMPER 3 3

.AMORTISSEUR

10 67F–42613–00–4D .MOLDING, AIR DUCT 1 1

.MANCHON A AIR

11 90179–06M24 .NUT 4 4

.ECROU

12 61N–42628–00 .SEAL 1 1

.JOINT

13 67F–42615–00 .SEAL 1 1

.JOINT

14 67F–42677–10 .GRAPHIC, FRONT 1

.ADHESIF, AVANT

67G–42677–10 .GRAPHIC, FRONT 1

.ADHESIF, AVANT

15 67F–42678–10 .GRAPHIC, REAR 1

.ADHESIF, ARRIERE

67G–42678–10 .GRAPHIC, REAR 1

.ADHESIF, ARRIERE

16 67F–W0070–10 .GRAPHIC SET 1 1

.JEU DIEMBLEMES

17 67F–42681–10 .MARK, COWLING 1 1

.ADHESIF, CAPOT

18 67F–42682–10 .MARK, COWLING 1 1

.ADHESIF, CAPOT

19 67F–42628–00 .SEAL 2 2

.JOINT

20 67F–13434–02 LABEL, CAUTION 1 1

ETIQUETTE, ATTENTION

F80

F100

FIG. 2 CYLINDER. CRANKCASE 1 CYLINDRE.CARTER 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 67F–W009B–04–1S CYLINDER BLOCK ASSY 1 1

CYLINDRE GROUPE (ENS.)

2 67F–15100–03–1S CRANKCASE ASSY 1 1

CARTER DE MOTEUR COMPLET

3 93606–12019 .PIN, DOWEL 10 10

.GOUJON

4 90119–10M88 BOLT, WITH WASHER 10 10

BOULON, AVEC RONDELLE

5 90119–08M66 BOLT, WITH WASHER 10 10

BOULON, AVEC RONDELLE

6 90340–14M06 PLUG, STRAIGHT SCREW 1 1

PLOT, FILETE DROIT

7 90430–14115 GASKET 1 1

JOINT

8 62Y–11119–00 HANGER, ENGINE 2 2

ANNEAU, LEVAGE

9 97095–06020 BOLT 4 4

BOULON

10 92995–06600 WASHER 4 4

RONDELLE

11 90480–12072 GROMMET 1 1

PASSE–FIL

12 67F–15142–00 GUIDE 1 2 2

GUIDE 1

13 67F–41113–01–1S OUTER COVER, EXHAUST 1 1

COUVERCLE, ECHAPPEMENT

14 67F–41114–A0 GASKET, EXHAUST OUTER COVER 1 1

JOINT, COUVERCLE D’ECHAPPEMENT

15 90119–06MA4 BOLT, WITH WASHER 18 18

BOULON, AVEC RONDELLE

16 90445–10M40 HOSE (L330) 1 1

DURITE (L330)

17 90465–11M10 CLAMP 2 2

BRIDE

18 6G5–12416–00 VALVE, PRESSURE CONTROL 1 1

SOUPAPE DE CONTROLEUR PRESS

19 90501–16M11 SPRING, COMPRESSION 1 1

RESSORT, COMPRESSION

20 90480–20M05 GROMMET 1 1

PASSE–FIL

21 67F–1246A–00–1S COVER 1 1 1

COUVERCLE 1

22 67F–12435–A0 GASKET 1 1

JOINT

23 90119–06MA2 BOLT, WITH WASHER 3 3

BOULON, AVEC RONDELLE

24 67F–11325–00 ANODE 1 1

ANODE

25 67F–11327–00–94 COVER, ANODE 1 1

COUVERCLE

26 97075–06020 BOLT 1 1

BOULON

27 92995–06600 WASHER 1 1

RONDELLE

F80

F100

FIG. 2 CYLINDER. CRANKCASE 1 CYLINDRE.CARTER 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

28 67F–11328–00 GROMMET, ANODE 1 1

PASSE–FIL

29 97075–08025 BOLT 2 2

BOULON

30 92995–08600 WASHER 2 2

RONDELLE

31 67F–1243A–00 HOSE 1 1 1

DURITE 1

32 90465–11M10 CLAMP 1 1

BRIDE

33 90467–20M15 CLIP 1 1

JONC

34 67F–11351–01 GASKET, CYLINDER 1 1

JOINT, D’EMBASE

35 67F–42761–00–94 STOPPER 2 2

PLAQUETTE

36 97095–06025 BOLT 4 4

BOULON

37 92995–06600 WASHER 4 4

RONDELLE

38 68F–44533–00 DAMPER, UPPER MOUNT RUBBER 2 2

COUVERCLE, SUSPENSION INFERIEU

39 5GH–13440–00 ELEMENT ASSY, OIL CLEANER 1 1

ELEMENT, FILTRE A HUILE

40 90401–20145 BOLT, UNION 1 1

BOULON, RACCORD

F80

F100

FIG. 3 CRANKSHAFT. PISTON VILEBREQUIN. PISTON

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 67F–11411–00 CRANKSHAFT 1 1

VILEBREQUIN COMPLET

2 93102–48009 OIL SEAL 1 1

JOINT SPY

3 93101–48002 OIL SEAL 1 1

JOINT SPY

4 67F–11416–00 PLANE BEARING, CRANKSHAFT 1 4 4 UR GREEN

COUSSINET DE VILEBREQUIN 1

67F–11416–10 PLANE BEARING, CRANKSHAFT 1 4 4 UR BLUE

COUSSINET DE VILEBREQUIN 1

67F–11416–20 PLANE BEARING, CRANKSHAFT 1 4 4 UR RED

COUSSINET DE VILEBREQUIN 1

5 67F–11417–00 PLANE BEARING, CRANKSHAFT 2 5 5 UR YELLOW

COUSSINET DE VILEBREQUIN 2

67F–11417–10 PLANE BEARING, CRANKSHAFT 2 5 5 UR GREEN

COUSSINET DE VILEBREQUIN 2

67F–11417–20 PLANE BEARING, CRANKSHAFT 2 5 5 UR BLUE

COUSSINET DE VILEBREQUIN 2

67F–11417–30 PLANE BEARING, CRANKSHAFT 2 5 5 UR RED

COUSSINET DE VILEBREQUIN 2

6 67F–11418–00 PLANE BEARING, CRANKSHAFT 3 1 1 UR GREEN

COUSSINET DE VILEBREQUIN 3

67F–11418–10 PLANE BEARING, CRANKSHAFT 3 1 1 UR BLUE

COUSSINET DE VILEBREQUIN 3

67F–11418–20 PLANE BEARING, CRANKSHAFT 3 1 1 UR RED

COUSSINET DE VILEBREQUIN 3

7 67F–1 1640–00 PISTON/CONNECTING ROD ASSY (STD) 4 4

PISTON/BIELLE COMPLETTE (STD)

67F–11640–10 PISTON/CON–ROD ASSY (0.25MMOS) 4 4 AP

PISTON/BIELLE COMPLETTE (0.25MM OS)

8 67F–1 1654–00 .BOLT, CONNECTING ROD 2 2

.BOULON, BIELLE

9 67F–11603–01 PISTON RING SET (STD) 4 4

JUE DE SEGMENTS (STD)

67F–1 1604–01 PISTON RING SET (0.25MM O/S) 4 4 AP

JUE DE SEGMENTS (0.25MM O/S)

10 67F–11656–00 PLANE BEARING, CONNECTING ROD 8 8 UR YELLOW

ROULEMENT DE BIELLE

67F–1 1656–10 PLANE BEARING, CONNECTING ROD 8 8 UR GREEN

ROULEMENT DE BIELLE

67F–1 1656–20 PLANE BEARING, CONNECTING ROD 8 8 UR BLUE

ROULEMENT DE BIELLE

67F–1 1656–30 PLANE BEARING, CONNECTING ROD 8 8 UR RED

ROULEMENT DE BIELLE

F80

F100

FIG. 4 CYLINDER. CRANKCASE 2 CYLINDRE.CARTER 2

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 60C–W009A–00–1S CYLINDER HEAD ASSY 1 1

CULASSE (ENS.)

2 67F–11110–10–94 CYLINDER HEAD ASSY 1 1

JEU DE CULASSE

3 67F–11133–10 .GUIDE, INTAKE VALVE 16 16

.GUIDE, SOUP D’ADM

4 90344–51019 .PLUG, TAPER SCREW 4 4

.PLOT, FILETE CONIQUE

5 90119–07235 .BOLT, WITH WASHER 4 4

.BOULON, AVEC RONDELLE

6 91809–08006 .PIN, DOWEL 4 4

.GOUJON, D’ASSEMBLAGE

7 90119–07234 .BOLT, WITH WASHER 16 16

.BOULON, AVEC RONDELLE

8 67F–11325–00 ANODE 2 2

ANODE

9 67F–11327–00–94 COVER, ANODE 2 2

COUVERCLE

10 97075–06020 BOLT 2 2

BOULON

11 92995–06600 WASHER 2 2

RONDELLE

12 67F–11328–00 GROMMET, ANODE 2 2

PASSE–FIL

13 97075–08025 BOLT 4 4

BOULON

14 92995–08600 WASHER 4 4

RONDELLE

15 97095–08014 BOLT 4 4

BOULON

16 90430–08143 GASKET 4 4

JOINT

17 67F–11181–01 GASKET, CYLINDER HEAD 1 1 1

JOINT, DE CULASSE 1

18 90387–10M08 COLLAR 2 2

COLLERETTE

19 90105–10M89 BOLT, FLANGE 10 10

BOULON

20 90119–08M91 BOLT, WITH WASHER 5 5

BOULON, AVEC RONDELLE

21 68V–11191–00–1S COVER, CYLINDER HEAD 1 1 1

COUVERCLE, CULASSE 1

22 67F–11168–00 .COVER, BREATHER 1 1

.COUVERCLE, RENIFLARD

23 98507–04008 .SCREW, PAN HEAD 8 8

.VIS, TETE TRONCONIQUE

24 92907–04600 .WASHER 8 8

.RONDELLE

25 90480–12072 GROMMET 2 2

PASSE–FIL

26 67F–11356–00 SEAL, CYLINDER2 1 1

JOINT, SPY CYLINDRE

27 97095–06030 BOLT 14 14

BOULON

F80

F100

FIG. 4 CYLINDER. CRANKCASE 2 CYLINDRE.CARTER 2

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

28 92995–06600 WASHER 14 14

RONDELLE

29 67F–11192–00 COVER, CYLINDER HEAD 2 1 1

COUVERCLE, CULASSE 2

30 90159–06M29 SCREW, WITH WASHER 5 5

VIS, AVEC RONDELLE

31 67F–12411–00 THERMOSTAT 1 1

THERMOSTAT

32 68V–12413–00–1S COVER, THERMOSTAT 1 1

COUVERCLE, THERMOSTAT

33 97095–06025 BOLT 2 2

BOULON

34 92995–06600 WASHER 2 2

RONDELLE

35 6G8–15363–00 PLUG, OIL 1 1

PLOT, HUILE

36 93210–24M79 O–RING 1 1

JOINT TORIQUE

37 94702–00391 PLUG, SPARK (NGK LFR5A–11) 4 4

BOUGIE D’ALLUMAGE (NGK LFR5A–11)

F80

F100

FIG. 5 VALVE SOUPAPE

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 68V–12111–00 VALVE, INTAKE 8 8

SOUPAPE, ADMISSION

2 68V–12121–00 VALVE, EXHAUST 8 8

SOUPAPE, ECHAPPEMENT

3 67F–12116–00 SEAT, VALVE SPRING 16 16

SIEGE, RESSORT DE SOUPAPE

4 67F–12114–00 SPRING, VALVE OUTER 16 16

RESSORT DE SOUPAPE, EXTERNE

5 67F–12117–00 RETAINER, VALVE SPRING 16 16

BUTEE DE RESSORT DE SOUPAPA

6 67F–12118–00 COTTER, VALVE 32 32

FRAISE, SOUPAPE

7 K0A–A3721–00 SEAL, VALVE STEM 8 8

JOINT, QUEUE DE SOUPAPE

8 K0A–A3722–00 SEAL, VALVE STEM 2 8 8

JOINT, QUEUE DE SOUPAPE 2

9 67F–12153–00 LIFTER, VALVE 16 16

LEVE–SOUPAPE

10 67F–12168–00 PAD, ADJUSTING (2.000) 16 16 UR

PASTILLE, DE REGLAGE (2.000)

67F–12168–10 PAD, ADJUSTING (2.025) 16 16 UR

PASTILLE, DE REGLAGE (2.025)

67F–12168–20 PAD, ADJUSTING (2.050) 16 16 UR

PASTILLE, DE REGLAGE (2.050)

67F–12168–30 PAD, ADJUSTING (2.075) 16 16 UR

PASTILLE, DE REGLAGE (2.075)

67F–12168–40 PAD, ADJUSTING (2.100) 16 16 UR

PASTILLE, DE REGLAGE (2.100)

67F–12168–50 PAD, ADJUSTING (2.125) 16 16 UR

PASTILLE, DE REGLAGE (2.125)

67F–12168–60 PAD, ADJUSTING (2.150) 16 16 UR

PASTILLE, DE REGLAGE (2.150)

67F–12168–70 PAD, ADJUSTING (2.175) 16 16 UR

PASTILLE, DE REGLAGE (2.175)

67F–12168–80 PAD, ADJUSTING (2.200) 16 16 UR

PASTILLE, DE REGLAGE (2.200)

67F–12168–A0 PAD, ADJUSTING (2.225) 16 16 UR

PASTILLE, DE REGLAGE (2.225)

67F–12168–B0 PAD, ADJUSTING (2.250) 16 16 UR

PASTILLE, DE REGLAGE (2.250)

67F–12168–C0 PAD, ADJUSTING (2.275) 16 16 UR

PASTILLE, DE REGLAGE (2.275)

67F–12168–D0 PAD, ADJUSTING (2.300) 16 16 UR

PASTILLE, DE REGLAGE (2.300)

67F–12168–E0 PAD, ADJUSTING (2.325) 16 16 UR

PASTILLE, DE REGLAGE (2.325)

67F–12168–F0 PAD, ADJUSTING (2.350) 16 16 UR

PASTILLE, DE REGLAGE (2.350)

67F–12168–G0 PAD, ADJUSTING (2.375) 16 16 UR

PASTILLE, DE REGLAGE (2.375)

67F–12168–H0 PAD, ADJUSTING (2.400) 16 16 UR

PASTILLE, DE REGLAGE (2.400)

67F–12168–J0 PAD, ADJUSTING (2.425) 16 16 UR

PASTILLE, DE REGLAGE (2.425)

F80

F100

FIG. 5 VALVE SOUPAPE

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

10 67F–12168–K0 PAD, ADJUSTING (2.450) 16 16 UR

PASTILLE, DE REGLAGE (2.450)

67F–12168–L0 PAD, ADJUSTING (2.475) 16 16 UR

PASTILLE, DE REGLAGE (2.475)

67F–12168–M0 PAD, ADJUSTING (2.500) 16 16 UR

PASTILLE, DE REGLAGE (2.500)

67F–12168–N0 PAD, ADJUSTING (2.525) 16 16 UR

PASTILLE, DE REGLAGE (2.525)

67F–12168–P0 PAD, ADJUSTING (2.550) 16 16 UR

PASTILLE, DE REGLAGE (2.550)

67F–12168–R0 PAD, ADJUSTING (2.575) 16 16 UR

PASTILLE, DE REGLAGE (2.575)

67F–12168–S0 PAD, ADJUSTING (2.600) 16 16 UR

PASTILLE, DE REGLAGE (2.600)

67F–12168–T0 PAD, ADJUSTING (2.625) 16 16 UR

PASTILLE, DE REGLAGE (2.625)

67F–12168–U0 PAD, ADJUSTING (2.650) 16 16 UR

PASTILLE, DE REGLAGE (2.650)

67F–12168–V0 PAD, ADJUSTING (2.675) 16 16 UR

PASTILLE, DE REGLAGE (2.675)

67F–12168–W0 PAD, ADJUSTING (2.700) 16 16 UR

PASTILLE, DE REGLAGE (2.700)

67F–12168–X0 PAD, ADJUSTING (2.725) 16 16 UR

PASTILLE, DE REGLAGE (2.725)

67F–12168–Y0 PAD, ADJUSTING (2.750) 16 16 UR

PASTILLE, DE REGLAGE (2.750)

67F–12169–00 PAD, ADJUSTING (2.775) 16 16 UR

PASTILLE, DE REGLAGE (2.775)

67F–12169–10 PAD, ADJUSTING (2.800) 16 16 UR

PASTILLE, DE REGLAGE (2.800)

67F–12169–20 PAD, ADJUSTING (2.825) 16 16 UR

PASTILLE, DE REGLAGE (2.825)

67F–12169–30 PAD, ADJUSTING (2.850) 16 16 UR

PASTILLE, DE REGLAGE (2.850)

67F–12169–40 PAD, ADJUSTING (2.875) 16 16 UR

PASTILLE, DE REGLAGE (2.875)

67F–12169–50 PAD, ADJUSTING (2.900) 16 16 UR

PASTILLE, DE REGLAGE (2.900)

67F–12169–60 PAD, ADJUSTING (2.925) 16 16 UR

PASTILLE, DE REGLAGE (2.925)

67F–12169–70 PAD, ADJUSTING (2.950) 16 16 UR

PASTILLE, DE REGLAGE (2.950)

67F–12169–80 PAD, ADJUSTING (2.975) 16 16 UR

PASTILLE, DE REGLAGE (2.975)

67F–12169–A0 PAD, ADJUSTING (3.000) 16 16 UR

PASTILLE, DE REGLAGE (3.000)

67F–12169–B0 PAD, ADJUSTING (3.025) 16 16 UR

PASTILLE, DE REGLAGE (3.025)

67F–12169–C0 PAD, ADJUSTING (3.050) 16 16 UR

PASTILLE, DE REGLAGE (3.050)

67F–12169–D0 PAD, ADJUSTING (3.075) 16 16 UR

PASTILLE, DE REGLAGE (3.075)

67F–12169–E0 PAD, ADJUSTING (3.100) 16 16 UR

PASTILLE, DE REGLAGE (3.100)

F80

F100

FIG. 5 VALVE SOUPAPE

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

10 67F–12169–F0 PAD, ADJUSTING (3.125) 16 16 UR

PASTILLE, DE REGLAGE (3.125)

67F–12169–G0 PAD, ADJUSTING (3.150) 16 16 UR

PASTILLE, DE REGLAGE (3.150)

67F–12169–H0 PAD, ADJUSTING (3.175) 16 16 UR

PASTILLE, DE REGLAGE (3.175)

67F–12169–J0 PAD, ADJUSTING (3.200) 16 16 UR

PASTILLE, DE REGLAGE (3.200)

67F–12169–K0 PAD, ADJUSTING (3.225) 16 16 UR

PASTILLE, DE REGLAGE (3.225)

67F–12169–L0 PAD, ADJUSTING (3.250) 16 16 UR

PASTILLE, DE REGLAGE (3.250)

67F–12169–M0 PAD, ADJUSTING (3.275) 16 16 UR

PASTILLE, DE REGLAGE (3.275)

67F–12169–N0 PAD, ADJUSTING (3.300) 16 16 UR

PASTILLE, DE REGLAGE (3.300)

11 67F–12171–00 CAMSHAFT 1 1 1

ARBRE A CAMES 1

12 67F–12181–00 CAMSHAFT 2 1 1

ARBRE A CAMES 2

13 93605–10108 PIN, DOWEL 2 2

GOUJON

14 67F–11537–00 GEAR, DRIVEN 2 2

PIGNON SECONDAIRE

15 90119–10M06 BOLT, WITH WASHER 2 2

BOULON, AVEC RONDELLE

16 93102–38M59 OIL SEAL 2 2

JOINT SPY

17 67F–46241–00 BELT 1 1

COURROIE TRAPEZOIDALE

18 67F–11590–00 TENSIONER ASSY 1 1

TENDEUR (ENS.)

19 90506–16M39 SPRING, TENSION 1 1

RESSORT, TENSION

20 90445–15M03 HOSE (L23) 1 1

DURITE (L23)

21 67F–11595–00 PLATE,VALVE 1 1

PLAQUE DE SOUPAPE

22 90119–10M72 BOLT, WITH WASHER 1 1

BOULON, AVEC RONDELLE

23 67F–11536–00 GEAR, DRIVE 1 1

ENGRENAGE, MENANT

24 90170–40003 NUT 1 1

ECROU

25 90280–04008 KEY, WOODRUFF 1 1

CLAVETTE, DEMI–LUNE

F80

F100

FIG. 6 INTAKE ADMISSION

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 67F–14243–00 PLATE 4 4

PLAQUE

2 67F–14216–00 BOLT 8 8

BOULON

3 67F–14239–00 SEAL 4 4

JOINT

4 67F–14271–00 INSULATOR 4 4

ISOLATEUR

5 93210–40M10 O–RING 8 8

JOINT TORIQUE

6 67F–13641–00–94 MANIFOLD 1 1 1

TUBULURE 1

7 97095–06010 BOLT 4 4

BOULON

8 90430–06014 GASKET 4 4

JOINT

9 97075–08035 BOLT 5 5

BOULON

10 92995–08600 WASHER 5 5

RONDELLE

11 91690–50014 PIN, SPRING 2 2

GOUPILLE, ELASTIQUE

12 67F–13645–00 GASKET, MANIFOLD 1 1 1

JOINT, TUBULURE 1

13 67F–15373–00 PIPE, BREATHER 1 1

DURITE DE RENIFLARD

14 90465–11M10 CLAMP 1 1

BRIDE

15 90467–20M15 CLIP 1 1

JONC

16 90465–12M03 CLAMP 2 2

BRIDE

17 97095–06012 BOLT 2 2

BOULON

18 92995–06600 WASHER 2 2

RONDELLE

19 67F–14440–00 SILENCER ASSY, INTAKE 1 1

SIENCIEUX D’ADMISSION

20 90119–06M82 BOLT, WITH WASHER 8 8

BOULON, AVEC RONDELLE

21 93210–41MJ2 O–RING 4 4

JOINT TORIQUE

22 90119–08M59 BOLT, WITH WASHER 3 3

BOULON, AVEC RONDELLE

F80

F100

FIG. 7 CARBURETOR 1 CARBURATEUR 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 67F–14901–20 CARBURETOR ASSY 1 1 #1

CARBURATEUR1 COMPLET

67G–14901–30 CARBURETOR ASSY 1 2 FORSTD–#1,3

CARBURATEUR1 COMPLET

67G–14901–50 CARBURETOR ASSY 1 2 FORSAV–#1,3

CARBURATEUR1 COMPLET

2 67F–14902–20 CARBURETOR ASSY 2 1 #2

CARBURATEUR2 COMPLET

67G–14902–30 CARBURETOR ASSY 2 1 FORSTD–#2

CARBURATEUR2 COMPLET

67G–14902–50 CARBURETOR ASSY 2 1 FORSAV–#2

CARBURATEUR2 COMPLET

3 67F–14903–20 CARBURETOR ASSY 3 1 #3

CARBURATEUR3 COMPLET

4 67F–14904–20 CARBURETOR ASSY 4 1 #4

CARBURATEUR4 COMPLET

67G–14904–30 CARBURETOR ASSY 4 1 FORSTD–#4

CARBURATEUR4 COMPLET

67G–14904–50 CARBURETOR ASSY 4 1 FORSAV–#4

CARBURATEUR4 COMPLET

5 67F–14923–00 .SCREW, PILOT 4 4 FOR STD

.VIS, RALENTI

67F–14923–10 .SCREW, PILOT 4 FOR SAV

.VIS, RALENTI

6 697–14555–00 .SPRING 4 4

.RESSORT

7 67F–14146–00 .PLATE 4 4

.PLAQUE

8 67F–14147–00 .O–RING 4 4

.JOINT TORIQUE

9 97803–04010 .SCREW, PAN HEAD 12 12

.VIS, TETE TRONCONIQUE

10 676–14966–00 .CAP 4 4

.CAPUCHON

11 97980–04114 .SCREW, WITH WASHER 16 16

.VIS, AVEC RONDELLE

12 67F–1494F–04 .JET (#42) 4

.GICLEUR (#42)

67G–14948–05 .JET (#45) 4

.GICLEUR (#45)

13 67F–14947–10 .JET, NEEDLE 4

.GICLEUR DE STARTER

67G–14947–00 .JET , NEEDLE 4

.GICLEUR DE STARTER

14 67F–14943–32 .JET, MAIN (#125) 4

.GICLEUR, PRINCIPAL (#125)

67G–14943–80 .JET , MAIN (#1 12) 4 FOR STD

.GICLEUR, PRINCIPAL (#112)

67G–14943–29 .JET , MAIN (#1 10) 4 FOR SAV

.GICLEUR, PRINCIPAL (#110)

15 67F–14567–00 .SCREW 3 3 #1,2,3

.VIS

16 67F–14555–00 .SPRING 3 3 #1,2,3

.RESSORT

F80

F100

FIG. 7 CARBURETOR 1 CARBURATEUR 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

17 67F–14556–00 .SPRING 3 3 #1,2,3

.RESSORT

18 63V–14523–00 .SCREW, STOP 1 1 #4

.VIS, BUTEE

19 90501–10326 .SPRING, COMPRESSION 1 1 #4

.RESSORT, COMPRESSION

20 67F–14998–00 .BUSH 1 1 #4

.BAGUE

21 67F–14397–00 .O–RING 4 4

.J0INT TORIQUE

22 6H2–14578–00 .COLLAR 1 1 #4

.COLLERETTE

23 67F–14980–00 .BODY, FLOAT CHAMBER 2 2 #1,3

.CORPS, CUVE DE FLOTTEUR

24 67F–14980–10 .BODY, FLOAT CHAMBER 2 2 #2,4

.CORPS, CUVE DE FLOTTEUR

25 67F–14984–00 .GASKET, FLOATCHAMBER 4 4

.JOINT, CUVE DE FLOTTEUR

26 6H3–14992–00 .SCREW, DRAIN 4 4

.BOUCHON, PURGE

27 93210–04230 .O–RING 4 4

.JOINT TORIQUE

28 6H4–14985–01 .FLOAT 4 4

.FLOTTEUR

29 676–14186–00 .PIN, FLOAT 4 4

.AXE, FLOTTEUR

30 663–14159–00 .CLIP 4 4

.JONC

31 6H4–14548–00 .PIN, FLOAT ARM 4 4

.AXE, BRAS DE FLOTTEUR

32 98580–04008 .SCREW, PAN HEAD 4 4

.VIS, TETE TRONCONIQUE

33 60C–14590–00 .NEEDLE VALVE ASSY 4 4

.POINTEAU

34 93210–04228 .O–RING 4 4

.JOINT TORIQUE

35 67F–14378–00 .BODY, STARTER 2 2 #1,3

.CORPS, STARTER

36 67F–14380–01 .PRIME STARTER ASSY 2 2 #1,3

.DEMARREUR D’AMARCAGE ENS.

37 67F–14178–00 .PLATE, STARTER LEVER 2 2 #1,3

.PLAQUE, LEVIER DE STARTER

38 67F–14592–00 .SCREW 6 6 #1,3

.VIS

39 67F–14398–00 .O–RING 2 2 #1,3

.JOINT TORIQUE

40 67F–14565–00 .SCREW 2 2 #1,3

.VIS

41 67F–14398–10 .O–RING 2 2 #1,3

.JOINT TORIQUE

42 67F–14398–20 .O–RING 2 2 #1,3

.JOINT TORIQUE

43 67F–14369–00 .DIAPHRAGM ASSY 2 1 1 #4

.DIAPHRAGME 2

F80

F100

FIG. 7 CARBURETOR 1 CARBURATEUR 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

44 67F–14325–00 .SCREW, PAN HEAD 2 2 #4

.VIS TETE CONIQUE

45 67F–14371–01 .ELEMENT, FILTER 4 4

.ELEMENT, FILTRE

46 67F–14398–30 .O–RING 2 2 #1,3

.JOINT TORIQUE

47 67F–14255–00 .PLATE 1 #1

.PLAQUE

48 67F–14567–00 .SCREW 2 #2

.VIS

49 67F–14860–00 .CHECK V ALVE BODY ASSY 1 #2

.SOUPAPE, RETENUE COMPLET

F80

F100

FIG. 8 CARBURETOR 2 CARBURATEUR 2

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 67F–1412A–00 WIRE HARNESS ASSY 1

FAISCEAU DE FILS COMPLET

2 67F–13183–00 VAL VE, CHECK 1

S’OUPAPE DE RATANUE

3 67F–14349–00 PIPE 1

DURITE

4 67F–14349–10 PIPE 2

DURITE

5 67F–14349–20 PIPE 2

DURITE

6 67F–14349–30 PIPE 2

DURITE

7 67F–14349–40 PIPE 1

DURITE

8 67F–14349–50 PIPE 1

DURITE

9 67F–14349–60 PIPE 2

DURITE

10 67F–14585–00 ROD, CHOKE 1

TRINGLE, STARTER

11 67F–14189–00 CONNECTOR 4

CONNECTEUR

12 67F–14349–70 PIPE 1

DURITE

13 90465–11M59 CLAMP 1

BRIDE

14 68F–24356–00 CLIP, PIPE 1 13

JONC, TUBE 1

15 60C–14294–00 HOSE 2

DURITE

16 60C–14298–00 PIPE 1

DURITE

17 688–24378–00 PIPE, JOINT 4 3

DURITE RACCORDEMENT 4

18 90445–10M16 HOSE (L120) 2

DURITE (L120)

19 90445–10MG6 HOSE (L180) 1

DURITE (L180)

20 90445–10MG7 HOSE (L350) 1

DURITE (L350)

21 90445–16M07 HOSE (L80) 4

DURITE (L80)

22 90464–10M57 CLAMP 1

BRIDE

23 90465–08M83 CLAMP 2

BRIDE

24 97095–06012 BOLT 2

BOULON

25 92995–06600 WASHER 2

RONDELLE

F80

F100

FIG. 9 CARBURETOR 3 CARBURATEUR 3

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 67F–1412A–00 WIRE HARNESS ASSY 1

FAISCEAU DE FILS COMPLET

2 67F–14349–20 PIPE 2

DURITE

3 67F–14349–00 PIPE 4

DURITE

4 67F–14585–00 ROD, CHOKE 1

TRINGLE, STARTER

5 68F–24356–00 CLIP, PIPE 1 13

JONC, TUBE 1

6 90465–11M59 CLAMP 3

BRIDE

7 60C–14294–00 HOSE 2

DURITE

8 60C–14298–00 PIPE 1

DURITE

9 67F–14348–00 PIPE 1 1

DURITE

10 688–24378–00 PIPE, JOINT 4 3

DURITE RACCORDEMENT 4

11 90445–10M16 HOSE (L120) 2

DURITE (L120)

12 90445–10MG6 HOSE (L180) 1

DURITE (L180)

13 90445–10MG7 HOSE (L350) 1

DURITE (L350)

14 90445–16M07 HOSE (L80) 4

DURITE (L80)

15 90464–10M57 CLAMP 1

BRIDE

16 90465–08M83 CLAMP 2

BRIDE

17 97095–06012 BOLT 2

BOULON

18 92995–06600 WASHER 2

RONDELLE

F80

F100

FIG. 10 FUEL 1 CARBURANT 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 689–85547–00 DAMPER 1 1

AMORTISSEUR

2 6R3–24377–00 PIPE, JOINT 3 1 1

DURITE RACCORDEMENT

3 90465–11M10 CLAMP 1 1

BRIDE

4 90445–13M27 HOSE (L950) 1 1

DURITE (L950)

5 60C–24560–00 FILTER ASSY 1 1

ENS FILTRE

6 68V–24521–01 .CUP, FILTER 1 1

.CUVETTE, FILTRE

7 61N–24563–00 .ELEMENT, FILTER 1 1

.ELEMENT, FILTRE

8 93210–32738 .O–RING 1 1

.JOINT TORIQUE

9 68V–24469–01 .FLOAT, WATER LEVEL 1 1

.FLOTTEUR

10 90465–11M10 CLAMP 2 2

BRIDE

11 68V–24566–00 BRACKET, FILTER 1 1

SUPPORT, FILTRE

12 95380–08600 NUT 1 1

ECROU

13 97095–06016 BOLT 1 1

BOULON

14 92995–06600 WASHER 1 1

RONDELLE

15 90445–13M11 HOSE (L300) 1 1

DURITE (L300)

16 68V–24410–00 FUEL PUMP ASSY 1 1

POMPE A ESSENCE

17 68V–24412–00 .BODY 1 1 1

.CORPS 1

18 68V–24454–00 .SPRING 1 1

.RESSORT

19 68V–13131–00 .PLUNGER 1 1

.PLONGEUR

20 68V–24423–00 .SPRING, DIAPHRAGM 1 1

.RESSORT, DIAPHRAGME

21 68V–24411–00 .DIAPHRAGM 1 1

.DIAPHRAGME

22 68V–24374–00 .PIN 1 1

.G0UPILLE

23 68V–24413–00 .BODY 2 1 1

.CORPS 2

24 68V–24414–00 .BODY 3 1 1

.CORPS 3

25 68V–24444–00 .SCREW 3 3

.VIS

26 68V–24149–00 .NUT 3 3

.ECROU

27 90465–11M10 CLAMP 2 2

BRIDE

F80

F100

FIG. 10 FUEL 1 CARBURANT 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

28 93210–30682 O–RING 1 1

JOINT TORIQUE

29 90119–06M83 BOLT, WITH WASHER 2 2

BOULON, AVEC RONDELLE

30 67F–24575–00 LEVER, FUEL CHANGE 1 1

LEVIER, D’ESSENCE

31 68V–24495–00 SHAFT 1 1

AXE

32 91609–25014 PIN, SPRING 2 2

GOUPILLE, ELASTIQUE

33 90201–08M12 WASHER, PLATE 2 2

RONDELLE, PLATE

34 67F–24491–00 BRACKET, FUEL PUMP 1 1

SUPPORT, POMPE A ESSENCE

35 90119–07235 BOLT, WITH WASHER 2 2

BOULON, AVEC RONDELLE

36 91809–08006 PIN, DOWEL 2 2

GOUJON, D’ASSEMBLAGE

37 67F–28100–00 TOOL KIT 1 1

TROUSSE A OUTILS

F80

F100

FIG. 11 FUEL 2 CARBURANT 2

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 6YK–24306–42 FUEL PIPE COMP. 1 1 AP

DURITE A ESSENCE 1

F80

F100

FIG. 12 GENERATOR GENERATRICE

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 67F–85550–00 ROTOR ASSY 1 1

ROTOR CPLT

2 67F–85560–01 BASE ASSY 1 1

ENS. FLASQUE

3 67F–85580–00 .COIL, PULSER 1 1

.BOBINE, PULSEUR

4 67F–85510–01 .STATORASSY 1 1

.STATOR CPLT

5 63D–81345–20 .SCREW, WITH WASHER (M6X30) 3 3

.VIS, AVEC RONDELLE (M6X30)

6 97607–04110 .SCREW, PAN HEAD WITH WASHER 1 1

.VIS HEXAGONAL

7 445–81328–20 .CLAMP 1 1

.COLLIER

8 66T–81328–00 .CLAMP 1 1

.COLLIER

9 67F–81673–00 ROTOR 1 1

ROTOR

10 99530–08012 PIN, DOWEL 2 2

GOUJON, D’ASSEMBLAGE

11 97095–06030 BOLT 4 4

BOULON

12 92995–06100 WASHER, SPRING 4 4

RONDELLE, GROWER

13 92995–06600 WASHER 4 4

RONDELLE

14 90280–05015 KEY, WOODRUFF 1 1

CLAVETTE, DEMI–LUNE

15 90201–25M02 WASHER, PLATE 1 1

RONDELLE, PLATE

16 90170–24M22 NUT 1 1

ECROU

17 67F–81332–00 PLATE, TIMING 1 1

PLATEAU, ALLUMAGE

18 97885–06010 SCREW, PAN HEAD 1 1

VIS, TETE TRONCONIQUE

19 92995–06600 WASHER 1 1

RONDELLE

20 67F–81337–01 COVER, FL YWHEEL 1 1

COUVERCLE, VOLANT

21 90387–06M71 COLLAR 4 4

COLLERETTE

22 90480–15M31 GROMMET 2 2

PASSE–FIL

23 90119–06M92 BOLT, WITH WASHER 2 2

BOULON, AVEC RONDELLE

24 67F–12138–60 MARK, CAUTION 1 1

MAKER

25 67F–13437–60 MARK, CAUTION 1 1

MAKER

26 6A1–83625–41 MARK 5 1 1

ETIQUETTE 5

27 6A1–83625–51 MARK 5 1 1

ETIQUETTE 5

F80

F100

FIG. 13 ELECTRICAL 1 PARTIE ELECTRIQUE 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 67F–85540–01 C.D.I. UNIT ASSY 1 1

BLOC C.D.I.

2 68V–82317–00 DAMPER, IGNITION COIL 4 4

AMORTISSEUR, BOBINE D’ALLUM

3 624–42542–00 PIPE 4 4

TUYAU

4 90119–06M59 BOLT, WITH WASHER 4 4

BOULON, AVEC RONDELLE

5 67F–85570–00 IGNITION COIL ASSY 2 2

BOBINE D’ALLUMAGE (ENS.)

6 97095–06030 BOLT 4 4

BOULON

7 92995–06100 WASHER, SPRING 4 4

RONDELLE, GROWER

8 92995–06600 WASHER 4 4

RONDELLE

9 97095–06020 BOLT 1 1

BOULON

10 92995–06100 WASHER, SPRING 1 1

RONDELLE, GROWER

11 92995–06600 WASHER 1 1

RONDELLE

12 90465–06M86 CLAMP 1 1

BRIDE

13 97095–06012 BOLT 1 1

BOULON

14 92995–06600 WASHER 1 1

RONDELLE

15 67F–82341–00 CORD, HIGH TENSION 1 1 1 #1

CORDON, HAUTE–TENSION 1

16 67F–82342–00 CORD, HIGH TENSION 2 1 1 #2

CORDON, HAUTE–TENSION 2

17 67F–82361–00 CLAMP, CORD 1 1

COLLIER, CORDON

18 67F–82362–00 CLAMP, CORD 2 1 1

COLLIER, CABLE 2

19 67F–82343–00 CORD, HIGH TENSION 3 1 1 #3

CORDON, HAUTE–TENSION 3

20 67F–82344–00 CORD, HIGH TENSION 4 1 1 #4

CABLE, HAUTE TENSION 4

21 67F–82361–00 CLAMP, CORD 1 1

COLLIER, CORDON

22 67F–82362–00 CLAMP, CORD 2 1 1

COLLIER, CABLE 2

23 67F–81960–10 RECTIFIER & REGULATORASSY 1 1

REDRESSEUR REGULATEUR CPLT

24 97095–06025 BOLT 2 2

BOULON

25 92995–06100 WASHER, SPRING 2 2

RONDELLE, GROWER

26 92995–06600 WASHER 2 2

RONDELLE

27 97095–06020 BOLT 1 1

BOULON

F80

F100

FIG. 13 ELECTRICAL 1 PARTIE ELECTRIQUE 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

28 92995–06100 WASHER, SPRING 1 1

RONDELLE, GROWER

29 92995–06600 WASHER 1 1

RONDELLE

30 703–82119–00 COVER, LEAD WIRE 1 1

GARNITURE, FIL

F80

F100

FIG. 14 ELECTRICAL 2 PARTIE ELECTRIQUE 2

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 682–82119–01 COVER, LEAD WIRE 2 2

GARNITURE, FIL

2 67F–82105–00 WIRE HARNESS 1 1

FAISCEAU DE FILS

3 6G1–8194A–10 RELAY 1 1

RELAIS

4 90170–06M30 NUT 2 2

ECROU

5 90204–06M00 WASHER, SPRING 2 2

RONDELLE, GROWER

6 6G1–81952–00 HOLDER, RELAY 1 1

SUPPORT, RELAIS

7 6E5–8195B–01 RELAY ASSY 1 1

RELAIS COMPLET

8 90170–06M30 NUT 3 3

ECROU

9 90204–06M00 WASHER, SPRING 3 3

RONDELLE, GROWER

10 6E5–8195C–01 RELAY ASSY 1 1

RELAIS COMPLET

11 90170–06M30 NUT 3 3

ECROU

12 90204–06M00 WASHER, SPRING 3 3

RONDELLE, GROWER

13 66T–87149–00 CONNECTOR 1 1

RACCORD

14 6G5–82119–00 COVER, LEAD WIRE 2 2

GARNITURE, FIL

15 67F–82116–00 WIRE, MINUS LEAD 1 1

FIL, NEGATIF

16 67F–81953–00 STAY, RELAY 1 1

SUPPORT, RELAIS

17 97095–06016 BOLT 2 2

BOULON

18 92995–06600 WASHER 2 2

RONDELLE

19 67F–81948–00 BRACKET 1 1

JOINT TORIQUE

20 97095–06016 BOLT 3 3

BOULON

21 92995–06600 WASHER 3 3

RONDELLE

22 67F–81942–00 COVER 1 1

COUVERCLE

23 67F–2812A–00 PULLER, FUSE 1 1

TENDEUR, FUSIBLE

24 67F–82590–02 WIRE HARNESS ASSY 1 1

FAISCEAU DE FILS COMPLET

25 67F–82151–00 .FUSE (20A) 2 2

.FUSIBLE (20A)

26 67F–82151–10 .FUSE (30A) 2 2

.FUSIBLE (30A)

27 97095–06020 BOLT 1 1

BOULON

F80

F100

FIG. 14 ELECTRICAL 2 PARTIE ELECTRIQUE 2

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

28 92995–06100 WASHER, SPRING 1 1

RONDELLE, GROWER

29 92995–06600 WASHER 1 1

RONDELLE

30 67F–82588–00 PLATE 3 3

PLAQUE

31 97095–06012 BOLT 3 3

BOULON

32 92995–06600 WASHER 3 3

RONDELLE

33 90465–13M11 CLAMP 1 1

BRIDE

34 67F–81916–01 COVER, TERMINAL 1 1

COUVERCLE, BORNE

35 90159–06M29 SCREW, WITH WASHER 3 3

VIS, AVEC RONDELLE

36 67F–83626–00 MARK 6 1 1

MARK 6

37 67F–81919–00 GRAPHIC, REGULATOR 1 1

ADHESIF, REGULATEUR

F80

F100

FIG. 15 ELECTRICAL 3 PARTIE ELECTRIQUE 3

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 67F–8132G–01 PLATE 1 1

PLAQUE

2 97095–06016 BOLT 2 2

BOULON

3 92995–06600 WASHER 2 2

RONDELLE

4 67F–85790–00 THERMOSENSOR ASSY 1 1

SENSITOMETRE

5 67F–85757–00 RETAINER 1 1

ARRETOIR

6 68V–85753–00 GASKET, SENDER UNIT 1 1

JOINT, DE PERCEPTION

7 97095–06016 BOLT 2 2

BOULON

8 92995–06600 WASHER 2 2

RONDELLE

9 90465–06M86 CLAMP 1 1

BRIDE

10 97095–06010 BOLT 1 1

BOULON

11 90465–11M10 CLAMP 1 1

BRIDE

12 61A–85885–00 THROTTLE SENSOR ASSY 1 1

SENSITOMETRE (ENS.)

13 97885–05010 SCREW, PAN HEAD 2 2

VIS, TETE TRONCONIQUE

14 92995–05600 WASHER 2 2

RONDELLE

15 90464–09M47 CLAMP 1 1

BRIDE

16 90465–11M10 CLAMP 2 2

BRIDE

17 6K7–14573–00 LEVER 1 1

LEVIER

18 67F–83635–00 BRACKET 1 1

SUPPORT

19 90387–05M00 COLLAR 2 2

COLLERETTE

20 90480–10M23 GROMMET 2 2

PASSE–FIL

21 90201–05M03 WASHER, PLATE 2 2

RONDELLE, PLATE

22 97885–05025 SCREW, PAN HEAD 2 2

VIS, TETE TRONCONIQUE

23 92995–05100 WASHER 2 2

RONDELLE

24 92995–05600 WASHER 2 2

RONDELLE

25 68V–82504–00 OIL PRESSURE SWITCH ASSY 1 1

CONTACTEUR DE PRESSION D’HUILE

26 63D–82563–10 TRIM & TILT SWITCH ASSY 1 1

INCLINER ET PARER COMMUTATEUR

27 6E5–82587–00 GASKET 1 1

JOINT

F80

F100

FIG. 15 ELECTRICAL 3 PARTIE ELECTRIQUE 3

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

28 67F–83614–00 BRACKET 1 1

SUPPORT

29 90109–06M86 BOLT 2 2

BOULON

30 90464–09M47 CLAMP 1 1

BRIDE

F80

F100

FIG. 16 STARTING MOTOR DEMARREUR ELECTRIQUE

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 67F–81800–02 STARTING MOTOR ASSY 1 1

DEMARREUR ELECTRIQUE COMPLET

2 67F–81850–00 .ARMATURE ASSY 1 1

.INDUIT

3 67F–81810–00 .STATORASSY 1 1

.STATOR COMPLET

4 67F–81840–00 .BRUSH HOLDER ASSY 1 1

.SUPPORT DE CHARBON

5 67F–81801–00 ..BRUSH SET 1 1

..CHARBON

6 67F–81813–00 ..SPRING, BRUSH 4 4

..RESSORT, DE CHARBON

7 67F–81820–00 .REAR BRACKET ASSY 1 1

.SUPPORT ARRIERE COMPLET

8 67F–81808–00 .PINION ASSY 1 1

.PIGNON

9 67F–81857–00 .PINION STOPPER SET 1 1

.BUTEE PIGNON

10 67F–81807–00 .GEAR ASSY, STARTING MOTOR 1 1

.PIGNON, DEMARREURELECTRIQUE

11 67F–81832–00 ..CLUTCH, OVER RUN 1 1

..EMBRAYAGE, ROUE LIBRE

12 67F–81836–00 ..SHAFT, PINION 1 1

..AXE, PIGNON

13 67F–81821–00 ..BRACKET, CENTER 1 1 1

..SUPPORT, CENTRE 1

14 67F–81841–00 ..BEARING 1 1

..ROULEMENT

15 67F–81891–00 ..GEAR, RING 1 1

..ROUE DENTEE

16 67F–8183R–00 ...GASKET 1 1

...JOINT

17 67F–81830–00 ..BRACKET, CENTER 2 1 1

..SUPPORT, CENTRE 2

18 67F–8183T–00 ..GEAR, IDLER 3 3

..PIGNON, INTERMEDIAIRE

19 67F–81809–00 ..WASHER KIT 1 1

..JEU DE RONDELLES

20 67F–81842–00 .COVER 1 1

.COUVERCLE

21 67F–81839–00 .LEVER ASSY 1 1

.LEVIER COMPLET

22 67F–81941–01 .STARTER RELAY ASSY 1 1

.LANCEUR RELAIS (ENS.)

23 67F–81869–00 .COVER, DUST 1 1

.COUVERCLE, POUSSIERE

24 6K7–81826–10 .BOLT 2 2

.BOULON

25 67F–81828–00 .BOLT 2 2 2

.RONDELLE, BUTEE 2

26 67F–81846–00 .SCREW 2 2

.VIS

27 97013–08045 BOLT 3 3

BOULON

F80

F100

FIG. 16 STARTING MOTOR DEMARREUR ELECTRIQUE

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

28 92903–08600 WASHER, PLATE 3 3

RONDELLE, PLATE

29 97013–08016 BOLT 1 1

BOULON

30 92903–08600 WASHER, PLATE 1 1

RONDELLE, PLATE

31 95333–08600 NUT 1 1

ECROU

32 92903–08100 WASHER, SPRING 1 1

RONDELLE, GROWER

F80

F100

FIG. 17 BOTTOM COWLING CAPOT INFERIEUR

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 67F–42710–00–4D BOTTOM COWLING ASSY 1 1

ENS. EMBASE

2 90119–08M22 BOLT, WITH WASHER 4 4

BOULON, AVEC RONDELLE

3 90480–22M15 GROMMET 4 4

PASSE–FIL

4 90387–08M37 COLLAR 4 4

COLLERETTE

5 67F–42815–00–4D LEVER, CLAMP 1 1

LEVIER, PRESSE

6 67F–42816–00–4D LEVER, CLAMP 1 1

LEVIER, PRESSE

7 67F–42828–00–5B PLATE, CLAMP 2 2

PLAQUE, PRESSE

8 90109–06M82 BOLT 4 4

BOULON

9 67F–42818–00 LEVER, CLAMP 2 2

LEVIER, PRESSE

10 90386–15M73 BUSH 4 4

DOUILLE

11 90206–15M18 WASHER, W AVE 2 2

RONDELLE, ONDULEE

12 90201–06068 WASHER, PLATE 2 2

RONDELLE, PLATE

13 97095–06016 BOLT 2 2

BOULON

14 64D–43144–00 HOOK, SPRING 2 2

CROCHET

15 90109–06M86 BOLT 2 2

BOULON

16 90506–16M34 SPRING, TENSION 2 2

RESSORT, TENSION

17 67F–42738–00–5B PLATE, FITTING 1 1

ETRIER

18 90109–06M96 BOLT 2 2

BOULON

19 68V–42725–00 GROMMET 1 1

PASSE–FIL

20 67F–42756–00 STAY, CLAMP 1 1

SUPPORT, COLLIER

21 90109–06M86 BOLT 1 1

BOULON

22 6H1–42726–20 GROMMET 1 1 FOR FLUSHING KIT

PASSE–FIL

23 6H3–44391–01 NIPPLE, HOSE 1 1

RACCORD D’ESSENCE

24 6H4–42748–00 GROMMET 3 3

PASSE–FIL

25 67F–42717–00 RUBBER, SEAL 2 4 4

JOINT EN CAOUTCHOUC 2

26 6E5–82588–00 PLATE 3 3

PLAQUE

27 90109–06M81 BOLT 3 3

BOULON

F80

F100

FIG. 17 BOTTOM COWLING CAPOT INFERIEUR

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

28 90465–08M23 CLAMP 1 1

BRIDE

29 90109–06M86 BOLT 1 1

BOULON

30 67F–12572–00 ADAPTER 1 1 FLUSHING KIT

ADAPTATEUR

31 90109–06M82 BOLT 1 1

BOULON

32 6R3–12581–00 JOINT, HOSE 1 1 1 FLUSHING KIT

JOINT DE TUYAU

33 6R3–12582–00 JOINT, HOSE 2 1 1 FLUSHING KIT

RACCORD DE TUYAU 1

34 6R3–12583–00 GASKET, HOSE JOINT 1 1 FLUSHINGKIT

JOINT

35 67F–24312–00 PIPE 2 1 1 FLUSHING KIT

DURITE 2

36 90465–11M10 CLAMP 2 2 FLUSHING KIT

BRIDE

37 61A–42716–00 RUBBER, SEAL 1 1 1

JOINT EN CAOUTCHOUC 1

38 67F–42741–00–4D APRON 1 1

CAPOT LATERAL

39 95380–06600 NUT, HEXAGON 2 2

ECROU

40 90159–06M28 SCREW, WITH WASHER 2 2

VIS, AVEC RONDELLE

41 90109–06M80 BOLT 5 5

BOULON

42 90480–13M24 GROMMET 5 5

PASSE–FIL

43 90387–06M43 COLLAR 5 5

COLLERETTE

44 67F–82377–00 LABEL 1 1

ETIQUETTE

45 6A1–28176–00 LABEL, CAUTION 1 1

ETIQUETTE, RECOMMANDATION

46 6E3–8257H–00 PLATE, MARK 1 1

PLAQUE, ADHESIF

F80

F100

FIG. 18 STEERING 1 DIRECTION 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 67G–W0084–11–4D HANDLE STEERING ASSY 1 1 AP

BARRE FRANCHE (ENS.)

2 67G–42111–00–4D HANDLE, STEERING 1 1

POIGNEE

3 664–42119–00 GRIP, STEERING HANDLE 1 1

POIGNEE, BARRE FRANCHE

4 6G1–42177–00 RUBBER, HANDLE 1 1

CAOUTCHOUC, POIGNEE

5 6H2–42137–00 INDICATOR, THROTTLE 1 1

INDICATEUR, ACCELERATION

6 90269–02M09 RIVET 1 1

RIVET

7 90149–05M13 SCREW 1 1

VIS

8 92903–10600 WASHER, PLATE 1 1

RONDELLE, PLATE

9 90501–23215 SPRING, COMPRESSION 1 1

RESSORT, COMPRESSION

10 90386–08032 BUSH 1 1

DOUILLE

11 63D–42126–00 FRICTION, STEERING HANDLE GRIP 1 1

CUVETTE, POIGNEE DE DIRECTION

12 63D–48154–00 KNOB, THROTTLE 1 1

BOUTON, ACCELERATEUR

13 95380–06600 NUT, HEXAGON 1 1

ECROU

14 91490–20010 PIN, COTTER 1 1

GOUPILLE, FENDUE

15 67G–44100–10 SHIFT LINK ASSY 1 1

MAILLON DE SELECTEUR

16 67G–44104–00 .PLATE COMP. 1 1

.PLAQUE COMPLET

17 67G–48261–00 .ARM, THROTTLE 1 1

.BRAS, ACCELERATION

18 67G–42115–10 .SHAFT, STEERING HANDLE 1 1

.AXE, BARRE FRANCHE

19 650–42152–00–94 ..GEAR 1 1

..PIGNON

20 91690–30025 ..PIN, SPRING 1 1

..GOUPILLE, ELASTIQUE

21 67G–42159–00 ..STAY 1 1

..SUPPORT

22 67G–44113–00 .CAM PLATE, HANDLE 1 1

.CAME, VERROUILLAGE

23 63D–48236–00 .ROLLER, DETENT 1 1

.POULIE

24 63D–48119–00 .COVER 1 1

.COQUILLE

25 67G–42153–00 .SHAFT, THROTTLE CONTROL 1 1

.AXE, COMMANDE D’ACCELERATION

26 67G–44132–00 .BUSHING 1 1

.COUSSINET

27 63D–48237–00 .ADAPTOR 1 1

.ADAPTEUR

F80

F100

FIG. 18 STEERING 1 DIRECTION 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

28 98785–05014 .SCREW, FLAT HEAD 2 2

.VIS, TETE PLATE

29 63D–48238–00 .SPRING, DETENT 1 1

.RESSORT

30 97095–08040 BOLT 1 1

BOULON

31 92995–08600 WASHER 1 1

RONDELLE

32 97095–06030 BOLT 2 2

BOULON

33 92995–06600 WASHER 2 2

RONDELLE

34 97095–06014 BOLT 1 1

BOULON

35 92995–06600 WASHER 1 1

RONDELLE

36 67G–48321–10 CABLE 1 1

CABLE

37 67G–48531–00 BRACKET , REMOTE CONTROL 1 1 1

ETRIER 1, COMMANDE A DISTANCE

38 97095–06014 BOLT 1 1

BOULON

39 90468–10005 CLIP 1 1

JONC

40 67G–26301–10 THROTTLE CABLE ASSY 1 1

CABLE D’ACCELERATEUR

41 66R–48538–00 CLAMP, CABLE 1 1 1

COLLIER

42 97095–06014 BOLT 1 1

BOULON

43 63D–48538–00 CLAMP, CABLE 1 1 1

COLLIER

44 90468–10005 CLIP 1 1

JONC

45 67G–44159–00–4D HANDLE, GEAR SHIFT 1 1

POIGNEE, LEVIER D’EMBRAYAGE

46 67G–44173–00 LEVER, SHIFT CONTROL 1 1

POIGNEE, INVERSION

47 90159–06M18 SCREW, WITH WASHER 2 2

VIS, AVEC RONDELLE

48 6G8–44191–00 INDICATOR, SHIFT 1 1

ETIQUETTE, EMBRAYAGE

49 90386–26MA3 BUSH 1 1

DOUILLE

50 67G–42131–00 COVER, HANDLE STEERING 1 1

COUVERCLE

51 97885–06040 SCREW, PAN HEAD 2 2

VIS, TETE TRONCONIQUE

52 92995–06600 WASHER 2 2

RONDELLE

53 97885–06016 SCREW, PAN HEAD 5 5

VIS, TETE TRONCONIQUE

54 92995–06600 WASHER 5 5

RONDELLE

F80

F100

FIG. 18 STEERING 1 DIRECTION 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

55 63D–42725–00 GROMMET 1 1

PASSE–FIL

56 67G–42121–00–4D BRACKET 1 1

SUPPORT

57 90101–12M09 BOLT 1 1

BOULON

58 92990–12200 WASHER, PLAIN 2 2

RONDELLE, PLATE

59 90206–12M22 WASHER, WAVE 1 1

RONDELLE, ONDULEE

60 90387–12M02 COLLAR 1 1

COLLERETTE

61 90386–12M93 BUSH 2 2

DOUILLE

62 92990–12600 WASHER, PLATE 1 1

RONDELLE, PLATE

63 90185–12M12 NUT, SELF–LOCKING 1 1

ECROU, AUTO–BLOCANT

F80

F100

FIG. 19 STEERING 2 DIRECTION 2

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 90446–24M79 HOSE 1 1 AP

DURITE

2 6K3–83557–00 TUBE 1 1 AP

TUBE

3 67G–42735–00 PROTECTOR 1 1 AP

PROTECTEUR

4 688–82540–11 NEUTRAL SWITCH ASSY 1 1 AP

CONTACTEUR DE POINT–MORT

5 67G–82554–01 STAY, NEUTRAL SWITCH 1 1 AP

SUPPORT, CONT DE POINT–MORT

6 62Y–82555–00 DAMPER, MAIN SWITCH 1 1 1 AP

AMORTISSEUR 1, CONTACT A CLEF

7 97095–06014 BOLT 2 2 AP

BOULON

8 92995–06600 WASHER 2 2 AP

RONDELLE

9 67G–82510–30 MAIN SWITCH ASSY 1 1 AP

CONTACTEUR A CLEF COMPLET

10 63D–8252E–01–4D COVER, MAIN SWITCH 1 1 AP

COUVERCLE

11 63D–8252F–01–4D COVER, MAIN SWITCH 1 1 AP

COUVERCLE

12 63D–24367–00 CLAMP, FUEL PIPE 2 1 1 AP

COLLIER DE DURITE A ESSENCE

13 63D–24364–00 STAY 1 1 AP

SUPPORT

14 97095–06025 BOLT 1 1 AP

BOULON

15 92995–06600 WASHER 1 1 AP

RONDELLE

16 97095–06020 BOLT 1 1 AP

BOULON

17 92995–06600 WASHER 1 1 AP

RONDELLE

18 97095–06030 BOLT 1 1 AP

BOULON

19 92995–06600 WASHER 1 1 AP

RONDELLE

20 63D–82575–00 ENGINE STOP SWITCH ASSY 1 1 AP

COUPE CIRCUIT CPLT

21 682–82556–00 .STOPPER 1 1

.PLAQUETTE

22 689–8257Y–00 .CAP 1 1

.CHAPEAU

23 67G–82563–00 TRIM & TILT SWITCH ASSY 1 1 AP

INCLINER ET PARER COMMUTATEUR

24 97885–06016 SCREW, PAN HEAD 2 2 AP

VIS, TETE TRONCONIQUE

25 92995–06600 WASHER 2 2 AP

RONDELLE

26 63D–83728–00 CONNECTOR ASSY 1 1 AP

CONNEXION COMPLET

27 90465–13M24 CLAMP 5 5 AP

BRIDE

F80

F100

FIG. 19 STEERING 2 DIRECTION 2

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

28 90465–13M30 CLAMP 1 1 AP

BRIDE

29 6H5–83553–11 WIRE, LEAD 1 1 AP

FIL

30 63D–82586–00 EXTENSION, WIRE HARNESS 1 1 AP

EXTENSION, FAISCEAU DE FILS

31 67G–42725–00 GROMMET 1 1 AP

PASSE–FIL

32 688–83383–11 BUZZER 1 1 AP

RONFLEUR

33 6H5–83386–00 STAY, BUZZER 1 1 AP

SUPPOR, RONFLEUR

F80

F100

FIG. 20 STEERING FRICTION CUVETTE, POIGNEE DE DIRECTION

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 67G–42508–00 STEERING FRICTION ASSY 1 1 AP

DIRECTION FRICTION (ENS.)

2 90119–08M74 .BOLT, WITH WASHER 2 2

.BOULON, AVEC RONDELLE

3 90201–08M01 .WASHER, PLATE 2 2

.RONDELLE, PLATE

4 67G–42541–00 .DAMPER 1 1

.AMORTISSEUR

5 67G–42546–00 .NUT 2 2

.ECROU

6 63D–42527–00 .PLATE, FRICTION 1 1

.PLAQUE, FRICTION

7 67G–42541–10 .DAMPER 1 1

.AMORTISSEUR

8 682–43318–01 .COVER 1 1

.CAPUCHON

9 90185–10M14 .NUT, SELF–LOCKING 1 1

.ECROU, AUTO–BLOCANT

10 90201–10M76 .WASHER, PLA TE 1 1

.RONDELLE, PLATE

11 67G–42526–00 .PLATE, FRICTION 1 1

.PLAQUE, FRICTION

12 97095–08025 .BOLT 2 2

.BOULON

13 92995–08600 .WASHER 2 2

.RONDELLE

14 90185–08057 .NUT, SELF–LOCKING 2 2

.ECROU, AUTO–BLOCANT

15 67G–42561–00 .KNOB, STEERING LOCK 1 1

.BOUTON

16 67G–42562–00 .SHAFT, STEERING LOCK 1 1

.ARBRE,ANTIVOL DE DIRECTION

17 63D–42528–00 .PLATE, FRICTION 2 2

.PLAQUE, FRICTION

F80

F100

FIG. 21 CONTROL COMMANDE

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 67F–48538–00 CLAMP, CABLE 1 1 1

COLLIER

2 90109–06M86 BOLT 1 1

BOULON

3 663–48344–00 CABLE END, REMOTE CONTROL 1 1

CHAPE CABLE

4 90468–18008 CLIP 1 1

JONC

5 67F–44117–00 BRACKET 1 1

SUPPORT

6 97095–06040 BOLT 2 2

BOULON

7 92995–06600 WASHER 2 2

RONDELLE

8 688–44122–00 BUSHING, SHIFT ROD LEVER 1 1

DOUILLE, LEVIER D’EMBRAYAGE

9 90202–07M07 WASHER, PLATE 1 1

RONDELLE, PLATE

10 90468–18008 CLIP 1 1

JONC

11 67F–44121–00 LEVER, SHIFT ROD 1 1

LEVIER, TIGE D’INVERSION

12 90386–06M12 BUSH 1 1

DOUILLE

13 90468–18008 CLIP 1 1

JONC

14 67F–44120–10 HANDLE GEAR SHIFT ASSY 1 1 L

LEVIER D’EMBRAYAGE

15 90386–90M90 BUSH 2 2

DOUILLE

16 90201–09M02 WASHER, PLATE 1 1

RONDELLE, PLATE

17 91490–20015 PIN, COTTER 1 1

GOUPILLE, FENDUE

18 67F–44118–00 BRACKET 1 1

SUPPORT

19 97075–06025 BOLT 2 2

BOULON

20 92995–06600 WASHER 2 2

RONDELLE

21 93501–04M02 BALL 1 1

BILLE

22 90501–12082 SPRING, COMPRESSION 1 1

RESSORT, COMPRESSION

23 648–42715–00 BUSHING 1 1

COUSSINET

24 663–48344–00 CABLE END, REMOTE CONTROL 1 1

CHAPE CABLE

25 90468–18008 CLIP 1 1

JONC

26 67F–42154–00–94 LEVER, THROTTLE CONTROL 1 1

LEVIER DE COMMANDE D’AVANCE

27 663–85518–00 JOINT, BALL 1 1

JOINT SPHERIQUE

F80

F100

FIG. 21 CONTROL COMMANDE

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

28 91690–30018 PIN, SPRING 1 1

GOUPILLE, ELASTIQUE

29 90201–06068 WASHER, PLATE 1 1

RONDELLE, PLATE

30 90206–12M00 WASHER, WAVE 1 1

RONDELLE, ONDULEE

31 92990–12600 WASHER, PLATE 1 1

RONDELLE, PLATE

32 90386–12069 BUSH 2 2

DOUILLE

33 97095–06012 BOLT 1 1

BOULON

34 92995–06600 WASHER 1 1

RONDELLE

35 67F–41661–00–94 BRACKET 1 1

SUPPORT

36 97095–06025 BOLT 2 2

BOULON

37 92995–06600 WASHER 2 2

RONDELLE

38 67F–41237–00 JOINT, LINK 1 1

RACCORD

39 682–41237–00 JOINT, LINK 1 1

RACCORD

40 95380–05600 NUT 1 1

ECROU

41 67F–41213–01 CAM, ACCEL. 1 1

CAME, ACCELERATION

42 67F–44135–00 SPRING 1 1

RESSORT

43 90387–06M82 COLLAR 1 1

COLLERETTE

44 97095–06035 BOLT 1 1

BOULON

45 90201–10M02 WASHER, PLATE 1 1

RONDELLE, PLATE

46 90201–06M31 WASHER, PLATE 1 1

RONDELLE, PLATE

47 90206–10M04 WASHER, WAVE 1 1

RONDELLE, ONDULEE

F80

F100

FIG. 22 BRACKET 1 SUPPORT 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 67F–43111–00–4D BRACKET, CLAMP 1 1

PRESSE

2 90465–10M77 CLAMP 2 2

BRIDE

3 97095–06010 BOLT 2 2

BOULON

4 67F–43112–00–4D BRACKET, CLAMP 1 1

PRESSE

5 6E5–82148–00 WIRE, LEAD 4 1 1

FIL 4

6 97880–06012 SCREW, PAN HEAD 1 1

VIS, TETE TRONCONIQUE

7 67F–43311–10–4D BRACKET, SWIVEL 1 1 1

SUPPORT, PIVOT 1

8 93700–06M03 NIPPLE, GREASE 3 3

GRAISSEUR

9 90465–08M63 CLAMP 1 1

BRIDE

10 97095–06010 BOLT 1 1

BOULON

11 67F–82127–00 WIRE, LEAD 2 1 1

FIL 2

12 64E–43131–01 BOLT, CLAMP BRACKET 1 1

BOULON, PRESSE

13 90386–25M31 BUSH 2 2

DOUILLE

14 90201–26M59 WASHER, PLATE 2 2

RONDELLE, PLATE

15 90185–22M11 NUT, SELF–LOCKING 1 1

ECROU, AUTO–BLOCANT

16 97095–08020 BOLT 1 1

BOULON

17 92995–08100 WASHER 1 1

RONDELLE

18 67F–43181–00 LEVER, TILT STOP 1 1

LEVIER, VERROUILLAGE RELEVAGE

19 90386–10M16 BUSH 2 2

DOUILLE

20 67F–43631–00 LEVER, TILT 1 1

LEVIER, INCLINAISON

21 91690–30020 PIN, SPRING 1 1

GOUPILLE, ELASTIQUE

22 66T–43144–00 HOOK, SPRING 1 1

CROCHET

23 97095–06010 BOLT 1 1

BOULON

24 90506–14M24 SPRING, TENSION 1 1

RESSORT, TENSION

25 67F–82148–00 WIRE, LEAD 4 1 1

FIL 4

26 97095–06010 BOLT 1 1

BOULON

27 92995–06600 WASHER 1 1

RONDELLE

F80

F100

FIG. 22 BRACKET 1 SUPPORT 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

28 67F–43126–00 PIN, UPPER SHOCK MOUNT 1 1

AXE, SUPERIEUR AMORTISSEUR

29 90386–18M35 BUSH 2 2

DOUILLE

30 90386–18M63 BUSH 2 2

DOUILLE

31 93410–18M05 CIRCLIP 1 1

CIRCLIP, TYPE S

32 67F–43818–00 PIN, LOWER SHOCK MOUNT 1 1

AXE, INFERIEUR AMORTISSEUR

33 90387–18M01 COLLAR 2 2

COLLERETTE

34 90386–18MA0 BUSH 2 2

DOUILLE

35 90387–22M01 COLLAR 1 1

COLLERETTE

36 93410–18M05 CIRCLIP 2 2

CIRCLIP, TYPE S

37 6H1–45251–03 ANODE 1 1

ANODE

38 90119–06M81 BOLT, WITH WASHER 2 2

BOULON, AVEC RONDELLE

39 6H1–44526–00 PLATE 1 1

PLAQUE

40 97095–06016 BOLT 2 2

BOULON

41 92995–06100 WASHER, SPRING 2 2

RONDELLE, GROWER

42 92995–06600 WASHER 2 2

RONDELLE

43 90101–12M03 BOLT (L:115MM) 4 4

BOULON (L:115MM)

44 90201–13M01 WASHER, PLATE 8 8

RONDELLE, PLATE

45 90201–12M05 WASHER, PLATE 4 4

RONDELLE, PLATE

46 95380–12600 NUT 8 8

ECROU

F80

F100

FIG. 23 BRACKET 2 SUPPORT 2

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 64E–83672–02 TRIM SENDER 1 1

INCLINER RACCORD

2 97885–06016 SCREW, PAN HEAD 2 2

VIS, TETE TRONCONIQUE

3 90465–08M63 CLAMP 1 1

BRIDE

4 64E–43139–02 CAM, TRIM SENDER 1 1

VILEBREQUIN TRUM

5 97780–60525 SCREW, TAPPING 1 1

VIS, TETE FRAISEE

6 90465–11M10 CLAMP 1 1

BRIDE

7 90465–11M10 CLAMP 3 3

BRIDE

8 67F–42510–10–4D STEERING BRACKET ASSY 1 1

DIRECTION SUPPORT (ENS.)

9 90201–30M00 WASHER, PLATE 1 1

RONDELLE, PLATE

10 90386–30M78 BUSH 1 1

DOUILLE

11 93210–29M94 O–RING 2 2

JOINT TORIQUE

12 90386–30M77 BUSH 2 2

DOUILLE

13 90386–30M60 BUSH 1 1

DOUILLE

14 67F–44551–00–4D HOUSING, LOWER MOUNT RUBBER 1 1

BOITIER, SILENT–BLOC INFERIEUR

15 93410–28M06 CIRCLIP 1 1

CIRCLIP, TYPE S

16 67F–44514–00–94 MOUNT DAMPER, UPPER SIDE 1 1

SILENT–BLOC, SUPERIEUR LATERAL

17 97575–08445 BOLT, WITH WASHER 3 3

VIS HEXAGONAL AVC RONDELLE

18 90109–12M37 BOLT 2 2

BOULON

19 67F–44526–00 PLATE 1 1

PLAQUE

20 90201–12M16 WASHER, PLATE 2 2

RONDELLE, PLATE

21 90201–13M01 WASHER, PLATE 2 2

RONDELLE, PLATE

22 67F–44533–00 DAMPER, UPPER MOUNT RUBBER 2 2

COUVERCLE, SUSPENSION INFERIEU

23 95780–12300 NUT, FLANGE 2 2

ECROU, A COLLERETTE

24 67F–44555–00–94 MOUNT DAMPER, LOWER SIDE 2 2

SILENT–BLOC, INFERIEUR LATERAL

25 90201–13M03 WASHER, PLATE 2 2

RONDELLE, PLATE

26 90109–12M97 BOLT 2 2

BOULON

27 90201–12M16 WASHER, PLATE 2 2

RONDELLE, PLATE

F80

F100

FIG. 23 BRACKET 2 SUPPORT 2

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

28 90201–24M02 WASHER, PLATE 2 2

RONDELLE, PLATE

29 90202–25M04 WASHER, PLATE 2 2

RONDELLE, PLATE

30 90201–13M19 WASHER, PLATE 2 2

RONDELLE, PLATE

31 95380–12700 NUT 2 2

ECROU

32 67F–44575–00 DAMPER, LOWER MOUNT RUBBER 1 1

SILENT–BLOC, INFERIEUR

33 67F–44553–00–4D COVER, LOWER MOUNT 2 2

COUVERCLE, SUSPENSION INFERIEU

34 97075–10040 BOLT 4 4

BOULON

35 92995–10100 WASHER 4 4

RONDELLE

36 67F–48511–00–4D HOOK, STEERING 1 1

ATTACHE, DIRECTION

37 90116–10175 BOLT, STUD 2 2

GOUJON

38 90185–10051 NUT, SELF–LOCKING 2 2

ECROU, AUTO–BLOCANT

F80

F100

FIG. 24 OPTIONAL PARTS PIECES OPTIONNELLES

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 67F–45180–00–4D PLATE, SPLASH 1 1 AP

PLAQUE, EAU

2 90201–12M01 WASHER, PLATE 2 2 AP

RONDELLE, PLATE

3 95380–12700 NUT 2 2 AP

ECROU

4 901 10–12M00 BOLT, HEXAGON SOCKET HEAD 2 2 AP

BOULON, TETE HEXAGONALE CREUSE

5 90201–12M16 WASHER, PLATE 2 2 AP

RONDELLE, PLATE

6 95780–12300 NUT, FLANGE 2 2 AP

ECROU, A COLLERETTE

F80

F100

FIG. 25 POWER TRIM & TILT ASSY 1 PUISSANCE PARER ET INCLINER 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 67F–43800–03–4D POWER TRIM & TILT ASSY 1 1

PUISSANCE PARER ET INCLINER(ENS.)

2 67F–43840–02 POWER TILTASSY 1 1

PUISSANCE INCLINER (ENS.)

3 67F–4380K–00 .CYLINDER, TILT SUB ASSY 1 1

.CYLINDRE

4 67F–43810–01 .TILT PISTON SUB ASSY 1 1

.INCLINER PISTON AUXILIAIRE(EN

5 67F–43821–00 ..SCREW, TRIM CYLINDER END 1 1

..VIS

6 6H1–43872–10 ..RING, BACK UP 1 1

..RESSORT

7 93210–18397 ..O–RING 1 1

..JOINT TORIQUE

8 67F–4380R–00 ..CYLINDER END SUB ASSY 1 1

..CYLINDRE RACCORD (ENS.)

9 6H1–43872–10 ...RING, BACK UP 1 1

...RESSORT

10 93210–18397 ...O–RING 1 1

...JOINT TORIQUE

11 67F–4385A–01 ..PISTON, TILT 1 1

..PISTON

12 93501–08001 ..BALL 1 1

..BILLE

13 6H1–43812–00 ..SEAL, DUST 1 1

..JOINT

14 67F–43861–00 ..O–RING 1 1

..JOINT TORIQUE

15 62X–43862–00 ..O–RING 1 1

..JOINT TORIQUE

16 93501–08001 ..BALL 2 2

..BILLE

17 65W–4386A–00 ..PIN, ABSORBER VAL VE 2 2

..GOUPILLE, SOUPAPE

18 688–4386F–00 ..PIN, STRAIGHT 2 2

..RESSORT

19 65W–43853–00 ..SPRING, MAIN VALVE 2 2

..RESSORT

20 67F–43893–00 ..WASHER 1 1

..RONDELLE

21 93602–07244 ..PIN, DOWEL 2 2

..GOUJON

22 67F–22435–00 ..PLATE, VALVE 2 1 1

..PLAQUE, CLAPET 2

23 93210–29375 ..O–RING 1 1

..JOINT TORIQUE

24 62X–43871–00 ..RING, BACK UP 1 1

..SEGMENT

25 93503–16003 .BALL 6 6

.BILLE

26 93501–08001 .BALL 5 5

.BILLE

27 67F–43863–00 .O–RING 1 1

.JOINT TORIQUE

F80

F100

FIG. 25 POWER TRIM & TILT ASSY 1 PUISSANCE PARER ET INCLINER 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

28 67F–43899–00 .PLATE STOPPER 1 1

.PLAQUETTE

29 67F–43816–00 .FILTER 1 1 1

.FILTRE 1

30 67F–43862–00 .O–RING 1 1

.JOINT TORIQUE

31 62X–43865–00 .O–RING 1 1

.JOINT TORIQUE

32 67F–4388A–00 .BOLT 1 1

.BOULON

33 6T4–4386A–00 .PIN, ABSORBER VALVE 5 5

.GOUPILLE, SOUPAPE

34 67F–43857–00 .SPRING, ABSORBER VALVE 5 5

.RESSORT

35 67F–4381J–00 .PLATE 1 1

.PLAQUE

36 67F–22471–01 .CYLINDER, SHOCK ABSORBER 1 1

.CYLINDRE, AMORTISSEUR

37 67F–43875–00 .RING, SNAP 1 1

.RESSORT

38 67F–4381B–00 .FREE PISTON SUB ASSY 1 1

.PISTON AUXILIAIRE (ENS.)

39 62X–43899–00 .PLATE STOPPER 1 1

.PLAQUETTE

40 62X–4384H–00 .SPRING 2 2

.RESSORT

41 1UF–22434–00 .PLATE, VALVE 1 1 1

.PLATEAU, SOUPAPE 1

42 62X–43875–00 .RING, SNAP 1 1

.RESSORT

43 67F–43871–00 .RING, BACK UP 1 1

.SEGMENT

44 6H1–43829–00 PLUG, RESERVOIR 1 1

BOUCHON

45 93210–09165 O–RING 2 2

JOINT TORIQUE

46 91318–06035 BOLT 3 3

BOULON

47 91318–06020 BOLT 1 1

BOULON

48 6H1–43831–10 CONNECTOR, SHAFT 1 1

RACCORD

49 67F–43802–00 VAL VE SUB ASSY 2 2

CLAPET AUXILIAIRE (ENS.)

50 67F–4382F–00 ADAPTOR 3 1 1

ADAPTEUR 3

51 6H1–43866–00 O–RING 1 1

JOINT TORIQUE

52 67F–43817–00 FILTER 2 1 1

FILTRE 2

53 93210–10M74 O–RING 1 1

JOINT TORIQUE

54 6H1–43867–00 O–RING 1 1

JOINT TORIQUE

F80

F100

FIG. 25 POWER TRIM & TILT ASSY 1 PUISSANCE PARER ET INCLINER 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

55 62X–43865–00 O–RING 1 1

JOINT TORIQUE

56 62X–43841–00 PISTON, SHUTTLE 1 1

PISTON

57 65W–43888–00 BOLT, SOCKET 4 4

BOULON

58 67F–43825–03 HOUSING, TRIM & TILT 1 1

CARTER

59 62X–43878–00 BOLT, SOCKET 3 3

BOULON

60 6H1–43816–00 FILTER 1 2 2

FILTRE 1

61 67F–43851–00 SEAT, RELIEF VALVE 1 1

SIEGE

62 93210–07003 O–RING 1 1

JOINT TORIQUE

63 67F–43808–00 SEAT VALVE COMP. 1 2 2

SIEGE VALVE COMP. 1

64 67F–4382G–00 SCREW, VALVE SEAT 1 1

VIS, JEU DE POINTEAUX

65 93210–064A5 O–RING 5 5

JOINT TORIQUE

66 93505–32038 BALL 1 1

BILLE

67 61A–43860–20 MANUAL VALVE SUB–ASSY 1 1

SOUPAPE, MANUEL (ENS.)

68 61A–43848–00 .ROD, MANUAL RELEASE 1 1

.TIGE

69 61A–43854–00 .SPRING, MANUAL RELEASE 1 1

.RESSORT

70 61A–43845–00 .SCREW, MANUAL RELEASE 1 1

.VIS

71 61A–43875–00 .RING, SNAP 1 1

.RESSORT

72 93210–06100 O–RING 1 1

JOINT TORIQUE

73 6H1–43875–00 RING, SNAP 1 1

RESSORT

74 93210–18397 O–RING 1 1

JOINT TORIQUE

75 61A–43847–00 SEAT, MANUAL VALVE 1 1

SIEGE

76 65W–43862–00 O–RING 2 2

JOINT TORIQUE

77 93210–11368 O–RING 1 1

JOINT TORIQUE

78 67F–43830–00 GEAR PUMP ASSY 1 1

POMPE A PIGNON (ENS.)

79 6H1–4384F–10 SEAL, MAIN VALVE 1 1

JOINT

80 6H1–43844–10 PIN, VALVE SUPPORT 1 1

GOUPILLE

81 6H1–43856–10 SPRING, DOWN RELIEF 1 1

RESSORT

F80

F100

FIG. 25 POWER TRIM & TILT ASSY 1 PUISSANCE PARER ET INCLINER 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

82 65W–43861–00 O–RING 2 2

JOINT TORIQUE

83 65W–43817–00 FILTER 2 2 2

FILTRE 2

84 67F–4385H–00 SPRING, SEAL 1 1

RESSORT

85 67F–43850–00 VAL VE SUB ASSY 1 1

CLAPET AUXILIAIRE (ENS.)

86 93501–08001 .BALL 1 1

.BILLE

87 6H1–43856–10 .SPRING, DOWN RELIEF 1 1

.RESSORT

88 67F–43895–00 .SEAT, RELIEF VALVE 1 1

.SIEGE

89 67F–43843–00 .SCREW, VALVE LOCK 1 1

.VIS

90 67F–4386A–00 .PIN, ABSORBER VALVE 1 1

.GOUPILLE, SOUPAPE

91 67F–43880–00 MOTOR ASSY 1 1 REFER TO FIG.26

MOTEUR (ENS.)

F80

F100

FIG. 26 POWER TRIM & TILT ASSY 2 PUISSANCE PARER ET INCLINER 2

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 67F–43880–00 MOTOR ASSY 1 1

MOTEUR (ENS.)

2 67F–43805–00 .ARMATURE ASSY 1 1

.INDUIT (ENS.)

3 67F–43804–00 .STATORASSY 1 1

.STATOR (ENS.)

4 67F–43891–00 .BRUSH 1 2 2

.BALAI 1

5 67F–82181–00 .CIRCUIT BREAKER COMP. 1 1

.RUPTEUR COMPLET

6 67F–4386K–00 .SPRING, BRUSH 2 2

.RESSORT, BALAI

7 67F–4380F–00 .PLATE, BRUSH HOLDER 1 1

.PLAQUE

8 67F–43886–00 .BOLT 3 3

.BOULON

9 67F–43881–00 .FRAME, END 1 1

.BATI

10 67F–43882–00 .OIL SEAL 1 1

.JOINT SPI

11 67F–43896–00 .O–RING 1 1

.JOINT TORIQUE

12 67F–43887–00 .BOLT, THROUGH 1 1

.BOULON

13 67F–43879–00 .SCREW, WITH WASHER 3 3

.VIS, AVEC RONDELLE

F80

F100

FIG. 27 UPPER CASING FOURREAU

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 90119–08M58 BOLT, WITH WASHER 2 2

BOULON, AVEC RONDELLE

2 67F–42724–00 GROMMET 1 1

PASSE–FIL

3 67F–41137–01–94 GUIDE, EXHAUST 1 1

COLLECTEUR D’ECHAPPEMENT

4 97575–08540 BOLT, WITH WASHER 4 4

VIS HEXAGONAL AVC RONDELLE

5 93608–16M16 PIN, DOWEL 2 2

GOUJON

6 6G1–42727–00 GROMMET 1 1

PASSE–FIL

7 67F–41131–00–5B MANIFOLD, EXT. 1 1 1

PIPE D’ECHAPPEMENT

8 67F–41133–A0 GASKET, EXHAUST MANIFOLD 1 1 1

JOINT, PIPE D’ECHAPPEMENT

9 97075–06070 BOLT 4 4

BOULON

10 92995–06600 WASHER 4 4

RONDELLE

11 67F–14711–00–5B MUFFLER 1 1 1

POT D’ECHAPPEMENT 1

12 97075–06030 BOLT 6 6

BOULON

13 92995–06600 WASHER 6 6

RONDELLE

14 97075–06050 BOLT 1 1

BOULON

15 92995–06600 WASHER 1 1

RONDELLE

16 93606–19M23 PIN, DOWEL 2 2

GOUJON

17 67F–41134–A0 GASKET, EXHAUST MANIFOLD 2 2

JOINT, PIPE D’ECHAPPEMENT

18 67F–45181–00–5B PLATE 1 1

PLAQUETTE

19 67F–41138–00 SEAL, EXT. 1 1 1

JOINT DE GROUPE 1

20 67F–45127–00 SEAL 1 1

JOINT

21 67F–45123–00 GASKET, MUFFLER 1 1

JOINT, POT DE DETENTE

22 67F–45111–10–4D CASING, UPPER 1 1

FOURREAU

23 90119–10M08 BOLT, WITH WASHER 6 6

BOULON, AVEC RONDELLE

24 93608–16M16 PIN, DOWEL 2 2

GOUJON

25 67F–45318–00 BUSHING, DRIVE SHAFT 1 1

DOUILLE, ARBRE MOTEUR

26 93420–36M01 CIRCLIP 1 1

CIRCLIP, TYPE S

27 67F–45151–00 COVER, UPPER CASING 1 1

CAPUCHON, FOURREAU

F80

F100

FIG. 27 UPPER CASING FOURREAU

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

28 97880–06016 SCREW, PAN HEAD 2 2

VIS, TETE TRONCONIQUE

29 92990–06600 WASHER, PLATE 2 2

RONDELLE, PLATE

30 67F–45155–00 CAP 1 1

CAPUCHON

31 67F–45113–00 GASKET, UPPER CASING 1 1

JOINT, TUBE D’ARBRE

32 97095–08016 BOLT 1 1

BOULON

33 92995–08100 WASHER 1 1

RONDELLE

F80

F100

FIG. 28 OIL PAN VENTILATEUR D’HUILE

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 67F–15311–00–5B OIL PAN 1 1

VENTILATEUR D’HUILE

2 67F–15316–00 DAMPER 1 1 1

AMORTISSEUR 1

3 90340–14M06 PLUG, STRAIGHT SCREW 1 1

PLOT, FILETE DROIT

4 90430–14M09 GASKET 1 1

JOINT

5 97075–06025 BOLT 12 12

BOULON

6 92995–06600 WASHER 12 12

RONDELLE

7 93606–12019 PIN, DOWEL 2 2

GOUJON

8 67F–15312–00 GASKET, OIL PAN 1 1

JOINT DE VENTILATEUR D’HUILE

9 67F–13411–00 STRAINER, OIL 1 1

FILTRE, HUILE

10 97027–06025 BOLT 3 3

BOULON

11 92907–06600 WASHER, PLATE 3 3

RONDELLE

12 90387–06M64 COLLAR 3 3

COLLERETTE

13 67F–13415–00 SEAL, OIL STRAINER 1 1

JOINT, FILTRE A HUILE

14 67F–13300–03 OIL PUMP ASSY 1 1

POMPE A HUILE COMPLET

15 67F–13314–01 .SHAFT, PUMP 1 1

.AXE DE POMPE

16 67F–13473–01 .O–RING 1 1

.JOINT TORIQUE

17 67F–13329–00 .GASKET, PUMP COVER 1 1

.JOINT, COUVERCLE DE POMPE

18 67F–13119–01 .OIL SEAL 1 1

.JOINT SPY

19 67F–13631–02 .SEAL, RUBBER 1 1

.JOINT CAOUTCHOUC

20 67F–13769–00 .O–RING 1 1

.JOINT TORIQUE

21 67F–13338–00 SEAL 1 1

JOINT

22 97095–06045 BOLT 6 6

BOULON

23 92995–06600 WASHER 6 6

RONDELLE

24 93604–12M07 PIN, DOWEL 2 2

GOUJON

25 93210–19MJ1 O–RING 2 2

JOINT TORIQUE

26 68V–15362–00 PLUG, OIL LEVEL 1 1

PLOT, NIVEAU D’HUILE

F80

F100

FIG. 29 LOWER CASING. DRIVE 1 BOITIER D’HELICE, TRANSMISSION 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 67F–45300–10–4D LOWER UNIT ASSY 1 1 L

UNITE INFERIEURE (ENS.)

2 67F–45301–00–4D CASING, LOWER 1 1

BEQUILLE

3 90340–08002 PLUG, STRAIGHT SCREW 1 1

PLOT, FILETE DROIT

4 688–45341–10 PLUG, DRAIN 1 1

BOUCHON DE VIDANGE

5 90430–08020 GASKET 2 2

JOINT

6 6E5–45378–00 NIPPLE, HOSE 1 1

RACCORD, TUYAU

7 90445–07M31 HOSE (L200) 1 1 L

DURITE (L200)

8 6E5–83558–10 END, NIPPLE 1 1

RACCORD DE NIPPLE

9 90465–11M10 CLAMP 4 4

BRIDE

10 67F–45501–10 DRIVE SHAFT COMP. 1 1 L

ARBRE MOTEUR COMP.

11 67F–45551–00 PINION 1 1

PIGNON D’ATTAQUE

12 90170–16M01 NUT 1 1

ECROU

13 93315–325W4 BEARING 1 1

ROULEMENT

14 688–45536–01 SLEEVE, DRIVE SHAFT 1 1

MANCHON, ARBRE MOTEUR

15 93332–000U3 BEARING 1 1

ROULEMENT

16 688–45587–01–10 SHIM (T:0.10MM) 1 1 UR

CALE (T:0.10MM)

688–45587–01–12 SHIM (T:0.12MM) 1 1 UR

CALE (T:0.12MM)

688–45587–01–15 SHIM (T:0.15MM) 1 1 UR

CALE (T:0.15MM)

688–45587–01–18 SHIM (T:0.18MM) 1 1 UR

CALE (T:0.18MM)

688–45587–01–30 SHIM (T:0.30MM) 1 1 UR

CALE (T:0.30MM)

688–45587–01–40 SHIM (T:0.40MM) 1 1 UR

CALE (T:0.40MM)

688–45587–01–50 SHIM (T:0.50MM) 1 1 UR

CALE (T:0.50MM)

17 67F–44311–00 HOUSING, WATER PUMP 1 1

CORPS, POMPE A EAU

18 93604–10M03 PIN, DOWEL 2 2

GOUJON

19 90119–08M87 BOLT, WITH WASHER 2 2

BOULON, AVEC RONDELLE

20 90119–08M13 BOLT, WITH WASHER 2 2

BOULON, AVEC RONDELLE

21 663–44366–00 DAMPER, WA TERSEAL 1 1

JOINT, TUBE D’EAU

F80

F100

FIG. 29 LOWER CASING. DRIVE 1 BOITIER D’HELICE, TRANSMISSION 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

22 90480–19M06 GROMMET 1 1

PASSE–FIL

23 97780–40512 SCREW, TAPPING 2 2

VIS, TETE FRAISEE

24 67F–44322–00 INSERT, CARTRIDGE 1 1

CUVETTE

25 67F–44352–00 IMPELLER 1 1

TURBINE

26 90280–04M04 KEY, WOODRUFF 1 1

CLAVETTE, DEMI–LUNE

27 688–44315–A0 GASKET, WATER PUMP 1 1

JOINT, POMPE A EAU

28 67F–44323–00 OUTER PLA TE, CARTRIDGE 1 1

PLAQUE EXTERIEURE

29 688–44324–A0 GASKET, CARTRIDGE 1 1

JOINT

30 688–44341–01–94 HOUSING, WATER PUMP 1 1

CORPS, POMPE A EAU

31 93101–25M03 OIL SEAL 2 2

JOINT SPY

32 93210–46044 O–RING 1 1

JOINT TORIQUE

33 688–44316–A0 GASKET, WATER PUMP 1 1

JOINT, POMPE A EAU

34 688–45321–00 PLATE 1 1

PLAQUETTE

35 93106–09014 OIL SEAL 1 1

JOINT SPY

36 97095–06016 BOLT 2 2

BOULON

37 92995–06600 WASHER 2 2

RONDELLE

38 93210–49046 O–RING 1 1

JOINT TORIQUE

39 67F–44150–00 SHIFT CAM ASSY 1 1

CAME D’INVERSION

40 93210–07003 O–RING 1 1

JOINT TORIQUE

41 99001–08600 CIRCLIP 1 1

CIRCLIP

42 93503–16003 BALL 2 2

BILLE

43 67F–45634–00 SLIDE, SHIFT 1 1

CONTRE–POUSSOIR

44 6H1–45668–00 SHAFT, FREE 1 1

AXE

45 6H1–45635–00 PLUNGER, SHIFT 2 2

POUSSOIR D’EMBRAYAGE

46 90501–12M48 SPRING, COMPRESSION 1 1

RESSORT, COMPRESSION

47 90201–03313 WASHER, PLATE 1 1

RONDELLE, PLATE

48 90183–02M03 NUT, SPRING 2 2

ECROU, RESSORT

F80

F100

FIG. 29 LOWER CASING. DRIVE 1 BOITIER D’HELICE, TRANSMISSION 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

49 67F–45631–00 CLUTCH, DOG 1 1

CRABOT

50 90250–07M02 PIN, STRAIGHT 1 1

GOUPILLE, DROITE

51 688–45633–00 RING, CROSS PIN 1 1

JONC, GOUPILLE CRABOT

52 67F–45560–00 GEAR 1 1

PIGNON

53 93317–322V0 .BEARING 1 1

.ROULEMENT

54 93332–000UD BEARING 1 1

ROULEMENT

55 688–45567–01–10 SHIM (T:0.10MM) 1 1 UR

CALE (T:0.10MM)

688–45567–01–12 SHIM (T:0.12MM) 1 1 UR

CALE (T:0.12MM)

688–45567–01–15 SHIM (T:0.15MM) 1 1 UR

CALE (T:0.15MM)

688–45567–01–18 SHIM (T:0.18MM) 1 1 UR

CALE (T:0.18MM)

688–45567–01–30 SHIM (T:0.30MM) 1 1 UR

CALE (T:0.30MM)

688–45567–01–40 SHIM (T:0.40MM) 1 1 UR

CALE (T:0.40MM)

688–45567–01–50 SHIM (T:0.50MM) 1 1 UR

CALE (T:0.50MM)

56 67F–45571–00 GEAR 1 1

PIGNON

57 93306–207U0 BEARING 1 1

ROULEMENT

58 90201–25M05 WASHER, PLATE 1 1

RONDELLE, PLATE

59 67F–45611–00 SHAFT, PROPELLER 1 1

ARBRE, HELICE

60 67F–45331–00–94 HOUSING, BEARING 1 1

FLASQUE, ROULEMENT

61 93317–325U0 BEARING 1 1

ROULEMENT

62 93101–25M03 OIL SEAL 2 2

JOINT SPY

63 93210–86M39 O–RING 1 1

JOINT TORIQUE

64 67F–45576–00 WASHER, THRUST 1 1

RONDELLE DE CALAGE

65 90282–04010 KEY, STRAIGHT 1 1

CLAVETTE, DROITE

66 688–45383–02 WASHER, CLAW 1 1

FREIN D’ECROU

67 688–45384–00 NUT 1 1

ECROU

F80

F100

FIG. 30 LOWER CASING. DRIVE 2 BOITIER D’HELICE, TRANSMISSION 2

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 663–44367–00 DAMPER, WATERSEAL 1 1

JOINT TUBE D’EAU

2 67F–44361–10 TUBE, WATER 1 1 L

TUBE D’EAU

3 67F–44365–00 DAMPER, WATER SEAL 1 1

JOINT, TUBE D’EAU

4 93606–12019 PIN, DOWEL 2 2

GOUJON

5 97075–10040 BOLT 4 4

BOULON

6 92995–10100 WASHER 4 4

RONDELLE

7 92995–10600 WASHER 4 4

RONDELLE

8 90119–08M84 BOLT, WITH WASHER 1 1

BOULON, AVEC RONDELLE

9 6H1–45214–00 COVER, WATER INLET 1 1

GRILLE, ENTREE D’EAU

10 6H1–45215–00 COVER, WATER INLET 1 1

GRILLE, ENTREE D’EAU

11 90151–05M00 SCREW, COUNTERSUNK 1 1

VIS, TETE NOYEE

12 90185–05002 NUT, SELF–LOCKING 1 1

ECROU, AUTO–BLOCANT

13 67F–45371–00 TAB–TRIM 1 1

ANODE DERIVE

14 90105–10M67 BOLT, FLANGE 1 1

BOULON

15 90445–07ME0 HOSE (L1220) 1 1

DURITE (L1220)

16 6E5–83558–00 END, NIPPLE 1 1

RACCORD DE NIPPLE

17 688–45375–00 DAMPER, SEAL 1 1

BOURRELET, CAOUTCHOUC

18 663–45376–00–94 GUIDE, SEAL DAMPER 1 1

BUTEE, JOINT CAOUTCHOUC

19 688–45987–01 SPACER 1 1

ENTRETOISE

20 67F–45997–00 SPACER 1 1

ENTRETOISE

21 90389–25M00 BUSH 1 1

DOUILLE

22 90171–16011 NUT, CASTLE 1 1

ECROU, CRENELE

23 91490–40025 PIN, COTTER 1 1

GOUPILLE, FENDUE

24 6E5–45941–00–EL PROPELLER (3X13”X19”–K) 1 1 UR

HELICE (3X13”X19”–K)

6E5–45943–00–EL PROPELLER (3X12–5/8”X21”–K) 1 1 UR

HELICE (3X12–5/8”X21”–K)

6E5–45945–01–EL PROPELLER (3X13–1/4”X17”–K) 1 1 UR

HELICE (3X13–1/4”X17”–K)

6E5–45947–00–EL PROPELLER (3X13–1/2”X15”–K) 1 1 UR

HELICE (3X13–1/2”X15”–K)

F80

F100

FIG. 30 LOWER CASING. DRIVE 2 BOITIER D’HELICE, TRANSMISSION 2

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

24 6E5–45949–00–EL PROPELLER (3X13–5/8”X13”–K) 1 1 UR

HELICE (3X13–5/8”X13”–K)

6E5–45952–00–EL PROPELLER (3X13”X23”–K) 1 1 UR

HELICE (3X13”X23”–K)

6E5–45954–00–EL PROPELLER (3X14”X11”–K) 1 1 UR

HELICE (3X14”X11”–K)

6E5–45956–00–EL PROPELLER (3X13”X25”–K) 1 1 UR

HELICE (3X13”X25”–K)

STAINLESS STEEL PROPELLER ACIER INOXYDABLE HELICE

688–45970–03–98 PROPELLER (3X13”X19”–K) 1 1 UR

HELICE (3X13”X19”–K)

688–45972–02–98 PROPELLER (3X13”X21”–K) 1 1 UR

HELICE (3X13”X21”–K)

688–45974–02–98 PROPELLER (3X13”X23”–K) 1 1 UR

HELICE (3X13”X23”–K)

688–45976–01–98 PROPELLER (3X13”X25”–K) 1 1 UR

HELICE (3X13”X25”–K)

688–45978–60–98 PROPELLER (3X13–1/2”X16”–K) 1 1 UR

HELICE (3X13–1/2”X16”–K)

688–45930–02–98 PROPELLER (3X13”X17”–K) 1 1 UR

HELICE (3X13”X17”–K)

688–45932–60–98 PROPELLER (3X13–1/2”X14”–K) 1 1 UR

HELICE (3X13–1/2”X14”–K)

F80

F100

FIG. 31 FUEL TANK RESERVOIR A CARBURANT

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 6YK–24201–01 FUEL TANK ASSY 1 AP PLASTIC, 25L,

RESERVOIR A ESSENCE (ENS.) “SCEPTER”

6YK–24201–10 FUEL TANK ASSY (25L) 1 AP FOR SAV

RESERVOIR A ESSENCE (ENS.) 25L

2 6YL–24268–01 .GASKET, FUEL METER 1

.JOINT, JAUGE A CARBURANT

3 6YK–24610–00 .CAP ASSY 1 WITH INDICATOR

.BOUCHON

6YK–24610–10 .CAP ASSY 1 FORSAV– WITHOUT

.BOUCHON INDICATOR

4 6YL–24641–00 .GASKET, CAP 1 1

.JOINT 1, BOUCHON

5 6YK–24260–01 .FUEL METER ASSY 1

.INDICATEUR DE CARBURANT

6 90157–05M16 .SCREW, PAN HEAD 4

.VIS, TETE TRONCONIQUE

7 6YL–24329–00 .SEAL 4

.JOINT

8 6YK–24306–42 FUEL PIPE COMP. 1 1 AP

DURITE A ESSENCE 1

F80

F100

FIG. 32 STEERING GUIDE FIXATION DE DIRECTION

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 67F–61350–00 STEERING GUIDE ATTACHMENT KIT 1 1 AP

FIXATIONS DE DIRECTION

2 90201–10M20 .WASHER, PLATE 2 2

.RONDELLE, PLATE

3 90185–09M01 .NUT, SELF–LOCKING 2 2

.ECROU, AUTO–BLOCANT

4 90170–09M03 .NUT 1 1

.ECROU

5 90387–10M42 .COLLAR 1 1

.COLLERETTE

6 90201–10M63 .WASHER, PLATE 1 1

.RONDELLE, PLATE

7 90101–09M01 .BOLT 1 1

.BOULON

8 6E5–43145–01 .CAP, CLAMP BRACKET 1 1

.CAPUCHON, PRESSE

9 93210–16275 .O–RING 1 1

.JOINT TORIQUE

F80

F100

FIG. 33 REMOTE CONTROL BOX BOITIER DE COMMANDE A DISTANCE

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 703–48205–17 REMOTE CONTROL ASSY 1 1 AP WITHPT/T SW.

BOITIER DE COMMANDE A DISTANCE

2 701–48320–50 CABLE, REMOTE CONTROL L=15F 2 2 UR

CABLE, COMMANDE A DISTANCE:15F

701–48320–60 CABLE, REMOTE CONTROL L=16F 2 2 UR

CABLE, COMMANDE A DISTANCE:16F

701–48320–80 CABLE, REMOTE CONTROL L=17F 2 2 UR

CABLE, COMMANDE A DISTANCE:17F

701–48320–40 CABLE, REMOTE CONTROL L=19F 2 2 UR

CABLE, COMMANDE A DISTANCE:19F

701–48350–00 CABLE, REMOTE CONTROL L=21F 2 2 UR

CABLE, COMMANDE A DISTANCE:21F

F80

F100

FIG. 34 REMOTE CONTROL ASSY BOITIER DE COMMANDE A DISTANCE

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 703–48205–17 REMOTE CONTROL ASSY 1 1 AP WITHPT/T SW.

BOITIER DE COMMANDE A DISTANCE

2 703–48261–01 .ARM, THROTTLE 1 1

.BRAS, ACCELERATION

3 703–48153–00 .SHAFT, FREE ACCEL. 1 1

.AXE

4 703–48235–00 .BUSHING 1 1

.COUSSINET

5 703–48268–00 .SPACER 1 1

.ENTRETOISE

6 703–48264–00 .THROTTLE, FRICTION 1 1

.ACCELERATION

7 95380–05600 .NUT 1 1

.ECROU

8 97380–05025 .BOLT 1 1

.BOULON

9 703–48265–00 .SHAFT, FRICTION 1 1

.AXE, COPILOTE

10 93430–06024 .CIRCLIP 3 3

.CIRCLIP, TYPE S

11 703–48245–00 .PLATE, LOCK 1 1

.PLAQUE, VERROU

12 703–48252–00 .ROLLER, CAM 1 1

.POULIE

13 701–48248–00 .ROLLER, FREE ACCEL. 1 1

.POULIE

14 703–48198–00 .WASHER, WAVE 1 1

.RONDELLE, ELASTIQUE ONDULEE

15 703–48243–00 .BUSHING 1 1

.COUSSINET

16 703–48236–00 .BUSHING 1 2 2

.POULIE

17 703–48189–00 .RETAINER 1 1

.FLASQUE

18 703–48234–00 .ROLLER, DETENT 1 1

.POULIE

19 703–48345–01 .CABLE END,REMOTE CONTROL 2 2 2

.CHAPE CABLE

20 703–48358–00 .ANCHOR, CABLE 1 1

.COLLIER

21 703–48244–00 .SPRING, FREE ACCEL. 1 1

.RESSORT

22 703–48238–00 .SPRING, DETENT 5 5

.RESSORT

23 703–48246–00 .SPACER 1 1

.ENTRETOISE

24 703–48227–00 .SPRING, NEUTRAL LOCK 1 1

.RESSORT

25 703–82594–00 .CLAMP 1 1 WITH PT/T SW.

.BRIDE

26 703–48226–00 .PLATE, STOPPER 1 1

.PLAQUETTE

27 703–48222–00 .GRIP, CONTROL LEVER 1 1 SINGLE

.POIGNEE, COMMANDE LEVIER

F80

F100

FIG. 34 REMOTE CONTROL ASSY BOITIER DE COMMANDE A DISTANCE

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

28 703–48223–00 .LOCK, NEUTRAL 1 1

.VERROU, NEUTRAL

29 703–48225–00 .COVER 1 1

.COUVERCLE

30 703–48219–00 .COVER, LEAD 1 1

.COUVERCLE

31 703–48281–00 .SCREW 2 2

.VIS

32 703–48282–00 .SCREW 7 7

.VIS

33 97380–08030 .BOLT 1 1

.BOULON

34 92990–08600 .WASHER, PLATE 1 1

.RONDELLE, PLATE

35 98580–04010 .SCREW, PAN HEAD 3 3

.VIS, TETE TRONCONIQUE

36 98580–04006 .SCREW, PAN HEAD 2 2

.VIS, TETE TRONCONIQUE

37 98580–05010 .SCREW, PAN HEAD 1 1

.VIS, TETE TRONCONIQUE

38 98580–03015 .SCREW, PAN HEAD 2 2

.VIS, TETE TRONCONIQUE

39 703–48291–10 .SCREW (M6) 3 3

.VIS (M6)

40 95380–06600 .NUT, HEXAGON 3 3

.ECROU

41 703–48293–10 .SPACER, REMOTE CONTROL 1 1 SINGLE

.ENTRETOISE

42 701–48287–00 .WASHER 3 3

.RONDELLE

43 703–48215–00 .GRAPHIC 1 1

.ADHESIF

44 703–82510–43 .MAIN SWITCH ASSY 1 1

.CONTACTEURA CLEF COMPLET

45 703–82577–00 ..CAP, KEY 1 1

..CABOCHON

46 703–82531–00 .WIRE, LEAD 1 1

.FIL

47 688–82575–01 .ENGINE STOP SWITCH ASSY 1 1

.COUPE CIRCUIT CPLT

48 682–82556–00 ..STOPPER 1 1

..PLAQUETTE

49 688–8258A–20 .EXTENSION, WIRE HARNESS 1 1 L:5M (10P)

.EXTENSION, FAISCEAU DE FILS

50 703–82540–00 .NEUTRAL SWITCH ASSY 1 1

.CONTACTEURDE POINT–MORT

51 703–83383–02 .BUZZER 1 1

.RONFLEUR

52 703–48284–00 .GROMMET 1 1

.PASSE–FIL

53 703–82591–00 .BAND 1 1

.COLLIER

54 703–82592–00 .BAND 1 1

.COLLIER

F80

F100

FIG. 34 REMOTE CONTROL ASSY BOITIER DE COMMANDE A DISTANCE

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

55 703–82563–02 .TRIM & TILT SWITCH ASSY 1 1

.INCLINER ET PARER COMMUTATEUR

56 703–48221–00 .LEVER, CONTROL 1 1

.LEVIER, COMMANDE

57 703–48152–00 .KNOB, FREE ACCEL. 1 1

.BOUTON

58 703–48212–00 .BACK PLATE 1 1 1

.PLAQUETTE 1

59 703–48213–00 .BACK PLATE 2 1 1

.PLAQUETTE 2

60 703–48271–00 .ARM, SHIFT 1 1

.BRAS

61 703–48211–01 .HOUSING,1 1 1

.CORPS

62 703–48232–00 .GEAR 1 1

.PIGNON

F80

F100

FIG. 35 METER COMPTEUR

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 6Y5–8350T–01 DIGITAL TACHOMETER ASSY 1 1 AP

COMPTE–TOURS NUMERIQUE CPLT

2 9E450–04433 .CONNECTOR 1 1 M–4–W

.CONNECTEUR

3 9E450–04533 .CONNECTOR 1 1 F–4–W

.CONNECTEUR

4 92990–04100 .WASHER, SPRING 2 2

.RONDELLE, GROWER

5 95380–04600 .NUT 2 2

.ECROU

6 6Y5–83500–S5 DIGITAL SPEEDOMETER ASSY 1 1 AP

TACHYMETRE NUMERIQUE CPLT.

7 6Y5–83570–S5 .SPEEDOMETER ASSY 1 1

.COMPTEUR DE VITESSE CPLT

8 92990–04100 ..WASHER, SPRING 2 2

..RONDELLE, GROWER

9 95380–04600 ..NUT 2 2

..ECROU

10 6Y5–83533–T2 ..GROMMET 1 1

..RONDELLE CAOUTCHOUC

11 6Y5–83557–31 .TUBE 1 1

.TUBE

12 6Y5–83728–00 .CONNECTOR ASSY 1 1

.CONNEXION COMPLET

13 90465–11M10 .CLAMP 2 2

.BRIDE

14 6Y5–87122–S0 CORD ASSY 1 1 1 AP

COPDON COMPLET

15 6Y5–83553–M0 WIRE, LEAD 1 1 AP

FIL

16 1E6–82151–00 .FUSE (10A) 2 2

.FUSIBLE (10A)

17 6Y5–82117–00 WIRE, LEAD (BLACK) 1 1 AP

FIL (NOIR)

18 68F–82553–80 EXTENSION, WIRE LEAD 1 1 AP

EXTENSION, FAISCEAU

19 6Y5–83557–10 TUBE (8M) 1 1 AP

TUBE (8M)

20 90465–11M10 CLAMP 2 2 AP

BRIDE

F80

F100

FIG. 36 REPAIR KIT 1 KITS DE REPARATION 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 67F–W0001–01 POWER HEAD GASKET KIT 1 1

POCHETTE DE JINTS TETE MOTRICE

2 90430–08143 .GASKET 4 4

.JOINT

3 93210–24M79 .O–RING 1 1

.JOINT TORIQUE

4 67F–1 1181–01 .GASKET, CYLINDER HEAD 1 1 1

.JOINT, DE CULASSE 1

5 93102–38M59 .OIL SEAL 2 2

.JOINT SPY

6 90430–14115 .GASKET 1 1

.JOINT

7 67F–12435–A0 .GASKET 1 1

.JOINT

8 68V–85753–00 .GASKET, SENDER UNIT 1 1

.JOINT, DE PERCEPTION

9 67F–41114–A0 .GASKET, EXHAUST OUTER COVER 1 1

.JOINT, COUVERCLE D’ECHAPPEMEN

10 93102–48009 .OIL SEAL 1 1

.JOINT SPY

11 93101–48002 .OIL SEAL 1 1

.JOINT SPY

12 67F–11351–01 .GASKET, CYLINDER 1 1

.JOINT, D’EMBASE

13 67F–13645–00 .GASKET, MANIFOLD 1 1 1

.JOINT, TUBULURE 1

14 93210–41MJ2 .O–RING 4 4

.JOINT TORIQUE

15 93210–30682 .O–RING 1 1

.JOINT TORIQUE

16 67F–11356–00 .SEAL, CYLINDER2 1 1

.JOINT, SPY CYLINDRE

F80

F100

FIG. 37 REPAIR KIT 2 KITS DE REPARATION 2

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 67F–W0093–01 CARBURETOR REPAIR KIT 1 1

KIT DE REPARATION CARBURATEUR

2 67F–14147–00 .O–RING 1 1

.JOINT TORIQUE

3 97980–04114 .SCREW, WITH WASHER 4 4

.VIS, AVEC RONDELLE

4 67F–14397–00 .O–RING 1 1

.J0INT TORIQUE

5 67F–14984–00 .GASKET, FLOATCHAMBER 1 1

.JOINT, CUVE DE FLOTTEUR

6 93210–04230 .O–RING 1 1

.JOINT TORIQUE

7 6H4–14985–01 .FLOAT 1 1

.FLOTTEUR

8 676–14186–00 .PIN, FLOAT 1 1

.AXE, FLOTTEUR

9 663–14159–00 .CLIP 1 1

.JONC

10 6H4–14548–00 .PIN, FLOAT ARM 1 1

.AXE, BRAS DE FLOTTEUR

11 60C–14590–00 .NEEDLE VALVE ASSY 1 1

.POINTEAU

12 93210–04228 .O–RING 1 1

.JOINT TORIQUE

13 67F–14398–00 .O–RING 1 1

.JOINT TORIQUE

14 67F–14398–10 .O–RING 1 1

.JOINT TORIQUE

15 67F–14398–20 .O–RING 1 1

.JOINT TORIQUE

16 67F–14239–00 .SEAL 1 1

.JOINT

17 67F–14371–01 .ELEMENT, FILTER 1 1

.ELEMENT, FILTRE

18 93210–40M10 .O–RING 2 2

.JOINT TORIQUE

19 67F–14398–30 .O–RING 1 1

.JOINT TORIQUE

F80

F100

FIG. 38 REPAIR KIT 3 KITS DE PEPARATION 3

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 67F–W0001–20 LOWER UNIT GASKET KIT 1 1

POCHETTE DE JOINTS EMBASE

2 90430–08020 .GASKET 2 2

.JOINT

3 688–44315–A0 .GASKET, WATERPUMP 1 1

.JOINT, POMPE A EAU

4 688–44324–A0 .GASKET, CARTRIDGE 1 1

.JOINT

5 93101–25M03 .OIL SEAL 4 4

.JOINT SPY

6 93210–46044 .O–RING 1 1

.JOINT TORIQUE

7 688–44316–A0 .GASKET, WATERPUMP 1 1

.JOINT, POMPE A EAU

8 93106–09014 .OIL SEAL 1 1

.JOINT SPY

9 93210–49046 .O–RING 1 1

.JOINT TORIQUE

10 93210–07003 .O–RING 1 1

.JOINT TORIQUE

11 93210–86M39 .O–RING 1 1

.JOINT TORIQUE

12 90430–14M09 .GASKET 1 1

.JOINT

13 67F–15312–00 .GASKET, OIL PAN 1 1

.JOINT DE VENTILATEUR D’HUILE

14 67F–13415–00 .SEAL, OIL STRAINER 1 1

.JOINT, FILTRE A HUILE

15 93210–19MJ1 .O–RING 2 2

.JOINT TORIQUE

16 67F–41133–A0 .GASKET, EXHAUST MANIFOLD 1 1 1

.JOINT, PIPE D’ECHAPPEMENT

17 67F–41134–A0 .GASKET, EXHAUST MANIFOLD 2 2

.JOINT, PIPE D’ECHAPPEMENT

18 67F–41138–00 .SEAL, EXT. 1 1 1

.JOINT DE GROUPE 1

19 67F–45127–00 .SEAL 1 1

.JOINT

20 67F–45123–00 .GASKET, MUFFLER 1 1

.JOINT, POT DE DETENTE

21 67F–45113–00 .GASKET, UPPER CASING 1 1

.JOINT, TUBE D’ARBRE

22 67F–W0078–00 WATER PUMP REPAIR KIT 1 1

KIT DE REPARATION DE LA POMPE

23 67F–44322–00 .INSERT, CARTRIDGE 1 1

.CUVETTE

24 67F–44352–00 .IMPELLER 1 1

.TURBINE

25 688–44315–A0 .GASKET, WATERPUMP 1 1

.JOINT, POMPE A EAU

26 67F–44323–00 .OUTER PLATE, CARTRIDGE 1 1

.PLAQUE EXTERIEURE

27 688–44324–A0 .GASKET, CARTRIDGE 1 1

.JOINT

F80

F100

FIG. 38 REPAIR KIT 3 KITS DE PEPARATION 3

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

28 688–44316–A0 .GASKET, WATERPUMP 1 1

.JOINT, POMPE A EAU

29 93210–46044 .O–RING 1 1

.JOINT TORIQUE

30 90119–08M87 .BOLT, WITH WASHER 2 2

.BOULON, AVEC RONDELLE

31 90119–08M13 .BOLT, WITH WASHER 2 2

.BOULON, AVEC RONDELLE

32 90280–04M04 .KEY, WOODRUFF 1 1

.CLAVETTE, DEMI–LUNE

F80

F100

NUMERICAL INDEX INDEX NUMERIQUE

PART NO. NO. PIECES

K0A–A3721–00 5 – 7 K0A–A3722–00 5 – 8 67F–W0001–01 36 – 1 67F–W0001–20 38 – 1 67F–W0070–10 1 – 16 67F–W0078–00 38 – 22 67G–W0084–11–4D 18 – 1 60C–W009A–00–1S 4 – 1 67F–W009B–04–1S 2 – 1 67F–W0093–01 37 – 1 67F–11110–10–94 4 – 2 62Y–11119–00 2 – 8 67F–11133–10 4 – 3 67F–11168–00 4 – 22 67F–11181–01 4 – 17

68V–11191–00–1S 4 – 21 67F–11192–00 4 – 29 67F–11325–00 2 – 24

67F–11327–00–94 2 – 25 67F–11328–00 2 – 28 67F–11351–01 2 – 34 67F–11356–00 4 – 26 67F–11411–00 3 – 1

67F–11416–00 3 – 4 67F–11416–10 3 – 4 67F–11416–20 3 – 4 67F–11417–00 3 – 5 67F–11417–10 3 – 5 67F–11417–20 3 – 5 67F–11417–30 3 – 5 67F–11418–00 3 – 6 67F–11418–10 3 – 6 67F–11418–20 3 – 6 67F–11536–00 5 – 23 67F–11537–00 5 – 14 67F–11590–00 5 – 18 67F–11595–00 5 – 21 67F–11603–01 3 – 9 67F–11604–01 3 – 9 67F–11640–00 3 – 7 67F–11640–10 3 – 7 67F–11654–00 3 – 8

REF.

NO.

36 – 4

4– 8 4– 9

4–12 36 – 12 36 – 16

PART NO. NO. PIECES

67F–11656–00 3 – 10 67F–11656–10 3 – 10 67F–11656–20 3 – 10 67F–11656–30 3 – 10 68V–12111–00 5 – 1 67F–12114–00 5 – 4 67F–12116–00 5 – 3 67F–12117–00 5 – 5 67F–12118–00 5 – 6 68V–12121–00 5 – 2 67F–12138–60 12 – 24 67F–12153–00 5 – 9 67F–12168–A0 5 – 10 67F–12168–B0 5 – 10 67F–12168–C0 5 – 10 67F–12168–D0 5 – 10 67F–12168–E0 5 – 10 67F–12168–F0 5 – 10 67F–12168–G0 5 – 10 67F–12168–H0 5 – 10 67F–12168–J0 5 – 10 67F–12168–K0 5 – 10 67F–12168–L0 5 – 10 67F–12168–M0 5 – 10 67F–12168–N0 5 – 10 67F–12168–P0 5 – 10 67F–12168–R0 5 – 10 67F–12168–S0 5 – 10 67F–12168–T0 5 – 10 67F–12168–U0 5 – 10 67F–12168–V0 5 – 10 67F–12168–W0 5 – 10 67F–12168–X0 5 – 10 67F–12168–Y0 5 – 10 67F–12168–00 5 – 10 67F–12168–10 5 – 10 67F–12168–20 5 – 10 67F–12168–30 5 – 10 67F–12168–40 5 – 10 67F–12168–50 5 – 10 67F–12168–60 5 – 10 67F–12168–70 5 – 10 67F–12168–80 5 – 10 67F–12169–A0 5 – 10 67F–12169–B0 5 – 10 67F–12169–C0 5 – 10 67F–12169–D0 5 – 10 67F–12169–E0 5 – 10

REF.

NO.

PART NO. NO. PIECES

67F–12169–F0 5 – 10 67F–12169–G0 5 – 10 67F–12169–H0 5 – 10 67F–12169–J0 5 – 10 67F–12169–K0 5 – 10 67F–12169–L0 5 – 10 67F–12169–M0 5 – 10 67F–12169–N0 5 – 10 67F–12169–00 5 – 10 67F–12169–10 5 – 10 67F–12169–20 5 – 10 67F–12169–30 5 – 10 67F–12169–40 5 – 10 67F–12169–50 5 – 10 67F–12169–60 5 – 10 67F–12169–70 5 – 10 67F–12169–80 5 – 10 67F–12171–00 5 – 11 67F–12181–00 5 – 12 67F–12411–00 4 – 31 68V–12413–00–1S 4 – 32 6G5–12416–00 2 – 18 67F–1243A–00 2 – 31 67F–12435–A0 2 – 22

67F–1246A–00–1S 2 – 21 67F–12572–00 17 – 30 6R3–12581–00 17 – 32 6R3–12582–00 17 – 33 6R3–12583–00 17 – 34 67F–13119–01 28 – 18 68V–13131–00 10 – 19 67F–13183–00 8 – 2 67F–13300–03 28 – 14 67F–13314–01 28 – 15 67F–13329–00 28 – 17 67F–13338–00 28 – 21 67F–13411–00 28 – 9 67F–13415–00 28 – 13

67F–13434–02 1 – 20 67F–13437–60 12 – 25 5GH–13440–00 2 – 39 67F–13473–01 28 – 16 67F–13631–02 28 – 19 67F–13641–00–94 6 – 6 67F–13645–00 6 – 12

REF.

NO.

36 – 7

38 – 14

36 – 13

PART NO. NO. PIECES

67F–13769–00 28 – 20 67F–1412A–00 8 – 1

67F–14146–00 7 – 7 67F–14147–00 7 – 8

663–14159–00 7 – 30 67F–14178–00 7 – 37

676–14186–00 7 – 29 67F–14189–00 8 – 11

67F–14216–00 6 – 2 67F–14239–00 6 – 3

67F–14243–00 6 – 1 67F–14255–00 7 – 47 67F–14271–00 6 – 4 60C–14294–00 8 – 15

60C–14298–00 8 – 16 67F–14325–00 7 – 44

67F–14348–00 9 – 9 67F–14349–00 8 – 3

67F–14349–10 8 – 4 67F–14349–20 8 – 5

67F–14349–30 8 – 6 67F–14349–40 8 – 7 67F–14349–50 8 – 8 67F–14349–60 8 – 9 67F–14349–70 8 – 12 67F–14369–00 7 – 43 67F–14371–01 7 – 45

67F–14378–00 7 – 35 67F–14380–01 7 – 36 67F–14397–00 7 – 21

67F–14398–00 7 – 39 67F–14398–10 7 – 41 67F–14398–20 7 – 42 67F–14398–30 7 – 46

REF.

NO.

9– 1

37 – 2 37 – 9

37 – 8

37 – 16

9– 7 9– 8

9– 3

9– 2

37 – 17

37 – 4 37 – 13 37 – 14 37 – 15

PART NO. NO. PIECES

67F–14398–30 37 – 19 67F–14440–00 6 – 19 63V–14523–00 7 – 18 6H4–14548–00 7 – 31

67F–14555–00 7 – 16 697–14555–00 7 – 6 67F–14556–00 7 – 17 67F–14565–00 7 – 40 67F–14567–00 7 – 15

6K7–14573–00 15 – 17 6H2–14578–00 7 – 22 67F–14585–00 8 – 10

60C–14590–00 7 – 33 67F–14592–00 7 – 38

67F–14711–00–5B 27 – 11 67F–14860–00 7 – 49 67F–14901–20 7 – 1 67G–14901–30 7 – 1 67G–14901–50 7 – 1 67F–14902–20 7 – 2 67G–14902–30 7 – 2 67G–14902–50 7 – 2 67F–14903–20 7 – 3 67F–14904–20 7 – 4 67G–14904–30 7 – 4 67G–14904–50 7 – 4 67F–14923–00 7 – 5 67F–14923–10 7 – 5 67F–1494F–04 7 – 12 67F–14943–32 7 – 14 67G–14943–29 7 – 14 67G–14943–80 7 – 14 67F–14947–10 7 – 13 67G–14947–00 7 – 13 67G–14948–05 7 – 12 676–14966–00 7 – 10 67F–14980–00 7 – 23 67F–14980–10 7 – 24 67F–14984–00 7 – 25

6H4–14985–01 7 – 28 6H3–14992–00 7 – 26

67F–14998–00 7 – 20

REF.

NO.

37 – 10

7–48

9– 4

37 – 11

37 – 5 37 – 7

PART NO. NO. PIECES

67F–15100–03–1S 2 – 2 67F–15142–00 2 – 12 67F–15311–00–5B 28 – 1 67F–15312–00 28 – 8

67F–15316–00 28 – 2 68V–15362–00 28 – 26 6G8–15363–00 4 – 35 67F–15373–00 6 – 13 1UF–22434–00 25 – 41 67F–22435–00 25 – 22 67F–22471–01 25 – 36 68V–24149–00 10 – 26 6YK–24201–01 31 – 1 6YK–24201–10 31 – 1 6YK–24260–01 31 – 5 6YL–24268–01 31 – 2 6YK–24306–42 11 – 1

67F–24312–00 17 – 35 6YL–24329–00 31 – 7 68F–24356–00 8 – 14

63D–24364–00 19 – 13 63D–24367–00 19 – 12 68V–24374–00 10 – 22 6R3–24377–00 10 – 2 688–24378–00 8 – 17

68V–24410–00 10 – 16 68V–24411–00 10 – 21 68V–24412–00 10 – 17 68V–24413–00 10 – 23 68V–24414–00 10 – 24 68V–24423–00 10 – 20 68V–24444–00 10 – 25 68V–24454–00 10 – 18 68V–24469–01 10 – 9 67F–24491–00 10 – 34 68V–24495–00 10 – 31 68V–24521–01 10 – 6 60C–24560–00 10 – 5 61N–24563–00 10 – 7 68V–24566–00 10 – 11 67F–24575–00 10 – 30 6YK–24610–00 31 – 3 6YK–24610–10 31 – 3 6YL–24641–00 31 – 4

REF.

NO.

38 – 13

31 – 8

9– 5

9–10

NUMERICAL INDEX INDEX NUMERIQUE

PART NO. NO. PIECES

67G–26301–10 18 – 40 67F–28100–00 10 – 37 67F–2812A–00 14 – 23 6A1–28176–00 17 – 45 67F–41113–01–1S 2 – 13 67F–41114–A0 2 – 14

67F–41131–00–5B 27 – 7 67F–41133–A0 27 – 8

67F–41134–A0 27 – 17 67F–41137–01–94 27 – 3

67F–41138–00 27 – 19 67F–41213–01 21 – 41

67F–41237–00 21 – 38 682–41237–00 21 – 39 67F–41661–00–94 21 – 35 67G–42111–00–4D 18 – 2 67G–42115–10 18 – 18 664–42119–00 18 – 3 67G–42121–00–4D 18 – 56 63D–42126–00 18 – 11 67G–42131–00 18 – 50 6H2–42137–00 18 – 5 650–42152–00–94 18 – 19 67G–42153–00 18 – 25 67F–42154–00–94 21 – 26 67G–42159–00 18 – 21 6G1–42177–00 18 – 4 67G–42508–00 20 – 1 67F–42510–10–4D 23 – 8 67G–42526–00 20 – 11 63D–42527–00 20 – 6 63D–42528–00 20 – 17 67G–42541–00 20 – 4 67G–42541–10 20 – 7 624–42542–00 13 – 3 67G–42546–00 20 – 5 67G–42561–00 20 – 15 67G–42562–00 20 – 16 67F–42610–10–4D 1 – 1 67G–42610–10–4D 1 – 1 67F–42613–00–4D 1 – 10 67F–42615–00 1 – 13 61N–42628–00 1 – 12 67F–42628–00 1 – 19

REF.

NO.

36 – 9

38 – 16 38 – 17

38 – 18

PART NO. NO. PIECES

67F–42647–00 1 – 2 67F–42649–00 1 – 8 67F–42652–00 1 – 5 67F–42662–00 1 – 9 67F–42677–10 1 – 14 67G–42677–10 1 – 14 67F–42678–10 1 – 15 67G–42678–10 1 – 15 67F–42681–10 1 – 17 67F–42682–10 1 – 18 67F–42710–00–4D 17 – 1 648–42715–00 21 – 23 61A–42716–00 17 – 37 67F–42717–00 17 – 25 67F–42724–00 27 – 2 63D–42725–00 18 – 55 67G–42725–00 19 – 31 68V–42725–00 17 – 19 6H1–42726–20 17 – 22 6G1–42727–00 27 – 6 67G–42735–00 19 – 3 67F–42738–00–5B 17 – 17 67F–42741–00–4D 17 – 38 6H4–42748–00 17 – 24 67F–42756–00 17 – 20 67F–42761–00–94 2 – 35 67F–42815–00–4D 17 – 5 67F–42816–00–4D 17 – 6 67F–42818–00 17 – 9 67F–42828–00–5B 17 – 7 67F–43111–00–4D 22 – 1 67F–43112–00–4D 22 – 4 67F–43126–00 22 – 28 64E–43131–01 22 – 12 64E–43139–02 23 – 4 64D–43144–00 17 – 14 66T–43144–00 22 – 22 6E5–43145–01 32 – 8 67F–43181–00 22 – 18 67F–43311–10–4D 22 – 7 682–43318–01 20 – 8 67F–43631–00 22 – 20 67F–4380F–00 26 – 7 67F–4380K–00 25 – 3 67F–4380R–00 25 – 8 67F–43800–03–4D 25 – 1 67F–43802–00 25 – 49 67F–43804–00 26 – 3

REF.

NO.

PART NO. NO. PIECES

67F–43805–00 26 – 2 67F–43808–00 25 – 63 67F–4381B–00 25 – 38 67F–4381J–00 25 – 35 67F–43810–01 25 – 4 6H1–43812–00 25 – 13 6H1–43816–00 25 – 60 67F–43816–00 25 – 29 65W–43817–00 25 – 83 67F–43817–00 25 – 52 67F–43818–00 22 – 32 67F–4382F–00 25 – 50 67F–4382G–00 25 – 64 67F–43821–00 25 – 5 67F–43825–03 25 – 58 6H1–43829–00 25 – 44 67F–43830–00 25 – 78 6H1–43831–10 25 – 48 6H1–4384F–10 25 – 79 62X–4384H–00 25 – 40 67F–43840–02 25 – 2 62X–43841–00 25 – 56 67F–43843–00 25 – 89 6H1–43844–10 25 – 80 61A–43845–00 25 – 70 61A–43847–00 25 – 75 61A–43848–00 25 – 68 67F–4385A–01 25 – 11 67F–4385H–00 25 – 84 67F–43850–00 25 – 85 67F–43851–00 25 – 61 65W–43853–00 25 – 19 61A–43854–00 25 – 69 6H1–43856–10 25 – 81

67F–43857–00 25 – 34 6T4–4386A–00 25 – 33 65W–4386A–00 25 – 17 67F–4386A–00 25 – 90 688–4386F–00 25 – 18 67F–4386K–00 26 – 6 61A–43860–20 25 – 67 65W–43861–00 25 – 82 67F–43861–00 25 – 14 62X–43862–00 25 – 15 65W–43862–00 25 – 76 67F–43862–00 25 – 30 67F–43863–00 25 – 27

REF.

NO.

25 – 87

PART NO. NO. PIECES

62X–43865–00 25 – 31 6H1–43866–00 25 – 51

6H1–43867–00 25 – 54 62X–43871–00 25 – 24 67F–43871–00 25 – 43 6H1–43872–10 25 – 6

6H1–43875–00 25 – 73 61A–43875–00 25 – 71 62X–43875–00 25 – 42 67F–43875–00 25 – 37 62X–43878–00 25 – 59 67F–43879–00 26 – 13 67F–4388A–00 25 – 32 67F–43880–00 25 – 91

67F–43881–00 26 – 9 67F–43882–00 26 – 10 67F–43886–00 26 – 8 67F–43887–00 26 – 12 65W–43888–00 25 – 57 67F–43891–00 26 – 4 67F–43893–00 25 – 20 67F–43895–00 25 – 88 67F–43896–00 26 – 11 62X–43899–00 25 – 39 67F–43899–00 25 – 28 67G–44100–10 18 – 15 67G–44104–00 18 – 16 67G–44113–00 18 – 22 67F–44117–00 21 – 5 67F–44118–00 21 – 18 67F–44120–10 21 – 14 67F–44121–00 21 – 11 688–44122–00 21 – 8 67G–44132–00 18 – 26 67F–44135–00 21 – 42 67F–44150–00 29 – 39 67G–44159–00–4D 18 – 45 67G–44173–00 18 – 46 6G8–44191–00 18 – 48 67F–44311–00 29 – 17 688–44315–A0 29 – 27

688–44316–A0 29 – 33

REF.

NO.

25 – 55

25 – 9

26 – 1

38 – 3 38 – 25

38 – 7

PART NO. NO. PIECES

688–44316–A0 38 – 28 67F–44322–00 29 – 24

67F–44323–00 29 – 28 688–44324–A0 29 – 29

688–44341–01–94 29 – 30 67F–44352–00 29 – 25

67F–44361–10 30 – 2 67F–44365–00 30 – 3 663–44366–00 29 – 21 663–44367–00 30 – 1 6H3–44391–01 17 – 23 67F–44514–00–94 23 – 16 6H1–44526–00 22 – 39 67F–44526–00 23 – 19 67F–44533–00 23 – 22 68F–44533–00 2 – 38 67F–44551–00–4D 23 – 14 67F–44553–00–4D 23 – 33 67F–44555–00–94 23 – 24 67F–44575–00 23 – 32 67F–45111–10–4D 27 – 22 67F–45113–00 27 – 31

67F–45123–00 27 – 21 67F–45127–00 27 – 20 67F–45151–00 27 – 27

67F–45155–00 27 – 30 67F–45180–00–4D 24 – 1 67F–45181–00–5B 27 – 18 6H1–45214–00 30 – 9 6H1–45215–00 30 – 10 6H1–45251–03 22 – 37 67F–45300–10–4D 29 – 1 67F–45301–00–4D 29 – 2 67F–45318–00 27 – 25 688–45321–00 29 – 34 67F–45331–00–94 29 – 60 688–45341–10 29 – 4 67F–45371–00 30 – 13 688–45375–00 30 – 17 663–45376–00–94 30 – 18

REF.

NO.

38 – 23 38 – 26 38 – 4

38 – 27

38 – 24

38 – 21 38 – 20 38 – 19

PART NO. NO. PIECES

6E5–45378–00 29 – 6 688–45383–02 29 – 66 688–45384–00 29 – 67 67F–45501–10 29 – 10 688–45536–01 29 – 14 67F–45551–00 29 – 11 67F–45560–00 29 – 52 688–45567–01–10 29 – 55 688–45567–01–12 29 – 55 688–45567–01–15 29 – 55 688–45567–01–18 29 – 55 688–45567–01–30 29 – 55 688–45567–01–40 29 – 55 688–45567–01–50 29 – 55 67F–45571–00 29 – 56 67F–45576–00 29 – 64 688–45587–01–10 29 – 16 688–45587–01–12 29 – 16 688–45587–01–15 29 – 16 688–45587–01–18 29 – 16 688–45587–01–30 29 – 16 688–45587–01–40 29 – 16 688–45587–01–50 29 – 16 67F–45611–00 29 – 59 67F–45631–00 29 – 49 688–45633–00 29 – 51 67F–45634–00 29 – 43 6H1–45635–00 29 – 45 6H1–45668–00 29 – 44 688–45930–02–98 30 – 24 688–45932–60–98 30 – 24 6E5–45941–00–EL 30 – 24 6E5–45943–00–EL 30 – 24 6E5–45945–01–EL 30 – 24 6E5–45947–00–EL 30 – 24 6E5–45949–00–EL 30 – 24 6E5–45952–00–EL 30 – 24 6E5–45954–00–EL 30 – 24 6E5–45956–00–EL 30 – 24 688–45970–03–98 30 – 24 688–45972–02–98 30 – 24 688–45974–02–98 30 – 24 688–45976–01–98 30 – 24 688–45978–60–98 30 – 24 688–45987–01 30 – 19 67F–45997–00 30 – 20 67F–46241–00 5 – 17 63D–48119–00 18 – 24

REF.

NO.

NUMERICAL INDEX INDEX NUMERIQUE

PART NO. NO. PIECES

703–48152–00 34 – 57 703–48153–00 34 – 3 63D–48154–00 18 – 12 703–48189–00 34 – 17 703–48198–00 34 – 14 703–48205–17 33 – 1

703–48211–01 34 – 61 703–48212–00 34 – 58 703–48213–00 34 – 59 703–48215–00 34 – 43 703–48219–00 34 – 30 703–48221–00 34 – 56 703–48222–00 34 – 27 703–48223–00 34 – 28 703–48225–00 34 – 29 703–48226–00 34 – 26 703–48227–00 34 – 24 703–48232–00 34 – 62 703–48234–00 34 – 18 703–48235–00 34 – 4 63D–48236–00 18 – 23 703–48236–00 34 – 16 63D–48237–00 18 – 27 63D–48238–00 18 – 29 703–48238–00 34 – 22 703–48243–00 34 – 15 703–48244–00 34 – 21 703–48245–00 34 – 11 703–48246–00 34 – 23 701–48248–00 34 – 13 703–48252–00 34 – 12 67G–48261–00 18 – 17 703–48261–01 34 – 2 703–48264–00 34 – 6 703–48265–00 34 – 9 703–48268–00 34 – 5 703–48271–00 34 – 60 703–48281–00 34 – 31 703–48282–00 34 – 32 703–48284–00 34 – 52 701–48287–00 34 – 42 703–48291–10 34 – 39 703–48293–10 34 – 41 701–48320–40 33 – 2 701–48320–50 33 – 2 701–48320–60 33 – 2 701–48320–80 33 – 2

REF.

NO.

34 – 1

PART NO. NO. PIECES

67G–48321–10 18 – 36 663–48344–00 21 – 3

703–48345–01 34 – 19 701–48350–00 33 – 2 703–48358–00 34 – 20 67F–48511–00–4D 23 – 36 67G–48531–00 18 – 37 63D–48538–00 18 – 43 66R–48538–00 18 – 41 67F–48538–00 21 – 1 67F–61350–00 32 – 1 67F–8132G–01 15 – 1 445–81328–20 12 – 7 66T–81328–00 12 – 8 67F–81332–00 12 – 17 67F–81337–01 12 – 20 63D–81345–20 12 – 5 67F–81673–00 12 – 9 67F–81800–02 16 – 1 67F–81801–00 16 – 5 67F–81807–00 16 – 10 67F–81808–00 16 – 8 67F–81809–00 16 – 19 67F–81810–00 16 – 3 67F–81813–00 16 – 6 67F–81820–00 16 – 7 67F–81821–00 16 – 13 6K7–81826–10 16 – 24 67F–81828–00 16 – 25 67F–8183R–00 16 – 16 67F–8183T–00 16 – 18 67F–81830–00 16 – 17 67F–81832–00 16 – 11 67F–81836–00 16 – 12 67F–81839–00 16 – 21 67F–81840–00 16 – 4 67F–81841–00 16 – 14 67F–81842–00 16 – 20 67F–81846–00 16 – 26 67F–81850–00 16 – 2 67F–81857–00 16 – 9 67F–81869–00 16 – 23 67F–81891–00 16 – 15 67F–81916–01 14 – 34 67F–81919–00 14 – 37 6G1–8194A–10 14 – 3 67F–81941–01 16 – 22

REF.

NO.

21 – 24

PART NO. NO. PIECES

67F–81942–00 14 – 22 67F–81948–00 14 – 19 6E5–8195B–01 14 – 7 6E5–8195C–01 14 – 10 6G1–81952–00 14 – 6 67F–81953–00 14 – 16 67F–81960–10 13 – 23 67F–82105–00 14 – 2 67F–82116–00 14 – 15 6Y5–82117–00 35 – 17 6G5–82119–00 14 – 14 682–82119–01 14 – 1 703–82119–00 13 – 30 67F–82127–00 22 – 11 6E5–82148–00 22 – 5 67F–82148–00 22 – 25 1E6–82151–00 35 – 16 67F–82151–00 14 – 25 67F–82151–10 14 – 26 67F–82181–00 26 – 5 68V–82317–00 13 – 2 67F–82341–00 13 – 15 67F–82342–00 13 – 16 67F–82343–00 13 – 19 67F–82344–00 13 – 20 67F–82361–00 13 – 17

67F–82362–00 13 – 18 67F–82377–00 17 – 44

68V–82504–00 15 – 25 67G–82510–30 19 – 9 703–82510–43 34 – 44 63D–8252E–01–4D 19 – 10 63D–8252F–01–4D 19 – 11 703–82531–00 34 – 46 688–82540–11 19 – 4 703–82540–00 34 – 50 68F–82553–80 35 – 18 67G–82554–01 19 – 5 62Y–82555–00 19 – 6 682–82556–00 19 – 21

63D–82563–10 15 – 26 67G–82563–00 19 – 23 703–82563–02 34 – 55 6E3–8257H–00 17 – 46 689–8257Y–00 19 – 22

REF.

NO.

13 – 21 13 – 22

34 – 48

PART NO. NO. PIECES

63D–82575–00 19 – 20 688–82575–01 34 – 47 703–82577–00 34 – 45 688–8258A–20 34 – 49 63D–82586–00 19 – 30 6E5–82587–00 15 – 27 6E5–82588–00 17 – 26 67F–82588–00 14 – 30 67F–82590–02 14 – 24 703–82591–00 34 – 53 703–82592–00 34 – 54 703–82594–00 34 – 25 688–83383–11 19 – 32 703–83383–02 34 – 51 6H5–83386–00 19 – 33 6Y5–8350T–01 35 – 1 6Y5–83500–S5 35 – 6 6Y5–83533–T2 35 – 10 6H5–83553–11 19 – 29 6Y5–83553–M0 35 – 15 6K3–83557–00 19 – 2 6Y5–83557–10 35 – 19 6Y5–83557–31 35 – 11 6E5–83558–00 30 – 16 6E5–83558–10 29 – 8 6Y5–83570–S5 35 – 7 67F–83614–00 15 – 28 6A1–83625–41 12 – 26 6A1–83625–51 12 – 27 67F–83626–00 14 – 36 67F–83635–00 15 – 18 64E–83672–02 23 – 1 6Y5–83728–00 35 – 12 63D–83728–00 19 – 26 67F–85510–01 12 – 4 663–85518–00 21 – 27 67F–85540–01 13 – 1 689–85547–00 10 – 1 67F–85550–00 12 – 1 67F–85560–01 12 – 2 67F–85570–00 13 – 5 67F–85580–00 12 – 3 68V–85753–00 15 – 6

67F–85757–00 15 – 5 67F–85790–00 15 – 4 61A–85885–00 15 – 12 6Y5–87122–S0 35 – 14

REF.

NO.

36 – 8

PART NO. NO. PIECES

66T–87149–00 14 – 13 9E450–04433 35 – 2 9E450–04533 35 – 3 90101–09M01 32 – 7 90101–12M03 22 – 43 90101–12M09 18 – 57 90105–10M67 30 – 14 90105–10M89 4 – 19 90109–06M80 17 – 41 90109–06M81 17 – 27 90109–06M82 17 – 8

90109–06M86 15 – 29

90109–06M96 17 – 18 90109–12M37 23 – 18 90109–12M97 23 – 26 90110–12M00 24 – 4 90116–10175 23 – 37 90119–06MA2 2 – 23 90119–06MA4 2 – 15 90119–06M59 13 – 4 90119–06M81 22 – 38 90119–06M82 6 – 20 90119–06M83 10 – 29 90119–06M92 12 – 23 90119–07234 4 – 7 90119–07235 4 – 5

90119–08M13 29 – 20 90119–08M22 17 – 2

90119–08M58 27 – 1 90119–08M59 6 – 22 90119–08M66 2 – 5 90119–08M74 20 – 2 90119–08M84 30 – 8 90119–08M87 29 – 19

90119–08M91 4 – 20 90119–10M06 5 – 15 90119–10M08 27 – 23 90119–10M72 5 – 22 90119–10M88 2 – 4 90149–05M13 18 – 7

REF.

NO.

17 – 31 17 – 15

17 – 21 17 – 29 21 – 2

10 – 35 38 – 31

38 – 30

PART NO. NO. PIECES

90151–05M00 30 – 11 90157–05M16 31 – 6 90159–06M18 18 – 47 90159–06M28 17 – 40 90159–06M29 4 – 30

90170–06M30 14 – 4

90170–09M03 32 – 4 90170–16M01 29 – 12 90170–24M22 12 – 16 90170–40003 5 – 24 90171–16011 30 – 22 90179–06M24 1 – 11 90183–02M03 29 – 48 90185–05002 30 – 12 90185–08057 20 – 14 90185–09M01 32 – 3 90185–10M14 20 – 9 90185–10051 23 – 38 90185–12M12 18 – 63 90185–22M11 22 – 15 90201–03313 29 – 47 90201–05M03 15 – 21 90201–06M31 21 – 46 90201–06068 17 – 12

90201–08M01 20 – 3 90201–08M12 10 – 33 90201–09M02 21 – 16 90201–10M02 21 – 45 90201–10M20 32 – 2 90201–10M63 32 – 6 90201–10M76 20 – 10 90201–12M01 24 – 2 90201–12M05 22 – 45 90201–12M16 23 – 20

90201–13M01 22 – 44 90201–13M03 23 – 25

90201–13M19 23 – 30 90201–24M02 23 – 28 90201–25M02 12 – 15 90201–25M05 29 – 58 90201–26M59 22 – 14

REF.

NO.

14 – 35 14 – 8

14 – 11

21 – 29

23 – 27 24 – 5

23 – 21

NUMERICAL INDEX INDEX NUMERIQUE

PART NO. NO. PIECES

90201–30M00 23 – 9 90202–07M07 21 – 9 90202–25M04 23 – 29 90204–06M00 14 – 5

90206–10M04 21 – 47 90206–12M00 21 – 30 90206–12M22 18 – 59 90206–15M18 17 – 11 90250–07M02 29 – 50 90269–02M09 18 – 6 90280–04M04 29 – 26

90280–04008 5 – 25 90280–05015 12 – 14 90282–04010 29 – 65 90340–08002 29 – 3 90340–14M06 2 – 6

90344–51019 4 – 4 90386–06M12 21 – 12 90386–08032 18 – 10 90386–10M16 22 – 19 90386–12M93 18 – 61 90386–12069 21 – 32 90386–15M73 17 – 10 90386–18MA0 22 – 34 90386–18M35 22 – 29 90386–18M63 22 – 30 90386–25M31 22 – 13 90386–26MA3 18 – 49 90386–30M60 23 – 13 90386–30M77 23 – 12 90386–30M78 23 – 10 90386–90M90 21 – 15 90387–05M00 15 – 19 90387–06M43 17 – 43 90387–06M64 28 – 12 90387–06M71 12 – 21 90387–06M82 21 – 43 90387–08M37 17 – 4 90387–10M08 4 – 18 90387–10M42 32 – 5 90387–12M02 18 – 60 90387–18M01 22 – 33 90387–22M01 22 – 35 90389–25M00 30 – 21

REF.

NO.

14 – 9 14 – 12

38 – 32

28 – 3

PART NO. NO. PIECES

90401–20145 2 – 40 90430–06014 6 – 8 90430–08020 29 – 5

90430–08143 4 – 16 90430–14M09 28 – 4 90430–14115 2 – 7 90445–07ME0 30 – 15

90445–07M31 29 – 7 90445–10MG6 8 – 19

90445–10MG7 8 – 20 90445–10M16 8 – 18 90445–10M40 2 – 16

90445–13M11 10 – 15 90445–13M27 10 – 4 90445–15M03 5 – 20 90445–16M07 8 – 21

90446–24M79 19 – 1 90464–09M47 15 – 15

90464–10M57 8 – 22 90465–06M86 13 – 12 90465–08M23 17 – 28

90465–08M63 22 – 9 90465–08M83 8 – 23 90465–10M77 22 – 2

90465–11M10 2 – 17

REF.

NO.

38 – 2 36 – 2 38 – 12 36 – 6

9–12 9–13 9–11

9–14

15 – 30

9–15

15 – 9

23 – 3

9–16

2–32

6–14 10 – 3 10 – 10 10 – 27 15 – 11 15 – 16 17 – 36 23 – 6 23 – 7

PART NO. NO. PIECES

90465–11M10 29 – 9

90465–11M59 8 – 13 90465–12M03 6 – 16

90465–13M11 14 – 33 90465–13M24 19 – 27 90465–13M30 19 – 28 90467–20M15 2 – 33

90468–10005 18 – 39 90468–18008 21 – 4

90480–10M23 15 – 20 90480–12072 2 – 11

90480–13M24 17 – 42 90480–15M31 12 – 22 90480–19M06 29 – 22 90480–20M05 2 – 20 90480–22M15 17 – 3 90501–10326 7 – 19 90501–12M48 29 – 46 90501–12082 21 – 22 90501–16M11 2 – 19 90501–23215 18 – 9 90506–14M24 22 – 24 90506–16M34 17 – 16 90506–16M39 5 – 19 91318–06020 25 – 47 91318–06035 25 – 46 91490–20010 18 – 14 91490–20015 21 – 17 91490–40025 30 – 23 91609–25014 10 – 32 91690–30018 21 – 28 91690–30020 22 – 21 91690–30025 18 – 20 91690–50014 6 – 11 91809–08006 4 – 6

92903–08100 16 – 32 92903–08600 16 – 28

REF.

NO.

35 – 13 35 – 20

9– 6

6–15 18 – 44 21 – 10

21 – 13 21 – 25

4–25

10 – 36

16 – 30

PART NO. NO. PIECES

92903–10600 18 – 8 92907–04600 4 – 24 92907–06600 28 – 11 92990–04100 35 – 4

92990–06100 1 – 3 92990–06600 27 – 29 92990–08600 34 – 34 92990–12200 18 – 58 92990–12600 18 – 62

92995–05100 15 – 23 92995–05600 15 – 14

92995–06100 12 – 12

92995–06600 1 – 7

REF.

NO.

35 – 8

21 – 31

15 – 24 13 – 7

13 – 10 13 – 25 13 – 28 14 – 28 22 – 41

2–10 2–27 2–37 4–11 4–28 4–34 6–18 8–25

9–18 10 – 14 12 – 13 12 – 19 13 – 8 13 – 11 13 – 14 13 – 26 13 – 29 14 – 18 14 – 21 14 – 29 14 – 32 15 – 3 15 – 8 18 – 33 18 – 35 18 – 52

PART NO. NO. PIECES

92995–06600 18 – 54

92995–08100 22 – 17 92995–08600 2 – 30

92995–10100 23 – 35 92995–10600 30 – 7

93101–25M03 29 – 31

93101–48002 3 – 3 93102–38M59 5 – 16 93102–48009 3 – 2 93106–09014 29 – 35 93210–04228 7 – 34 93210–04230 7 – 27 93210–06100 25 – 72

93210–064A5 25 – 65 93210–07003 25 – 62

REF.

NO.

19 – 8 19 – 15 19 – 17 19 – 19 19 – 25 21 – 7 21 – 20 21 – 34 21 – 37 22 – 27 22 – 42 27 – 10 27 – 13 27 – 15 28 – 6 28 – 23 29 – 37

27 – 33

4–14

6–10 18 – 31 20 – 13

30 – 6

29 – 62 38 – 5

36 – 11 36 – 5 36 – 10 38 – 8 37 – 12 37 – 6

29 – 40 38 – 10

PART NO. NO. PIECES

93210–09165 25 – 45 93210–10M74 25 – 53 93210–11368 25 – 77 93210–16275 32 – 9 93210–18397 25 – 7

93210–19MJ1 28 – 25 93210–24M79 4 – 36 93210–29M94 23 – 11

93210–29375 25 – 23 93210–30682 10 – 28

93210–32738 10 – 8 93210–40M10 6 – 5

93210–41MJ2 6 – 21 93210–46044 29 – 32

93210–49046 29 – 38 93210–86M39 29 – 63 93306–207U0 29 – 57

93315–325W4 29 – 13 93317–322V0 29 – 53 93317–325U0 29 – 61 93332–000UD 29 – 54 93332–000U3 29 – 15 93410–18M05 22 – 31

93410–28M06 23 – 15 93420–36M01 27 – 26 93430–06024 34 – 10 93501–04M02 21 – 21 93501–08001 25 – 12

93503–16003 25 – 25 93505–32038 25 – 66

93602–07244 25 – 21 93604–10M03 29 – 18

REF.

NO.

25 – 10 25 – 74

38 – 15 36 – 3

36 – 15

37 – 18 36 – 14 38 – 6

38 – 29 38 – 9 38 – 11

22 – 36

25 – 16 25 – 26 25 – 86

29 – 42

NUMERICAL INDEX INDEX NUMERIQUE

PART NO. NO. PIECES

93604–12M07 28 – 24 93605–10108 5 – 13 93606–12019 2 – 3

93606–19M23 27 – 16 93608–16M16 27 – 5

93700–06M03 22 – 8 94702–00391 4 – 37 95333–08600 16 – 31 95380–04600 35 – 5

95380–05600 21 – 40 95380–06600 1 – 4

95380–08600 10 – 12 95380–12600 22 – 46 95380–12700 23 – 31

95780–12300 23 – 23 97013–08016 16 – 29

97013–08045 16 – 27 97027–06025 28 – 10 97075–06020 2 – 26

97075–06025 21 – 19 97075–06030 27 – 12

97075–06050 27 – 14 97075–06070 27 – 9 97075–08025 2 – 29

97075–08035 6 – 9 97075–10040 23 – 34

97095–06010 6 – 7

97095–06012 1 – 6

REF.

NO.

28 – 7 30 – 4

27 – 24

35 – 9 34 – 7 17 – 39

18 – 13 34 – 40

24 – 3 24 – 6

4–10

28 – 5

4–13

30 – 5 15 – 10

22 – 3 22 – 10 22 – 23 22 – 26

6–17

PART NO. NO. PIECES

97095–06012 8 – 24

97095–06014 18 – 34

97095–06016 10 – 13

97095–06020 2 – 9

97095–06025 2 – 36

97095–06030 4 – 27

97095–06035 21 – 44 97095–06040 21 – 6 97095–06045 28 – 22 97095–08014 4 – 15 97095–08016 27 – 32 97095–08020 22 – 16 97095–08025 20 – 12 97095–08040 18 – 30 97380–05025 34 – 8 97380–08030 34 – 33 97575–08445 23 – 17 97575–08540 27 – 4 97607–04110 12 – 6 97780–40512 29 – 23 97780–60525 23 – 5 97803–04010 7 – 9

REF.

NO.

9–17 13 – 13 14 – 31 21 – 33

18 – 38 18 – 42 19 – 7

14 – 17 14 – 20 15 – 2 15 – 7 17 – 13 22 – 40 29 – 36

13 – 9 13 – 27 14 – 27 19 – 16

4–33 13 – 24 19 – 14 21 – 36

12 – 11 13 – 6 18 – 32 19 – 18

PART NO. NO. PIECES

97880–06012 22 – 6 97880–06016 27 – 28 97885–05010 15 – 13 97885–05025 15 – 22 97885–06010 12 – 18 97885–06016 18 – 53

97885–06040 18 – 51 97980–04114 7 – 11

98507–04008 4 – 23 98580–03015 34 – 38 98580–04006 34 – 36 98580–04008 7 – 32 98580–04010 34 – 35 98580–05010 34 – 37 98785–05014 18 – 28 99001–08600 29 – 41 99530–08012 12 – 10

REF.

NO.

19 – 24 23 – 2

37 – 3

PART NO. NO. PIECES

REF.

NO.

PART NO. NO. PIECES

REF.

NO.

PART NO. NO. PIECES

REF.

NO.

F80A/F100A

PARTS CATALOGUE

E2001 by Yamaha Motor Co., Ltd.

1st Edition, Oct. 2001

Any reprinting or unauthorized use

without the written permission of

Yamaha Motor Co., Ltd.

is expressly prohibited.

F80A/F100A

CATALOGUEDE PIECES DETACHEES

E2001 Yamaha Motor Co., Ltd.

1ère Edition,Oct. 2001

Toute réimpression ou utilisation

sans la permission écrite de la

Yamaha Motor Co., Ltd.

est formellement interdite.

YAMAHA F80A ’02, F100A’02 PARTS CATALOGUE 02

Specifications and Main Features

Frequently Asked Questions

User Manual

FOREWORD

CONTENTS

1 703–48205–17 REMOTE CONTROL ASSY 1 1 AP WITHPT/T SW.
