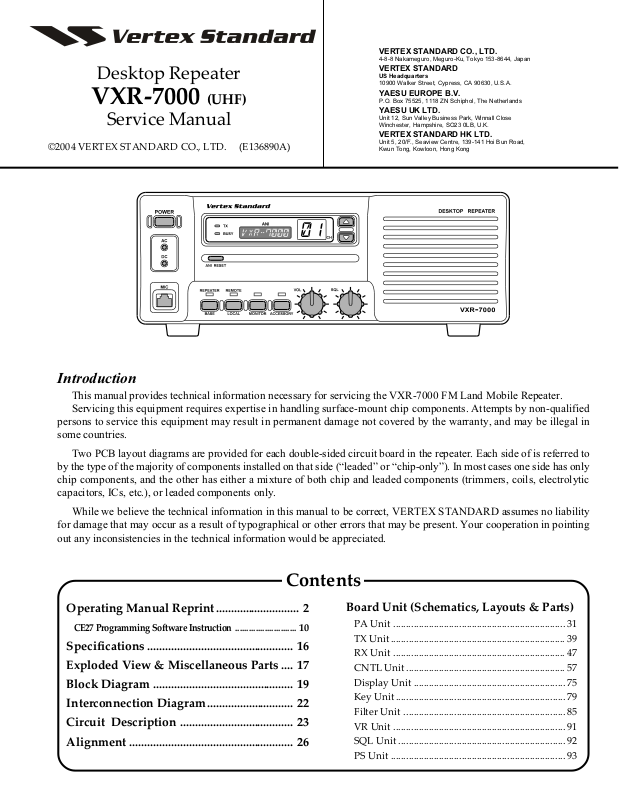

Desktop Repeater

VXR-7000 (UHF)

Service Manual

©2004 VERTEX STANDARD CO., LTD. (E136890A)

VERTEX STANDARD CO., LTD.

4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan

VERTEX STANDARD

US Headquarters

10900 Walker Street, Cypress, CA 90630, U.S.A.

YAESU EUROPE B.V.

P.O. Box 75525, 1118 ZN Schiphol, The Netherlands

YAESU UK LTD.

Unit 12, Sun Valley Business Park, Winnall Close
Winchester, Hampshire, SO23 0LB, U.K.

VERTEX STANDARD HK LTD.

Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road,
Kwun Tong, Kowloon, Hong Kong

Introduction

This manual provides technical information necessary for servicing the VXR-7000 FM Land Mobile Repeater.

Servicing this equipment requires expertise in handling surface-mount chip components. Attempts by non-qualified
persons to service this equipment may result in permanent damage not covered by the warranty, and may be illegal in
some countries.

Two PCB layout diagrams are provided for each double-sided circuit board in the repeater. Each side of is referred to
by the type of the majority of components installed on that side (“leaded” or “chip-only”). In most cases one side has only
chip components, and the other has either a mixture of both chip and leaded components (trimmers, coils, electrolytic
capacitors, ICs, etc.), or leaded components only.

While we believe the technical information in this manual to be correct, VERTEX STANDARD assumes no liability
for damage that may occur as a result of typographical or other errors that may be present. Your cooperation in pointing
out any inconsistencies in the technical information would be appreciated.

Contents

Operating Manual Reprint............................ 2

CE27 Programming Software Instruction ...........................

10

Specifications ................................................. 16

Exploded View & Miscellaneous Parts .... 17

Block Diagram ............................................... 19

Interconnection Diagram............................. 22

Circuit Description ...................................... 23

Alignment ....................................................... 26

Board Unit (Schematics, Layouts & Parts)

PA Unit .................................................................... 31

TX Unit ..................................................................... 39

RX Unit ....................................................................47

CNTL Unit ............................................................... 57

Display Unit ............................................................75

Key Unit ................................................................... 79

Filter Unit ................................................................85

VR Unit .................................................................... 91

SQL Unit .................................................................. 92

PS Unit ..................................................................... 93

1

Operating Manual Reprint

Controls & Connectors

Front Panel

POWER Switch

This is the main power switch for the repeater.

LED Indicators

AC: This LED glows green during AC operation.
DC: This LED glows yellow during DC operation.

MIC Jack

This 8-pin modular jack accepts the microphone in­put, and provides a standby control line to activate the
transmitter when using the “BASE” mode of opera­tion. This jack also provides a “Hook” control line, as
well as a “Clone Data” line.

BASE/REPEATER Switch

This switch toggles the operating mode between the
“REPEATER” mode and the “BASE” transceiver
mode. When the “REPEATER” mode is selected, the
LED above it glows green. While in the “BASE” mode
(the green LED is off), you can speak into the micro­phone to use it as a transceiver. For normal repeater
operation, set this switch to the “REPEATER” mode.

LOCAL/REMOTE Switch

This switch toggles the control mode between the “RE-
MOTE” mode and “LOCAL” mode. When the “LO­CAL” mode is selected, the LED above it is off, and

the repeater operates according to the control data pro­grammed into the repeater. While in the “REMOTE”
mode, the LED glows green, and the repeater oper­ates according to the control instructions received from
an external device (connected to the ACC jack on the
rear panel).

MONITOR Switch

This switch selects the “Squelch” (receiver mute)
mode. When the green LED above it is off, “Tone” or
“Coded” squelch is active. When you press this switch
momentarily, the green LED will glow steadily; in this
condition, only “noise squelch” is active, and any sig­nal present on the channel will be heard. If you press
and hold this switch for more than 2 second, the green
LED will blink and the squelch will open; in this con­dition, background noise will be heard if no signal is
present.

ACCESSORY Switch

This switch can be set up for special applications, such
as High/Low power selection, as determined by your
Vertex Standard dealer. The LED above it glows green
when this function is activated. For further details, con­tact your Vertex Standard dealer.

VOL Knob

This control knob adjusts the receiver volume level
from the front panel speaker. If desired, this control
knob may be set fully counterclockwise when repeater
monitoring is not needed.

SQL Knob

This control knob selects the noise squelch threshold
level. Set it to a position just above the point where
the BUSY lamp goes out when no signal is present.

Channel Selector Buttons ( and )

Press one of these buttons to select the operating chan­nel.

Channel Indicator

This seven-segment LED indicates the operating chan­nel number.

2

ANI Display

The ANI LCD (Liquid Crystal Display) indicates the
pre-programmed ANI message according to the ANI
code received.

Operating Manual Reprint

ANI RESET Button

(1) ANI

Press this button to clear the message on the ANI
display, and turn off the LCD backlight.

TX/BUSY Indicator

The BUSY indicator glows green when the channel is
busy, and the TX indicator glows red when the repeater
is transmitting.

Rear Panel

(2) ENI

Press this button to turn off the Alert tone.
Press this button again to clear the message on the
ANI display, and turn off the LCD backlight.

EXT SP Jack

This 3.5-mm, 2-pin jack provides variable audio out­put for an external speaker. The audio output imped­ance at this jack is 4 Ω ~ 16 Ω, and level varies ac­cording to the setting of the front panel’s VOL con­trol.

TX Antenna Jack

This N-type coaxial jack provides the transmitting out­put signal for connection to the transmitting antenna
or TX jack on the duplexer, if used. The output im­pedance requirement is 50 Ω.

RX Antenna Jack

This N-type coaxial jack accepts the receiver input
signal from the receiving antenna or RX jack on the
duplexer, if used. The input impedance requirement is
50 Ω.

ACC Jack

This DB-25 connector provides a data interface be­tween the microprocessor in the VXR-7000 and pe­ripheral devices (such as the VX-TRUNK Unit).

LINE Jack

This 8-pin modular jack is used for remote control. It
provides TX and RX audio, TX keying, and squelch
status output. The TX and RX audio impedance is 600
Ω.

GND Terminal

For best performance and safety, the GND terminal
should be connected to a good earth ground using a
short, heavy, braided cable.

AC Jack

This receptacle accepts the AC power cord, which
should be connected to the AC mains supply or wall
outlet. The AC line voltage must match that for which
the repeater is wired.

BATT Terminal

These terminal posts accept 12~ 15 VDC for operat­ing the repeater from a battery or other DC source.
When operating from AC mains, a small trickle cur­rent is present at these terminals to maintain battery
charge. A battery rated for 12 volts, 55 Ah (minimum)
is recommended for short-term emergency/backup op­eration.

3

Operating Manual Reprint

ACC Connector Port

The VXR-7000 repeater is provided with a 25-pin DB­25F female connector for interconnections to accesso­ries. Use a DB-25M 25-pin male connector to connect
accessories to the repeater. The pins on the accessory con­nector are explained in detail as follows:

Pin 1: GND

Chassis ground for all logic levels and power supply
return.

Pin 2: +13.8 V [Power Supply]

This pin provides 13.8 Volts, 1.0 A, regulated DC from
the repeater supply. Use a 1 A fuse in the external
device’s DC line to prevent damage to the repeater.

Pin 3: TX AF IN [Analog Transmitter Input]

(Voice Band: 300 ~ 3,000 Hz)
Input impedance is approx. 600 Ω. This audio is in­jected before the splatter filter stage, so excess signal
input levels are clipped.
Use shielded cable to connect to this pin, and connect
the shield to GND.

Pin 4: TONE IN [Transmitter Input]

(Sub-audible Band: 6 ~ 250 Hz)
The input is high impedance (approx. 22 kΩ). Inject­ing too high a voltage here causes over-deviation of
CTCSS or DCS, degrading performance. Use shielded
cable to connect to this pin, connecting the shield to
GND.

Pin 5: N.C. (No connection.)

Pin 6: DISC OUT [Analog Output]

(Wide-Band: 0 ~ 3,000 Hz)
Received signals with standard deviation produce
approx. 1 Vp-p audio at this pin. The output imped­ance is approx. 600 Ω, and is extracted before the de­emphasis and squelch circuitry. Use shielded cable to
connect to this pin, and connect the shield to GND.

Pin 7: GND

Chassis ground for all logic levels and power supply
return.

Pin 8: RSSI [Analog Output]

A DC voltage proportional to the strength of the sig­nal currently being received (Receiver Signal Strength
Indicator) is provided on this pin. This low imped­ance output is generated by the receiver IF sub-sys­tem and buffered by an internal op-amp. Typical volt­ages are graphed as follows:

Pin 9: COAX. SW [Logic Output (Active Low)]

This output is intended for controlling an external co­axial switching relay. It is an open collector output
which can sink approx. 10 mA when active. This sig­nal only switches if the repeater has been programmed
for “SIMPLEX” mode. If programmed for “DU-
PLEX,” the signal remains open (high impedance) at
all time.

Pin 10: N.C. (No connection.)

Pin 11: NSQ DET

This is an open-collector, active-low output capable
of sinking about 10 mA. It indicates that the receiver
squelch is open. If the squelch control is properly set,
this indicates a carrier on the receiver channel.

ACC Jack

DB-25 Pin Numbering

4

Operating Manual Reprint

Pin 12: EXT PTT

This input is internally pulled up to 5 VDC. When
pulled low by an external device, it keys the repeater
transmitter while the repeater is operating in the
“BASE” mode. Avoid voltage in excess of 5 V on this
pin, or internal damage to the microprocessor on the
repeater CNTL Unit may result.

Pin 13: GND

Chassis ground for all logic levels and power supply
return.

Pin 14: GND

Chassis ground for all logic levels and power supply
return.

Pin 15: N.C. (No connection.)

Pin 16, 17, 18, & 19: REMOTE CH DATA

[Logic Inputs D3, D2, D1, and D0] (Active Low)
These inputs are internally pulled up to 5-V DC. When
pulled low by an external device, they select one of
the 16 pre-programmed repeater operating channels.
The logic truth table below shows the combinations
for selecting all 16 channels.
In the truth table, “1” represents no connection, and
“0” represents a ground connection on the pin.
The channel selection logic is not inhibited while the
transmitter is keyed: the repeater will change frequency
when instructed, even while transmitting.
Avoid voltage in excess of 5 V on these pins or inter­nal damage to the microprocessor on the repeater
CNTL Unit may result.

Channel

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16

Pin 16

(D3)

1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0

Pin 17

(D2)

1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0

Pin 18

(D1)

1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0

Pin 19

(D0)

1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0

Pin 20: GND

Chassis ground for all logic levels and power supply
return.

Pin 21: A-OUTPUT [Logic Output] (Active Low)

This open collector logic output is pulled low when
the front panel’s ACCESSORY key is turned on. It
can sink approx. 10 mA when active.

Pin 22: RXD LOW

[Digital Output for DATA Communications]
(300 ~ 3,000 Hz)
This pin is an output for low speed receiving data sig­nals, with the data being extracted after the de-em­phasis and low pass filter stages.

Pin 23: RXD HI

[Digital Output for DATA Communications]
This pin is an output for high speed receiving data
signals, with the data being extracted immediately af­ter the discriminator prior to any de-emphasis).

Pin 24: TXD LOW

[Digital Input for DATA Communications]
(300 ~ 3,000 Hz)
This pin is intended to be used as a low speed digital
data signal input to the repeater. This digital data sig­nal is injected before transmitter pre-emphasis and lim­iting stage, so excess signal input levels are clipped.

Pin 25: TXD HI

[Digital Input for the DATA Communications]
This pin is intended to be used as a high speed digital
data signal input to the repeater. This digital data sig­nal is injected after transmitter splatter filter stage.

5

Operating Manual Reprint

LINE Interface Port

The VXR-7000 is provided with an 8-pin modular jack
for line interfacing applications. A Western Electric
lar-type RJ45 plug should be used to connect to this jack.
The LINE jack pin-out is shown below.

Note that there are both 4-line and 8-line types of modular
plugs. If a 4-line modular plug is used, only the LINE
OUT and LINE IN connections will be made. An 8-line
plug is required to access all lines. In accordance with
standard telecommunications interface, the line connec­tions on the LINE interface jack are impedance balanced,
and are described as follows.

Pins 1 & 2: [RX SQ(+), RX SQ(–)]

(max voltage: 20 V, max current: 7 mA)
An opto-isolator is provided to facilitate E (EAR) sig­naling. The opto-isolator comes on when a signal ex­ceeding the receiver squelch appears on the receiver
channel (with correct CTCSS tone or DCS code, if
enabled). The RX SQ(–) pin is the emitter, and RX
SQ(+) is the collector.

Pins 3 & 4: [LINE IN (Tx Line Audio)]

Analog signals between 300 and 3000 Hz supplied to
this pair are fed to the transmitter when the repeater is
set to the BASE mode (the REPEATER LED is turned
off) and keyed either by the TX KEY input signal (see
below), or by the EXT PTT signal on pin 12 of the
rear panel’s ACC jack. Standard deviation is obtained
with a line level of –10 dBm.

Pins 5 & 6: [LINE OUT (Rx Line Audio)]

Receiver audio is available from this pair, subject to
internal CTCSS or DCS decode if the received signal
strength is above the squelch threshold.
As shipped from the factory, a 1-kHz receiver signal
with standard deviation gives –10 dBm on the line,
but this can be varied by VR4002 and S4001 (on the
repeater’s CNTL Unit).

Pins 7 & 8 [

(max voltage: 20 V, max current: 4 mA)
An opto-isolator is provided to facilitate M (MIC) sig­naling. That is, a voltage presented to these pins turns
on the opto-isolator and keys the transmitter. The TX
KEY(+) pin is the anode of the opto-isolator, and RX
SQ(–) is the cathode of the opto-isolator.

( ), ( )]

®

modu-

Installation

Antenna Considerations

Repeater operation without a duplexer requires that two
antennas be installed, one for receiving and one for trans­mitting, so that the receiving antenna does not absorb en­ergy from the transmitting antenna. There are a number of
ways to do this, depending on the TX/RX frequency sepa­ration, and on the locations available for antenna mount­ing. If a duplexer is used, a single antenna suffices for
both transmitting and receiving. If using a reduced-size
duplexer, a six-cavity model (minimum) is recommended.
Vertex Standard recommends the use of the duplexer. For
further details, contact your Vertex Standard dealer.

Regardless of the above choice, it is of paramount impor­tance that the antenna(s) be mounted as high and in the
clear as possible, preferably within line-of-sight to all re­peater users. Furthermore, losses in the feedline(s) must
be minimized, so the feedline(s) should be high quality,
and as short as possible. If a long feedline is necessary,
use coaxial “hardline” cable to reduce losses.

Repeater antennas should have an impedance of 50 W at
the operating frequency. When separate receive and trans­mit antennas are used, high-Q narrow-band types may
serve to minimize interaction. However, when a single an­tenna is used with a duplexer, it should be a low-Q wide­band type.

NEVER TRANSMIT WITHOUT HAVING A
TRANSMIT ANTENNA CONNECTED TO THE
TX ANTENNA JACK OF THE REPEATER.

AC Power Supply Voltage Selection

Each repeater is wired for a particular AC mains voltage
between 100 and 253 VAC. This should be indicated by a
label near the AC jack on the rear panel. If no label is
present, or if the AC voltage on the label is different from
the local AC line, check the wiring inside the Switching
Regulator Unit of the repeater, and change the connec­tions (and label) if necessary, as shown next page.

Changing the AC input voltage wiring also requires chang­ing the fuse on the FILTER Unit if the voltage is changed
from 100 VAC (100-127 VAC) to 200 VAC (207-253
VAC), or vice-versa. Use a 5-amp fuse for 100 VAC, or a
3-amp fuse for the 200 VAC.

LINE Jack

Modular Jack Pin Numbering

6

Operating Manual Reprint

DC Power Supply Backup

For uninterrupted operation during power failures, a 12
volt rechargeable type battery (55-Ah or more recom­mended) may be connected to the BATT terminal posts
on the rear panel. While the repeater is operating from the
AC source, a slight charging current will maintain battery
charge. In the event of an AC power outage, the auto­matic power control circuit will automatically switch the
repeater to the backup battery, and operation will not be
interrupted.

After prolonged operation from the battery, it should be
disconnected from the repeater and recharged separately
before re-connecting, as the trickle charge is not sufficient
for recharging a completely discharged battery.

Never reapply AC power to the repeater with a discharged
battery connected, as the DC startup current can dam­age the repeater and battery.

While operating from a battery or DC supply, the repeater
requires approximately 7 amperes at 12 Volts during trans­mit.

Equipment Location

While the operating temperature range of the repeater is
quite broad, the best location is one in which the air tem­perature does not approach the extremes of the specified
range, and one that does not change rapidly. Make sure to
allow for free air flow around the heatsink on the rear apron
at all times. In warm climates, the repeater should not be
sealed in a small closed room.

Protect the repeater from wind and rain, and ex­tremes in temperature or humidity that may shorten
the useful life of the equipment. Try to locate the re­peater in an environment that is also comfortable for
service personnel, if possible.

7

Operating Manual Reprint

Changing Switching Regulator unit AC Mains Jumper Wiring

Before attempting this jumper wire change, remove the
AC power cord from the AC jack on the rear panel.

 Referring to Figure 1, remove the 14 screws affixing

the top and bottom covers of the repeater, and remove
the covers.

 Remove the eight screws affixing the shield cover for

the FILTER Unit, and remove the cover (see Figure

1).

 Disconnect all wires and connectors from the FILTER

Unit, then remove the six screws affixing the Switch­ing Regulator Unit, and remove it (the Switching Regu­lator Unit is mounted with the FILTER Unit: Figure

2).

 Referring to Figure 3, remove the four screws and re-

move the heatsink from the Switching Regulator Unit.

 Referring to Figure 4, perform the correct jumper wir-

ing on the Switching Regulator Unit for the AC Mains
voltage used in your area (100-127 VAC or 207-253
VAC).

 Replace the heatsink onto the Switching Regulator

Unit, then replace the Switching Regulator Unit onto
the chassis, and connect all wires and connectors to
the FILTER Unit.

 Replace the AC fuse (FH6001) on the FILTER Unit

according to the AC Mains voltage range:

100 VAC (100-127 VAC): 5A
200 VAC (207-253 VAC): 3A.

 Replace the shield cover and replace the top and bot-

tom covers. This completes the wiring change.

Important!: If you change the AC voltage range, you must
also change the AC fuse on the FILTER Unit. Do not re­place with a slow-blow type fuse.

FILTER Unit

B

A

C

B

C

Figure 2

Switching
Regulator
Unit

A

Figure 1

8

Operating Manual Reprint

Switching Regulator Unit

Figure 4

Figure 3

9

Operating Manual Reprint

CE-27 Programming Software Instruction

With the CE27 Programming Software, you can quickly
and easily program the Vertex Standard VXR-7000
repeater’s channels and configuration from your personal
computer. In the event of an accidental memory failure,
repeater memory and configuration data may be re-loaded
in a matter of minutes.

The CE27 Programming Software diskette contains the
following files:

• CE27.EXE

• CE27.HLP

Before connecting the VXR-7000 for programming, turn
off both the computer and the VXR-7000. Now connect
the VPL-1 Connection Cable to the computer’s serial port
and the VXR-7000.

Then it will be safe to restart the computer; turning off the
equipment during interconnection avoids the potential for
damage to the electronics caused by voltage spikes.

Insert the distribution diskette into your 3½” drive (after
booting DOS), and make a copy of the diskette; use the
distribution diskette for archive purposes, and use the disk
copy for programming.

Place the CE27 (copy) diskette into your 3½” drive (usu­ally “Drive A”), and log onto this drive by typing “A:
[E

NTER]”, then load the contents of the CE27 diskette into

a directory named CE27, using the COPY command (e.g.
“COPY A:*.* C:\CE27”).

Now type “CE27 [E
troductory screen will appear, and you may press any key
to enter the main screen.

Choose the “Help” contents option (F1) from the program’s
Menu for assistance with channel programming or setting
of parameters.

 Do not run the CE27 programming software di-

rectly from the original distribution diskette.
Copy the programming software to your
computer's hard disk, then run the software from
the hard disk only. Keep the original distribu­tion diskette in a safe place in case you need to
make another copy of it at a later date.

 Before creating the programming data for your

VXR-7000 via the CE27 programming software,
upload the current factory hardware environ­ment data from the VXR-7000, using the [F5]
(ReadRom) command. Use this data profile to
create the programming data for this repeater.

NTER]” to start the program. The in-

Important Note!

10

VXR-7000 Programming Setup

CE27 Main Screen (Left)

Operating Manual Reprint

Channel Data Items

Ch: Channel Number
This 2-digit number (01 - 16) is used to identify the chan­nel. Channel numbers occur in sequence, and their order
can not be changed.

Rx Freq.: Edit Receive (or simplex) Frequency
Use the [0] - [9] keys to enter the desired channel fre­quency directly, and press the [E

CTCSS Decoders: Toggle CTCSS Decoder ON/OFF,
sets CTCSS Frequency

Press the [S
or “off,” or press the [E

PACE] bar to toggle the CTCSS Decoder “on”

NTER] key to display the “TONE

SELECT” window, from
which you may select a
CTCSS frequency using the
[A

RROW] key; press [ENTER]

again to accept the selected
tone, or press [E

SC] key to

cancel.

DCS Decoders: Toggle DCS Decoder ON/OFF, sets
DCS Code #

Press the [S

PACE] bar to toggle the DCS Decoder ON or

OFF, or press the
[E

NTER] key to

display the
“C

ODE SELECT”

window, from
which you may
select a DCS
code using the [A

RROW] key; press [ENTER] again to ac-

cept the selected code, or press the [E

NTER] key.

SC] key to cancel.

W/N: Wide/Narrow Channel Spacing
This function selects the channel spacing environment in
which the VXR-7000 operates.

W (Wide) = 25 kHz Channel Spacing, ±5 kHz De-

viation.

N (Narrow) = 12.5 kHz Channel Spacing, ±2.5 kHz

Deviation.

Press the [S

PACE] bar to select the desired channel spac-

ing environment.

Clk Sft: Enable/disable the CPU Clock Shift
This function is only used to move a spurious response
“birdie” should it fall on a current frequency.
Press the [S

PACE] bar to toggle “yes” or “no.”

NSQ Mode: Noise Squelch Mode

This command selects the manner of setting of the Squelch
threshold level.

User = The squelch threshold level is fixed via the

“NSQ Lv” parameter (NSQ Lv: 0 [min.] ~
255 [max.]).

Prpgm = The squelch threshold level deter-

mined via the dealer programming.

Press the [S

PACE] bar to select the desired NSQ Mode.

NSQ Lv: Noise Squelch threshould level
Use the [0] - [9] keys to enter the desired Squelch thresh­old level directly, and press the [E

NTER] key. Available

values are 0 (min.) ~ 255 (max.).

CE27 Main Screen (Scrolled Right)

11

Operating Manual Reprint

Court Blip: Courtesy Blip
When this parameter is set to “on,” this function causes
the VXR-7000 to send out a “blip” on the portable/mobile
radio is frequency each time the portable radio is unkeyed.
This provides audible confirmation to the user that the
VXR-7000 was able to receive the transmission from the
portable.
Press the [S

PACE] bar to toggle “on” or “off.”

Rev Bst: Reverse Burst.

When this parameter is set to “on,” the CTCSS tone
signal’s phase is inverted just before the repeater turns to
receive. This allows the portable/mobile station’s CTCSS
Decoder to begin switching off, thus reducing the transi­tion time required.
Press the [S

PACE] bar to toggle “on” or “off.”

DCS Typ: DCS Format

This command is effective only when DCS is chosen for
squelch control.

A = “Normal” DCS
B = “Inverted” (complement) DCS

Press the [S

PACE] bar to select the desired DCS Type.

DDec Type: DCS Decoder Type
This command selects the manner in which DCS is to be
decoded.

Fixed = Decodes only the type selected in above pa-

rameter (DCS Typ: Normal or Inverted).

Auto = Both types (Normal and Inverted) will be de-

coded.

Press the [S

PACE] bar to select the desired DCS Decoder

Mode.

Multi Tone: Enable/disable Multi Tone Operation
Press the [S

PACE] bar to toggle Multi Tone Operation be-

tween selections “yes” and “no.”
Press the [E
display the “M

NTER] key to

ULTI TONE

SELECT” window, from
which you may select a
CTCSS tone or DCS
code; move the cursol to
the appropriate field
you using the [A
open the “T
select the desired CTCSS tone or DCS code using the [A

ROW] key, then press the [ENTER] key again to accept the

selected tone or code, or press the [E

RROW] key, then press the [ENTER] key to

ONE SELECT” or “CODE SELECT” window. Now

R-

SC] key to cancel.

You may set as many as 16 CTCSS tones and/or DCS
codes.
Note that, if you do not yet program a CTCSS tone or
DCS code in the “M
the “M

ULTI TONE SELECT” window data is not pro-

grammed), press the [S

ULTI TONE SELECT” window (when

PACE] bar to display the “MULTI

TONE SELECT” window directly.

CWID ANI/ENI: Select the Identifier mode
Press the [S

PACE] bar to toggle the selections “CW ID,”

“ANI/ENI,” or “off.” To select this feature to the “CW
ID” or “ANI/ENI,” the “CW ID” parameter must be en-

abled via the dealer programming.

Action Mode: Select the repeater operation mode
Press the [S

PACE] bar to toggle between “Duplex” opera-

tion or “Simplex” operation.

Tx Freq.: Edit Transmit Frequency

Use the [0] - [9] keys to enter the desired channel fre­quency directly, and press the [E

NTER] key.

CTCSS Encoders: Toggle CTCSS Encoder ON/OFF,
sets CTCSS Frequency

Press the [S
or “off,” or press the [E

PACE] bar to toggle the CTCSS Encoder “on”

NTER] key to display the “TONE

SELECT” window, from
which you may select a
CTCSS frequency using the
[A

RROW] key; press [ENTER]

again to accept the selected
tone, or press the [E

SC] key

to cancel.

DCS Encoders: Toggle DCS Encoder ON/OFF, sets DCS
Code #

Press the [S
“off,” or press the [E

LECT” window,

PACE] bar to toggle the DCS Encoder “on” or

NTER] key to display the “CODE SE-

from which you
may select a DCS
code using the
[A

RROW] key;

press [E

NTER]

again to accept
the selected code, or press the [E

SC] key to cancel.

Base TOT: Enable/disable the Time-Out Timer while in
the “BASE” station mode

Press the [S

PACE] bar to toggle the TOT feature selects

“yes” and “no.”
The TOT time is determined via dealer programming.

Base Guard: Enable/disable the Base Guard Feature
When this parameter is set to “yes,” the transmitter will
be inhibited for a few seconds before the repeater (in the
“BASE” station mode) turns to receive.
The inhibit time is determined via dealer programming.

LOUT: Select the Lock Out Feature’s mode
Press the [S
tween “BCLO,” “BTLO,” or “off,” then press the [E

TER] key to accept the setting. “BCLO” inhibits transmit-

PACE] bar to toggle the Lock Out Feature be-

N-

ting while there is carrier present. “BTLO” inhibits trans­mitting while there is carrier present unless there also is a
valid tone present.

12

Operating Manual Reprint

TX Pwr: Transmitter Power Output Selection
This parameter selects the desired power output from the
VXR-7000 on the current channel. The available values
are HIGH and LOW.
Press the [S

PACE] bar to select “Hi” or “Lo.”

TOT Mute: Enable/disable the TOT (Time-Out Timer)

beep monitoring

When this parameter is set to “on,” the alert beep will
sound from the front panel speaker before the repeater
turns itself off.

RptTOT Use: Enable/disable the Time-Out Timer while
operating in the repeater mode

Press the [S

PACE] bar to toggle the Repeater TOT selects

“yes” or “no.”
The TOT time is determined via dealer programming.

RptTOT Beep: Enable/disable the TOT beep Transmis-
sion

Press the [S

PACE] bar to toggle the TOT beep selects “yes”

or “no.”
When this parameter is set to “yes,” the alert beep will be
sent out on the air before the repeater turns itself off, while
oprtating in the “REPEATER” mode.

RPT HT: Enable/disable the Repeater Hang-on Timer
Press the [S

PACE] bar to toggle the Repeater Hang-on Timer

selects “yes” or “no.”
When this parameter is set to “yes,” the repeater will re­main keyed for a desired seconds after a receiving carrier
is dropped.
The Hang-up time is determined via dealer programming.

RPT GT: Enable/disable the Repeater Guard
When this parameter is set to “yes,” the transmitter in­hibit few second before the repeater is unkeyed.
The inhibit time is determined via dealer programming.

13

Operating Manual Reprint

Duplexer Installation

Important Notes!

Please refer to the operating manual for your Du­plexer for details regarding maximum power in­put, TX/RX connector locations, etc) before in­stalling the Antenna Duplexer.

Be certain to observe and comply with the speci­fications for frequency separation and maximum
transmitter power for the duplexer connected to
the VXR-7000, particularly when using the VXD­40xx internal duplexer. When the VXD-40xx is
used, the frequency separation must be 5 MHz
(minimum) to 10 MHz (maximum), and the
maximum transmitter power output allowed is
40 Watts.

If the VXR-7000 output power (50 Watts) is in
excess of the range of the duplexer's capability,
you may reduce the TX output power of the
VXR-7000 before installing the Antenna Du­plexer, using the following procedure:

1. Connect the VXR-7000’s TX antenna port to a watt­meter and dummy load (the duplexer must not be con­nected at this point). Connect any Vertex Standard
microphone to the MIC jack, and place the BASE/
REPEATER switch in the “BASE” position. Select
Channel 1 for alignment purposes.

2. Press and hold in the ACCESSORY switch for two
seconds to enter the adjustment mode. The channel
number will begin to blink.

3. Press and hold in the PTT key on the microphone.
The display will indicate “Po” while transmitting. Ob­serve the power output as indicated on the watmeter.

4. Press the  (UP: increment) or  (DOWN: decre­ment) button (to the right of the channel display) re­peatedly to adjust the TX output power to 40 Watts
(or less) while holding in the PTT key.

5. Once the desired power level has been obtained, re­lease the PTT key. Now press and hold in the AC-
CESSORY button for at least two seconds to save
the new setting and exit to the normal operation.

6. Repeat steps 2. through 5. (above) for any other chan­nels (2 through 16) if they are to be used.

7. Re-test each channel in the normal operating mode to
confirm the proper power output. You may now dis­connect all test equipment.

8. The duplexer may now be installed.

The above procedure should only be performed by your
Authorized Vertex Standard Dealer or a qualified radio
technician, in order to ensure accurate calibration. Please
consult with your Authorized Vertex Standard Dealer for
assistance with procurement of a suitable duplexer.

14

Operating Manual Reprint

Installations

1. Remove the 14 screws affixing the top and bottom cov­ers of repeater, and remove the covers (Figure 1).

2. Turn the repeater upside down.

3. Referring to Figure 2, remove the upper screw in ei­ther side of the front panel, and loosen the lower screw
in either side of the front panel, then slide the front
panel forward slightly.

4. Remove the coaxial cables connected to the TX and
RX antenna jacks of the repeater.

5. Install the duplexer into the compartment on the bot­tom side of the repeater, using the four screws and
antenna cable provided in the CT-68 Hardware Kit
(Figure 3). Some duplexers may not line up with the
threaded mounting holes in the repeater's chassis. In
this case, use the supplemental mounting brackets sup­plied with the CT-68 Hardware Kit (Figure 4).

6. Connect the optional Antenna Cable CT-68 between
the TX antenna jack of the repeater and ANT (center)
jack of the duplexer.

7. If your repeater’s Tx/Rx frequency relationship is “up­per shift” type (TXf > RXf), connect the coaxial cable
from the RX Unit to the LOW PASS jack of the du­plexer and connect the coaxial cable from the PA Unit
to the HIGH PASS jack of the duplexer.
If your repeater’s Tx/Rx frequency relationship is
“lower shift” type (TXf < RXf), connect the coaxial
cable from the RX Unit to the HIGH PASS jack of the
duplexer and connect the coaxial cable from the PA
Unit to the LOW PASS jack of the duplexer.

Note: Route the TX coaxial cable from the PA Unit as
far as possible from the RX coaxial cable from the RX
Unit.

8. Duplexer installation is now complete. Replace the
front panel back into place, and replace the top and
bottom covers.

Bottom SideTop Side

Figure 1

Figure 3Figure 2

Bottom Side

Bottom Side

Figure 4

15

Specifications

General

Frequency Range: 400 ~ 430 MHz (A), 450 ~ 480 MHz (D), or 480 ~ 512 MHz (F)
Number of Channels:16
Channel Spacing: 12.5/25 kHz
Frequency Stability: ±2.5 ppm
Antenna Impedance: 50 Ω (N-Type)
Tx Activation System: Carrier-operated, CTCSS tone operated, DCS operated, or remote control
Power Requirements: 115/230 V AC ±10%, 50/60 Hz or 13.8 VDC
Ambient Temperature Range: –30 °C ~ +60 °C
Dimensions (w/o knobs): 325 x 115 x 391.5 mm (12.8 x 4.5 x 15.4 inches)
Weight (approx.): 10 kg (22 lbs.)

Receiver

Receiver Type: Double-conversion Superheterodyne
Sensitivity: 0.35 µV for 12 dB SINAD, 0.45 µV for 20 dB NQ
Selectivity: 75 dB
Intermodulation: 75 dB
Spurious & Image Rejection: 80 dB
Audio Output: 4 W @ 4 Ω

Transmitter

RF Output: 10 ~ 50 W (Adjustable)
Duty Cycle: 100 %
Maximum Deviation: ±5.0 kHz (25 kHz spacing), ±2.5 kHz (12.5 kHz spacing)
Modulation Type: 16K0F3E/11K0F3E
Audio Distortion: Less than 2.5 % @ 1 kHz
Spurious Emissions: Better than 75 dB below carrier

Specifications are subject to change without notice or obligation.

16

Exploded View & Miscellaneous Parts

Ref.

VTX P/N

U04308001
U30312012
U04408001
U30306012
U30314012
U30308012
U04306002

Description

SEMS SCREW HSM3×8
FLAT HEAD SCREW M3×12BSNI
SEMS SCREW HSM4×8
FLAT HEAD SCREW M3×6BSNI
FLAT HEAD SCREW M3×14BSNI
FLAT HEAD SCREW M3×8BSNI
SEMS SCREW HSM3×6NI

Qty.

5
1
4
9
5
2

12

S6000384
PCB SPACER (6pcs)

Q7000303 (VTX)
Q7000391 (EXP : CE ON)
Q7000427 (EXP : CE OFF)
POWER SUPPLY ASS’Y

S8001794
SPACER(5pcs)

S8001782
THERMAL CONDUCTOR(4pcs)

FILTER Unit

S8001784
FITTING(5pcs)

S8001786
COVER

S8000030
FITTING

S8001785
HEATSINK

S6000366
EDGE HOLDER

CNTL Unit

RA0181300
TOP CASE

RA018100A
SHIELD CASE COVER

S6000366
EDGE HOLDER

RA0180900
SHIELD CASE COVER (PA)

Q6000169
TERMINAL STRIP

S5000215
FAN GUARD

P0090811
CONNECTOR

Ref. VTX P/N Description Qty.

S5000182 SCREW JFS-4S-B1WM 2
U10306007 TRUSS HEAD SCREW M3×6B 14
U04408001 SEMS SCREW HSM4×84
U04308001 SEMS SCREW HSM3×82
U24306001 TAPTITE SCREW M3×634
U24308001 TAPTITE SCREW M3×818
U23308001 TAPTITE SCREW M3×81
U20406007 BINDING HEAD SCREW M4×6B 4
U20308002 BINDING HEAD SCREW M3×8NI 8
U20306001 BINDING HEAD SCREW M3×66
U04306002 SEMS SCREW HSM3×6NI 12
U02308002 SEMS SCREW SM3×8NI 2
U00206002 PAN HEAD SCREW M2.6×6NI 2
U00305001 PAN HEAD SCREW M3×52
U30308001 FLAT HEAD SCREW M3×84
U01330007 (Lot.~14) SEMS SCREW HM3×30B
U04335007 (Lot.15~) SEMS SCREW HSM3×35B
U52408002 HEX HEAD BOLT M4×8NI 1
U51416007 HEXA SOCKET BOLT M4×16B 2
U70004002 PLAIN WASHER FW4NI 1
U71004002 SPRING LOCK WASHER SW4NI 1
U72004002 TOOTHED LOCK WASHER OW4NI 1
U20308001 BINDING HEAD SCREW M3×83

4

Non-designated parts are available only
as part of a designated assembly.

RA018270B (Lot.23~)
RA018270A (Lot.1~22)
FRONT PANEL ASS’Y

RA0181500
PANEL FRAME

RA0180600
KNOB (POW)

RA0180500
VOLUME KNOB

N4090148 (Lot.11~)
N4090143 (Lot.1~10)
PUSH SWITCH

RA0180800
SHIELD CASE COVER (RF)

Display Unit

KEY Unit

RA0180700
PUSH KNOB (4pcs)

RX Unit

VOL Unit

SQL Unit

TX Unit

M4090066
SPEAKER

RA0065800
RUBBER HOLDER (SP)

RA0181200
HOLDER (MJ)

R3054370
FOOT (4pcs)

P1091073
CONNECTOR

P1091072
CONNECTOR

P9090014

M2090032
FAN

RA018000A (Lot.18~)
RA0180000 (Lot.1~17)
CHASSIS

P1090654
CONNECTOR

RA0181400
BOTTOM CASE

CONNECTOR (2pcs)

PA Unit

17

Note:

18

Block Diagram

19

Block Diagram

20

Block Diagram

21

Interconnection Diagram

22

Circuit Description

Receive Signal Path

Incoming RF from the RX antenna jack is delivered to

the RX Unit and passes through the protection diode D3001
(1SS302) and a varactor-tuned band pass filter consist­ing of coils L3002 and L3004, capacitors C3020, C3021,
C3024, C3025, and C3029, and diodes D3004 and D3007
(both HVU350). Signals are then applied to the RF am­plifier, Q3005 (2SC3357). The amplified RF signal is
applied through a varactor-tuned band pass filter consist­ing of coils L3010 and L3012, capacitors C3048, C3052,
C3053, C3157 and C3158, and diodes D3019 and D3020
(both HVU350) to the first mixer D3011 (GN2011-Q)
along with the first local signal from the PLL circuit.

The first local signal is generated between 376.65 MHz

and 406.65 MHz by the RX VCO, which consists of FET

Q3008 (2SK508) and varactor diodes D3005, D3006,
D3008, and D3009 (HVU350) according to the pro-

grammed receiving frequency; the local signal then pass­es through buffer amplifier Q3009 (2SC5226) and first
local amplifier Q3011 (2SC3357) to the first mixer
D3011.

The 73.35 MHz first IF signal is applied to monolithic

crystal filters XF3001 and XF3002 (both 73S10A: ±5.0
kHz B.W.) which strip away unwanted mixer products,
and the IF signal is applied to the first IF amplifiers Q3014
and Q3017(both 2SC5226). The amplified first IF signal
is then delivered to the FM IF subsystem IC Q3012
(TA31136FN), which contains the second mixer, second
local oscillator, limiter amplifier, noise amplifier, and FM
detector.

The second local oscillator signal, generated by the

72.895 MHz crystal X3002, produces the 455 kHz sec­ond IF signal when mixed with the first IF signal within
Q3012. The second IF signal passes through ceramic fil­ter CF3001 (CFWM455G: ±4.5 kHz B.W.) or CF3002
(CFWM455F: ±6.0 kHz B.W.) which strips away all but
the desired signal, and then passes through the limiter
amplifier within Q3012 to ceramic discriminator CD3001
(CDB455C7), which removes any amplitude variations
in the 455 kHz IF signal before detection of speech. The
detected audio passes through the low pass filter, consist­ing of R3066 and C3128, which rejects the 455 kHz IF
component, then delivers the audio to pin 12 of JP3001.

The audio signal from the RX Unit is delivered to the

CNTL Unit and passes through the audio amplifier Q4014-

3 (NJM2902) to the active high pass filter section of
Q4024 (FX-805) which rejects the sub-audible frequen-

cy component. The filtered audio signal is delivered to
potentiometer VR4001, which adjusts the audio sensitiv­ity to compensate for audio level variations, then passes
through audio amplifier Q4014-1 (NJM2902), audio
switch Q4030 (NJU4066B), a 20 dB attenuater consist-

ing of R4180 and R4211, and limiter amplifier Q4018-4
(NJM2902), to the electronic volume control Q4029
(M51132FP), where the maximum deviation is set. The
audio signal subsequently passes through the 3-section
active low pass filter consisting of Q4019-1/-2/-3
(NJM2902) and audio amplifier Q4019-4 to J4008’s
pin10, providing the repeater transmit audio.

A portion of the audio signal from the active high pass

filter section of Q4024 is de-emphasized by Q4020-1
(NJM2902), providing a flat audio response. The filtered
audio then passes through the active band pass filter Q4016
(NJM2902) and audio mute gate Q4036 (DTC323TK)
to audio power amplifier Q4043 (TDA2003H), provid-
ing up to 2 Watts of audio power to the 8Ω loudspeaker.

A portion of the audio signal from the audio amplifier
Q4014-3 passes through the 3-section active low pass fil­ter Q4045-2/-3/-4 and the low pass filtering section of
Q4024 to separate the CTCSS tones from the received
audio signal.

Sub-Audible Signaling (Decoder)

A portion of the audio signal from the audio amplifier
Q4014-3 passes through the 3-section active low pass fil­ter Q4045-2/-3/-4 and the low pass filtering section of
Q4024 to separate the CTCSS tones from the received
audio signal. The CTCSS tones are sent to the CTCSS
decoder section of Q4024. When a CTCSS tone is received,
the CTCSS information is delivered to pin 20 of the Main
CPU Q4012 from pin 4 and 8 of Q4024, which compares
the CTCSS tone with the programmed tone.

Another portion of the audio signal amplified by
Q4014-3 passes through the 3-section active low pass fil­ter Q4046-2/-3/-4 to separate the DCS codes from the re­ceived audio signal. The low pass filtered signal passes
through the phase detector Q4046-1 to pin 23 of the Main
CPU Q4012. When a DCS code is received, the Main CPU
Q4012 compares the DCS code with the programmed code.

If the received CTCSS tone or DCS code matches the
programmed tone or code, pin 39 of the Main CPU Q4012
goes low, turning on the squelch switch Q4036
(DTC323TK) and passing the received audio signal to
the audio power amplifier Q4043.

Squelch Control

The squelch circuit consists of noise amplifier Q3015
(2SC4116) and noise detector D3015 (MA143) on the
RX Unit, and control circuitry within main microproces­sor Q4012 on the CNTL Unit.

When no carrier is received, noise at the output of the
audio detector stage of Q3012 is amplified by Q3015
(2SC4116GR), and then rectified by D3015 (MA143)
to provide a DC control voltage for the squelch switch.
The resulting DC voltage is delivered to pin 6 of JP3001.

23

Circuit Description

The DC voltage from the RX Unit is delivered to the

A-D analog input port (pin 31) of the Main CPU Q4012
(HD64F3337YF16) on the CNTL Unit, which compares
the squelch threshold level to that which is memorized in
EEPROM Q4008 (NM93C86A) or set by the front panel
SQL control.

RX PLL and VCO Circuits

The receiver’s PLL circuitry consists of PLL subsystem

IC Q3001 (MB15A02PFV1) on the RX Unit, which con­tains a reference oscillator/divider, serial-to-parallel data
latch, programmable divider, phase comparator and a swal­low counter. Stability is obtained by a regulated 5 VDC
supply via Q3021 (NJM78L05UA) and temperature com-
pensated 14.4 MHz crystal oscillator X3001 via thermistor
TH3001 and TH3002.

The RX VCO, consisting of FET Q3008 and varactor
diodes D3005, D3006, D3008, and D3009, oscillates be­tween 376.65 MHz and 406.65 MHz according to the pro­grammed receiving frequency. The RX VCO output pass­es through buffer amplifier Q3009 and first local amplifi­er Q3011 to the first mixer D3011, as described previous­ly. A portion of the RX VCO output is applied to the pres­caler/swallow counter section in the PLL IC, Q3001. There
the RX VCO signal is divided by 64 or 65, according to a
control signal from the Main CPU Q4012 on the CNTL
Unit, before being applied to the programmable divider
section of the PLL IC Q3001.

The data latch section of the PLL IC Q3001 also re­ceives serial dividing data from the Main CPU Q4012,
which causes the pre-divided RX VCO signal to be fur­ther divided by 75,330 ~ 81,330 (or 60,264 ~ 65,064) in
the programmable divider section in the PLL IC Q3001,
depending upon the desired receive frequency, so as to
produce a 5 kHz (or 6.25 kHz) derivative of the current
RX VCO frequency. Meanwhile, the reference divider sec­tion of the PLL IC Q3001 divides the 14.4 MHz crystal
reference from the reference oscillator X3001 and Q3002
(2SC4116GR) by 2880 (or 2304) to produce the 5 kHz
(or 6.25 kHz) loop reference.

The 5 kHz or 6.25 kHz signal from the programmable
divider (derived from the RX VCO) and that derived from
the crystal are applied to the phase detector section of the
PLL IC Q3001, which produces a pulsed output with pulse
duration depending on the phase difference between the
input signals. This pulse train is then converted to DC,
low pass filtered, then fed back to the RX VCO varactor
diodes D3005, D3006, D3008, and D3009.

Changes in the DC voltage applied to the varactor di­odes D3005, D3006, D3008, and D3009 affect the reac­tance in the tank circuit RX VCO Q3008, changing the
oscillating frequency according to the phase difference
between the signals derived from the RX VCO and the
crystal reference oscillator. The RX VCO is thus phase­locked to the reference frequency standard.

Transmit Signal Path

The speech audio from the CNTL Unit is applied to
the varactor diode D2008 (HVU350), which frequency
modulates the TX VCO from the unmodulated carrier at
the transmit frequency. The modulated transmit signal is
buffered by Q2008 (2SC5226), then passes through the
RF amplifier Q2010 (2SC3357) and RF diode switch
D2010 (RN739F) to the PA Unit.

The transmit signal is applied to the RF amplifier
Q1501 (2SC3357) and RF power module IC Q1502
(PF0342A), then finally amplified by power amplifier
Q1507 (2SC3102) up to 50 Watts. Harmonic and spuri-
ous radiation in the final output is suppressed by a low
pass filter consisting of coils L1508 ~ L1511, plus capac­itors C1548, C1555, C1557, C1561, C1567, and C1566
on the PA Unit, before delivery to the TX antenna jack.

TX PLL and VCO Circuits

The Transmitter’s PLL circuitry consists of PLL sub­system IC Q2001 (MB15A02PFV1) on the RX Unit,
which contains a reference oscillator/divider, serial-to­parallel data latch, programmable divider, phase compar­ator and a swallow counter. Stability is obtained by a reg­ulated 5 VDC supply via Q2012 (NJM78L05UA) and
temperature compensated 14.4 MHz crystal oscillator
X2001 via thermistor TH2001, TH2002 and TH2003.

The TX VCO, consisting of FET Q2005 (2SK508)
and varactor diodes D2002,D2003,D2005 and D2006,
oscillates between 450 MHz and 480 MHz according to
the programmed transmit frequency. The theory of opera­tion of the remainder of the PLL circuitry is similar to that
of the RX PLL circuit; however, dividing data from the
Main CPU Q4012 on the CNTL Unit is such that the VCO
frequency is the actual transmit frequency.

24

Circuit Description

APC (Automatic Power Control)

RF power output from the final amplifier Q1507 is

sampled by C1550/C1559 and is then rectified by D1503/
D1504 (both 1SS319). The resulting DC voltage is ap-
plied to the comparator Q1509 (TA75S01F), where the
voltage is compared with a reference voltage from the Main
CPU Q4012 on the CNTL Unit, to produce a control volt­age for the Automatic Power Controller Q1503
(2SB1122S) and Q1504 (2SC4116GR), which regu­lates supply voltage to the RF power module IC Q1502,
so as to maintain stable high (or low) output power under
varying antenna loading conditions.

CONTROL (CNTL) Unit

The CNTL Unit consists of 8-bit CPU Q4012

(HD64F3337YF16), EEPROM Q4008 (NM93C86A),
RX and TX speech audio circuits, and various analog
switches for the CPU and repeater interconnections.

Microprocessor operational code is stored in Q4008,
while channel data and repeater configuration informa­tion is programmed from an external PC connected to the
front panel’s MIC jack via a VPL-1 programming cable.

The output from the Main CPU Q4012, contains serial
control data used for REPEATER/BASE mode control,
as well as TX and RX PLL data. Crystal X4001 oscillates
at 16 MHz, and provides stable clock timing for the Main
CPU. When the repeater is powered on, the voltage at pin
8 of Q4012 becomes stable, and the output of voltage de­tector IC Q4005 (RH5VL45AA), which is tied to Q4012
(pin 1-RST) becomes high, resetting the Main CPU.

Base Operation (Tx, Line-Input Audio)

Line input from J4009 (pins 3 and 4) is impedance

matched by transformer T4001, then passes through the
audio amplifier Q4018-2 (NJM2902) and audio switch

Q4030 (NJU4066B) to the pre-emphasis network at
Q4018-1, where the signal is processed in the same man-

ner as previously described. The line level can be attenu­ated by switch S4002, and line sensitivity can be adjusted
to –10 dBm by potentiometer VR4003 to compensate for
audio line level variations.

Base Operation (Tx, Mic-Input Audio)

Microphone input is delivered past the MIC MUTE

switch Q4026 (DTC323TK), then passes through the au­dio amplifier and active high pass filter at Q4021-2/-3/-4
(NJM2902) to the pre-emphasis network at Q4018-1,
where the signal is processed in the same manner as pre­viously described.

25

Alignment

The VXR-7000 is carefully aligned at the factory for
the specified performance across the entire operating fre­quency range. Realignment should therefore not be nec­essary except in the event of a component failure. All com­ponent replacement and service should be performed only
by an authorized Vertex Standard representative, or the
warranty policy may be void.

The following procedures cover the sometimes critical
and tedious adjustments that are not normally required once
the repeater has left the factory. However, if damage oc­curs and some parts subsequently are placed, realignment
may be required. If a sudden problem occurs during nor­mal operation, it is likely due to component failure; re­alignment should not be done until after the faulty com­ponent has been replaced.

We recommend that servicing be performed only by
authorized Vertex Standard service technicians who are
experienced with the circuitry and fully equipped for re­pair and alignment. Therefore, if a fault is suspected, con­tact the dealer from whom the repeater was purchased for
instructions regarding repair. Authorized Vertex Standard
service technicians realign all circuits and make complete
performance checks to ensure compliance with factory
specifications after replacing any faulty components.

Those who do undertake any of the following align­ments are cautioned to proceed at their own risk. Prob­lems caused by unauthorized attempts at realignment are
not covered by the warranty policy. Also, Vertex Stan­dard reserves the right to change circuits and alignment
procedures in the interest of improved performance, with­out notifying owners.

Under no circumstances should any alignment be at­tempted unless the normal function and operation of the
repeater are clearly understood, the cause of the malfunc­tion has been clearly pinpointed and any faulty compo­nents replaced, and realignment determined to be abso­lutely necessary.

The following test equipment (and thorough familiari­ty with its correct use) is necessary for complete realign­ment. Correction of problems caused by misalignment re­sulting from use of improper test equipment is not cov­ered under the warranty policy. While most steps do not
require all of the equipment listed, the interactions of some
adjustments may require that more complex adjustments
be performed afterwards.

Required Test Equipment

 RF Signal Generator with calibrated output level at

1,000 MHz

 Deviation Meter (linear detector)
 In-line Wattmeter with 5% accuracy at 1,000 MHz
 50 Ω RF Dummy Load with power rating 100W at

1,000MHz

 4 Ω AF Dummy Load
 Frequency Counter with 0.2ppm accuracy at

1,000MHz

 AF Signal Generator
 AC Voltmeter
 DC Voltmeter: High input impedance
 VHF Sampling Coupler
 SINAD Meter
 IBM PC/compatible Computer with MS-DOS or lat-

er operating system

 Yaesu VPL-1 Connection Cable & CE27 Channel/

Alignment Diskette

Alignment Preparation & Precautions

A 50 Ω RF Dummy Load and in-line wattmeter must

be connected to the TX antenna jack in all procedures that
call for transmission, except where specified otherwise.
Correct alignment is not possible with an antenna.

After completing one step, read the following step to
determine whether the same test equipment will be re­quired. If not, remove the test equipment (except dummy
load and wattmeter, in connected) before proceeding.

Correct alignment requires that the ambient tempera­ture be the same as that of the repeater and test equipment,
and that this temperature be held constant between 68° ~
86 °F (20° ~ 30 °C). When the repeater is brought into the
shop from hot or cold air, it should be allowed time to
come to room temperature before alignment.

Whenever possible, alignments should be made with
oscillator shields and circuit boards firmly affixed in place.
Also, the test equipment must be thoroughly warmed up
before beginning.

Note: Signal levels in dB referred to in the alignment pro­cedure are based on 0dBµ = 0.5µV. (closed circuit)

Do not attempt to perform only a single step unless it
is clearly isolated electrically from all other steps. Have
all test equipment ready before beginning, and follow all
of the steps in a section in the order presented.

26

Alignment

Set up the test equipment as shown below, and apply

AC power to the repeater.

The repeater must be programmed for use in the in­tended system before alignment is attempted. The frequen­cy and other parameters are loaded from the file during
the alignment process.

In order to facilitate alignment over the complete
switching range of the equipment it is recommended that
the channel data first be uploaded and then stored to disk.
Channels at the upper, lower and middle band edges should
then be downloaded. The original data can be replaced at
the end of the alignment process.

Channel

Low band edge 450.000 MHz 400.000 MHz

Center 465.000 MHz 415.000 MHz

High band edge 480.000 MHz 430.000 MHz

Frequency

Ver. D Ve r. A

Transmitter

Press the BASE/REPEATER switch on the front panel
of the repeater so as to set it to the “BASE” mode if the

REPEATER LED is on. You should see the REPEAT­ER LED turn off, indicating that the repeater is now in

the “BASE” mode.

PLL VCV (Varactor Control Voltage) Check

 Connect the DC voltmeter between the VCV check

point (on the TX Unit) and chassis ground.

 Select the Low band edge channel, then key the re-

peater. Confirm that the DC voltmeter reading is 0.6
~ 1.5 VDC (TYP D) or 1.5 ± 0.3 VDC (TYP A).

 Select the High band edge channel, then key the re-

peater. Confirm that the DC voltmeter reading is 3.8
~ 4.5 VDC (TYP D) or 3.6 ± 0.4 VDC (TYP A).

PLL Reference Frequency Adjustment

 Select the Center channel, then key the repeater.
 Adjust TC2001 (on the TX unit), if necessary, so

that the frequency counter reading is within ±100Hz
of the programmed Center channel frequency.

Transmitter parameters (excluding PLL)

 The following transmitter parameters can be adjust-

ed from the computer by utilizing the CE27 Chan­nel/Alignment Diskette. Refer to the onboard help of
the CE27 Channel/Alignment Diskette for details.

Alignment Setup

TX Parameters Data

TX Power Level (High) 0 (00h) ~ 255 (FFh)
TX Power Level (Low) 0 (00h) ~ 255 (FFh)
Maximum Deviation 0 (00h) ~ 255 (FFh)
CTCSS Deviation 0 (00h) ~ 255 (FFh)
DCS Deviation 0 (00h) ~ 255 (FFh)

VCV Check Point

TC2001

TX Unit Alignment Points

27

Alignment

Receiver

PLL VCV (Varactor Control Voltage) Check

 Connect the DC voltmeter between the VCV check

point (on the RX Unit) and chassis ground.

 Select the Low band edge channel, and confirm that

the DC voltmeter reading is 1.6 ± 0.3 VDC (TYP D)
or 1.3 ± 0.3 VDC (TYP A).

 Select the High band edge channel, and confirm that

the DC voltmeter reading is 4.5 ± 0.5 VDC (TYP D)
or 4.3 ± 0.5 VDC (TYP A).

PLL Reference Frequency Adjustment

 Connect the Frequency counter to J3001 on the RX

Unit.

 Select the Center channel, adjust TC3001 (on the

RX Unit), if necessary, so that the frequency counter
reading is within ±100 Hz of the programmed Center
channel frequency.

Receiver parameters (excluding PLL)

 The following receiver parameters can be adjusted

from the computer by utilizing the CE27 Channel/
Alignment Diskette. Refer to the onboard help of the
CE27 Channel/Alignment Diskette for details.

RX Parameters Data

Squelch Threshold Level 0 (00h) ~ 255 (FFh)
Squelch W/N Level 0 (00h) ~ 255 (FFh)
RSSI Threshold Level 0 (00h) ~ 255 (FFh)
RX Tune Level 0 (00h) ~ 255 (FFh)

J3001

TC3001

VCV Check Point

RX Unit Alignment Points

28

Alignment

Repeater Mode

Deviation Adjustment

 First ensure that the “DUPLEX” mode of operation

is enabled via CE27 programming.

 Set the BASE/REPEATER switch on the front panel

of the repeater to the “REPEATER” mode (the RE-
PEATER LED will turn on).

 Inject a signal on the Center channel frequency at a

level of 40 dBµ (1 kHz tone @ ±3 kHz deviation)
from the RF Signal Generator into the RX antenna
jack, and adjust VR4001 (on the CNTL Unit) so that
the deviation meter reading (TX deviation) is ±3.0
kHz (±0.1 kHz) deviation.

Base Mode

Alignment Setup

 Set the BASE switch on the front panel of the re-

peater to the “BASE” mode (the REPEATER LED
will turn off).

 Press the LOCAL/REMOTE switch on the front pan-

el of the repeater to the “REMOTE” mode (the RE-
MOTE LED will turn on).

 Set S4001 and S4002 on the CNTL Unit to the “0

(off)” position and “1 (on)” position respectively, then
select the Center channel.

Audio Level Adjustment (LINE OUT Level)

 Inject a signal on the Center channel frequency at a

level of -73 dBm (1 kHz tone @ ±3.0 kHz deviation)
from the RF Signal Generator into the RX antenna
jack, and adjust VR4002 (on the CNTL Unit) so that
the “Line Out” audio level (LINE jack pins 5 and 6)
is –10 dBm (±0.1 dBm).

Deviation Adjustment (LINE IN Level)

 Connect the AF generator to LINE jack pins 3 and 4,

and the AF generator output level to -10 dBm, at a
frequency of 1 kHz.

 Key the repeater, and adjust VR4003 (on the CNTL

Unit) so that the deviation meter reading (TX devia­tion) is 3.0 kHz (±0.1 kHz) deviation.

S4002

VR4003

VR4001

S4001

VR4002

CNTL Unit Alignment Points

29

Note:

30

Circuit Diagram

PA Unit (Lot. 1~)

NOTE:
RESISTOR VALUES ARE IN Ω. 1/16W ;
CAPACITOR VALUES ARE IN µF. 50V ;
(T) CAPACITOR VALUES ARE TANTALUM ;
ELECTOROLYTIC CAPACITORS ARE IN µF. 16V ;
INDUCTOR VALUES ARE IN H ;
COIL VALUES ARE IN H ;
UNLESS OTHERWISE NOTED.

31

PA Unit (Lot. 18~)

Circuit Diagram

32

NOTE:
RESISTOR VALUES ARE IN Ω. 1/16W ;
CAPACITOR VALUES ARE IN µF. 50V ;
(T) CAPACITOR VALUES ARE TANTALUM ;
ELECTOROLYTIC CAPACITORS ARE IN µF. 16V ;
INDUCTOR VALUES ARE IN H ;
COIL VALUES ARE IN H ;
UNLESS OTHERWISE NOTED.

Parts Layout

PA Unit

A CEFDB

2SC3102

1

(Q1507)

TA75S01F (SA)
(Q1509)

PF0342A (Ver. D)
PF0341A (Ver. A)
(Q1502)

NJM78L09UA (8H)
(Q1508)

2

2SB1122S (BE)
(Q1503, 1505)

Side A

UN5213 (8C)
(Q1506)

a cefdb

2SC3357 (RK)
(Q1501)

2SC4116GR (LG)
(Q1504)

1

1SS319 (A4)
(D1503, 1504)

MA143 (MC)
(D1502)
RN739F (5F)
(D1501)

2

Side B

33

Note:

34

PA Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS. LOT.REF. SIDE

PCB with Components (w/o JP1502, JP1503 & JP1504

*** PA UNIT ***

Printed Circuit Board FR003990C 1­C 1501 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B f2
C 1503 CHIP CAP. 18pF 50V CH GRM39CH180J50PT K22174217 1- B f2
C 1504 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B f2
C 1505 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B f1
C 1506 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B f1
C 1507 CHIP CAP. 12pF 50V CH GRM39CH120J50PT K22174213 1-17 A A1
C 1507 CHIP CAP. 27pF 50V CH GRM39CH270J50PT K22174221 VERSION A 18- A A1
C 1507 CHIP CAP. 12pF 50V CH GRM39CH120J50PT K22174213 VERSION D 18- A A1
C 1508 CHIP CAP. 9pF 50V CH GRM39CH090D50PT K22174210 1-17 A A1
C 1508 CHIP CAP. 15pF 50V CH GRM39CH150J50PT K22174215 VERSION A 18- A A1
C 1508 CHIP CAP. 9pF 50V CH GRM39CH090D50PT K22174210 VERSION D 18- A A1
C 1509 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1-18 B f1
C 1509 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 VERSION D 19- B f1
C 1509 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 VERSION A 19- B f1
C 1511 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 1- B f2
C 1512 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1- B f2
C 1513 CHIP CAP. 0.001uF 50V B GRM40B102M50PT K22170805 1- B e1
C 1514 CHIP CAP. 0.01uF 50V B GRM40B103M50PT K22170817 1- B e1
C 1515 CHIP CAP. 1uF 25V W5R CM32W5R105K25AT K22145801 1- A B1
C 1515 CHIP CAP. 1uF 50V B GRM42-2B105K50PT K22175801 18- A B1
C 1516 CHIP CAP. 1uF 10V B GRM40B105K10PT K22100802 1- B f2
C 1517 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B f2
C 1518 CHIP CAP. 0.001uF 50V B GRM40B102M50PT K22170805 1- B e1
C 1519 CHIP CAP. 0.01uF 50V B GRM40B103M50PT K22170817 1- B e1
C 1520 CHIP CAP. 1uF 25V W5R CM32W5R105K25AT K22145801 1- A B1
C 1520 CHIP CAP. 1uF 50V B GRM42-2B105K50PT K22175801 18- A B1
C 1522 CHIP CAP. 9pF 500V CH GRM42-6CH090D500PT K22271212 1-17 A C1
C 1522 CHIP CAP. 18pF 500V CH GRM42-6CH180J500PT K22271219 VERSION A 18 A C1
C 1522 CHIP CAP. 22pF 500V CH GRM42-6CH220J500PT K22271221 VERSION A 19- A C1
C 1522 CHIP CAP. 9pF 500V CH GRM42-6CH090D500PT K22271212 VERSION D 18- A C1
C 1523 FILM CAP. 68pF 500V UC232H0680J-T K33279030 1- A C1
C 1524 CHIP CAP. 0.001uF 50V B GRM40B102M50PT K22170805 1- A B2
C 1525 CERAMIC CAP. 22pF 500V CH GRH111CH220J500PT K22273209 VERSION A 31- A C1
C 1525 CERAMIC CAP. 10pF 500V CH GRH111CH100D500PT K22273217 VERSION A 18 A C1
C 1525 CERAMIC CAP. 22pF 500V CH GRH111CH220J500PT K22273209 VERSION A 19-30 A C1
C 1526 CHIP CAP. 33pF 500V CG C17CG330K4TXLT K22273235 1- A C1
C 1527 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 1- A B2
C 1528 CHIP CAP. 39pF 500V CG C17CG390K4TXLT K22273236 1- A C1
C 1529 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1- A B2
C 1530 CHIP CAP. 39pF 500V CG C17CG390K4TXLT K22273236 1- A D1
C 1531 CHIP CAP. 47pF 500V CG C17CG470J4TXLT K22273240 1-17 A D1
C 1531 CHIP CAP. 47pF 500V CG ATC700B470KW500XT K22273242 VERSION D 19- A D1
C 1531 CHIP CAP. 33pF 500V CG C17CG330K4TXLT K22273235 VERSION A 18- A D1
C 1531 CHIP CAP. 47pF 500V CG C17CG470J4TXLT K22273240 VERSION D 18 A D1
C 1532 CERAMIC CAP. 10pF 500V CH GRH111CH100D500PT K22273217 1-18 A D1
C 1532 CERAMIC CAP. 10pF 500V CH GRH111CH100D500PT K22273217 VERSION D 19- A D1
C 1532 CERAMIC CAP. 10pF 500V CH GRH111CH100D500PT K22273217 VERSION A 19- A D1
C 1533 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1- B e2
C 1534 AL.ELECTRO.CAP. 1000uF 25V RJ3-25V102M 1000UF K40149041 1- A C1
C 1535 AL.ELECTRO.CAP. 1000uF 25V RJ3-25V102M 1000UF K40149041 1- A E1
C 1536 AL.ELECTRO.CAP. 1000uF 25V RJ3-25V102M 1000UF K40149041 1- A E1
C 1537 CHIP CAP. 0.001uF 500V W5R GRM42-6W5R102K500PT K22271801 1- B c1
C 1538 CHIP CAP. 0.01uF 200V X7R GRM42-6X7R103K200PT K22231802 1- B c1
C 1539 CHIP CAP. 1uF 25V W5R CM32W5R105K25AT K22145801 1- A D1
C 1539 CHIP CAP. 1uF 50V B GRM42-2B105K50PT K22175801 18- A D1
C 1540 CHIP CAP. 0.001uF 500V W5R GRM42-6W5R102K500PT K22271801 1- B c1
C 1541 CHIP CAP. 0.01uF 200V X7R GRM42-6X7R103K200PT K22231802 1- B c1
C 1542 FILM CAP. 18pF 500V UC232H0180J-T K33279029 1-17 A D1
C 1542 FILM CAP. 27pF 500V UC232H0270J-T K33279023 VERSION A 18- A D1
C 1542 FILM CAP. 18pF 500V UC232H0180J-T K33279029 VERSION D 18- A D1
C 1543 FILM CAP. 6pF 500V UC232H0060D-T K33279045 1-17 A E1
C 1543 FILM CAP. 4pF 500V UC232H0040D-T K33279044 VERSION A 18- A E1
C 1543 FILM CAP. 6pF 500V UC232H0060D-T K33279045 VERSION D 18- A E1
C 1544 FILM CAP. 68pF 500V UC232H0680J-T K33279030 1- A E1

)

CS1683001

LAY ADR

35

PA Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS. LOT.REF. SIDE

C 1545 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B e2
C 1548 FILM CAP. 7pF 500V UC232H0070D-T K33279046 1-18 A E2
C 1548 FILM CAP. 7pF 500V UC232H0070D-T K33279046 VERSION D 19- A E2
C 1548 FILM CAP. 7pF 500V UC232H0070D-T K33279046 VERSION A 19- A E2
C 1549 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B e2
C 1551 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B e2
C 1553 CHIP CAP. 0.5pF 50V CK GRM40CK0R5C50PT K22170201 1-30 B b2
C 1553 CHIP CAP. 0.5pF 50V CK GRM40CK0R5C50PT K22170201 VERSION A 31- B b2
C 1553 CHIP CAP. 0.5pF 50V CK GRM40CK0R5C50PT K22170201 VERSION D 31- B b2
C 1554 CHIP CAP. 330pF 50V CH GRM39CH331J50PT K22174253 1- B b2
C 1555 FILM CAP. 10pF 500V UC232H0100D-T K33279019 1-18 A E1
C 1555 FILM CAP. 10pF 500V UC232H0100D-T K33279019 VERSION D 19- A E1
C 1555 FILM CAP. 10pF 500V UC232H0100D-T K33279019 VERSION A 19- A E1
C 1557 FILM CAP. 10pF 500V UC232H0100D-T K33279019 1-18 A E2
C 1557 FILM CAP. 10pF 500V UC232H0100D-T K33279019 VERSION D 19- A E2
C 1557 FILM CAP. 10pF 500V UC232H0100D-T K33279019 VERSION A 19- A E2
C 1558 CHIP CAP. 330pF 50V CH GRM39CH331J50PT K22174253 1- B b2
C 1559 CHIP CAP. 0.5pF 50V CK GRM40CK0R5C50PT K22170201 1-30 B b2
C 1559 CHIP CAP. 0.5pF 50V CK GRM40CK0R5C50PT K22170201 VERSION A 31- B b2
C 1559 CHIP CAP. 0.5pF 50V CK GRM40CK0R5C50PT K22170201 VERSION D 31- B b2
C 1560 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B e2
C 1561 FILM CAP. 4pF 500V UC232H0040D-T K33279044 1-18 A F2
C 1561 FILM CAP. 4pF 500V UC232H0040D-T K33279044 VERSION D 19- A F2
C 1561 FILM CAP. 4pF 500V UC232H0040D-T K33279044 VERSION A 19- A F2
C 1562 FILM CAP. 47pF 500V UC232H0470J-T K33279034 1- B a2
C 1563 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B d2
C 1564 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B e2
C 1565 CHIP CAP. 6pF 500V CH GRM42-6CH060D500PT K22271209 1-17 A B1
C 1565 CHIP CAP. 6pF 500V CH GRM42-6CH060D500PT K22271209 VERSION D 19- A B1
C 1565 CHIP CAP. 9pF 500V CH GRM42-6CH090D500PT K22271212 VERSION A 18- A B1
C 1565 CHIP CAP. 6pF 500V CH GRM42-6CH060D500PT K22271209 VERSION D 18 A B1
C 1567 FILM CAP. 10pF 500V UC232H0100D-T K33279019 1-18 A F2
C 1567 FILM CAP. 10pF 500V UC232H0100D-T K33279019 VERSION D 19- A F2
C 1567 FILM CAP. 10pF 500V UC232H0100D-T K33279019 VERSION A 19- A F2
C 1571 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 1-18 A B2
C 1571 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 VERSION A 31- A B2
C 1571 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 VERSION D 19- A B2
C 1571 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 VERSION A 19-30 A B2
D 1501 DIODE RN739F T106 G2070626 1- B f2
D 1502 DIODE MA143-(TX) G2070536 1- B f2
D 1503 DIODE 1SS319 TE85R G2070080 1- B b2
D 1504 DIODE 1SS319 TE85R G2070080 1- B b2
FB1501 M.RFC FBA03VA450AB-00 L1190389 1- A B2
FB1502 M.RFC FBA03VA450AB-00 L1190389 1- A C2
J 1501 CONNECTOR TMP-J01X-V6 P1090210 1- A A2
JP1501 WIRE ASSY A1367+ T9206790 1- A B2
JP1502 WIRE ASSY A1368 T9206850 1­JP1502 WIRE ASSY A1368 T9206850A 9­JP1503 WIRE ASSY RED 230 FV2/(3) T9318118 1-18
JP1503 WIRE ASSY RED 230 FV2/(3) T9318118 19­JP1504 WIRE ASSY BLK 240 FV2/(3) T9318119 1-18
JP1504 WIRE ASSY BLK 240 FV2/(3) T9318119 19­L 1501 M.RFC 0.012uH HK2125 12NK-T L1690378 1- B f2
L 1502 M.RFC 0.01uH HK2125 10NK-T L1690377 1- B f1
L 1503 COIL A1 4.5T4.5D0.8UEW R L0021907A 1- A B1
L 1504 COIL A2 0.5T5.0D0.8TA L0022516 1- A C1
L 1505 COIL A1 5.5T4.0D0.6UEW R L0021826A 1- A C2
L 1506 COIL A1 1.5T6.0D1.2ACW R L0022116 1- A D1
L 1507 COIL A1 1.5T5.0D1.2UEW R L0022163 1- A D1
L 1508 COIL A1 1.5T5.0D1.2UEW R L0022163 1- A E2
L 1509 COIL A1 1.5T5.0D1.2UEW R L0022163 1- A E2
L 1510 COIL A1 1.5T5.0D1.2UEW R L0022163 1- A E2
L 1511 COIL A1 1.5T5.0D1.2UEW R L0022163 1- A F2
Q 1501 TRANSISTOR 2SC3357-T2 RF G3333577F 1- B f1
Q 1502 IC PF0341A G1092945 VERSION A 18- A A1
Q 1502 IC PF0342A G1092946 VERSION D 1- A A1
Q 1503 TRANSISTOR 2SB1122S-TD G3211228S 1- B f2

LAY ADR

36

PA Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS. LOT.REF. SIDE

Q 1504 TRANSISTOR 2SC4116GR TE85R G3341167G 1- B e2
Q 1505 TRANSISTOR 2SB1122S-TD G3211228S 1- B f2
Q 1506 TRANSISTOR UN5213-(TX) G3070192 1- B e2
Q 1507 TRANSISTOR 2SC3102 G3331020 1- A C1
Q 1508 IC NJM78L09UA TE2 G1091305 1- B e2
Q 1509 IC TA75S01F TE85R G1091593 1- B e2
R 1501 CHIP RES. 270 1/16W 5% RMC1/16 271JATP J24185271 1- B f2
R 1502 CHIP RES. 270 1/16W 5% RMC1/16 271JATP J24185271 1- B f2
R 1503 CHIP RES. 5.6k 1/16W 5% RMC1/16 562JATP J24185562 1- B f2
R 1504 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- B f2
R 1505 CHIP RES. 18 1/10W 5% RMC1/10T 180J J24205180 1- B f1
R 1506 CHIP RES. 1.5k 1/16W 5% RMC1/16 152JATP J24185152 1- B f2
R 1507 CHIP RES. 1.5k 1/16W 5% RMC1/16 152JATP J24185152 1- B f2
R 1508 CHIP RES. 8.2 1/10W 5% RMC1/10T 8R2J J24205829 1- A A1
R 1509 CHIP RES. 150 1/10W 5% RMC1/10T 151J J24205151 1- A A1
R 1510 CHIP RES. 8.2 1/10W 5% RMC1/10T 8R2J J24205829 1- A A1
R 1511 CHIP RES. 470 1/10W 5% RMC1/10T 471J J24205471 1- A A1
R 1512 CHIP RES. 820 1/10W 5% RMC1/10T 821J J24205821 1-18 A A1
R 1512 CHIP RES. 820 1/10W 5% RMC1/10T 821J J24205821 VERSION D 19- A A1
R 1512 CHIP RES. 820 1/10W 5% RMC1/10T 821J J24205821 VERSION A 19- A A1
R 1513 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- B f2
R 1514 CHIP RES. 22 1/16W 5% RMC1/16 220JATP J24185220 1- B e2
R 1515 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- B e2
R 1516 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- B e2
R 1517 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B e2
R 1520 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B e2
R 1521 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- B e2
R 1522 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B e2
R 1523 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B e2
R 1524 CHIP RES. 8.2k 1/10W 5% RMC1/10T 822J J24205822 1-17 B b2
R 1524 CHIP RES. 8.2k 1/10W 5% RMC1/10T 822J J24205822 VERSION D 19- B b2
R 1524 CHIP RES. 6.8k 1/10W 5% RMC1/10T 682J J24205682 VERSION A 18- B b2
R 1524 CHIP RES. 8.2k 1/10W 5% RMC1/10T 822J J24205822 VERSION D 18 B b2
R 1525 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 1-17 B b2
R 1525 CHIP RES. 18k 1/16W 5% RMC1/16 183JATP J24185183 VERSION A 31- B b2
R 1525 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 VERSION D 19- B b2
R 1525 CHIP RES. 18k 1/16W 5% RMC1/16 183JATP J24185183 VERSION A 18-30 B b2
R 1525 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 VERSION D 18 B b2
R 1526 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B e2
R 1527 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B e2
R 1528 CHIP RES. 8.2k 1/10W 5% RMC1/10T 822J J24205822 1-17 B b2
R 1528 CHIP RES. 8.2k 1/10W 5% RMC1/10T 822J J24205822 VERSION D 19- B b2
R 1528 CHIP RES. 6.8k 1/10W 5% RMC1/10T 682J J24205682 VERSION A 18- B b2
R 1528 CHIP RES. 8.2k 1/10W 5% RMC1/10T 822J J24205822 VERSION D 18 B b2
R 1529 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 1-17 B b2
R 1529 CHIP RES. 18k 1/16W 5% RMC1/16 183JATP J24185183 VERSION A 31- B b2
R 1529 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 VERSION D 19- B b2
R 1529 CHIP RES. 18k 1/16W 5% RMC1/16 183JATP J24185183 VERSION A 18-30 B b2
R 1529 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 VERSION D 18 B b2
R 1530 CHIP RES. 47k 1/10W 5% RMC1/10T 473J J24205473 1- B a2
R 1531 CHIP RES. 47k 1/10W 5% RMC1/10T 473J J24205473 1- B a2
R 1532 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B e2
TH1501 THERMISTOR NT732ATD2.0K K G9090079 1- A C2

SHIELD PLATE (PA) RA0073100 1-

NYLON CLAMP PLT-1M BK-1 S3000022 1-

GROUND PLATE RA0015200 1-

GAP PAD GP1-5.2-015025 S6000379 1-

LEAF SPRING R0140031 1-

LAY ADR

37

Note:

38

Circuit Diagram

TX Unit (Lot. 1~)

NOTE:
RESISTOR VALUES ARE IN Ω. 1/16W ;
CAPACITOR VALUES ARE IN µF. 50V ;
(T) CAPACITOR VALUES ARE TANTALUM ;
ELECTOROLYTIC CAPACITORS ARE IN µF. 16V ;
INDUCTOR VALUES ARE IN H ;
COIL VALUES ARE IN H ;
UNLESS OTHERWISE NOTED.

39

TX Unit (Lot. 18~)

Circuit Diagram

40

NOTE:
RESISTOR VALUES ARE IN Ω. 1/16W ;
CAPACITOR VALUES ARE IN µF. 50V ;
(T) CAPACITOR VALUES ARE TANTALUM ;
ELECTOROLYTIC CAPACITORS ARE IN µF. 16V ;
INDUCTOR VALUES ARE IN H ;
COIL VALUES ARE IN H ;
UNLESS OTHERWISE NOTED.

Parts Layout

TX Unit

BAC

1

2

1

2

ac

b

3

3

Side A Side B

MB15A02PFV
(Q2001)

2SA1586Y (SY)
(Q2003)

NJM78L05UA (8C)
(Q2012)

2SC3357 (RK)
(Q2010)

UN5215 (8E)
(Q2004)

RN739F (5F)
(D2009, 2010)

2SC4116GR (LG)
(Q2002, 2006, 2009)
2SC5226 (R22)
(Q2008)

NJM2904M
(Q2020)

2SA1179 (M6)
(Q2013, 2016)
2SA1586Y (SY)
(Q2007)

2SK508 (K52)
(Q2005)

2SD1664 (DA)
(Q2021, 2022)

XN1213 (9L)
(Q2011, 2019)

MA143 (MC)
(D2011, 2012)

UN5213 (8C)
(Q2014, 2015)

41

Note:

42

TX Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS. LOT.REF. SIDE

*** TX UNIT ***
PCB with Components CB0755001
Printed Circuit Board FR004000C 1-

C 2001 CHIP CAP. 0.033uF 16V B ECJ1VB1C333K K22129515 1- A B2
C 2001 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 22- A B2
C 2002 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B a2
C 2003 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1- A B2
C 2004 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1- A B2
C 2005 CHIP TA.CAP. 1.5uF 16V TESVA1C155M1-8R K78120020 1- B b1
C 2006 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1- A B2
C 2007 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B b1
C 2009 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- A B2
C 2010 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A B2
C 2011 CHIP CAP. 33pF 50V CH GRM39CH330J50PT K22174223 1- A B2
C 2012 CHIP CAP. 5pF 50V UJ GRM39UJ050C50PT K22174305 1- A B2
C 2013 CHIP TA.CAP. 0.1uF 35V TESVA1V104M1-8R K78160025 1- B b1
C 2015 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B b1
C 2016 CHIP CAP. 82pF 50V UJ GRM39UJ820J50PT K22174330 1- A C2
C 2017 CHIP CAP. 15pF 50V UJ GRM39UJ150J50PT K22174312 1- A C2
C 2018 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1- A B2
C 2019 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A C2
C 2020 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1-17 A A1
C 2020 CHIP CAP. 5pF 50V CH GRM39CH050C50PT K22174206 VERSION A 22- A A1
C 2020 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 VERSION D 18- A A1
C 2021 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- A B2
C 2022 CHIP CAP. 2pF 50V CK GRM39CK020C50PT K22174203 VERSION A 18-21 A A2
C 2023 CHIP CAP. 1uF 10V F GRM39F105Z10PT K22105001 1- B a1
C 2024 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B a2
C 2025 CHIP CAP. 10pF 50V CH GRM39CH100D50PT K22174211 1-17 A A1
C 2025 CHIP CAP. 8pF 50V CH GRM39CH080D50PT K22174209 VERSION A 18- A A1
C 2025 CHIP CAP. 15pF 50V CH GRM39CH150J50PT K22174215 VERSION A 22- A A1
C 2025 CHIP CAP. 10pF 50V CH GRM39CH100D50PT K22174211 VERSION D 18- A A1
C 2026 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- A C2
C 2027 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B a1
C 2028 CHIP CAP. 3pF 50V CJ GRM39CJ030C50PT K22174204 VERSION A 18-21 A A2
C 2029 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A B2
C 2030 CHIP CAP. 7pF 50V CH GRM39CH070D50PT K22174208 1-26 A B2
C 2030 CHIP CAP. 8pF 50V CH GRM39CH080D50PT K22174209 VERSION A 27- A B2
C 2030 CHIP CAP. 7pF 50V CH GRM39CH070D50PT K22174208 VERSION D 27- A B2
C 2031 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1- B a1
C 2032 CHIP CAP. 5pF 50V CH GRM39CH050C50PT K22174206 1-17 A B2
C 2032 CHIP CAP. 6pF 50V CH GRM39CH060D50PT K22174207 VERSION A 18- A B2
C 2032 CHIP CAP. 5pF 50V CH GRM39CH050C50PT K22174206 VERSION D 18- A B2
C 2033 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B a2
C 2034 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B a2
C 2035 CHIP CAP. 0.5pF 50V CK GRM39CK0R5C50PT K22174201 1-17 A B2
C 2035 CHIP CAP. 1pF 50V CK GRM39CK010C50PT K22174202 VERSION A 18- A B2
C 2035 CHIP CAP. 0.5pF 50V CK GRM39CK0R5C50PT K22174201 VERSION A 22- A B2
C 2035 CHIP CAP. 0.5pF 50V CK GRM39CK0R5C50PT K22174201 VERSION D 18- A B2
C 2036 CHIP CAP. 2pF 50V CK GRM39CK020C50PT K22174203 1- A B2
C 2037 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A B1
C 2038 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B a2
C 2039 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A B2
C 2040 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- A B2
C 2041 CHIP CAP. 470pF 50V CH GRM39CH471J50PT K22174249 1- A A2
C 2042 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A B2
C 2043 CHIP CAP. 5pF 50V CH GRM39CH050C50PT K22174206 1- A B2
C 2044 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 1- B b2
C 2045 CHIP CAP. 5pF 50V CH GRM39CH050C50PT K22174206 1- A B2
C 2046 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 1- B b2
C 2047 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B b2
C 2048 CHIP CAP. 6pF 50V CH GRM39CH060D50PT K22174207 1- A B2
C 2049 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B a1
C 2050 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- A B2
C 2051 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B a1
C 2052 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A B3
C 2053 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- A B3

LAY ADR

43

TX Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS. LOT.REF. SIDE

C 2054 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B a1
C 2055 CHIP CAP. 470pF 50V CH GRM39CH471J50PT K22174249 1- A A2
C 2056 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A A1
C 2057 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B a1
C 2057 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 4- B a1
C 2058 CHIP CAP. 470pF 50V CH GRM39CH471J50PT K22174249 1- B b2
C 2059 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1- A A1
C 2060 CHIP CAP. 470pF 50V CH GRM39CH471J50PT K22174249 1- A A3
C 2061 CHIP CAP. 470pF 50V CH GRM39CH471J50PT K22174249 1- B b3
C 2062 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B b1
C 2062 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 4- B b1
C 2063 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1- A A1
C 2064 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B b1
C 2064 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 4- B b1
C 2065 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 1- B b1
C 2066 CHIP CAP. 470pF 50V CH GRM39CH471J50PT K22174249 1- A A3
C 2067 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B b1
C 2067 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 4- B b1
C 2068 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B b1
C 2068 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 4- B b1
C 2069 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B b1
C 2069 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 4- B b1
C 2070 CHIP CAP. 470pF 50V CH GRM39CH471J50PT K22174249 1- A A2
C 2071 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A B3
C 2072 CHIP CAP. 1pF 50V CK GRM39CK010C50PT K22174202 1- A C2
C 2074 CHIP CAP. 0.0047uF 50V B GRM39B472M50PT K22174817 1- A B1
C 2075 CHIP CAP. 0.033uF 16V B ECJ1VB1C333K K22129515 1- A B1
C 2076 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- A B1
C 2080 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B a1
C 2081 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- A C1
C 2082 CHIP CAP. 4pF 50V CH GRM39CH040C50PT K22174205 1- A B3
D 2001 DIODE RD6.8UMB2-T1B G2070438 1- B a2
D 2002 DIODE HVU350TRF G2070380 1- A A1
D 2003 DIODE HVU350TRF G2070380 1- A A1
D 2004 DIODE HVU350TRF G2070380 1- A B2
D 2005 DIODE HVU350TRF G2070380 1- A A1
D 2006 DIODE HVU350TRF G2070380 1- A A1
D 2007 DIODE HVU350TRF G2070380 1- A C2
D 2008 DIODE HVU350TRF G2070380 1- A B1
D 2009 DIODE RN739F T106 G2070626 1- A A2
D 2010 DIODE RN739F T106 G2070626 1- A A2
D 2011 DIODE MA143-(TX) G2070536 1- B a2
D 2012 DIODE MA143-(TX) G2070536 1- B a2
J 2001 CONNECTOR TMP-J01X-A2 P1090255 1- A A2
JP2001 WIRE ASSY A1367+ T9206792 1- A B1
L 2001 M.RFC 0.082uH HK1608 82NJ-T L1690527 1-21 A A1
L 2001 M.RFC 0.12uH HK1608 R12J-T L1690937 VERSION A 22- A A1
L 2001 M.RFC 0.082uH HK1608 82NJ-T L1690527 VERSION D 22- A A1
L 2002 M.RFC 0.082uH HK1608 82NJ-T L1690527 1-21 A A2
L 2002 M.RFC 0.12uH HK1608 R12J-T L1690937 VERSION A 22- A A2
L 2002 M.RFC 0.082uH HK1608 82NJ-T L1690527 VERSION D 22- A A2
L 2003 COIL E2 0.5-2.0-5T-R L0022487 1-17 A A1
L 2003 COIL E2 0.5-2.0-6T-R L0022488 VERSION A 18- A A1
L 2003 COIL E2 0.5-2.0-5T-R L0022487 VERSION D 18- A A1
L 2004 M.RFC 0.082uH HK1608 82NJ-T L1690527 1-17 A B2
L 2004 M.RFC 0.12uH HK1608 R12J-T L1690937 VERSION A 18- A B2
L 2004 M.RFC 0.082uH HK1608 82NJ-T L1690527 VERSION D 18- A B2
L 2005 M.RFC 0.082uH HK1608 82NJ-T L1690527 1- A B2
L 2006 CHIP COIL 0.022uH C2520C-22NK L1690536 1- A B2
L 2007 M.RFC 0.022uH HK1608 22NJ-T L1690520 1- A B3
Q 2001 IC MB15A02PFV1-G-BND-EF G1092541 1- A B2
Q 2002 TRANSISTOR 2SC4116GR TE85R G3341167G 1- A B2
Q 2003 TRANSISTOR 2SA1586Y TE85R G3115867Y 1- A B2
Q 2004 TRANSISTOR UN5215-(TX) G3070193 1- A C2
Q 2005 FET 2SK508-T2B K52 G3805087B 1- A A2
Q 2006 TRANSISTOR 2SC4116GR TE85R G3341167G 1- B a2
Q 2007 TRANSISTOR 2SA1586Y TE85R G3115867Y 1- B a2

LAY ADR

44

TX Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS. LOT.REF. SIDE

Q 2008 TRANSISTOR 2SC5226-4/5-TL G3352268Z 1- A B2
Q 2009 TRANSISTOR 2SC4116GR TE85R G3341167G 1- B b2
Q 2010 TRANSISTOR 2SC3357-T2 RF G3333577F 1- A B3
Q 2011 TRANSISTOR XN1213-(TX) G3070194 1- B b2
Q 2012 IC NJM78L05UA TE1 G1091325 1- A A1
Q 2013 TRANSISTOR 2SA1179M6-TA G3111797F 1- B c1
Q 2014 TRANSISTOR UN5213-(TX) G3070192 1- B b1
Q 2015 TRANSISTOR UN5213-(TX) G3070192 1- B c1
Q 2016 TRANSISTOR 2SA1179M6-TA G3111797F 1- B c1
Q 2019 TRANSISTOR XN1213-(TX) G3070194 1- B b2
Q 2020 IC NJM2904M(TE2) G1093091 1- B a1
Q 2021 TRANSISTOR 2SD1664 T100 Q G3416647Q 1- B a1
Q 2022 TRANSISTOR 2SD1664 T100 Q G3416647Q 1- B a1
R 2002 CHIP RES. 560 1/16W 5% RMC1/16 561JATP J24185561 1- B a2
R 2003 CHIP RES. 560 1/16W 5% RMC1/16 561JATP J24185561 1- B a2
R 2004 CHIP RES. 5.6k 1/16W 5% RMC1/16 562JATP J24185562 1-21 B b1
R 2004 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 VERSION A 22- B b1
R 2004 CHIP RES. 5.6k 1/16W 5% RMC1/16 562JATP J24185562 VERSION D 22- B b1
R 2005 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A C2
R 2006 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- B b1
R 2007 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A B2
R 2008 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A B2
R 2009 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A C2
R 2010 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C2
R 2011 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A C2
R 2012 CHIP RES. 33 1/16W 5% RMC1/16 330JATP J24185330 1- A B1
R 2014 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A B2
R 2015 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A B2
R 2016 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C2
R 2017 CHIP RES. 220k 1/16W 1% RMC1/16 224FTP J24183224 1- A B1
R 2018 CHIP RES. 220k 1/16W 1% RMC1/16 224FTP J24183224 1- A B2
R 2019 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C2
R 2020 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B a1
R 2021 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A C2
R 2022 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A B2
R 2023 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B a2
R 2024 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B a2
R 2025 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A A2
R 2026 CHIP RES. 100k 1/16W 1% RMC1/16 104FTP J24183104 1- B a3
R 2027 CHIP RES. 12k 1/16W 1% RMC1/16 123FTP J24183123 1- B a2
R 2028 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1-26 A B2
R 2028 CHIP RES. 56k 1/16W 5% RMC1/16 563JATP J24185563 VERSION A 27- A B2
R 2028 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 VERSION D 27- A B2
R 2029 CHIP RES. 39k 1/16W 5% RMC1/16 393JATP J24185393 1-26 A B2
R 2029 CHIP RES. 27k 1/16W 5% RMC1/16 273JATP J24185273 VERSION A 27- A B2
R 2029 CHIP RES. 39k 1/16W 5% RMC1/16 393JATP J24185393 VERSION D 27- A B2
R 2030 CHIP RES. 39k 1/16W 5% RMC1/16 393JATP J24185393 1- A B1
R 2031 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A B2
R 2032 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A B2
R 2033 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A B2
R 2034 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- A A2
R 2035 CHIP RES. 18 1/16W 5% RMC1/16 180JATP J24185180 1- A B2
R 2036 CHIP RES. 18 1/16W 5% RMC1/16 180JATP J24185180 1- B a2
R 2037 CHIP RES. 18 1/16W 5% RMC1/16 180JATP J24185180 1- B b2
R 2038 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- B b2
R 2039 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B3
R 2040 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A B2
R 2041 CHIP RES. 47 1/10W 5% RMC1/10T 470J J24205470 1- A B3
R 2043 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A B2
R 2044 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B b1
R 2046 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B b1
R 2047 CHIP RES. 820 1/16W 5% RMC1/16 821JATP J24185821 1-21 A B1
R 2047 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 VERSION A 22- A B1
R 2047 CHIP RES. 820 1/16W 5% RMC1/16 821JATP J24185821 VERSION D 22- A B1
R 2048 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- A B2
R 2050 CHIP RES. 18 1/16W 5% RMC1/16 180JATP J24185180 1- A B2
R 2051 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B b1

LAY ADR

45

TX Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS. LOT.REF. SIDE

R 2052 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B1
R 2053 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- A B2
R 2054 CHIP RES. 820 1/16W 5% RMC1/16 821JATP J24185821 1- A A2
R 2055 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B3
R 2056 CHIP RES. 820 1/16W 5% RMC1/16 821JATP J24185821 1- A A3
R 2057 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B c1
R 2058 CHIP RES. 820 1/16W 5% RMC1/16 821JATP J24185821 1- A A3
R 2059 CHIP RES. 680 1/16W 1% RMC1/16 681FTP J24183681 1- A C2
R 2060 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B a2
R 2061 CHIP RES. 6.8k 1/16W 1% RMC1/16 682FTP J24183682 1- A C2
R 2062 CHIP RES. 8.2k 1/16W 1% RMC1/16 822FTP J24183822 1- B a3
R 2063 CHIP RES. 15k 1/16W 1% RMC1/16 153FTP J24183153 1- B a3
R 2064 CHIP RES. 10k 1/16W 1% RMC1/16 103FTP J24183103 1- B a3
R 2065 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B a3
R 2067 CHIP RES. 4.7k 1/16W 1% RMC1/16 472FTP J24183472 1- B a3
R 2068 CHIP RES. 2.2k 1/16W 1% RMC1/16 222FTP J24183222 1- B a3
R 2069 CHIP RES. 4.7k 1/16W 1% RMC1/16 472FTP J24183472 1- B a3
R 2070 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B c1
R 2071 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B b1
R 2078 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B b2
R 2079 CHIP RES. 18 1/16W 5% RMC1/16 180JATP J24185180 1- B c2
R 2080 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- B b2
R 2081 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- B c2
R 2082 CHIP RES. 1.5k 1/16W 5% RMC1/16 152JATP J24185152 1- A C1
R 2083 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A C1
R 2084 CHIP RES. 2.7k 1/16W 5% RMC1/16 272JATP J24185272 1- A C1
R 2085 CHIP RES. 1M 1/16W 5% RMC1/16 105JATP J24185105 1- A C1
R 2086 CHIP RES. 470k 1/16W 5% RMC1/16 474JATP J24185474 1- A C1
R 2087 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C1
R 2088 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C1
R 2089 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- B a1
R 2090 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- B a1
R 2093 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A C1
R 2094 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C1
R 2095 CHIP RES. 220 1W 5% RMC1 221JTE J24305221 1- B a2
R 2096 CHIP RES. 220 1W 5% RMC1 221JTE J24305221 1- B a2
R 2097 CHIP RES. 82 1W 5% RMC1 820JTE J24305820 1- B a2
R 2099 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A C1
R 2100 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A C1
R 2101 CHIP RES. 12k 1/16W 1% RMC1/16 123FTP J24183123 1- B a2
R 2102 CHIP RES. 1.5k 1/16W 1% RMC1/16 152FTP J24183152 1- B a2
R 2103 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B1
TC2001 TRIMMER CAP. 10pF ECR-JA010A11X K91000227 1- A B2
TH2001 THERMISTOR NTCCM20123SH223JCT G9090106 1- B a3
TH2002 THERMISTOR NTCCM20123NH153JCT G9090105 1- B a2
TH2003 THERMISTOR NT732ATD2.0K K G9090079 1- B c3
X 2001 XTAL TOP-B 14.4MHz 14.4MHZ H0103221 1- A C2

SHIELD CASE RA0014300 1­SHIELD CASE VCO R0151950 1­LEAF SPRING R0140031 4-

LAY ADR

46

Circuit Diagram

RX Unit (Lot. 1~)

NOTE:
RESISTOR VALUES ARE IN Ω. 1/16W ;
CAPACITOR VALUES ARE IN µF. 50V ;
(T) CAPACITOR VALUES ARE TANTALUM ;
ELECTOROLYTIC CAPACITORS ARE IN µF. 16V ;
INDUCTOR VALUES ARE IN H ;
COIL VALUES ARE IN H ;
UNLESS OTHERWISE NOTED.

47

RX Unit (Lot. 18~)

Circuit Diagram

48

NOTE:
RESISTOR VALUES ARE IN Ω. 1/16W ;
CAPACITOR VALUES ARE IN µF. 50V ;
(T) CAPACITOR VALUES ARE TANTALUM ;
ELECTOROLYTIC CAPACITORS ARE IN µF. 16V ;
INDUCTOR VALUES ARE IN H ;
COIL VALUES ARE IN H ;
UNLESS OTHERWISE NOTED.

Parts Layout

RX Unit

A B C D

1

MB15A02PFV
(Q3001)

UN5215 (8E)
(Q3004)

2

TA31136FN
(Q3012)

2SA1586Y (SY)
(Q3003)

TA78L05UA (8C)
(Q3021)

2SC4116GR (LG)
(Q3002, 3015)
2SC5226 (R22)
(Q3009, 3014)

2SK508 (K52)
(Q3008)

2SC3357 (RK)
(Q3005, 3011)

Side A

a b c d

MA143 (MC)
(D3015, 3016)
RN739F (5F)
(D3003)

GN2011-Q (4W)
(D3011)

1

XN1213 (9L)
(Q3016, 3020, 3022)

HZM5.6NB2 (562)
(D3014)

2SA1586Y (SY)
(Q3007)

MA142WK (MU)
(D3012, 3013)

2SC2812 (L6)
(Q3013)
2SC4116GR (LG)
(Q3006, 3010)

MA143 (MC)
(D3017, 3018)

2SB1122S (BE)
(Q3018)

1SS302 (C3)
(D3001)

2

Side B

49

Note:

50

RX Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS. LOT.REF. SIDE

*** RX UNIT ***
PCB with Components (w/o JP3002
Printed Circuit Board FR004010C 1-

C 3001 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- A D1
C 3002 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B d1
C 3003 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1 A A1
C 3003 CHIP CAP. 0.033uF 16V B ECJ1VB1C333K K22129515 2- A A1
C 3003 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 22- A A1
C 3004 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1- A A1
C 3005 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1- A A1
C 3006 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A D1
C 3007 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- A D1
C 3008 CHIP TA.CAP. 1.5uF 16V TESVA1C155M1-8R K78120020 1- B d2
C 3009 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1- A A1
C 3010 CHIP CAP. 8pF 50V CH GRM39CH080D50PT K22174209 1- A D1
C 3011 CHIP CAP. 4pF 50V CH GRM39CH040C50PT K22174205 1- A D1
C 3012 CHIP CAP. 0.033uF 16V R GRM39R333K16PT K22124801 1- B c2
C 3014 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- A A1
C 3015 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A A1
C 3016 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B a1
C 3017 CHIP CAP. 56pF 50V CH GRM39CH560J50PT K22174229 1- A A2
C 3018 CHIP CAP. 4pF 50V RH GRM39RH040C50PT K22174506 1- A A2
C 3019 CHIP TA.CAP. 0.1uF 35V TESVA1V104M1-8R K78160025 1- B c2
C 3020 CHIP CAP. 10pF 50V CH GRM39CH100D50PT K22174211 1-17 A D1
C 3020 CHIP CAP. 6pF 50V CH GRM39CH060D50PT K22174207 VERSION A 18- A D1
C 3020 CHIP CAP. 10pF 50V CH GRM39CH100D50PT K22174211 VERSION D 18- A D1
C 3021 CHIP CAP. 4pF 50V CH GRM39CH040C50PT K22174205 1- A D1
C 3022 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B c2
C 3023 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A D1
C 3024 CHIP CAP. 15pF 50V CH GRM39CH150J50PT K22174215 1-17 A D1
C 3024 CHIP CAP. 18pF 50V CH GRM39CH180J50PT K22174217 VERSION A 18- A D1
C 3024 CHIP CAP. 15pF 50V CH GRM39CH150J50PT K22174215 VERSION D 18- A D1
C 3025 CHIP CAP. 4pF 50V CH GRM39CH040C50PT K22174205 1- A D1
C 3027 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1- A A1
C 3028 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A A1
C 3029 CHIP CAP. 10pF 50V CH GRM39CH100D50PT K22174211 1-17 A C1
C 3029 CHIP CAP. 6pF 50V CH GRM39CH060D50PT K22174207 VERSION A 18- A C1
C 3029 CHIP CAP. 10pF 50V CH GRM39CH100D50PT K22174211 VERSION D 18- A C1
C 3030 CHIP CAP. 4pF 50V CH GRM39CH040C50PT K22174205 1- A C1
C 3031 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- A A1
C 3032 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B a1
C 3033 CHIP CAP. 10pF 50V CH GRM39CH100D50PT K22174211 1-17 A C1
C 3033 CHIP CAP. 15pF 50V CH GRM39CH150J50PT K22174215 VERSION A 18- A C1
C 3033 CHIP CAP. 10pF 50V CH GRM39CH100D50PT K22174211 VERSION D 18- A C1
C 3034 CHIP CAP. 5pF 50V CH GRM39CH050C50PT K22174206 1- A B2
C 3035 CHIP CAP. 8pF 50V CH GRM39CH080D50PT K22174209 1-17 A B2
C 3035 CHIP CAP. 12pF 50V CH GRM39CH120J50PT K22174213 VERSION A 18- A B2
C 3035 CHIP CAP. 8pF 50V CH GRM39CH080D50PT K22174209 VERSION D 18- A B2
C 3036 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- A A1
C 3037 CHIP CAP. 5pF 50V CH GRM39CH050C50PT K22174206 1-28 A B2
C 3037 CHIP CAP. 6pF 50V CH GRM39CH060D50PT K22174207 VERSION A 29 A B2
C 3037 CHIP CAP. 6pF 50V CH GRM39CH060D50PT K22174207 VERSION A 30- A B2
C 3037 CHIP CAP. 5pF 50V CH GRM39CH050C50PT K22174206 VERSION D 29- A B2
C 3038 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B d1
C 3039 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A C1
C 3040 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A B2
C 3041 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A C1
C 3042 CHIP CAP. 7pF 50V CH GRM39CH070D50PT K22174208 1- A B2
C 3043 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B d1
C 3044 CHIP CAP. 10pF 50V CH GRM39CH100D50PT K22174211 1-17 A C1
C 3044 CHIP CAP. 12pF 50V CH GRM39CH120J50PT K22174213 VERSION A 18- A C1
C 3044 CHIP CAP. 10pF 50V CH GRM39CH100D50PT K22174211 VERSION D 18- A C1
C 3045 CHIP CAP. 4pF 50V CH GRM39CH040C50PT K22174205 1- A C1
C 3046 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B d1
C 3047 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B d1
C 3048 CHIP CAP. 4pF 50V CH GRM39CH040C50PT K22174205 1- A C1
C 3049 CHIP CAP. 7pF 50V CH GRM39CH070D50PT K22174208 1- A B2

)

CS1684001

LAY ADR

51

RX Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS. LOT.REF. SIDE

C 3052 CHIP CAP. 4pF 50V CH GRM39CH040C50PT K22174205 1- A C1
C 3053 CHIP CAP. 15pF 50V CH GRM39CH150J50PT K22174215 1-17 A C1
C 3053 CHIP CAP. 18pF 50V CH GRM39CH180J50PT K22174217 VERSION A 18- A C1
C 3053 CHIP CAP. 15pF 50V CH GRM39CH150J50PT K22174215 VERSION D 18- A C1
C 3054 CHIP CAP. 2pF 50V CK GRM39CK020C50PT K22174203 1- A B2
C 3056 CHIP CAP. 4pF 50V CH GRM39CH040C50PT K22174205 1- A C1
C 3057 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A A2
C 3058 CHIP CAP. 10pF 50V CH GRM39CH100D50PT K22174211 1- A C1
C 3060 CHIP CAP. 4pF 50V CH GRM39CH040C50PT K22174205 1-17 A C1
C 3060 CHIP CAP. 3pF 50V CJ GRM39CJ030C50PT K22174204 VERSION A 18- A C1
C 3060 CHIP CAP. 4pF 50V CH GRM39CH040C50PT K22174205 VERSION D 18- A C1
C 3061 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A B2
C 3062 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A B1
C 3063 CHIP CAP. 220pF 50V CH GRM39CH221J50PT K22174243 1- A B2
C 3064 CHIP CAP. 0.5pF 50V CK GRM39CK0R5C50PT K22174201 VERSION A 18- A C1
C 3065 CHIP CAP. 3pF 50V CJ GRM39CJ030C50PT K22174204 1-17 A C1
C 3065 CHIP CAP. 2pF 50V CK GRM39CK020C50PT K22174203 VERSION A 18- A C1
C 3065 CHIP CAP. 3pF 50V CJ GRM39CJ030C50PT K22174204 VERSION D 18- A C1
C 3066 CHIP CAP. 5pF 50V CH GRM39CH050C50PT K22174206 1- A B1
C 3067 CHIP CAP. 3pF 50V CJ GRM39CJ030C50PT K22174204 1-17 A C1
C 3067 CHIP CAP. 5pF 50V CH GRM39CH050C50PT K22174206 VERSION A 18- A C1
C 3067 CHIP CAP. 7pF 50V CH GRM39CH070D50PT K22174208 VERSION A 24- A C1
C 3067 CHIP CAP. 3pF 50V CJ GRM39CJ030C50PT K22174204 VERSION D 18- A C1
C 3068 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 1- B c2
C 3069 CHIP CAP. 3pF 50V CJ GRM39CJ030C50PT K22174204 1-17 A C1
C 3069 CHIP CAP. 2pF 50V CK GRM39CK020C50PT K22174203 VERSION A 18- A C1
C 3069 CHIP CAP. 3pF 50V CJ GRM39CJ030C50PT K22174204 VERSION A 24- A C1
C 3069 CHIP CAP. 3pF 50V CJ GRM39CJ030C50PT K22174204 VERSION D 18- A C1
C 3071 CHIP CAP. 5pF 50V CH GRM39CH050C50PT K22174206 1- A B1
C 3072 CHIP CAP. 4pF 50V CH GRM39CH040C50PT K22174205 1-17 A C1
C 3072 CHIP CAP. 3pF 50V CJ GRM39CJ030C50PT K22174204 VERSION A 18- A C1
C 3072 CHIP CAP. 4pF 50V CH GRM39CH040C50PT K22174205 VERSION D 18- A C1
C 3073 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 1- B c1
C 3074 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B d2
C 3075 CHIP CAP. 10pF 50V CH GRM39CH100D50PT K22174211 1- A C1
C 3077 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- A B1
C 3078 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B d2
C 3079 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- A B1
C 3080 CHIP CAP. 10pF 50V CH GRM39CH100D50PT K22174211 1- A B1
C 3081 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A A1
C 3082 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B d2
C 3083 CHIP CAP. 6pF 50V CH GRM39CH060D50PT K22174207 1- A A1
C 3084 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A B1
C 3085 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B d2
C 3086 CHIP CAP. 15pF 50V CH GRM39CH150J50PT K22174215 1-17 A B1
C 3086 CHIP CAP. 18pF 50V CH GRM39CH180J50PT K22174217 VERSION A 18- A B1
C 3086 CHIP CAP. 15pF 50V CH GRM39CH150J50PT K22174215 VERSION D 18- A B1
C 3087 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B d2
C 3088 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- A B1
C 3089 CHIP CAP. 10pF 50V CH GRM39CH100D50PT K22174211 1-17 A B1
C 3089 CHIP CAP. 12pF 50V CH GRM39CH120J50PT K22174213 VERSION A 18- A B1
C 3089 CHIP CAP. 10pF 50V CH GRM39CH100D50PT K22174211 VERSION D 18- A B1
C 3090 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- A B1
C 3092 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B b2
C 3093 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B b2
C 3094 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1- A C2
C 3096 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B a2
C 3097 CHIP CAP. 33pF 50V CH GRM39CH330J50PT K22174223 1- A C2
C 3099 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A C2
C 3100 CHIP CAP. 39pF 50V CH GRM39CH390J50PT K22174225 1- A C2
C 3102 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B a2
C 3103 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B a2
C 3104 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1- B c2
C 3105 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B b2
C 3106 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- A C2
C 3107 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B c2
C 3108 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1- B c2

LAY ADR

52

RX Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS. LOT.REF. SIDE

C 3109 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1- A B2
C 3110 CHIP CAP. 82pF 50V CH GRM39CH820J50PT K22174233 1- A C2
C 3111 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- A C2
C 3112 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B b2
C 3114 CHIP CAP. 180pF 50V CH GRM39CH181J50PT K22174241 1- B a2
C 3115 CHIP CAP. 180pF 50V CH GRM39CH181J50PT K22174241 1- B b2
C 3116 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B a2
C 3117 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B a2
C 3118 CHIP CAP. 8pF 50V CH GRM39CH080D50PT K22174209 1- A B2
C 3118 CHIP CAP. 10pF 50V CH GRM39CH100D50PT K22174211 26- A B2
C 3119 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1- B b2
C 3120 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B c2
C 3121 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- A C2
C 3122 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B b2
C 3123 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B b2
C 3124 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B a2
C 3125 CHIP CAP. 10pF 50V CH GRM39CH100D50PT K22174211 1- A C2
C 3126 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B c2
C 3127 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B b2
C 3128 CHIP CAP. 0.0047uF 50V B GRM39B472M50PT K22174817 1- B b2
C 3129 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B c2
C 3130 CHIP CAP. 4pF 50V CH GRM39CH040C50PT K22174205 1- A C2
C 3132 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B c2
C 3133 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A C2
C 3134 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1- A C2
C 3135 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- A C2
C 3136 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B d2
C 3137 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B c2
C 3138 CHIP CAP. 0.5pF 50V CK GRM39CK0R5C50PT K22174201 1- A C2
C 3140 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A B2
C 3141 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- A D2
C 3142 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- A D2
C 3143 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A B2
C 3144 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A D2
C 3145 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A B2
C 3146 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 1- B c2
C 3147 CHIP CAP. 18pF 50V UJ GRM39UJ180J50PT K22174314 1- A A2
C 3149 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B b2
C 3154 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- A C1
C 3155 CHIP CAP. 0.5pF 50V CK GRM39CK0R5C50PT K22174201 VERSION A 18-23 A C1
C 3157 CHIP CAP. 10pF 50V CH GRM39CH100D50PT K22174211 1-17 A C1
C 3157 CHIP CAP. 6pF 50V CH GRM39CH060D50PT K22174207 VERSION A 18- A C1
C 3157 CHIP CAP. 10pF 50V CH GRM39CH100D50PT K22174211 VERSION D 18- A C1
C 3158 CHIP CAP. 10pF 50V CH GRM39CH100D50PT K22174211 1-17 A C1
C 3158 CHIP CAP. 6pF 50V CH GRM39CH060D50PT K22174207 VERSION A 18- A C1
C 3158 CHIP CAP. 10pF 50V CH GRM39CH100D50PT K22174211 VERSION D 18- A C1
C 3159 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A C1
C 3164 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B b1
C 3165 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B b1
C 3168 CHIP CAP. 220pF 50V CH GRM39CH221J50PT K22174243 1- A C1
C 3172 CHIP CAP. 220pF 50V CH GRM39CH221J50PT K22174243 1- A C1
C 3174 CHIP CAP. 18pF 50V RH GRM39RH180J50PT K22174515 1- A A2
CD3001 CERAMIC DISC CDB455C7 H7900180 1- A C2
CF3001 CERAMIC FILTER CFWM455G H3900399 1- A D2
CF3002 CERAMIC FILTER CFWM455F H3900395 1- A D2
D 3001 DIODE 1SS302 TE85R G2070088 1- B a1
D 3002 DIODE RD6.8UMB2-T1B G2070438 1- B d1
D 3003 DIODE RN739F T106 G2070626 1- A D1
D 3004 DIODE HVU350TRF G2070380 1- A D1
D 3005 DIODE HVU350TRF G2070380 1- A B2
D 3006 DIODE HVU350TRF G2070380 1- A B2
D 3007 DIODE HVU350TRF G2070380 1- A C1
D 3008 DIODE HVU350TRF G2070380 1- A B2
D 3009 DIODE HVU350TRF G2070380 1- A B2
D 3010 DIODE HVU350TRF G2070380 1- A A1
D 3011 IC GN2011-Q(TX) G1092183 1- A B2
D 3012 DIODE MA142WK-(TX) G2070534 1- B a2

LAY ADR

53

RX Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS. LOT.REF. SIDE

D 3013 DIODE MA142WK-(TX) G2070534 1- B a2
D 3014 DIODE HZM5.6NB2 TR G2070722 1- B b2
D 3015 DIODE MA143-(TX) G2070536 1- A D2
D 3016 DIODE MA143-(TX) G2070536 1- A D2
D 3017 DIODE MA143-(TX) G2070536 1- B d1
D 3018 DIODE MA143-(TX) G2070536 1- B d1
D 3019 DIODE HVU350TRF G2070380 1- A C1
D 3020 DIODE HVU350TRF G2070380 1- A C1
J 3001 CONNECTOR TMP-J01X-V6 P1090210 1- A B1
JP3001 WIRE ASSY A1367+ T9206791 1- A A2
JP3002 WIRE ASSY A1367+ T9206788 1­JP3003 WIRE ASSY GRN 35 2/2 T50503500 10- A A2
L 3001 M.RFC 3.3uH LK1608 3R3K-T L1690686 1- A D1
L 3002 COIL E2 0.35-1.6-4T-L L0022456 1-17 A D1
L 3002 COIL E2 0.35-1.6-5.5T-L L0022616 VERSION A 18 A D1
L 3002 COIL E2 0.35-1.6-4.5T-L L0022577 VERSION A 19- A D1
L 3002 COIL E2 0.35-1.6-4T-L L0022456 VERSION D 18- A D1
L 3003 CHIP COIL 0.082uH C2520C-82NK L1690543 1- A B2
L 3004 COIL E2 0.35-1.6-4T-L L0022456 1-17 A D1
L 3004 COIL E2 0.35-1.6-5.5T-L L0022616 VERSION A 18 A D1
L 3004 COIL E2 0.35-1.6-4.5T-L L0022577 VERSION A 19- A D1
L 3004 COIL E2 0.35-1.6-4T-L L0022456 VERSION D 18- A D1
L 3005 CHIP COIL 0.082uH C2520C-82NK L1690543 1- A B2
L 3006 M.RFC 0.015uH LL1608-F15NK L1690361 1- A C1
L 3007 COIL E2 0.5-2.0-6T-R L0022488 1-17 A B2
L 3007 COIL E2 0.5-2.0-7T-R L0022489 VERSION A 18- A B2
L 3007 COIL E2 0.5-2.0-6T-R L0022488 VERSION D 18- A B2
L 3008 CHIP COIL 0.017uH LQN1A17NJ04 L1690249 1- A C1
L 3009 CHIP COIL 0.082uH C2520C-82NK L1690543 1- A B2
L 3010 COIL E2 0.35-1.6-4T-L L0022456 1-17 A C1
L 3010 COIL E2 0.35-1.6-5.5T-L L0022616 VERSION A 18 A C1
L 3010 COIL E2 0.35-1.6-4.5T-L L0022577 VERSION A 19- A C1
L 3010 COIL E2 0.35-1.6-4T-L L0022456 VERSION D 18- A C1
L 3011 CHIP COIL 0.082uH C2520C-82NK L1690543 1- A B2
L 3012 COIL E2 0.35-1.6-4T-L L0022456 1-17 A C1
L 3012 COIL E2 0.35-1.6-5.5T-L L0022616 VERSION A 18 A C1
L 3012 COIL E2 0.35-1.6-4.5T-L L0022577 VERSION A 19- A C1
L 3012 COIL E2 0.35-1.6-4T-L L0022456 VERSION D 18- A C1
L 3013 CHIP COIL 0.082uH C2520C-82NK L1690543 1- A B2
L 3014 COIL E2 0.35-1.6-4T-L L0022456 1-17 A C1
L 3014 COIL E2 0.35-1.6-5.5T-L L0022616 VERSION A 18 A C1
L 3014 COIL E2 0.35-1.6-4.5T-L L0022577 VERSION A 19- A C1
L 3014 COIL E2 0.35-1.6-4T-L L0022456 VERSION D 18- A C1
L 3015 CHIP COIL 0.022uH C2520C-22NK L1690536 1- A B1
L 3016 COIL E2 0.35-1.6-4T-L L0022456 1-17 A C1
L 3016 COIL E2 0.35-1.6-5.5T-L L0022616 VERSION A 18 A C1
L 3016 COIL E2 0.35-1.6-4.5T-L L0022577 VERSION A 19- A C1
L 3016 COIL E2 0.35-1.6-4T-L L0022456 VERSION D 18- A C1
L 3018 M.RFC 0.022uH HK2125 22NK-T L1690381 1- A B1
L 3019 M.RFC 0.022uH HK2125 22NK-T L1690381 1- A B1
L 3021 M.RFC 0.33uH LK2125 R33K-T L1690313 1- A C2
L 3022 M.RFC 10uH LK2125 100K-T L1690331 1- B c2
L 3023 CHIP COIL 0.68uH C2520C-R68J L1690554 1- A B2
L 3024 M.RFC 0.1uH LK2125 R10K-T L1690307 1- A C2
L 3025 CHIP COIL 1uH C2520F-1R0K L1690584 1- A C2
L 3026 CHIP COIL 0.68uH C2520C-R68J L1690554 1- A C2
Q 3001 IC MB15A02PFV1-G-BND-EF G1092541 1- A A1
Q 3002 TRANSISTOR 2SC4116GR TE85R G3341167G 1- A A1
Q 3003 TRANSISTOR 2SA1586Y TE85R G3115867Y 1- A A1
Q 3004 TRANSISTOR UN5215-(TX) G3070193 1- A A1
Q 3005 TRANSISTOR 2SC3357-T2 RF G3333577F 1- A C1
Q 3006 TRANSISTOR 2SC4116GR TE85R G3341167G 1- B d1
Q 3007 TRANSISTOR 2SA1586Y TE85R G3115867Y 1- B d1
Q 3008 FET 2SK508-T2B K52 G3805087B 1- A B2
Q 3009 TRANSISTOR 2SC5226-4/5-TL G3352268Z 1- A B2
Q 3010 TRANSISTOR 2SC4116GR TE85R G3341167G 1- B c2
Q 3011 TRANSISTOR 2SC3357-T2 RF G3333577F 1- A B1

LAY ADR

54

RX Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS. LOT.REF. SIDE

Q 3012 IC TA31136FN(EL) G1091605 1- A C2
Q 3013 TRANSISTOR 2SC2812L6-TA G3328127F 1- B b2
Q 3013 TRANSISTOR 2SC2812NL6-TB G3328128F 7- B b2
Q 3014 TRANSISTOR 2SC5226-4/5-TL G3352268Z 1- A C2
Q 3015 TRANSISTOR 2SC4116GR TE85R G3341167G 1- A C2
Q 3016 TRANSISTOR XN1213-(TX) G3070194 1- B a2
Q 3018 TRANSISTOR 2SB1122S-TD G3211228S 1- B b2
Q 3020 TRANSISTOR XN1213-(TX) G3070194 1- B b2
Q 3021 IC NJM78L05UA TE1 G1091325 1- A B2
Q 3022 TRANSISTOR XN1213-(TX) G3070194 1- B b2
R 3001 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B a1
R 3003 CHIP RES. 560 1/16W 5% RMC1/16 561JATP J24185561 1- B d1
R 3004 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- B a1
R 3005 CHIP RES. 560 1/16W 5% RMC1/16 561JATP J24185561 1- B d1
R 3006 CHIP RES. 1.8k 1/16W 5% RMC1/16 182JATP J24185182 1- B c2
R 3007 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A A2
R 3008 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 1- B c2
R 3009 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A D1
R 3010 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A A1
R 3011 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A A1
R 3012 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A A1
R 3013 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A A1
R 3014 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A A1
R 3015 CHIP RES. 33 1/16W 5% RMC1/16 330JATP J24185330 1- A A2
R 3016 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A A1
R 3017 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A D1
R 3018 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A A1
R 3019 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A A1
R 3020 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A A1
R 3022 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B d1
R 3023 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C1
R 3024 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A C1
R 3025 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C1
R 3026 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A B2
R 3027 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C1
R 3028 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A C1
R 3029 CHIP RES. 120k 1/16W 1% RMC1/16 124FTP J24183124 1- B d1
R 3030 CHIP RES. 12k 1/16W 1% RMC1/16 123FTP J24183123 1- B d1
R 3031 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A B1
R 3033 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A B2
R 3034 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A B2
R 3035 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- A B2
R 3036 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A B2
R 3037 CHIP RES. 18 1/16W 5% RMC1/16 180JATP J24185180 1- A B1
R 3038 CHIP RES. 18 1/16W 5% RMC1/16 180JATP J24185180 1- B c1
R 3039 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- B c1
R 3041 CHIP RES. 18 1/16W 5% RMC1/16 180JATP J24185180 1- B c1
R 3042 CHIP RES. 56 1/16W 5% RMC1/16 560JATP J24185560 1- B c1
R 3043 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A A1
R 3044 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A A1
R 3045 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 1- A B1
R 3047 CHIP RES. 100 1/10W 5% RMC1/10T 101J J24205101 1- A B1
R 3048 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1 B b2
R 3048 CHIP RES. 100 1/16W 1% RMC1/16 101FTP J24183101 2- B b2
R 3049 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1 B b2
R 3049 CHIP RES. 100 1/16W 1% RMC1/16 101FTP J24183101 2- B b2
R 3050 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- B a2
R 3051 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 1- A C2
R 3053 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- B a2
R 3054 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- B a2
R 3056 CHIP RES. 1.2k 1/16W 5% RMC1/16 122JATP J24185122 1- A C2
R 3057 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- B a2
R 3058 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- B a2
R 3059 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B2
R 3061 CHIP RES. 150k 1/16W 5% RMC1/16 154JATP J24185154 1- B b2
R 3062 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B a2
R 3063 CHIP RES. 1.8k 1/16W 5% RMC1/16 182JATP J24185182 1- B b2

LAY ADR

55

RX Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS. LOT.REF. SIDE

R 3064 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- B a2
R 3065 CHIP RES. 330 1/10W 5% RMC1/10T 331J J24205331 1- B b2
R 3066 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 1- B b2
R 3067 CHIP RES. 1.8k 1/16W 5% RMC1/16 182JATP J24185182 1- B b2
R 3068 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B a2
R 3069 CHIP RES. 68k 1/16W 5% RMC1/16 683JATP J24185683 1- A C2
R 3071 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A C2
R 3072 CHIP RES. 220k 1/16W 5% RMC1/16 224JATP J24185224 1- A C2
R 3074 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A C2
R 3075 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A C2
R 3076 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C2
R 3077 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- B b2
R 3078 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C2
R 3079 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 1- B b2
R 3080 CHIP RES. 12k 1/16W 5% RMC1/16 123JATP J24185123 1- A D2
R 3081 CHIP RES. 18k 1/16W 5% RMC1/16 183JATP J24185183 1- A D2
R 3082 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- B a2
R 3083 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B b2
R 3084 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B b2
R 3086 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A D2
R 3087 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A C2
R 3088 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B b2
R 3089 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B b2
R 3090 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B d1
R 3091 CHIP RES. 680 1/16W 1% RMC1/16 681FTP J24183681 1- A A1
R 3092 CHIP RES. 6.8k 1/16W 1% RMC1/16 682FTP J24183682 1- A A1
R 3093 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B d1
R 3094 CHIP RES. 27k 1/16W 1% RMC1/16 273FTP J24183273 1- B d1
R 3095 CHIP RES. 47k 1/16W 1% RMC1/16 473FTP J24183473 1- B d1
R 3096 CHIP RES. 82k 1/16W 1% RMC1/16 823FTP J24183823 1- B d1
R 3097 CHIP RES. 56k 1/16W 1% RMC1/16 563FTP J24183563 1- B d1
R 3098 CHIP RES. 3.9k 1/16W 1% RMC1/16 392FTP J24183392 1- B d1
R 3099 CHIP RES. 1k 1/16W 1% RMC1/16 102FTP J24183102 1- B d1
R 3100 CHIP RES. 1.8k 1/16W 1% RMC1/16 182FTP J24183182 1- B d1
R 3105 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C1
R 3106 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C1
R 3107 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1­R 3108 CHIP RES. 330 1/10W 5% RMC1/10T 331J J24205331 1­R 3109 CHIP RES. 5.6k 1/16W 5% RMC1/16 562JATP J24185562 1­T 3001 COIL WIDE-TRANS. 960812088 L0022478 1- A B1
T 3002 COIL WIDE-TRANS. 950812004 L0022479 1- A B1
T 3003 COIL WIDE-TRANS. 960812088 L0022478 1- A B2
TC3001 TRIMMER CAP. 10pF ECR-JA010A11X K91000227 1- A A2
TH3001 THERMISTOR NTCCM20123SH223JCT G9090106 1- B d1
TH3002 THERMISTOR NTCCM20123NH153JCT G9090105 1- B d1
X 3001 XTAL TOP-B 14.4MHz 14.4MHZ H0103221 1- A A2
X 3002 XTAL TOP-B 72.895MHz 72.895MHZ H0103161A 1- A C2
XF3001 XTAL FILTER 73S10A H1102297 1- A B2
XF3002 XTAL FILTER 73S10A H1102297 1- A C2
Y 3001 SHIELD CASE CASE-S7GDH L9190016 1­Y 3002 SHIELD CASE CASE-S7GDH L9190016 1-

SHIELD CASE RA0014300 1­SHIELD CASE VCO R0151950 1­SHIELD CASE RA0014200 1­NYLON CLAMP PLT-1M BK-1 S3000022 1­LEAF SPRING R0140031 4­LEAF SPRING R0140031 4-

LAY ADR

56

Circuit Diagram

CNTL Unit (Lot. 1~)

NOTE:
RESISTOR VALUES ARE IN Ω. 1/16W ;
CAPACITOR VALUES ARE IN µF. 50V ;
(T) CAPACITOR VALUES ARE TANTALUM ;
ELECTOROLYTIC CAPACITORS ARE IN µF. 16V ;
INDUCTOR VALUES ARE IN H ;
COIL VALUES ARE IN H ;
UNLESS OTHERWISE NOTED.

57

CNTL Unit (Lot. 5~)

Circuit Diagram

58

NOTE:
RESISTOR VALUES ARE IN Ω. 1/16W ;
CAPACITOR VALUES ARE IN µF. 50V ;
(T) CAPACITOR VALUES ARE TANTALUM ;
ELECTOROLYTIC CAPACITORS ARE IN µF. 16V ;
INDUCTOR VALUES ARE IN H ;
COIL VALUES ARE IN H ;
UNLESS OTHERWISE NOTED.

Circuit Diagram

CNTL Unit (Lot. 19~)

NOTE:
RESISTOR VALUES ARE IN Ω. 1/16W ;
CAPACITOR VALUES ARE IN µF. 50V ;
(T) CAPACITOR VALUES ARE TANTALUM ;
ELECTOROLYTIC CAPACITORS ARE IN µF. 16V ;
INDUCTOR VALUES ARE IN H ;
COIL VALUES ARE IN H ;
UNLESS OTHERWISE NOTED.

59

Note:

60

Parts Layout

CNTL Unit

A B

1

2

C D E F

HD64F3337YF16 (Lot. 1~5)
DF3337YF16 (Lot. 6~16)
HD64F3337YF16 (Lot. 17~)
(Q4012)

NM93C86AM8
(Q4008)

UPC78M05AHF
(Q4002)

FX803LG
(Q4025)
FX805LG
(Q4024)

NJM2904V
(Q4040)

TDA2003H
(Q4043)

M51132FP
(Q4029)

M62354FP
(Q4015)
NJM2902V
(Q4014, 4016, 4018,
4019, 4020, 4021,
4031, 4033, 4034,
4045, 4046)
NJU4066BV
(Q4030)

UPC2409AHF
(Q4001)

FMG2 (G2)
(Q4028, 4032)

DTA143XK (33)
(Q4039)

3

DTC144EK (26)
(Q4023, 4035, 4044)

DTC323TK (H02)
(Q4036, 4038)

2SC4116GR (LG)
(Q4027)

4

TLP181
(Q4041, 4042)

2SA1586Y (SY)
(Q4007)

RH5VL45AA (D5)
(Q4005)

Side A

MA143 (MC)
(D4036, 4037)
DA204K (K)
(D4006, 4009, 4012, 4016,
4019, 4020, 4022, 4023)

61

CNTL Unit

a b c d e f

TC74HC74AF
(Q4022)

FMG2 (G2)
(Q4006, 4009,
4010, 4011)

2SC4116GR (LG)
(Q4013)

DA204K (K)
(D4001, 4002, 4003,
4004, 4005, 4017,
4018, 4021, 4024,

4040)

LC73881M
(Q4017)

DTC144EK (26)
(Q4003)

1SS184 (B3)
(D4025, 4026)

AN8005M
(Q4004)

DTC323TK (H02)
(Q4026, 4037)

HZM7C (24)
(D4008)

1

2

HZM7.5NB2 (Lot. 41~)
(D4008)

62

3

4

Side B

CNTLUnit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS. LOT.REF. SIDE

*** CNTL UNIT ***
PCB with Components CS1685001
Printed Circuit Board FR003540D

C 4001 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B e1
C 4002 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B e1
C 4003 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B e2
C 4004 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B e1
C 4005 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B e1
C 4006 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B e1
C 4007 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- B e2
C 4008 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B e1
C 4009 AL.ELECTRO.CAP. 100uF 25V RE2-25V101M 100UF K40149028 1- A A3
C 4010 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B e2
C 4011 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B e1
C 4012 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B f3
C 4013 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B e2
C 4014 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B e1
C 4015 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B e2
C 4016 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B e1
C 4017 AL.ELECTRO.CAP. 10uF 25V RC2-25V100M(5X7) K40149012 1- A A2
C 4018 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B e1
C 4019 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B f2
C 4020 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B e1
C 4021 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B e1
C 4022 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B f3
C 4023 AL.ELECTRO.CAP. 100uF 16V ECEV1CA101WP K48120012 1- A A3
C 4024 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B f2
C 4025 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B e2
C 4026 CHIP CAP. 1uF 10V F GRM39F105Z10PT K22105001 1- B e1
C 4027 AL.ELECTRO.CAP. 10uF 16V ECEV1CS100SR K48120001 1- A A2
C 4028 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- B e1
C 4029 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B e1
C 4030 CHIP CAP. 1uF 10V F GRM39F105Z10PT K22105001 1- A A2
C 4031 AL.ELECTRO.CAP. 470uF 16V RE3-16V471M 470UF K40129066 1- A A2
C 4032 CHIP CAP. 56pF 50V CH GRM39CH560J50PT K22174229 1- B d1
C 4033 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B e2
C 4034 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- B e1
C 4035 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- B e2
C 4036 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- B e3
C 4037 CHIP TA.CAP. 2.2uF 25V TEMSVA1E225M-8R K78140020 1- B e3
C 4038 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B d1
C 4039 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- B e2
C 4040 CHIP CAP. 330pF 50V CH GRM39CH331J50PT K22174253 1- B e2
C 4041 CHIP TA.CAP. 33uF 10V TEMSVB21A336M-8R K78100047 1- B e1
C 4042 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B e3
C 4043 CHIP CAP. 330pF 50V CH GRM39CH331J50PT K22174253 1- B e2
C 4044 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B e2
C 4045 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- B e1
C 4046 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- B e3
C 4047 CHIP CAP. 1uF 10V F GRM39F105Z10PT K22105001 1- B e2
C 4048 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- B e3
C 4049 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A A2
C 4050 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- B e2
C 4051 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- B d1
C 4052 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B e4
C 4053 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B e4
C 4054 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B e4
C 4055 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B e4
C 4055 CHIP CAP. 220pF 50V CH GRM39CH221J50PT K22174243 19- B e4
C 4056 CHIP CAP. 330pF 50V CH GRM39CH331J50PT K22174253 1- B e2
C 4057 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B e2
C 4058 CHIP CAP. 330pF 50V CH GRM39CH331J50PT K22174253 1- B e2
C 4059 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B d1
C 4060 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B d2
C 4061 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B e4
C 4062 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B e4
C 4063 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B d1

LAY ADR

63

CNTL Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS. LOT.REF. SIDE

C 4064 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B d1
C 4065 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B c4
C 4066 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B c4
C 4067 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B c4
C 4068 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B c4
C 4069 CHIP CAP. 10pF 50V CH GRM39CH100D50PT K22174211 1- B e3
C 4070 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- B d3
C 4071 CHIP CAP. 3pF 50V CJ GRM39CJ030C50PT K22174204 1- B e3
C 4072 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- B d3
C 4073 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B d1
C 4074 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B d1
C 4075 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B d1
C 4076 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B c1
C 4077 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B c1
C 4078 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B d1
C 4079 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B d1
C 4080 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B d1
C 4081 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- B c1
C 4082 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- B d3
C 4083 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B d2
C 4084 CHIP CAP. 15pF 50V CH GRM39CH150J50PT K22174215 1- B d3
C 4085 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- B d2
C 4086 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- B d3
C 4087 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B c4
C 4088 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B c4
C 4088 CHIP CAP. 220pF 50V CH GRM39CH221J50PT K22174243 19- B c4
C 4089 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B c4
C 4090 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B c1
C 4091 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B d2
C 4092 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B d2
C 4093 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B d2
C 4094 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- B c3
C 4095 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- B c3
C 4096 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B c3
C 4097 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- A C2
C 4098 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- B b3
C 4099 CHIP CAP. 0.0039uF 50V B GRM39B392K50PT K22174830 1- B c2
C 4100 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- B d3
C 4101 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B b3
C 4102 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A C2
C 4104 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- B c3
C 4105 CHIP CAP. 0.015uF 25V B GRM39B153K25PT K22144805 1- B c1
C 4106 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B d3
C 4107 CHIP CAP. 1uF 10V B GRM40B105K10PT K22100802 1- B b3
C 4108 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B c3
C 4110 CHIP CAP. 0.0015uF 50V B GRM39B152M50PT K22174811 1- B c1
C 4111 CHIP CAP. 1uF 10V B GRM40B105K10PT K22100802 1- B c3
C 4112 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B b4
C 4113 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B b4
C 4114 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B b4
C 4115 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B e4
C 4116 CHIP CAP. 0.015uF 25V B GRM39B153K25PT K22144805 1- A C2
C 4117 CHIP CAP. 470pF 50V CH GRM39CH471J50PT K22174249 1- B c3
C 4118 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B d2
C 4119 CHIP CAP. 0.0033uF 50V B GRM39B332M50PT K22174815 1- A C1
C 4120 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- A C1
C 4121 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B b4
C 4122 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B b4
C 4124 CHIP TA.CAP. 1.5uF 20V TEMSVA1D155M-8R K78130013 1- B c3
C 4125 CHIP CAP. 0.0015uF 50V B GRM39B152M50PT K22174811 1- B c1
C 4126 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B e3
C 4127 CHIP CAP. 1uF 10V B GRM40B105K10PT K22100802 1- B c3
C 4129 CHIP CAP. 470pF 50V CH GRM39CH471J50PT K22174249 1- A B3
C 4130 CHIP TA.CAP. 1.5uF 20V TEMSVA1D155M-8R K78130013 1- A C2
C 4131 CHIP CAP. 33pF 50V CH GRM39CH330J50PT K22174223 1- B c2
C 4132 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- B c3
C 4133 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B e4

LAY ADR

64

CNTLUnit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS. LOT.REF. SIDE

C 4134 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B d4
C 4135 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B d4
C 4136 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B c3
C 4137 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B c3
C 4138 CHIP CAP. 0.0056uF 50V B GRM39B562M50PT K22174818 1- A D1
C 4139 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- B c1
C 4140 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- B b2
C 4141 CHIP CAP. 330pF 50V CH GRM39CH331J50PT K22174253 1- B c1
C 4142 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B c1
C 4143 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- A C2
C 4144 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- B c2
C 4145 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B b3
C 4146 CHIP CAP. 1uF 10V F GRM39F105Z10PT K22105001 1- A D2
C 4147 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- A E4
C 4148 AL.ELECTRO.CAP. 100uF 16V ECEV1CA101WP K48120012 1- A C1
C 4149 CHIP CAP. 68pF 50V CH GRM39CH680J50PT K22174231 1- B d2
C 4150 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B c1
C 4151 CHIP TA.CAP. 47uF 6.3V TEMSVB20J476M-8R K78080048 1- B c1
C 4152 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- B c1
C 4153 CHIP CAP. 330pF 50V CH GRM39CH331J50PT K22174253 1- A D3
C 4154 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B c1
C 4155 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B c1
C 4156 AL.ELECTRO.CAP. 22uF 16V ECEV1CA220SR K48120002 1- A D1
C 4157 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- B d2
C 4158 CHIP CAP. 15pF 50V CH GRM39CH150J50PT K22174215 1- B b3
C 4161 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- B b3
C 4162 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B c1
C 4163 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B b3
C 4164 CHIP CAP. 0.015uF 25V B GRM39B153K25PT K22144805 1- B b4
C 4165 CHIP CAP. 0.015uF 25V B GRM39B153K25PT K22144805 1- B b4
C 4166 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B b3
C 4167 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A D2
C 4168 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A D2
C 4169 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A D2
C 4170 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- B b2
C 4171 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B c1
C 4172 CHIP CAP. 0.015uF 25V B GRM39B153K25PT K22144805 1- B b3
C 4173 CHIP CAP. 0.0018uF 50V B GRM39B182M50PT K22174812 1- A D2
C 4174 CHIP CAP. 0.0039uF 50V B GRM39B392K50PT K22174830 1- A D2
C 4175 CHIP CAP. 0.0039uF 50V B GRM39B392K50PT K22174830 1- A D2
C 4176 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- B b2
C 4177 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A D2
C 4178 CHIP CAP. 0.0015uF 50V B GRM39B152M50PT K22174811 1- A D2
C 4180 CHIP CAP. 0.0022uF 50V B GRM39B222K50PT K22174822 1- B b2
C 4181 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- A E2
C 4182 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- B b2
C 4183 CHIP CAP. 1uF 10V B GRM40B105K10PT K22100802 1- A D2
C 4184 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- B b2
C 4185 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B b3
C 4186 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- B b2
C 4187 CHIP CAP. 82pF 50V CH GRM39CH820J50PT K22174233 1- B b2
C 4188 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- B b3
C 4189 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B b2
C 4190 CHIP CAP. 0.015uF 25V B GRM39B153K25PT K22144805 1- B b3
C 4191 CHIP CAP. 560pF 50V B ECUV1H561KBV K22179611 1- B b2
C 4192 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- A D1
C 4193 CHIP TA.CAP. 0.22uF 35V TESVA1V224M1-8R K78160027 1-21 B b1
C 4193 CHIP TA.CAP. 0.1uF 35V TESVA1V104M1-8R K78160025 VERSION A 22- B b1
C 4193 CHIP TA.CAP. 0.22uF 35V TESVA1V224M1-8R K78160027 VERSION D 22- B b1
C 4194 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- B b2
C 4195 CHIP CAP. 150pF 50V CH GRM39CH151J50PT K22174239 1- B b1
C 4196 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B b2
C 4197 CHIP CAP. 0.015uF 25V B GRM39B153K25PT K22144805 1- B b3
C 4198 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B b2
C 4199 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- A D2
C 4200 CHIP CAP. 47pF 50V CH GRM39CH470J50PT K22174227 1- B b2
C 4201 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A E3

LAY ADR

65

CNTL Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS. LOT.REF. SIDE

C 4202 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B a2
C 4203 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- B b3
C 4204 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B b2
C 4205 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- B b3
C 4206 CHIP CAP. 150pF 50V CH GRM39CH151J50PT K22174239 1- B b3
C 4207 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A E1
C 4208 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A E3
C 4209 CHIP CAP. 0.0015uF 50V B GRM39B152M50PT K22174811 1- B b3
C 4210 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B a2
C 4211 CHIP CAP. 15pF 50V CH GRM39CH150J50PT K22174215 1- B b2
C 4212 CHIP CAP. 0.0022uF 50V B GRM39B222K50PT K22174822 1- B b2
C 4213 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A D2
C 4214 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B b3
C 4215 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- A E3
C 4216 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B c1
C 4217 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B b1
C 4219 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B b1
C 4220 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B b1
C 4221 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B b1
C 4222 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- B b3
C 4223 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B b1
C 4224 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- A F3
C 4225 AL.ELECTRO.CAP. 10uF 35V RC2-35V100MS-F1 K40169025 1- A E2
C 4226 CHIP CAP. 150pF 50V CH GRM39CH151J50PT K22174239 1- B b2
C 4227 CHIP CAP. 0.0033uF 50V B GRM39B332M50PT K22174815 1- A F3
C 4228 CHIP CAP. 270pF 50V CH GRM39CH271J50PT K22174251 1- A E1
C 4229 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- B b2
C 4230 AL.ELECTRO.CAP. 10uF 16V ECEV1CS100SR K48120001 1- A F3
C 4231 CHIP CAP. 330pF 50V CH GRM39CH331J50PT K22174253 1- B b3
C 4232 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B a1
C 4233 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B b3
C 4234 CHIP CAP. 680pF 25V CH GRM39CH681J25PT K22144203 1- A E1
C 4235 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- B b1
C 4236 CHIP CAP. 560pF 50V B ECUV1H561KBV K22179611 1- B b3
C 4237 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A D1
C 4238 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- B a1
C 4239 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B a2
C 4240 CHIP CAP. 33pF 50V CH GRM39CH330J50PT K22174223 1- B b3
C 4241 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A D1
C 4242 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B a1
C 4243 CHIP CAP. 330pF 50V CH GRM39CH331J50PT K22174253 1- B b2
C 4244 CHIP CAP. 0.0012uF 50V B GRM39B122K50PT K22174826 1- A E1
C 4245 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B a2
C 4246 CHIP CAP. 330pF 50V CH GRM39CH331J50PT K22174253 1- B b3
C 4247 AL.ELECTRO.CAP. 470uF 16V RE3-16V471M 470UF K40129066 1- A F3
C 4248 CHIP CAP. 330pF 50V CH GRM39CH331J50PT K22174253 1- B a3
C 4249 CHIP CAP. 220pF 50V CH GRM39CH221J50PT K22174243 1- A E1
C 4250 AL.ELECTRO.CAP. 10uF 35V RC2-35V100MS-F1 K40169025 1- A E2
C 4251 CHIP CAP. 0.1uF 25V B GRM40B104M25PT K22140811 1- B a3
C 4252 CHIP CAP. 120pF 50V CH GRM39CH121J50PT K22174237 1- A E1
C 4253 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B a2
C 4254 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B a2
C 4255 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B a3
C 4256 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B a1
C 4257 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B a1
C 4258 AL.ELECTRO.CAP. 470uF 16V RE3-16V471M 470UF K40129066 1- A E3
C 4259 CHIP CAP. 0.0022uF 50V B GRM39B222K50PT K22174822 1- A E1
C 4260 CHIP CAP. 0.0047uF 50V B ECJ1VB1H472K K22179622 1- A C2
C 4261 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A C2
C 4263 CHIP CAP. 220pF 50V CH GRM39CH221J50PT K22174243 1- A D2
C 4265 CHIP CAP. 0.012uF 50V B GRM39B123K50PT K22174825 1- B c2
C 4266 CHIP CAP. 330pF 50V CH GRM39CH331J50PT K22174253 1- A D2
C 4267 CHIP CAP. 56pF 50V CH GRM39CH560J50PT K22174229 1- A D2
C 4269 CHIP CAP. 0.033uF 16V B ECJ1VB1C333K K22129515 1- B c2
C 4270 CHIP CAP. 0.0015uF 50V B GRM39B152K50PT K22174827 1- A D2
C 4272 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B c2
C 4273 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A D2

LAY ADR

66

CNTLUnit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS. LOT.REF. SIDE

C 4274 CHIP CAP. 0.056uF 16V B GRM39B563K16PT K22124807 1- A D2
C 4275 CHIP CAP. 0.0027uF 50V B ECJ1VB1H272K K22179619 1- A D2
C 4276 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B c2
C 4277 CHIP CAP. 0.0018uF 50V B ECJ1VB1H182K K22179617 1- A D2
C 4278 CHIP CAP. 0.056uF 16V B GRM39B563K16PT K22124807 1- B c2
C 4279 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- B c3
C 4280 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B c2
C 4281 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- B c2
C 4282 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B c3
C 4283 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B c3
C 4284 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- A C2
C 4285 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B c2
C 4287 CHIP CAP. 0.033uF 16V B ECJ1VB1C333K K22129515 1­D 4001 DIODE DA204K T146 G2070388 1- B e1
D 4002 DIODE DA204K T146 G2070388 1- B f1
D 4003 DIODE DA204K T146 G2070388 1- B f1
D 4004 DIODE DA204K T146 G2070388 1- B e1
D 4005 DIODE DA204K T146 G2070388 1- B e1
D 4006 DIODE DA204K T146 G2070388 1- A B1
D 4007 DIODE D1F20-4063 G2070474 1- B e2
D 4008 DIODE HZM7C-TR G2070070 1- B e2
D 4008 DIODE HZM7.5NB2 TR G2070864 41- B e2
D 4009 DIODE DA204K T146 G2070388 1- A A3
D 4010 DIODE 1SS355 TE-17 G2070470 1- B e3
D 4011 DIODE 1SS355 TE-17 G2070470 1- B e2
D 4012 DIODE DA204K T146 G2070388 1- A A3
D 4013 DIODE 1SS355 TE-17 G2070470 1- A B3
D 4014 DIODE 1SS355 TE-17 G2070470 1- B d1
D 4015 DIODE MA729-(TX) G2070320 1- B d3
D 4016 DIODE DA204K T146 G2070388 1- A A3
D 4017 DIODE DA204K T146 G2070388 1- B c4
D 4018 DIODE DA204K T146 G2070388 1- B c4
D 4019 DIODE DA204K T146 G2070388 1- A D4
D 4020 DIODE DA204K T146 G2070388 1- A B4
D 4021 DIODE DA204K T146 G2070388 1- B d3
D 4022 DIODE DA204K T146 G2070388 1- A B4
D 4023 DIODE DA204K T146 G2070388 1- A B4
D 4024 DIODE DA204K T146 G2070388 1- B a2
D 4025 DIODE 1SS184 TE85R G2070009 1- B a2
D 4026 DIODE 1SS184 TE85R G2070009 1- B a1
D 4027 SURGE ABSORBER ERZ-V07D121 Q9000604 1- A F1
D 4028 SURGE ABSORBER ERZ-V07D121 Q9000604 1- A F2
D 4029 SURGE ABSORBER ERZ-V07D121 Q9000604 1- A F1
D 4030 SURGE ABSORBER ERZ-V07D121 Q9000604 1- A F2
D 4031 SURGE ABSORBER ERZ-V07D121 Q9000604 1- A F2
D 4032 SURGE ABSORBER ERZ-V07D121 Q9000604 1- A F2
D 4033 SURGE ABSORBER ERZ-V07D121 Q9000604 1- A E1
D 4034 SURGE ABSORBER ERZ-V07D121 Q9000604 1- A E1
D 4036 DIODE MA143-(TX) G2070536 1- A C1
D 4037 DIODE MA143-(TX) G2070536 1- A C1
D 4040 DIODE DA204K T146 G2070388 1- B c2
F 4001 CHIP FUSE 3A F0805B3R00FWTR Q0000082 1- A B1
J 4001 CONNECTOR B26B-PHDSS P0091239 1- A B1
J 4002 CONNECTOR SB20-08WS P0090615 1- A A2
J 4003 CONNECTOR SB20-14WS P0090656 1- A A4
J 4004 CONNECTOR SB20-06WS P0090613 1- A B1
J 4005 CONNECTOR SB20-06WS P0090613 1- A B3
J 4006 CONNECTOR SB20-15WS P0091093 1- A D4
J 4007 CONNECTOR SB20-14WS P0090656 1- A C1
J 4008 CONNECTOR SB20-13WS P0090620 1- A D1
J 4009 CONNECTOR B8B-PH-K-S P0090402 1- A F1
J 4010 CONNECTOR SB20-03WS P0090610 1- A E4
J 4011 CONNECTOR SB20-02WS P0090609 1- A E4
L 4006 M.RFC 2.7uH LK1608 2R7K-T L1690848 1- B e3
NF4001 EMI FILTER DSS706-351D221M25-50 Q9000642 1- A B1
NF4002 EMI FILTER DSS706-351D221M25-50 Q9000642 1- A B1
NF4003 EMI FILTER DSS706-351D221M25-50 Q9000642 1- A B1

LAY ADR

67

CNTL Unit

Parts List

DESCRIPTION V/W TOL. VXSTD P/NMFR’S DESIG VERS. LOT.REF. SIDE

NF4004 EMI FILTER DSS706-351D221M25-50 Q9000642 1- A B1
NF4005 EMI FILTER DSS706-351D221M25-50 Q9000642 1- A B1
Q 4001 IC UPC2409AHF G1092259 1- A A4
Q 4002 IC UPC78M05AHF G1092314 1- A A1
Q 4003 TRANSISTOR DTC144EK T146 G3070033 1- B e2
Q 4004 IC AN8005M-(E1) G1091454 1- B e3
Q 4005 IC RH5VL45AA-T1 G1090966 1- A A3
Q 4006 TRANSISTOR FMG2 T148 G3070015 1- B e1
Q 4007 TRANSISTOR 2SA1586Y TE85R G3115867Y 1- A A2
Q 4008 IC NM93C86AM8(TAPING) G1092512 1- A B3
Q 4009 TRANSISTOR FMG2 T148 G3070015 1- B d1
Q 4010 TRANSISTOR FMG2 T148 G3070015 1- B d1
Q 4011 TRANSISTOR FMG2 T148 G3070015 1- B c1
Q 4012 IC HD64F3337YF16
Q 4012 IC DF3337YF16
Q 4012 IC HD64F3337YF16
Q 4013 TRANSISTOR 2SC4116GR TE85R G3341167G 1- B d3
Q 4014 IC NJM2902V-TE1 G1091679 1- A C2
Q 4015 IC M62354FP-75NC G1091842 1- A C2
Q 4016 IC NJM2902V-TE1 G1091679 1- A E3
Q 4017 IC LC73881M-TLM G1092755 1- B c4
Q 4018 IC NJM2902V-TE1 G1091679 1- A E2
Q 4019 IC NJM2902V-TE1 G1091679 1- A E1
Q 4020 IC NJM2902V-TE1 G1091679 1- A E2
Q 4021 IC NJM2902V-TE1 G1091679 1- A E3
Q 4022 IC TC74HC74AF EL G1091446 1- B d3
Q 4023 TRANSISTOR DTC144EK T146 G3070033 1- A D4
Q 4024 IC FX805LG-TR G1092528 1- A C3
Q 4025 IC FX803LG-TR G1093037 1- A D3
Q 4026 TRANSISTOR DTC323TK T146 G3070042 1- B b4
Q 4027 TRANSISTOR 2SC4116GR TE85R G3341167G 1- A D2
Q 4028 TRANSISTOR FMG2 T148 G3070015 1- A D2
Q 4029 IC M51132FP 600C G1091930 1- A D1
Q 4030 IC NJU4066BV-TE1 G1091873 1- A D2
Q 4031 IC NJM2902V-TE1 G1091679 1- A B1
Q 4032 TRANSISTOR FMG2 T148 G3070015 1- A D2
Q 4033 IC NJM2902V-TE1 G1091679 1- A B2
Q 4034 IC NJM2902V-TE1 G1091679 1- A C1
Q 4035 TRANSISTOR DTC144EK T146 G3070033 1- A D2
Q 4036 TRANSISTOR DTC323TK T146 G3070042 1- A E3
Q 4037 TRANSISTOR DTC323TK T146 G3070042 1- B b2
Q 4038 TRANSISTOR DTC323TK T146 G3070042 1- A D3
Q 4039 TRANSISTOR DTA143XK T146 G3070032 1- A E1
Q 4040 IC NJM2904V-TE1 G1091677 1- A C3
Q 4041 PHOTO COUPLER TLP181-GB(TPR) G0090021 1- A F1
Q 4042 PHOTO COUPLER TLP181-GB(TPR) G0090021 1- A F2
Q 4043 IC TDA2003H G1090815 1- A F4
Q 4044 TRANSISTOR DTC144EK T146 G3070033 1- A E1
Q 4045 IC NJM2902V-TE1 G1091679 1- A D2
Q 4046 IC NJM2902V-TE1 G1091679 1- A D2
R 4001 CHIP RES. 4.7 1W 5% RMC1 4R7JTE J24305479 1- B f3
R 4002 CHIP RES. 47 1W 5% RMC1 470JTE J24305470 1- A A2
R 4003 CHIP RES. 47 1W 5% RMC1 470JTE J24305470 1- A A2
R 4004 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B e2
R 4005 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- A A2
R 4006 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- A A1
R 4007 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A A1
R 4008 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A A1
R 4011 CHIP RES. 1.5k 1/16W 5% RMC1/16 152JATP J24185152 1- A D1
R 4012 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B e1
R 4013 CHIP RES. 560 1/16W 5% RMC1/16 561JATP J24185561 1- B e1
R 4015 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A A1
R 4016 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A A1
R 4017 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A A1
R 4018 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A A1
R 4019 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A A1
R 4020 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- B e2

 Please contact VERTEX STANDARD.

68

 1- A B2
 6- A B2
 17- A B2

LAY ADR

CNTLUnit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS. LOT.REF. SIDE

R 4021 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B c1
R 4025 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A B1
R 4026 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B e2
R 4029 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A B2
R 4031 CHIP RES. 560 1/16W 5% RMC1/16 561JATP J24185561 1- B e1
R 4033 CHIP RES. 270k 1/16W 5% RMC1/16 274JATP J24185274 1- B d1
R 4034 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B1
R 4035 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 1- A B1
R 4036 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 1- A B1
R 4037 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B e1
R 4038 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- B e3
R 4039 CHIP RES. 3.9k 1/16W 5% RMC1/16 392JATP J24185392 1- A B1
R 4039 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 4 A B1
R 4039 CHIP RES. 2.7k 1/16W 5% RMC1/16 272JATP J24185272 5-18 A B1
R 4039 CHIP RES. 3.9k 1/16W 5% RMC1/16 392JATP J24185392 VERSION A 19- A B1
R 4039 CHIP RES. 2.7k 1/16W 5% RMC1/16 272JATP J24185272 VERSION D 19- A B1
R 4041 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B e1
R 4042 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B f2
R 4043 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C1
R 4044 CHIP RES. 330 1/16W 1% RMC1/16 331FTP J24183331 1- A B1
R 4045 CHIP RES. 470 1/16W 1% RMC1/16 471FTP J24183471 1- A B1
R 4046 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A B1
R 4047 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A1
R 4048 CHIP RES. 1k 1/16W 1% RMC1/16 102FTP J24183102 1- A B1
R 4049 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A B1
R 4051 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B e2
R 4052 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A A3
R 4053 CHIP RES. 4.7k 1/16W 1% RMC1/16 472FTP J24183472 1- A B1
R 4054 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- B d1
R 4055 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B2
R 4056 CHIP RES. 8.2k 1/16W 5% RMC1/16 822JATP J24185822 1- A B2
R 4057 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- B e3
R 4058 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B e3
R 4059 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A B1
R 4060 CHIP RES. 5.6k 1/16W 5% RMC1/16 562JATP J24185562 1- B e2
R 4061 CHIP RES. 39k 1/16W 5% RMC1/16 393JATP J24185393 1- B d1
R 4062 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- B d1
R 4063 CHIP RES. 470k 1/16W 1% RMC1/16 474FTP J24183474 1- B d1
R 4064 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B e2
R 4065 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B e2
R 4066 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B d1
R 4067 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B e2
R 4068 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- B e4
R 4069 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- B e4
R 4070 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B d2
R 4071 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B3
R 4072 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B e2
R 4073 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B3
R 4074 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- B e4
R 4075 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B d1
R 4076 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- B e4
R 4077 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- B e4
R 4078 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A B3
R 4079 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B d1
R 4080 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A B3
R 4081 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A B2
R 4082 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A B2
R 4083 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A B2
R 4084 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- B c4
R 4085 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A B2
R 4086 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- B c4
R 4087 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- B c4
R 4088 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B d3
R 4089 CHIP RES. 1M 1/16W 5% RMC1/16 105JATP J24185105 1- B d3
R 4090 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- A B3
R 4091 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- A B3
R 4092 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B d1

LAY ADR

69

CNTL Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS. LOT.REF. SIDE

R 4093 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B d1
R 4094 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B c1
R 4095 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C4
R 4096 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C3
R 4097 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B4
R 4098 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C3
R 4099 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B4
R 4100 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B d2
R 4101 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A C1
R 4102 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D3
R 4103 CHIP RES. 470k 1/16W 1% RMC1/16 474FTP J24183474 1- B c2
R 4104 CHIP RES. 470k 1/16W 1% RMC1/16 474FTP J24183474 1- B c2
R 4105 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B d2
R 4107 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A C4
R 4108 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B d2
R 4109 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D3
R 4110 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A D3
R 4112 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D2
R 4113 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B b3
R 4116 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A D3
R 4117 CHIP RES. 470k 1/16W 1% RMC1/16 474FTP J24183474 1- B c2
R 4118 CHIP RES. 470k 1/16W 1% RMC1/16 474FTP J24183474 1- B c2
R 4119 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- B c1
R 4120 CHIP RES. 12k 1/16W 5% RMC1/16 123JATP J24185123 1- A D3
R 4121 CHIP RES. 470k 1/16W 1% RMC1/16 474FTP J24183474 1- B c2
R 4122 CHIP RES. 2.2M 1/16W 5% RMC1/16 225JATP J24185225 1- B b3
R 4123 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C2
R 4124 CHIP RES. 220k 1/16W 5% RMC1/16 224JATP J24185224 1- B c1
R 4125 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C3
R 4126 CHIP RES. 470k 1/16W 1% RMC1/16 474FTP J24183474 1- B c2
R 4127 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- B e4
R 4128 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B c3
R 4129 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A D3
R 4130 CHIP RES. 330k 1/16W 5% RMC1/16 334JATP J24185334 1- B c3
R 4131 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B c1
R 4132 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B c1
R 4133 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 1- A C2
R 4134 CHIP RES. 150k 1/16W 5% RMC1/16 154JATP J24185154 1- B d3
R 4135 CHIP RES. 150k 1/16W 5% RMC1/16 154JATP J24185154 1- A D3
R 4136 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B d2
R 4137 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B c3
R 4138 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B c1
R 4139 CHIP RES. 120k 1/16W 1% RMC1/16 124FTP J24183124 1- B c2
R 4140 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B c3
R 4141 CHIP RES. 150k 1/16W 5% RMC1/16 154JATP J24185154 1- B c3
R 4142 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C1
R 4143 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B c3
R 4144 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- B b4
R 4145 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A D3
R 4147 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B3
R 4148 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B b4
R 4149 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B b4
R 4150 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B c1
R 4151 CHIP RES. 470k 1/16W 5% RMC1/16 474JATP J24185474 1- B c1
R 4152 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B3
R 4153 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- B e4
R 4154 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- B d4
R 4155 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1-21 B c1
R 4155 CHIP RES. 82k 1/16W 5% RMC1/16 823JATP J24185823 VERSION A 22- B c1
R 4155 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 VERSION D 22- B c1
R 4156 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B4
R 4157 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B c1
R 4158 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D1
R 4159 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C2
R 4160 CHIP RES. 82k 1/16W 5% RMC1/16 823JATP J24185823 1- A D1
R 4161 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B c1
R 4162 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D2

LAY ADR

70

CNTLUnit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS. LOT.REF. SIDE

R 4163 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D3
R 4164 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 1- B d1
R 4165 CHIP RES. 560 1/16W 5% RMC1/16 561JATP J24185561 1- B b4
R 4166 CHIP RES. 150k 1/16W 5% RMC1/16 154JATP J24185154 1- B d2
R 4167 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A D3
R 4168 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A D2
R 4169 CHIP RES. 56k 1/16W 5% RMC1/16 563JATP J24185563 1- A E3
R 4170 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B c1
R 4171 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A C2
R 4172 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A D2
R 4173 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B c1
R 4174 CHIP RES. 560k 1/16W 5% RMC1/16 564JATP J24185564 1- B b3
R 4175 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B c2
R 4176 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B c2
R 4177 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A D2
R 4178 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A D2
R 4179 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A D2
R 4180 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D2
R 4181 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A E3
R 4182 CHIP RES. 2.7k 1/16W 5% RMC1/16 272JATP J24185272 1- A E3
R 4183 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B c2
R 4184 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B c2
R 4185 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B c2
R 4186 CHIP RES. 27k 1/16W 5% RMC1/16 273JATP J24185273 1- A E4
R 4187 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D3
R 4188 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B c2
R 4189 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B c2
R 4190 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A D2
R 4191 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B c2
R 4192 CHIP RES. 39k 1/16W 5% RMC1/16 393JATP J24185393 1- B b2
R 4193 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A D2
R 4194 CHIP RES. 220k 1/16W 5% RMC1/16 224JATP J24185224 1- B c2
R 4195 CHIP RES. 1.8k 1/16W 5% RMC1/16 182JATP J24185182 1- A D2
R 4196 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B c2
R 4197 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A E4
R 4198 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A D2
R 4199 CHIP RES. 270k 1/16W 5% RMC1/16 274JATP J24185274 1- B b2
R 4200 CHIP RES. 330k 1/16W 5% RMC1/16 334JATP J24185334 1- B b2
R 4202 CHIP RES. 82k 1/16W 5% RMC1/16 823JATP J24185823 1- B b3
R 4203 CHIP RES. 3.3M 1/16W 5% RMC1/16 335JATP J24185335 1- B b2
R 4204 CHIP RES. 1.8k 1/16W 5% RMC1/16 182JATP J24185182 1- A D2
R 4205 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 1- A D2
R 4206 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D2
R 4207 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D2
R 4209 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D1
R 4210 CHIP RES. 39k 1/16W 5% RMC1/16 393JATP J24185393 1- B b2
R 4211 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B b2
R 4212 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 1- A E3
R 4214 CHIP RES. 220k 1/16W 5% RMC1/16 224JATP J24185224 1- B b2
R 4215 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B b3
R 4216 CHIP RES. 150k 1/16W 5% RMC1/16 154JATP J24185154 1- A D2
R 4217 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 1- A D2
R 4218 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D3
R 4219 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 1- A D2
R 4220 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- B b2
R 4221 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D2
R 4222 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A D1
R 4223 CHIP RES. 8.2k 1/16W 5% RMC1/16 822JATP J24185822 1- A D2
R 4224 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A D2
R 4225 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B b1
R 4226 CHIP RES. 82k 1/16W 5% RMC1/16 823JATP J24185823 1- B b2
R 4227 CHIP RES. 560k 1/16W 5% RMC1/16 564JATP J24185564 1- B b2
R 4228 CHIP RES. 56k 1/16W 5% RMC1/16 563JATP J24185563 1- A E3
R 4229 CHIP RES. 12k 1/16W 5% RMC1/16 123JATP J24185123 1- A E3
R 4230 CHIP RES. 68k 1/16W 5% RMC1/16 683JATP J24185683 1- B b2
R 4231 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D1
R 4232 CHIP RES. 68k 1/16W 5% RMC1/16 683JATP J24185683 1- A D1

LAY ADR

71

CNTL Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS. LOT.REF. SIDE

R 4233 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D1
R 4234 CHIP RES. 68k 1/16W 5% RMC1/16 683JATP J24185683 1- B b1
R 4235 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B b2
R 4236 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B b3
R 4237 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E1
R 4238 CHIP RES. 680 1/16W 5% RMC1/16 681JATP J24185681 1- B b1
R 4239 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A E2
R 4240 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B a2
R 4241 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A D1
R 4242 CHIP RES. 560k 1/16W 5% RMC1/16 564JATP J24185564 1- B b2
R 4243 CHIP RES. 2.7k 1/16W 5% RMC1/16 272JATP J24185272 1- A E3
R 4244 CHIP RES. 270k 1/16W 5% RMC1/16 274JATP J24185274 1- B a3
R 4245 CHIP RES. 1M 1/16W 5% RMC1/16 105JATP J24185105 1- A E2
R 4246 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A E3
R 4247 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B b2
R 4248 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E3
R 4249 CHIP RES. 68k 1/16W 5% RMC1/16 683JATP J24185683 1- B b1
R 4250 CHIP RES. 8.2k 1/16W 5% RMC1/16 822JATP J24185822 1- B b2
R 4251 CHIP RES. 270k 1/16W 5% RMC1/16 274JATP J24185274 1- B b3
R 4252 CHIP RES. 560k 1/16W 5% RMC1/16 564JATP J24185564 1- B b2
R 4253 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B b3
R 4254 CHIP RES. 56k 1/16W 5% RMC1/16 563JATP J24185563 1- A E2
R 4255 CHIP RES. 82k 1/16W 5% RMC1/16 823JATP J24185823 1- B b2
R 4256 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B a2
R 4257 CHIP RES. 18k 1/16W 5% RMC1/16 183JATP J24185183 1- B b2
R 4258 CHIP RES. 56k 1/16W 5% RMC1/16 563JATP J24185563 1- A E3
R 4259 CHIP RES. 8.2k 1/16W 5% RMC1/16 822JATP J24185822 1- A D1
R 4260 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A E3
R 4261 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D1
R 4262 CHIP RES. 1.2k 1/16W 5% RMC1/16 122JATP J24185122 1- B a1
R 4263 CHIP RES. 12k 1/16W 5% RMC1/16 123JATP J24185123 1- B b2
R 4264 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B b3
R 4265 CHIP RES. 8.2k 1/16W 5% RMC1/16 822JATP J24185822 1- A E3
R 4266 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A D1
R 4267 CHIP RES. 2.7 1/10W 5% RMC1/10T 2R7J J24205279 1- A E3
R 4268 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B b1
R 4269 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- B a2
R 4270 CHIP RES. 18k 1/16W 5% RMC1/16 183JATP J24185183 1- B b1
R 4271 CHIP RES. 220k 1/16W 5% RMC1/16 224JATP J24185224 1- B b3
R 4272 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B b1
R 4273 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B b2
R 4274 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B b3
R 4275 CHIP RES. 560 1/16W 5% RMC1/16 561JATP J24185561 1- B a1
R 4276 CHIP RES. 270 1/10W 5% RMC1/10T 271J J24205271 1- B a3
R 4277 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- B b3
R 4278 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B b1
R 4279 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E3
R 4280 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B b1
R 4281 CHIP RES. 3.9k 1/16W 5% RMC1/16 392JATP J24185392 1- A E3
R 4282 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E3
R 4283 CHIP RES. 560 1/16W 5% RMC1/16 561JATP J24185561 1- B b2
R 4284 CHIP RES. 1 1/10W 5% RMC1/10T 1R0J J24205010 1- B a3
R 4285 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A E3
R 4286 CHIP RES. 4.7 1W 5% RMC1 4R7JTE J24305479 1- B a4
R 4287 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D2
R 4288 CHIP RES. 4.7 1W 5% RMC1 4R7JTE J24305479 1- B a4
R 4289 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B b1
R 4290 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B b1
R 4292 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B d2
R 4293 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B d2
R 4294 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A D1
R 4295 CHIP RES. 560 1/16W 5% RMC1/16 561JATP J24185561 1- B e1
R 4296 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A B3
R 4297 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A B3
R 4298 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A B4
R 4299 CHIP RES. 560 1/16W 5% RMC1/16 561JATP J24185561 1- B e2
R 4300 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 1- A C2

LAY ADR

72

CNTLUnit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS. LOT.REF. SIDE

R 4301 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B c2
R 4302 CHIP RES. 120k 1/16W 5% RMC1/16 124JATP J24185124 1- A D2
R 4303 CHIP RES. 120k 1/16W 5% RMC1/16 124JATP J24185124 1- A D2
R 4304 CHIP RES. 120k 1/16W 5% RMC1/16 124JATP J24185124 1- A D2
R 4305 CHIP RES. 120k 1/16W 5% RMC1/16 124JATP J24185124 1- B c2
R 4306 CHIP RES. 120k 1/16W 5% RMC1/16 124JATP J24185124 1- B c2
R 4307 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- B b2
R 4308 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B c2
R 4309 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- B c2
R 4310 CHIP RES. 1.5M 1/16W 5% RMC1/16 155JATP J24185155 1- B c2
R 4311 CHIP RES. 220k 1/16W 5% RMC1/16 224JATP J24185224 1- B c2
R 4312 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A D2
R 4313 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D3
R 4314 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 1- A D3
R 4315 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A E3
R 4316 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A E4
R 4318 CHIP RES. 18k 1/16W 5% RMC1/16 183JATP J24185183 1- B c2
R 4319 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A E1
R 4322 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B b4
R 4401 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1­R 4402 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1­R 4403 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1­R 4404 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1­R 4405 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1­R 4406 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1­S 4001 SLIDE SWITCH SSSS21 N6090069 1- A E2
S 4002 SLIDE SWITCH SSSS21 N6090069 1- A E1
T 4001 AF TRANS. 12T01 L2190049 1- A E1
T 4002 AF TRANS. 12T01 L2190049 1- A E2
VR4001 POT. 100k EVN-5ESX50B15 J51811104 1- A C2
VR4002 POT. 10k EVN-5ESX50B14 J51811103 1- A E2
VR4003 POT. 10k EVN-5ESX50B14 J51811103 1- A E2
X 4001 XTAL HC-49/S3 16MHz 16.000MHZ H0103174 1- A B3
X 4002 XTAL HC-49/4H 4.194304MHz 4.194304MHZ H0103081 1- A D4

HEAT SINK SP143K S5000217 1-

LAY ADR

73

Note:

74

Circuit Diagram

Display Unit

75

Display Unit

Parts Layout

A

B

1

CEDB

F

DN8657S

HD4074829TF
(Q5007)

NM93C86AM
(Q5008)

PST596CNR (6C)
(Q5003)

TC7W125FU
(Q5010, 5011, 5012)

TC7S04FU (E5)
(Q5005)

(Q5001)

NJM78L05UA (8C)
(Q5013)

XN1213 (9L)
(Q5002, 5004)

2

MA143 (MC)
(D5003, 5005, 5006, 5007,
5008, 5009, 5010, 5011,
5014, 5015, 5016, 5017,

5018)

a B cedb

Side A

f

DTC144EK (26)
(Q5006, 5009)

1

LCD Display Segmentation Diagram

2

76

LCD Display Backplane Diagram

Side B

Display Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS. LOT.REF. SIDE

*** DISPLAY UNIT ***
PCB with Components CS1686001
Printed Circuit Board FR003550B 1-

C 5001 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B b2
C 5002 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B e1
C 5003 CHIP CAP. 10pF 50V CH GRM39CH100D50PT K22174211 1- B d1
C 5004 CHIP CAP. 10pF 50V CH GRM39CH100D50PT K22174211 1- B d1
C 5005 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B e1
C 5006 CHIP CAP. 10pF 50V CH GRM39CH100D50PT K22174211 1- B d1
C 5007 CHIP CAP. 10pF 50V CH GRM39CH100D50PT K22174211 1- B d1
C 5008 CHIP CAP. 0.01uF 50V B GRM39B103M50PT K22174823 1- B d2
C 5009 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B d2
C 5010 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B d2
C 5011 CHIP CAP. 0.01uF 50V B GRM39B103M50PT K22174823 1- A C1
C 5012 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B d2
C 5013 CHIP CAP. 0.01uF 50V B GRM39B103M50PT K22174823 1- B c2
C 5014 CHIP CAP. 0.01uF 50V B GRM39B103M50PT K22174823 1- A C1
C 5015 CHIP CAP. 0.01uF 50V B GRM39B103M50PT K22174823 1- A C1
C 5016 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B e1
C 5017 CHIP CAP. 0.01uF 50V B GRM39B103M50PT K22174823 1- B e1
C 5018 CHIP CAP. 0.01uF 50V B GRM39B103M50PT K22174823 1- B e2
C 5019 CHIP TA.CAP. 10uF 25V TESVD1E106M12R K78140018 1- B e2
C 5020 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B c2
C 5021 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B c2
C 5022 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B c2
D 5001 LED GL8KG21 G2090625 1- A A1
D 5002 LED GL8PR21 G2090395 1- A A1
D 5003 DIODE MA143-(TX) G2070536 1- B b2
D 5005 DIODE MA143-(TX) G2070536 1- B d1
D 5006 DIODE MA143-(TX) G2070536 1- B d1
D 5007 DIODE MA143-(TX) G2070536 1- B d1
D 5008 DIODE MA143-(TX) G2070536 1- B d1
D 5009 DIODE MA143-(TX) G2070536 1- B e1
D 5010 DIODE MA143-(TX) G2070536 1- B d1
D 5011 DIODE MA143-(TX) G2070536 1- B d1
D 5012 LED HLMF-KL05 G2090692 1- A A1
D 5013 LED HLMF-KL05 G2090692 1- A A1
D 5014 DIODE MA143-(TX) G2070536 1- B d2
D 5015 DIODE MA143-(TX) G2070536 1- B d2
D 5016 DIODE MA143-(TX) G2070536 1- B b2
D 5017 DIODE MA143-(TX) G2070536 1- B b2
D 5018 DIODE MA143-(TX) G2070536 1- B b2
DS5001 LCD TTR3165UPFDCW G6090134 1- A B1
DS5002 LED NAA261-B G2090745 1­J 5001 CONNECTOR 12FMZ-BT P1090901 1- B d2
JP5001 WIRE ASSY A1367+ T9206797A 1- B b1
Q 5001 IC DN8657S-T1 G1092688 1- B b1
Q 5002 TRANSISTOR XN1213-(TX) G3070194 1- B f1
Q 5003 IC PST596CNR R59-2978 G1092588 1- B e1
Q 5004 TRANSISTOR XN1213-(TX) G3070194 1- B d1
Q 5005 IC TC7S04FU TE85R G1091530 1- B e1
Q 5006 TRANSISTOR DTC144EK T146 G3070033 1- B e1
Q 5007 IC HD4074829TF R0320 G1093180 1- A C1
Q 5008 IC NM93C86AM8(TAPING) G1092512 1- A C1
Q 5009 TRANSISTOR DTC144EK T146 G3070033 1- B d2
Q 5010 IC TC7W125FU(TE12L) G1092923 1- B c1
Q 5011 IC TC7W125FU(TE12L) G1092923 1- A C1
Q 5012 IC TC7W125FU(TE12L) G1092923 1- A C2
Q 5013 IC NJM78L05UA TE1 G1091325 1- B e1
R 5001 CHIP RES. 680 1/10W 5% RMC1/10T 681J J24205681 1- B c1
R 5002 CHIP RES. 470 1/4W 5% RMC1/4 471JATP J24245471 1- B f1
R 5003 CHIP RES. 470 1/4W 5% RMC1/4 471JATP J24245471 1- B f1
R 5004 CHIP RES. 5.6k 1/16W 5% RMC1/16 562JATP J24185562 1- B d1
R 5005 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A C1
R 5006 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B e1
R 5007 CHIP RES. 5.6k 1/16W 5% RMC1/16 562JATP J24185562 1- B d1
R 5008 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B e1

LAY ADR

77

Display Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS. LOT.REF. SIDE

R 5009 CHIP RES. 1M 1/16W 5% RMC1/16 105JATP J24185105 1- B d1
R 5010 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C1
R 5011 CHIP RES. 470 1/4W 5% RMC1/4 471JATP J24245471 1- B e1
R 5012 CHIP RES. 470 1/4W 5% RMC1/4 471JATP J24245471 1- B e1
R 5013 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- B d2
R 5014 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B d2
R 5015 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B c2
R 5016 CHIP RES. 10 1W 5% RMC1 100JTE J24305100 1- B e2
R 5017 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B c2
S 5001 TACT SWITCH EVQ-333 H=5.0(TAPE) N5090046 1- A E1
S 5002 TACT SWITCH EVQ-333 H=5.0(TAPE) N5090046 1- A E2
X 5001 XTAL HC-49/U.2S 2.4576MHz 2.4576MHZ H0103166 1- B d1

LCD HOLDER RA0014900 1­LIGHT GUIDE RA0013200 1­REFLECTOR SHEET RA0013500 1­DIFFUSER SHEET RA0013600 1­INTER CONNECTOR RA0013700 1­SPONGE RUBBER R7130200 1­LED SPACER LH-5-4 S6000237 1­LED SPACER LH-5-2 S6000235 1-

LAY ADR

78

Circuit Diagram

Key Unit (Lot. 1~)

NOTE:
RESISTOR VALUES ARE IN Ω. 1/16W ;
CAPACITOR VALUES ARE IN µF. 50V ;
(T) CAPACITOR VALUES ARE TANTALUM ;
ELECTOROLYTIC CAPACITORS ARE IN µF. 16V ;
INDUCTOR VALUES ARE IN H ;
COIL VALUES ARE IN H ;
UNLESS OTHERWISE NOTED.

79

Key Unit (Lot. 6~)

Circuit Diagram

80

NOTE:
RESISTOR VALUES ARE IN Ω. 1/16W ;
CAPACITOR VALUES ARE IN µF. 50V ;
(T) CAPACITOR VALUES ARE TANTALUM ;
ELECTOROLYTIC CAPACITORS ARE IN µF. 16V ;
INDUCTOR VALUES ARE IN H ;
COIL VALUES ARE IN H ;
UNLESS OTHERWISE NOTED.

Key Unit

Parts Layout

A B C D

E

1

2

3

a b c d

e

1

Side A

BU4094BCFV
(Q5503)

DTC144EK (26)
(Q5506)

XN1213 (9L)
(Q5502, 5504, 5505)

DTC323TK (H02)
(Q5501)

2

3

Side B

81

Note:

82

Key Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS. LOT.REF. SIDE

*** KEY UNIT ***
PCB with Components CS1687001
Pinted Circuit Board FR004350C

C 5501 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- B b2
C 5502 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B b1
D 5501 LED TLG208 G2090147 1- A B2
D 5502 DIODE 1SS355 TE-17 G2070470 1- B c2
D 5503 DIODE 1SS355 TE-17 G2070470 1- B b2
D 5504 DIODE 1SS355 TE-17 G2070470 1- B a2
D 5505 LED TLG208 G2090147 1- A D2
D 5506 DIODE 1SS355 TE-17 G2070470 1- B b2
D 5507 LED TLG208 G2090147 1- A D2
D 5508 LED TLG208 G2090147 1- A C2
D 5509 LED GL3KG8 G2090432 1- A A1
D 5510 LED GL3HY8 G2090434 1- A A1
J 5501 CONNECTOR SB20-06WS P0090613 1- B a2
J 5502 CONNECTOR 12FMZ-BT P1090901 1- B a1
J 5503 CONNECTOR R41-2509H P1090714 1- A A2
JP5501 WIRE ASSY A1367+ T9206796A 1- B a2
Q 5501 TRANSISTOR DTC323TK T146 G3070042 1- B a2
Q 5502 TRANSISTOR XN1213-(TX) G3070194 1- B c2
Q 5503 IC BU4094BCFV-E1 G1092128 1- B c1
Q 5503 IC BU4094BCFV-E2 G1093527 23- B c1
Q 5504 TRANSISTOR XN1213-(TX) G3070194 1- B a2
Q 5505 TRANSISTOR XN1213-(TX) G3070194 1- B d1
Q 5506 TRANSISTOR DTC144EK T146 G3070033 1- B d1
R 5501 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- B a2
R 5502 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- B a2
R 5505 CHIP RES. 470 1/4W 5% RMC1/4 471JATP J24245471 1- B c2
R 5506 CHIP RES. 10k 1/10W 5% RMC1/10T 103J J24205103 1- B c2
R 5507 CHIP RES. 470 1/4W 5% RMC1/4 471JATP J24245471 1- B b2
R 5508 CHIP RES. 470 1/4W 5% RMC1/4 471JATP J24245471 1- B a2
R 5509 CHIP RES. 470 1/4W 5% RMC1/4 471JATP J24245471 1- B b2
R 5510 CHIP RES. 470 1/4W 5% RMC1/4 471JATP J24245471 1- B d1
R 5511 CHIP RES. 470 1/4W 5% RMC1/4 471JATP J24245471 1- B d1
R 5512 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B d1
S 5501 TACT SWITCH EVQ-333 H=5.0(TAPE) N5090046 1- A B1
S 5502 PUSH SWITCH SPPH110300 N4090142 1- A B2
S 5503 PUSH SWITCH SPPH110300 N4090142 1- A D2
S 5504 PUSH SWITCH SPPH110300 N4090142 1- A D2
S 5505 PUSH SWITCH SPPH110300 N4090142 1- A C2

LED SPACER LH-3-13 S6000350 1­LED SPACER LH-5-14 S6000387 1­LED SPACER LH-5-10 S6000243 1-

LAY ADR

83

Note:

84

Circuit Diagram

Filter Unit

NOTE:
RESISTOR VALUES ARE IN Ω. 1/16W ;
CAPACITOR VALUES ARE IN µF. 50V ;
(T) CAPACITOR VALUES ARE TANTALUM ;
ELECTOROLYTIC CAPACITORS ARE IN µF. 16V ;
INDUCTOR VALUES ARE IN H ;
COIL VALUES ARE IN H ;
UNLESS OTHERWISE NOTED.

85

Note:

86

Parts Layout

Filter Unit

A B C D

E

GFH

1

2

3

Side A

NJM2904M
(Q6006)

2SA1179 (M6)
(Q6001)

IMX1 (X1)
(Q6007)

2SC2812 (L6)
(Q6004, 6008)

UN5213 (8C)
(Q6002)

DAN202K (N)
(D6002, 6005)

XN1213 (9L)
(Q6003)

87

Filter Unit

a b c d

1

2

e

gfh

3

88

Side B

Filter Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS. LOT.REF. SIDE

*** FILTER UNIT ***
PCB with Components (w/o F6001 & F6002
Printed Circuit Board FR003740E

C 6002 CHIP CAP. 1uF 25V W5R CM32W5R105K25AT K22145801 1- A A3
C 6002 CHIP CAP. 1uF 50V B GRM42-2B105K50PT K22175801 18- A A3
C 6003 CHIP CAP. 1uF 25V W5R CM32W5R105K25AT K22145801 1- A B3
C 6003 CHIP CAP. 1uF 50V B GRM42-2B105K50PT K22175801 18- A B3
C 6004 AL.ELECTRO.CAP. 1000uF 25V RJ3-25V102M 1000UF K40149041 1- A B3
C 6006 AL.ELECTRO.CAP. 1000uF 25V RJ3-25V102M 1000UF K40149041 1- A B1
C 6007 CHIP CAP. 1uF 25V W5R CM32W5R105K25AT K22145801 1- A B1
C 6007 CHIP CAP. 1uF 50V B GRM42-2B105K50PT K22175801 18- A B1
C 6008 CHIP CAP. 1uF 25V W5R CM32W5R105K25AT K22145801 1- A C3
C 6008 CHIP CAP. 1uF 50V B GRM42-2B105K50PT K22175801 18- A C3
C 6009 CHIP CAP. 1uF 25V W5R CM32W5R105K25AT K22145801 1- A C3
C 6009 CHIP CAP. 1uF 50V B GRM42-2B105K50PT K22175801 18- A C3
C 6010 CHIP CAP. 0.1uF 25V B GRM40B104M25PT K22140811 1- A D3
C 6011 CHIP CAP. 0.01uF 50V B GRM40B103M50PT K22170817 1- A D3
C 6012 AL.ELECTRO.CAP. 100uF 25V RJ3-25V101M-T2 100UF K46140010 1- A D3
C 6013 AL.ELECTRO.CAP. 100uF 25V RJ3-25V101M-T2 100UF K46140010 1- A C2
C 6015 CHIP CAP. 470pF 50V B GRM39B471M50PT K22174805 1- A D2
C 6016 CHIP CAP. 0.1uF 25V B GRM40B104M25PT K22140811 1- A D2
C 6020 CHIP CAP. 0.01uF 50V B GRM40B103M50PT K22170817 1- A C3
D 6001 DIODE 1SS355 TE-17 G2070470 1- A C3
D 6002 DIODE DAN202K T146 G2070182 1- A C2
D 6004 DIODE DSA3A1 G2090445 1- A D2
D 6005 DIODE DAN202K T146 G2070182 1- A C3
D 6006 DIODE 1SS355 TE-17 G2070470 1- A C3
D 6007 DIODE 1SS355 TE-17 G2070470 1- A C3
D 6008 DIODE 1SS355 TE-17 G2070470 1- A D2
F 6001 FUSE 5A MF60NR250V 5A Q0000005 1­F 6002 FUSE 20A AF20A 20A Q0000079 1­FH6001 FUSE CLIP S-N5051#01 P2000059 1- A F1
FH6002 FUSE CLIP S-N5051#01 P2000059 1- A D3
J 6001 TERMINAL Y106 S5000179 1- A D1
J 6002 TERMINAL Y106 S5000179 1- A E1
J 6003 TERMINAL Y106 S5000179 1- A A2
J 6004 TERMINAL Y106 S5000179 1- A A3
J 6005 TERMINAL Y106 S5000179 1- A G1
J 6006 TERMINAL Y106 S5000179 1- A G2
J 6007 TERMINAL Y106 S5000179 1- A F1
J 6008 TERMINAL Y106 S5000179 1- A F2
J 6009 TERMINAL Y106 S5000179 1- A F3
J 6010 TERMINAL Y106 S5000179 1- A G3
J 6011 CONNECTOR SC25-02WS P0090621 1- A C3
J 6012 CONNECTOR B2B-EH P0090666 1- A D3
J 6014 TERMINAL Y106 S5000179 1- A D3
J 6015 TERMINAL Y106 S5000179 1- A E3
JP6001 WIRE ASSY A1367+ T9206789 1- A C3
Q 6001 TRANSISTOR 2SA1179M6-TA G3111797F 1- A C2
Q 6002 TRANSISTOR UN5213-(TX) G3070192 1- A C2
Q 6003 TRANSISTOR XN1213-(TX) G3070194 1- A C3
Q 6004 TRANSISTOR 2SC2812L6-TA G3328127F 1- A C2
Q 6004 TRANSISTOR 2SC2812NL6-TB G3328128F 7- A C2
Q 6006 IC NJM2904M(TE2) G1093091 1- A C3
Q 6007 TRANSISTOR IMX1 T110 G3070024 1- A C3
Q 6008 TRANSISTOR 2SC2812L6-TA G3328127F 1- A C3
Q 6008 TRANSISTOR 2SC2812NL6-TB G3328128F 7- A C3
R 6001 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A D2
R 6002 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A D2
R 6003 CHIP RES. 220k 1/16W 5% RMC1/16 224JATP J24185224 1- A D2
R 6004 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D2
R 6005 CHIP RES. 22 1/10W 5% RMC1/10T 220J J24205220 1- A C1
R 6006 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A C2
R 6007 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A C2
R 6011 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A C3
R 6012 CEMENT RES. 5.6 5W 10% ERF-5AK5R6 J30376569 1- A E1
R 6013 CHIP RES. 22 1/10W 5% RMC1/10T 220J J24205220 1- A C2

)

CS1682001

LAY ADR

89

Filter Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS. LOT.REF. SIDE

R 6015 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C3
R 6016 CHIP RES. 68k 1/16W 5% RMC1/16 683JATP J24185683 1- A C3
R 6018 CHIP RES. 18k 1/16W 1% RMC1/16 183FTP J24183183 1- A C3
R 6019 CHIP RES. 100k 1/16W 1% RMC1/16 104FTP J24183104 1- A C3
R 6020 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C3
R 6021 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C3
R 6022 CHIP RES. 18 1/2W 5% RMC1/2 180JTE J24275180 1- A D3
R 6023 CHIP RES. 56k 1/16W 5% RMC1/16 563JATP J24185563 1- A D2
R 6024 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A D2
R 6025 CHIP RES. 180 1/16W 5% RMC1/16 181JATP J24185181 1- A D3
R 6026 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A D2
R 6027 CHIP RES. 1.8k 1/16W 5% RMC1/16 182JATP J24185182 1- A D2
R 6028 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D3
R 6029 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A C3
R 6030 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A C3
R 6031 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A C3
R 6033 CHIP RES. 100k 1/8W 5% RMC1/8T 104J J24215104 1- A C3
RL6001 RELAY DC12V ACP131 DC12V M1190152 1- A C1
RL6003 RELAY DC12V ACP131 DC12V M1190152 1- A C2
T 6001 TOROIDAL COIL D12A RI16X8X8 L0022119 1- A A3
T 6003 TOROIDAL COIL D12A RI16X8X8 L0022119 1- A B2

RUBBER RA0217100 16-

LAY ADR

90

Circuit Diagram

Parts Layout

VR Unit

Side A Side B

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS. LOT.REF. SIDE

*** VR UNIT ***
PCB with Components CS1688001
Printed Circuit Board FR00436C 1-

VR5901 POT. RK0971110 10KA(L=25) J60800241 1- A

LAY ADR

91

SQL Unit

Circuit Diagram

Parts Layout

Side A Side B

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS. LOT.REF. SIDE

PCB with Components (w/o JP5951

Printed Circuit Board FR004370C 1­JP5951 WIRE ASSY T9206811 1- B
VR5951 POT. RK0971110 10KB(L=25) J60800242 1- A

)

92

*** SQL UNIT ***

CS1689001

LAY ADR

Circuit Diagram

PS Unit

93

PS Unit

Parts Layout

A B C D E

NJM2904L
(IC0021)

S-80745AN (DI)
(IC0001)

1

BT138D-600
(Q0001)

2SK1017
(Q0002, 0003)

2

2SC4166Q
(Q0004)
2SC3246
(Q0006, 0023)

2PA1015
(Q0021)
2PC1815
(Q0022)

3

94

Side A

DTC114ESA
(Q0005)

PS Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS. LOT.REF. SIDE

*** PS ASS'Y (Q7000303) ***
B 0001 FERRITE BEADS B-20L-44 L9190120 1- A C2
C 0001 FILM CAP. 0.47uF 250V ECQU2A474MG K52240008 1- A D2
C 0002 FILM CAP. 0.22uF 250V ECQU2A224MG K52240007 1- A E2
C 0003 CERAMIC CAP. 0.0033uF E ECKDRS332MEY K12269003 1- A D2
C 0004 CERAMIC CAP. 0.0033uF E ECKDRS332MEY K12269003 1- A E2
C 0006 AL.ELECTRO.CAP. 1000uF 200V KMM200VNSN1000M30D K40239006 1- A D1
C 0007 AL.ELECTRO.CAP. 1000uF 200V KMM200VNSN1000M30D K40239006 1- A D2
C 0009 FILM CAP. 0.033uF 800V QXF2K333JRPT K52290001 1- A C2
C 0010 FILM CAP. 0.033uF 800V QXF2K333JRPT K52290001 1- A C1
C 0011 CERAMIC CAP. 470pF 1kV R DE0705R471K1K K10309002 1- A C1
C 0012 CERAMIC CAP. 470pF 1kV R DE0705R471K1K K10309002 1- A D1
C 0013 FILM CAP. 0.01uF 630V MMC103K-630 K52280009 1- A C1
C 0014 CERAMIC CAP. 0.001uF 1kV B ECKD3A102KBP K10309001 1- A C2
C 0016 AL.ELECTRO.CAP. 100uF 35V ECA1VHG101 K40169036 1- A C2
C 0017 AL.ELECTRO.CAP. 4.7uF 50V ECA1HHG4R7 K40179074 1- A C2
C 0018 CERAMIC CAP. 0.0033uF E ECKDRS332MEY K12269003 1- A C1
C 0021 AL.ELECTRO.CAP. 2200uF 25V EEUFC1E222 K40149063 1- A A1
C 0022 AL.ELECTRO.CAP. 2200uF 25V EEUFC1E222 K40149063 1- A A2
C 0023 AL.ELECTRO.CAP. 2200uF 25V EEUFC1E222 K40149063 1- A A1
C 0024 AL.ELECTRO.CAP. 2200uF 25V EEUFC1E222 K40149063 1- A A1
C 0025 AL.ELECTRO.CAP. 470uF 25V EEUFC1E471L K40149064 1- A A2
C 0026 AL.ELECTRO.CAP. 82uF 16V EEUFC1C820 K40129094 1- A A2
C 0027 FILM CAP. 0.01uF 630V MMC103K630 K52280009 1- A A1
C 0028 FILM CAP. 0.01uF 630V MMC103K630 K52280009 1- A A1
C 0030 FILM CAP. 0.01uF 50V ECQB1H103KF K52170021 1- A A2
C 0031 FILM CAP. 0.01uF 50V ECQB1H103KF K52170021 1- A A2
C 0032 FILM CAP. 0.1uF 50V ECQV1H104JL K52170020 1- A B3
C 0033 FILM CAP. 0.0022uF 50V ECQB1H222KF K52170022 1- A A3
C 0034 AL.ELECTRO.CAP. 0.47uF 50V ECA1HHGR47 K40179075 1- A A3
C 0035 FILM CAP. 0.1uF 50V ECQV1H104JL K52170020 1- A A3
D 0001 DIODE D10XB60 G2090753 1- A D1
D 0002 DIODE RD15EB2 G2090507 1- A C2
D 0003 DIODE P6KE400C G2090759 1- A C2
D 0005 DIODE HZ2B1 G2090755 1- A C2
D 0006 DIODE 1SS270A G2090754 1- A C2
D 0007 DIODE 1SS270A G2090754 1- A C2
D 0008 DIODE 1SS270A G2090754 1- A C2
D 0009 DIODE 1SS270A G2090754 1- A C1
D 0010 DIODE 1SS270A G2090754 1- A C1
D 0021 DIODE 1SS270A G2090754 1- A A2
D 0022 DIODE 30GWJ2C42C G2090758 1- A A1
D 0023 DIODE 30GWJ2C42C G2090758 1- A B1
D 0024 DIODE HZ15-3 G2090756 1- A A2
D 0025 DIODE HZ7A1L G2090757 1- A A2
D 0026 DIODE 1SS270A G2090754 1- A B3
D 0027 DIODE 1SS270A G2090754 1- A A3
D 0028 DIODE HZ5C1 G2090188 1- A A2
F 0001 FUSE 215005 Q0000092 1- A E2
IC0001 IC S-80745AN-D9-T1 G1092610 1- A C1
IC0021 IC NJM2904L G1093156 1- A A2
L 0001 LINE FILTER LH28V35-122 S8100821 1- A E2
L 0002 LINE FILTER LH28V35-122 S8100821 1- A E1
L 0021 RFC FL1783A S8100206 1- A A1
L 0022 RFC FL1783A S8100206 1- A
PC0001 PHOTO COUPLER PC123FY2 G0090036 1- A B3
PC0002 PHOTO COUPLER PC123FY2 G0090036 1- A B3
Q 0001 TRIAC BT138D-600 G3090129 1- A E1
Q 0002 FET 2SK1017 G3810170 1- A C1
Q 0003 FET 2SK1017 G3810170 1- A C1
Q 0004 TRANSISTOR 2SC4166-Q G3341660Q 1- A C3
Q 0005 TRANSISTOR DTC114ESA G3090130 1- A C2
Q 0006 TRANSISTOR 2SC3246H G3332460H 1- A C2
Q 0021 TRANSISTOR 2PA1015Y G3090131 1- A A2
Q 0022 TRANSISTOR 2PC1815Y G3090132 1- A B3
R 0001 CARBON FILM RES. 470k 1/2W 5% RD50SS470K J J01279001 1- A D2
R 0002 METAL FILM RES. 100 1W 5% ERG-1SJ101 J22305101 1- A C2

LAY ADR

95

PS Unit

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS. LOT.REF. SIDE

R 0003 THERMISTOR 8D-13 G9090130 1- A E1
R 0004 CARBON FILM RES. 1k 1/6W 5% RD16PJ J01225102 1- A E1
R 0005 METAL FILM RES. 100 1W 5% ERG-1SJ101 J22305101 1- A C2
R 0006 METAL FILM RES. 100k 1W 5% ERG-1SJ104 J22309049 1- A D2
R 0007 METAL FILM RES. 100k 1W 5% ERG-1SJ104 J22309049 1- A D2
R 0008 CARBON FILM RES. 1M 1/6W 5% RD16PJ105 J01225105 1- A C3
R 0009 CARBON FILM RES. 1M 1/6W 5% RD16PJ105 J01225105 1- A C3
R 0010 CARBON FILM RES. 68k 1/6W 5% RD16PJ683 J01225683 1- A C3
R 0011 CARBON FILM RES. 7.5k 1/6W 5% RD16PJ752 J01225752 1- A C2
R 0012 CARBON FILM RES. 10 1/6W 5% RD16PJ100 J01225100 1- A C1
R 0013 CARBON FILM RES. 10 1/6W 5% RD16PJ100 J01225100 1- A C1
R 0014 CARBON FILM RES. 4.7k 1/6W 5% RD16PJ472 J01225472 1- A C2
R 0015 CARBON FILM RES. 220k 1/6W 5% RD16PJ224 J01225224 1- A C3
R 0016 CARBON FILM RES. 1.2k 1/6W 5% RD16PJ122 J01225122 1- A C3
R 0017 CARBON FILM RES. 220k 1/6W 5% RD16PJ224 J01225224 1- A C1
R 0018 CARBON FILM RES. 47k 1/6W 5% RD16PJ473 J01225473 1- A C2
R 0019 CARBON FILM RES. 27k 1/6W 5% RD16PJ273 J01225273 1- A C1
R 0020 CARBON FILM RES. 3k 1/6W 5% RD16PJ302 J01225302 1- A C2
R 0021 CARBON FILM RES. 22 1/6W 5% RD16PJ220 J01225220 1- A C1
R 0022 CARBON FILM RES. 2.2 1/6W 5% RD16PJ2R2 J01225229 1- A A2
R 0023 CEMENT RES. 0.01 5W 10% MPC75 0.01 K J30379003 1- A A2
R 0024 CEMENT RES. 0.01 5W 10% MPC75 0.01 K J30379003 1- A A2
R 0025 CARBON FILM RES. 1k 1/6W 5% RD16PJ102 J01225102 1- A A2
R 0026 CARBON FILM RES. 6.8k 1/6W 5% RD16PJ682 J01225682 1- A A2
R 0027 CARBON FILM RES. 6.8k 1/6W 5% RD16PJ682 J01225682 1- A A2
R 0028 CARBON FILM RES. 22k 1/6W 5% RD16PJ223 J01225223 1- A A2
R 0029 CARBON FILM RES. 22k 1/6W 5% RD16PJ223 J01225223 1- A B3
R 0030 CARBON FILM RES. 100 1/6W 5% RD16PJ101 J01225101 1- A A2
R 0031 CARBON FILM RES. 100 1/6W 5% RD16PJ101 J01225101 1- A B3
R 0032 CARBON FILM RES. 3k 1/6W 5% RD16PJ302 J01225302 1- A A3
R 0033 CARBON FILM RES. 150k 1/6W 5% RD16PJ154 J01225154 1- A A2
R 0035 CARBON FILM RES. 1k 1/6W 5% RD16PJ102 J01225102 1- A A3
R 0036 CARBON FILM RES. 470 1/6W 5% RD16PJ471 J01225471 1- A A3
R 0037 CARBON FILM RES. 20k 1/6W 5% RD16PJ203 J01225203 1- A A3
R 0038 CARBON FILM RES. 22k 1/6W 5% RD16PJ223 J01225223 1- A A3
R 0039 CARBON FILM RES. 470 1/6W 5% RD16PJ471 J01225471 1- A A2
R 0040 CARBON FILM RES. 820 1/6W 5% RD16PJ821 J01225821 1- A A2
R 0041 CARBON FILM RES. 470 1/6W 5% RD16PJ471 J01225471 1- A B3
T 0001 CONVERTER TRANS. FP2017A-501 S8100822 1- A B1
T 0002 CONVERTER TRANS. FP2017A-501 S8100822 1- A B2

TERMINAL (4pcs) P91250 TAB Q5000154 1­FUSE CLIP (2pcs) F220P P2000064 1­AC SELECTER SK1019A-B S8100823 1­TERMINAL (2pcs) RT-01N-2.3A Q5000153 1­MODULE MB2013A S8100824 1­CABLE ASSY(B) FP2017A-802 S8100825 1­CABLE ASSY(C) FP2017A-803 S8100826 1­CABLE ASSY(D) FP2017A-804 S8100827 1­CABLE ASSY(E) FP2017A-805 S8100828 1­CABLE ASSY(F) FP2017A-806 S8100829 1­HEATSINK FP2017A-611 S8001785 1­HEATSINK(S) FP2017A-613 S8001787 1­FITTING A FP2017A-614 S8001788 1­FITTING B FP2017A-615 S8001789 1­THERMAL CONDUCTER FP2017A-701 S8001790 1­THERMAL CONDUCTER FB419 S8001781 1­THERMAL CONDUCTER (4pcs) TC45A-(CP-T0-3P) S8001782 1­THERMAL CONDUCTER TC45A-(CP-T0-220) S8001783 1­FITTING (5pcs) FR336A S8001784 1­FITTING FR309A S8000030 1­SPACER (5pcs) 8MM S8001794 1­COVER FP2017A-612 S8001786 1-

LAY ADR

96

Copyright 2004
VERTEX STANDARD CO., LTD.
All rights reserved

No portion of this manual
may be reproduced without
the permission of
VERTEX STANDARD CO., LTD.

E136890A
