Wilton 99192, 99195 Operation And Safety Instructions
WARNING:Read and understand
all instructions. Failure to follow all
instructions may result in electric
shock, fire, and/or serious injury.
For your safety
10" Compound
Miter Saw
Models 99192 and 99195
Operation
and Safety
Instructions
Model 99192 shown
®
IMPORTANT INFORMATION
2
TABLE OF CONTENTS
INTRODUCTION
Your new Wilton®10-inch Compound Miter Saw is a
rugged, dependable tool that will cut wood and other
materials at straight and compound angles with
extreme accuracy and repeatability. Easy to operate,
it’s the ideal saw for the serious Do-It-Yourselfer.
Take time to read these Operation and Safety
Instructions. Athorough understanding of your saw
will enable you to use it to its full potential.
SPECIFICATIONS
LASER LIGHT
Laser module...........S&S 1984S6; fixed focus, elliptical
dot with line beam lenses
Laser type.......................................................Class III A
Laser power..........................................up to 5mW MAX
Laser wavelength................................................635 nm
MITER SAW
Model numbers...................................99192 and 99195
Power source..............120V AC, 60 Hz, 15 A, 2 3/4 Hp
Speed .............................................................5000 RPM
Blade diameter..........................................10" (40 tooth)
Arbor size...................................................5/8” (16 mm)
Crosscut at 0˚, 0˚ bevel.............................2 3/4 x 5 1/2"
Miter at 45° miter, 0˚ bevel........................2 3/4 x 3 1/2"
Bevel 0° miter, 0° bevel.............................1 7/8 x 4 3/4"
Compound at 45°, 45° bevel.....................1 7/8 x 3 1/2"
Miter detent stops...........0, 15, 22.5, 30, 45° right & left
Positive stops............0, 15, 22.5, 31.6 & 45° left & right
Bevel................................................................0, 45° left
Dust collection...........................................................Yes
Net weight..............................................39 lbs (17.7 kg)
LIMITED WARRANTY
Wilton Power Tools are warranted against defects in workmanship and material for a period of two (2) years from the date of purchase.
This warranty does not cover defects due directly or indirectly to misuse, abuse, negligence or accidents, normal wear-and-tear,
improper repair or alterations, lack of maintenance, or use for purposes other than those for which the tool was designed. This
warranty does not cover products used for commercial, industrial or educational purposes. Any return must be preauthorized, so
please contact our Consumer Relations Department with warranty claims at 1-800-274-6848 for further instructions. If it is determined
that the product is within this warranty, replacement parts or complete product replacement will be made at our discretion.
WMH TOOL GROUPTMLIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE LIMITED WARRANTY FOR EACH PRODUCT.
EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OF MERCHANTABILITYAND FITNESS ARE EXCLUDED. SOME
STATES DO NOTALLOW LIMITATIONS ON HOW LONG THE IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY
NOT APPLY TO YOU.
WMH TOOL GROUPTMSHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR FOR
INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF OUR PRODUCTS. SOME
STATES DO NOTALLOW THE EXCLUSION OR LIMITATIONS OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
IMPORTANT INFORMATION ....................................2
Introduction..........................................................2
Specifications.......................................................2
LIMITED WARRANTY...............................................2
SAFETY General Safety Warnings............................3
Special Safety Rules for Miter Saws...................4
Special Safety Rules for the Laser......................6
Electrical Requirements .......................................6
BEFORE YOU START...............................................8
Know Your Miter Saw..........................................8
Unpacking the Miter Saw.....................................9
ASSEMBLY..............................................................10
Woodworking Terms..........................................10
Assembling the Miter Saw.................................10
Installing Extension Wings.................................10
Release the Handle ...........................................11
Blade-to-Fence Adjustment................................11
Base-to-Blade Adjustment.................................12
Bevel Stop Adjustment......................................13
Mounting the Saw..............................................13
OPERATION ............................................................14

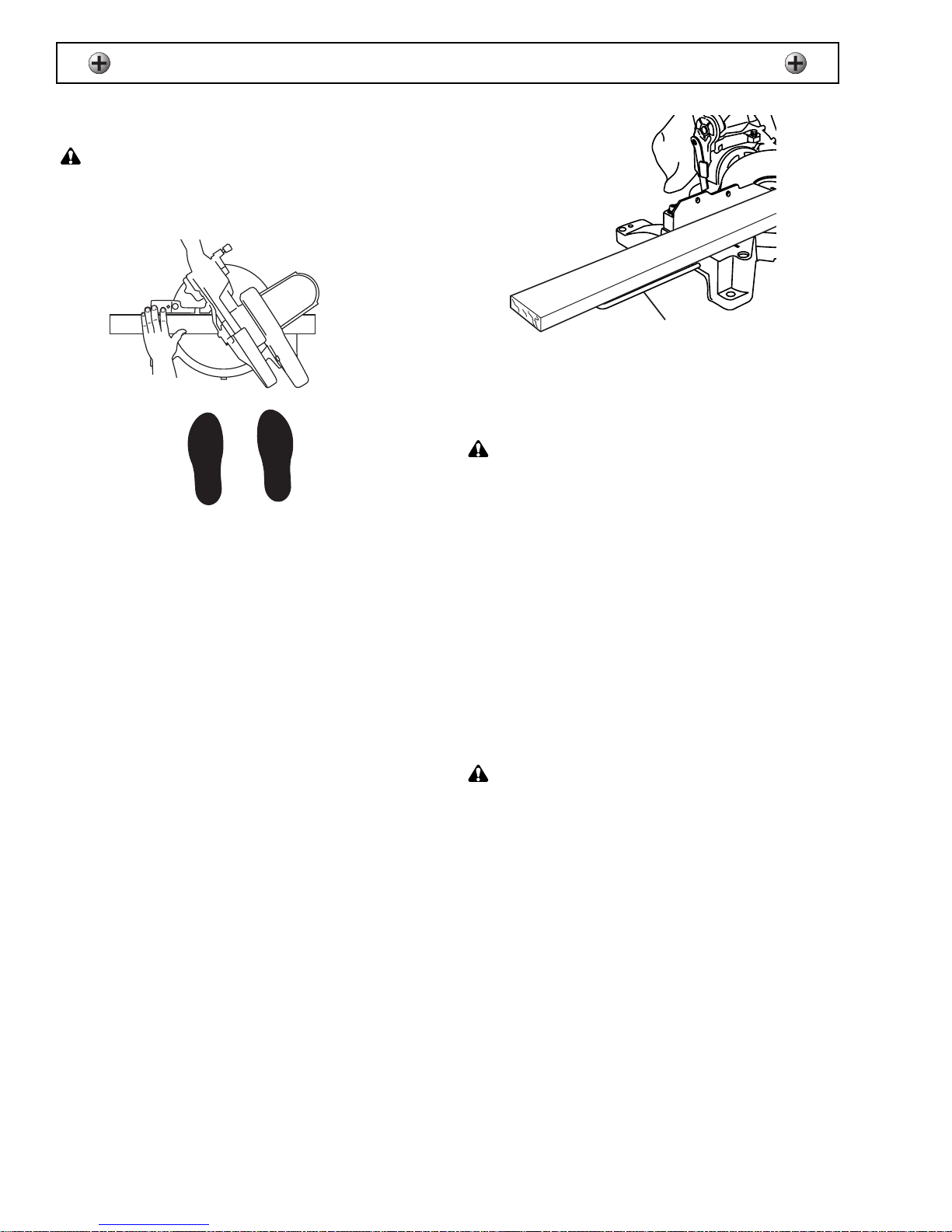

Body and Hand Positions..................................14
Supporting the Workpiece .................................14
Using Carbide Tipped Blades ............................14
Changing the Blade...........................................14
Miter Cut............................................................16

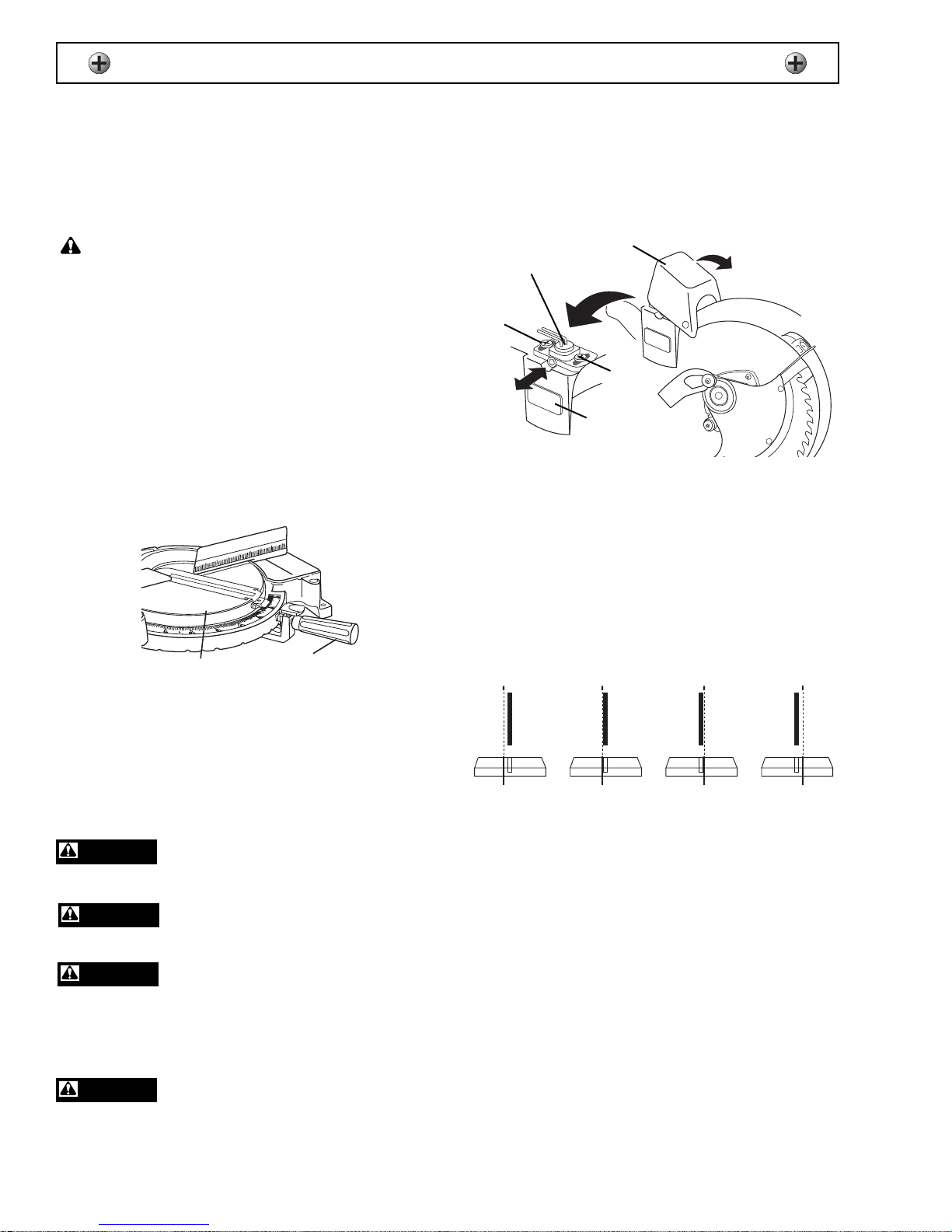

Align Laser Pointer with Blade ..........................16
Cutting Bowed Material .....................................17
Bevel Cut...........................................................17
Compound Cut...................................................17
Cutting Base Molding ........................................17
Cutting Crown Molding ......................................18
MAINTENANCE .......................................................19
SERVICE..................................................................20
SAFETY
3
Read, understand and follow all operating instructions,
safety operations and symbols in this manual and
warning labels on the miter saw before operating,
maintaining, and cleaning your power tool.
Indicates the presence of a hazardous
situation which WILL cause serious injury or
death.
WARNING:
Indicates the presence of a hazardous
situation which CAN cause SEVERE personal injury.
CAUTION:
Indicates the presence of a hazardous situation
which WILL or CAN cause MINOR or MODERATE PERSONAL
injury, or could cause machine damage.
Note:
Indicates installation, operation, or maintenance
information which is important but not hazard-related.
GENERAL SAFETY WARNINGS
WARNING:
Failure to read all instructions and follow the
general safety warnings and other safety warnings and
cautions may result in serious personal injury.
Know your power tool – read the instruction manual.
Understand your power tool’s application, limitations,
and potential hazards.
Ground all tools – this tool is equipped with a
3-prong plug. It must be plugged into a properly
grounded receptacle.
Keep safety guards in place – and in working order
with proper adjustment and alignment.
Keep work area clean – prevent accidents. Take time
to clean the tool, the work area, and especially the
floor. The floor can become slippery from sawdust,
wax and other materials.
Avoid dangerous environments – do not use power
tools in damp or wet environments. Select a work area
with proper lighting.
Keep children away – from the work area. Children
and others should be a safe distance from the work
area.
Make the workshop childproof – use padlocks and
master switches. Remove starter keys from power
tools when not in use.
Do not force the tool – beyond its designed rate. For
a better and safer job, allow the tool to work within
manufacturer’s recommendation.
Use the right tool – for the job. Do not force a tool or
its attachments to perform a task that it is not designed
to do.
Wear the proper apparel – and non-slip footwear
when operating power tools. Do not wear loose
clothing, gloves, neckties, rings, bracelets or other
jewelry which may become caught in moving parts.
Keep long hair away from your face and tied back. Roll
long sleeves above the elbow.
Use safety goggles at all
times – which comply with
ANSI Z87.1. Normal safety
glasses only have impact
resistant lenses and are not
designed for safety. Wear a
face or dust mask when
working in a dusty environment. Use ear protection,
such as plugs or muffs, during extended periods of
operation.
Secure your work – using clamps or a vise when
practical. It frees both hands and is safer to operate
the tool.
Don’t overreach – and keep proper balance and
footing at all times.
Maintain your tools with care – keeping them clean
for best and safest performance.
Disconnect your tool – unplug the power cord from
the electrical source when making adjustments,
changing parts, cleaning, or working on the tool.
Avoid accidental starting – by ensuring the ON/OFF
switch is in the OFF position and the power cord is
unplugged from the electrical outlet.
Use recommended accessories – by the tool’s
manufacturer. Read, understand and follow the
instructions supplied with accessories. Using incorrect
accessories may be hazardous.
Never stand on the tool – or store materials above or
near it. Standing on the tool to reach materials could
result in serious injury if it tips or is accidentally
contacted.
Check any damaged parts – discontinue using a
damaged tool until the part is carefully checked.
Ensure that all parts will operate and perform properly.
Check for alignment of moving parts, jamming,
breakage, improper mounting, and any other condition
that may affect the tool’s operation. Any part that is
damaged should be properly repaired or replaced
before use.
SAVE THESE SAFETY INSTRUCTIONS
DANGER
Never leave the tool unattended while it’s
running – turn OFF the power. Do not leave the tool
unattended until it reaches a complete stop.
Drugs, Alcohol, Medication – are not to be used
when operating the tool.
Wear a face mask or dust mask – when sawing.
Some dust created by power sanding, sawing,
grinding, drilling, and other construction activities
contain chemicals known to cause cancer, birth
defects, or other reproductive harm. Examples of
these chemicals include:
– Lead from lead-based paints
– Crystalline silica from bricks, cement, and other
masonry products
– Arsenic and chromium from chemically treated
lumber.
To reduce your exposure to these chemicals: work in
a well-ventilated area, use approved safety
equipment, and use dust masks that are specially
designed to filter out microscopic particles.
SPECIAL SAFETY RULES FOR
MITER SAWS
WARNING:
Do not operate or plug in your miter saw
until it is completely assembled and installed according to the
instructions. Read and understand the following operating
instructions and safety warnings in the manual and on the miter
saw.
Before Operating Your Miter Saw
Check for proper assembly and proper alignment of
moving parts.
Understand the function and proper use of:
●
Trigger switch/start button
●
Lower blade guard
●
Miter locks
●
Bevel lock knob
●
Handle latch
●
Arbor lock
Know the condition of your miter saw. If any part is
missing, bent, or does not operate properly, replace
the component before you continue to use your saw.
Determine the type of work you are going to be doing
before you operate your saw. Properly protect your
body including your eyes, hands, face, and ears.
Avoid injury from jams, slips, or thrown pieces
●
Use the correct 10-inch blade for the material and
type of cut. Do not cut materials which shatter, grab
the blade, or cause other danger.
●
The arrow on the blade must correspond with the
arrow on the upper blade cover. When you are
facing the front of the saw, teeth on the blade
should point downward.
●
Only use a sharp blade that is in good condition.
Check alignment of the blade after it is installed.
Unplug the saw and carefully spin the blade using
your hand. The blade should not contact any
components of the saw. If it does, correct the
problem before operating the saw.
●
Make sure the blade and blade collars are clean
and the blade collar is properly installed.
●
Make sure the arbor bolt is properly installed and
tightened.
●
Ensure all clamps and locks are tight. Verify there is
no excessive play in any parts.
●
Allow the blade to reach full speed before cutting.
Do not cut freehand
●
The workpiece should be tight against the fence.
Verify the workpiece will not rock or twist when it is
being cut. The area between the workpiece and the
saw must be free from debris.
●
Make sure there is no gap between the workpiece,
fence, and base of the saw. Agap could allow the
workpiece to move when it is being cut.
●
Use clamps, fixtures or other devices to hold an
unstable workpiece. Do not secure waste piece.
Do not cut more than one workpiece at a time
●
Allow room so the cut-off workpiece can move after
it is cut. It could create a hazard by becoming
wedged against the blade.
Be very careful when cutting odd shaped,
extremely large, or very small workpieces
●
Plan your work so an odd shaped workpiece cannot
slip or pinch the blade. When cutting material like
molding, it must lie flat or be held by a fixture. Do
not allow the material to rock, twist, or slip.
●
Secure sagging workpieces with saw horses, tables
or other additional supports.
●
Do not cut small workpieces that must be held
closer than 4 inches (102 mm) from the blade.
●
Properly support round material when cutting.
Dowel rods and tubing have a tendency to roll while
being cut. This could allow the blade to “bite” into
the material causing a hazardous condition. Hold
round material in place using clamps or other
fixtures.
SAFETY
4
SAVE THESE SAFETY INSTRUCTIONS
SAFETY
5
●
Inspect the workpiece for nails or other foreign
objects before it is cut.
●
Do not allow anyone to stand behind the saw or
close to the workpiece where debris can be thrown.
●
Operate your saw in a clear, safe environment.
Avoid contact with a rotating blade
●
Do not wear gloves, loose clothing, or jewelry.
●
Tie back long hair and roll long sleeves above the
elbow.
Avoid injury from accidental starting of saw
●
Unplug the power cord from the electrical source.
●
Disconnect the lower blade guard.
●
Install or remove the blade.
●
Perform maintenance or make adjustments.
Avoid injury from electrical shock
●
Do not touch the metal blades on the power cord
plug when inserting or removing the plug from an
electric outlet.
Avoid injury from a fire hazard
●
Do not operate the saw near flammable liquids,
vapors, or gases.
When Operating Your Miter Saw
Avoid injury from unexpected saw movement
●
Use the saw on a firm level surface with adequate
space for handling and supporting the workpiece.
●
Be sure the saw cannot move when operated.
Secure the saw to a workbench or table with heavy
duty screws, washers, and nuts.
Before moving the saw
●
Unplug the power cord from the electrical source.
●
Lock the handle in the down position using the
handle latch.
Avoid back injury
●
Obtain help when it is necessary to raise the saw
more than 10 inches (254 mm).
●
Bend your knees when lifting the saw.
●
Carry your saw by the carrying handle or base. Do
not carry your saw by the power cord or the trigger
handle. Carrying the saw by the power cord could
cause damage to the insulation or the wire
connections resulting in electric shock or fire.
Whenever Your Miter Saw is Running
WARNING:
• Do not make a careless error just because you operate the
saw frequently. Aneglectful moment can cause a severe injury.
• Do not lubricate the blade while it is spinning.
Prior to cutting a workpiece
●
Test the operation of your saw. If you feel excessive
vibration or hear an unusual noise, immediately
stop operating the saw. Correct the problem before
using.
Allow movement of the waste portion of the
workpiece
●
Do not hold it, clamp it, touch it or use a length stop
against it. The cut-off waste portion must be free to
move. It could become wedged against the blade
causing a hazard.
Avoid awkward operation
●
Make sure your hand is never closer than 4 inches
from the blade.
●
Do not cross your arms in front of the blade while
operating the saw.
Do not force the blade through the workpiece
●
Lower the blade through the workpiece fast enough
to allow the blade to cut without binding or bogging
down.
Before removing obstructed material
●
Release the trigger switch/start button, wait for the
blade to stop moving, and unplug the power cord
from the electric outlet.
After completing a cut
●
Keep the handle in the down position. Release the
trigger switch/start button and wait for the blade to
stop moving.
SAVE THESE SAFETY INSTRUCTIONS
SPECIAL SAFETY RULES FOR
THE LASER
Laser light - do not stare into beam,
aperture, or into a reflection from a
mirror-like surface.
Avoid exposure - laser radiation is
emitted from top rear of the guard
housing aperture.
Do not disassemble laser module.
The laser is a CLASS III A laser
product that can emit laser power up to 5 mW MAX at
635 nm, which could result in exposure with the
module disassembled. The laser unit complies with
21 CFR 1040.10 and 1040.11.
Use of controls or adjustments or
performance of procedures other than
those specified in this manual may result in hazardous
radiation exposure.
ELECTRICAL REQUIREMENTS
WARNING:
• Use only manufacturer’s recommended replacement parts, or
equivalent, when servicing this tool.
• Do not touch the metal blades on the power cord plug when
removing or installing the plug into an electrical outlet.
• To avoid electrical hazards, fire hazards, or damage to the
tool, use proper circuit protection.
Your miter saw is wired at the factory for 120V
operation. Connect to a 120V, 15 AMP time delayed
fuse or circuit breaker. To avoid shock or fire, replace
power cord immediately if it is worn, cut, or damaged in
any way.
Use a separate electrical circuit for your tools.
This circuit must not be less than a #12 wire and
should be protected with a 15 Amp time delayed fuse.
Before connecting the motor to the power line, make
sure the switch is in the OFF position and the electric
current is rated the same as the current stamped on
the motor nameplate. Running at a lower voltage will
damage the motor.
Do not modify the power cord plug. If it does not
match the electrical outlet, have the proper outlet
installed by a qualified electrician.
This tool is intended for use on a circuit that has a
receptacle like the one illustrated: a 3-prong electrical
plug (1) and a receptacle (2) that has a grounding
conductor. If a properly grounded receptacle is not
available, have a certified electrician check the
receptacle.
SAFETY
6
SAVE THESE SAFETY INSTRUCTIONS
DANGER
DANGER
DANGER
DANGER
1
2
Loading...
