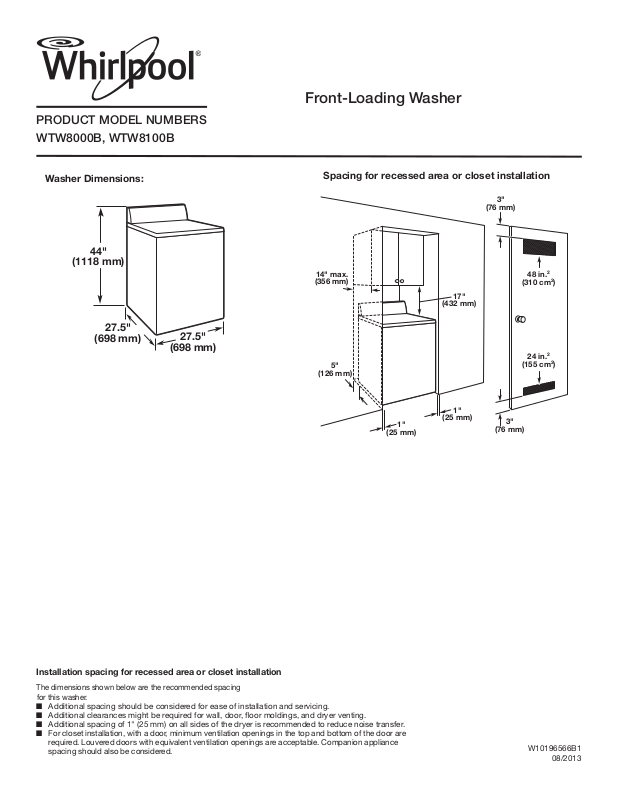

PRODUCT MODEL NUMBERS WTW8000B, WTW8100B
Washer Dimensions:
44" (1118 mm)
27.5"
(698 mm) 27.5"
(698 mm)
Front-Loading Washer
Spacing for recessed area or closet installation
3" (76 mm)
14" max. |
48 in.2 |
(356 mm) |
(310 cm2) |
|
17" |
|
(432 mm) |
24 in.2 5" (155 cm2)
(126 mm)
|
1" |
|
1" |
(25 mm) |
3" |
|
||
|
(76 mm) |
|
(25 mm) |
|
|
|
|
Installation spacing for recessed area or closet installation
The dimensions shown below are the recommended spacing for this washer.
■■ Additional spacing should be considered for ease of installation and servicing.
■■ Additional clearances might be required for wall, door, floor moldings, and dryer venting.
■■ Additional spacing of 1" (25 mm) on all sides of the dryer is recommended to reduce noise transfer. ■■ For closet installation, with a door, minimum ventilation openings in the top and bottom of the door are required. Louvered doors with equivalent ventilation openings are acceptable. Companion appliance
spacing should also be considered.
W10196566B1
08/2013
