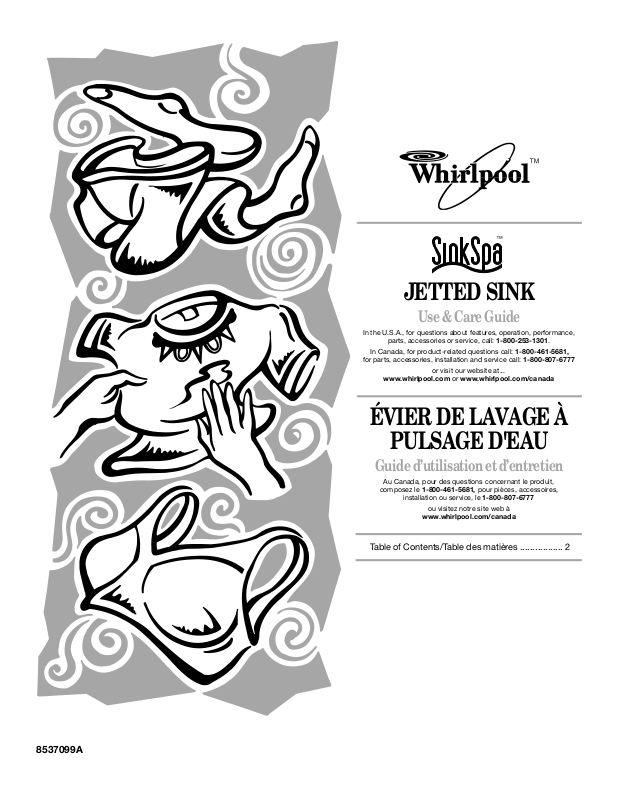

Whirlpool JETTED SINK User Manual

JETTED SINK

Use & Care Guide

In the U.S.A., for questions about features, operation, performance,

parts, accessories or service, call: 1-800-253-1301.

In Canada, for product-related questions call: 1-800-461-5681,

for parts, accessories, installation and service call: 1-800-807-6777

www.whirlpool.com or www.whirlpool.com/canada

or visit our website at...

ÉVIER DE LAVAGE À

PULSAGE D'EAU

Guide d’utilisation et d’entretien

Au Canada, pour des questions concernant le produit,

composez le 1-800-461-5681, pour pièces, accessoires,

installation ou service, le 1-800-807-6777

ou visitez notre site web à

www.whirlpool.com/canada

Table of Contents/Table des matières ................. 2

8537099A

TABLE OF CONTENTS

TABLE DES MATIÈRES

JETTED SINK SAFETY...................................................................2

PARTS AND FEATURES................................................................3

JETTED SINK USE .........................................................................3

Loading.........................................................................................3

Starting Your Jetted Sink.............................................................3

Jet Speed Control ........................................................................4

Normal Sounds ............................................................................4

JETTED SINK CARE ......................................................................4

Cleaning Your Jetted Sink ...........................................................4

Storing..........................................................................................4

TROUBLESHOOTING ....................................................................4

ASSISTANCE OR SERVICE...........................................................5

In the U.S.A. .................................................................................5

In Canada ..................................................................................... 5

WARRANTY ....................................................................................6

SÉCURITÉ DE L’ÉVIER DE LAVAGE ............................................7

PIÈCES ET CARACTÉRISTIQUES ................................................8

UTILISATION DE L'ÉVIER DE LAVAGE À PULSAGE D'EAU .....8

Chargement..................................................................................8

Mise en marche de l'évier de lavage ...........................................9

Sélection de la vitesse du jet d'eau .............................................9

Sons normaux ..............................................................................9

ENTRETIEN DE L’ÉVIER DE LAVAGE..........................................9

Nettoyage de l'évier de lavage.....................................................9

Remisage....................................................................................10

DÉPANNAGE.................................................................................10

ASSISTANCE OU SERVICE.........................................................11

Aux États-Unis............................................................................11

Au Canada..................................................................................11

GARANTIE.....................................................................................12

JETTED SINK SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or

“WARNING.” These words mean:

You can be killed or seriously injured if you don't immediately follow instructions.

can be killed or seriously injured if you don't

You follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

■ Disconnect power before servicing.

■ Replace all parts and panels before operating.

■ Use two or more people to move and install jetted sink.

■ Plug into a grounded 3 prong outlet.

■ Do not remove ground prong.

■ Do not use an adapter.

■ Do not use an extension cord.

SAVE THESE INSTRUCTIONS

PARTS AND FEATURES

Standard features

1. Automatic pop-up drain control

2. High-gloss acrylic sink

3. Micro-jets (3)

4. Washboard front (not shown)

5. On/off button

6. Jet speed control

7. Timer

8. Suction cover

9. Pump/motor

10. Model/serial number label (not shown)

JETTED SINK USE

The jetted sink is to be used for washing delicate clothing such as lingerie, hosiery, blouses or a single sweater.

IMPORTANT:

■ The jetted sink should not be used for bathing infants or pets.

■ The jetted sink should not be used for cleaning or soaking

unusually dirty, or clay-ridden clothing, household tools or other items that may damage the inner plumbing system and pump.

■ Do not overfill with laundry. The jetted sink is not designed to

replace a washing machine.

■ Never run the pump/motor on the jetted sink while the

suction cover is off or without water in the jetted sink. This could cause damage to the pump/motor or internal seals and could void the warranty.

Dye transfer can occur when mixing whites and colors in a load. Sort dark clothes from whites and lights.

Only clothing labeled as hand or machine washable should be loaded.

Suggested Loads for Jetted Sink

Clothing Number of Pieces

Bulky sweaters 1

Fine knits, blouses, swim wear 3

Lingerie, hosiery 3-5

5 6

7 8

Parts not included

Faucet

Starting Your Jetted Sink

1 2 3

1. Pop-up drain control knob

2. On/off button

3. Jet speed control knob

NOTE: Before washing, pretreat stains on clothing according to the recommendations on the garment care label.

1. Turn the pop-up drain control knob counterclockwise to close

the drain.

2. Fill jetted sink with water to just above the suction cover. IMPORTANT:

■ The water must completely cover the suction cover.

■ The water temperature should be what is recommended

for the garments being washed.

3. Add a few drops of low-sudsing, delicate washing liquid detergent or 1 tsp. (4.9 mL) of a low-sudsing powder at any time after you have started running water into the jetted sink. You may add more if necessary.

NOTES:

■ Some delicate wash detergents foam excessively when

agitated. It may be necessary to rinse the jet system and clothing with clean water after use.

■ Do not use fabric softener.

4. Load a few small items of delicate clothing or a sweater into the jetted sink.

5. Set the jet speed control for desired water force/speed. See

“Jet Speed Control.”

6. Press the on/off button to start the pump/motor and to set

the 10-minute timer. The on/off button sets the timer to shut off automatically in 10 minutes, but the on/off button can also override the timer and stop the pump/motor at any time.

IMPORTANT: Starting the pump when there is no water in the jetted sink could result in damage to the pump or internal seals and could void the warranty.

7. After wash is finished, turn pop-up drain control knob

clockwise to open the drain.

8. Gently squeeze water from garment(s) without twisting or

wringing.

9. Close the drain again, turning the pop-up drain control knob

counterclockwise as before. Fill the jetted sink with clean water, reset the jet speed control, and push the on/off button to begin another 10-minute cycle to rinse garment(s).

10. After rinse is finished, drain the rinse water from the jetted

sink and gently squeeze water from garment without twisting or wringing. Additional water can be removed by laying garments flat on a clean, dry towel. Roll up the towel, then gently squeeze out excess water. Follow recommendations on the garment care label for drying.

Storing

To winterize your jetted sink:

IMPORTANT: The jetted sink must be filled to a level above the

suction cover.

1. Fill the jetted sink with an R.V.-type antifreeze solution to just above the suction cover.

2. Run the jetted sink for a 10-minute cycle.

3. Unplug jetted sink or disconnect power.

4. Shut off the water faucet.

5. Disconnect the water inlet hoses from faucets and then drain.

To use your jetted sink again:

1. Flush the water pipes.

2. Reconnect the water inlet hoses to faucets.

3. Turn on both water faucets.

4. Plug in jetted sink or reconnect power.

5. Run the jetted sink through a 10-minute cycle with ¼ the

normal recommended amount of detergent to clean out the antifreeze.

Jet Speed Control

Water pressure in the jetted sink may be adjusted from a very high agitation (H) to a low, swirling action (L) by turning the jet speed control dial.

Normal Sounds

Your jetted sink may make sounds that are unfamiliar to you.

The normal sounds are:

During washing

You will hear the sound of the pump and motor operating.

During draining

You will hear the sound of water draining from the sink.

JETTED SINK CARE

Cleaning Your Jetted Sink

Acrylic is a renewable surface. If the acrylic surface is damaged, minor cuts or scratches usually can be buffed or polished out of the finish with a paste wax or automobile rubbing compound.

To clean your jetted sink:

■ Clean the acrylic surface with a mild, liquid detergent and a

damp cloth or sponge. Rinse and wipe dry with a soft cloth.

■ Do not use abrasive cleaners such as scouring cleansers or

harsh cleaning tools such as scouring pads. These can scratch or damage materials.

To flush your jetted sink:

Flush the jetted sink at least once every 90 days.

1. Fill the jetted sink with hot water and add 2 tsp. (9.8 mL) of

non-sudsing laundry detergent.

2. Run the system for 10 minutes, then drain the jetted sink.

3. Fill jetted sink with cold water and run for 10 minutes to rinse

the system, then drain the jetted sink.

TROUBLESHOOTING

First try the solutions suggested here and possibly avoid the cost of a service call...

Jetted sink pump/motor won’t turn on

■ Check the following:

Is the power cord plugged into the timer control box outlet? Is the timer control box plugged into the wall outlet? Has a fuse blown or has the circuit breaker tripped? If

problem continues, call electrician. Is there power at the plug? Check electrical source or call

electrician. Is the clear air-line hose connected to both the bottom of the

timer control box and the bottom of the on/off button? Is the reset button on the GFCI tripped?

Jetted sink won’t drain

■ Is the drain clogged?

■ Is the drain plug adjusted correctly?

Adjust the drain plug height by turning the adjusting screw on the bottom of the drain plug. See Installation Instructions.

Jetted sink makes noise

■ Is the pump/motor plugged into an outlet?

The on/off button will make a clicking noise if you push the button when the power cord is not plugged into the timer control box outlet.

■ Is the water level too low?

Jetted sink leaks

■ Check caulking around jetted sink for leaks.

■ Check household plumbing for leaks.

■ Is the drain clogged?
