Page 1
CABINET PARTS
For Models: JFC2089HES13, JFC2089HEP13
(Stainless) (Stainless)
REFRIGERATOR
12−08 Litho In U.S.A. (mat)(bay)
1
Part No. W10242320 Rev.A
Page 2
CABINET PARTS
For Models: JFC2089HES13, JFC2089HEP13
(Stainless) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
67006616 Tech Sheet
W10137647
67005643 Energy Guide
2
W10137519
3 67003405 Block, Pivot
4 B5759649 Gasket
5 Cover, Right Hinge
12684202B
6 Cabinet (Not A
7 67006118 Roller Assy.(Rear)
8 67006287 Screw
9 67006521 Screw
12566604ED
10
11 67006380 Screw (6)
12 67006697 Bolt, Adjusting
Owners Manual
Elbow, Fill Tube
Black
Serviceable Part)
Hinge, Top Right
(Rear)
Illus. Part
No. No. DESCRIPTION
13 Cover, Left Hinge
8208248 Black
14 67006303 Screw (6)
15 Hinge, Center
67006443 Black, Right
67006442 Black, Left
16 67004092 Block, Fill Tube
17 Cover, Corner (2)
67003485 Black
12566605ED
18
19 Roller Assy.
W10130459
W10130460
20 67006564 Screw (8)
21 12579702 Shim, Hinge
Hinge, Top Left
(Front)
Right
Left
Illus. Part
No. No. DESCRIPTION
22 Grille, Toe
W10131134
23 M0108105 Clamp, Tube
25 67006425 Screw (10)
26 67003331 Cover, Water Line
27 67004098 Cover, Water Valve
28 67006669 Screw (2)
29 67004101 Sweep, Dual Tube
30 67006101 Cover, Unit
31 67001067 Clip, Drain Tube
32 A3076901 Plug, Button
33 67003796 Insulation, Sound
W10141622
34
35 M0104106 Clip (2)
36 67001066 Tube, Drain
37 M0114003 Clip
Black
Brake, Foot
2
W10242320
Page 3
FREEZER LINER PARTS
For Models: JFC2089HES13, JFC2089HEP13
(Stainless) (Stainless)
W10242320
3
Page 4
FREEZER LINER PARTS
For Models: JFC2089HES13, JFC2089HEP13
(Stainless) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 67001291 Gasket, Foam
3 67005874 Guide, Fill Tube
4 67003905 Cover, Light
5 67003636 Motor, Evaporator
Y12570701
6
7 12002355 Thermistor
8 67003924 Cover, Thermistor
9 A0282812 Bulb, Light
10 67001035 Housing, Light
11 67005873 Cover, Evaporator
12 67006425 Screw (4)
W10121318
13
14 67003906 Module, Fz Control
15
W10167028
16 67005653 Switch, Light
17 67006530 Screw
18 D7753903 Funnel, Drain
19 M0500703 Seal
20 67002492 Gasket, Bottom
21 B8381501 Gasket
W10175909
22
W10167023
23
24 2169142 Blade, Fan
25 Bracket, Door
W10119064
W10119295
26 67006473 Screw (8)
27 Cradle, Basket
67004728 Left
67004729 Right
W10180420
28
29 Adapter, Slide
67004971 Left
67004972 Right
30 67006406 Screw (6)
31 67004017 Shaft
32 12002497 Gear
Socket, Light
Grommet
Clip, Evap Motor
Grille, Fz Air
Shroud, Evap Fan
(Evaporator)
Left
Right
Slide, Drawer (2)
(Includes RH & LH)
Following Parts Not Illustrated
67006095 Harness, Fz Module
4
W10242320
Page 5
REFRIGERATOR LINER PARTS
For Models: JFC2089HES13, JFC2089HEP13
(Stainless) (Stainless)
W10242320
5
Page 6
REFRIGERATOR LINER PARTS
For Models: JFC2089HES13, JFC2089HEP13
(Stainless) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 67004078 Module, Light
3 67005445 Keyboard
4 67005444 Module, Control
5 67005397 Board, Control
6 C3680310 Switch, Light (2)
7 67003897 Cover, Light
8 67003901 Housing, Light
9 A0282812 Bulb, Light (2)
Y12570701
10
11 67003900 Insert,
12 67006602 Screw
13 67003899 Cover, Damper
14 67006604 Insulation
W10127429
15
16 12002355 Thermistor
17 67001668 Plate
18 67006524 Head, Water Filter
UKF8001AXX
19
20 12568001 Cover, Filter
21 67006415 Screw (2)
22 B8390302 Clip, Facade (2)
W10158503
23
24 67002742 Plate, Switch
25 12575501 Switch, Limit
26 67003728 Guide, Waterline
27 67002816 Clip, Waterline
28 67005674 Facade, Disp (Top)
W10153959
29
30 61006182 Union
31 12664501 Plug, Bypass
32 67006400 Screw
W10163893
33
Socket, Light (2)
Damper Cover
Control, Damper
Filter, Water
Facade, Disp.
Tank, Water
Insulation, Water
Tank
Following Parts Not Illustrated
67005417 Harness, Control
(Refrigerator)
6
W10242320
Page 7
REFRIGERATOR DOOR PARTS
For Models: JFC2089HES13, JFC2089HEP13
(Stainless) (Stainless)
W10242320
7
Page 8
REFRIGERATOR DOOR PARTS
For Models: JFC2089HES13, JFC2089HEP13
(Stainless) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 Door, Left
13024033SQ
2 Door, Right
13024031SQ
3 67003637 Door, Dairy
4 67001279 Tray, Dairy
5 67004748 Bin, Shelf (3)
6 67006786 Screw
W10133608
7
8 Gasket, Door (2)
12723206B
10 67006109 Mount, Handle
11 67002731 Bushing, Door
12 67004749 Bin, Shelf (2)
13 67002721 Bushing, Door
14 Mullion, Door
67003264 Black
15 67006287 Screw
16 Closure, Door
67003639 Black
17 Stop, Door
67007011 Black
18 Plug, Button
67004838 Black
19 Bushing, Door
12395501B
20 Bushing, Door
67004978 Black
21 12848704 Nameplate
25 Handle, Door
12850910 (JFC2089HES13)
12859109 (JFC2089HEP13)
Stainless
Stainless
Screw, Mount
Black
(Bottom Right)
(Bottom Left)
(Upper Left)
Black
(Upper Right)
8
W10242320
Page 9
UNIT PARTS
For Models: JFC2089HES13, JFC2089HEP13
(Stainless) (Stainless)
W10242320
9
Page 10
UNIT PARTS
For Models: JFC2089HES13, JFC2089HEP13
(Stainless) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 67006433 Screw
W10162928
2
3 67005889 Basepan
4 67006425 Screw (2)
5 67005491 Block, Condenser
6 67004700 Tube, Discharge
W10119857
7
8 67007175 Pan, Drain
9 61004743 Grommet (3)
10 67002493 Heater, Defrost
11 67007052 Clip, Capacitor
12 67005561 Relay, Start
13 61003210 Gasket
W10165425
14
15 67005680 Grommet (2)
16 67006573 Screw (4)
17 67003493 Grommet (4)
18 67006131 Condenser
19 67006432 Screw (3)
20 67002490 Tray, Drip
21 67006737 Screw
22 12002041 Evaporator Kit
Blade, Fan
Harness, Evap
Heater
Thermostat, Def.
(Incl. Evap., Heat
Shield, & Instr.
Sheet)
Illus. Part
No. No. DESCRIPTION
23 Dam
67001084 Right Side
67001083 Left Side
24 67004432 Motor, Fan
25 10428101 Clip, Heater
26 13060201 Harness, Unit
with Power Cord
27 2317845 Drier
28 67005565 Compressor Kit
(Includes Items
12,17,27,& 30)
29 67005562 Capacitor
30 67005419 Harness, HV
W10158508
31
32 67004953 Bracket, Fan Motor
33 67004954 Screw (3)
34 10547003 Clip, Drier
35 67006615 Screw, Cover
W10137529
36
37 10623002 Clip, Evaporator
38 67004969 Box, HV
W10173398
39
40 67005418 Spacer, HV Box
41 67006550 Screw (2)
42 67005421 Cover, HV Box
Shroud
Grommet, Cond. (4)
Board, HV Control
(Inc. Inst. Sheet)
Illus. Part
No. No. DESCRIPTION
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.0 Ozs.
(R−134A)
10
W10242320
Page 11
SHELF PARTS
For Models: JFC2089HES13, JFC2089HEP13
(Stainless) (Stainless)
W10242320
11
Page 12

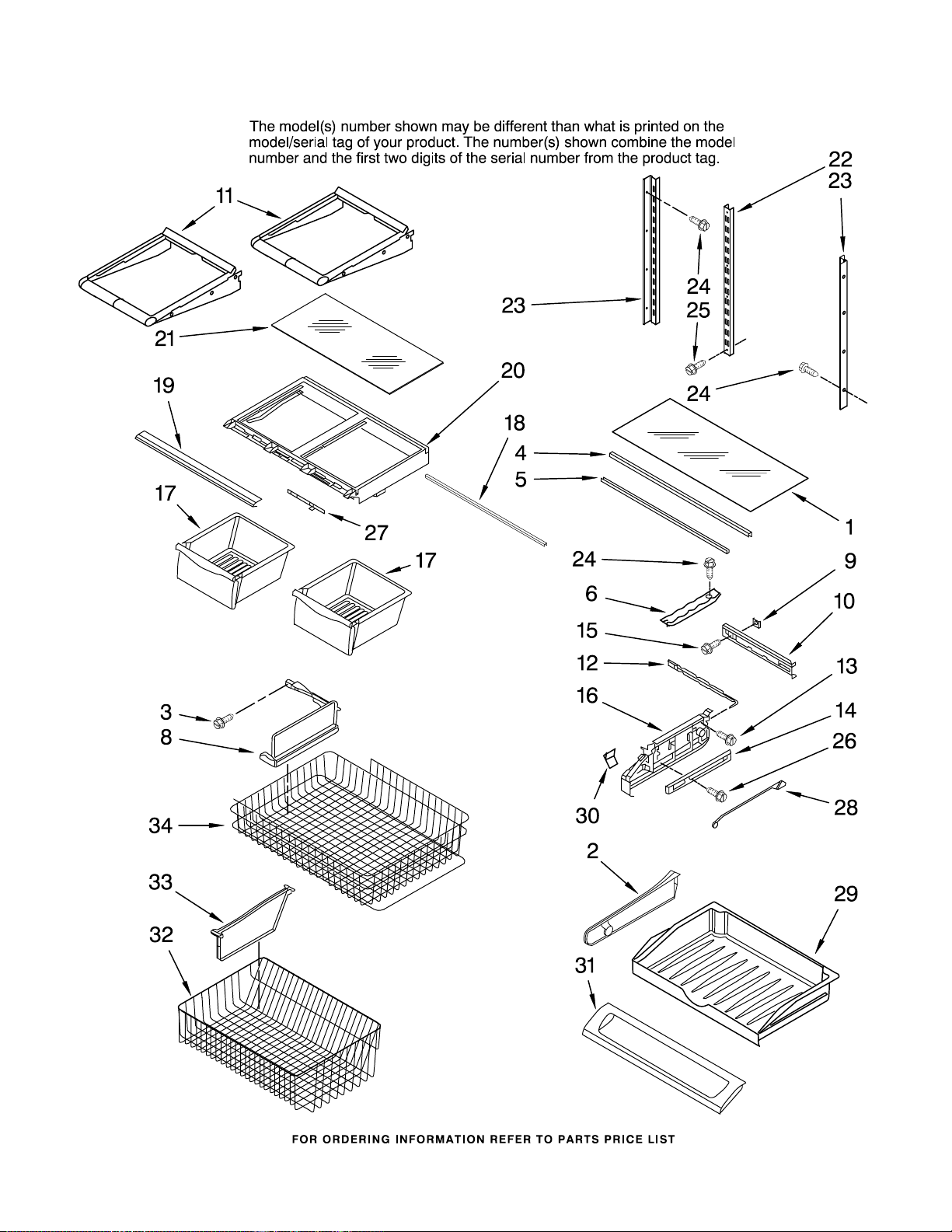

SHELF PARTS
For Models: JFC2089HES13, JFC2089HEP13
(Stainless) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 67002332 Glass, Pantry
2 67002321 Divider,
Pantry Drawer
3 67006608 Screw
4 67006010 Extr, Glass
Support (2)
5 67002330 Brace, Pantry (2)
6 67001719 Track, Pantry
8 67004127 Divider,
Upper Basket
9 67002329 Gasket, Pantry
10 67005625 Housing, Control
11 67003021 Shelf, Glide (4)
12 67003793 Slide, Temperature
13 67006415 Screw (4)
14 67007026 Glide, Drawer(2)
15 67006400 Screw
16 Endcap, Pantry
67005862 Left
67005859 Right
17 67002659 Pan, Crisper (2)
18 67002488 Brace, Crisper
19 67004724 Trim, Crisper
20 67006185 Frame, Crisper
21 67006655 Glass, Crisper
Cover
22 67001073 Ladder, Center
23 67002489 Ladder, Side
24 67006400 Screw (6)
25 67006360 Screw (2)
26 67006287 Screw (4)
27 67005864 Slide, Humidity
Control
28 67003794 Rod, Temperature
Control
29 67003530 Drawer, Pantry
30 67003791 Knob, Temperature
Control
31 67005899 Door,
Pantry Drawer
32 67006027 Basket, Freezer
(Lower)
33 67004727 Divider,
Lower Basket
34 67004989 Basket, Freezer
(Upper)
12
W10242320
Page 13

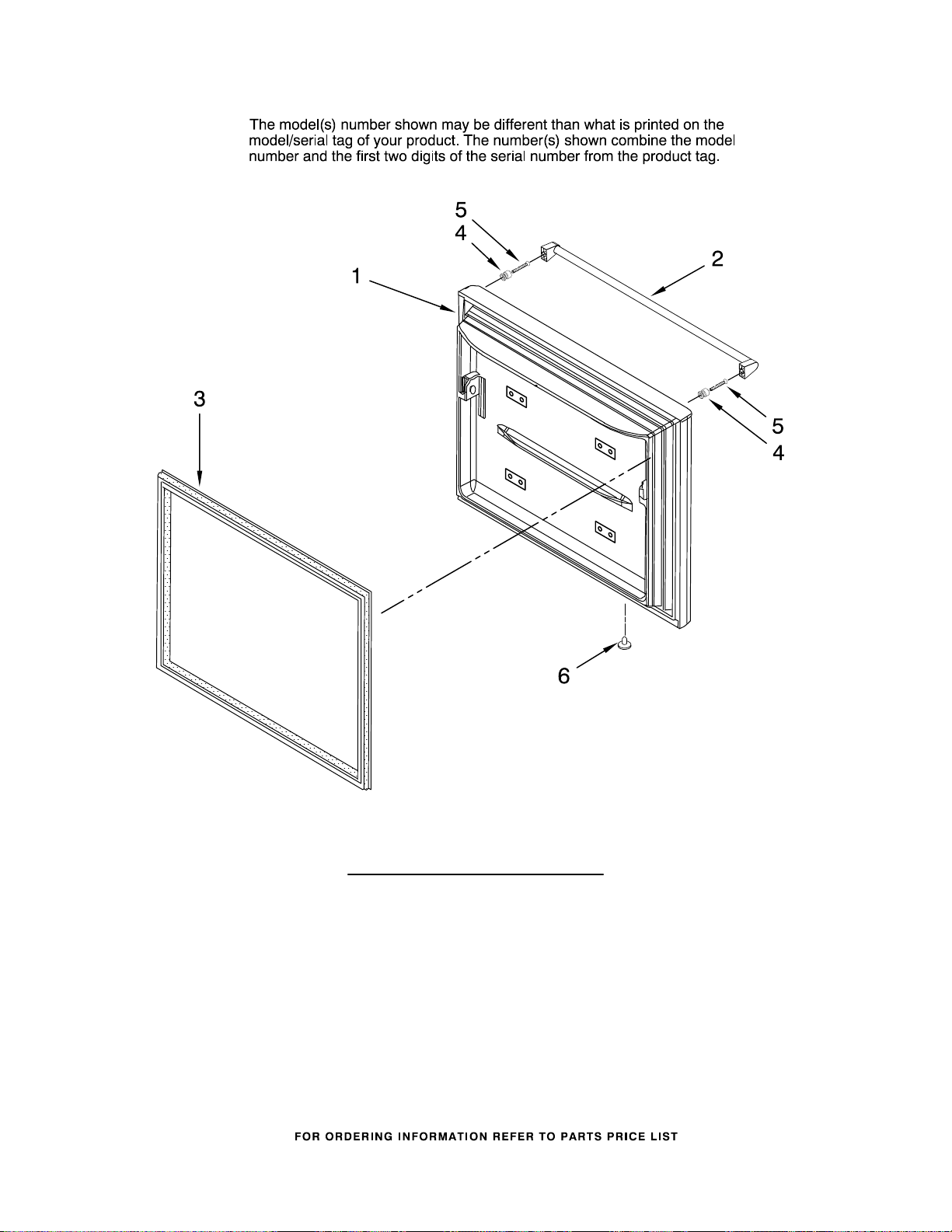

FREEZER DOOR PARTS
For Models: JFC2089HES13, JFC2089HEP13
(Stainless) (Stainless)
W10242320
Illus. Part
No. No. DESCRIPTION
1 Door, Freezer
W10185588
2 Handle, Door
12850909 (JFC2089HES13)
12859110 (JFC2089HEP13)
3 Gasket, Door
W10131754
4 67006109 Mount, Handle
W10133608
5
6 Plug, Button (2)
67004838 Black
Stainless
Black
Screw, Mount
13
Page 14
ICEMAKER PARTS
For Models: JFC2089HES13, JFC2089HEP13
(Stainless) (Stainless)
Illus. Part
No. No. DESCRIPTION
1
W10122527
2 67004028 Arm, Shutoff
3 628515 Cup, Fill
4 627843 Ejector
5 2182124 Ice Stripper
6 2194712 Support, Housing
7 2315522 Retainer,
Mold & Heater
Assembly (Also
Order 542638
Grease)
Thermostat
Illus. Part
No. No. DESCRIPTION
8 627985 Thermostat
(Also Order 542369
Cement)
9 489464 Screw (3)
10 67001255 Pan, Ice
11 8533917 Screw (2)
12 67006531 Valve, Water
Inlet
13 A3223101 Insert, Tube
14 67003729 Tubing, Plastic
W10146389
15
16 2256086 Bracket, Icemaker
Harness, Ice Maker
14
Illus. Part
No. No. DESCRIPTION
17 67006662 Screw
18 67004710 Cover
19 626678 Module Assembly
20 489276 Screw (3)
21 628379 Clip
22 67005603 Funnel, Fill Tube
100
D7824706Q
Icemaker Assembly
Following Parts Not Illustrated
10244904 Coupling
W10242320
Page 15
OPTIONAL PARTS (NOT INCLUDED)
For Models: JFC2089HES13, JFC2089HEP13
(Stainless) (Stainless)
Illus. Part
No. No. DESCRIPTION
Parts Not Illustrated and
Optional Parts (Not Included)
PAINT, TOUCH−UP (1/2oz.)
72017 White
72032 Black
4392901 Biscuit
PAINT, PRESSURIZED SPRAY
(12 oz.)
350942 Primer, White
350930 White
350939 Black
4392901 Biscuit
Illus. Part
No. No. DESCRIPTION
Miscellaneous
212643 Sealer, Gum
(4 Feet)
479502 Tape, Vinyl
(3/4 x 108")
876370 Kit, Insulation
(2 Pcs. x 3" x 24"
X 48")
876305 Kit, Insulation
(14 Pcs. x 3"
x 24" x 48")
978941 Insulation,
Fiberglass
(63−1/2" x 35−1/2"
X 2−5/8)
876029 Kit, Foam Slab
(30" x 32−1/2"
x 1−1/2")
505587 Sealer, Mastic
(1 Qt.)
503695 Cork, Sealer
(1/4 Pound)
31462 Cleaner, 10 oz.
Stainless Steel
542638 Grease, Silicone
(1/2 Oz.)
542639 Cement,
Alumilastic
(1−1/4 Oz.)
606755 Bag, Insulation
(36−5/8" x 46")
799833 Kit, Evaporator
Repair
(Aluminum Epoxy)
833938 Kit, Terminal
Connector
Illus. Part
No. No. DESCRIPTION
TORX SCREW WRENCH
1117510 Torx Key
W10242320
15
Loading...
