Whirlpool AMW 595, AMW 595 IX User Manual

GB
DIGITAL DISPLAY
The display includes a 24-hour clock and indicator symbols.
HE << BUTTON lets you return to a previ-
T
ous part of the setting sequence in order to alter that setting before starting the cooking procedure.

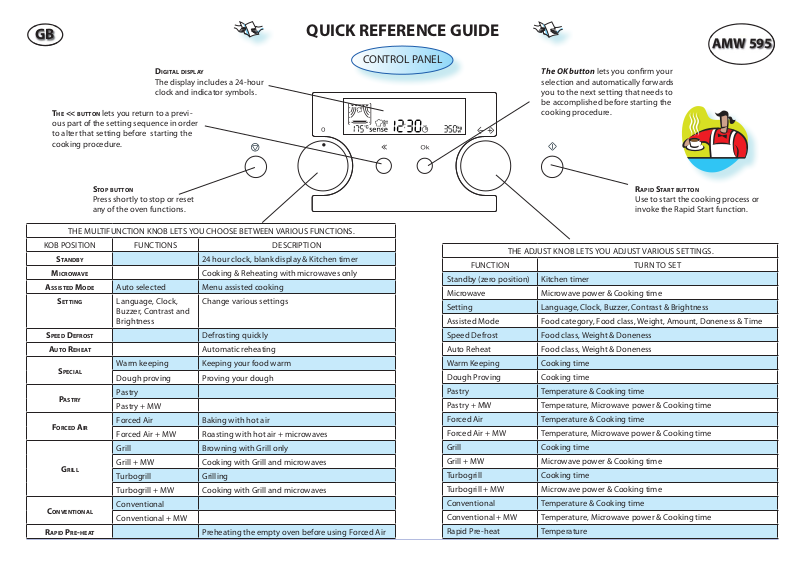

QUICK REFERENCE GUIDE
AMW 595
CONTROL PANEL
The OK button lets you con rm your selection and automatically forwards you to the next setting that needs to be accomplished before starting the cooking procedure.
S
Press shortly to stop or reset any of the oven functions.
THE MULTIFUNCTION KNOB LETS YOU CHOOSE BETWEEN VARIOUS FUNCTIONS.
KOB POSITION FUNCTIONS DESCRIPTION
TANDBY 24 hour clock, blank display & Kitchen timer
S
ICROWAVE Cooking & Reheating with microwaves only
M
SSISTED MODE Auto selected Menu assisted cooking
A
ETTING Language, Clock,
S
Change various settings Buzzer, Contrast and Brightness
PEED DEFROST Defrosting quickly
S
UTO REHEAT Automatic reheating
A
S
PECIAL
P
ASTRY
F
ORCED AIR
Warm keeping Keeping your food warm
Dough proving Proving your dough
Pastry
Pastry + MW
Forced Air Baking with hot air
Forced Air + MW Roasting with hot air + microwaves
Grill Browning with Grill only
G
RILL
Grill + MW Cooking with Grill and microwaves
Turbogrill Grilling
Turbogrill + MW Cooking with Grill and microwaves
CONVENTIONAL
APID PRE-HEAT Preheating the empty oven before using Forced Air
R
Conventional
Conventional + MW
APID START BUTTON
R
Use to start the cooking process or invoke the Rapid Start function.
THE ADJUST KNOB LETS YOU ADJUST VARIOUS SETTINGS.
FUNCTION TURN TO SET
Standby (zero position) Kitchen timer
Microwave Microwave power & Cooking time
Setting Language, Clock, Buzzer, Contrast & Brightness
Assisted Mode Food category, Food class, Weight, Amount, Doneness & Time
Speed Defrost Food class, Weight & Doneness
Auto Reheat Food class, Weight & Doneness
Warm Keeping Cooking time
Dough Proving Cooking time
Pastry Temperature & Cooking time
Pastry + MW Temperature, Microwave power & Cooking time
Forced Air Temperature & Cooking time
Forced Air + MW Temperature, Microwave power & Cooking time
Grill Cooking time
Grill + MW Microwave power & Cooking time
Turbogrill Cooking time
Turbogrill + MW Microwave power & Cooking time
Conventional Temperature & Cooking time
Conventional + MW Temperature, Microwave power & Cooking time
Rapid Pre-heat Temperature
GB
QUICK REFERENCE GUIDE
AMW 595
CHOOSING MICROWAVE POWER
MICROWAVES ONLY
OWER SUGGESTED USE:
P
R
850 W
750 W C
650 W C
500 W
350 W S
160 W D
90 W S
EHEATING OF BEVERAGES, water, clear soups, co ee, tea or other food with a high water content.
If the food contains egg or cream choose a lower power.
OOKING OF VEGETABLES, meat etc.
OOKING OF  sh.
ORE CAREFUL COOKIN G e.g. high protein sauces, cheese and egg dishes and to  nish cooking
M
casseroles.
IMMERING STEWS, melting butter.
EFROSTING. Softening butter, cheeses.
OFTENING Ice cream
TURBOGRILL + MW
OWER SUGGESTED USE:
P
OOKING Vegetables, Gratins,
350 W
160 W C
90 W G
C
Poultry & Lasagne
OOKING roast & whole baked  sh
RATINATING fruit,  sh steaks
FORCED AIR + MW
OWER SUGGESTED USE:
P
350 W C
160 W C
90 W B
0 W B
OOKING Poultry, Fish & Gratins
OOKING Roasts
AKING Bread & Cakes
ROWNING only during cooking
RECOMMENDED WEIGHTS FOR SPEED DEFROST
Use this function for defrosting ONLY. Speed Defrost can only be used for very fast defrosting of frozen food belonging to the categories listed here. Use manual defrost for other food or weights not listed.
To achieve perfect results it is NECESSARY to:
 Input, with the max. possible precision, the
WEIGHT of the food selected.
 Turn the food when the oven prompts you to
do so.
FOR FOOD NOT LISTED IN THIS TABLE and if the weight is lesser or greater than recommended weight, you should follow the procedure for “Cook and reheat with microwaves” and choose 160 W when defrost­ing.
MEAT (100g - 2Kg) Minced meat, cutlets, steaks or roasts.
POULTRY (100g - 3Kg) Chicken whole, pieces or  llets.
FISH (100g - 2Kg) Whole, steaks or  llets.
VEGETABLES (100g - 2Kg) Mixed vegetables, peas, broccoli etc.
BREAD (100g - 2Kg) Loaf, buns or rolls.
PLEASE NOTICE
TECHNICAL SPECIFICATION
PASTRY + MW
OWER SUGGESTED USE:
P
350 W A
PPLE PIE
160 W FROZEN QUICHE
90 W CAKES
CONVENTIONAL + MW
OWER SUGGESTED USE:
P
350 W F
ROZEN CONVENI ENCE FOODS
160 W FRUIT CAKE
90 W CAKES, BREAD
SUPPLY VOLTAGE 230 V/50 HZ
RATED POWER INPUT 2800 W
USE 16 A
F
OUTPUT POWER 850 W
MW
RILL 160 0 W
G
ORCED AIR 12 00 W
F
UTER DIMENSIONS (HXWXD) 455 X 595 X 560
O
NNER DIMENSIONS (HXWXD) 210 X 455 X 420
I
4619-694-60972
