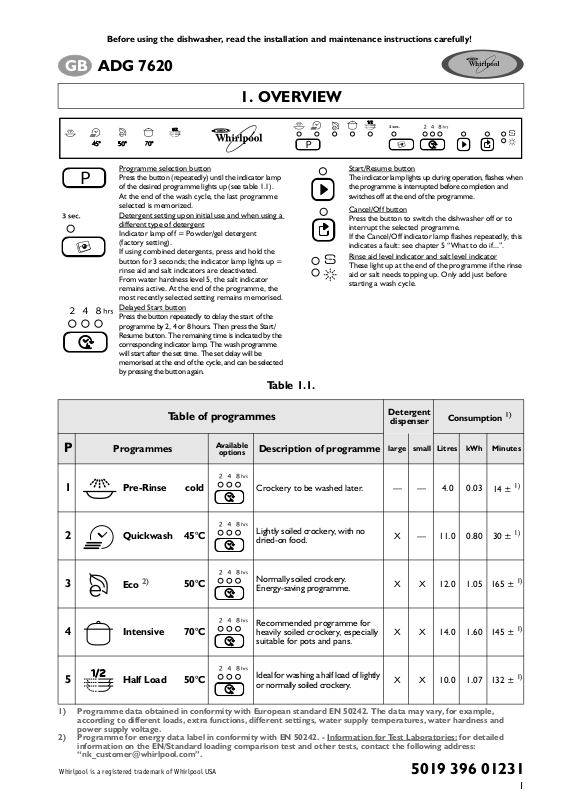

Whirlpool ADG 7620 OVERVIEW

Before using the dishwasher, read the installation and maintenance instructions carefully!

GB ADG 7620

1. OVERVIEW

Programme selection button

Press the button (repeatedly) until the indicator lamp of the desired programme lights up (see table 1.1). At the end of the wash cycle, the last programme selected is memorized.

Detergent setting upon initial use and when using a different type of detergent

Indicator lamp off = Powder/gel detergent (factory setting).

If using combined detergents, press and hold the button for 3 seconds; the indicator lamp lights up = rinse aid and salt indicators are deactivated.

From water hardness level 5, the salt indicator remains active. At the end of the programme, the most recently selected setting remains memorised. Delayed Start button

Press the button repeatedly to delay the start of the programme by 2, 4 or 8 hours. Then press the Start/ Resume button. The remaining time is indicated by the corresponding indicator lamp. The wash programme will start after the set time. The set delay will be memorised at the end of the cycle, and can be selected by pressing the button again.

Table 1.1.

Start/Resume button

The indicator lamp lights up during operation, flashes when the programme is interrupted before completion and switches off at the end of the programme.

Cancel/Off button

Press the button to switch the dishwasher off or to interrupt the selected programme.

If the Cancel/Off indicator lamp flashes repeatedly, this indicates a fault: see chapter 5 “What to do if...”. Rinse aid level indicator and salt level indicator

These light up at the end of the programme if the rinse aid or salt needs topping up. Only add just before starting a wash cycle.

	Table of programmes				Detergent		Consumption 1)
					dispenser
P	Programmes		Available	Description of programme	large	small	Litres	kWh	Minutes
			options
1	Pre-Rinse	cold		Crockery to be washed later.	—	—	4.0	0.03	14 ± 1)
2	Quickwash	45°C		Lightly soiled crockery, with no	X	—	11.0	0.80	30 ± 1)
				dried-on food.
3	Eco 2)	50°C		Normally soiled crockery.	X	X	12.0	1.05	165 ± 1)
				Energy-saving programme.
4	Intensive	70°C		Recommended programme for					145 ± 1)
				heavily soiled crockery, especially	X	X	14.0	1.60
				suitable for pots and pans.
5	Half Load	50°C		Ideal for washing a half load of lightly	X	X	10.0	1.07	132 ± 1)
				or normally soiled crockery.

1)Programme data obtained in conformity with European standard EN 50242. The data may vary, for example, according to different loads, extra functions, different settings, water supply temperatures, water hardness and power supply voltage.

2)Programme for energy data label in conformity with EN 50242. - Information for Test Laboratories: for detailed information on the EN/Standard loading comparison test and other tests, contact the following address: “[e-mail]”.

Whirlpool is a registered trademark of Whirlpool USA

5019 396 01231

1
