Whirlpool Ad0302xs0 Installation Template

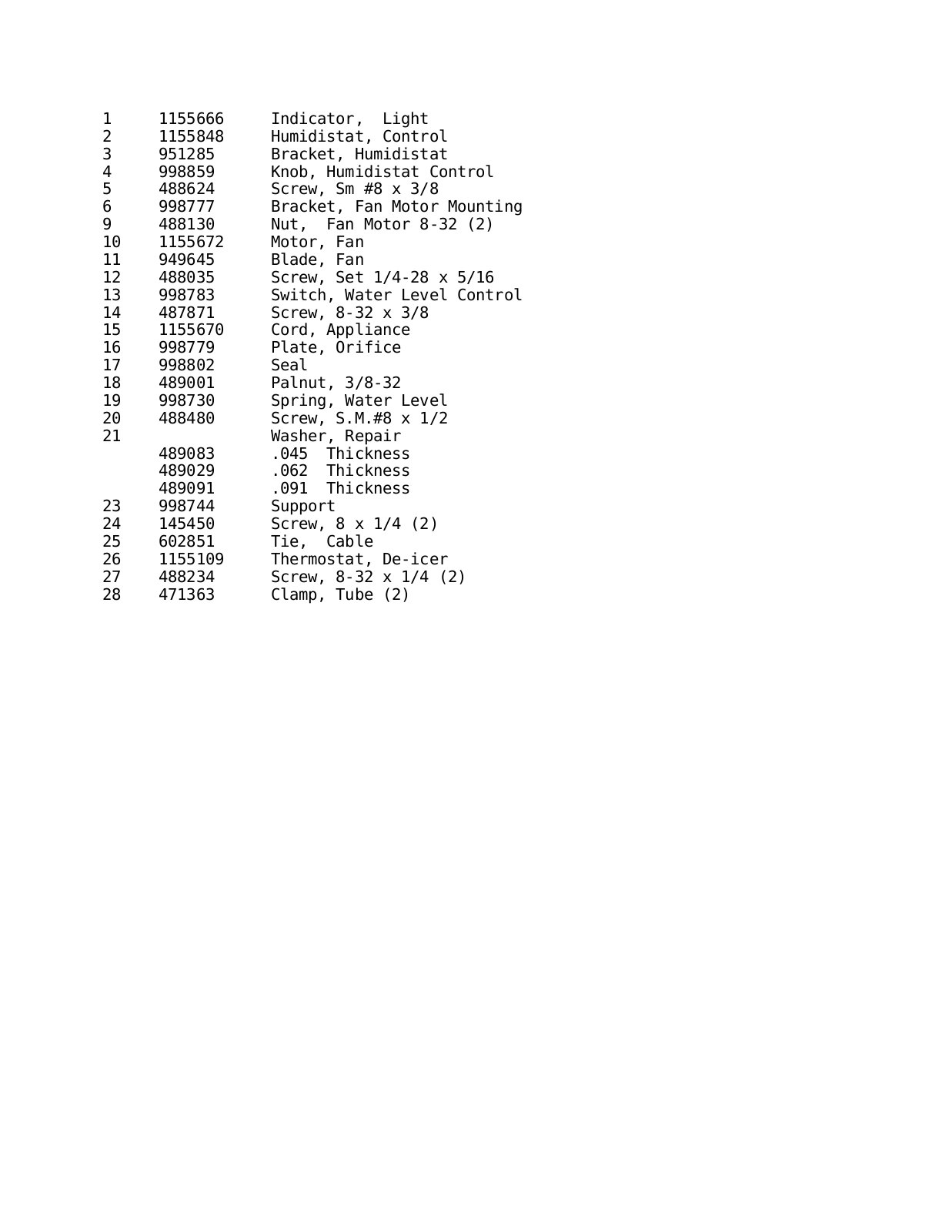

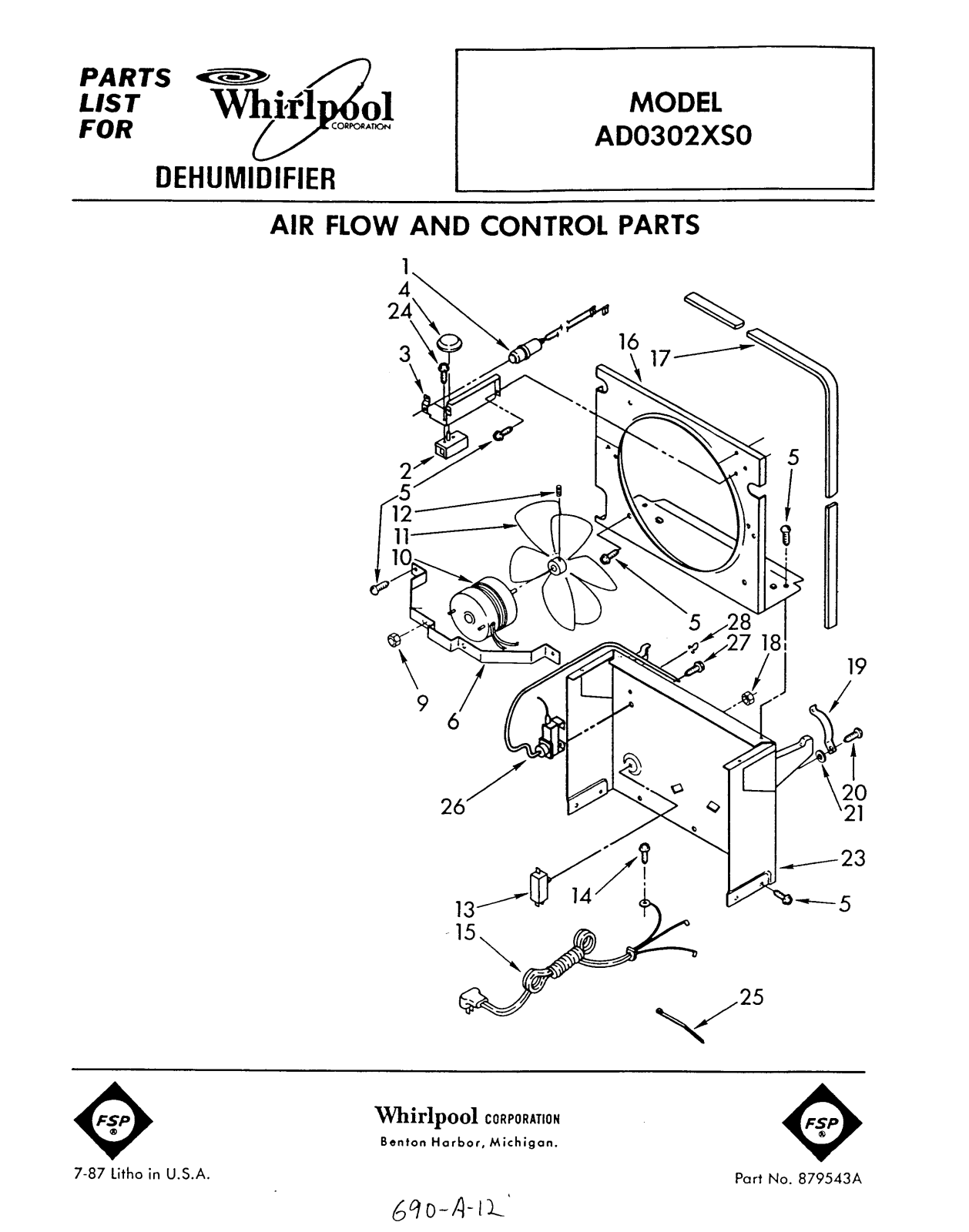

1 1155666 Indicator, Light 2 1155848 Humidistat, Control 3 951285 Bracket, Humidistat 4 998859 Knob, Humidistat Control 5 488624 Screw, Sm #8 x 3/8 6 998777 Bracket, Fan Motor Mounting 9 488130 Nut, Fan Motor 8-32 (2) 10 1155672 Motor, Fan 11 949645 Blade, Fan 12 488035 Screw, Set 1/4-28 x 5/16 13 998783 Switch, Water Level Control 14 487871 Screw, 8-32 x 3/8 15 1155670 Cord, Appliance 16 998779 Plate, Orifice 17 998802 Seal 18 489001 Palnut, 3/8-32 19 998730 Spring, Water Level 20 488480 Screw, S.M.#8 x 1/2 21 Washer, Repair
489083 .045 Thickness 489029 .062 Thickness
489091 .091 Thickness 23 998744 Support 24 145450 Screw, 8 x 1/4 (2) 25 602851 Tie, Cable 26 1155109 Thermostat, De-icer 27 488234 Screw, 8-32 x 1/4 (2) 28 471363 Clamp, Tube (2)
