Page 1

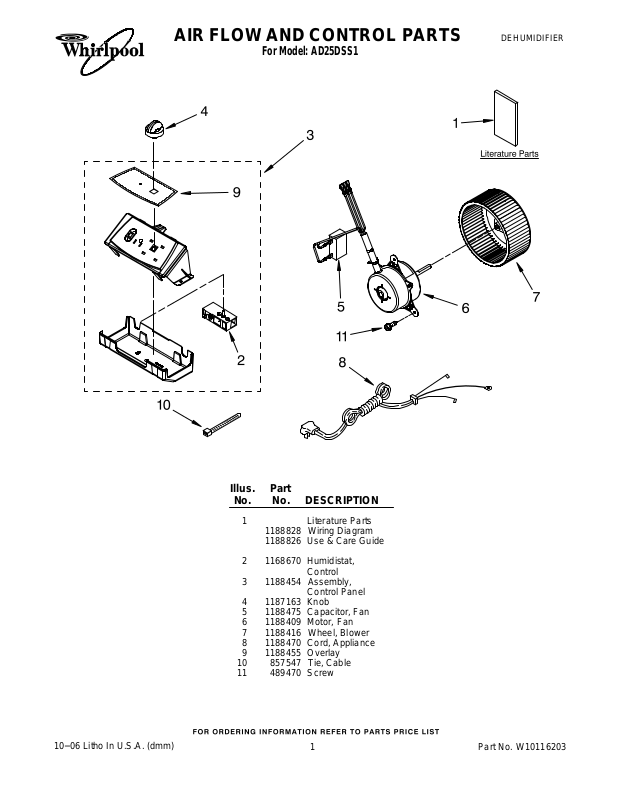

AIR FLOW AND CONTROL PARTS
For Model: AD25DSS1
DEHUMIDIFIER
10−06 Litho In U.S.A. (dmm)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
1188828 Wiring Diagram
1188826 Use & Care Guide
2 1168670 Humidistat,
Control
3 1188454 Assembly,
Control Panel
4 1187163 Knob
5 1188475 Capacitor, Fan
6 1188409 Motor, Fan
7 1188416 Wheel, Blower
8 1188470 Cord, Appliance
9 1188455 Overlay
10 857547 Tie, Cable
11 489470 Screw
1
Part No. W10116203
Page 2
UNIT PARTS
For Model: AD25DSS1
W10116203
2
Page 3
UNIT PARTS
For Model: AD25DSS1
Illus. Part
No. No. DESCRIPTION
1 1188520 Tube, Restrictor
2 1162526 Strainer
3 1185795 Spring, Overload
4 1188480 Condenser
5 8031222 Bend, Return
6 1188185 Overload,
Protector
7 1186030 Nut, Terminal
Cover
8 1188822 Cover, Terminal
9 1185794 Washer, Nut
10 1188439 Evaporator
11 9740848 Screw
12 1185793 Gasket, Terminal
Cover
W10001320
13
14 1188477 Capacitor
15 1188467 Wire Harness,
16 1188468 Wire Harness,
17 1188564 Grommet,
18 1188558 Base
19 1188554 Compressor,
20 1182480 Putty, Sound
21 1188814 Switch, Bucket
22 1188559 Support, Lower
23 1188561 Support, Upper
24 1188415 Caster
25 1188823 Bi−Metal, Defrost
Screw, Compressor
Compressor
(2 Wire)
Compressor
(3 Wire)
Compressor
(Complete
Assembly)
Damping
Fill/Check
REFRIGERANT CHARGE
4.90 oz.
R−22
3
W10116203
Page 4

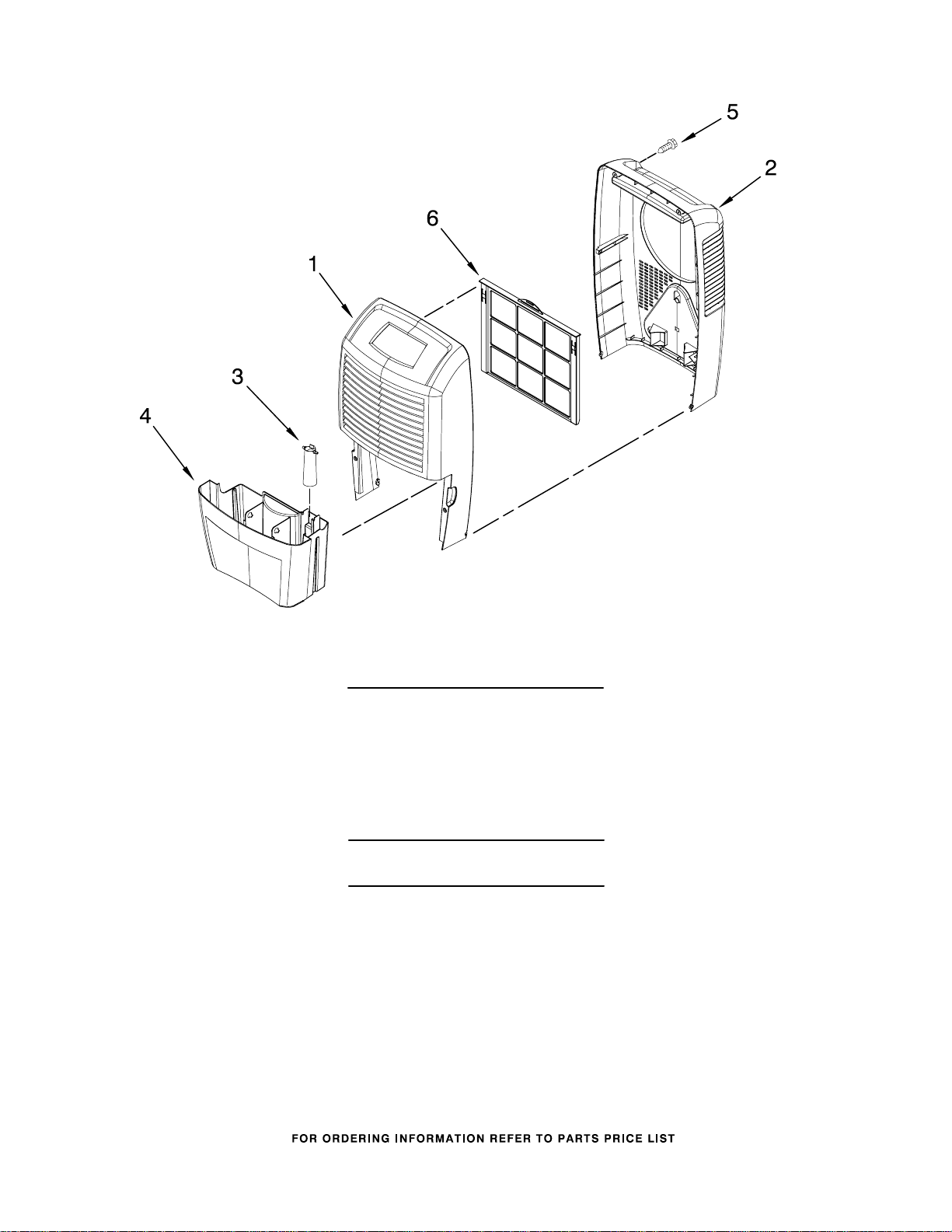

CABINET PARTS
For Model: AD25DSS1
Illus. Part
No. No. DESCRIPTION
1 1188395 Cabinet, Front
2 1188396 Cabinet, Rear
3 1188341 Float
4 1188527 Bucket Assembly
(Includes Item 6)
5 9742177 Screw
6 1188402 Filter
Following Parts Not Illustrated
and Optional Parts Not Included
Valve, Access
978025 1/4" Tube O.D.
978026 5/16" Tube O.D.
978027 3/8" Tube O.D.
978028 1/2" Tube O.D.
978029 5/8" Tube O.D.
978030 3/4" Tube O.D.
978865Bulk
Seal, Ring
Access Valve
(20 Pack)
W10116203
4
