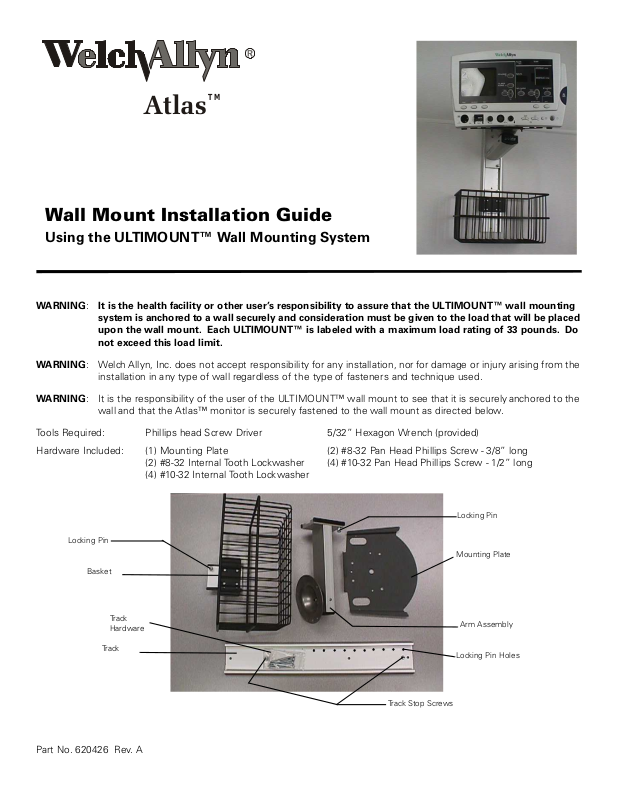

Atlas

Wall Mount Installation Guide

Using the ULTIMOUNT™ Wall Mounting System

WARNING : It is the health facility or other user’s responsibility to assure that the ULTIMOUNT™ wall mounting

system is anchored to a wall securely and consideration must be given to the load that will be placed
upon the wall mount. Each ULTIMOUNT™ is labeled with a maximum load rating of 33 pounds. Do
not exceed this load limit.

WARNING : Welch Allyn, Inc. does not accept responsibility for any installation, nor for damage or injury arising from the

installation in any type of wall regardless of the type of fasteners and technique used.

WARNING : It is the responsibility of the user of the ULTIMOUNT™ wall mount to see that it is securely anchored to the

wall and that the Atlas™ monitor is securely fastened to the wall mount as directed below.

Tools Required: Phillips head Screw Driver 5/32” Hexagon Wrench (provided)

Hardware Included: (1) Mounting Plate (2) #8-32 Pan Head Phillips Screw - 3/8” long

(2) #8-32 Internal Tooth Lockwasher (4) #10-32 Pan Head Phillips Screw - 1/2” long
(4) #10-32 Internal Tooth Lockwasher

Locking Pin

Locking P in

Mounting Plate

Basket

Track
Hardware

Tr a ck

Arm Assembly

Locking Pin Holes

Part No. 620426 Rev. A

Track Stop Screws

Installation Instructions

1. ATTACH THE MOUNTING PLATE TO ULTIMOUNT™ ARM

Place the mounting plate onto the arm assembly and secure with the (4) #10-32 internal tooth lockwashers and (4)#10-32 pan head
screws (Figures 1 and 2).

#10-32 Pan
Head Screw

#10-32 Pan

#10-32
Internal Tooth
Lockwasher

Figure 1 Figure 2

2. ATTACH THE ULTIMOUNT™ TRACK TO THE WALL

To mount the track to the wall, refer to the manufacturer’s instructions (enclosed in the arm/track
packaging box) for your particular wall type. The track must be oriented so that the locking pin
holes are located on the right.

Head
Screw

WARNING : If you feel that you are not competent to perform the tasks and safely attach

the track to the wall, we recommend that you find competent assistance.
Welch Allyn, Inc. does not accept any responsibility for the safety or
performance of the installation.

Locking
Pins

Bottom
Stop
Screw

3. INSERT THE ARM AND BASKET INTO THE ULTIMOUNT™ TRACK

Remove bottom track stop screw (refer to figure 3) with hexagon wrench. Insert arm into the
ULTIMOUNT™ track from the bottom. Hold out the locking pin on the arm and slide the arm up
to the top track stop screw.

Insert the basket into the ULTIMOUNT™ track from the bottom. Hold out the locking pin on the
basket and slide the basket up past the stop screw hole. Replace the bottom track stop screw
and hand tighten with the hexagon wrench.

Figure 3

Adjust basket and arm by pulling out the locking pin and sliding to the desired positions.

4. ATTACH THE ATLAS™ MONITOR TO THE MOUNTING PLATE

With the mounting plate level, place the Welch Allyn Atlas monitor onto the mounting plate as shown (figure 4) and align the pla stic
tab on the back of the monitor with the slot on the back of the mounting plate (figure 5).

Mounting Plate
Alignment Slot

Atlas unit wall
mount tab

Atlas Monitor
Alignment Tab

Mounting Plate tab

Figure 4 Figure 5

From the back of the unit, place a #8-32 internal tooth lockwasher and a #8-32 PAN HEAD screw (figure 6) into the 2 mounting
holes, secure the Welch Allyn Atlas monitor to the mounting plate (figure 7).

#8-32 Internal
Tooth Lockwasher

#8-32 Pan Head
Screw

#8-32 Pan Head
Screw

Figure 6 Figure 7
