Weider CLUB POWERSWITCH 100 Owner's Manual
Model No. WEBE2406.0
Visit our website at
www.weiderfitness.com
new products, prizes,
fitness tips, and much more!
Serial No.
Write the serial number in the
space above for future reference.
Serial Number Decal (Under Seat)
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if a part is
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
CALL TOLL-FREE:
USER’S MANUAL
1-877-992-5999
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB:
www.weiderservice.com
CAUTION
Read all precautions and instruc
tions in this manual before using
this equipment. Save this manual
for future reference.
-
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
SSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
A
ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
WARNING DECAL PLACEMENT
The decals shown below have been placed on the weight bench and the weight stand. If a decal is missing or illegible, call the toll-free telephone number on the front cover of this manual and order a free
replacement decal. Apply the decal in the location shown.
WEIDER is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: T
before using the weight bench and the weight stand.
1. Read all instructions in this manual and all
warnings on the weight bench and the
weight stand before use. Use the weight
bench and the weight stand only as
described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the weight bench and the
weight stand are adequately informed of all
precautions.
3. The weight bench and the weight stand are
intended for home use only. Do not use the
weight bench or the weight stand in any
commercial, rental, or institutional setting.
4. Keep the weight bench and the weight stand
indoors, away from moisture and dust. Place
the weight bench and the weight stand on a
level surface, with a mat beneath it to protect
the floor or carpet.
5. Make sure that there is enough clearance
around the weight bench to mount, dismount, and use the weight bench.
o reduce the risk of serious injury, read the following important precautions
6. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
7. Keep hands and feet away from moving parts.
Do not place your fingers between the dumbbells and the weight stand.
8. Keep children under 12 and pets away from
the weight bench and the weight stand at all
times.
9. Always wear athletic shoes for foot protection while exercising.
10. The weight bench is designed to support a
maximum user weight of 300 pounds and a
maximum total weight of 510 pounds. Do not
use the weight bench with more than 210
pounds of weight.
11. Place only the included dumbbells on the
weight stand.
12. If you feel pain or dizziness while exercising,
stop immediately and begin cooling down.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
3
BEFORE YOU BEGIN
Thank you for selecting the versatile WEIDER®CLUB
POWER SWITCH 100 weight bench and weight stand.
The weight bench and weight stand are designed to
help you develop the major muscles of the upper body.
Whether your goal is to tone your body, build dramatic
uscle size and strength, or improve your cardiovas-
m
cular system, the weight bench and weight stand will
help you to achieve the specific results you want.
For your benefit, read this manual carefully before
using the weight bench and weight stand. If you
have questions after reading this manual, please see
the front cover of this manual. To help us assist you,
Handle
Selector Pin
Weight Plates
Dumbbell Tray
please note the product model number and serial
number before contacting us. The model number is
WEBE2406.0. The serial number can be found on a
decal attached to the weight bench (see the front
cover of this manual).
To avoid a registration fee for any service needed
under warranty, register the weight bench and
stand at www.weiderservice.com/registration.

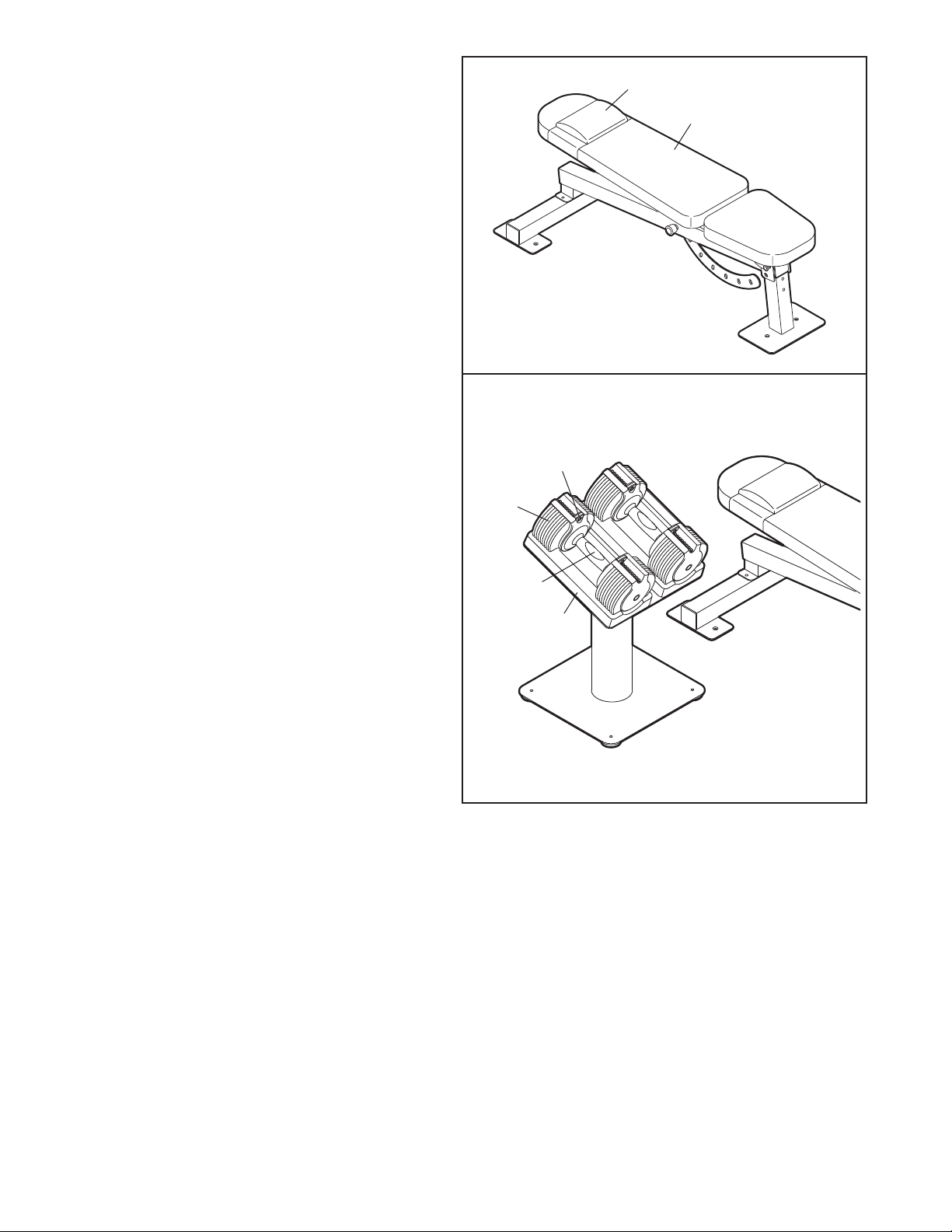

Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
Lumbar Pad
Backrest
Weight Stand
Assembled Dimensions:
Height: 48 in. (122 cm)
Width: 41 in. (104 cm)
Depth: 49 in. (124 cm)
Seat
Seat Pin
Backrest Bracket
Backrest Knob
4
M10 Nylon
Locknut (34)
M8 Washer (33)
M8 Nylon
Locknut (26)
M10 x 180mm Bolt (36)
M6 x 15mm
Screw (30)
M8 x 15mm
Screw (25)
M4 x 15mm
Screw (28)
M6 x 55mm Screw (35)
M8 x 70mm Carriage Bolt (29)
M6 x 35mm Screw (31)
M10 Washer (37)
M8 x 40mm Bolt (24)
M6 Washer (32)
PART IDENTIFICATION CHART
See the drawings below to identify small parts used in assembly. The number in parentheses below each drawing is the key number of the part, from the PART LIST on page 14. Note: Some small parts may have been
pre-assembled. If a part is not in the parts bag, check to see if it has been preassembled.

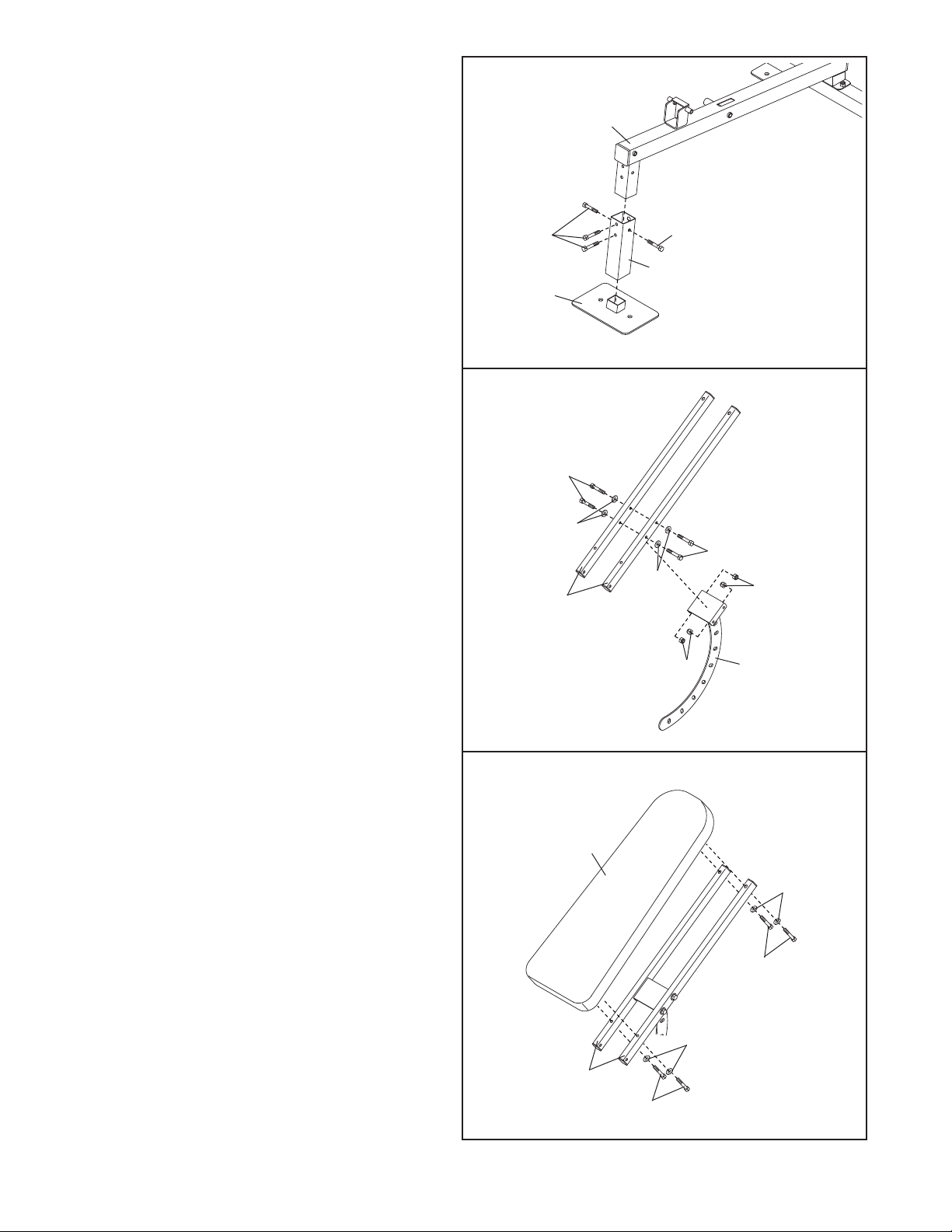

5
