WAVES
CLA EFFECTS
USER GUIDE
Table of Contents
Chapter 1 – Introduction................................................................................................- 3 -
1.1 Welcome..............................................................................................................- 3 -
1.2 Product Overview................................................................................................- 3 -
1.3 Concepts and Terminology..................................................................................- 4 -
1.4 A Few Words from Chris .....................................................................................- 4 -
1.5 Components........................................................................................................- 4 -
Chapter 2 – Quickstart Guide............................................................................................5
Chapter 3 – Interface and Controls...................................................................................6
3.1 Interface...................................................................................................................6
3.2 Controls...................................................................................................................7
Chapter 4 – The WaveSystem........................................................................................13
4.1 The WaveSystem Toolbar.....................................................................................13
4.2 Preset Handling.....................................................................................................13
4.3 Interface Controls..................................................................................................16
4.4 Waves Preferences (Pro Tools only).....................................................................17
Waves CLA Effects
User Guide
- 2 -
Chapter 1 – Introduction
1.1 Welcome
Thank you for choosing Waves! In order to get the most out of your Waves processor,
please take
In conjunction, we also suggest that you become familiar with www.wavesupport.net
There you will find an extensive Answer Base, the latest Tech Specs, detailed
Installation guides, new Software Updates, and current information on Authorization
and Registration.
By signing up at www.wavesupport.net
your registered products, reminders when updates are available, and information on
your authorization status.
1.2 Product Overview
The Waves Artist Signature Series is our exclusive line of application-specific audio
processors,
mixing engineers. Every Signature Series plug-in has been precision-crafted to capture
the artist’s distinct sound and production style. For experienced and aspiring audio
professionals alike, the Waves Signature Series allows you to dial up the sound you’re
looking for quickly, without interrupting the creative flow.
The CLA Artist Collection consists of six plug-ins, each of which is designed to handle a
specific mixing task.
• CLA Vocals
• CLA Drums
• CLA Bass
• CLA Guitars
• CLA Unplugged
• CLA Effects
the time to read through this manual.
.
., you will receive personalized information on
created in collaboration with the world’s top producers, engineers, and
Waves CLA Effects
User Guide
- 3 -
1.3 Concepts and Terminology
Sensitivity Control/Sensitivity LED
The Sensitivity LED’s 3 colors indicate when appropriate levels are reached:
Led Off (too low)
Green (good)
Yellow (optimal)
Red (very hot)
Push the Sensitivity Control upwards until the LED lights up. We recommend adjusting
the Sensitivity Control as soon as y
with the highest peaks for best results.
In most cases, the Sensitivity LED indicates that your levels hit the processor in a way
that will give you the intended output
optimal results for your source material may be achieved even when the Sensitivity LED
does not display “optimal” levels (yellow). As always, trust your ears.
Color
Each fader on CLA Artist Signature Collection plug-ins controls a specific function, such
as compression or reverb. Each function has a color-coded selector which controls th
internal characteristics of that function, resulting in a different sound character or “Color.”
You can mix and match different colors across the different faders.
ou open the plug-in, using the section of your song
result. However, it’s important to keep in mind that
e
1.4 A Few Words from Chris
"CLA Effects does it all. Filtered vocal? Check. Telephone FX? Check. John Lennon "I
Am the Walrus" vocal distortion? Check and doub
phasing? You got it. Reverb, tape slap, and long echo all at once? Yes, yes, and yes.
One of my favorite features is the echo throw section: Hit the throw button and add long
delays to just the words you want, with one click! And to top it all off, all tempos are
matched to the session BPM, cutting out all the guesswork."
le check. Multiple delays with tape
1.5 Components
WaveShell technology enables us to split Waves processors into smaller plug-ins, which
we call
you the flexibility to choose the configuration best suited to your material.
The Waves CLA Effects has two components:
components. Having a choice of components for a particular processor gives
• CLA Effects Mono-to-Stereo – Mono in to Stereo out component
• CLA Effects Stereo – Stereo in to Stereo out component
Waves CLA Effects
User Guide
- 4 -
Chapter 2 – Quickstart Guide
• Insert the CLA Effects plug-in on an effects return track (aux bus), and turn off
the Direct switch. You can also inse
which case you should turn the Direct switch on.
• Adjust the Sensitivity control until you achieve proper levels, as indicated by the
Sensitivity LED and the input meter.
• The current plug-in settings now represent Chris's default effect setup.
Tweak the following controls to fit your mix:
• Use the EQ fader to control high frequency content.
• Toggle EQ Color for different filter styles.
• Use Distortion to add some 'bite'. Toggle through the Colors to find that which
works best for the song
Adjust Reverb, Short Delay, Long Delay, and Pitch effect levels. Toggle through
•
the Colors to find that which works b
• The Throw control makes it fun and easy to add a long delay to selected phrases
while writing
input. When set to Hold, the delay will be fed constantly. Using the Throw control,
you can feed the delay by holding the mouse down; when the mouse is released,
the send is muted.
Please note:
automation. Use the Send Long Delay switch to control the d
• When Reverb, Short Delay, Long Delay and Pitch Colors are set to clear
(Bypass/Mute), and Direct is off, the plug-in will have no output.
• EQ adjustment will take effect once the EQ fader is moved. At zero, cycling
through the EQ Colors will have no effect.
• All other faders are active and set to Chris's default setup when at zero.
> If the Output meter goes into the red, use the Ouput fader to lower the Output level.
rt the CLA Effects on the source track, in
est for the song
elay
Waves CLA Effects
User Guide
-5-
Chapter 3 – Interface and Controls
3.1 Interface
Waves CLA Effects
User Guide
-6-
3.2 Controls
Input Sensitivity is used to achieve optimal plug-in input le
Range: +/- 10 (in 0.1 steps)
Default: 0
vel.
Input Meter displays input signal pe
Range: -26 to 0 dBFS
Clip LED lights up when levels exceed 0 dBFS. Click in
Balance adjusts the offset between left and right signals. (Stereo com
Range: +/- 6 dB (in 0.1 steps)
Default: 0
Sensitivity LED indicates the presence of prope
Range: LED off (too low), Green (good), Yellow (optimal), Red (very hot)
ak level.
side
the meter area to reset.
r levels.
ponent only)
Waves CLA Effects
User Guide
-7-

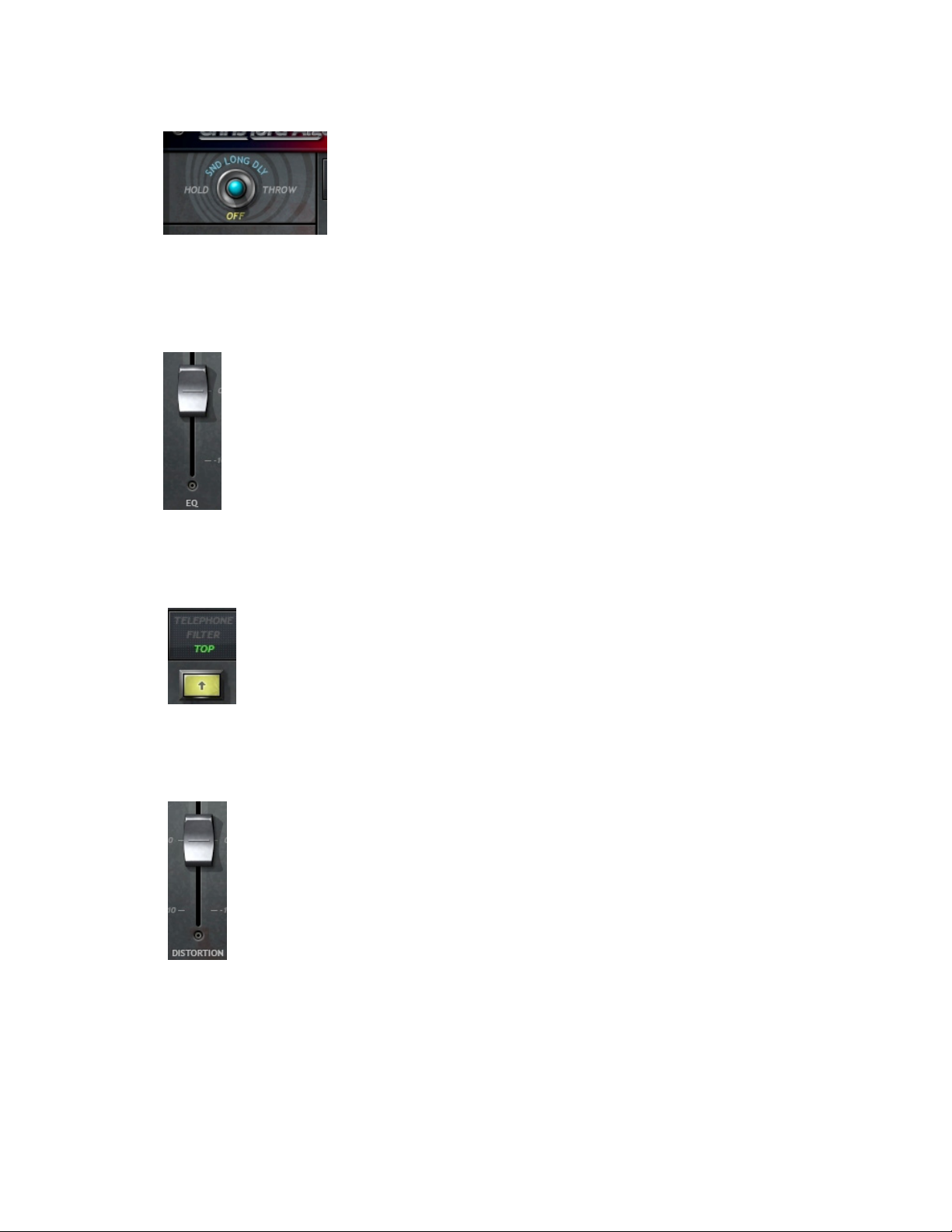

Send Long Delay un-mutes the send to the Lon
g Delay. Feed the delay by holding the
mouse down; when the mouse is released, the send is muted.
Range: Hold, Off, Throw
Default: Off
EQ controls the high frequency shelf
filter.
Range: +/- 10 (in 0.1 steps)
Default: 0
EQ Color toggles betwe
en different filter effects.
Range: Clear (Bypass), Green (Top), Blue (Filter), Red (Telephone)
Default: Green (Top)
Distortion controls the amount of distortion in the wet mix.
Range: +/- 10 (in 0.1 steps)
Default: 0
Waves CLA Effects
User Guide
-8-
Distortion Color toggles between different distortion chara
Range: Clear (Bypass), Green (Drive), Blue (Crunch), Red (Fuzz)
Default: Green (Drive)
Reverb controls the reverb wet mix
Range: +/- 10 (in 0.1 steps)
Default: 0
cters.
Reverb Colo
r toggles between reverb environments.
Range: Clear (Mute), Green (Room), Blue (Hall), Red (Canyon)
Default: Green (Room)
Short Delay controls the delay wet mix.
Range: +/- 10 (in 0.1 steps)
Default: 0
Waves CLA Effects
User Guide
-9-
Short Delay Color toggles delay times and characters.
syncs to the session BPM, Slap excluded.
Range: Clear (Mute), Green (Slap), Blue (Eight - 1/8 note), Red (Dot Eight –
Dotted 1/8 note)
Default: Green (Slap)
Please note: Delay time
Long Delay controls the delay wet mix.
Range: +/- 10 (in 0.1 ste
ps)
Default: 0
Long Delay Color toggles between delay times and characters. Please
time syncs to the session BPM.
Range: Clear (Mute), Green (Quarter – 1/4 note), Blue (Half – 1/2 note), Red
(Full – whole note)
Default: Green (Slap)
note: Delay
Pitch controls the pitc
Range: +/- 10 (in 0.1 steps)
Default: 0
h modulation wet mix.
Waves CLA Effects
User Guide
-10-
Pitch Color toggles bet
Range: Clear (Mute), Green (Tape Phase), Blue (Chorus), Red (Mr. Wide)
Default: Green (Tape Phase)
Direct controls the processing path. When Distortion and EQ are On, they affect both the Direct
and effects paths. When Distortion and EQ are Off, Direct becomes a dry (unprocessed) signal. In
gene
ral, when using CLA Effects as an insert, Direct should be On; when used as an effects return,
Direct should be Off.
Range: On, Off
Default: On
ween pitch
modulation types.
Output controls the output level.
Range: +/- 10 (in 0.1 ste
Default: 0
ps)
Waves CLA Effects
User Guide
-11-
Output Meter displays output signa
l peak level.
Range: -26 to 0 dBFS
Clip LED lights up when levels exceed 0 dBFS. Click in
the meter area to reset.
side
Waves CLA Effects
User Guide
-12-
Chapter 4 – The WaveSystem
4.1 The WaveSystem Toolbar
All Waves processors feature the WaveSystem toolbar which takes care of most
administrativ
features of the WaveSystem toolbar are the same on practically all Waves processors,
so familiarity with its features will be helpful whichever processor you are using.
Toolbar Functions
Undo Undoes the last 32 actions.
Redo Redoes the last 32 undone actions.
Setup A/B Toggles bet
Copy A->B
Load Recalls presets from file
Save Saves presets in the Wa
? Opens the manual for the processor you are using
e functions you will encounter while working with your Waves software. The
ween two presets. This is useful for close comparison of
different parameter settings
Copies the current settin
gs to the second preset register
ves file formats
4.2 Preset Handling
Preset Types
Factory Presets are permanent presets in the Load menu. Factory presets cannot be
over-written or deleted.
different factory presets.
User Presets are your favorite settings of the plug-in saved as a preset in the Load
menu, under ‘User Presets’. User Pr
Setup Files may contain more than one preset.
the presets for a session. When you open a Setup File, all its setups become part of
your Load pop-up menu for fast access. This can be particularly useful with multiple
instances of a plug-in in a single session. By saving all the settings you create into a
single Setup File, they can all be quickly available for every instance of that plug-in.
When applicable, different component plug-ins may have
esets can b
e over-written and deleted.
For example
, a single file can contain all
Waves CLA Effects
User Guide
-13-
Loading Presets and Setups
Click on the Load button to see the Load pop-up menu. The menu is divided into four
sections. If a section is not currently available it will not appear in the Load pop-up menu.
Open Preset File… Select to op
your own creations.
‘Filename.xps’: Displays any currently loaded Setup File and its presets.
Factory
User Presets: Displays any loaded User Presets.
Presets: Displays the default Factory Presets.
en any setup or preset file, whether from the Library or
Saving Presets and Setups
Click on the Save button to see the Save pop-up menu. Four options are available. If an
option is not currently available it will be grayed out and inaccessible.
Save to New
Save ‘File Name’ – “Preset Name” Overwrites the settings
Save to ‘File Name’ As…
Put into Preset Menu As…
File… Select this t
prompts - first for the setup filename, then for the
preset name. You must provide a name for both the
setup file and the preset. Click OK (ENTER) to
complete the save. It is a good idea to create a
folder in which to save several setup files for a
project.
(whether a User Preset or a preset from a Setup
File) with the current settings. If a Setup File is
currently loaded, the name of the Setup File is
displayed followed by the name of the preset itself.
If a User Preset is loaded, its name is displayed.
Saves the current settin
Setup file that is open (if one is not open, the option
is grayed out). You will be prompted to give the
preset a name.
Save the current setting
will always be in your Load menu (until deleted).
You will be prompted to give this preset a name.
User Presets are stored in the plug-in’s preference
file.
o start a ne
w Setup file. There are two
of the loade
gs as a new preset into the
s into a User Preset that
d preset
Waves CLA Effects
User Guide
-14-
Deleting Presets
You may delete User Presets and presets within a Setup File. Factory Presets and
Setup Library files cannot be deleted
1. Hold the Command (Mac)/Control (PC) key down.
2. Click-and-hold the Load button to see the pop-up menu.
3. While still holding the Command/Control key, select the preset or setup to delete.
4. A confirmation box will appear, allowing you to cancel or ‘OK’ the deletion.
or overwritten.
A/B Comparison and Copying
The Setup A/Setup B button may be clicked to compare two settings. If you load a preset
in the Setup B position, t
and vice-versa.
If you want to slightly modify the settings in Setup A, you can copy them t
clicking on the Copy to B button, then alter Setup A and compare with the original Setup
B.
The name of the current setup will be shown in the title bar (on platforms which support
it), and will switch as you change fro
Note: an asterisk will be added to the preset name when a change is made to the preset.
his will not affect the preset loaded into the Setup A position,
o Setup B by
Setup A to Setup B.
m
Waves CLA Effects
User Guide
-15-
4.3 Interface Controls
Controls can be in one of three states:
• Not Selected where the control is not the target of any user entry
• Selected where the con
• Selected and Active where the control is the tar
keyboard entry
Toggle Buttons
Toggle buttons display the state of a control, and allow switching between two or more
states. Sing
display which updates with the current setting, and others (bypass, solo, or monitoring
toggles) illuminate when the control is active.
Some processors have l
and-drag adjustment while retaining t
le-click to change the control’s state. Some toggle buttons have a text
ink buttons between a pair of toggle buttons, allowing click-
trol is the target of mouse control entry only
get for both mouse and
he offset between the controls.
Value Window Buttons
Value windows display the value of a control and allow clic
direct control via the keyboard.
• Using the mouse, click-and-drag on the value window to adjust. Some value
windows support left/rig
will appear to let you know which direction of movement that button supports).
• Using the arrow
up/down – left/right (depending on the direction supported by that button) to
move in the smallest incremental steps across the button’s range (holding down
the arrow keys will move faster through the range).
• Using key
directly enter the value from your keyboard. If you enter an out of range number,
the button stays selected but remains at the current setting (system beeps? If
system sounds are on?)
Some processors have l
and-drag adjustment while retaining t
entry, double click on the button to open the value window, and
key
ink buttons between a pair of value windows, allowing click-
ht, some up/down (as you hover over a button, arrows
s, click once with mouse to select the button, and then use
he offset between the controls.
k-and-drag
adjustment, or
Sliders
Click on the slider itself or anywhere within the sliders track. The numerical value of the
slider sett
ings is displayed in a hover window above/below the slider path.
Waves CLA Effects
User Guide
-16-
Hover Box
Hovering boxes will appear and display the control value when hovering with the mouse
over the control.
TAB Functions
TAB moves the ‘selected’ status to the next control, with shift-TAB moving in the reverse
direction.
Additionally, the Mac has an option-TAB function for ‘down’ movement and shift-optionTAB for ‘up’ movement
If you have several Value Window Buttons selected, TAB functions will take you through
the selected
Hitting Esc or Return will return the 'focus' to the DAW application.
controls on
where applicable.
ly.
4.4 Waves Preferences (Pro Tools only)
When launching Pro Tools, hold Shift to view the Waves plug-in Preferences window.
The following options ar
• Don't use AudioSuite plug-ins
• Dont use RTAS plug-ins
• Don't use TDM plug-ins
• Rescan all plug-ins
• HUI control surfaces support (low res)
• Enable single-click text entry
e available:
Waves CLA Effects
User Guide
-17-
Loading...
