Waves Audio CLA Bass User Guide

WAVES

CLA BASS

USER GUIDE

Table of Contents

Chapter 1 – Introduction....................................................................................................3

1.1 Welcome..................................................................................................................3

1.2 Product Overview....................................................................................................3

1.3 Concepts and Terminology......................................................................................4

1.4 A Few Words from Chris .........................................................................................4

1.5 Components............................................................................................................5

Chapter 2 – Quickstart Guide............................................................................................6

Chapter 3 – Interface and Controls...................................................................................7

3.1 Interface...................................................................................................................7

3.2 Controls...................................................................................................................8

Chapter 4 – The WaveSystem........................................................................................13

4.1 The WaveSystem Toolbar.....................................................................................13

4.2 Preset Handling.....................................................................................................13

4.3 Interface Controls..................................................................................................16

4.4 Waves Preferences (Pro Tools only).....................................................................17

Waves CLA Bass

User Guide

-2 -

Chapter 1 – Introduction

1.1 Welcome

Thank you for choosing Waves! In order to get the most out of your Waves processor,
please take

In conjunction, we also suggest that you become familiar with www.wavesupport.net
There you will find an extensive Answer Base, the latest Tech Specs, detailed
Installation guides, new Software Updates, and current information on Authorization
and Registration.

By signing up at www.wavesupport.net
your registered products, reminders when updates are available, and information on
your authorization status.

1.2 Product Overview

The Waves Artist Signature Series is our exclusive line of application-specific audio
processors,
mixing engineers. Every Signature Series plug-in has been precision-crafted to capture
the artist’s distinct sound and production style. For experienced and aspiring audio
professionals alike, the Waves Signature Series allows you to dial up the sound you’re
looking for quickly, without interrupting the creative flow.

The CLA Artist Collection consists of 6 plug-ins, each designed to handle a specific
mixing task.

• CLA Vocals

• CLA Drums

• CLA Bass

• CLA Guitars

• CLA Unplugged

• CLA Effects

the time to read through this manual.

.

, you will receive personalized information on

created in collaboration with the world’s top producers, engineers, and

Waves CLA Bass

User Guide

-3 -

1.3 Concepts and Terminology

Sensitivity Control/Sensitivity LED

The Sensitivity LED’s 3 colors indicate when appropriate levels are reached:

 LED Off (too low)
 Green (good)
 Yellow (optimal)
 Red (very hot)

Push the Sensitivity Control upwards until the LED lights up. We recommend adjusting
the Sensitivity Control as soon as y
with the highest peaks for best results.

In most cases, the Sensitivity LED indicates that your levels hit the processor in a way
that will give you the intended output
optimal results for your source material may be achieved even when the Sensitivity LED
does not display “optimal” levels (yellow). As always, trust your ears.

ou open the plug-in, using the section of your song

result. However, it’s important to keep in mind that

Color

Each fader on CLA Artist Signature Collection plug-ins controls a specific function, such
as compression or reverb. Each function has a color-coded selector which controls th
internal characteristics of that function, resulting in a different sound character or “Color.”
You can mix and match different colors across the different faders.

e

1.4 A Few Words from Chris

"From sub-shaking smooth sounds to Mr. Buzzsaw, CLA Bass is just what the doctor
ordered. The plug-in was designed t
It gives you six essential effects: bass, treble, compression, sub, distortion, and
chorus/flange. Whether you want it to rip, roar, growl, bark, or cut, CLA Bass delivers."

o help you lay down a solid foundation for any song.

Waves CLA Bass

User Guide

-4 -

1.5 Components

WaveShell technology enables us to split Waves processors into smaller plug-ins, which
we call components. Having a choice of components for a pa
the flexibility to choose the configuration best suited to your material.

CLA Bass has two components:

• CLA Bass Mono-to-Stereo – Mono in to Stereo out component

• CLA Bass Stereo – Stereo in to Stereo out component

rticular processor gives you

Waves CLA Bass

User Guide

-5 -

Chapter 2 – Quickstart Guide

• Insert the CLA Bass plug-in on a bass track.

• Adjust the Sensitivity control until you achieve proper levels, as indicated by the

Sensitivity LED and the input meter.

• The current plug-in settings now represent Chris's default setup for this
instrument.

Tweak the following controls to fit your mix:

• Adjust the Bass and Treble faders. Toggle through the Colors to find the EQ that
works best f

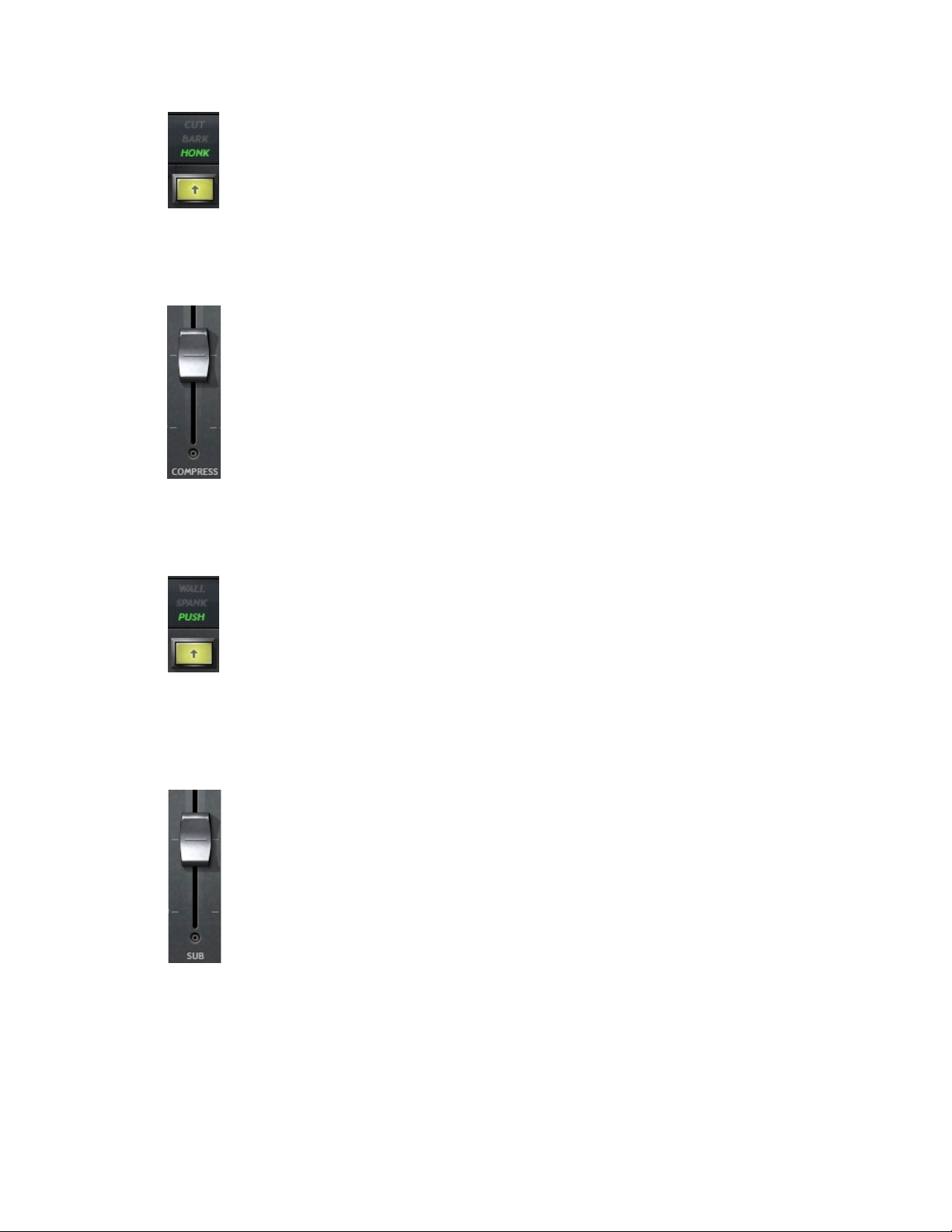

• Use Compress for dynamic range control. Toggle through the Colors to find that
which works best for the

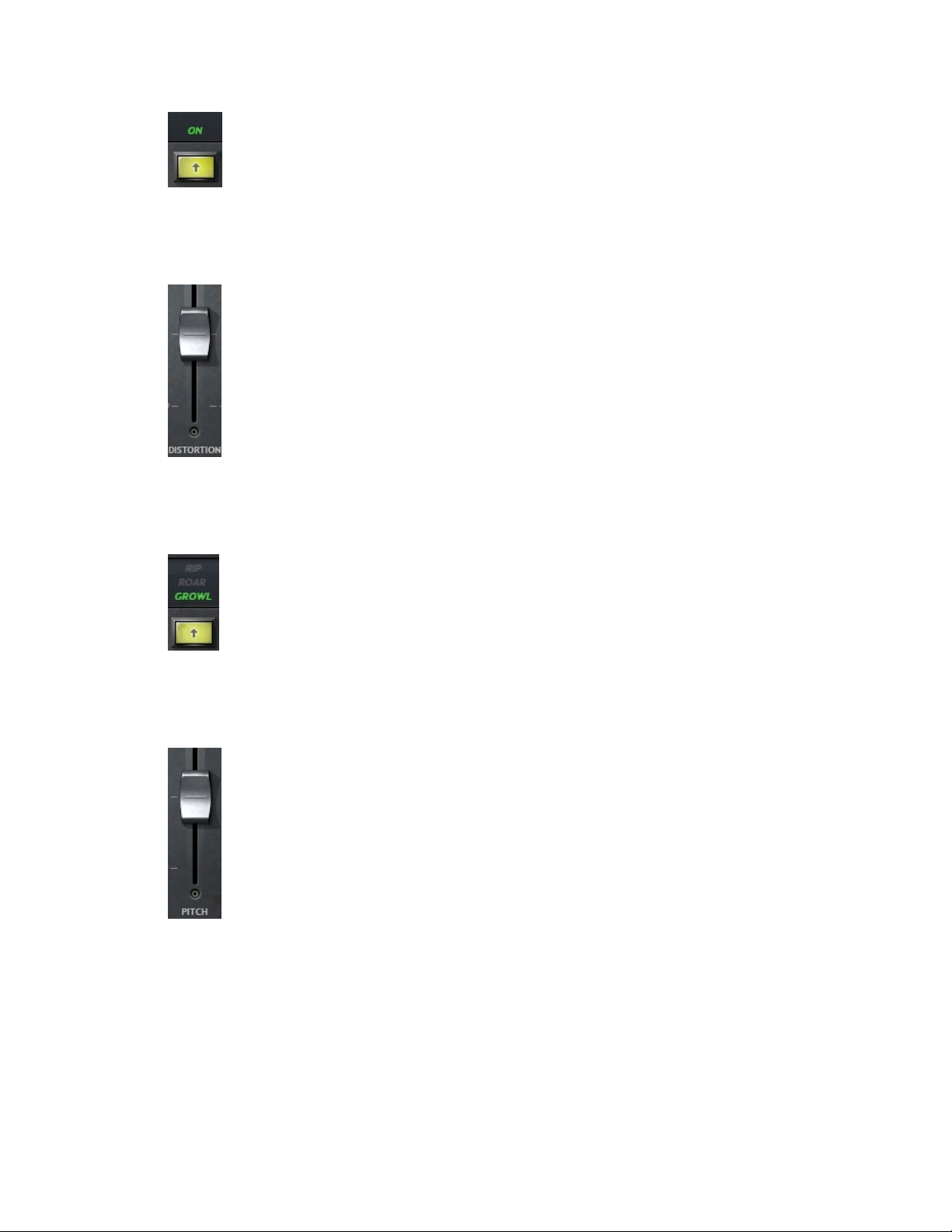

• Adjust Sub, Distortion and Pitch effect levels. Toggle through the Colors to find
that which works best for

Please note:

• When all colors are set to clear (Bypass/Mute), some fixed processing as
designed by Chris is st

• EQ adjustment will take effect once the EQ faders are moved. At zero, cycling
through the

• All other faders are active and set to Chris's default setup when at zero.

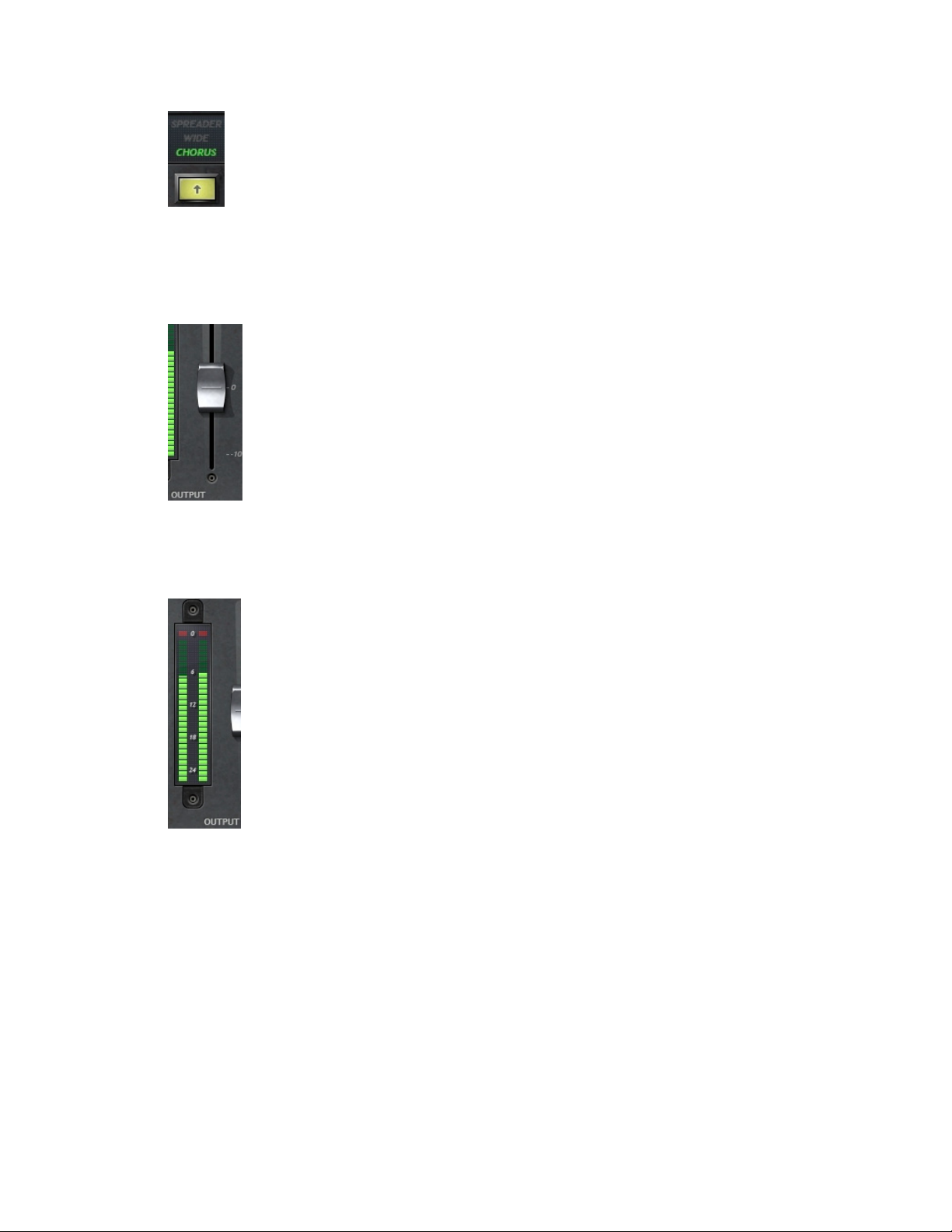

> If the Output meter goes into the red, use the Ouput fader to lower the Output level.

or the song.

song.
the song.

ill active.

EQ Colors will have no effect.

Waves CLA Bass

User Guide

-6 -
