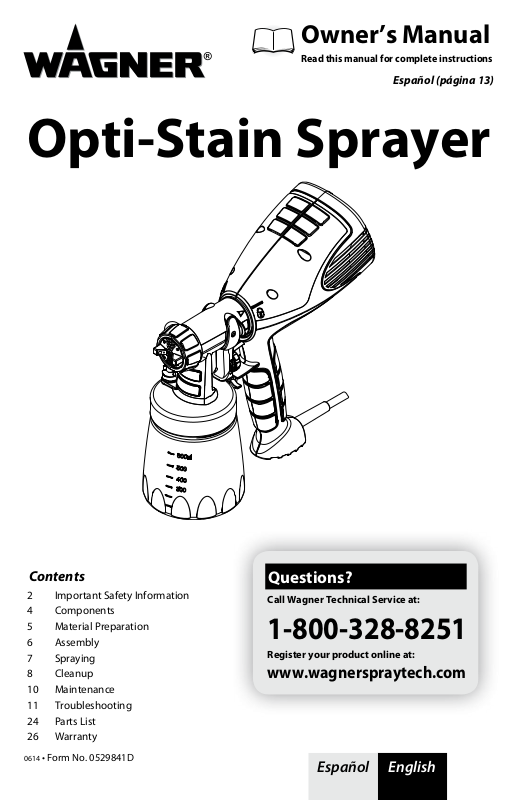

Page 1

Owner’s Manual

Read this manual for complete instructions

Español (página 13)

Opti-Stain Sprayer

Contents

2 Important Safety Information 4 Components 5 Material Preparation

6 Assembly 7 Spraying

8 Cleanup

10 Maintenance 11 Troubleshooting

24 Parts List 26 Warranty

0614 • Form No. 0529841D

Questions?

Call Wagner Technical Service at:

1-800-328-8251

www.wagnerspraytech.com

EnglishEspañol

Page 2

Important Safety Information

Grounded Outlet

Grounding Pin

Cover for grounded outlet box

Read all safety information before operating the equipment. Save these instructions.

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

To reduce the risks of re or explosion, electrical shock and the injury to persons, read and understand all instructions included in this manual. Be familiar with the controls and proper usage of the equipment.

Grounding Instructions

This product must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This product is equipped with a cord having a grounding wire with an appropriate grounding plug. The plug must be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING - Improper installation of the grounding plug can result in a risk of electric shock.

If repair or replacement of the cord or plug is necessary, do not connect the green grounding wire to either at blade terminal. The wire with insulation having a green outer surface with or without yellow stripes is the grounding wire and must be connected to the grounding pin.

Check with a qualied electrician or serviceman if the grounding instructions are not completely understood, or if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided. If the plug will not t the outlet, have the proper outlet installed by a qualied electrician.

This product is for use on a nominal 120 volt circuit and has a grounding plug that looks like the plug illustrated below. Make sure that the product is connected to an outlet having the same conguration as the plug. No adapter should be used with this product.

WARNING - To reduce the risk of re or explosion:

1. Do not spray ammable or combustible materials near an open ame, pilot lights or sources of ignition such as hot objects, cigarettes, motors, electrical equipment and electrical appliances. Avoid creating sparks from connecting and disconnecting power cords.

2. For use with only water-based or mineral spirit-type materials with a minimum ash point of 38ºC (100º F) — Do not spray or clean with liquids having a ash point of less than 38ºC (100º F). Flash point is the temperature at which a uid can produce enough vapor to ignite.

3. Verify that all containers and collection systems are grounded to prevent static discharge.

4. Connect to a grounded outlet and use grounded extension cords (electric models only). Do not use a 3 to 2 adapter.

5. Keep spray area well ventilated. Keep a good supply of fresh air moving through the area to keep the air within the spray area free from accumulation of ammable vapors.

6. Do not smoke in the spray area.

7. Do not operate light switches, engines, or similar spark producing products in the spray area.

8. Keep area clean and free of paint or solvent containers, rags, and other ammable materials.

9. Know the contents of the paint and solvents being sprayed. Read all Material Safety Data Sheets (MSDS) and container labels provided with the paints and solvents. Follow the paint and solvent manufacture’s safety instructions.

10. Fire extinguisher equipment shall be present and working.

English

Page 3

Important Safety Information

WARNING - To reduce the risk of injury:

1. Always wear appropriate gloves, eye protection, clothing and a respirator or mask when painting. Hazardous vapors – Paints, solvents, insecticides, and other materials can be harmful if inhaled or come in contact with body. Vapors can cause severe nausea, fainting or poisoning.

2. Do not operate or spray near children. Keep children away from equipment at all times.

3. Do not overreach or stand on an unstable support. Keep eective footing and balance at all times.

4. Stay alert and watch what you are doing.

5. Do not operate the unit when fatigued or under the inuence of drugs or alcohol.

6. Never aim spray gun at any part of the body.

7. Follow all appropriate local, state, and national codes governing ventilation, re prevention, and operation.

8. The United States Government Safety Standards have been adopted under the Occupational Safety and Health Act (OSHA). These standards, particularly part 1910 of the General Standards and part 1926 of the Construction Standards should be consulted.

9. Use only manufacturer authorized parts. User assumes all risks and liabilities when using parts that do not meet the minimum specications and safety devices of the turbine manufacturer.

10. Power cord must be connected to a grounded circuit.

11. Do not spray outdoors on windy days.

WARNING - To reduce the risk of electric shock:

1. Always remove turbine before cleaning.

2. Power cord must be connected to a grounded circuit.

3. Never submerge electrical parts.

4. Never expose the equipment to rain. Store indoors.

5. Keep electrical cord plug and spray gun trigger free from paint and other liquids. Never hold the cord at plug connections to support the cord. Failure to observe may result in an electrical shock.

Important Electrical Information

Use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on the product. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. A 14 gauge or 12 gauge cord is recommended. If an extension cord is to be used outdoors, it must be marked with the sux W-A after the cord type designation. For example, a designation of SJTW-A would indicate that the cord would be appropriate for outdoor use.

IMPORTANT: for outdoor use ONLY with materials having ashpoint above 100ºF (38ºC).

Household use only. Intended

English

Page 4

Components

Item Description

Turbine

Filter housing

Filter (2)

Material ow control

2-stage trigger

Release tab

600 ml cup

English

Item Description

Suction tube

Viscosity cup

Nut

Air cap

Nozzle

Nozzle seal

Page 5

Material Preparation

Note: Before spraying, the material being used may need to be thinned with the proper solvent as specified by the material manufacturer. Never exceed the thinning advice given by the coating manufacturer.

Do not use materials with a ashpoint below 100°F (38°C). Follow the instructions below.

To Prepare the Material:

1. Stir the spraying material thoroughly.

2. Dip the viscosity test cup completely into the spraying material.

3. Hold the test cup up and measure the time in seconds until the liquid empties out. This time is referred to below as Runout Time.

4. Unscrew the cup from the nozzle.

5. After the material has been properly thinned and strained, ll the container to desired level.

Material Runout Time (seconds)

Oil enamel 25-40

Oil based primer 30-45

Oil stain No thinning required

Clear sealer No thinning required

Polyurethane No thinning required

Varnish 20-50

Thinning Chart

Do not thin with materials that have a ashpoint below 100°F (38°C). The material ashpoint should be shown on the material container.

English

Page 6

Assembly

Before you begin:

NEVER point the spray gun at any part of the body.

To Assemble:

IMPORTANT: Make sure the power cord is unplugged.

1. Insert the suction tube into the intake opening.

2. Align the suction tube -

a. If you are going to be spraying in a downward

direction, the angled end of the suction tube should be pointing toward the front of the gun.

b. If you are going to be spraying in an upward

direction, the angled end of the suction tube should be pointing toward the rear of the gun.

Note: Make sure the suction tube is inserted as far as it will go to ensure a tight t.

IMPORTANT: Never tip the sprayer at more than a 45° angle. Material could get into the turbine and damage the sprayer.

3. Carefully screw the cup back onto the nozzle assembly. Tighten rmly.

4. Align the arrow on the nozzle with the “unlock” symbol on the turbine.

5. Insert and twist the nozzle into the turbine toward the “lock” symbol on the turbine.

The tab below the trigger will lock the two pieces into

place.

English

Page 7

Spraying

Keep stroke smooth and at an even speed

Even coat throughout

Do not ex wrist while spraying.

Light coat Heavy coat Light coat

Adjust Spray Pattern

The spray pattern shape is adjusted by turning the ears of the air cap to either the vertical, horizontal, or diagonal positions. The positions of the air cap and the corresponding spray pattern shapes are illustrated below.

Test each pattern and use whichever pattern is suitable for your application.

NEVER trigger the gun while adjusting the ears on the air cap. NEVER point the spray gun at any part of the body.

Air cap ears

Horizontal pattern



Use ‘up and down’ spraying motion

Vertical pattern



Use ‘side to side’ spraying motion

Diagonal pattern



Use ‘up and down’ or ‘side to side’ spraying motion

For coating smaller areas,



corners and edges

Spray Area Preparation - outdoor use only

The spray area must be clean and free of dust in order to avoid blowing dust onto your freshly sprayed surface.

How to Spray Properly

Partially pulling the trigger will start the turbine, but no material will spray

STOP

until the trigger is pulled fully. It is recommended that the trigger rst be pulled partially in order to start the turbine before a spray pass is made.

• Position the spray gun perpendicular to and one (1) or more inches from the spray surface, depending upon the spray pattern size desired.

• Spray parallel to the surface with smooth passes at a consistent speed as illustrated below. Doing this will help avoid irregularities in the nish (i. e. runs and sags).

• Always apply a thin coat of material on the rst pass and allow to dry before applying a second, slightly heavier coat.

• The closer your sprayer is to the object being sprayed the lower the overspray.

6 to 12 inches

Correct

Material Flow Adjustment

Set the material volume by turning the regulator on the trigger of the spray gun.

Proper Spraying Technique

If spraying with an HVLP spray system is new or unfamiliar to you, it is advisable to practice on a piece of scrap wood or cardboard before beginning on your intended workpiece.

• When spraying, always trigger the spray gun after spray pass has begun and release trigger before stopping the pass. Always keep the gun pointed squarely at the spray surface and overlap passes slightly to obtain the most consistent and professional nish possible.

Incorrect

Surface Preparation

All objects to be sprayed should be thoroughly cleaned before spraying material on them. Areas not to be sprayed may, in certain cases, need to be masked or covered.

English

Page 8

Cleanup

Flushing the unit

Before you begin:

When cleaning, use the appropriate cleaning solution (warm, soapy water for latex materials; mineral spirits for oil-based materials)

IMPORTANT: Never clean air cap or air holes in the nozzle with sharp metal objects. Do not use solvents or lubricants containing silicone.

Special cleanup instructions for use with flammable solvents (must have a flashpoint above 100ºF (38ºC):

 • Alwaysushspraygunoutside.  • Areamustbefreeofammablevapors.  • Cleaningareamustbewell-ventilated.  • Donotsubmergeturbine!

To Flush the Unit:

1. Unplug the power cord. Loosen the material container by 1/2 turn, but do not remove it. This will relieve any pressure left over in the system.

Pull the trigger so that the material inside the spray

nozzle drains back into the container.

2. Unscrew the container and remove. Empty any remaining material back into the material container.

3. Pour a small amount of the appropriate cleaning solution into the cup (Water=1/2 full. Mineral spirits=1/4 full).

4. Attach the cup to the nozzle and plug in the sprayer.

5. Spray the cleaning solution into a safe area.

While spraying, gently shake the spray gun. This slight

agitation will help break up smaller particles of spray material.

6. Unplug the power cord. Loosen the material container by 1/2 turn, but do not remove it. This will relieve any pressure left over in the system.

Pull the trigger so that the material inside the spray

nozzle drains back into the container.

1/2

PULL

IMPORTANT: If you cleaned the sprayer using mineral spirits, repeat steps 1-6 using warm, soapy water.

Move on to “Cleanup - Cleaning the Nozzle”, next page.

1/2

PULL

Empty waste

container

English

Page 9

Cleanup

Cleaning the Nozzle

To Clean the Nozzle:

1. Make sure power cord is unplugged.

Push the tab below the trigger, twist and separate the

nozzle from the turbine. Wipe the exterior of the cup and nozzle until clean.

2. Unscrew the nut and remove the air cap and nozzle.

3. Remove the parts as shown*. Clean all parts with a cleaning brush and the appropriate cleaning solution.

Reassemble when clean**.

4. Clean the air vent (c) on the suction tube with a soft bristled cleaning brush.

5. Clean the rear of the nozzle (d) with the appropriate cleaning solution. Use a thin layer of petroleum jelly to lubricate the O-ring (e).

543

(e)

(d)

(c)

* Nozzle seal

The red nozzle seal may become stuck inside the spray nozzle when the nozzle is removed. If this occurs, make sure to pull it out.

It is important that the nozzle seal inside the nozzle be re-installed properly. Make sure the cup side of the seal (the side with the groove) is facing out towards the front of the nozzle.

Groove

English

Page 10

Maintenance

Cleaning the Filters:

IMPORTANT: You should inspect the air lters in the turbine to see if it is excessively dirty. If it is dirty, follow these steps to replace it.

IMPORTANT: Never operate your unit without the air lters. Dirt could be sucked in and interfere with the function of the unit.

1. Unplug the spray gun. Remove the lter cover from the turbine by removing the two screws holding it in place.

2. Remove the dirty lters and replace with new ones. The smooth side of the air lter must be placed toward the turbine.

3. Secure the cover back onto the turbine.

Cleaning the Air Tube:

Note: If material has entered the air tube, proceed as follows.

1. Pull the air tube (a) at the top from the nozzle. Screw o the valve cover (b). Remove the valve seal (c). Clean all the parts carefully. Make sure to remove any material from valve seal housing area (d).

IMPORTANT: The air tube and valve seal (c) are only solvent-resistant to a limited extent. Do not immerse in solvent, only wipe.

2. Place the valve seal (c) in the valve cover (b) with the pin facing into the tube.

Note: Installing the valve seal into the valve cover will be much easier if the valve cover is inverted.

3. Turn the nozzle upside down and screw on the valve cover (with valve seal inside) from underneath.

Note: Turning the nozzle upside down will prevent the valve seal from falling out of the valve cover during reinstallation.

4. Place the air tube on the valve cover and on the nipple at the nozzle.

(a)

(b)

(c)

(d)

(c)

(b)

English

Page 11

Troubleshooting

PROBLEM CAUSE SOLUTION

Problem A: Little or no material ow

Problem B: Material leaking

Problem C: Spray pattern too thick, runs and sags

Problem D: Spray jet pulsates

1. Nozzle clogged.

2. Suction tube clogged.

3. Material ow setting too low.

4. Suction tube loose.

5. Air vent on suction tube blocked.

6. No pressure build up in container.

7. Air valve tube disconnected, valve seal missing.

8. Air valve tube or valve seal plugged.

9. Air lter clogged.

10. Spray material too thick.

11. Nozzle seal missing or worn.

1. Nozzle loose.

2. Nozzle worn.

3. Nozzle seal missing or worn.

4. Material build-up on air cap and nozzle

1. Material ow setting too high.

2. Applying too much material.

3. Nozzle clogged.

4. Air lter clogged.

5. Too little pressure build-up in container.

6. Spray material too thick.

1. Material in container running out.

2. Air lter clogged.

3. Air valve tube disconnected.

4. Nozzle seal missing or worn.

1. Clean.

2. Clean.

3. Increase material ow setting.

4. Remove and replace as tightly as possible.

5. Clean (see page 13, item 4)

6. Tighten container.

7. Reconnect both ends of the air tube, replace valve seal.

8. Clean (see “Cleaning the Air Valve Tube, page 15)

9. Change

10. Thin*.

11. Clean or replace.

1. Tighten.

2. Replace.

3. Clean or replace.

4. Clean.

1. Decrease material ow setting.

2. Adjust material ow or increase movement of spray gun.

3. Clean.

4. Change.

5. Tighten container.

6. Thin.

1. Rell.

2. Change.

3. Reconnect both ends of the air tube.

4. Clean or replace.

Problem E: Too much overspray

Problem F: Pattern is very light and splotchy

This unit contains no servicable electrical parts. Do not attempt to service yourself. Store indoors with the cord wrapped around the turbine handle.

Have you tried the recommendations above and are still having problems? In the United States, to speak to a customer service representative, call our Technical Service at 1-800-328-8251. See www.wagnerspraytech.com in the “Contact Us” section for Technical Service hours.

1. Gun too far from spray object. 1. Reduce distance.

1. Moving the spray gun too fast.

2. Material ow setting too low.

1. Adjust material ow or decrease movement of spray gun.

2. Increase material ow setting.

English

Page 12

TitleParts List • Lista de piezas

Nozzle assembly • Conjunto del boquilla

Replacement parts available by calling customer service

Los repuestos están disponibles llamanado al servicio a clientes.

1-800-328-8251

# Part No.

Pieza No.

1 0529013 Nozzle assembly (includes items 1-9) Ensamblaje del boquilla (incluye los

2 0414353 Nozzle seal Sello de boquilla 1

3 0414381 Nozzle Boquilla 1

4 0414384 Air cap Tapa de aire 1

5 0417319 Connecting nut Tuerca de conexión 1

6 0529005 Tube / Valve seal Tube / Junta de la válvula 1

7 0417358 Container seal Sello de recipiente 1

8 0417357 Suction tube Tubo de succión 1

9 0414313 Material container (600 ml) Recipiente (600 ml) 1

10 0202303 Viscosity cup Cubeta de viscosidad 1

English Description

Español Descripción

articulos 1-9)

Qty. Cant.

EspañolFrançaisEnglish

Page 13

Parts List • Lista de piezas

Turbine • Turbina

Replacement parts available by calling customer service

Los repuestos están disponibles llamanado al servicio a clientes.

1-800-328-8251

# Part No.

Pieza No.

1 --------- Turbine (includes item 2) Turbina (incluye le articulo 2) 1

2 0417323 Filter Filtro 2

English Description

Español Descripción

Qty. Cant.

EnglishEspañol

Page 14

Garantía limitada

Equipo de atomización de pintura HVLP

Este producto, fabricado por la Wagner Spray Tech Corporation (Wagner), está garantizado contra defectos de materiales y de mano de obra por un año a partir de la fecha de compra siempre y cuando se utilice de acuerdo con las recomendaciones e intrucciones impresas de Wagner. Esta garantía no cubre daños ocasionados por el uso incorrecto, accidentes, negligencia por parte del usario o el desgaste normal. Esta garantía no cubre cualquier defecto o daño ocasionado por el servicio o las reparaciones llevadas a cabo fuera de un Centro de Servicio Wagner Autorizado.

CUALQUIER GARANTÍA IMPLÍCITA RFERENTE AL POTENCIAL COMERCIAL O ADAPTABILIDAD pARA UN USO PARTICULAR SE LIMITA A UN AÑO A PARTIR DE LA FECHA DE COMPRA. WAGNER EN NINGÚN CASO SERÁ RESPONSABLE DE CUALQUIER DAÑO DIRECTO O INDIRECTO DE CUALQUIER TIPO, YA SEA POR VIOLACIÓN DE ESTA GARANTÍA O CUALQUIER OTRA RAZÓN. ESTA GARANTÍA NO SE APLICA A LOS ACCESORIOS.

ESTE PRODUCTO ESTÁ DISEÑADO PARA SER UTILIZADO EN EL HOGAR ÚNICAMENTE. SI SE UTILIZA PARA PROPÓSITOS COMERCIALES O DE ALQUILER, ESTÁ GARANTÍA ES VÁLIDA ÚNICAMENTE DURANTE 30 DÍAS A PARTIR DE LA FECHA DE COMPRA.

Si cualquier producto está defectuoso con respecto a los materiales o mano de obra, regréselo porte pagado junto con el recibo de compra a cualquier Centro de Servicio Wagner Autorizado (la lista de Centros de Servicio se adjunta con este producto). El Centro de Servicio Wagner Autorizado reparará o reemplazará el producto (a la discreción de Wagner) y se lo regresará porte pagado.

ALGUNOS ESTADOS, DEPARTAMENTOS O PROVINCIAS NO PERMITEN LIMITACIONES EN CUANTO AL PERÍODO DE VALIDEZ DE UNA GARANTÍA IMPLÍCITA NI LA EXCLUSIÓN DE DAÑOS DIRECTOS O INDIRECTOS. POR LA TANTO, LA LIMITACIÓN Y LA EXCLUSIÓN ANTERIOR PUEDEN NO APLICARSE A USTED.

ESTA GARANTÍA LE OTORGA DERECHOS LEGALES ESPECÍFICOS Y USTED TAMBIÉN PUEDE TENER OTROS DERECHOS QUE VARÍAN DE UNA LOCALIDAD A OTRA.

¿Preguntas? Registro del producto

Llame al servicio técnico de Wagner al:

1-800-328-8251

Consulte la sección “Contact Us” (Comuníquese con nosotros) en www. wagnerspraytech.com para conocer los horarios del Servicio Técnico.

Español

Registre su producto hoy en:

www.wagnerspraytech.com/registration

Valoramos su opinión. Para completar la evaluación, visite:

www.wagnerspraytech.com/reviews

Page 15

Limited Warranty

HVLP paint spray equipment

This product, manufactured by Wagner Spray Tech Corporation (Wagner), is warranted against defects in material and work-manship for one year following date of purchase if operated in accordance with Wagner’s printed recommendations and instructions. This warranty does not cover damage resulting from improper use, accidents, user’s negligence or normal wear. This warranty does not cover any defects or damages caused by service or repair performed by anyone other than a Wagner Authorized Service Center.

ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE IS LIMITED TO one year FOLLOWING DATE OF PURCHASE. WAGNER SHALL NOT IN ANY EVENT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, WHETHER FOR BREACH OF THIS WARRANTY OR ANY OTHER REASON. THIS WARRANTY DOES NOT APPLY TO ACCESSORIES.

THIS PRODUCT IS DESIGNED FOR HOME USAGE ONLY. IF USED FOR COMMERCIAL OR RENTAL PURPOSES, THIS WARRANTY APPLIES ONLY FOR 30 DAYS FROM DATE OF PURCHASE.

If any product is defective in material and/or workmanship during the applicable warranty period, return it with proof of purchase, transportation prepaid to any Wagner Authorized Service Center. (Service Center listing is enclosed with this product.) Wagner’s Authorized Service Center will either repair or replace the product (at Wagner’s option) and return it to you, postage prepaid.

SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

Questions? Product Registration

Call Wagner Technical Service at:

1-800-328-8251

See www.wagnerspraytech.com in the “Contact Us” section for Technical Service hours.

In order to register your product today, visit:

www.wagnerspraytech.com/registration

We value your opinion. To complete your review, please visit:

www.wagnerspraytech.com/reviews

English

Wagner Opti-stain User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
