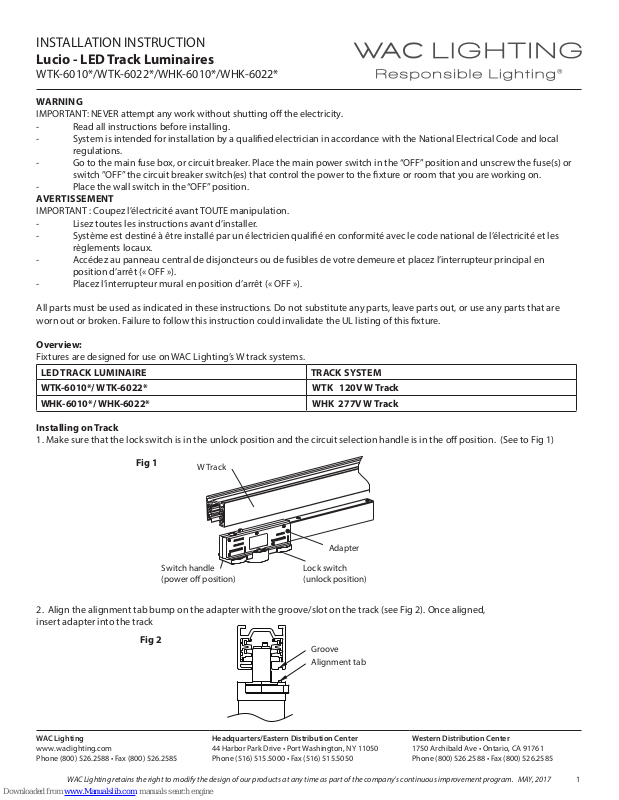

WAC Lighting WTK-6010 Series, WHK-6010 Series, WTK-6022 Series, WHK-6022 Series, Lucio Installation Instruction

INSTALLATION INSTRUCTION

Lucio - LED Track Luminaires

WTK-6010*/WTK-6022*/WHK-6010*/WHK-6022*

WARNING

IMPORTANT: NEVER attempt any work without shutting o the electricity.

- Read all instructions before installing.

- System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local
regulations.

- Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or
switch ”OFF” the circuit breaker switch(es) that control the power to the xture or room that you are working on.

- Place the wall switch in the “OFF” position.

AVERTISSEMENT

IMPORTANT : Coupez l’électricité avant TOUTE manipulation.

- Lisez toutes les instructions avant d’installer.

- Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et les
règlements locaux.

- Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en
position d’arrêt (« OFF »).

- Placez l’interrupteur mural en position d’arrêt (« OFF »).

All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are
worn out or broken. Failure to follow this instruction could invalidate the UL listing of this xture.

Overview:

Fixtures are designed for use on WAC Lighting’s W track systems.

LED TRACK LUMINAIRE TRACK SYSTEM

WTK-6010*/ WTK-6022* WTK 120V W Track

WHK-6010*/ WHK-6022* WHK 277V W Track

Installing on Track

1. Make sure that the lock switch is in the unlock position and the circuit selection handle is in the o position. (See to Fig 1)

Fig 1

W Track

Adapter

Switch handle
(power o position)

Lock switch
(unlock position)

2. Align the alignment tab bump on the adapter with the groove/slot on the track (see Fig 2). Once aligned,
insert adapter into the track

Fig 2

WAC Lighting

www.waclighting.com
Phone [phone] • Fax [phone]

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. MAY, 2017 1

Groove

Alignment tab

Headquarters/Eastern Distribution Center

44 Harbor Park Drive • Port Washington, NY 11050
Phone [phone] • Fax [phone]

Western Distribution Center

1750 Archibald Ave • Ontario, CA 91761
Phone [phone] • Fax [phone]

INSTALLATION INSTRUCTION

Lucio - LED Track Luminaires

WTK-6010*/WTK-6022*/WHK-6010*/WHK-6022*

3. To secure the xture to the track turn the lock switch to its locked position.(See Fig 3)

4. Select the circuit you want the luminaire to be powered on by rotating the circuit selection handle to circuit 1 or 2. (See View A)

View AFig.3

2

View A

Lock switch
(lock position)

1

Circuit selecting handle

1. Power on at circuit 1

2. Power on at circuit 2

5. Switch the main fuse breaker and circuit breaker to “ON “position.

6. Place the wall switch in the “ON “position

Positioning the Fixture

7. After the light is on, rotate the luminaire’s body horizontally and vertically to aim it properly.
Vertical aiming includes index markings. (See Fig 4)
