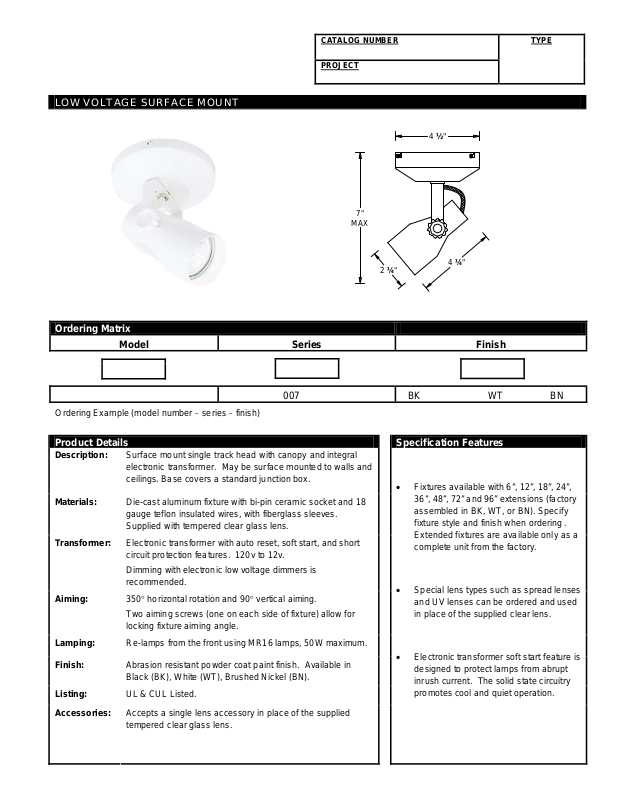

CATALOG NUMBER TYPE
PROJECT
LOW VOLTAGE SURFACE MOUNT
4 ½"
7"
MAX
2 ¼"
4 ¼"
Ordering Matrix
Model Series Finish
007 BK
Ordering Example (model number – series – finish)
Product Details
Description:
Materials:
Transformer:
Aiming:
Lamping:
Finish:
Listing:
Surface mount single track head with canopy and integral
electronic transformer. May be surface mounted to walls and
ceilings. Base covers a standard junction box.
Die-cast aluminum fixture with bi-pin ceramic socket and 18
gauge teflon insulated wires, with fiberglass sleeves.
Supplied with tempered clear glass lens.
Electronic transformer with auto reset, soft start, and short
circuit protection features. 120v to 12v.
Dimming with electronic low voltage dimmers is
recommended.
350° horizontal rotation and 90° vertical aiming.
Two aiming screws (one on each side of fixture) allow for
locking fixture aiming angle.
Re-lamps from the front using MR16 lamps, 50W maximum.
Abrasion resistant powder coat paint finish. Available in
Black (BK), White (WT), Brushed Nickel (BN).
UL & CUL Listed.
WT BN
Specification Features
• Fixtures available with 6”, 12”, 18”, 24”,
36”, 48”, 72” and 96” extensions (factory
assembled in BK, WT, or BN). Specify
fixture style and finish when ordering .
Extended fixtures are available only as a
complete unit from the factory.
• Special lens types such as spread lenses
and UV lenses can be ordered and used
in place of the supplied clear lens.
• Electronic transformer soft start feature is
designed to protect lamps from abrupt
inrush current. The solid state circuitry
promotes cool and quiet operation.
Accessories:
Accepts a single lens accessory in place of the supplied
tempered clear glass lens.
