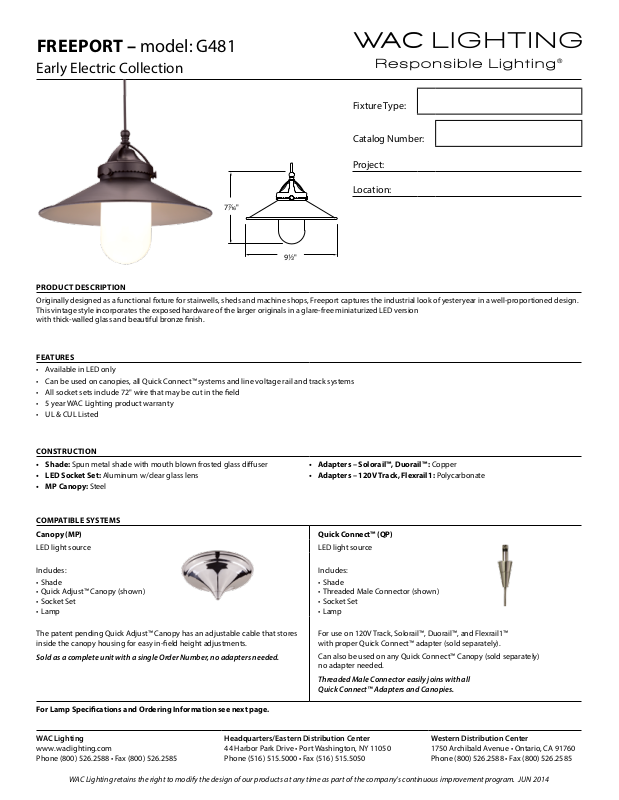

WAC Lighting W000633484 Specifications

FREEPORT – model: G481

Early Electric Collection

Fixture Type:

Catalog Number:

Project:

Location:

7v"

92"

PRODUCT DESCRIPTION

Originally designed as a functional xture for stairwells, sheds and machine shops, Freeport captures the industrial look of yesteryear in a well-proportioned design.
This vintage style incorporates the exposed hardware of the larger originals in a glare-free miniaturized LED version
with thick-walled glass and beautiful bronze nish.

FEATURES

• Available in LED only

• Can be used on canopies, all Quick Connect™ systems and line voltage rail and track systems

• All socket sets include 72" wire that may be cut in the eld

• 5 year WAC Lighting product warranty

• UL & CUL Listed

CONSTRUCTION

• Shade: Spun metal shade with mouth blown frosted glass diuser

• LED Socket Set: Aluminum w/clear glass lens

• MP Canopy: Steel

COMPATIBLE SYSTEMS

Canopy (MP) Quick Connect™ (QP)

LED light source LED light source

Includes:

• Shade

• Quick Adjust™ Canopy (shown)

• Socket Set

• Lamp

The patent pending Quick Adjust™ Canopy has an adjustable cable that stores
inside the canopy housing for easy in-eld height adjustments.

Sold as a complete unit with a single Order Number, no adapters needed.

• Adapters – Solorail™, Duorail™

• Adapters – 120V Track, Flexrail1 : Polycarbonate

Includes:

• Shade

• Threaded Male Connector (shown)

• Socket Set

• Lamp

For use on 120V Track, Solorail™, Duorail™, and Flexrail1™
with proper Quick Connect™ adapter (sold separately).

Can also be used on any Quick Connect™ Canopy (sold separately)
no adapter needed.

Threaded Male Connector easily joins with all
Quick Connect™ Adapters and Canopies.

: Copper

For Lamp Specications and Ordering Information see next page.

WAC Lighting

www.waclighting.com
Phone [phone] • Fax [phone]

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUN 2014

Headquarters/Eastern Distribution Center

44 Harbor Park Drive • Port Washington, NY 11050
Phone [phone] • Fax [phone]

Western Distribution Center

1750 Archibald Avenue • Ontario, CA 91760
Phone [phone] • Fax [phone]

FREEPORT – model: G481

Early Electric Collection

SOCKET SET and LAMP INFORMATION

LEDme®

LED: 12V/5.6W, 362 lumens, 3000K, CRI 85 (included)

• May be dimmed w/electronic low voltage (ELV) dimmer

• Three threaded screws are used to secure shade to socket

• 50,000 hour rated life

• Energy ecient

• No projected Ultraviolet or Infrared radiation

ORDER NUMBER

LEDme®

System Model # Shade Color Finish

MP-LED
QP-LED

Canopy (MP) models ordered as complete unit.
Quick Connect™ (QP) models must be ordered with an adapter or canopy, see next page for ordering info.

System Model # Color Finish

Canopy
Quick Connect™

481 AB

BN
CH

BN
CH
DB

481 – /

Example: MP-LED481-AB/CH

SHADE COLORS

AB - Antiqued Bronze BN - Brushed Nickel CH - Chrome

FINISHES

BN - Brushed Nickel CH - Chrome DB - Dark Bronze

WAC Lighting

www.waclighting.com
Phone [phone] • Fax [phone]

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUN 2014

Headquarters/Eastern Distribution Center

44 Harbor Park Drive • Port Washington, NY 11050
Phone [phone] • Fax [phone]

Western Distribution Center

1750 Archibald Avenue • Ontario, CA 91760
Phone [phone] • Fax [phone]

FREEPORT – model: G481

Quick Connect™ Adapters and Canopies

QUICK CONNECT™ ADAPTERS (order one per xture)

Solorail™ Model # Finish Duorail™ Model # Finish

LMQADP BN

CH
DB

Flexrail1™ 120V Track

HM1EN50 DB

PT

ORDER NUMBER

Model # Finish

–

Example: LMQADP-BN

LM2QADP BN

ENLQ50AR
ENHQ50AR
ENJQ50AR

CH
DB

BK
BN
DB
WT

QUICK CONNECT™ CANOPIES with INTEGRAL DRIVER

Model # Finish Model # Finish Model # Finish Model # Finish Model # Finish

QMP60ERN1 AB

BN
CH

Includes collar for
shallow junction boxes

QUICK CONNECT™ CANOPIES for use with REMOTE TRANSFORMER

QMPMITR BN

CH
DB

ORDER NUMBER

Model # Finish

QMP60ERN BN

CH
DB

Includes collar for
shallow junction boxes

QMP1RNTR BN

CH
DB

QMPG1RN MR QMPG3RN MR QMPG3RE MR

QMP1SQTR BN

CH
DB

–

Example: QMP60ERN-BN

FINISHES

AB - Antique Bronze BK - Black BN - Brushed Nickel CH - Chrome DB - Dark Bronze MR - Mirror PT - Platinum WT - White
