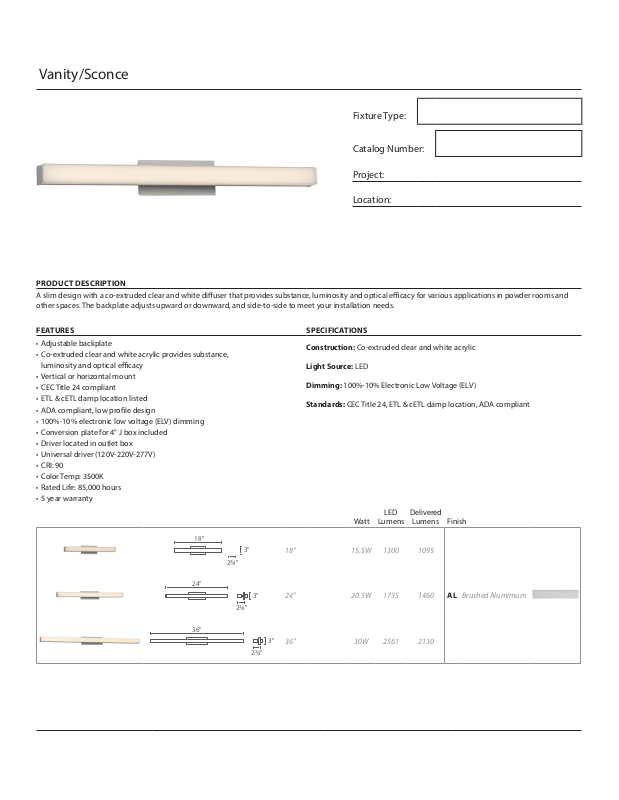

Vanity/Sconce
Fixture Type:
Catalog Number:
Project:
Location:
PRODUCT DESCRIPTION
A slim design with a co-extruded clear and white di user that provides substance, luminosity and optical e cacy for various applications in powder rooms and
other spaces. The backplate adjusts upward or downward, and side-to-side to meet your installation needs.
FEATURES SPECIFICATIONS
• Adjustable backplate
• Co-extruded clear and white acrylic provides substance,
luminosity and optical e cacy
• Vertical or horizontal mount
• CEC Title 24 compliant
• ETL & cETL damp location listed
• ADA compliant, low pro le design
• 100%-10% electronic low voltage (ELV) dimming
• Conversion plate for 4" J box included
• Driver located in outlet box
• Universal driver (120V-220V-277V)
• CRI: 90
• Color Temp: 3500K
• Rated Life: 85,000 hours
• 5 year warranty
18"
3"
2w"
Construction: Co-extruded clear and white acrylic
Light Source: LED
Dimming: 100%-10% Electronic Low Voltage (ELV)
Standards: CEC Title 24, ETL & cETL damp location, ADA compliant
LED
Watt
Lumens
18" 15.5W 1300 1095
Delivered
Lumens Finish
24"
36"
2w"
3"
2w"
24"
3"
36"
20.5W 1735 1460
30W 2561 2130
AL Brushed Alumimum
