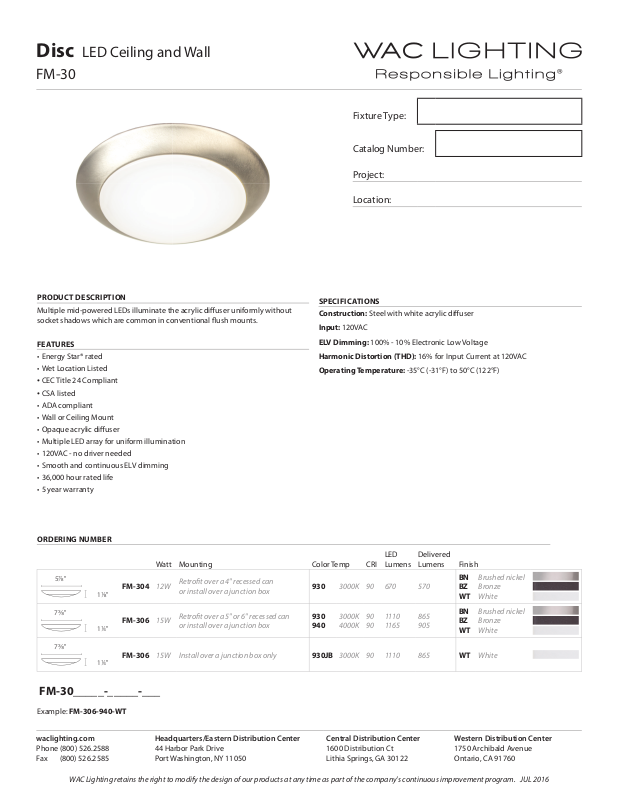

Disc LED Ceiling and Wall
FM-30
Fixture Type:
Catalog Number:
Project:
Location:
PRODUCT DESCRIPTION
Multiple mid-powered LEDs illuminate the acrylic di user uniformly without
socket shadows which are common in conventional ush mounts.
FEATURES
• Energy Star® rated
• Wet Location Listed
• CEC Title 24 Compliant
• CSA listed
• ADA compliant
• Wall or Ceiling Mount
• Opaque acrylic di user
• Multiple LED array for uniform illumination
• 120VAC - no driver needed
• Smooth and continuous ELV dimming
• 36,000 hour rated life
• 5 year warranty
ORDERING NUMBER
Watt Mounting Color Temp
5d"
7a"
7a"
FM-304 12W
18"
FM-306 15W
14"
FM-306 15W Install over a junction box only 930JB 3000K
14"
Retro t over a 4" recessed can
or install over a junction box
Retro t over a 5" or 6" recessed can
or install over a junction box
SPECIFICATIONS
Construction: Steel with white acrylic di user
Input: 120VAC
ELV Dimming: 100% - 10% Electronic Low Voltage
Harmonic Distortion (THD): 16% for Input Current at 120VAC
Operating Temperature: -35°C (-31°F) to 50°C (122°F)
930 3000K
930
3000K
940
4000K9090
LED
CRI
Lumens
90
670 570
1110
1165
90
1110 865 WT White
Delivered
Lumens Finish
BN
BZ
WT
865
905
BN
BZ
WT
Brushed nickel
Bronze
White
Brushed nickel
Bronze
White
FM-30_____-_____-___
Example: FM-306-940-WT
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUL 2016
