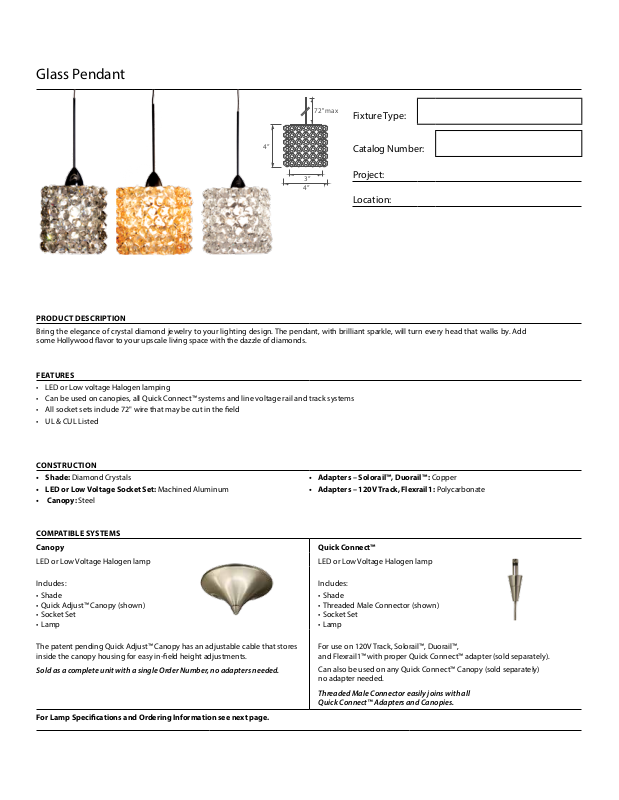

Page 1
72" max
3”
4”
4”
Glass Pendant
Fixture Type:
Catalog Number:
Project:
Location:
PRODUCT DESCRIPTION
Bring the elegance of crystal diamond jewelry to your lighting design. The pendant, with brilliant sparkle, will turn every head that walks by. Add
some Hollywood avor to your upscale living space with the dazzle of diamonds.
FEATURES
• LED or Low voltage Halogen lamping
• Can be used on canopies, all Quick Connect™ systems and line voltage rail and track systems
• All socket sets include 72" wire that may be cut in the eld
• UL & CUL Listed
CONSTRUCTION
• Shade: Diamond Crystals
• LED or Low Voltage Socket Set: Machined Aluminum
• Canopy: Steel
COMPATIBLE SYSTEMS
Canopy Quick Connect™
LED or Low Voltage Halogen lamp LED or Low Voltage Halogen lamp
Includes:
• Shade
• Quick Adjust™ Canopy (shown)
• Socket Set
• Lamp
The patent pending Quick Adjust™ Canopy has an adjustable cable that stores
inside the canopy housing for easy in-eld height adjustments.
Sold as a complete unit with a single Order Number, no adapters needed.
For Lamp Specications and Ordering Information see next page.
• Adapters – Solorail™, Duorail™
• Adapters – 120V Track, Flexrail1 : Polycarbonate
Includes:
• Shade
• Threaded Male Connector (shown)
• Socket Set
• Lamp
For use on 120V Track, Solorail™, Duorail™,
and Flexrail1™ with proper Quick Connect™ adapter (sold separately).
Can also be used on any Quick Connect™ Canopy (sold separately)
no adapter needed.
Threaded Male Connector easily joins with all
Quick Connect™ Adapters and Canopies.
: Copper
Page 2
Glass Pendant
SOCKET SET and LAMP INFORMATION
LED
Lamp: LEDme® (included)
Power: 4W
Lumens: 330
Color Temperature: 3000K
CRI: 85
• May be dimmed w/electronic low voltage (ELV) dimmer
• Threaded ring used to secure shade to socket
• 30,000 hour rated life
• Energy ecient
• No projected Ultraviolet or Infrared radiation
Low Voltage
Lamp: 12V Halogen JC-50 (included)
Power: 50W max
• May be dimmed
• Lamp shield secures shade to socket
• Includes 12V, 50W halogen bi-pin
• 20W and 35W lamps available
(order separately)
System Model Lamping Shade Finish Socket Finish
Canopy
Quick Connect
Canopy models include Quick AdjustTM canopy Quick
ConnectTM models require additional adapter
SHADE COLORS
Black Ice Champagne Diamond White Diamond (Clear)
FINISHES
Brushed Nickel Chrome Dark Bronze
TM
LED
Halogen
Black Ice
Champagne Diamond
White Diamond (Clear)
Brushed Nickel
Chrome
Dark Bronze
Page 3
Glass Pendant
QUICK CONNECT™ ADAPTERS (order one per xture)
Solorail™ Model # Finish Duorail™ Model # Finish
Flexrail1™ 120V Track
ORDER NUMBER
Model # Finish
–
QUICK CONNECT™ CANOPIES with INTEGRAL DRIVER
Model # Finish Model # Finish Model # Finish Model # Finish
QUICK CONNECT™ CANOPIES for use with REMOTE TRANSFORMER
ORDER NUMBER
Model # Finish
–
FINISHES
Black Brushed Nickel Chrome Dark Bronze Mirror Platinum White
