Vtech VT9011 User Manual
INTRODUCTION
Parts Check List:
1. Handset
2. Base Unit
3. T elephone line cord
4. Battery Pack
5. AC Adapter
To purchase replacement battery
packs, call VTECH Communications
at 1-800-595-9511. In Canada, call
VTECH Electronics at 1-800-267-
7377.
IMPORTANT SAFETY INSTRUCTIONS
When using your telephone equipment, basic safety precautions should always be followed
to reduce the risk of fire, electric shock and injury, including the following:
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the product.
3. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or
aerosol cleaners. Use a damp cloth for cleaning.
4. Do not use this product near water (for example, near a bath tub, kitchen sink, or
swimming pool).
5. Do not place this product on an unstable cart, stand, or table. The product may fall,
causing serious damage to the product.
6. Slots and openings in the cabinet and the back or bottom are provided for ventilation. To
protect it from overheating, these openings must not be blocked by placing the product
on the bed, sofa, rug, or other similar surface. This product should never be placed near
or over a radiator or heat register. This product should not be placed in a built-ininstallation where proper ventilation is not provided.
7. This product should be operated only from the type of power source indicated on the
marking label. If you are not sure of the type of power supply to your home, consult your
dealer or local power company.
8. Do not allow anything to rest on the power cord. Do not locate this product where the cord
will be abused by persons walking on it.
9. Never push objects of any kind into this product through cabinet slots, as they may
touch dangerous voltage points or short out parts that could result in a risk of fire or
electric shock. Never spill liquid of any kind on the product.
10. To reduce the risk of electric shock, do not disassemble this product. If service or repair
work is required, contact VTech Customer Service at 1-800-595-9511. Opening or
removing cabinet parts other than specified access doors may expose you to dangerous
voltages or other risks. Incorrect reassembling can cause electric shock when the
appliance is subsequently used.
11.Do not overload wall outlets and extension cords as this can result in the risk of fire or
electric shock.
12.Unplug this product from the wall outlet:
a) When the power supply cord or plug is damaged or frayed.
b) If liquid has been spilled into the product.
c) If the product has been exposed to rain or water.
d) If the product does not operate normally by following the operating instructions. Adjust
only those controls that are covered by the operating instructions, because improper
adjustment of other controls may result in damage and will often require extensive work
to restore the product to normal operation.
e) If the product has been dropped and the cabinet has been damaged.
f) If the product exhibits a distinct change in performance.
13.Avoid using a telephone (other than a cordless type) during an electrical storm. There
may be a remote risk of electric shock from lightning.
14. Do not use the telephone to report a gas leak in the vicinity of the leak.
SAVE THESE INSTRUCTIONS
2
HANDSET BASE UNIT
TELEPHONE CORD BATTERY PACK AC ADAPTER
1
INST ALLING/REPLACING THE BATTER Y P ACK
1. Slide the battery cover off by gently
pressing on the recessed area with
a downward motion.
2. Unplug and remove the old battery
pack. Don't put the old battery pack
in a trash compactor or a fire - it
could burst.
3. With the red and black wires at the
bottom of the pack, angle the top of
the battery into the compartment,
under the two “claws”. Next, press
the lower end of the battery pack
down, so it is held in place by the
lower claw. Now, plug the connector
into the socket, located below the
battery. Slip the battery wires into the
wire guide, located below and to the
left of the socket.
4. Replace the battery cover by sliding
it into place.
5. The new battery pack must be charged before using your telephone. Place
the handset in the cradle of the base unit to allow it to charge for 16 hours.
Maximum battery life between charges is more than 4.5 hours of continuous
talk time or 6 days of standby.
CAUTION: To reduce the risk of fire or injury , read and follow these instructions:
1. Use only VTECH battery pack supplied, or equivalent..
2. Do not open or mutilate the battery. Released electrolyte is corrosive and
may cause damage to the eyes or skin. It may be toxic if swallowed.
3. Exercise care in handling batteries in order not to short the battery with
conducting materials such as rings, bracelets, and keys. The battery or
conductor may overheat and cause burns.
4. Do not dispose of the battery in a fire. The cell may explode.
The RBRC™ Seal
The RBRC® program provides a convenient alternative to placing used nickelcadmium batteries into the trash or municipal waste, which may be illegal in
your area.
VTech’s participation with RBRC® makes it easy for you to drop off the spent
battery at local retailers participating in the RBRC® program or at authorized
VT ech product service centers. Please call 1-800-8-BA TTERY™ for information
on Ni-Cd battery recycling and disposal bans / restrictions in your area. VT ech’s
involvement in this program is part of its commitment to protecting our
environment and conserving natural resources.
RBRC ® is a registered trademark of Rechargeable Battery Recycling Corporation.
The RBRC® Seal on the nickel-cadmium battery indicates that
VT ech Communications, Inc. is voluntarily participating in an industry
program to collect and recycle these batteries at the end of their
useful lives, when taken out of service within the United States and
Canada.
3
GETTING STARTED HANDSET FEATURES
AC ELECTRICAL
OUTLET
TELEPHONE
WALL JACK
Setting Up Y our VT91 13
1. Choose an area near an electrical outlet and a telephone wall jack.
2. Plug the AC power adapter into an electrical outlet and the DC connector to
the power jack on the bottom of the Base Unit. Insert the cord in the channel
guide.
CAUTION: Use only the AC adapter shipped with your VT9113. It is
specifically designed for this product.
NOTE: Connect power to the Base Unit before placing the handset in the
cradle.
3. CHARGE THE HANDSET BATTERY P ACK BEFORE USE. The batteries recharge automatically whenever the Handset is in the Base Unit cradle. The batteries must be charged for 16 hours before using your phone for the first time.
4. Connect the telephone line cord. Insert one end of the telephone line cord
into the phone jack on the bottom of the Base Unit. Plug the other end into
a telephone wall jack. Make sure the plugs snap securely into place. Insert
the cord in the channel guide.
5. CHECK FOR A DIAL TONE. After the battery pack is charged, pick up the
Handset and press the ON key . The IN USE indicator should light up, and
you should hear a dial tone. If not, see IN CASE OF DIFFICULTY.
CAUTION:
1. Never install telephone wiring during a lightning storm.
2. Never install telephone jacks in wet locations unless the jack is specifically
designed for wet locations.
3. Never touch uninsulated telephone wires or terminals unless the telephone
line has been disconnected at the network interface.
4. Use caution when installing or modifying telephone lines.
ON LED
ON/FLASH KEY
MEMORY/PROG KEY
VOLUME KEYS
ON LED
• The ON LED lights when the
Handset is on an active call.
• It flashes in cadence with an
incoming ring.
• It flashes quickly during
Programming mode.
• It flashes slowly when the battery
pack is low.
ON/ FLASH KEY
• Press the ON key to make a call.
• If you are currently on a call, and
you hear a call waiting tone,
press ON to switch to the second
call. Press ON again to return to
the original call.
VOLUME CONTROL
• Adjust the volume of what you
hear through the Handset.
• While on a call, press the or
key to adjust the listening
volume. The Handset will emit a
double beep when the maximum
or minimum volume level has
been reached.
OFF KEY
• Press the OFF key to exit all
modes of operation.
OFF KEY
CHANNEL KEY
REDIAL/PAUSE KEY
REDIAL / P AUSE KEY
• When you hear the dial tone,
press the REDIAL to call the last
number dialed on your phone.
• It can also be used to store the
last number dialed into the speed
dial memory. See Storing a
Redial Number into Speed Dial
for details.
• You can store a P AUSE into your
dialing number. See Storing
Pauses in Memory for detail.
CHAN KEY
• Pressing the CHAN key when the
Handset is in use will activate a
channel change to the next free
channel.
• This is used if you are
experiencing noise or
interference on the current
channel.
MEM/PROG KEY
• Press the MEM key to enter
MEMORY mode.
• The sequence for dialing out a
speed dial number in memory is:
ON, MEM, Number Button (0-9).
• Press MEN/PROG to enter
programming mode. See
Programming Speed Dial
Numbers for more details.
TONE/ * KEY
• In PULSE dialing mode, this key
is used to switch to Temporary
TONE dialing mode.
4
5

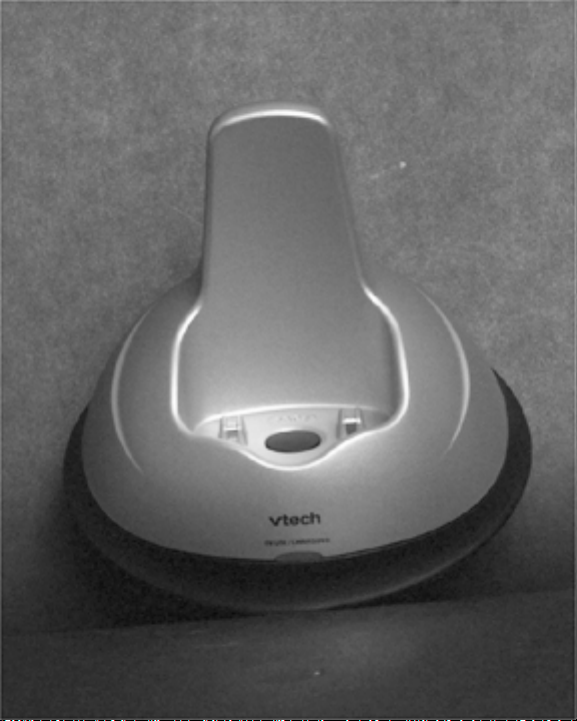

BASE UNIT FEATURES
IN USE/CHARGING LED
• The LED illuminates steadily when the
Handset is in the Base cradle to
indicate that the Handset battery is
being charged.
• The LED illuminates whenever the
Handset is being used.
• This LED also flashes with the
cadence of the incoming ring.
P AGE KEY
• Press the PAGE key to page the
Handset.
• Press it second time to cancel a page.
• The Base will ring the Handset for 1
minute before ending the page
automatically.
• The Handset can also cancel the
page by pressing the OFF key.
BOTTOM VIEW:
FRONT VIEW:
IN USE/
CHARGE LED
PAGE KEY
OPERATING INSTRUCTIONS
ON LED
ON/FLASH KEY
MEMORY/PROG KEY
VOLUME KEYS
Making Calls
Pick up the Handset and press ON.
When you hear a dial tone, dial the
number. The ON LED will illuminate
while the Handset is in use.
If you make a mistake when dialing,
press OFF to hang up, then press
ON to get the dial tone again.
You must always press ON before
you can dial a call on the Handset.
Answering Calls
When an incoming call is ringing, the
IN USE LED on the Base and ON
LED on the Handset will flash. To
make sure your phone rings when
the Handset is away from the Base,
please keep the Base antenna in the
upright position.
T o answer a call when the Handset
is in the Base, just pick up the
Handset.
T o answer a call when the Handset
is away from the Base, just press
any key on the Handset (except
OFF KEY
CHANNEL KEY
REDIAL/PAUSE KEY
OFF). This is very useful in a dark
environment; you do not have to
fumble around looking for the ON key
to answer the call.
Disconnecting
T o end a call, either place the Handset
back in the Base, or press OFF on
the Handset.
Changing Channels
If you notice interference when using
your Handset, press CHAN to switch
to a clear channel. This function is
only available when you are on a call.
•
TONE/PULSE Setting
If you have touch tone service on
phone line. Press MEM/PROG, * , *,
MEM to switch to TONE dialing. If you
have rotary service, press MEM/
PROG, * , # , MEM to switch to
PULSE.
NOTE: Your VT9113 is preset at the
factory for TONE dialing.
6
OPERATING INSTRUCTIONS
T emporary T one
If you have a rotary (dial-pulse)
telephone service, (TONE/PULSE
setting is set to PULSE), this feature
allows you to enter special codes and
tones to operate answering
machines, use electronic banking
services, calling cards, or other
special services.
First, dial the call normally. Then
activate the T emporary T one feature
by pressing TONE (the * key). You
can then press the numbers or
symbols you need, and your phone
will send the proper signals.
T o end the call, press OFF or place
the Handset back in the Base. The
phone will automatically go back to
rotary (dial-pulse) service.
Programming The Ringer T ype
The Handset ringer is capable of four
different types of ringing tones. The
following sections detail how to
change the different tones and to turn
off a ringer on the Handset.
To program, the Handset must be
OFF.
To select a different ringer type do
the following:
• Press MEM/PROG.
• Press the # key.
• Press a key 1..4 to select a ringer
type.
• Press the MEM key to confirm.
Turning Off The Ringer
T o turn off the ringer on the Handset,
do the following:
• Press MEM/PROG.
• Press the # key
• Press 5 to turn off the ringer
• Press the MEM key to confirm
• To turn the ringer on again, see
Programming the Ringer Type.
Checking The Ringer
T o check the ringer which is currently
programmed, do the following:
• Press MEM/PROG.
• Press the # key
• Press 0
• Press the MEM key to confirm
Memory Dialing
The VT9113 can store up to 10
different phone numbers that you can
dial just by pressing phone, MEM and
one of the number keys (0-9).
Programming Speed Dial Numbers
The Handset must be OFF.
1. Press MEM/PROG. The ON LED
will blink to indicate that you are in
the programming mode.
2. Press the number of the memory
location you wish to store the
number in (0-9).
3. Using the dial pad, dial the number
you want to store. The number
can be up to 16 digits long. The
number can be entered manually
or by using REDIAL.
4. Press MEM to store the phone
number to the key you selected.
The phone now exits programming
mode and emits a tone.
7
OPERATING INSTRUCTIONS
Speed Number Dialing
1. Press ON to get a dial tone.
2. Press MEM and the memory
location number key (0-9).
For example, to dial the number you
assigned to key '8', you would press
ON, MEM, 8.
T o Change or Replace a Speed Dial Number
To change or replace a stored
number in speed dial memory simply
enter the new number and store it in
the memory location you wish to
change.
For example, to change the number
stored in memory position 7 to 5551111, you would press MEM/PROG,
7, 555-1111, MEM.
Storing Pauses in Memory
T o insert a pause in a phone number ,
press REDIAL/PAUSE . The pause is
2 seconds in length. For longer
pauses, press REDIAL/P AUSE two
or more times. Each additional press
indicates an additional 2 second
pause.
If your phone is connected to a PBX
you can store the PBX access
number and a pause before the
phone number. For example, to store
9-PAUSE-555-1234 in memory
location 8 do the following:
1. Press MEM/PROG
2. Press 8
3. Press 9
4. Press REDIAL / P AUSE
5. Dial 555-1234
6. Press MEM
Using REDIAL
T o redial the last number you called,
press ON then press REDIAL. The
phone will automatically dial the
number.
Storing a Redial Number into Speed Dial
T o store the last number you dialed
as a Speed Dial number, press MEM/
PROG, a location number (0-9),
REDIAL, MEM.
The Page Feature
From the Base Unit, press PAGE to
signal the person at the Handset. T o
end the page at the base, press
PAGE again. T o end the page at the
Handset, press OFF.
If the Handset is in use ( off hock)
when PAGE is pressed on the Base
Unit, the Handset will emit one page
alert. If the Handset is not in use (on
hook), the page alert will continue for
approximately 60 seconds.
This feature is useful in locating a
misplaced H andset.
8
IN CASE OF DIFFICULTY
If you have difficulty operating your
phone, the suggestions below should
solve the problem. If you still have
difficulty after trying these
suggestions,
In the US Call:
VTECH
Communications at
1-800-595-9511.
In Canada Call:
VTECH Electronics at
1-800-267-7377.
THE PHONE DOESN'T WORK A T ALL.
• Make sure the power cord is
plugged in.
• Make sure the telephone line cord
is plugged firmly into the Base Unit
and the telephone wall jack.
• Make sure the batteries are
properly charged. If the Handset
makes two beeps, the batteries
need charging. If the IN USE
indicators do not light when you
press ON, you must charge the
batteries.
• If you recently installed a new
battery pack, make sure it is
installed correctly.
NO DIAL TONE.
• First check all the suggestions
above.
• If you still don't hear a dial tone,
disconnect the Base Unit from the
telephone jack and connect a
different phone. If there is no dial
tone on that phone either, the
problem is in your wiring or local
service. Call your local telephone
company .
YOU GET NOISE, STATIC, OR A WEAK SIGNAL EVEN WHEN YOU'RE NEAR THE BASE UNIT .
Household appliances plugged into
the same circuit as the Base Unit can
sometimes cause interference. Try
moving the appliance or the Base Unit
to another outlet.
YOU GET NOISE, STATIC, OR A WEAK SIGNAL WHEN YOU'RE AW A Y FROM THE BASE UNIT.
• Y ou may be out of range. Either
move closer to the Base, or
relocate the Base Unit.
• The layout of your home may be
limiting the range. Try moving the
Base Unit to the second or third
floor, or to some other location.
THE HANDSET DOES NOT RING WHEN YOU RECEIVE A CALL.
• Ensure that the ringer is turned
on.
• Make sure the telephone line cord
is plugged firmly into the Base Unit
and the telephone jack. Make
sure the power cord is plugged
in.
• You may be too far from the Base
Unit.
• You may have too many
extension phones on your
telephone line to allow all of them
to ring. Try unplugging some of
the other phones.
YOUR CALLER FADES IN AND
OUT.
Y ou may be nearly out of range. Move
closer, or relocate the Base.
9
IN CASE OF DIFFICULTY
YOU HEAR OTHER CALLS WHILE USING YOUR PHONE.
• Replace the Handset in the Base
cradle, wait a few moments and
try again.
• Disconnect your Base Unit from
the telephone jack, and plug in a
regular telephone. If you still hear
other calls, the problem is
probably in your wiring or local
service. Call your local telephone
company .
YOU HEAR NOISE IN THE HANDSET, AND NONE OF THE KEYS OR BUTTONS WORK.
• Make sure the power cord is
plugged in.
• Your Base Unit and Handset may
not be operating on the same
channel or security code. Place
the Handset in the cradle for a
few moments to reload the
security code and reset the
channel.
COMMON CURE FOR ELECTRONIC EQUIPMENT
Electronics, like people, can
sometimes get confused. If the unit
does not seem to be responding
normally , then try putting the Handset
in the cradle to re-initialize the unit. If
it still does not seem to respond,
perform the following steps (in the
order listed):
1. Disconnect the power to the
Base.
2. Disconnect the Handset battery
pack.
3. Wait a few minutes.
4. Connect power to the Base.
5. Reconnect the Handset battery.
6. Place the Handset in the Base
Unit cradle. If the Handset has not
been recently charged, allow 8
hours before use.
10 11
WARRANTY STATEMENT
WARRANTY STATEMENT
What does this limited warranty
cover?
• The manufacturer of this VTECH
product, VTECH Communications, warrants to the holder of
a valid proof of purchase
(“Consumer” or “you”) that the
product and all accessories
provided by VTECH in the sales
package (“Product”) are free
from material defects in material
and workmanship, pursuant to
the following terms and conditions,
when installed and used normally
and in accordance with operation
instructions. This limited warranty
extends only to the Consumer for
Products purchased and used in
the United States of America.
What will VTECH
Communications do if the
Product is not free from material
defects in materials and
workmanship during the limited
warranty period (“Materially
Defective Product”)?
• During the limited warranty period,
VTECH’s authorized service
representative will repair or
replace at VTECH’s option, without
charge, a Materially Defective
Product. If we repair this product,
we may use new or refurbished
replacement parts. If we choose
to replace this product, we may
replace it with a new or refurbished
product of the same or similar
design.VTECH will return repaired
or replacement products to you
in working condition. VTECH will
retain defective parts, modules,
or equipment. Repair or
replacement of Product, at
VTECH‘S option, is your exclusive
remedy. You should expect the
repair or replacement to take
approximately 30 days.
How long is the limited warranty
period ?
• The limited warranty period for the
product extends for ONE(1)YEAR
from the date of purchase if we
repair or replace a Materially
Defective Product under the terms
of this limited warranty. This
limited warranty also applies to
repaired or replacement Products
for a period of either (a) 90 days
from the date the repaired or
replacement Product is shipped to
you or (b) the time remaining on
the original one-year warranty;
whichever is longer.
What is not covered by this
limited warranty ?
This limited warranty does not cover
1. Product that has been subjected
to misuse, accident, shipping or
other physical damage, improper
installation, abnormal operation or
handling, neglect, inundation, fire,
water or other liquid intrusion; or
2. Product that has been damaged
due to repair, alteration or
modification by anyone other
than an authorized service
representative of VTECH; or
3. Product to the extent that the
problem experienced is caused
by signal conditions, network
reliability or cable or antenna
systems; or
4. Product to the extent that the
problem is caused by use with
non-VTECH electrical
accessories; or
5. Product whose warranty/quality
stickers, Product serial numbers
plates or electronic serial numbers
have been removed, altered or
rendered illegible; or
6. Product purchased, used,
serviced, or shipped for repair
from outside the United States, or
used for commercial or institutional
purposes (including but not limited
to Products used for rental
purposes); or
7. Product returned without valid
proof of purchase (see 2 below);
or
8. Charges for installation or set up,
adjustment of customer controls,
and installation or repair of
systems outside the unit.
How do you get warranty
service?
• To obtain warranty service in the
United States of America, call 1
800-595-9511 for instructions
regarding where to return the
Product. Before calling for service,
please check the user’s manual.
A check of the Product controls
and features may save you a
service call.
• Except as provided by applicable
law, you assume the risk of loss
or damage during transit and
transportation and are responsible
for delivery or handling charges
incurred in the transport of
Product(s) to the service location.
VTECH will return repaired or
replaced product under this limited
warranty to you, transportation,
delivery or handling charges
prepaid .VTECH assumes no risk
for damage or loss of the Product
in transit.
• If the Product failure is not
covered by this limited warranty,
or proof of purchase does not
meet the terms of this limited
warranty, VTECH will notify you
and will request that you authorize
the cost of repair prior to any
further repair activity. You must
pay for the cost of repair and
return shipping costs for the
repair of Products that are not
covered by this limited warranty.
What must you return with the
Product to get warranty
service?
1. Return the entire original package
and contents including the Product
to the VTECH service location
along with a description of the
malfunction or difficulty;
2. Include “valid proof of purchase”
(sales receipt) identifying the
Product purchased (Product
model) and the date of purchase
or receipt; and
3. Provide your name, complete and
correct mailing address, and
telephone number.
Other Limitations
• This warranty is the complete and
exclusive agreement between you
and VTECH. It supersedes all
other written or oral
12
WARRANTY STATEMENT
communications related to this
Product. VTECH provides no
other warranties for this product.
The warranty exclusively
describes all of VTECH’s
responsibilities regarding the
product. There are no other
express warranties. No one is
authorized to make modifications
to this limited warranty and you
should not rely on any such
modification.
State Law Rights: This warranty
gives you specific legal rights,
and you may also have other
rights which vary from state to
state.
Limitations: Implied warranties,
including those of fitness for a
particular purpose and
merchantability (an unwritten
warranty that the product is fit for
ordinary use) are limited to one
year from date of purchase.
Some states do not allow limitations
on how long an implied warranty
lasts, so the above limitation may
not apply to you.
• In no event shall VTECH be liable
for any indirect, special, incidental,
consequential, or similar damages
(including, but not limited to lost
profits or revenue, inability to use
the product, or other associated
equipment, the cost of substitute
equipment, and claims by third
parties) resulting from the use of
this product. Some states do not
allow the exclusion or limitation of
incidental or consequential
damages, so the above limitation
or exclusion may not apply to
you.
MAINTENANCE
Your VT 9113
contains sophisticated electronic
parts so it must be treated with care.
Avoid rough treatment
Place the handset down gently . Save
the original packing materials to
protect your telephone if you ever
need to ship it.
Avoid W ater
Y our telephone can be damaged if it
gets wet. Do not use the handset
outdoors in the rain, or handle it with
wet hands. Do not install your base
unit near a sink, bathtub or shower.
Remember that electrical appliances
can cause serious injury if used when
you are wet or standing in water. If
your base unit should fall into water,
DO NOT RETRIEVE IT UNTIL YOU
UNPLUG THE POWER CORD
AND TELEPHONE LINE CORDS
FROM THE WALL.
unit out by the unplugged cords.
Electrical Storms
Electrical storms can sometimes
cause power surges harmful to
electronic equipment.
For your own safety, use caution
when using electric appliances during
storms.
Cleaning your telephone
Y our telephone has a durable plastic
casing that should retain its luster for
many years. Clean it only with a soft
cloth slightly dampened with water
or a mild soap. Do not use excess
water or cleaning solvents of any
kind.
cordless telephone
Then pull the
13
TECHNICAL SPECIFICATIONS
FREQUENCY CONTROL
Crystal Controlled Dual PLL
Synthesizer
TRANSMIT FREQUENCY
Handset: 923.10 MHz to 927.75
MHz
Base: 902.3 MHz to 906.65 MHz
RECEIVE FREQUENCY
Handset: 902.3 MHz to 906.65 MHz
Base: 923.10 MHz to 927.75
MHz
NOMINAL EFFECTIVE
RANGE
Maximum power allowed by FCC and
IC. Actual operating range may vary
according to environmental
conditions at the time of use.
SIZE
Handset: 17.5cm x 5.5cm x 3.9cm
(L x W xT) maximum
(antenna excluded)
Base: 19.3cm x 14.8cm x 5.4cm
(L x W x T) maximum
(antenna excluded)
WEIGHT
Handset: 146 grams
Base: 283 grams
POWER REQUIREMENTS
Handset: Self-contained nickel-
cadmium rechargeable
battery supply, 3.6V
nominal, 400mAh capacity.
Power Adapter: 9V DC @ 200mA
SPECIFICATIONS ARE
TYPICAL AND MAY
CHANGE WITHOUT NOTICE.
14
FCC, ACTA and IC REGULATIONS
This equipment complies with Parts
15 of the Federal Communications
Commission (FCC) rules for the
United States. It also complies with
regulations RSS210 and CS-03 of
Industry and Science Canada.
Operation is subject to the following
two conditions: (1) this device may
not cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
A label is located on the underside
of the Base Unit containing either the
FCC registration number and Ringer
Equivalence Number (REN) or the
IC registration number and Load
Number. You must, upon request,
provide this information to your local
telephone company.
This equipment is compatible with
inductively coupled hearing aids.
Should you experience trouble with
this telephone equipment, please
contact:
VTech Communications Inc
CUSTOMER SERVICE at 1-800595-9511. In Canada, call VTech
Electronics Ltd. at 1-800-267-7377.
For repair/warranty information. The
telephone company may ask you to
disconnect this equipment from the
line network until the problem has
been corrected.
FCC Part 15
Warning: Changes or
modifications to this unit not
expressly approved by the party
responsible for compliance could
void the user's authority to
operate the equipment.
The equipment has been tested and
found to comply with part 15 of the
FCC rules. These limits are designed
to provide reasonable protection
against harmful interference in a
residential installation. This equipment
generates, uses and can radiate
radio frequency energy and, if not
installed and used in accordance
with the instructions, may cause
harmful interference to radio
communications. However, there is
no guarantee that interference will
not occur in a particular installation.
If this equipment does cause harmful
interference to radio or television
reception, which can be determined
by turning the equipment off and on,
the user is encouraged to try and
correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between
the equipment and receiver.
• Connect the equipment into an
outlet or on a circuit different
from that to which the receiver
is connected.
15
FCC, ACTA and IC REGULATIONS
• Consult the dealer or an
experienced radio/TV technician
for help.
If this equipment was approved for
connection to the telephone network
prior to July 23, 2001, it complies with
Part 68 of the Federal Communications
Commission (FCC) rules. If the
equipment was approved after that
date, it complies with the Part 68 rules
and with Technical Requirements for
Connection of Equipment to the
Telephone Network adopted by the
Administrative Council for Terminal
Attachments (ACTA). We are required
to provide you with the following
information.
1. Product identifier and REN
information
The label on the back or bottom
of this equipment contains,
among other things, an identifier
indicating product approval and
the Ringer Equivalence Number
(REN). This information must
be provided to your local
telephone company upon
request. For equipment
approved prior to July 23, 2001,
the product identifier is preceded
by the phrase “FCC Reg No.”
and the REN is listed separately.
For equipment approved after
that date, the product identifier
is preceded by “US” and a colon
(:), and the REN is encoded in
the product identifier without a
decimal point as the sixth and
seventh characters following the
colon. For example, the product
identifier US:AAAEQ03T123XYZ
would indicate an REN of 0.3.
The REN is used to determine
how many devices you may
connect to your telephone line
and still have them ring when
you are called. In most, but not
all areas, the sum of all RENs
should be five (5.0) or less. You
may want to contact your local
telephone company for more
information.
2. Connection and use with
the nationwide telephone
network
The plug and jack used to
connect this equipment to the
premises wiring and the
telephone network must comply
with the applicable Part 68 rules
and technical requirements
adopted by ACTA. A compliant
telephone cord and modular plug
is provided with this product. It
is designed to be connected to
a compatible modular jack that
is also compliant. An RJ11 jack
should normally be used for
connecting to a single line and
an RJ14 jack for two lines. See
Installation Instructions in the
user’s manual. This equipment
may not be used with Coin
Telephone Lines or with Party
Lines. If you have specially
wired alarm dialing equipment
connected to your telephone
line, ensure the connection of
16
17
Loading...
