Vtech VT 20-2480 User Manual

Important Safety Instructions

When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following:

1. Read and understand all instructions.

2. Follow all warnings and instructions marked on the product.

3. Unplug this product from the wall outlet before cleaning. Do not use liquid

cleaners or aerosol cleaners. Use a damp cloth for cleaning.

4. Do not use this product near water (for example, near a bath tub, kitchen

sink, or swimming pool).

5. Do not place this product on an unstable cart, stand, or table. The product

may fall, causing serious damage to the product.

6. Slots and openings in the cabinet and the back or bottom are provided

for ventilation. To protect it from overheating, these openings must not be blocked by placing the product on the bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register. This product should not be placed in a built-in installation where proper ventilation is not provided.

7. This product should be operated only from the type of power source

indicated on the marking label. If you are not sure of the type of power supply to your home, consult your dealer or local power company.

8. Do not allow anything to rest on the power cord. Do not locate this product

where the cord will be abused by persons walking on it.

9. Never push objects of any kind into this product through cabinet slots

as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electric shock. Never spill liquid of any kind on the product.

10. To reduce the risk of electric shock, do not disassemble this product.

Opening or removing cabinet parts other than specified access doors may expose you to dangerous voltages or other risks. Incorrect reassemb-ling can cause electric shock when the appliance is subsequently used.

11. Do not overload wall outlets and extension cords as this can result in the

risk of fire or electric shock.

Introduction

12. Unplug this product from the wall outlet and contact Vtech customer

support under the following conditions:

A. When the power supply cord or plug is damaged or frayed. B. If liquid has been spilled into the product. C. If the product has been exposed to rain or water. D. If the product does not operate normally by following the operating

instructions. Adjust only those controls that are covered by the operating instructions, because improper adjustment of other controls may result in damage and will often require extensive work

to restore the product to normal operation. E. If the product has been dropped and the cabinet has been damaged. F. If the product exhibits a distinct change in performance.

13. Avoid using a telephone (other than a cordless type) during an electrical

storm. There may be a remote risk of electric shock from lighting.

14. Do not use the telephone to report a gas leak in the vicinity of the leak.

STOP!!

If you have questions about this product, or if you're having difficulty with setup or operation, do not return your phone to the store. Call our Customer Support Center at:

The GIGAPHONE is an advanced cordless telephone that operates in the

2.4GHz frequency range. Your GIGAPHONE is capable of supporting up to a maximum of 8 Handsets. Using additional Handsets, several people can be using the cordless system at the same time. Some examples:

• 2 Handsets conferenced on a Line 1 call; while 2 additional Handsets are conferenced on a Line 2 call.

• 2 Handsets conferenced on a Line 1 call; while another Handset is in Intercom mode with the Base Unit.

• 1 Handset on Line 1; a different Handset in Intercom mode with the Base Unit; 2 additional Handsets are conferenced on Line 2.

This manual is designed to familiarize you with the GIGAPHONE cordless telephone. We strongly recommend you read the manual before using your phone.

To order additional system Handsets (model# VT20-2420), battery packs, or headsets, call VTech Communications Inc at 1-800-595-9511.

MENU DRIVEN DISPLAYS

The VT20-2481 Handset and Base feature a user-friendly display, making it easy to access the many features of this multi-Handset, cordless system. The three black keys, found directly below the LCD screen, are called soft keys. They are called this because their functions change depending on what you're doing-making a call, reviewing Caller ID, adding a name and number to your Phone Book, etc.

For example, when the Handset is in the idle mode, the LCD display:

1-800-595-9511

In Canada, call 1-800-267-7377

In this case, the 3 soft keys access REDIAL, MENU and MEMORY. When the Handset is active, the LCD displays:

In this case, the 3 soft keys access VOLUME, HOLD and MUTE.

Parts Check List

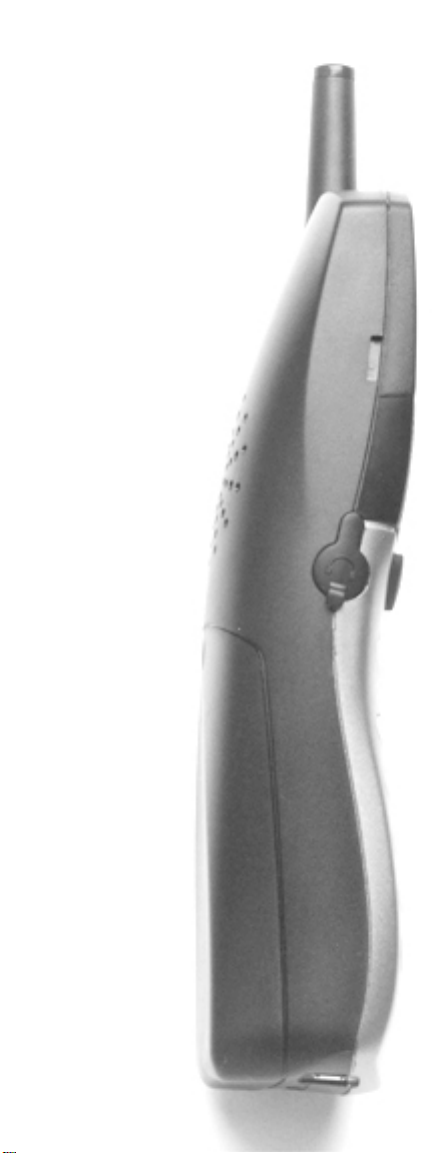

The Handset Layout

1. Handset

2. Base Unit

3. Belt Clip

5. Battery Pack

6. Telephone Cords(long x 2)

7. Owner's Manual

4. AC Power Adapter

To purchase replacement battery packs, call VTech Communications Inc at 1-800-595-9511. In Canada, call VTech Electronics Ltd at 1-800-267-7377.

1. Antenna

OWNER'S MANUAL

2. New Messages Indicator

3. Earpiece

4. Headset Jack (2.5mm)

5. Scroll Keys

6. Line 1 and Line 2 (Flash)

7. Dialing Keys (0-9, , #)

8. Handsfree Speakerphone

9. LCD Display

10. Select/OK

11. Off (Clear)

12. Battery Compartment (back

of Handset)

13. Volume

14. Intercom/Transfer

15. Microphone

Setup

8L55

Getting Started

The Base Unit Layout

Plug the AC power adapter into an electrical outlet, and the DC connector into the back of the base unit.

2 3

4 5

12 13 14 15

To AC outlet

6 7 8 9

8L55

1. Itad On/Off

2. Record

3. Erase

4. Repeat

5. Spare Battery Indicator

6. Charging Contacts

7. Handset Charging Indicator

8. Mailboxes

9. Headset Key

10. Flash

11. LCD Display

12. Scroll Keys

13. Volume Keys

14. Intercom

15. Select/Clear

16. Skip

17. Dialing Keys (0-9, , #)

18. LINE 1/LINE 2 Keys

19. Speakerphone Key

20. Mute

21. Data Jack

22. Line 2 Jack

23. LINE 1/LINE 1 + LINE 2 Jack

24. Headset Jack

25. Spare Battery Drawer

26. DC Connector

27. Spare Battery Release

18 19 20

To telephone socket outlet

Connecting to the telephone lines Your 2-Line GIGAPHONE will work fine even if you only have one telephone line. We recommend connecting the modular telephone cord to the jack labeled LINE 1 / L1 + L2, located on the bottom of the Base Unit. Here are steps for connecting 2 lines:

If you have 2 Lines coming out of a Single Wall Jack: Connect a 4-wire (RJ-14) modular phone cord between the wall jack and the phone jack labeled L1 / L1 + L2.

If you have 2 Lines, each coming out of Separate Wall Jacks: Connect a modular phone cord from the wall jack you want to designate as your LINE 1, to the LINE 1 / L1 + L2 jack on the bottom of the Base Unit. Next, connect a phone cord from the remaining wall jack to the LINE 2 jack on the Base Unit.

Data Port

Your 2-Line GIGAPHONE has a Data Port on the back of the Base Unit. This port provides an easy way to connect your fax machine, laptop computer, modem or other telephone device for direct access to LINE 2.

The Data Port only provides access to Line 2, so you must have an active line connected to the LINE 2 jack on the bottom of the Base Unit. Connect a modular phone cord from the Data Port (look for the small door marked

DATA on the back of the Base Unit) to your fax, laptop, etc. NOTE: While the Data Port is in use, accidental use of Line 2 by a parallel

phone, your 20-2481, or a Call Waiting ID alert may interrupt the data transmission.

AC adapter

Examples of 1-Line and 2-Line Cords

RJ-11 One line cord

To telephone jack

RJ-14 2 line cord

Installation of Battery Pack in Handset

Charging Of Handset Battery Pack

Follow the steps below:

1. Remove the battery cover by

pressing on the indent and sliding downward.

2. Place the new battery pack in

Getting Started

the handset with the metal contacts aligned with the charge contacts in the battery compartment.

3. Replace the battery cover by

sliding it upwards.

4. If the new battery pack is not

already charged, place the handset in the base unit, or a remote charging stand, and allow it to charge for 12 hours. After initial charge, a maintenance charge of 8 hours should be sufficient.

The original Handset that is shipped with your GIGAPHONE system will be automatically registered to the Base. This Handset is HANDSET 1.

As you register additional Handsets to the system, they will be assigned extension numbers in the following order: HANDSET 2, HANDSET 3, HANDSET 4, etc.

Whenever a charged Handset battery pack is installed, the Handset will automatically begin SEARCHING FOR BASE (if previously registered), or it will prompt you to ENTER BASE ID to register the new Handset. See Registration and Operation for details.

Charging Of Handset Battery Pack

The Handset of your GIGAPHONE cordless telephone is powered by a rechargeable battery pack. It charges automatically whenever the Handset is in the Base Unit.

You should charge the battery pack for 12 hours when you first receive your phone. You'll know the battery pack needs charging when:

• The low battery message is displayed :

• The handset seems completely dead, the LCD is completely clear and does not activate when you press the keys.

IMPORTANT:

1. Do not dispose of a battery pack in a fire, the cell may explode.

2. Do not open or mutilate the battery pack. Toxic substances may be

released, causing harm to eyes or skin.

3. Exercise care in handling battery packs in order to prevent an accidental

short of the charge contacts, potentially causing the battery pack to overheat.

4. Do not dispose of this battery pack into household garbage. Contact your

local recycling organization for recommended disposal sites.

Getting Started

Dial Tone

Spare Battery Charger/Power Backup Function

Checking for Dial Tone

After the battery is charged press a LINE Key on the Handset. PHONE ON will appear on the handset display, and you will hear dial tone. If not, see In Case of Difficulty.

Getting Started

Tone/Pulse Selection

Your GIGAPHONE is set for TONE dialing. See Handset and Base Settings- SELECT TONE/PULSE AT THE BASE UNIT for details.

CAUTION: Use only the Vtech power supply provided with your cordless phone.

IMPORTANT: FOR MAXIMUM PERFORMANCE OF YOUR CORDLESS TELEPHONE SYSTEM:

1. Choose a central location for your Base Unit.

2. Install your Base Unit and Extension Handsets away from electronic equipment, such as personal computers, television sets and microwave ovens.

3. In locations where there are multiple cordless

telephones, separate base units as much as

possible.

4. Install your telephone equipment away from heat sources and sunlight.

5. Avoid excessive moisture, dust or extreme cold.

The GIGAPHONE uses the spare battery charger in the Base Unit to provide operational backup in the event of a power failure. With the a fully charged battery pack in the spare battery charger, you will still be able to place and receive calls from the Handset for up to one hour. During Power Backup mode, you will not be able to use the Base Unit.

The spare battery pack can also be used to replace a drained handset battery, ensuring uninterrupted use.

NOTE :

When using the GIGAPHONE during Power Backup mode, audio quality may be compromised due to reduced power availability.

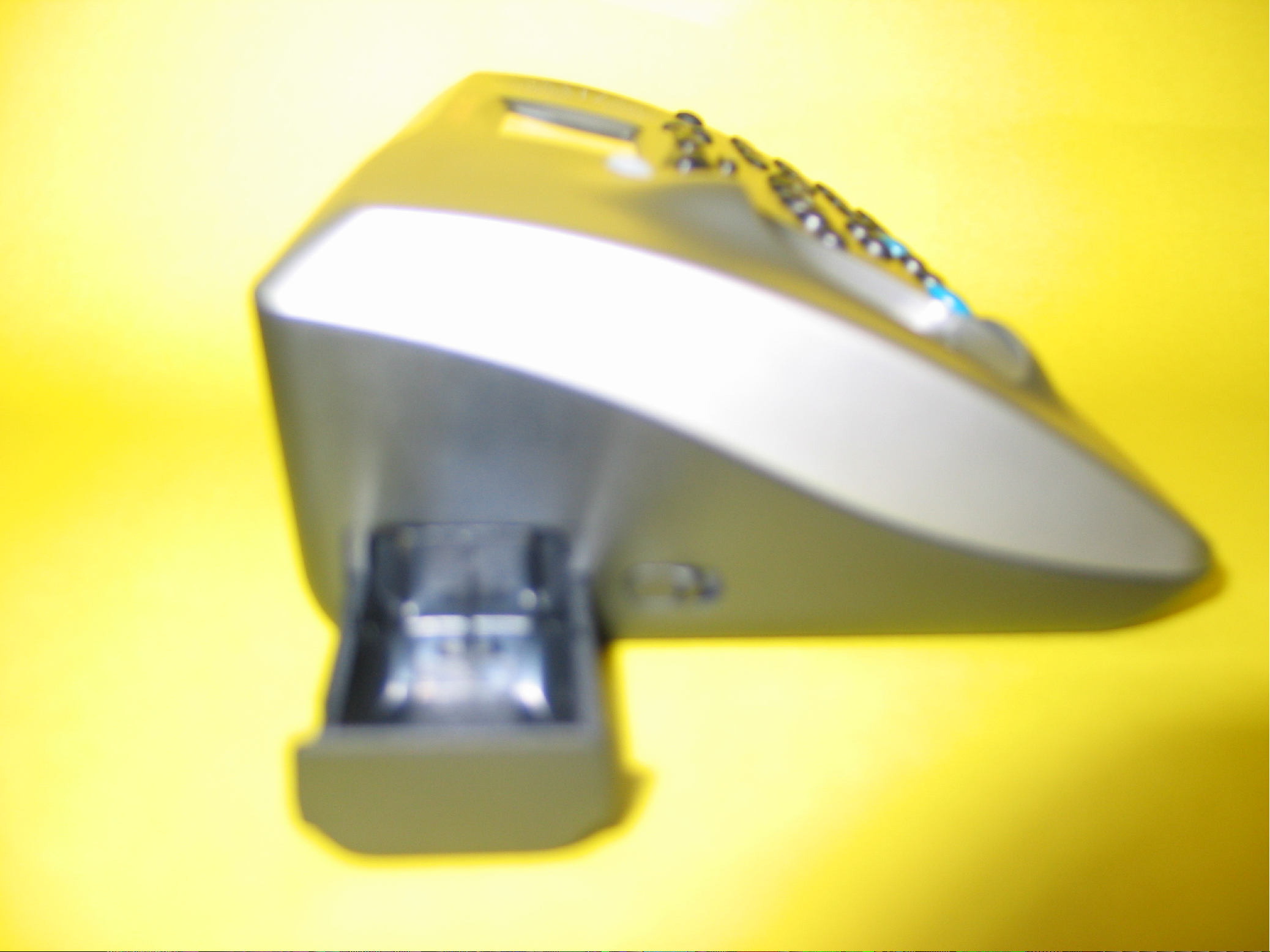

1. Open the spare battery charger

by pressing the release button, located on the left-hand side of

8L55

the Base Unit. A drawer will open to reveal the spare battery compartment.

2. Place a battery pack in the

drawer with the charge contacts facing up and to the right.

3. Push the drawer closed.

The spare battery takes 24 hours to fully charge a drained battery.

Getting Started

BEFORE USING YOUR HANDSET(S), CAREFULLY PEEL OFF THE PROTECTIVE FILM, COVERING THE DISPLAY.

BATTERY

CAUTION: TO

INSTALL THIS

REDUCE RISK OF FIRE,

SIDE UP

USE ONLY VTECH

80-5017-00-00

Registration and Operation

Registration And Operation Of The VTech VT20-2420 Accessory Handset

Your VTech GIGAPHONE system can operate up to 8 Handsets. The VTECH accessory Handset consists of the following:

Gettng Started

Setup Of The VT20-2420

Accessory Handset

1. Plug the AC power adapter into

an electrical outlet.

2. Remove the Handset battery

cover by pressing on the indent and sliding downward.

3. Place the new battery pack in

the Handset, with the metal contacts aligned with the charge

contacts in the battery compartment.

4. Replace the battery cover by

sliding it upward.

5. Place the Handset in the Charge

Cradle, and allow it to charge for 12 hours. After the initial

charge, a maintenance charge of 8 hours should be sufficient.

Enter Base ID Code

1. After charging the Handset, remove it from its Charge Cradle; the screen will display:

alternating with this screen:

2. If, after charging the Handset, you see:

3. Press NEW. You will now see the ENTER BASE ID screen as described in step 1.

4. Find the BASE ID Code by doing the following: (the Base must be in idle (OFF) mode)

A. At the Base, press MENU B. Scroll down to DISPLAY BASE-ID C. Press OK. The Base screen will

display the 15-digit ID Code. Afterwards, it will return the idle screen.

5. Enter the 15-digit Base ID Code into the Handset; then press OK.

6. Wait approximately 15 to 60 seconds. You will hear confirmation beeps from the Base and Handset. The newly registered Handset will now assign itself the lowest handset number not previously assigned to a different system Handset (1 through 8).

7. If the Handset displays REJECTED BY BASE or continues to display SEARCHING FOR BASE for well beyond 60 seconds, try the registration process again by repeating the above steps.

Congratulations! You can now enjoy the benefits of your 2-Line VTECH MultiHandset system.

MENUNEW

Getting Started

Handset and Base Indicators

Handset and Base Icons

Icon

Basic Operation

Description

Line In Use indicator On steady with no number next to it when a parallel set is in use. On steady with one or more numbers next to it, indicating which extensions are using the line. For example, 02 indicates that Base (0) and Handset 2 are on a call on Line

1. Intercom indicator On steady with the extension numbers currently on an intercom call. For example, 02 indicates that the Base and Handset 2 are on an intercom call.

Mailboxes In Use Indicator On steady when the mailboxes are in use. For example, indicates that the Base mailboxes are in use.

Battery indicator (only in Handset) Cycles (Low, Medium, and High) when Handset battery is charging. Flashes when a low battery condition is detected.

Enhanced Mode indicator On steady when active Handset or Base is in Enhanced mode.

Mute indicator On steady when the Handset or Base microphone is muted.

Hold indicator On steady when the line is on hold.

Handset LEDs

LED NEW

MESSAGES

Base LEDs

LED

MAILBOX LI/ MAILBOX L2

Line 1 Line 2

Handset Charging

Mute Speakerphone

Spare Battery

Description

• Green light at the top of the Handset blinks to indicate that you have new messages in your Mailboxes.

Description

• Flashes to indicate that you have new messages. Glows steadily when there are previously played messages stored in the mailbox.

• Lights when line is being used by the GIGAPHONE system.

• Flashes when another telephone on the same line (parallel extension) is in use.

• Flashes when a call is placed on HOLD.

• Lights whenever the Handset is placed in the Base Unit charging cradle.

• Lights when Base microphone is muted.

• Lights when Base Speakerphone is in use.

• Lights when a spare battery pack is charging in the Base Unit charger.

Basic Operation

Handset Registration indicator(only in Handset)

FF is displayed when a Handset is either not registered, or

is searching for a Base unit.

Headset

• Lights when the HEADSET option is in use on the Base Unit.

Soft Menu Functions

Call History (Caller ID)

The GIGAPHONE has an advanced design that uses a menu structure and soft keys to access all of the built-in features.

Example of the idle mode display:

RDL (Redial)

Press RDL to display the last 5 telephone numbers dialed. The number on the top line is the most recent number dialed.

• Use the scroll keys to select the desired the number.

• To dial the number, you can simply press a LINE or the HANDSFREE

key.

• You can erase a redial number by scrolling until it is highlighted, then

press SELECT, and then ERASE.

• You can save a redial number to phone book memory by scrolling until

it is highlighted, then press SELECT, and then press SAVE. Then add a NAME to your entry by following the instructions under Number/Name.

HANDSET MENU

Basic Operation

With the Handset in the idle (OFF) mode, press the MENU key to access the following options:

• CALL HISTORY (Caller ID)

• MAILBOXES

• HANDSET SETTINGS

• REGISTER

Use the scroll keys to select the desired option, then press OK. Press the OFF/CLEAR key to step back through the menu structure. Press and hold the OFF/CLEAR key to return to the idle menu.

BASE UNIT MENU

With the Base Unit in the idle (OFF) mode, press the MENU key to access the following options:

• CALL HISTORY (Caller ID)

• MAILBOXES

• SETUP BASE

• DISPLAY BASE-ID

Press the CLEAR key to step back through the menu structure. Press and hold the CLEAR key to immediately return to the idle menu.

To Store a

Caller ID - Call Waiting ID

Your GIGAPHONE is capable of displaying the name and/or number of the party calling before you answer the phone (Caller ID). It is also capable of displaying Caller ID information in conjunction with a Call Waiting alert signal (Call Waiting Caller ID). With Call Waiting Caller ID, the Caller ID data is displayed so you can decide whether to answer the incoming call, or continue with your current conversation.

As new Caller ID/Call Waiting ID are received, your Handset and Base displays will alert to the new, Caller ID records, for example:

The number of new calls displayed on each system Handset and Base may not be the same. If, for example, you answer a call on Handset 2, that Handset will not count the Caller ID information for that call as new. However, the other registered Handsets and Base displays will consider it a new call, and add it to the NEW CALLS total.

After you review all new Caller ID records, the NEW CALLS status will be turned off.

The following information explains how to access Caller ID records(Call

History):

From Handset or Base:

• From the idle (OFF) mode, press MENU. CALL HISTORY is highlighted. Press

OK.

The Caller ID information of the most recent inbound call will be displayed:

• For example: if the call was from Line 1:

• To view other Caller ID records, use the scroll keys. You can scroll from newest to oldest record by using the scroll key, or from oldest to newest by using the scroll key.

• To dial the displayed number, press the desired LINE key.

• If you need to dial the number differently than how it is displayed, press MENU.

DIAL OPTION * is highlighted. Press OK.

• Scroll to the desired dialing option, then press DIAL or the desired LINE key to dial the phone number.

Basic Operation

Call History (Caller ID)

Handset and Base Settings

DIAL OPTION SHORTCUT

With a Caller ID record displayed, press *. The 4 possible dialing options are displayed. Scroll to the desired dialing option, then press DIAL, or the desired LINE key to dial. You can also delete and save Caller ID records in the Directory:

DELETE

With a Caller ID record displayed, press MENU. Scroll to DELETE CID 4. Press OK. The CID record is displayed, with the choices THIS (delete only this record) and ALL (delete all CID records). If you press THIS, the displayed CID records will be deleted, and you will hear a confirmation beep. If you press ALL, the screen will ask you Are You Sure? If you're sure, press YES, and all CID records will be deleted. If you decide not to delete all CID records, press NO.

Basic Operation

DELETE SHORTCUT

With a Caller ID record displayed, press 4. The CID record is displayed, with the choices THIS (delete only this record) and ALL (delete all CID records). If you press THIS, the displayed CID records will be deleted, and you will hear a confirmation beep. If you press ALL, the screen will ask you Are You Sure? If you're sure, press YES, and all CID records will be deleted. If you decide not to delete all CID records, press NO.

NOTES ABOUT CALLER ID & CALL WAITING CALLER ID

These are subscription services, provided by most regional telephone service providers. You must subscribe to these services to get the benefits of these features. If you do not subscribe to Caller ID services, you can still use your GIGAPHONE and the other features it offers. Due to regional incompatibilities, Caller ID information may not be available for every call you receive. In addition, the calling party may intentionally block their name and phone number from being sent.

 RINGERS

NOTE: The Handset and Base ringers are adjusted separately. In addition,

each line is adjusted separately.

Handset: Press MENU, scroll to HANDSET SETTINGS, then press OK. RINGERS will be highlighted; press

SET.

Highlight the desired adjustment, then press SET.

VOLUME : Use to sample the choices of loudness. There are

five: OFF, LOW, MEDIUM, MEDIUMHIGH and HIGH. Press OK to confirm your selection.

Basic Operation

SAVE TO MEMORY

To save a displayed Caller ID record into the directory, press MENU. Scroll to SAVE TO MEM 7. Press OK. -OR- With the CID record displayed, press 7. The record has been stored in the directory. If the record you wish to save does not have a name (OUT OF AREA, for example), the screen will ask you to PLEASE ENTER A NEW NAME. Use the keypad to enter the name, then press SAVE. A guide to the letters and characters can be found in the section entitled Memory.

MELODY : Use to sample the six melodies. Press SAVE to confirm your selection.

Base Unit:

Press MENU, scroll to SETUP BASE,then press OK. Now follow the same procedure used for the Handset Ringers.

Handset and Base Settings

• LOW BATT TONE

Select this option to turn the Low Battery warning tone On or Off. Press the OFF or ON soft keys, to make your selection. Press OK to confirm your selection and return to the Handset Settings menu. When set to ON, the Handset will emit a warning tone when a Low Battery condition is detected. This feature has been preset ot ON at the factory.

 RANGE TONE

Select this option to turn the Out of Range warning tone On or Off. Press the OFF or ON soft keys, to make your selection. Press OK to confirm your selection and return to the Handset Settings menu. When set to ON, the Handset will emit a warning tone whenever the Handset is taken out of range of the Base. This feature has been preset ot ON at the factory.

 KEYPAD TONE

Select this option to turn the Keypad tones On or Off. Press the OFF or ON soft keys, to make your selection. Press OK to confirm your

Basic Operation

selection and return to the Handset Settings menu. When set to ON, the Handset will emit a beep whenever a key is pressed. This feature has been preset ot ON at the factory.

Base Unit:

Press MENU, scroll to SETUP BASE, then press OK. Scroll to KEYPAD TONE; press OK. Choose ON or OFF, then press OK to confirm your choice.

 CONTRAST

Select this option to adjust the contrast level of the Handset display. Use the scroll keys to make your selection. The handset display will automatically adjust as you make your selection. Press OK to confirm your selection and return to the Handset Settings menu.

Base Unit:

Press MENU, scroll to SETUP BASE, then press OK. Scroll to CONTRAST; press OK. Press and to adjust the screen contrast, then press OK to confirm your choice.



SELECT TONE / PULSE AT THE BASE UNIT

With the Base Unit in the idle (OFF) mode, press MENU. Scroll to SETUP BASE, then press OK. Scroll to SET PULSE/TONE, then press SET. Scroll to the desired LINE; press SET. Use the UP and DOWN arrow keys to highlight the desired dialing mode

- TONE or PULSE. Press OK to confirm your choice.

• ENHANCED MODE

Your GIGAPHONE has an enhanced feature, designed to improve sound quality and range. If you are using your GIGAPHONE in an area with interference, the Enhanced Mode feature can help to improve both the sound quality and operating range. Actual range will depend on your environment. You can manually turn Enhanced Mode ON and OFF, or select AUTO mode.

To select the Enhanced Mode setting:

With the Handset in the idle (on hook) mode, press MENU. Scroll to HANDSET SETTINGS, then press OK. Scroll down to ENHANCED MODE, press SET.

Select ON to enable Enhanced Mode. When the Handset is in use, an ‘E’ icon will appear in the upper left corner of the display, indicating that this feature is active. Select OFF to disable Enhanced Mode. Select AUTO to allow your GIGAPHONE Handset to activate this feature automatically, when conditions warrant it. Your 2-Line GIGAPHONE is preset at the factory for AUTO mode.

Scroll to the desired setting, then press OK.

You can also activate Enhanced Mode from the Base Unit. In which case, all registered Handsets will have the same Enhanced Mode setting. With the Base in the idle (OFF) mode, press MENU, scroll down to SETUP BASE, press OK, scroll down to ENHANCED MODE, press SET, scroll to the desired setting, then press OK to confirm your choice.

NOTE: When Enhanced Mode is activated, your GIGAPHONE will consume

more battery power. This means the standby and talk time of your Handset(s) will be shorter.

• RENAME

Naming your Handset(s)

You can personalize each Handset, giving it a name (Dad’s Phone, or Mary’s Office, for example) instead of HANDSET 1, etc.

With the Handset in the idle (on hook) mode: Press MENU. Scroll to HANDSET SETTINGS, then press OK. Scroll to RENAME, then press SET. Using the dialing keys, enter the desired name. A guide to the letters and characters can be found in the section entitled Memory. The softkey will move the cursor to the right. Press MORE to give you the DEL (delete) and SPACE options. Press BACK to return to the previous screen. Press SAVE to confirm your Handset name.

Basic Operation

NOTE: Your GIGAPHONE is preset for TONE dialing, the desired mode for most areas.

You can also name the Base Unit. At the Base, in the idle(OFF) mode, press MENU, scroll down to SETUP BASE, then press OK. Scroll down to RENAME, press SET, then follow the same steps as above for entering the desired name.

Memory

Handset Deregistration

You can deregister all Handsets at one time. This causes the Base Unit to 'forget' that it has any Handsets at all. You may never have to perform this procedure. One possible reason for deregistration is if you have the maximum number of Handsets (8) registered to your Base, and one Handset should require replacement, the Base will not register the 'new' Handset, because its eight memory slots are occupied. The deregistration procedure will clear the Base Unit's memory, and you will be able to register each Handset again. Individual Handsets cannot be deregistered.

CAUTION: Once you deregister, your Handsets will not be capable of making or receiving calls. you will need to re-register each Handset, one at at time!!

To Deregister all Handsets:

• At the Base Unit, in the idle (OFF) mode, press MENU.

• Scroll down to SETUP BASE, then press OK.

• Scroll down to DEREGISTER ALL, then press SET.

All system Handsets have been deregistered. To register your Handsets again, see Registration and Operation, located in the Getting Started section of the User's Manual, for details.

Use this option to register a Handset to the GIGAPHONE Base. You can register

Basic Operation

a total of eight Handsets to the GIGAPHONE Base. This process is activated automatically whenever a new handset is powered up in range of the GIGAPHONE Base.

You will be prompted to enter the 15-digit Base ID code. See Registration and

Operation, located in the Getting Started section of the manual, for details.

Note : Base ID codes are 15 digits long and can include the following

characters: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, , or # .

Memory

The Base and each Handset can store up to 50 names/numbers in memory. Each memory location can hold up to 32 digits and up to 16 characters for the name.

When prompted to ENTER NAME, use the digit keys to 'spell' the name. Each press of a particular key causes characters to be displayed in the following order:

Number Key

1 2 3 4 5 6 7 8 9 0

Characters (in order)

& ' , . 1

A B C 2 a b c 2

D E F 3 d e f 3 G H I 4 g h i 4

J K L 5 j k l 5

M N O 6 m n o 6

P Q R S 7 p q r s 7

T U V 8 t u v 8

W X Y Z 9 w x y z 9

To Store a Number/Name:

• Starting from the idle screen, enter the number you want to store in memory. If you make a mistake, press CLEAR to backspace.

• Be sure to include long distance codes and pauses, (using the Pause softkey) if necessary. Press the MEM softkey.

• You will then be prompted to ENTER NAME. Use the digit keys to 'spell' the name. If you make a mistake, press the CLR softkey. To enter a space press

aa . When finished, press

SAVE.

• If there is space available in memory, the number/name will be saved and the Handset will return to idle mode.

• If the memory is full the Handset will display PHONEBOOK IS FULL and exit to the idle screen without saving the entry.

• Follow the above procedure for storing Number/Names at the Base. The Handset and Base have separate memories.

Basic Operation

Memory

To Search For and Dial a Number/ Name:

• Starting from the idle screen,

press the MEM softkey to review memory contents.

• Using the softkeys scroll through the memory contents in alphabetical order.

• Or, you can press the FIND softkey, enter the first few chararcters of the name and

Basic Operation

then press FIND to search. If you make a mistake, press CLR softkey. The closest match, in alphabetical order, will be displayed.

• Once you find the entry you want, simply press a LINE key or HANDSFREE to dial the number.

• Press the DEL softkey. The

Handset will display:

• To delete this record, press

THIS.

• To confirm the deletion of ALL records, press YES. To exit without deleting press NO.

To Edit a Number/Name

• Using the steps in To Search For and Dial a Number/Name,

locate the entry you want to edit.

• Press the EDIT softkey twice. The Handset will display:

Basic Operation

To Delete a Number/Name:

• Using the steps in To Search For and Dial a Name/Number,

locate the entry you want to delete.

• Press the EDIT softkey. The Handset will display:

• Select NAME or NUM. Using

the softkey move the cursor to the character you want to edit and then enter the corrections as needed. Press MORE to access DEL, BACK and PAUSE/ SPACE functions. When finished press the SAVE softkey. To exit without saving press OFF.

• When finished the Handset will display the edited entry.

Handset and Base Operation

Advanced Operations

Making Calls

From the Handset

• Press a LINE key (or, HANDSFREE to use the

Handset Speakerphone feature).

Dial the phone number.

-OR-

• Dial the phone number first; then press a LINE key(or

HANDSFREE).

From the Base Unit

Just like the Handset, you can either access a dial tone first, then dial your number, or you can dial your number first, then access a line.

• With both lines idle, pressing

SPEAKERPHONE

you are using a headset connected to the Base) will access LINE 1.

• If you want to access LINE 2 with both lines idle, press the

LINE 2 key first, then press SPEAKERPHONE

• If one line is IN USE, pressing

SPEAKERPHONE

will automatically access the idle line.

• If both lines are IN USE (2 or more system Handsets are active, with at least one on each line), pressing

HEADSET) will access LINE 1.

NOTE: If LINE 1 is in use, the phone

will automatically select LINE2 when you press HEADSET or

SPEAKERPHONE on the Base.

(or HEADSET if

(or HEADSET).

(or HEADSET)

SPEAKERPHONE

(or

Redial

From either Handset or Base Unit

Each system Handset and Base Unit will remember the last 5 phone numbers dialed. From the idle mode, press RDL. Scroll until the desired phone number is highlighted. Then press the appropriate LINE key to dial the number ( follow the above instructions in Making Calls).

You can also delete and save ‘redial’ numbers in the Directory.

ERASE Press RDL. Scroll to the desired phone number, press SELECT, then press ERASE.

SAVE Press RDL. Scroll to the desired phone number, press SELECT, then press SAVE.

You’ll then be prompted to ENTER NAME. Use the keypad to enter the letters of the name. If you make a mistake, press CLR to backspace. To insert a space, press . When finished, press SAVE.

For more information on entering phone numbers into the Directory, see the section entitled Memory.

Answering Calls

From the Handset

Press the appropriate LINE key, or HANDSFREE to use the Handset Speakerphone option.

If the Handset is active on one line when the idle line rings, you will hear a special alert tone, signifying an inbound call. This alert is designed to minimize disruption of the call in progress. You can then:

• Press OFF twice to end the first call, then answer the new call;

- or -

• Press the appropriate LINE key to answer the new call. The original

call will automatically be placed on HOLD. You can end the ‘new’ call by pressing OFF, then return to the original call by pressing the appropriate LINE key.

You can also Conference both lines together. See Conference Calling, further on in this User’s Manual.

From the Base Unit

If a line is ringing, pressing SPEAKERPHONE (or HEADSET if you are using a Headset connected to the Base) will answer the inbound call.

Press SPEAKERPHONE (or HEADSET ) to end your call.

Advanced Operations

+ 32 hidden pages

Vtech VT 20-2480 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
