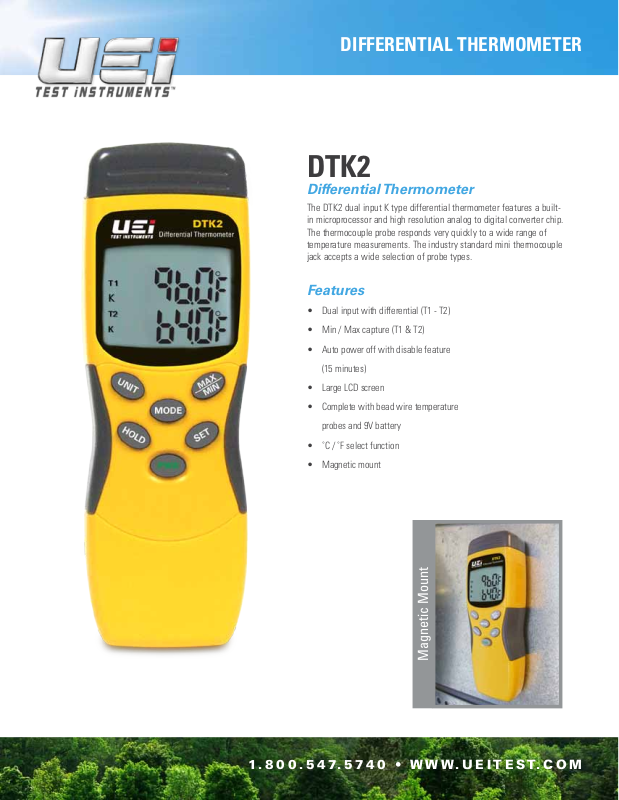

DIFFERENTIAL THERMOMETER

DTK2

Differential Thermometer

The DTK2 dual input K type differential thermometer features a built­in microprocessor and high resolution analog to digital converter chip.
The thermocouple probe responds very quickly to a wide range of
temperature measurements. The industry standard mini thermocouple
jack accepts a wide selection of probe types.

Features

• Dual input with differential (T1 - T2)

• Min / Max capture (T1 & T2)

• Auto power off with disable feature

(15 minutes)

• Large LCD screen

• Complete with bead wire temperature

probes and 9V battery

• ˚C / ˚F select function

• Magnetic mount

Magnetic Mount

1.800.547.5740 • WWW.UEITEST.COM

Includes

75.9

°

f

T1

K

76.1°f

T2

K

DTK2 • DIFFERENTIAL THERMOMETER

• Meter

• 9V battery

• Operation manual

• ATT29A K-type

bead probe (2)

• Pouch

DTK2

Differential Thermometer

T1

°

K

75.9

f

T2

K

76.1°f

Automatic Ice-point Calibration

Specifications

Temperature Units °F / °C

Sensor Type k-type

Range -328° ~ 2498°F (-200° ~ 1370°C)

Range Accuracy

Accuracy

Accuracy (after ice-point calibration) 30° ~ 120°F (-1.1 ~ 48.9°C) ±1°F (0.6°C)

Resolution 0.1°F / 0.1°C

HOLD Yes

Max / Min T1 & T2

Differential (T1-T2) Yes

Operating Temperature Range 32 ~ 104°F (0 ~ 40°C)

Operating RH% < 70%RH, Non-condensing

Storage Temperature -4 ~ 140°F (-20 ~ 60°C)

Storage RH% < 80%RH, Non-condensing

Battery Type 1 x 9V (NEDA 1604)

Battery Life (typical) 125 hours typical

-328° ~ -58°F (-200° ~ -50°C) ±(0.1% rdg + 4°F (2.2°C))

-58° ~ 1832°F (-50° ~ 1000°C) ±(0.1% rdg + 2°F (1°C))

1832° ~ 2498°F (1000° ~ 1370°C) ±(0.1% rdg + 4°F (2.2°C))

Operating / Storage
