DM600
INSTRUCTION MANUAL
Page 2
Introduction
The DM600 is a revolutionary design in multimeters, with one-handed
operation and open jaw current measurement capabilities.
Features include
• Autoranging measurements
• Min/Max record with time stamp
• AC Volts
• DC Volts
• DC mV
• Ohms and continuity
• Auto power off
• Open fork AC amps measurement
Safety Notes
Before using this meter, read all safety information carefully. In this
manual the word "WARNING" is used to indicate conditions or actions
that may pose physical hazards to the user. The word "CAUTION" is
used to indicate conditions or actions that may damage this instrument.
WARNING!
Higher voltages and currents require greater awareness of physical
safety hazards. Before connecting the test leads; turn off the power
to the circuit under test; set the meter to the desired function and
range; connect the test leads to the meter first, then connect to the
circuit under test. Reapply power. If an erroneous reading is
observed, disconnect power immediately and recheck all settings
and connections.
International Symbols
I n s t r u c t i o n s
Measuring Voltage
The DM600 will measure AC or DC volts from .001 to 600 volts. It also
has a DC mV range with 0.1 mV resolution. The holster also functions as
a stand during use with normal test leads.
• DC Voltage:
V .1 to 600 V
mV .1 to 400 mV
Top view
• AC Voltage:
AC Voltage .001 to 600
Frequency 45 Hz to 1 kHz
Top view
DM600-MAN P. 1
Page 3

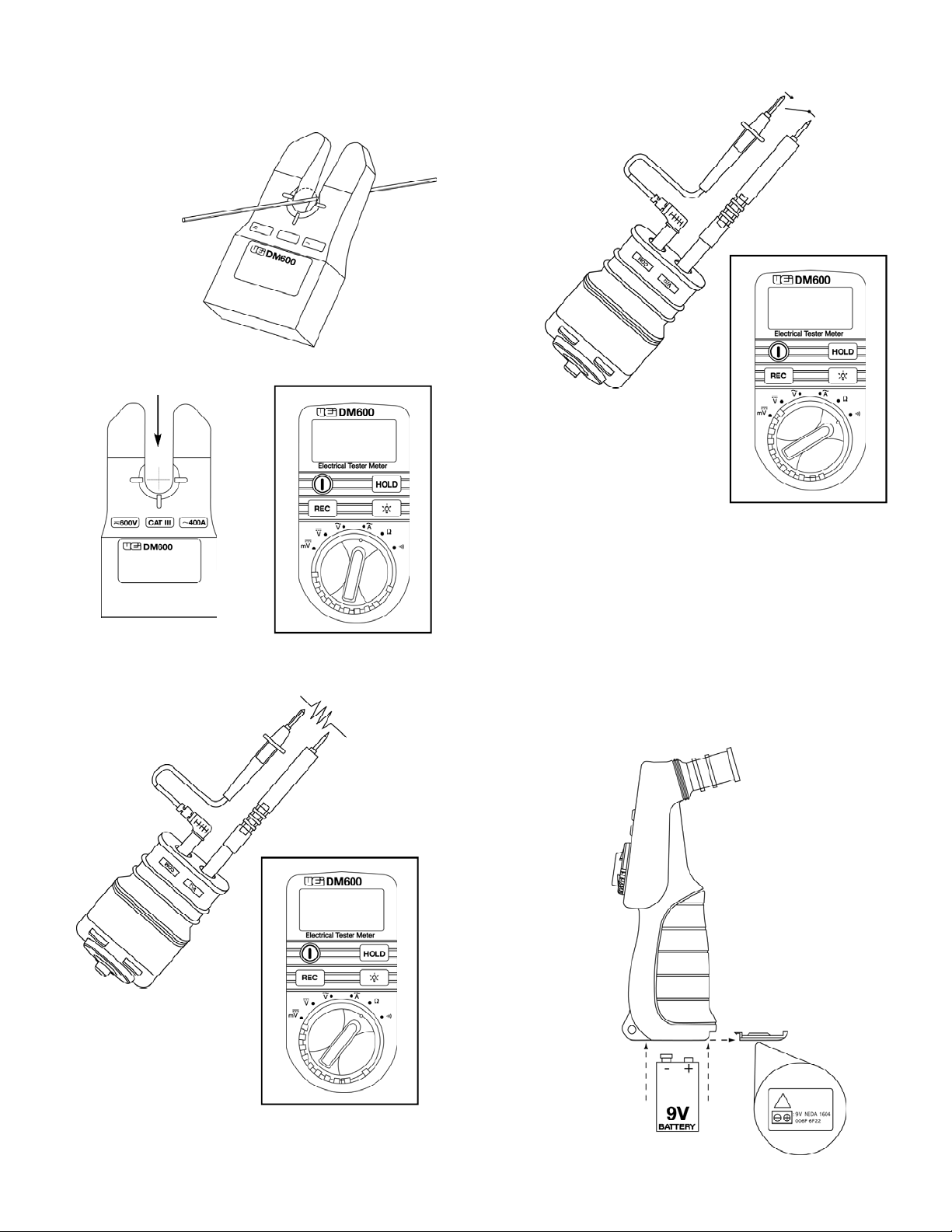

Measuring Continuity
Continuity will sound tone
when resistance is less
than 50Ω
Top view
M a i n t e n a n c e
Battery Replacement
Polarity is indicated on the battery door. Recommended battery type is
NEDA 1604A, 9V Alkaline.
1. Slide cover to remove old battery.
2. Insert new battery and replace slide cover.
Measuring AC Amps
.1 to 400 A AC
45 Hz to 1 kHz
Measure current by
placing conductor in
the center of alignment
marks for best reading.
Desired conductor position
Measuring Resistance
.1 ohms to 40 ohms
Top view
DM600-MAN P. 2
Page 4
Cleaning
Periodically clean your meter’s case using a damp cloth. DO NOT use
abrasives, cleaning solvents or strong detergents.
This meter has no fuses or other internal user replaceable parts.
S p e c i f i c a t i o n s
Counts
AC V
AC AMPs
(w/accessory)
DC V
DC mV
Resistance
DM600-MAN P. 3
400
Accuracy ±1.5% ±5 digits
Range 4, 40, 400, 600
Best resolution .001 V
Accuracy ±2.5% ±5 digits
±3% ±10 digits
Range 40, 400
Best resolution 0.1A
Accuracy ±0.9% ±2 digits
Range 4, 40, 400, 600
Best resolution .001 V
Accuracy ±0.9% ±2 digits
Range 400 mV
Best resolution .1 mV
Accuracy ±0.9% ±5 digits
±1.2% ±5 digits
±1.7% ±5 digits
Range 400, 4k, 40k, 400k, 4M, 40M
Best resolution .1 ohm
Response time <5 seconds
Continuity Yes
Auto range Yes
Hold Yes
MIN/MAX Yes
Auto power off Yes
UL CAT III 600V Yes
Back light Yes
Rugged 10’ drop
Pollution degree 2
Altitude = or <6560’ (2000m)
Relative humidity 0 to 80% at 32˚ to 95˚F (0˚ to 35˚C)
0 to 70% at 95˚ to 130˚F (35˚ to 54 ˚ C )
Operating temperature 32 to 115˚F (0 to 45˚C)
Storage temperature 0 to 158˚F (-20 to 70˚C)
Battery life >100 hrs.
Battery type 9V
*Adjacent conductor influence: <0.08 A/A
Page 5
Limited Warranty
The DM600 is warranted to be free from defects in materials and workmanship for a period
of three years from the date of purchase. If within the warra n ty period your instrument
should become inoperative from such defects, the unit will be repaired or replaced at UE i ’ s
option. This warra n ty covers normal use and does not cover damage which occurs in
shipment or failure which results from alteration, tampering, accident, misuse, abuse,
neglect or improper maintenance. Batteries and consequential damage resulting from failed
batteries are not covered by warra n ty.
Any implied warranties, including but not limited to implied warranties of merchantability
and fitness for a particular purpose, are limited to the express warranty. UEi shall not
be liable for loss of use of the instrument or other incidental or consequential damages,
expenses, or economic loss, or for any claim or claims for such damage, expenses or
economic loss. A purchase receipt or other proof of original purchase date will be required
before warra n ty repairs will be rendered. Instruments out of warra n ty will be repaired
(when repairable) for a service charge. Return the unit postage paid and insured to:
1-800-547-5740 • FAX: (503) 643-6322
www.ueitest.com • Email: [email protected]
This warranty gives you specific legal rights. You may also have other rights which vary from
state to state.
DM600
Pistol Style Multimeter
Copyright © 2007 UEi DM600-MAN 1/07
PLEASE
RECYCLE
