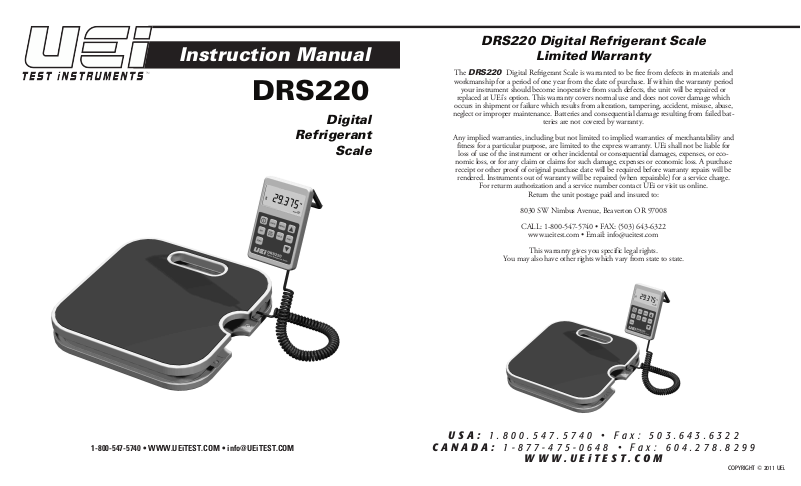

Universal Enterprise DRS220 Installation Manual

DRS220 Digital Refrigerant Scale

®

Instruction Manual

DRS220

The DRS220 Digital Refrigerant Scale is warranted to be free from defects in materials and
workmanship for a period of one year from the date of purchase. If within the warranty period

your instrument should become inoperative from such defects, the unit will be repaired or

replaced at UEi’s option. This warranty covers normal use and does not cover damage which

occurs in shipment or failure which results from alteration, tampering, accident, misuse, abuse,

neglect or improper maintenance. Batteries and consequential damage resulting from failed bat-

Digital

Refrigerant

Scale

Any implied warranties, including but not limited to implied warranties of merchantability and

fitness for a particular purpose, are limited to the express warranty. UEi shall not be liable for

loss of use of the instrument or other incidental or consequential damages, expenses, or eco-

nomic loss, or for any claim or claims for such damage, expenses or economic loss. A purchase

receipt or other proof of original purchase date will be required before warranty repairs will be

rendered. Instruments out of warranty will be repaired (when repairable) for a service charge.

For returm authorization and a service number contact UEi or visit us online.

You may also have other rights which vary from state to state.

Limited Warranty

teries are not covered by warranty.

Return the unit postage paid and insured to:

8030 SW Nimbus Avenue, Beaverton OR 97008

CALL: 1-800-547-5740 • FAX: [phone]

www.ueitest.com • Email: [e-mail]

This warranty gives you specific legal rights.

1-800-547-5740 • WWW.UEiTEST.COM • [e-mail]

USA: 1.800.547.5740 • Fax: [phone]

CANADA: 1-877-475-0648 • Fax: [phone]

WWW.UEiTEST.COM

COPYRIGHT © 2011 UEi.

DRS220 User’s Guide

Introduction

Thank you for your purchase of the UEI DRS220 Digital Charging Scale. The
DRS220 is the most accurate and precise refrigerant meter available today with
features that cannot be found anywhere else. It is ideal for HVAC and Refrigeration
service, including Critical Charging of small refrigeration systems.

With the DRS220, you can measure weight in both metric and english units. The
DRS220 is programmable, and has a built in alarm to indicate a programmed
threshold has been exceeded. Attaching the DRS220 to the DRSCM (optional,
extra) allows automatic refrigerant charging for A/C systems.

Features

• Large, high-visibility LCD display

• Measures Weight in kgs and lbs

• Built-in memory remembers all previous settings

• Refrigerant Tank Capacity Indicator

• Rugged, Compact Design

• Long Battery Life

• High Accuracy and Resolution

• Programmable

• Can be calibrated in the field with inexpensive reference weights

• Expandable with DRSCM Charge module (not included)

Specications

Capacity 100 kilograms (220 Pounds)
Accuracy 0.5% of Reading +/- 1 Least Significant Digit
Resolution 2g, 0.005 lbs., 0.1 oz.
Powe

r 4 x 1.5V ‘AAA’ Alkaline Batteries (6 VDC)
Battery Life 30 hours continuous use
Operating Temperature 0°C – 60°C (32°F – 140°F)
Weight 2.5 kg (5.5 lbs.)
Dimensions 26.7 cm x 26.7 cm x 4.5 cm (10.5” x 10.5” x 1.75”)

NOTE: To prevent damage, never exceed the rated capacity of the DRS220.

1

DRS220 User’s Guide

Cord

Control Box Rear View

B I H C F D A G K J L P O M N E

DRS220 User’s Guide

Parts Diagram

Weighing

Platform

LCD Display

Mounting

Hooks

Optical Port

for CM-500

Battery

Cover

Storage

Dock

Easel

(Extended)

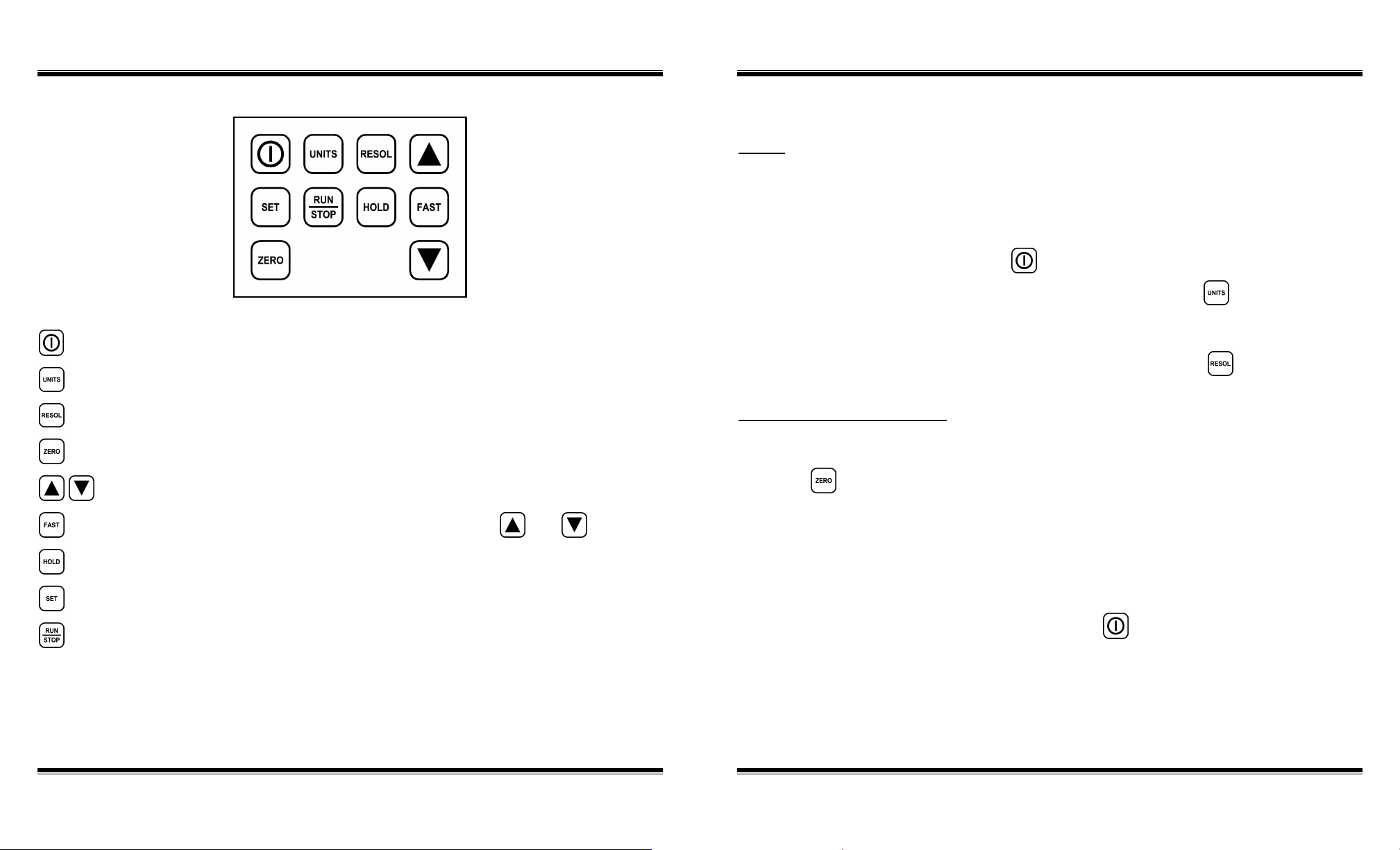

Keypad

Coiled

Easel

(Retracted)

Speaker

Grill

LCD Display

Item

A Main Numeric Display
B Alternate Numeric Display
C Tank Capacity Percent Indication
D Units Indicators
E Sound Mute Indicator

“Floating” Negative Indicator (Indicates weight removed from

F

platform)
G Battery Level Indicator
H Fast Adjustment Indicator

I Set Mode Indicator

J Tank Capacity Mode Indicator
K Run Mode Indicator
L Hold Mode Indicator

M Program Complete Indicator
N Calibration Mode Indicator
O Valve Open/Closed Indicator for use with CM-500

P Resolution Indicator

Function
