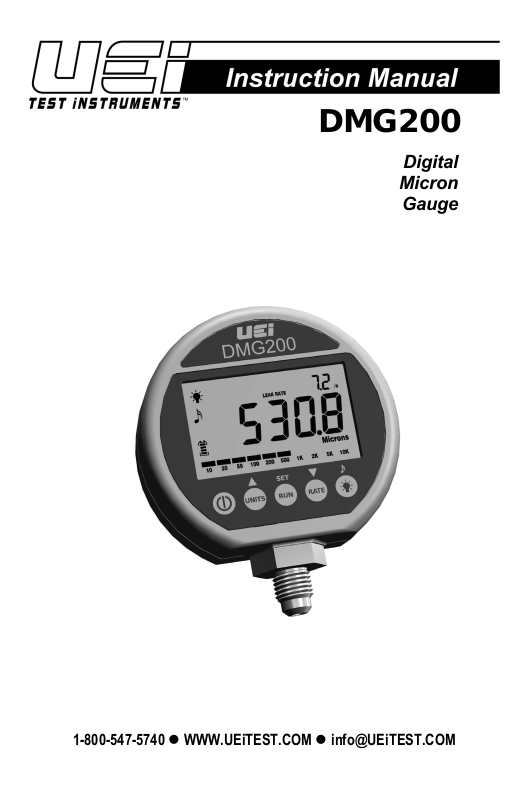

Universal Enterprise DMG200 Installation Manual

DMG200

1-800-547-5740



WWW.UEiTEST.COM



[e-mail]

Digital

Micron

Gauge

DMG200 User’s Guide

should show on

C). While operating below

Parts Diagram

2

LCD Display

Item Function

A Main Numeric Display

B Alternate Numeric Display

C “Analog” Vacuum Level Bar Graph

Backlight Indicator. Flashing: Temporary, Solid: Always On

Sound Indicator

Battery Level Indicator

Set Mode Indicator

Run Mode Indicator

Run Mode Complete Indicator

Oil Sensor Indicator

Calibration Mode Indicator

Indicates that Time is Displayed on the Alternate Numeric Display

Indicates that Temperature is Displayed on the Alternate Numeric Display

Indicates that the Vacuum Leak Rate is Displayed on the Alternate Numeric
Display

Indicates either Celsius or Fahrenheit Degrees are Displayed

Indicates that the Vacuum Leak Rate is Displayed in UNITS/second.

Pascal Units Indicator

Millibar Units Indicator

Millitorr Units Indicator

Millimeters of Mercury Units Indicator

Micron Units Indicator

DMG200 User’s Guide

3

DMG200 User’s Guide

vacuum sensor to oil. If the Oil Sensor (described above) indicates a contaminated sensor, follow the

If the vacuum sensor becomes contaminated with oil (as indicated by the Oil Sensor), carefully follow

If it is still on, repeat

Keypad

Item Function

Press to Turn Power On, Press and Hold to Turn Power Off

Press and Release to Change Display Units
Press and Hold to Change Temperature Display Units (°F or °C)

Press and Release to Enter RUN Mode
Press and Hold to Cancel RUN Mode

Press to Switch Between Temperature Display and Leak Rate Display

Press and Release to Activate Backlight

Press or Press and Hold to Change Programmed Pressure or Time in SET mode

Press and Hold to Enter SET Mode
Press and Release to Switch to Next Setting
Press and Hold to Exit SET Mode

Press and Hold to Mute/Un-mute Sound

Quick Start

To operate the DMG200 as a basic vacuum gauge:

1. Install the battery as described in the “Battery Installation” section (see pg. 5).

2. Turn the power on by pressing
than 25,000 Microns.

3. Select the desired units by repeatedly pressing

4. Attach the DMG200 to the system to be evacuated with a high quality vacuum hose. Start the
vacuum pump. Read the vacuum level from the Main Display.

5. Turn the power off by pressing and holding

. The display will show to indicate pressure greater

.

.

4
