HVAC Multimeter

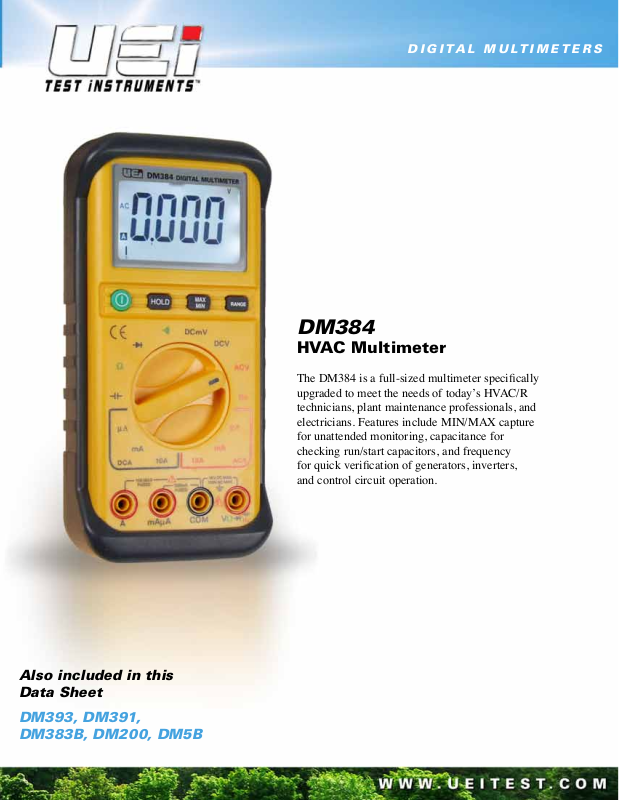

The DM384 is a full-sized multimeter specically
upgraded to meet the needs of today’s HVAC/R

technicians, plant maintenance professionals, and

electricians. Features include MIN/MAX capture

for unattended monitoring, capacitance for

checking run/start capacitors, and frequency
for quick verication of generators, inverters,

and control circuit operation.

Also included in this
Data Sheet

DM393, DM391,
DM383B, DM200, DM5B

Q U I C K C O M P A R I S O N

FUNCTIONS DM393 DM391 DM384 DM383B DM200 DM5B

True-RMS X - - - - ­ AC Volts 1000 1000 1000 1000 600 750
DC Volts 1000 1000 750 750 600 750
AC Amps 10 10 10 10 - 5
DC Amps 10 10 10 10 - 5
Resistance 400Ω ~ 10MΩ 400Ω ~ 10MΩ 400Ω ~ 40MΩ 400Ω ~ 40MΩ 200Ω 30MΩ
Continuity X X X X X X
Capacitance 40nF ~ 100 µF 40nF ~ 100 µF 4nF ~ 40,000 µF - - ­ Frequency 0.5Hz ~ 10MHz 0.5Hz ~ 10MHz 4kHz ~ 40MHz - - ­ Diode Test X X X X - X
Temperature ˚F -40˚ ~ 2,372˚ - - - - ­ Temperature ˚C -40˚ ~ 1,300˚ - - - - -

es

FEATURES

Display Count 4,000 4,000 4,000 4,000 2,000 4,000
Low Battery Indicator X X X X X X
Auto Power Off X X - - X X
Data Hold X X X X - X
MIN/MAX X - X MAX - ­ Backlit Display X X X X - ­ Relative Mode X X - - - ­ Closed Case Calibration X X - - - ­ Analog Bar Graph - - X - - -

Accessories Included

Test Leads ATL55 ATL55 ATL55 ATL55 ATL55 ATL250

Alligator Clips AAC AAC AAC AAC AAC AAC
Battery 9V 9V 9V 9V 9V AB13 (2)
Fuse AF38, AF39 AF38, AF39 AF155, AF160 AF155, AF160 - AF250/AF251
Temperature Probe ATT29 - - - - ­ Temperature Plug Adapter ATT70 - - - - -

Warranty & Safety Rating

Limited Warranty 5yr 5yr 5yr 5yr 1yr 3yr

Safety Ratings UL CAT III 1000V UL CAT III 1000V UL CAT III 600V UL CAT III 600V UL CAT II 600V -

CAN’T FIND THE METER YOU ARE LOOKING FOR?...

UEi offers a variety of digital and analog multimeters not included on this data sheet,
including a wide range of clamp meters. We have grouped our products specifically to make
it easy to find what you’re looking for. Here are a few related products and data sheets. For
a complete list visit: www.ueitest.com

Product Part # Order Lit. #

DM397 ...................................................................................................................................................L645

Digital Clamp Meters (DL369, DL379, DL389, CH3, DL49, DL99B, DL235) .................................L333

Analog Clamp & Multimeters (M110A, M75A, M20, M1K, MCP9A, MCP4) ....................L339

DM397

Our most advanced
diagnostic multimeter
made for HVAC/R.
Designed specifically
for engineers for
electrical and
industrial process
diagnosis.

DM393 DM391

F u n c t i o n s

F e a t u r e s

I n c l u d e s

S p e c i f i c a t i o n s

Range Resolution Accuracy

DC Volts DM393 DM391

400mV 100µV 0.5% + 2 0.5% + 2

4V 1mV
40V 10mV
400V 100mV

1000V 1V 0.75% + 3 0.75% + 3

NMRR : >60db @ 50/60 Hz
CMRR (COMMON MODE
REJECTION RATIO) : >120 db @ DC, 50/60 Hz, Rs=1kΩ
Input Impedance : 10MΩ, 30 pF nominal
(50 MΩ, 100 pF nominal for 400 mV range)

AC Volts

400mV 100µV 2.0% + 10 0.75% + 3
4V 1mV 2.0% + 10
40V 10mV 0.75% + 3 (40-400Hz)
400V 100mV 2.0% + 3 (400Hz-20kHz)
1000V 1V 1.0% + 5 (40-400Hz) 1.0% + 5

2.0% + 3 (400Hz-1kHz)

CMRR (COMMON MODE

REJECTION RATIO) : >60db @ DC Hz, Rs = 1 kΩ
Input Impedance : 10MΩ, 30 pF nominal

(50 MΩ, 100 pF nominal for 400 mV range)

• True RMS AC Volts and Amps

• 1000V AC/DC

• 10A AC/DC

• 0.5% basic DC accuracy

• Frequency 10Mhz

• Capacitance 100µF

• Temperature: –40˚ to 2372˚F

• Resistance 40MΩ

• Diode test 4V

• Continuity >10Ω

• All inputs, ranges and functions

protected to 1000 V CAT III

• Access to battery and fuses without

breaking calibration

• 4,000 count backlit display

• Relative mode

• Hold

• Autoranging

• Five year limited warranty

ATL55, AAC3, ATT29, ATT70, 9V Bat.,
AF38, AF39

Range Resolution Accuracy

DC Current DM393 DM391

400µA 0.1µA 1.0% + 2 1.0% + 2

4000µA 1µA
40mA 10µA
400mA 100µA

4A 1mA 1.5% + 5 1.5% + 5

10A 10mA

AC Current

400µA 0.1µA 1.0% + 5 (40-400Hz) 1.0% + 5

4000µA 1µA
40mA 10µA
400mA 100µA

400mA 1mA 1.5% + 5 (400Hz-10kHz)
4A-10A 10mA 1.5% + 10 (40-400Hz) 1.5% + 10

1.5% + 5 (400Hz-10kHz)

Resistance

400Ω 0.1Ω 1.0% + 5 1.0% + 5

4000Ω 1Ω
40kΩ 10Ω

400kΩ 100Ω 0.5% + 3 0.5% + 3
4MΩ 1kΩ 1.0% + 5 1.0% + 5
10MΩ 10kΩ 1.5% + 10 1.5% + 10

Continuity

Beeper sounds beetween <10Ω and >60Ω

Capacitance

40nF 10pF 2.5% + 10 2.5% + 10

400nF 100pF
4µF 1nF
40µF 10nF
100µF 100nF

• 1000V AC/DC

• 10A AC/DC

• 0.5% basic DC accuracy

• Frequency 10Mhz

• Capacitance 100µF

• Resistance 40MΩ

• Diode test 4V

• Continuity >10Ω

• All inputs, ranges and functions

protected to 1000 V CAT III

• Access to battery and fuses

without breaking calibration

• 4,000 count backlit display

• Relative mode

• Hold

• Autoranging

• Five year limited warranty

ATL55, AAC3, 9V Bat., AF38, AF39

Range Resolution Accuracy

Frequency & Duty Cycle DM393 DM391

5Hz 0.001Hz 0.05% + 3 0.05% + 3

50Hz 0.01Hz
500Hz 0.1Hz
5kHz 1Hz
50kHz 10Hz
500kHz 100Hz
5MHz 1kHz
10MHz 10kHz

Temperature

-40˚C to -10˚C 1˚C 3% ± 5˚C ­(-40˚F to 14˚F) 1˚F (3% ± 5˚F) -

-10˚F to 400˚F 1˚C 1% ± 3˚C ­(14˚F to 752˚F) 1˚F (1% ± 3˚F) ­400˚C to 1300˚C 1˚C 3% of reading ­(752˚F to 2372˚F) 1˚F (3% of reading) -

Frequency Counter Sensitivity

Range Minimum Sensitivity (RMS Sine Wave)

V (4V - 1000V) 500mV 500mV

µA (400µA - 4mA) >15% F.S. of AC Range Not Specied
mA (40mA - 400mA) >15% F.S. of AC Range Not Specied
A (4.0A - 10A) >45% F.S. of AC Range Not Specied

Burden Voltage

Function Range Burden Voltage (Typical)

mA/µA 400µA 150µV/µA
4000µA 150µV/µA
40mA 3.3mV/mA
400mA 3.3mV/mA
A 4A 0.03V/A
10A 0.03V/A

40Hz - 10kHz 10Hz - 20kHz

DM384 DM383B

• 750 Volts AC & 1000 Volts DC

• 10 Amps AC & DC

• Resistance to 40 MΩ

• .01 µA DC resolution for flame safe

guard circuit testing

• Frequency to 40 MHz

• Capacitance to 40,000 Microfarad

• Diode Test

• Continuity

• 3-3/4” Digit, 4000 count display

• Analog bar graph

• MIN/MAX

• Data hold

• EasyView display

• Low Battery Indicator

• On-screen range and function

indicators

• CE and UL listed 600V CAT III

• Five year limited warranty

ATL55, AAC3, 9V Bat., AF155, AF160 ATL55, AAC3, 9V Bat., AF155, AF160

Range Resolution Accuracy

DC Volts DM384 DM383B

400mV 100µV ±(0.5% Rdg + 3) ±(0.5% Rdg + 1)

4V 1mV
40V 10mV
400V 100mV
1000V 1V

AC Volts (50 - 500Hz)

400mV 100µV ±(1.5% Rdg + 3) ±(1.5% Rdg + 3)

4V 1mV
40V 10mV
400V 100mV

750V 1V ±(2.0% Rdg + 4) ±(2.0% Rdg + 4)

DC Current

400µA 0.1µA ±(1.0% Rdg + 3) ±(1.0% Rdg + 2)

4000µA 1µA
40mA 10µA

400mA 100µA ±(1.5% Rdg + 3) ±(1.0% Rdg + 2)
10A 10mA ±(2.0% Rdg + 2) ±(2.0% Rdg + 2)

• 750 Volts AC & 1000 Volts DC

• 10 Amps AC & DC

• Resistance to 40 MΩ

• 0.1µA DC resolution for flame safe

guard circuit testing

• Diode Test

• Continuity

• New – EasyView Display

• 3 3/4” Digit, 4000 count display

• Max capture mode

• Data hold

• On-screen range and function

indicators

• CE and UL listed 600V CAT III

• Five year limited warranty

Range Resolution Accuracy

Resistance DM384 DM383B

400Ω 0.1Ω ±(1.0% Rdg + 3) ±(0.8% Rdg + 2)

4000Ω 1Ω
40kΩ 10Ω
400kΩ 100Ω
4MΩ 1kΩ

40MΩ 10kΩ ±(3.0% Rdg + 7) ±(2.0% Rdg + 3)

Capacitance

4nF .001nF ±(3.0% Rdg + 4) -

40nF .01nF ­400nF .1nF ­4µF .001MF ­40µF .01MF ­400µF .1MF ­4mF .001mF ­40mF .01mF -

AC Current (50 - 500Hz)

400µA 0.1µA ±(1.5% Rdg + 3) ±(1.5% Rdg + 3)

4000µA 1µA
40mA 10µA
400mA 100µA
400mA 1mA

4A 10mA ±(3.0% Rdg + 5) ±(2.0% Rdg + 3)
10A 10mA ±(3.0% Rdg + 5) ±(2.5% Rdg + 4)

DM5B DM200

• Volts 600 AC & DC

• Continuity

• Resistance to 200 ohms

• Manual ranging

• 3-1/2” digit, 2000 count display

• Protective rubber boot

• One year limited warranty

ATL55, AAC3, 9V Bat. ATL250, AF250, AF251, AB13

Range Resolution Accuracy

DC Volts DM200

20V 100mV ±(1.5% Rdg + 3)

200V 10mV
600V 1V

AC Volts (45 - 450Hz)

200V 10mV ±(1.5% Rdg + 5)

600V 1V

Resistance

200Ω 0.1Ω ±(1.5% Rdg + 3)

Continuity

Beeper sounds @ <50Ω

• 750 Volts AC & DC

• 5 Amps AC & DC

• Continuity

• Resistance to 40MΩ

• Pocket-sized

• Auto ranging

• Data hold

• Fuse protected current ranges

• Three year limited warranty

Range Resolution Accuracy Protection

DC Volts DM5B

300mV 100µV ±(1.2% Rdg + 2) 1000V
3V 1mV ±(0.5% Rdg + 2)
30V 10mV ±(1.2% Rdg + 2)

300V 100mV

750V 1V ±(1.5% Rdg + 3)

AC Volts

3V 1mV ±(2.0% Rdg + 3) 1000V

30V 10mV
300V 100mV

750V 1V ±(2.0% Rdg + 4)

DC Current

30mA 10µA ±(1.5% Rdg + 2) 500mA, 250V

300mA 100µA

5A 10mA ±(3.0% Rdg + 4) 5A, 250V

AC Current

30mA 10µA ±(2.0% Rdg + 4) 500mA, 250V

300mA 100µA

5A 10mA ±(3.0% Rdg + 4) 5A, 250V

Resistance

300Ω 0.1Ω ±(1.2% Rdg + 3) 500V

3KΩ 1Ω
30kΩ 10Ω
300kΩ 100Ω
3MΩ 1kΩ

30MΩ 10kΩ ±(3.0% Rdg + 5)

Diode Test

Resolution Max Current Max Voltage

1mV 0.8mA 3.3V 500V

INCLUDED

Test Leads

ATL55 UL listed Insulated test leads for
industry standard multimeters.
(DM393, DM391, DM384, DM383B, DM200)

ATL250 Insulated test leads for DM5B.
AAC3 Screw-on alligator clips

Temperature Probes (DM393)

ATT29 4’ Standard ber glass coated K-Type Temperature probe.

(-40˚ to 950˚F / -40˚ to 510˚C)

ATT70 K-Type Temperature Probe adapter

NOTE: for use with meters that include temperature function

Batteries & Fuses

AB13 Battery, A76VP DM5B
AF38 Fuse, 440mA, 1000V DM393, DM391
AF39 Fuse, 11A, 1000V DM393, DM391
AF155 Fuse, 500mA, 1000V DM384, DM383B
AF160 Fuse, 12A, 1000V DM384, DM383B
AF250 Fuse, .5A, 600V DM5B
AF251 Fuse, 5A, 600V DM5B

NOTE: 9V Battery is standard.

AB13

A C C E S S O R I E S

ATL55 ATL250

AF38 AF39 AF155 AF160 AF250 AF251

ATT29

AAC3

ATT70

OPTIONAL ACCESSORIES

Clips & Adapters

ATHA1 Gas Valve Thermocouple Adapter (Measure mV during use)
CA30 Clamp-on Adapter (AC / DC)
CA30MA Low Amp Clamp-on Adapter (AC / DC)
CA383B Clamp-on Adapter (AC ONLY)
DLMAT2 Micro Amp Adapter

Test Leads

AAC Push-on Alligator clips with insulators for pointed test leads
ATL60 Test Lead, Microwave Diode booster for all DMM (except DM5B)
ATL301KIT Deluxe Test Lead Kit
ATLFSG Flame safeguard relay kit, w/ test lead and alligator clip

K type Temperature Probes

ATT29A 4’ Standard teflon coated K-Type Temperature probe.
(-40˚ to 950˚F / -40˚ to 510˚C)

ATT29APACK ATT29A (10 Pack)
ATT36 8” Surface Probe and handle (-40˚ to 950˚F / -40˚ to 510˚C)
ATT50 8” Liquid Probe and handle (-40˚ to 1.550˚F / -40˚ to 850˚C)
ATT100 6” Liquid Probe and handle (-40˚ to 950˚F / -40˚ to 510˚C)
ATTEXT 10’ K-Type extension
ATTPC K-Type Pipe Clamp Adapter (Wrap style)
ATTPC2 K-Type Pipe Clamp Adapter (Grip style)
TA2K Dual input differential temperature adapter.

(For use with DC mV input)

ATHA1 CA30 CA30MA CA383B DLMAT2

AAC ATL60 ATL301KIT ATLFSG

ATT29A ATT36 ATT50 ATT100
