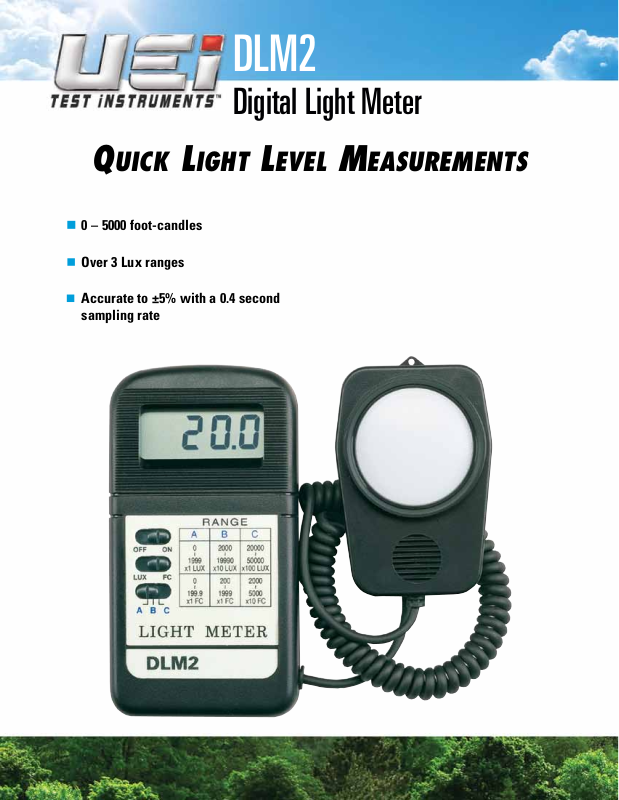

Universal Enterprise DLM2 User Manual

DLM2

Digital Light Meter

Quick Light LeveL MeasureMents

0 – 5000 foot-candles

Over 3 Lux ranges

Accurate to ±5% with a 0.4 second
sampling rate

DLM2 • Digital Light Meter

Specifications

The DLM2 is designed to measure light levels in foot-candles
or lux over 3 ranges.

The DLM2
has the following features:

• 0 – 5000 foot-candles

• Over 3 Lux ranges

• Accurate to ±5% with a 0.4 second sampling rate

• Easy to read LCD display

• One year limited warranty

Display 0.5” (13 mm) LCD, 3-1/2 digits, Max
indication 1999
Measurement Lux - 0 to 50,000 Lux, 3 ranges
Foot candle (FC) - 0 to 5,000 FC, 3 ranges
Sensor The exclusive photo diode and color
correction filter
Over input display Indication of “1”
Operating temperature 32˚ to 122˚F (0˚ to 50˚C)
Operating humidity Less than 80% RH
Power supply 006P DC 9V battery

Power current Approx. DC 2.7 mA
Weight 195 g/0.43 lb. (including battery)
Dimensions 5.2” x 2.8” x 1.0”
(131 mm x 70 mm x 25 mm)
Sensor: 3.2” x 2.2” x 0.3”
(82 mm x 55 mm x 7 mm)
Standard Instruction manual
Accessories Sensor probe

Electrical Specifications

Measurement Range Resolution Accuracy

0 - 1,999 Lux 1 Lux ±(5% + 2 d)
Lux 2,000 - 19,999 Lux 10 Lux ±(5% + 2 d)
20,000 - 50,000 Lux 100 Lux ±(5% + 2 d)
0 - 199.9 FC 0.1 FC ±(5% + 2 d)
Foot candle 200 - 1,999 FC 1 FC ±(5% + 2 d)
(FC) 2,000 - 5,000 FC 10 FC ±(5% + 2 d)
