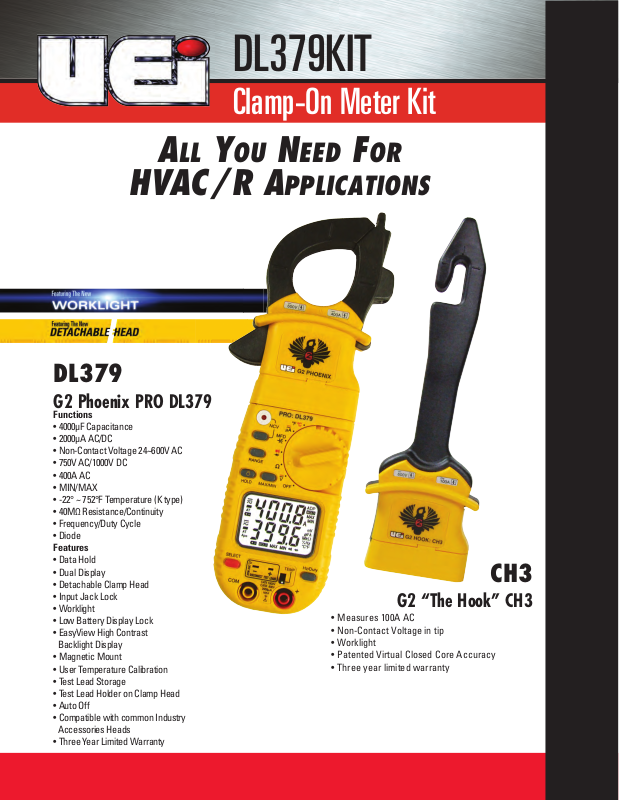

Universal Enterprise DL379 User Manual

DL379KIT

Clamp-On Meter Kit

ALL YOU NEED FOR

HVAC/R APPLICATIONS

DL379

G2 Phoenix PRO DL379

Functions

• 4000µF Capacitance

• 2000µA AC/DC

• Non-Contact Voltage 24~600V AC

• 750V AC/1000V DC

• 400A AC

• MIN/MAX

• -22° ~ 752°F Temperature (K type)

• 40MΩ Resistance/Continuity

• Frequency/Duty Cycle

• Diode

Features

• Data Hold

• Dual Display

• Detachable Clamp Head

• Input Jack Lock

• Worklight

• Low Battery Display Lock

• EasyView High Contrast
Backlight Display

• Magnetic Mount

• User Temperature Calibration

• Test Lead Storage

• Test Lead Holder on Clamp Head

• Auto Off

• Compatible with common Industry
Accessories Heads

• Three Year Limited Warranty

G2 “The Hook” CH3

• Measures 100A AC

• Non-Contact V

• Worklight

• Patented V

• Three year limited warranty

oltage in tip

irtual Closed Core Accuracy

CH3

DL379KIT • Clamp-On Meter Kit

The G2 PHOENIX PRO adds both safety and time efficiency features providing a new level of value and peace
of mind. Equally equipped as the G2 PHOENIX PRIME, the PRO adds temperature, worklight, a detachable
clamp head, safety lock for the input jacks, and a cool new EasyView Display™ making readings clear in bright
sunlight as well as dark work environments. Compare it to any meter in its class and see how the PRO stands
alone!

DL379 Specifications

AC Amps Measurement - Jaw Input (45Hz to 400Hz)

Range Resolution Accuracy Overload Protection

40A 0.01A ±2.9% +15 dgts 600V
400A 0.1A ±1.9% +8 dgts

DC Low Amps Measurement (test lead input)

Range Resolution Accuracy Overload Protection

400µA 0.01µA ±1.2% +3 dgts 2000µA / 600V
2000µA 0.1µA

AC Low Amps Measurement (test lead input)

Range Resolution Accuracy Overload Protection

400µA 0.01µA ±2.0% +5 dgts 2000µA / 600V
2000µA 0.1µA ±1.5% +5 dgts

DC Volts Measurement

Range Resolution Accuracy Overload Protection

400mV 0.1mV ±0.5% +4 dgts 600V
4V 1mV
40V 10mV
400V 100mV
1000V 1V ±0.8% +10 dgts

AC Volts Measurement (45Hz to 400Hz)

Range Resolution Accuracy Overload Protection

4V 1mV ±2.0% +5 dgts 600V
40V 10mV
400V 100mV
750V 1V

Diode Test

Range Open Circuit Voltage Test Current (typical) Overload Protection

2.0V < 3.0V DC 0.25mA 600V

Capacitance Measurement

Range Resolution Accuracy Overload Protection

40nF 0.01nF ±3.5% +6 dgts 600V
400nF 0.1nF
4µF 0.001µF
40µF 0.01µF
400µF 0.1µF
4000µF 1µF

Temperature Measurement

Range Resolution Accuracy Overload Protection

-22˚ to 14˚F 0.1˚F ±5.4˚F 30V
(-30˚ to -10˚C) (0.1˚C) (±3.0˚C)
15˚ to 752˚F 0.1˚F ±1.0% +3.6˚F
(-9˚ to 400˚C) (0.1˚C) (±1.0% +2.0˚C)

Frequency Measurement

Range Resolution Accuracy Overload Protection

9.999Hz 0.001Hz ±0.1% +4 dgts 600V

99.99Hz 0.01Hz

999.9Hz 0.1Hz

9.999kHz 1Hz

99.99kHz 10Hz

Minimum frequency: 0.5Hz, DC V offset should be zero

Sensitivity: > 1.0V rms

Ohms Measurement

Range Resolution Accuracy Overload Protection

400Ω 100mΩ ±1.0% +4 dgts 600V

Ω 1Ω

4k
40kΩ 10 Ω
400kΩ 100Ω
4MΩ

40MΩ

1kΩ
10kΩ

±

2.0% +4 dgts

Distributed By:

Copyright © 2007 UEi Specifications are subject to change without notice.

Duty (%) Cycle Measurement

Range

01. to 99.9% ±(0.2% per kHz +0.1%) +5 count 600V

0.5Hz to 100KHz (pulswidth > 2µ sec)

Accuracy Overload Protection

Continuity Measurement

Open Circuit voltage <2.7V Overload Protection

Threshold Approximately <20Ω 600V

1-800-547-5740 • Fax: [phone]
www.ueitest.com • Email: [e-mail]
