The Problem:

A common problem all contractors have faced at some time is the difficulty to take current measurements in tight and cramped work environments. To take a current reading on an individual wire meant someone was going to use their fingers, sort the wires, pull the wire in question out and take a clamp reading. This has brought two big problems, first: reaching in and opening the clamp has either been impossible, or undesirable due to the hazards associated with live contact points. Second: every time you pull a wire out of a tight location, you risk damaging or loosening the wire’s connections.

The Design:

The most important stage of any product design is… listening. Through surveys, service calls, and interviews with technicians and tech schools, we clarified what contractors liked, hated, and wanted from their test instruments. We then compared that list against what’s available on the market, and our direction was obvious. To accomplish this would require unprecedented cooperation between Marketing, Production, Product Design and certain key wholesalers through whom we reach our customers.

The Solution:

We seized this opportunity to provide our customers with more benefits for a competitive price. When we sat down to design the Phoenix series, we set out to create the leading series of clamp-on meters in the industry. We listened carefully to our customers to make sure we had everything needed. Then having designed the best clamp-on meter in its class, we took it one step further with the addition of the innovative hook, which works on all 3 models. Now a change of clamp heads allows users to transform the Phoenix, enabling them to work in tight spaces at a new level of efficiency and safety.

The Phoenix:

The Phoenix series offers the highest combination of function, features, and safety offered in a meter today. Combined with The Hook extended clamp head, no contractor will have to compromise their safety, efficiency, or comfort.

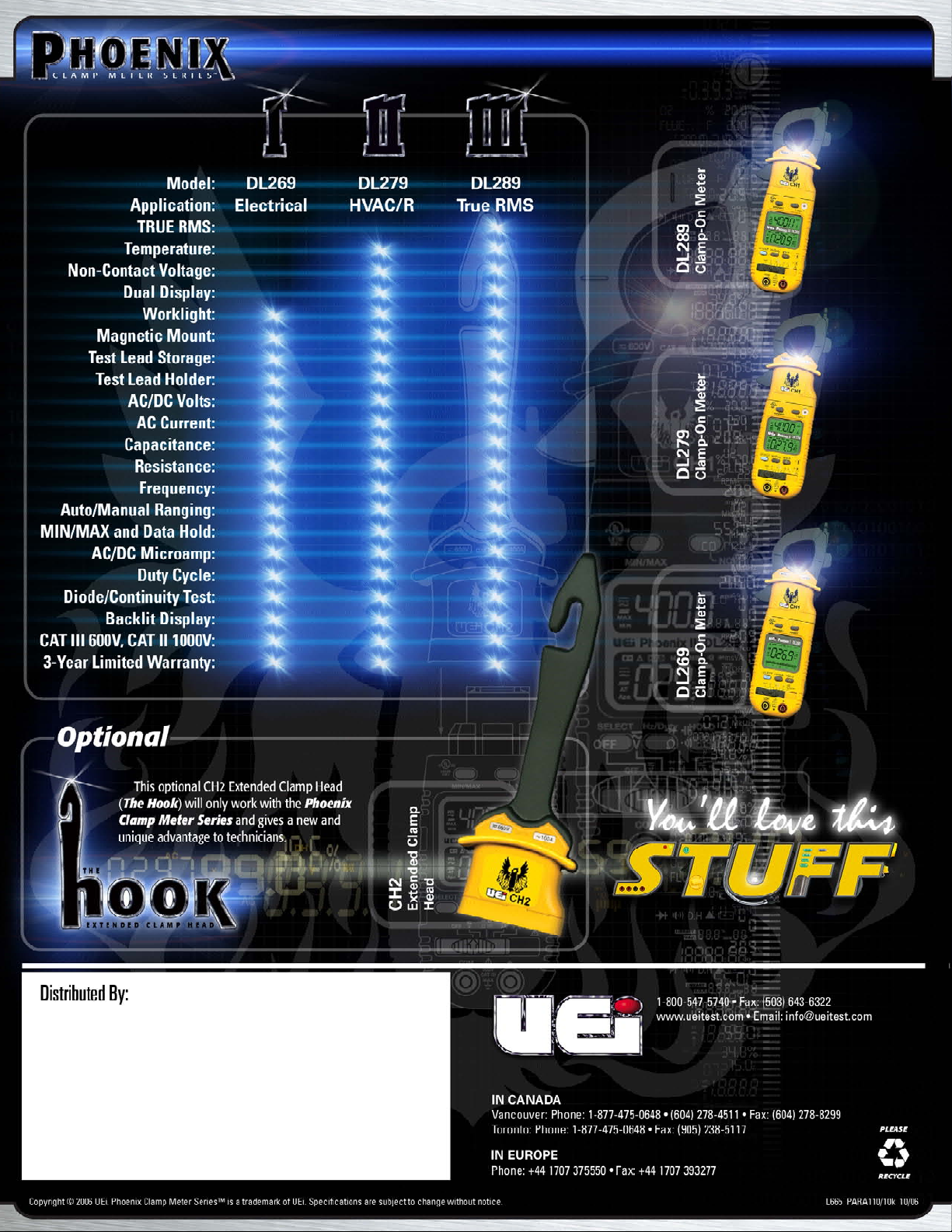

Quick Reference Selection

If you measure. . .

AC current in tight or cramped spaces X* X* X* Motor or line current X X X Supply or control voltage X X X System board voltage checks X X X Flame safe guard X X X Motor run or start faults X X X Circuit continuity or specified resistance X X X Motor in-rush X X X Frequency of variable speed drives & supply power X X X Temperature X X Quick check of live wires X X Two readings simultaneously X X Non-linear loads or distorted waveforms (TRMS) X

*Available with the CH2 - The Hook, extended clamp head (sold separately)

DL269

Phoenix I

DL279

Phoenix II

DL289

Phoenix III

Page 3

Functions

• 750V AC/1000V DC

• 400A AC

• 2000µA AC/DC

• 40MΩ Resistance/Continuity

• 4000µF Capacitance

• Frequency/Duty Cycle

• Diode

• MIN/MAX display

All You Need For General Electrical Applications!

Features

• Detachable clamp head

• Worklight

• Magnetic mount

• Large backlight display

• Test lead storage

• Test lead holder on clamp head

• Data hold

• Auto off

• Three year limited warranty

Safety Compliance

• CAT III 600V, CAT II 1000V

Accessories Included

• ATL59 Test leads

• Zippered case

• 2 AAA batteries

Optional Accessories

• CH2 Extended Clamp Head (The Hook)

Functions

• 750V AC/1000V DC

• 400A AC

• 2000µA AC/DC

• 40MΩ Resistance/Continuity

• 4000µF Capacitance

• -40 ~ 752˚F Temperature (K type)

• Frequency/Duty Cycle

• Non-Contact Voltage

• Diode

• MIN/MAX display

Features

• Detachable clamp head

• Worklight

• Magnetic mount

• Dual backlight display

• Test lead storage

• Test lead holder on clamp head

• Data hold

• Auto off

• Three year limited warranty

Safety Compliance

• CAT III 600V, CAT II 1000V

Accessories Included

• ATL59 Test leads

• K type probe (no adapter required)

• Zippered case

• 2 AAA batteries

Optional Accessories

• CH2 Extended Clamp Head (The Hook)

Functions

• True RMS

• 750V AC/1000V DC

• 400A AC

• 2000µA AC/DC

• 40MΩ Resistance/Continuity

• 4000µF Capacitance

• -40 ~ 752˚F Temperature (K type)

• Frequency/Duty Cycle

• Non-Contact Voltage

• Diode

• MIN/MAX display

Features

• Detachable clamp head

• Worklight

• Magnetic mount

• Dual backlight display

• Test lead storage

• Test lead holder on clamp head

• Data hold

• Auto off

• Three year limited warranty

Safety Compliance

• CAT III 600V, CAT II 1000V

Accessories Included

• ATL59 Test leads

• K type probe (no adapter required)

• Zippered case

• 2 AAA batteries

Optional Accessories

• CH2 Extended Clamp Head (The Hook)

All You Need For HVAC/R Applications!

All You Need For True RMS Applications!

Page 4

AC Amps Measurement - Jaw Input (45Hz to 400Hz)

*DL269 400A range only *DL289 45Hz to 400Hz True RMS (Crest factor <3:1)

DC Low Amps Measurement (test lead input)

AC Low Amps Measurement (test lead input)

*DL289 45Hz to 400Hz True RMS (Crest factor <3:1)

DC Volts Measurement

AC Volts Measurement (45Hz to 400Hz)

*DL289 45Hz to 400Hz True RMS (Crest factor <3:1)

Ohms Measurement

Diode Test

Capacitance Measurement

Temperature Measurement (DL279 & DL289 only)

Frequency Measurement

Minimum frequency: 0.5Hz, DC V offset should be zero Sensitivity: > 1.0V rms

Duty (%) Cycle Measurement

0.5Hz to 100KHz (pulswidth > 2µ sec)

Continuity Measurement
