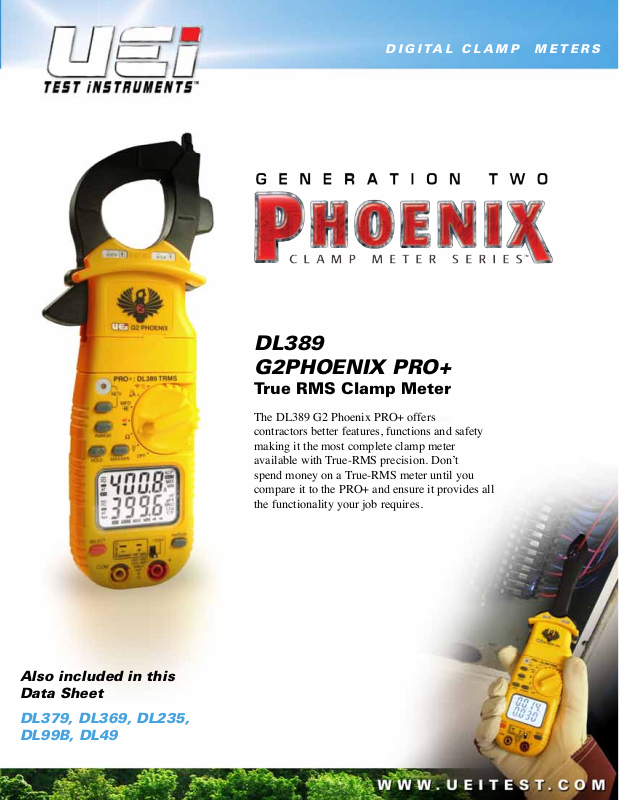

Universal Enterprise DL235 User Manual

D I G I TA L C L A M P M E T E R S

DL389
G2PHOENIX PRO+

True RMS Clamp Meter

The DL389 G2 Phoenix PRO+ offers
contractors better features, functions and safety
making it the most complete clamp meter
available with True-RMS precision. Don’t
spend money on a True-RMS meter until you
compare it to the PRO+ and ensure it provides all
the functionality your job requires.

Also included in this
Data Sheet

DL379, DL369, DL235,
DL99B, DL49

DL389

DL379

F u n c t i o n s

F e a t u r e s

I n c l u d e s

• True-RMS

• 4000µF Capacitance

• 2000µA AC/DC

• Non-Contact Voltage 24~600V AC

• 750V AC/1000V DC

• 400A AC

• MIN/MAX

• -22° ~ 752°F (K type)

• 40MΩ Resistance/Continuity

• Frequency/Duty Cycle

• Diode

• Data Hold

• Dual Display

• Detachable Clamp Head

• Input Jack Lock

• Worklight

• Low Battery Display Lock

• EasyView High Contrast
Backlight Display

• Magnetic Mount

• User Temperature Calibration

• Test Lead Storage

• Test Lead Holder on Clamp Head

• Auto Off

• Compatible with Common Industry
Accessory Heads

• Three Year Limited Warranty

ATL59, AAC3, ATT29, 2(AA) Bat.,
Zippered Carrying Case

• 4000µF Capacitance

• 2000µA AC/DC

• Non-Contact Voltage 24~600V AC

• 750V AC/1000V DC

• 400A AC

• MIN/MAX

• -22° ~ 752°F Temperature (K type)

• 40MΩ Resistance/Continuity

• Frequency/Duty Cycle

• Diode

• Data Hold

• Dual Display

• Detachable Clamp Head

• Input Jack Lock

• Worklight

• Low Battery Display Lock

• EasyView High Contrast
Backlight Display

• Magnetic Mount

• User Temperature Calibration

• Test Lead Storage

• Test Lead Holder on Clamp Head

• Auto Off

• Compatible with Common Industry
Accessory Heads

• Three Year Limited Warranty

ATL59, AAC3, ATT29, 2(AA) Bat.,
Zippered Carrying Case

S p e c i f i c a t i o n s

Range Resolution Accuracy Overload

DC Volts

400mV 0.1mV ±0.5% + 4 600V
4V 1mV
40V 10mV
400V 100mV
1000V 1V ±0.8% + 10

AC Volts

4V 1mV ±0.75% + 3 600V
40V 10mV
400V 100mV
1000V 1V

DL389: 45Hz to 400Hz True RMS (Crest factor<3:1)

AC Amps Measurement - Jaw Input (45~400Hz)

40A 0.01A ±2.9% + 15 600V
400A 0.1A ±1.9% + 8

DL369: 400A range only
DL389: 45Hz to 400Hz True RMS (Crest factor<3:1)

DC Low Amps Measurement (Test Lead Input)

400µA 0.01µA ±1.2% + 3 2000µA/600V
2000µA 0.1µA

G2 PHOENIX

Range Resolution Accuracy Overload

AC Low Amps Measurement (Test Lead Input)

400µA 0.01µA ±2.0% + 5 2000µA/600V
2000µA 0.1µA ±1.5% + 5

DL389: 45Hz to 400Hz True RMS (Crest factor<3:1)

Resistance

400Ω 100mΩ ±1.0% + 4 600V
4kΩ 1Ω
40kΩ 10Ω
400kΩ 100Ω
4MΩ 1kΩ
40MΩ 10kΩ ±2.0% + 4

Capacitance Measurement

40nF 0.01nF ±3.5% + 6 600V
400nF 0.1nF
4µF 0.001µF
40µF 0.01µF
400µF 0.1µF
4000µF 1µF

Diode Test

Range Open Circuit V Test Current Overload

2.0V <3.0V DC 0.25mA 600V

Range Resolution Accuracy Overload

Frequency Measurement

9.999Hz 0.001Hz ±0.1% + 4 600V

99.99Hz 0.01Hz

999.9Hz 0.1Hz

9.999kHz 1Hz

99.99kHz 10Hz

Temperature Measurement (DL379 & DL389 ONLY)

-22˚ ~ 14˚F 0.1˚F ±5.4˚F 30V

(-30˚ ~ -10˚C) (0.1˚C) (±3.0˚C)

15˚ ~ 752˚F 0.1˚F ±1.0% + 3.6˚F

(-9˚ ~ 400˚C) (0.1˚C) (±1.0% + 2.0˚C)

Duty (%) Cycle Measurement

Range Accuracy Overload

01. to 99.9% ±(0.2% per kHz +0.1%) + 5 600V

Continuity Measurement

Open Circuit Voltage <2.7V Overload

Threshold Approximately <20Ω 600V

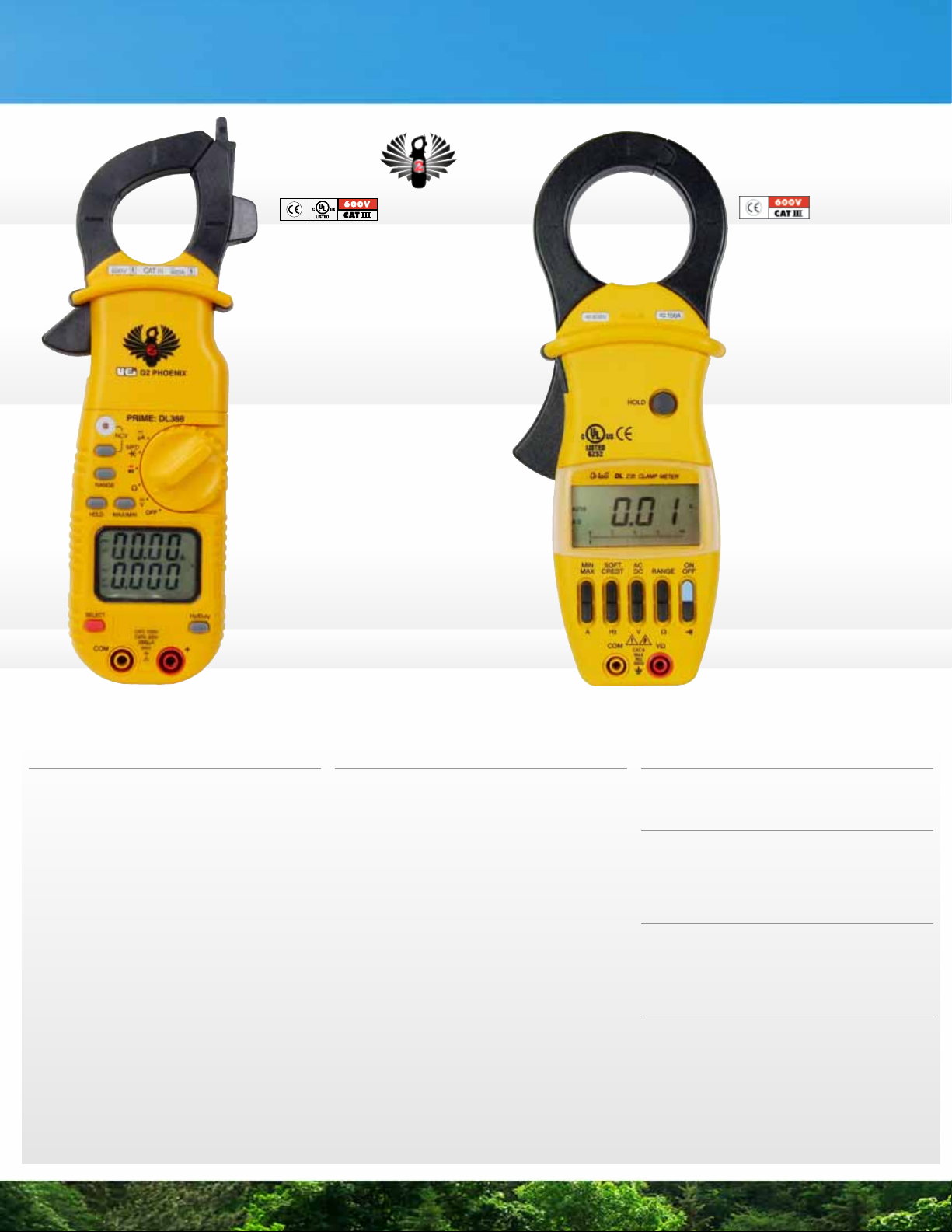

DL369

DL235

• 4000µF Capacitance

• 2000µA AC/DC

• Non-Contact Voltage 24~600V AC

• 750V AC/1000V DC

• 400A AC

• MIN/MAX

• 40MΩ Resistance/Continuity

• Frequency/Duty Cycle

• Diode

• Data Hold

• Dual Display

• Low Battery Display Lock

• Test Lead Storage

• Test Lead Holder on Clamp Head

• Auto Off

• Three Year Limited Warranty

ATL59, AAC3, ATT29, 2(AA) Bat.,
Zippered Carrying Case

• True RMS

• 700 Amps AC and DC

• 750 Volts AC and DC

• Resistance to 4 kilohms

• Continuity

• Frequency to 10 kilohertz

• Auto or manual ranging

• Soft mode smooths amp, frequency or
voltage readings

• Crest mode displays 1/2 wave peak to
calculate crest factor

• MIN/MAX record

• 2 1/6” jaw capacity

• CE and CAT II

• Five year limited warranty

ATL55, AAC3, 9V Bat,
Holster

DL235

Range Resolution Accuracy*2

AC Amps (RMS Amperes)

0.30 ~39.99 0.01A ±3% + 20 @ 45Hz ~ 65Hz
(40A scale) ±4% + 30 @ 30Hz ~ 45Hz
±4% + 30 @ 65Hz ~ 1kHz
±8% + 30 @ 20Hz ~ 30Hz

0.30 ~ 399.9A 0.1A ±3% + 2 @ 45Hz ~ 65Hz
(400A scale) ±4% + 3 @ 30Hz ~ 45Hz
±4% + 3 @ 65Hz ~ 1kHz
±8% + 3 @ 20Hz ~ 30Hz

400 ~ 700A 1A ±5% @ 45Hz ~ 65Hz
(400A scale) ±7% @ 30Hz ~ 45Hz
±7% @ 20Hz ~ 30Hz

Not Specied @ 20Hz ~ 30Hz

*1. Sine wave, measured with conductor centered at alignment marks and battery life is greater than 40hrs on meter power up.
*2. RMS MIN/MAX: ADD 10 counts.
*3. 1A and above @ 30Hz ~ 45Hz
*4. Average only, 2.5A and above RMS MIN/MAX add 2% of reading

*1

Range Resolution Accuracy

Instantaneous Amperes (Crest Mode)

0.4 ~ 39.99A 0.2A ±3% + 30 @ 45Hz ~ 65Hz

*3

(40A scale) ±4% + 30 @ 30Hz ~ 45Hz
±4% + 30 @ 65Hz ~ 1kHz

*4

±8% + 40 @ 20Hz ~ 30Hz

0.4 ~ 399.9A 2A ±3% + 3 @ 45Hz ~ 65Hz

*3

(400A scale) ±4% + 3 @ 30Hz ~ 45Hz
±4% + 3 @ 65Hz ~ 45kHz

*4

±4% + 4 @ 20Hz ~ 30Hz

400 ~ 699A 4A ±3% @ 45Hz ~ 65Hz

*3

(400A scale) ±4% @ 30Hz ~ 45Hz
±4% @ 65Hz ~ 1kHz

*4

±4% @ 20Hz ~ 30Hz

400 ~ 699A 4A ±7% @ 45Hz ~ 65Hz

(400A scale) ±7% @ 30Hz ~ 45Hz
±7% @ 65Hz ~ 1kHz

±7% @ 20Hz ~ 30Hz

*2

*1

Range Resolution Accuracy

Frequency

0.5 ~ 999.9Hz 0.1Hz ±0.2% + 3

*2

1,000 ~ 9,999Hz 1Hz ±0.2% + 3

*3

DC Amps

*1

0.30 ~ 39.99A (40A scale) 0.01A ±2% + 30

0.30 ~ 399.9A (400A scale) 0.1A ±2% + 10

*2

400 ~ 700A (400A scale) 1A ±2% + 10

*3

AC Volts

0 ~ 39.9V (40V scale) 0.01V ±1.0% + 3

*2

0 ~ 399.9V (400V scale) 0.1V ±1.0% + 3 @ 45Hz ~ 65Hz
±2.5% + 5 @ 65Hz ~ 1kHz

*3

0 ~ 750V (400V scale) 1V ±1.0% + 5 @ 45Hz ~ 65Hz

DC Volts

*2

0 ~ 39.9V (40V scale) 0.01V ±1.0% + 3
0 ~ 399.9V (400V scale) 0.1V ±1.0% + 3

*3

0 ~ 750V (400V scale) 1V ±1.5% + 5

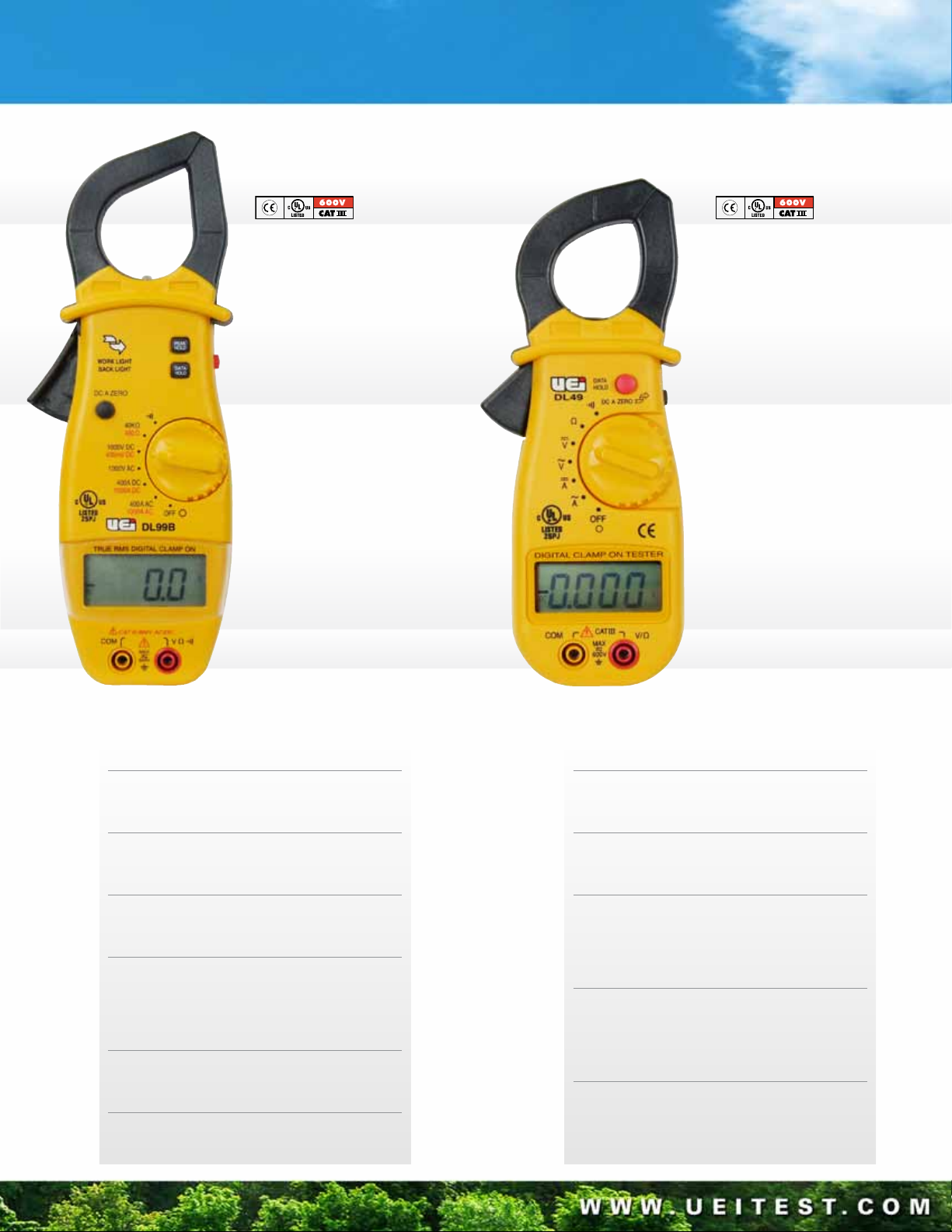

DL99B

DL49

• True RMS

• Work light and backlit display

• 1000 Amps AC and DC

• 1000 Volts AC and DC

• Resistance to 40 kilohms

• Continuity

• Push-button ranging

• Peak hold

• Data hold

• 0.1 mV DC resolution allows use of
DMM adapters

• 1-3/8” jaw capacity

• CE and UL listed CAT III

• Three year limited warranty

ATL55, AAC3, 9V Bat.,
Holster

• 400 Amps AC and DC

• 600 Volt AC and DC

• Resistance to 40 Megohms

• Continuity

• Autoranging

• AC Amps peak hold

• Data hold

• 1 mV DC resolution allows use of
DMM adapters

• 1 1/4” Jaw capacity

• CE and UL listed CAT III

• Three year limited warranty

ATL55, AAC3, 9V Bat.,
Carrying Case

DL99B

Range Resolution Accuracy Overload

AC Amps

400A 0.1A ±2.0% + 5 600V
1000A 1A

DC Amps

400A 0.1A ±2.0% + 5 600V
1000A 1A

AC Volts (50Hz ~ 400Hz)

400V 0.1V ±1.9% + 3 600V
1000V 1V

DC Volts

400mV 0.1mV ±1.0% + 2 600V
400V 0.1V
1000V 1V

Volts AC & DC auto ranges to 600V scale when >400V

Resistance

400Ω 0.1Ω ±1.0% + 2 600V
40kΩ 0.01kΩ

Continuity

400Ω 0.1Ω Tone Sounds @¯40Ω

DL49

Range Resolution Accuracy Overload

AC Amps (50Hz ~ 400Hz)

40A 0.01A ±2.0% + 5 600V
400A 0.1A ±3.0% + 10

DC Amps

40A 0.01A ±2.5% + 10 600V
400A 0.1A ±1.5% + 5

AC Volts (50Hz ~ 400Hz)

4V 1mV ±1.5% + 3 600V
40V 10mV
400V 100mV
600V 1V

DC Volts

4V 1mV ±0.9% + 2 600V
40V 10mV
400V 100mV
600V 1V

Resistance

400Ω 0.1Ω ±0.9% + 2 600V
4kΩ 1Ω
400kΩ 100Ω
4MΩ 1kΩ ±1.2% + 5
40MΩ 10kΩ

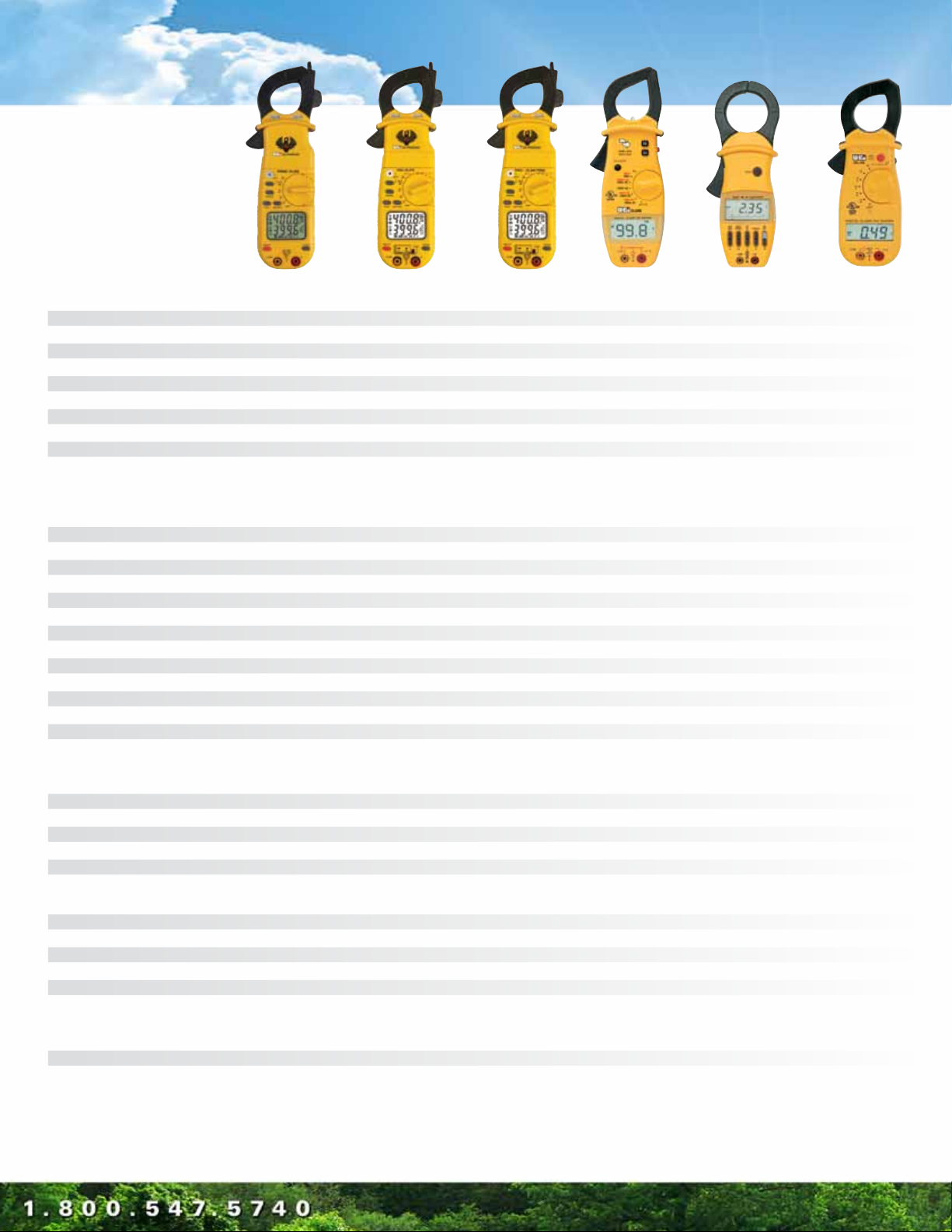

Q U I C K C O M P A R I S O N

FUNCTIONS DL369 DL379 DL389 DL99B DL235 DL49

AC Volts 750 750 750 1000 750 600
DC Volts 1000 1000 1000 1000 750 600
AC Amps 400 400 400 1000 700 400
DC Amps - - - 1000 700 400
Frequency .01~999.9kHz .01~999.9kHz .01~999.9kHz - .5~9,999Hz ­ AC/DC Micro Amps 0.1~2000µA 0.1~2000µA 0.1~2000µA - - ­ Capacitance .01~4000µF .01~4000µF .01~4000µF - - ­ Temperature ˚F - -22~752˚F -22~752˚F - - -­ Temperature ˚C - -30~400˚C -30~400˚C - - ­ Resistance 0.1~40MΩ 0.1~40MΩ 0.1~40MΩ 40kΩ 4kΩ 40MΩ
Audible Continuity <50Ω <50Ω <50Ω <40Ω <35Ω <50Ω

FEATURES

True-RMS - - X X X ­ Non Contact Voltage 24~600VAC 24~600VAC 24~600VAC - - ­ Dual Display X X X - - ­ Detachable Clamp Head - X X - - ­ Accepts Industry Accessory Heads - X X - - ­ User Temperature Calibration - X X - - ­ Worklight - X X X - ­ Backlit Display - EasyView EasyView - - ­ MIN/MAX X X X - X ­ Autoranging Auto/Man Auto/Man Auto/Man Auto/Man Auto/Man Auto
Peak Hold - - - X X X
Data Hold X X X X X X
Auto Off X X X X X X
Low Battery Indicator Display Lock Display Lock Display Lock X X X

Standard Accessories

Test Leads ATL59 ATL59 ATL59 ATL55 ATL55 ATL55
Alligator Clips AAC3 AAC3 AAC3 AAC AAC AAC
Battery “AA” (2) “AA” (2) “ AA” (2) 9V 9V 9V
Temperature Probe - K-Type K-Type - - ­ Thermocouple (K-type) - ATT29 ATT29 - - ­ Case X X X X X X

Optional Accessories

Flame Safeguard Test Kit ATLFSG ATLFSG ATLFSG - - ­ Microwave Diode Booster ATL60 ATL60 ATL60 - - ­ Line Splitter ALS1 ALS1 ALS1 ALS1 ALS1 ALS1
Dual Temperature Adapter TA2K TA2K TA2K TA2K TA2K TA2K
Micro Amp Adapter DLMAT2 DLMAT2 DLMAT2 DLMAT2 DLMAT2 DLMAT2
Capacitance Adapter CPA1 CPA1 CPA1 CPA1 CPA1 CPA1
Optional Storage Case AC519 AC519 AC519 AC519 AC519 AC519

Warranty & Safety Rating

Warranty 3yr 3yr 3yr 3yr 5yr 3yr
Safety Ratings UL CAT III 600V UL CAT III 600V UL CAT III 600V UL CAT III 600V CAT II UL CAT III 600V
CAT II 1000V CAT II 1000V CAT II 1000V

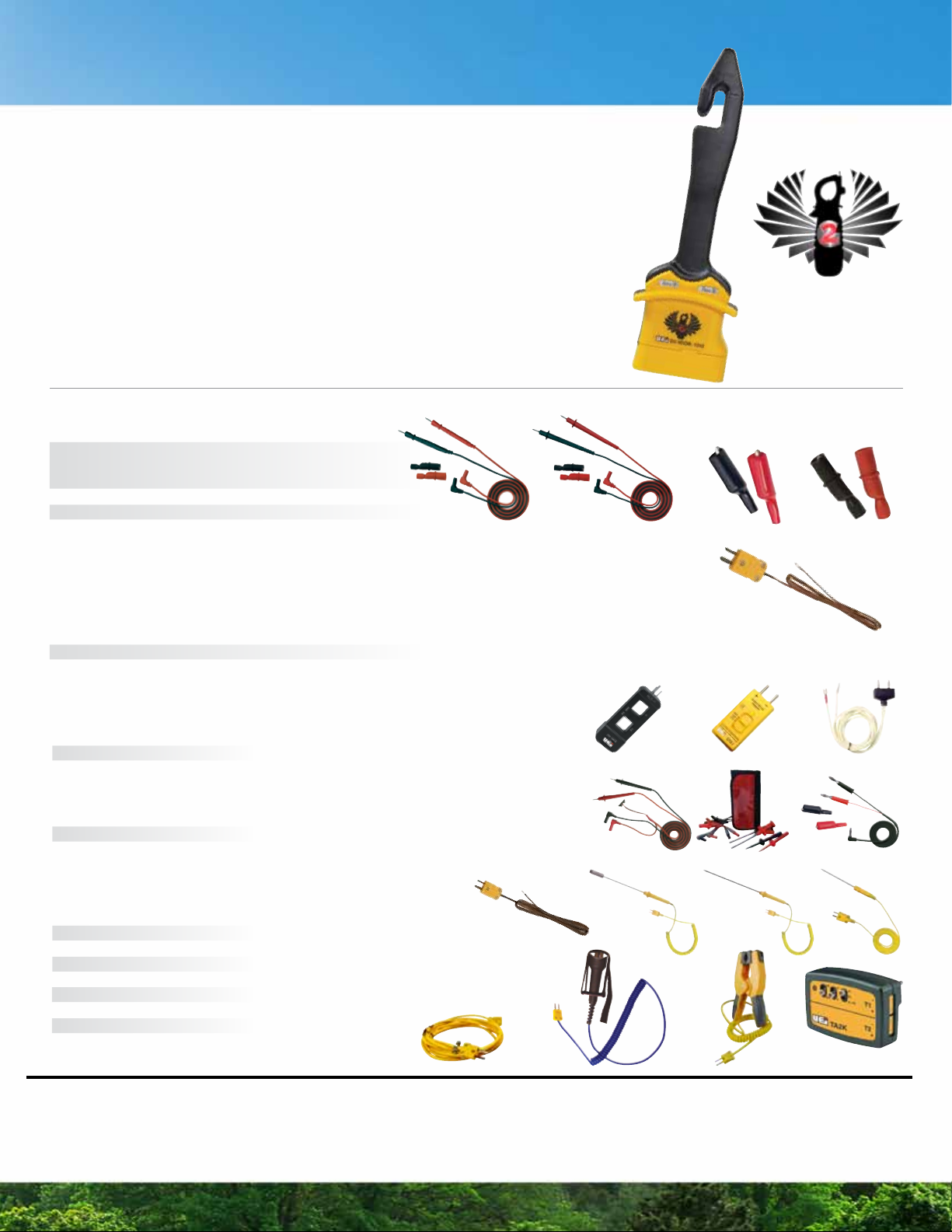

A C C E S S O R I E S

G2PHOENIX HOOK: CH3
Extended Clamp Head

Introducing a revolutionary design for clamp-on current measurement, The Hook (CH3) snaps onto the Phoenix meter body
providing contractors a new, safe and unique approach to measuring wires in tight wire bundles or hard-to-reach locations.
The patented technology increases accuracy by shielding current from adjacent wires by providing a virtual closed core tip.
The Hook works exclusively with the G2PHOENIX PRO and PRO+* Clamp Meters.

Functions

• Measures 100A AC

• Non-Contact Voltage in Tip

• Worklight

• Patented Virtual Closed Core Accuracy

• Three year limited warranty

INCLUDED

Specifications

• Range: 0 – 100A

• Resolution: 0.1A

• Accuracy: 2.0% ±20 dgts

• Interference from Adjacent Wires: 0.03 – 1.0A

*Hook does not measure True-RMS when used with the
PRO+ (DL389)

Test Leads

ATL59 UL listed Insulated test leads for
G2 Phoenix clamp meters.
(DL369, DL379, DL389)

ATL55 UL listed Insulated test leads for
industry standard meters with 4mm jacks.
(DL99B, DL49, DL250)

AAC Alligator clips (DL49, DL99B, DL235)
AAC3 Screw-on alligator clips (DL369, DL379, DL389)

Temperature Probe (DL379, DL389)

ATT29 4’ Standard ber glass coated K-Type Temperature probe.
(-40˚ to 950˚F / -40˚ to 510˚C)

Note: The DL379 and DL389 will work with any K type thermocouple using a standard mini connector.

Batteries

AA For DL369, DL379, DL389
9V for DL49, DL99B, DL235.

OPTIONAL ACCESSORIES

AACATL59 ATL55 AAC3

ATT29

Clips & Adapters

ALS1 AC Line Splitter
CPA1 Capacitance Adapter
DLMAT2 Micro Amp Adapter

Test Leads

ATL60 Test Lead, Microwave Diode booster for all DMM (DL369, DL379, DL389 only)
ATL301KIT Deluxe Test Lead Kit
ATLFSG Flame safeguard relay kit, w/ test lead and alligator clip (DL369, DL379, DL389 only)

Temperature Probes (DL379, DL389 ONLY)

ATT29A 4’ Standard teon coated K-Type Temperature probe.
(-40˚ to 950˚F / -40˚ to 510˚C)

ATT29APACK ATT29A (10 Pack)
ATT36 8” Surface Probe and handle (-40˚ to 950˚F / -40˚ to 510˚C)
ATT50 8” Liquid Probe and handle (-40˚ to 1.550˚F / -40˚ to 850˚C)
ATT100 6” Liquid Probe and handle (-40˚ to 950˚F / -40˚ to 510˚C)
ATTEXT 10’ K-Type extension
ATTPC K-Type Pipe Clamp Adapter (Wrap style)
ATTPC2 K-Type Pipe Clamp Adapter (Grip style)
TA2K Dual input differential temperature adapter.

1-800-547-5740 • Fax: [phone]

www.ueitest.com • Email: [e-mail]

USA

8030 SW Nimbus Ave.

Beaverton, OR 97008

ATTEXT ATTPC ATTPC2 TA2K

1-877-475-0648 • Fax: [phone]

www.ueitest.com • Email:[e-mail]

150-13571 Verdun Place

ATT29A ATT36 ATT50

CANADA

Richmond, B.C.

V6V 1W6

CPA1 ALS1 DLMAT2

ATL301KIT ATL60 ATLFSG

ATT100

[phone] • Fax: [phone]

EUROPE

L333 IMAG454 7.5K 1/11
