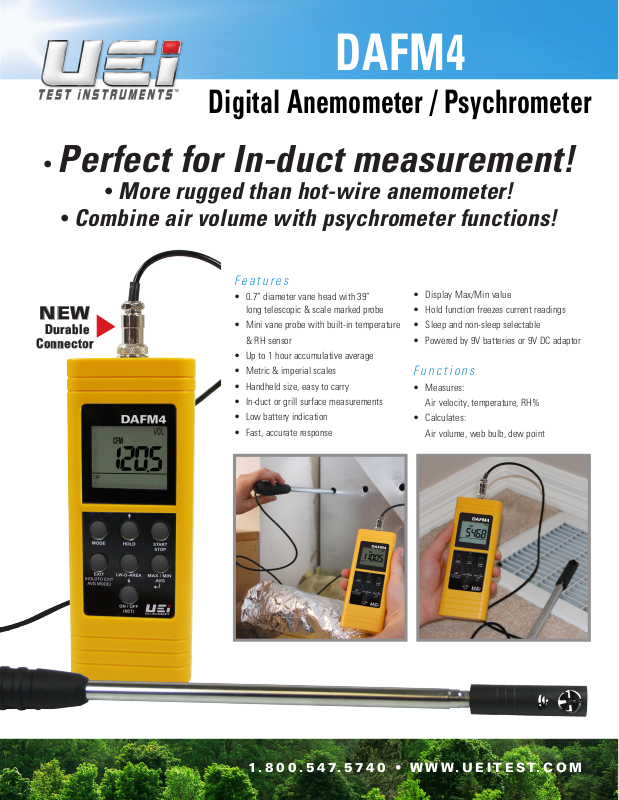

Universal Enterprise DAFM4 User Manual

DAFM4

Digital Anemometer / Psychrometer

• Perfect for In-duct measurement!

• More rugged than hot-wire anemometer!

• Combine air volume with psychrometer functions!

Features

• Display Max/Min value

• Hold function freezes current readings

• Sleep and non-sleep selectable

• Powered by 9V batteries or 9V DC adaptor

Functions

• Measures:

Air velocity, temperature, RH%

• Calculates:

Air volume, web bulb, dew point

NEW

Durable

Connector

• 0.7” diameter vane head with 39”
long telescopic & scale marked probe

• Mini vane probe with built-in temperature

& RH sensor

• Up to 1 hour accumulative average

• Metric & imperial scales

• Handheld size, easy to carry

• In-duct or grill surface measurements

• Low battery indication

• Fast, accurate response

1.800.547.5740 • WWW.UEITEST.COM

Includes

DAFM4 • DIGITAL AIR FLOW METER

The DAFM4 is the tool for all your airflow
measurement needs. With the DAFM4 you can
directly capture air temperature, relative humidity,
and air velocity. It also calculates wet-bulb
temperature, dew point temperature, and air volume.
Enter duct dimensions for live or timed average of
air-flow in CFM (or CMM), or use the effective area
of a grill for outlet volume measurements.

Air volume is displayed in real-time, or choose
a timed average with start/stop capabilities to
traverse ductwork.

• 0.7” small diameter air vane on
39” long telescoping probe

• Hard carrying case

• 9V battery

• Manual

Specifications

Function English Metric

Air Velocity Range 99 ~ 3937 ft / min 0.5 ~ 20 m / s

Air Velocity Resolution 0.1 ft / min 0.1 m / s

Air Velocity Accuracy ±(3% or reading + 39 ft / min) ±(3% or reading + 0.2 m / s)

Temperature Range -4 ~ 140°F -20 ~ 60°C

Temperature Resolution 0.1°F 0.1°C

Temperature Accuracy ±1.1°F(-4 ~ 122°F); ±2.2°F at others ±0.6°C(-20 ~ 50°C); ±1.2°C at others

RH% Range 0.1 ~ 99.9% RH

RH% Resolution 0.1% RH

RH% Accuracy ±3% RH at 77°F(25°C) and 10~90%RH; ±5% at others

Wet bulb range -4 ~ 158°F -20 ~ 70°C

Wet bulb resolution 0.1°F (°C)

Air volume display 0 ~ 99999 CFM (m3/s)

Air volume resolution 0.1 (0 ~ 9999.9), 1 (10000 ~ 99999)

LCD Size (H x W) 1.38 x 2.13 inches 35 x 54 mm

Operating temperature range 32 ~ 122°F 0 ~ 50°C

Operating RH% Less than 80% (handset)

Storage temperature range -4 ~ 122°F -20 ~ 50°C

Storage RH% Less than 90%

Dimension 7.1 x 2.9 x .5 inches 180 x 73 x 18 mm

Weight .37 lbs 170g

Battery 9V battery (1)
