OWNER’S MANUAL

Outdoor Electric Patio Heater

Model No. EWTR800SP

WARNING

FOR YOUR SAFETY:

For Outdoor Use Only

WARNING

FOR YOUR SAFETY:

1.Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage.

2.Read the installation, operation, and maintenance instructions thoroughly before installing or servicing this equipment.

3.Failure to follow these instructions could result in fire or explosion, which could cause property damage, personal injury, or death.

Danger

Do NOT use electric heater for cooking. NOT to be used in or on boats or recreational vehicles.

Table of Contents



Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Page 2

Exploded View & Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . 3

Assembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . 4

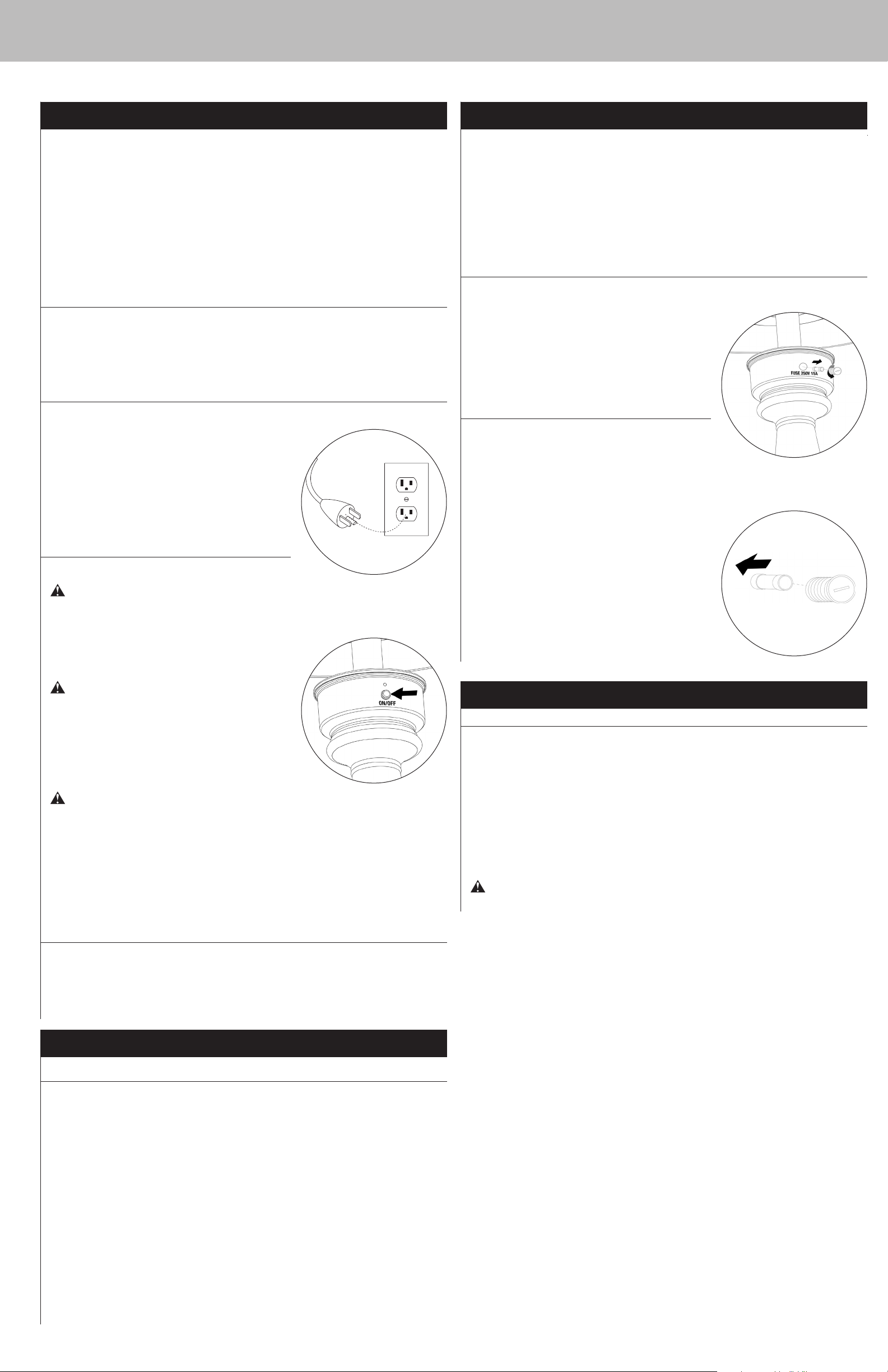

Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 5

Before Turning “ON” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 5

Turning “ON”. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 5

While Heater is “ON” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 5

Turning “OFF” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 5

Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 5

Cleaning Surfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 5

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 5

Replacing the Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 5

Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 5

Between Uses and During Periods of Extended Inactivity or When Transporting . 5

Product Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 6

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 6

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 6

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 6

Save these instructions for future reference. If you are assembling this unit for

someone else, give this manual to him or her to read and save for future reference.

Made from 70% Bagasse

(Environmentally Friendly Sugar

Cane Pulp By-product)

Manufactured in China for:

Blue Rhino Global Sourcing, Inc. Winston-Salem, NC USA 1.800.762.1142, www.bluerhino.com

© 2008 Blue Rhino Global Sourcing, Inc. All Rights Reserved



Endless Summer® is a Registered Trademark of Blue Rhino Global Sourcing, Inc.. All Rights Reserved.

EWTR800SP-OM-101 E

®

Outdoor Electric Patio Heater Model No. EWTR800SP

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always

8. To disconnect heater, turn controls to off, then remove plug from outlet.

be followed including the following:

9. Connect to properly grounded outlets only.

1.

Read all instructions before using this heater.

10.

Do not insert or allow foreign objects to enter any ventilation or

2.

This heater is hot when in use. To avoid burns, do not let bare skin



exhaust opening as this may cause an electric shock or fire, or



touch hot surfaces. If provided, use handles when moving this heater.



damage the heater.



Keep combustible materials, such as furniture, pillows, bedding, papers,

11.

To prevent a possible fire, do not block air intakes or exhaust in any



clothes, and curtains at least a 3 feet (0.9 m) from the front of the



manner. Do not use on soft surfaces, like a bed, where openings may



heater and keep them away from the sides and rear.



become blocked.

3.

Extreme caution is necessary when any heater is used by or near

12.

A heater has hot and arcing or sparking parts inside. Do not use it in



children or invalids and whenever the heater is left operating and



areas where gasoline, paint, or flammable liquids are used or stored.



unattended.

13.

Use this heater only as described in this manual. Any other use not

4.

Always unplug heater when not in use.



recommended by the manufacturer may cause fire, electric shock, or

5.

Do not operate any heater with a damaged cord or plug or after the



injury to persons.



heater malfunctions, has been dropped or damaged in any manner.

14.

Avoid the use of an extension cord because the extension cord may



Return heater to authorized service facility for examination, electrical or



overheat and cause a risk of fire. However, if you have to use an



mechanical adjustment, or repair.



extension cord, the cord shall be No. 16 AWG minimum size and rated

6.

This heater is not intended for use in bathrooms, laundry areas and



not less than 1500 watts.



similar indoor locations. Never locate heater where it may fall into a

15. SAVE THESE INSTRUCTIONS.



bathtub or other water container.







7.

Do not run cord under carpeting. Do not cover cord with throw rugs,







runners, or similar coverings. Arrange cord away from traffic area and







where it will not be tripped over.





Safety First

DANGERS and Cautions

This heater is for outdoor use only. This heater is NOT for commercial use. This is for use with electricity.

Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.

If a longer detachable power-supply cord or extension cord is used,

a.The cord shall be no. 16 AWG minimum size and rated not less than 1,500 watts.

b.The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance, and

c.The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

ELECTRIC SHOCK CAN KILL OR RESULT IN SERIOUS INJURY. TO PREVENT ELECTRICAL SHOCK:

a.Use only with GFI (Ground Fault Interrupter) protected circuit.

b.Do not use heater when raining.

c.To prevent heater from being splashed or falling into water, do not use heater within 10 feet of pool, pond, or other body of water.

d.Keep heater and cord dry and out of rain at all times.

e.Do not operate heater that has a damaged cord, plug, or metal probe. Call our customer service.

f.Never remove grounding plug, or use with an adapter to two prongs.

g.Keep electric plugs off ground, and dry.

The use of alcohol, or prescription or non-prescription drugs may impair the consumer’s ability to properly assemble or safely operate the appliance.

Do not store or use gasoline or other flammable liquids or vapors within 25 feet (7.62 m) of this appliance.

Do not use in an explosive atmosphere. Keep heater area clear and free from combustible materials, gasoline and other flammable vapors and liquids.

DO NOT use this heater near any unprotected combustible constructions.

Do not alter this heater in any manner.

Do not use the heater unless it is COMPLETELY assembled and all parts are securely fastened and tightened.

This heater should be thoroughly inspected on a regular basis.

Use only Blue Rhino Global Sourcing, Inc. factory authorized parts. The use of any part that is not factory authorized can be dangerous. This will also void your warranty.

Do not use this appliance without reading “Operating Instructions” in this manual.

Do not touch metal parts of heater until it has completely cooled (about 45 min.) to avoid burns, unless you are wearing protective gear (pot holders, gloves, BBQ mittens, etc.).

Do not touch hot surfaces.

Do not use in or on boats or recreational vehicles.

Do not leave a lit heater unattended, especially keep children and pets away from heater at all times.

Do not attempt to move heater when in use. Allow the heater to cool before moving or storing.

Always use your heater on a hard, non-combustable level surface. High temperature, keep electrical cords, drapery, and other furnishings at least 3 feet (0.9 m) from the front of the heater and away from the side and rear.

After a period of storage and/or nonuse, inspect for any abrasion, wear, cuts to the electrical cord.

The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

Store products indoors when not in use – out of the reach of children. Servicing should be done only while the heater is disconnected from the power supply.

To ensure continued protection against electrical shock, connect only to properly grounded outlets. Use with GFI protected electric outlet only. Do not immerse in water. Disconnect electric cord from outlet before cleaning, servicing and/or removing heating element.

Do not partially or fully cover or obstruct this heater.

Please use protective gloves when assembling this product.

Do not force parts together as this can result in personal injury or damage to the product.

Use this heater only as descibed in this manual. Any other use not recommended by the manufacturer may cause fire, electrical shock, or injury to persons.

To reduce risk of shock, keep cord connection dry.

Product must be fully assembled before operating the heater. Do not clean this product with a water spray or the like.

Deaths, serious injury or damage to property may occur if the above is not followed exactly.

Uniflame Ewtr800sp Owner's Manual

Contact 1.800.762.1142 for assistance. Do not return to place of purchase.



Parts List



Exploded View

1





1

Finial*

56-01-527















2

Dome*

56-01-528

















3

Dome Brace*

56-01-529

















4

Insulator*

56-01-496



2











5

Upper Pole*

56-01-530



















6

Heat Reflector*

56-01-498

















7

Heating Element Clip (4)*

56-01-499

















8

Heating Element*

56-01-500



3











9

Wire Guard*

56-01-501



4











10

Bottom Guard Plate*

56-01-502



















11

Post*

56-01-531

6

5









12

Fuse Cap*

56-01-504













7



13

Fuse (250V, 15A)*

56-01-505

7











14

Lower Body Assembly*

56-01-532



8











15

Power Cord*























16

Inner Support Post

56-01-509



9



* Pre-assembled

















10









12

11



















13



14

15

16

page no.

3

Hardware

A

Nut

M10 Nickel Plated

B

Washer

ø10 Nickel Plated





Tools Required for Assembly (Included)

2 pcs

Wrench



1 pc
