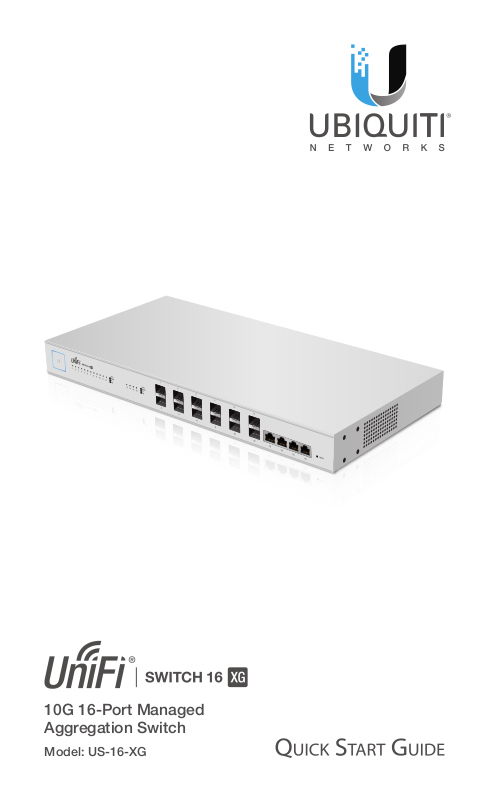

Ubiquiti US-16-XG User Manual
10G 16-Port Managed
Aggregation Switch
Model: US-16-XG
Introduction
Thank you for purchasing the Ubiquiti Networks® UniFi®
Switch. This Quick Start Guide is designed to guide you
through installation and also includes warranty terms.
Package Contents
UniFi Switch
Power Cord Rack-Mount Brackets
Mounting Screws
(Qty. 4)
TERMS OF USE: All Ethernet cabling runs must use CAT6A (or above). It is the customer’s
responsibility to follow local country regulations, including operation within legal frequency
channels, output power, indoor cabling requirements, and Dynamic Frequency Selection
(DFS) requirements.
(Qty. 2)
Cage Nuts
(Qty. 4)
Bracket Screws
(Qty. 8)
10G 16-Port Managed
Aggregation Switch
Model: US-16-XG
Quick Start
Guide
System Requirements
• Linux, Mac OS X, or Microsoft Windows 7/8/10
• Java Runtime Environment 1.6 (1.8 or newer recommended)
• Web Browser: Google Chrome (Other browsers may have
limited functionality.)
• UniFi Controller software v5.3.x or newer, available at:
downloads.ubnt.com/unifi
Network Topology Requirements
UniFi Controller
• A DHCP-enabled network for the UniFi Switch to obtain an
IPaddress (connected devices will also obtain IP addresses
after deployment)
• A UniFi Cloud Key or management station running the UniFi
Controller v5.2.0 (or newer) software, located either on-site
and connected to the same Layer2 network, or off-site in the
cloud or NOC
UniFi Cloud Key
(UniFi Controller)
UniFi Switch (with SFP+)
UniFi Switch US-16-XG
UniFi Security Gateway Pro
(DHCP Server)
All UniFi devices support off-site management controllers.
For setup details, refer to the User Guide on the website:
documentation.ubnt.com/unifi
UniFi Switch (with SFP+)
LAN
WAN
Internet
UAP-AC-PRO
Remote Access to
Hardware Overview
Front Panel Ports and Port LEDs
SFP+ 1-12
Speed/Link/Act
RJ45 13-16
Speed/Link/Act
Port Description
SFP+ 1-12
RJ45 13-16
LED State Status
SFP+ 1-12
Speed/Link/Act
RJ45 13-16
Speed/Link/Act

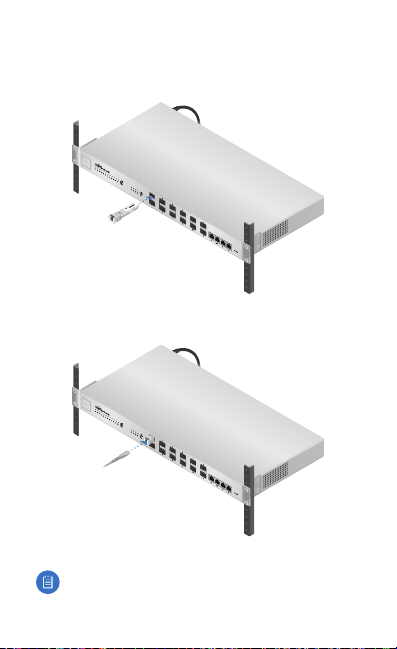

Hot-swappable SFP+ ports support 1 Gbps
and 10 Gbps connections.
RJ45 ports support 1 Gbps and 10 Gbps
Ethernet connections.
Off No Link
Green Solid: 1Gbps Link Established
Flashing: Activity
White Solid: 10Gbps Link Established
Flashing: Activity
Off No Link
Green Solid: 1Gbps Link Established
Flashing: Activity
White Solid: 10Gbps Link Established
Flashing: Activity
SFP+ 1-12 RJ45 13-16
Front Panel System LED and Button
System Reset
System LED
State Status
White Factory defaults, waiting for integration.
Flashing
White
Alternating
White/Blue
Blue
Flashing Blue
Reset Button
Button Description
Reset
Button
Initializing.
Device is busy; do not use or unplug it.
This usually indicates that a process such
as a firmware upgrade is taking place.
Successfully integrated into a network
and working properly.
This is used to locate a device.
When you click Locate in the UniFi
Controller software, the System LED
will flash blue. The software will also
display the location of the UniFi Switch
on the map.
This button serves two functions for the
UniFi Switch:
• Restart Press and release the Reset
button quickly.
• Restore to Factory Default
Settings Press and hold the Reset button
for more than five seconds.
Back Panel Console Port
Console
Port Description
RJ45 serial console port for Command
Line Interface (CLI) management. Use an
RJ45-to-DB9, serial console cable, also
known as a rollover cable, to connect
the Console port to your computer. Then
Console
configure the following settings as needed:
• Baud rate 115200
• Data bits 8
• Parity NONE
• Stop bits 1
• Flow control NONE
*640-00251-03*
640-00251-03
Back Panel Power
Power
DC Input
DC Input The 25VDC input can connect a redundant or
stand-alone DC power source (not included) with minimum
power: 56W, 25 to 16V, and 2.5 mm DC power inline connector.
Note: You can use the redundant DC power source as a
hot spare; if the internal AC/DC power supply no longer
provides power, the UniFiSwitch will switch to the DC
power source without interrupting its operation.

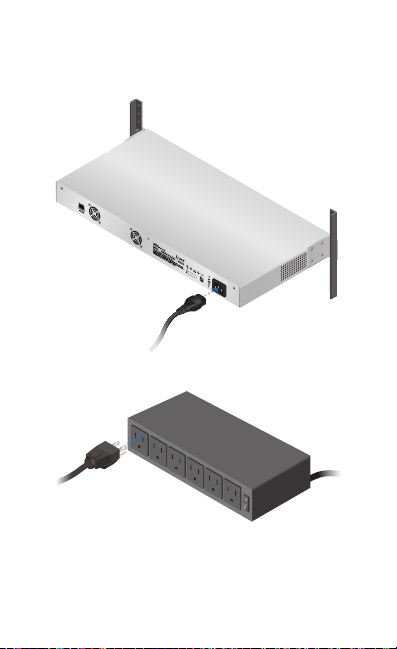

Power Connect the included Power Cord to the Power port.
Side Panel
Bracket Mounting
Holes
Ventilation
Holes
Hardware Installation
The UniFiSwitch can be placed on a horizontal surface,
mounted on a wall, or mounted in a rack.
WARNING: FAILURE TO PROVIDE PROPER VENTILATION
MAY CAUSE FIRE HAZARD. KEEP AT LEAST 20 MM OF
CLEARANCE NEXT TO THE VENTILATION HOLES FOR
ADEQUATE AIRFLOW.
WARNING: To reduce the risk of fire or electric shock, do
not expose the switch to rain or moisture.
Mounting in a Rack (Optional)
1. Attach the Rack-Mount Brackets to the UniFiSwitch using
the eight Bracket Screws.
2. Attach the UniFiSwitch to the rack or wall using the four
Mounting Screws. (If the rack has square slots, then use the
Cage Nuts with the Mounting Screws.)
