Ubiquiti UDIMAC User Manual
LED Dimmer Switch
Powered by AC
Model: UDIM-AC
Introduction
Thank you for purchasing the Ubiquiti Networks®
UniFi®Dimmer Switch. This Quick Start Guide is designed to
guide you through installation and includes warranty terms.
Package Contents
UniFi Dimmer Switch Mounting Screws
(Qty. 2)
System Requirements
• A network switch and wireless access point

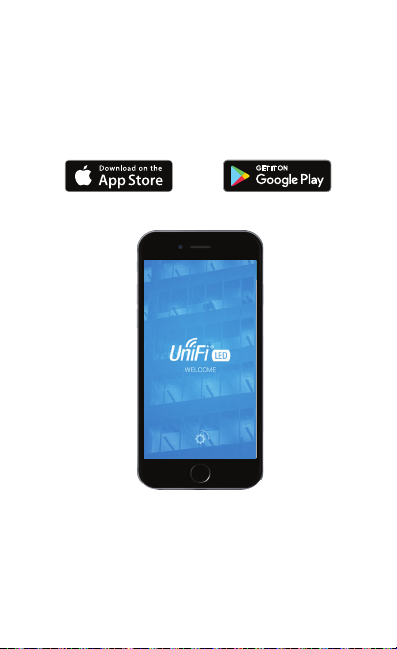

• UniFi LED mobile app software
• Mobile device: iOS 10 or Android 5.0

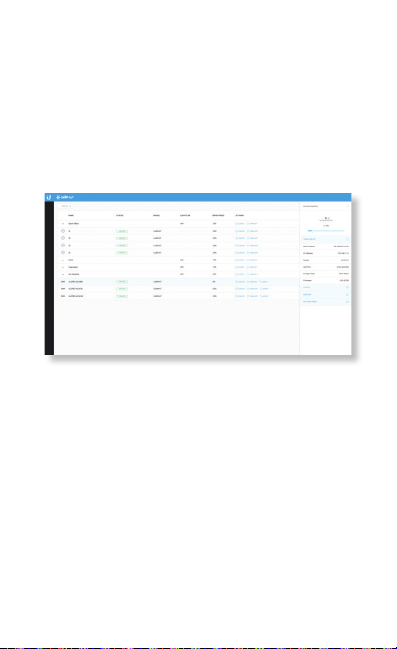

• UniFi LED Controller software:
• Computer: UniFi Application Server 0.5.0, Ubuntu 16.04
LTS (Xenial Xerus) 64-bit, or Debian 9 64-bit
• Web browser: Google Chrome (Other browsers may have
limited functionality.)
TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet
cable and earth grounding must be used as conditions of product warranty. TOUGHCable™ is
designed for outdoor installations. It is the professional installer’s responsibility to follow local
country regulations, including operation within legal frequency channels, output power, and
Dynamic Frequency Selection (DFS) requirements.
Installation Requirements
• Phillips screwdriver
• Wire stripper/cutter
• Needle-nose pliers (Optional)
IMPORTANT: The UDIM-AC is to be installed by
a qualified electrician in accordance with local
electrical codes and regulations.
IMPORTANT : Le UDIM-AC doit être installé par
un électricien qualifié conformément aux codes
électriques locaux et des règlements.
WARNING: TO AVOID FIRE, SHOCK OR DEATH, turn off
power at the circuit breaker or fuse before installing.
AVERTISSEMENT : POUR ÉVITER TOUT RISQUE
D'INCENDIE, D'ÉLECTROCUTION OU DE DÉCÈS;
coupez le courant au niveau du disjoncteur ou du
coupe-circuit ou fusible avant l'installation.
Network Topology Requirements
The UniFi Dimmer Switch is designed for use with the UniFi
LED Panel (models ULED-AT and ULED-AC), and is one of three
ways to control the UniFi LED Panel:
UniFi Dimmer Switch A user in the immediate vicinity
controls the UniFi LED Panel using the UniFi Dimmer Switch.
UniFi LED App over Layer 2 Network A local user runs the
app to connect to a UniFi AP on the same Layer 2 network as
the UniFi LED Panel.
UniFi LED Controller over Layer 2 Network Alocal user runs
the LED Controller software on the same Layer 2 network as
the UniFi LED Panel.
Network topology requirements are as follows:
• DHCP-enabled network (for the UniFi LED Panel and Dimmer
Switch to obtain an IP address)
• For UniFi Dimmer Switch only:
A UniFi Dimmer Switch connected to a UniFi AP on the same
Layer 2 network as the UniFi LED Panel
• For LED Controller software:
A UniFi Application Server running the UniFi LED Controller
software and connected to the same Layer 2 network as the
UniFi LED Panel
• For LED app only:
A UniFi AP connected to the same Layer2 network as the
UniFi LED Panel
UAP-AC-PRO
100-277VAC
ULED-AC
100-240VAC
UDIM-AC
UniFi LED
App
UniFi PoE Switch
USG-XG-8
(DHCP Server)
ULED-AT
UniFi LED
Controller
LAN
WAN
Internet
Sample Network Diagram
UniFi Application Server
Hardware Overview

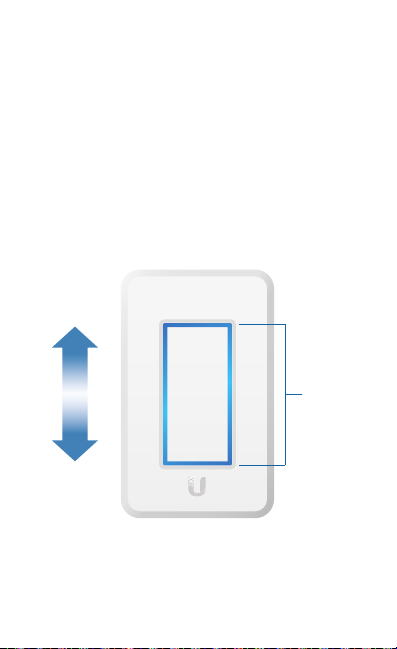

Front
LED
LED Color Status
Flashing White Initializing.
Breathing White System ready.
Alternating
White/Blue
Breathing Blue Adopted by the UniFi LED Controller.
Flashing Blue
Status
LED
Firmware upgrade is taking place.
This is used to locate a UniFi Dimmer
Switch.
When you click Locate in the UniFi LED
Controller or UniFi LED app, the UniFi
Dimmer Switch LED will flash.
Back
Port
Earth Ground
Neutral
Live
N L AC power connections: Earth ground (green/yellow),
N Neutral (white), and LLive (red).
Bottom
Button
Reset The Reset button serves two functions:
• Restart Press and release the Reset button quickly.
• Restore to Factory Default Settings Press and hold the
Reset button for more than five seconds.
Reset Button
Front Plate
Back Plate
Hardware Installation

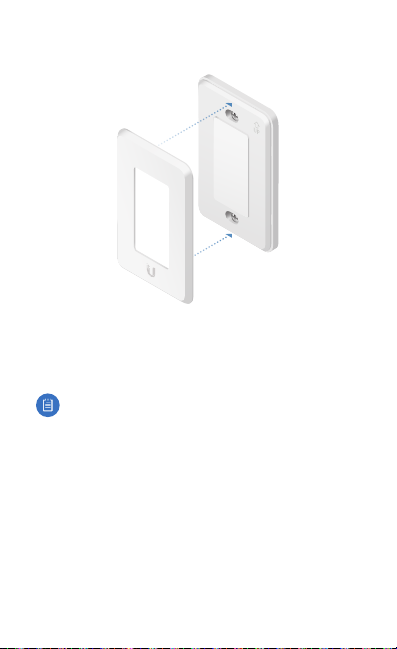

1. Detach the Front Plate of the UniFi Dimmer Switch from
the Back Plate.

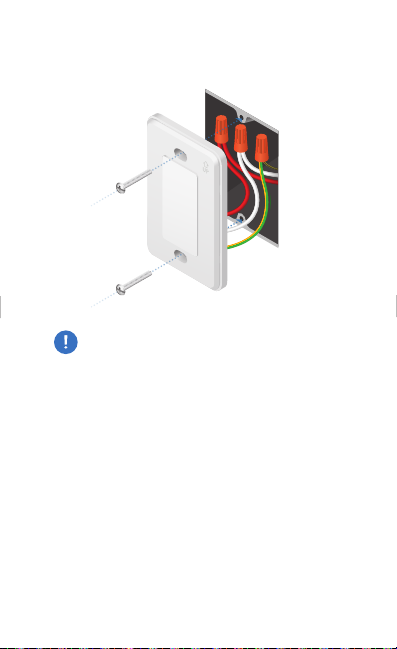

2. Connect the Earth Ground (green/yellow), Neutral (white),
andLive (red) wires to the power cables in the wall box.
