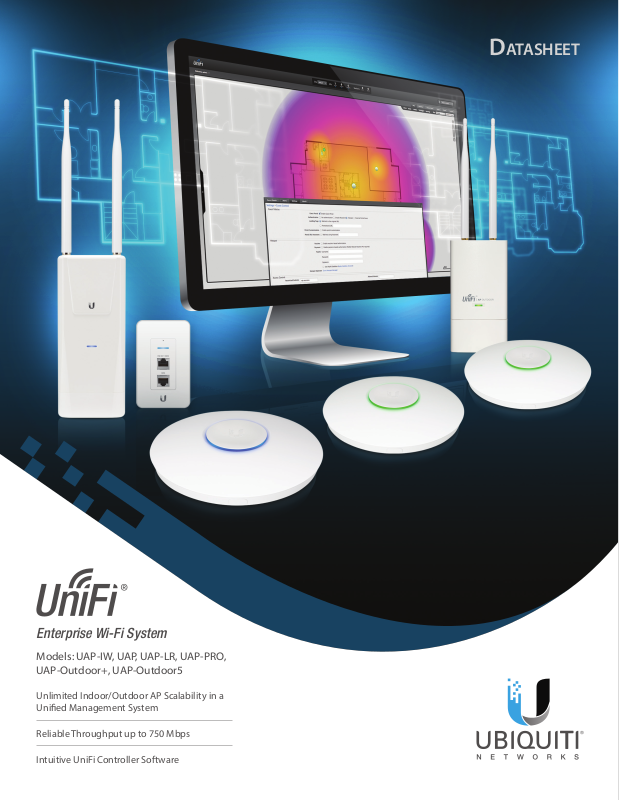

Ubiquiti Ubi-UAP Specsheet

Datasheet

Enterprise Wi-Fi System

Models: UAP-IW, UAP, UAP-LR, UAP-PRO,
UAP-Outdoor+, UAP-Outdoor5

Unlimited Indoor/Outdoor AP Scalability in a
Unied Management System

Reliable Throughput up to 750 Mbps

Intuitive UniFi Controller Software

Datasheet

Scalable and Unied Enterprise Wi-Fi
Management

The UniFi® Enterprise Wi-Fi System is a scalable enterprise
access point solution designed to be easily deployed and
managed. UniFi Access Point (AP) indoor models have a
sleek design and can be easily mounted to a ceiling tile
or wall using the included mounting hardware. UniFi AP
(UAP) outdoor models have a form factor built to last
outdoors.

The UniFi Enterprise Wi-Fi System includes the UniFi
Controller software. The software installs on any PC,
Mac, or Linux machine within the network and is easily
accessible through any standard web browser. Using the
UniFi Controller software, an Enterprise Wi-Fi network

can be quickly congured and administered without any

special training. Real-time status, automatic UAP device
detection, map loading, and advanced security options
are all seamlessly integrated.

Classroom Building

UAP-PRO

Features

Save money and save time Unlike traditional enterprise

Wi-Fi systems that utilize a hardware controller, UniFi
comes bundled with a non-dedicated software controller
that can be deployed on an on-premise PC, Mac, or
Linux machine; in a private cloud; or using a public

cloudservice.

Powerful Hardware The UniFi AccessPoints feature Wi-Fi

802.11n MIMO technology for superior performance in

the 2.4 and/or 5GHz bands, and ranges up to 600 ft.

Intuitive UniFi Controller Software Install, congure,

and manage all of your UniFi APs with the intuitive and
easy-to-learn UniFi Controller user interface.

Expandable Unlimited scalability. Build wireless
networks as big or small as needed. Start with one (or
upgrade to a three-pack) and expand to thousands while

maintaining a single unied management system.

Lecture Hall

UAP-PRO

Campus Cafe

UAP

Plaza

UAP-Outdoor+

Dormitory

UAP-LR

Example of UniFi deployment on a University Campus

2

UniFi Controller

Packed with Features

Use the UniFi Controller to provision thousands
of UniFi APs, map out networks, quickly manage

system trafc, and provision additional UniFi APs.

Breakthrough RF Map

Use the RF map to monitor and analyze
radio frequencies for optimal AP placement,

conguration, and troubleshooting.

Detailed Analytics

Use the congurable reporting and analytics to

manage large user populations and expedite
troubleshooting.

Wireless Uplink

Wireless Uplink functionality enables wireless
connectivity between APs for extended range. One
wired UniFi AP uplink supports up to four wireless
downlinks on a single operating band, allowing
wireless adoption of devices in their default state
and real-time changes to network topology.

Guest Portal/Hotspot Support

Easy customization and options for Guest Portals
include authentication, Hotspot setup, and the

ability to use your own external portal server. Use

UniFi’s rate limiting for your Guest Portal/Hotspot

package offerings. Apply different bandwidth rates
(download/upload), limit total data usage, and
limit duration of use.

Datasheet

Dashboard

UniFi provides a visual representation of your network’s status
and delivers basic information about each network segment.

All UniFi APs include Hotspot functionality:

• Built-in support for billing integration using

major credit cards.

• Built-in support for voucher-based

authentication.

• Built-in Hotspot Manager for voucher creation,

guest management, and payment refund.

• Full customization and branding of Hotspot

portal pages.

Multi-Site Management

A single UniFi Controller running in the cloud
can manage multiple sites: multiple, distributed
deployments and multi-tenancy for managed
service providers. Each site is logically separated

and has its own conguration, maps, statistics,

guest portal, and administrator read/write and
read-only accounts.

WLAN Groups

The UniFi Controller can manage exible
congurations of large deployments. Create multiple
WLAN groups and assign them to an AP’sradio.

RF Map

Monitor UniFi APs and analyze the surrounding RF environment.

Statistics

UniFi organizes and visualizes network trafc in clear and

easy-to-read graphs.

3

Datasheet

Extend Your Coverage

With the UniFi Controller software running in a NOC or in the cloud, administrators can extend and centrally manage wide
areas of indoor and outdoor coverage using any combination of UniFi APs.

Below are some examples of how UniFi APs can be deployed.

Corporate Buildings

University/Industrial Campus

CURRENT SITE

Default

DASHBOARD

Network Health

MAP

DEVICES

CLIENTS

CALLS

STATISTICS

INSIGHTS

REFRESH RATE

2 minutes

Internet Cafe

Dorm or Residence

5 or more
UAP-IW

UAP-IW

SETTINGS

3 or more
UAP/UAP-LR/UAP-PRO

UAP/UAP-LR/UAP-PRO

Hotel

UAP-Outdoor+/
UAP-Outdoor5

4

2.4 GHz Spectrum

2.4 GHz Spectrum with Multi-Lane RF

2.4 GHz Spectrum with Multi-Lane RF

Increase Capacity and Throughput

Innovative Multi-Lane RF Technology

Wireless client devices in high-density areas experience

signicant interference and noise stemming from

multiple APs using the same operating band.

With the launch of the UniFi AP-Outdoor+, Ubiquiti
Networks introduces our patented Multi-Lane™ RF
technology, which optimizes the operating channel
and rejects interference using specialized circuitry, the

High-Selectivity Receiver(HSR).

Our innovative Multi-Lane RF technology isolates signals
on the operating channel and removes adjacent channel
interference. Wireless capacity and throughput are
increased in high-density areas, and multiple APs can

operate in closeproximity.

Generic Filter versus Proprietary Filter of UniFi AP-Outdoor+

-20

dBm

Typical AP Performance

Although theoretically channels 1, 6, and 11 of the 2.4GHz

operating band shouldn’t overlap, in practice there is
cross-channel interference that affects performance,
especially in noisy, high-density environments. For

example, with a typical AP operating on channel 6, it also

hears RF from channels 1 and 11, because the typical AP

has a generic lter that only lters out any non-2.4 GHz
interference–all 2.4 GHz frequencies are still allowed in.

Superior UniFi AP-Outdoor+ Performance

When the UniFi AP-Outdoor+ operates on channel 6,
its HSR lter specically eliminates all non-channel6

frequencies, creating a clean spectrum with minimal
noise. So with Multi-Lane RF technology, you truly have

three high-speed, multi-lane channels (1, 6, and 11)

available for superior capacity and throughput.

-20

dBm

Datasheet

-100

Channels

1 2 3 4 5 6 7 8 9 10 11 12 13

2412 2472

MHz

Co-Located UniFi AP-Outdoor+ Access Points

Channel 6

B

Channel 1

A C

Channel 11

-100

Channels

Other Transmissions and NoiseOperating Channel Interference

Channels

1 2 3 4 5 6 7 8 9 10 11 12 13

2412 2472

-20

dBm

UAP-Outdoor+

A

-100

1 2 3 4 5 6 7 8 9 10 11 12 13

2412 2472

MHz

UAP-Outdoor+

B

MHz

UAP-Outdoor+

C

5

Indoor Models

Features

Easy Mounting Sleek wall or ceiling mount design

(allaccessories included).

UniFi indoor models are available in single-packs and
multi-packs.

Datasheet

Design Aesthetic industrial design with a unique LED
provisioning ring or square, which provides administrator
location tracking and alerts for each device.

Power over Ethernet (PoE) Includes Power over Ethernet
(PoE) functionality, which allows both power and data to
be carried over a single Ethernet cable to the device.

The UAP, UAP-LR, and UAP-PRO can be powered using
the included PoE injector or powered by a UniFi Switch

or TOUGHSwitch™ PoE PRO (both sold separately). The

UAP-PRO can be powered by an 802.3af compliant switch.

The UAP-IW can be powered by a UniFi Switch. The
UAP-IW cannot be powered by a passive PoE source such

as a PoE injector or the TOUGHSwitch.

Indoor Model Comparison

UAP-IW UAP UAP-LR UAP-PRO

Except for the UAP-IW, all UniFi APs include:

• Wall and Ceiling Mount Kit

• Power over Ethernet Adapter

2.4 GHz Speed

5 GHz Speed

Range

Gigabit Ethernet

Secondary Ethernet Port

Wi-Fi Standards 802.11 b/g/n 802.11 b/g/n 802.11 b/g/n 802.11 a/b/g/n

2.4 GHz

5 GHz

Simultaneous

Dual-Band

Ubiquiti Passive PoE

802.3af PoE

Security Lock

1

1

1

150 Mbps 300 Mbps 300 Mbps 450 Mbps

25 m (82 ft) 122 m (400 ft) 183 m (600 ft) 122 m (400 ft)

✓ ✓

✓ ✓ ✓ ✓

✓ ✓ ✓

✓2

✓ ✓ ✓ ✓

1 Speed and Range values may vary and are based on optimal environments.

2 UniFi Switch Support Only

300 Mbps

✓

✓

✓

✓

6

UniFi AP In-Wall (UAP-IW)

The UAP-IW is ideal for retrotting an existing in-wall wired

Ethernet jack to a wireless access point. It also provides
one RJ45 data port and one PoE port to connect devices
like a VoIP phone. The UAP-IW is capable of speeds of up to

150Mbps with a range of up to 25 m (82ft).

UniFi AP (UAP)

This is our standard model 802.11n MIMO UniFi AP. It is
capable of speeds of up to 300 Mbps with a range of up to
122 m (400 ft).

Datasheet

UniFi AP-Long Range (UAP-LR)

The UAP-LR has a longer range than the base model UAP

with a range of up to 183 m (600 ft). It also offers 802.11n
MIMO, with speeds of up to 300Mbps.

UniFi AP-PRO (UAP-PRO)

The UAP-PRO supports speeds of up to 300 Mbps

in the 5GHz radio band and up to 450 Mbps in the

2.4GHz radio band. The UAP-PRO offers simultaneous

dual-band operation with 2x2 and 3x3 MIMO technology.

It has a range of up to 122 m (400 ft) and twoGigabit
Ethernetports.

7

Outdoor Models

Datasheet

All the same features packed in the indoor UniFi models,
but in a form factor built to last outdoors.

Features

Easy Mounting Sleek wall or pole mount design (all

accessories included).

Designed for the Great Outdoors The weather-resistant

case is designed specically for outdoor installations.

Dual, omni-directional antennas on the UAP-Outdoor+

and UAP-Outdoor5 provide 360° wireless coverage.

2G or 5G Models Choose the frequency best suited to

your environment – 2.4 GHz (UAP-Outdoor+) or 5 GHz

(UAP-Outdoor5).

Outdoor Model Comparison Chart

Power over Ethernet (PoE) Includes Power

over Ethernet (PoE) functionality. Each
UniFi model includes a Power over Ethernet
adapter, and it can also be powered

by a UniFi Switch or TOUGHSwitch PoE
(soldseparately).

The UniFi AP-Outdoor+ is compatible with
an 802.3af compliant switch.

Installation Options External antennas
are included. You can also connect the
UAP-Outdoor+ or UAP-Outdoor5 to a

dual-polarity antenna – an airMAX® Sector
or Omni Antenna – to increase gain.

2.4 GHz Speed

5 GHz Speed

Range

Multi-Lane RF

Secondary Ethernet Port

Gigabit Ethernet

Wi-Fi Standards 802.11 b/g/n 802.11 a/n

2.4 GHz

5 GHz

Simultaneous Dual-Band

Ubiquiti PoE

802.3af PoE

External Antennas

UniFi AP-Outdoor+

(UAP-Outdoor+)

1

1

1

1 Speed and Range values may vary and are based on optimal environments.

300 Mbps

183 m (600 ft) 183 m (600 ft)

✓

✓ ✓

✓

✓ ✓

✓

✓ ✓

UniFi AP-Outdoor 5G

(UAP-Outdoor5)

300 Mbps

✓

8

UniFi outdoor models are available in single-packs.

Included with the UAP-Outdoor+ or UAP-Outdoor5:

• External Antennas

• Wall and Pole Mount Kit

• Power over Ethernet Adapter

Datasheet

UniFi AP-Outdoor+ (UAP-Outdoor+)

Designed for noisy, high-density environments, the
UAP-Outdoor+ utilizes our innovative Multi-Lane RF
technology to provide superior capacity and throughput.
The UAP-Outdoor+ includes two external antennas and a
secondary Ethernet port for bridging. It supports 802.11n
MIMO, with speeds of up to 300 Mbps and a range of up

to 183 m (600 ft).

UniFi AP-Outdoor 5G (UAP-Outdoor5)

This outdoor model operates in the 5 GHz frequency

spectrum. The UAP-Outdoor5 includes two external omni
antennas and a secondary Ethernet port for bridging. It
supports 802.11n MIMO, with speeds of up to 300 Mbps

and a range of up to 183m(600ft).

9

Datasheet

Specications (UAP-IW)

UniFi AP In-Wall

Dimensions 114.6 x 70.6 x 28.5 mm (4.51 x 2.78 x 1.12 in)

Weight 117 g (4.127 oz)

Networking Interface (3) 10/100 Ethernet Ports

Buttons Reset

Operating Band 2.4 GHz

Antenna Gain 1 dBi

Wi-Fi Standards 802.11 b/g/n

Power Method UniFi Switch

PoE Out 48V Pass-Through (Pins 1, 2+; 3, 6-)

Maximum Power Consumption 6W

Maximum TX Power 17 dBm

BSSID Up to Four Per Radio

Power Save Supported

Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

Certications CE, FCC, IC

Mounting 1-Gang Electrical Wall Box (Not Included)

Operating Temperature -10 to 70° C (14 to 158° F)

Operating Humidity 5 to 95% Noncondensing

Advanced Trafc Management

VLAN 802.1Q

Advanced QoS Per-User Rate Limiting

Guest Trafc Isolation Supported

WMM Voice, Video, Best Effort, and Background

Concurrent Clients 100+

Supported Data Rates (Mbps)

Standard Data Rates

802.11n 6.5 Mbps to 150 Mbps (MCS0 - MCS7, HT 20/40)

802.11b 1, 2, 5.5, 11 Mbps

802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

80ft

UAP-IW

10

Specications (UAP)

UniFi AP

Dimensions 200 x 200 x 36.5 mm (7.87 x 7.87 x 1.44 in)

Weight 290 g (10.23 oz) without Mounting Kits

430 g (15.17 oz) with Mounting Kits

Networking Interface (1) 10/100 Ethernet Port

Buttons Reset

Operating Band 2.4 GHz

Antennas Integrated 3 dBi Omni (Supports 2x2 MIMO with Spatial Diversity)

Wi-Fi Standards 802.11 b/g/n

Power Method Passive Power over Ethernet (12-24V)

Power Supply 24V, 0.5A PoE Adapter Included

Maximum Power Consumption 4W

Maximum TX Power 20 dBm

BSSID Up to Four Per Radio

Power Save Supported

Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

Certications CE, FCC, IC

Mounting Wall/Ceiling (Kits Included)

Operating Temperature -10 to 70° C (14 to 158° F)

Operating Humidity 5 - 80% Noncondensing

Datasheet

Advanced Trafc Management

VLAN 802.1Q

Advanced QoS Per-User Rate Limiting

Guest Trafc Isolation Supported

WMM Voice, Video, Best Effort, and Background

Concurrent Clients 100+

Supported Data Rates (Mbps)

Standard Data Rates

802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11b 1, 2, 5.5, 11 Mbps

802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

200 ft 400 ft

UAP

11

Datasheet

Specications (UAP-LR)

UniFi AP Long-Range

Dimensions 200 x 200 x 36.5 mm (7.87 x 7.87 x 1.44 in)

Weight 290 g (10.23 oz) without Mounting Kits

430 g (15.17 oz) with Mounting Kits

Networking Interface (1) 10/100 Ethernet Port

Buttons Reset

Operating Band 2.4 GHz

Antennas Integrated 3 dBi Omni (Supports 2x2 MIMO with Spatial Diversity)

Wi-Fi Standards 802.11 b/g/n

Power Method Passive Power over Ethernet (12-24V)

Power Supply 24V, 0.5A PoE Adapter Included

Maximum Power Consumption 6W

Maximum TX Power 27 dBm

BSSID Up to Four Per Radio

Power Save Supported

Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

Certications CE, FCC, IC

Mounting Wall/Ceiling (Kits Included)

Operating Temperature -10 to 70° C (14 to 158° F)

Operating Humidity 5 - 80% Noncondensing

Advanced Trafc Management

VLAN 802.1Q

Advanced QoS Per-User Rate Limiting

Guest Trafc Isolation Supported

WMM Voice, Video, Best Effort, and Background

Concurrent Clients 100+

Supported Data Rates (Mbps)

Standard Data Rates

802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11b 1, 2, 5.5, 11 Mbps

802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

200 ft 400 ft 600 ft

12

UAP-LR

Specications (UAP-PRO)

UniFi AP PRO

Dimensions 200 x 200 x 36.5 mm (7.87 x 7.87 x 1.44 in)

Weight 298 g (10.51 oz) without Mounting Kits

358 g (12.63 oz) with Mounting Kits

Networking Interface (2) 10/100/1000 Ethernet Ports

Buttons Reset

Operating Bands Simultaneous Dual Band 2.4 GHz and 5 GHz

Antennas

2.4 GHz
5 GHz

Wi-Fi Standards 802.11 a/b/g/n

Power Method Passive Power over Ethernet (48V), 802.3af Supported

Power Supply 48V, 0.5A PoE Gigabit Adapter (Included)

Maximum Power Consumption 12W

Maximum TX Power

2.4 GHz
5 GHz

BSSID Up to Four Per Radio

Power Save Supported

Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

Certications CE, FCC, IC

Mounting Wall/Ceiling (Kits Included)

Operating Temperature -10 to 70° C (14 to 158° F)

Operating Humidity 5 - 80% Noncondensing

Integrated 5 dBi Omni (Supports 3x3 MIMO with Spatial Diversity)
Integrated 4 dBi Omni (Supports 2x2 MIMO with Spatial Diversity)

30 dBm
22 dBm

Datasheet

Advanced Trafc Management

VLAN 802.1Q

Advanced QoS Per-User Rate Limiting

Guest trafc isolation Supported

WMM Voice, Video, Best Effort, and Background

Concurrent Clients 200+

Supported Data Rates (Mbps)

Standard Data Rates

802.11n 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)

802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b 1, 2, 5.5, 11 Mbps

802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

200 ft 400 ft

UAP-Pro

13

Datasheet

Specications (UAP-Outdoor+)

UniFi AP Outdoor+

Dimensions 205 x 83 x 37 mm (8.07 x 3.27 x 1.46 in)

Weight 250 g (8.82 oz) without Antennas

294 g (10.37 oz) with Antennas

Networking Interface (2) 10/100 Ethernet Ports

Buttons Reset

Operating Band 2.4 GHz

Antennas (2) External 5 dBi Omni Antennas Included

191 mm (Length), 13 mm (Diameter)

Wi-Fi Standards 802.11 b/g/n

Power Method Passive Power over Ethernet (48V), 802.3af Supported

Power Supply 48V, 0.5A PoE Adapter (Included)

Maximum Power Consumption 8W

Maximum TX Power 28 dBm

BSSID Up to Four Per Radio

Power Save Supported

Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

Certications CE, FCC, IC

Mounting Wall/Ceiling (Kits Included)

Operating Temperature -30 to 65° C (-22 to 149° F)

Operating Humidity 5 - 95% Noncondensing

Advanced Trafc Management

VLAN 802.1Q

Advanced QoS Per-User Rate Limiting

Guest Trafc Isolation Supported

WMM Voice, Video, Best Effort, and Background

Concurrent Clients 100+

Supported Data Rates (Mbps)

Standard Data Rates

802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11b 1, 2, 5.5, 11 Mbps

802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

200 ft 400 ft 600 ft

14

UAP-Outdoor+

Specications (UAP-Outdoor5)

UniFi AP Outdoor 5

Dimensions 170 x 80 x 30 mm (6.69 x 3.15 x 1.18 in)

Weight 230 g (8.11 oz) without Antennas

274 g (9.67 oz) with Antennas

Networking Interface (2) 10/100 Ethernet Ports

Buttons Reset

Operating Band 5 GHz

Antennas (2) External 6 dBi Omni Antennas Included

191 mm (Length), 13 mm (Diameter)

Wi-Fi Standards 802.11a/n

Power Method Passive Power over Ethernet (12-24V)

Power Supply 24V, 1A PoE Adapter Included

Maximum Power Consumption 6.5W

Maximum TX Power 27 dBm

BSSID Up to Four Per Radio

Power Save Supported

Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

Certications CE, FCC, IC

Mounting Wall and Pole (Kits Included)

Operating Temperature -30 to 75° C (-22 to 167° F)

Operating Humidity 5 to 95% Noncondensing

Datasheet

Advanced Trafc Management

VLAN 802.1Q

Advanced QoS Per-User Rate Limiting

Guest Trafc Isolation Supported

WMM Voice, Video, Best Effort, and Background

Concurrent Clients 100+

Supported Data Rates (Mbps)

Standard Data Rates

802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps

200 ft 400 ft 600 ft

UAP-Outdoor5

15

www.ubnt.com

All specications in this document are subject to change without notice. Ubiquiti products are sold with a limited warranty described at:

www.ubnt.com/support/warranty

© 2011-2016 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, airMAX,
Multi-Lane, TOUGHSwitch, and UniFi are trademarks or registered trademarks of UbiquitiNetworks,Inc. in the United States and in other

countries. All other trademarks are the property of their respective owners.

RPAJ022216
