2700 PSI
Manual No. 315918 Revision B
BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC
MILWAUKEE, WISCONSIN, U.S.A.

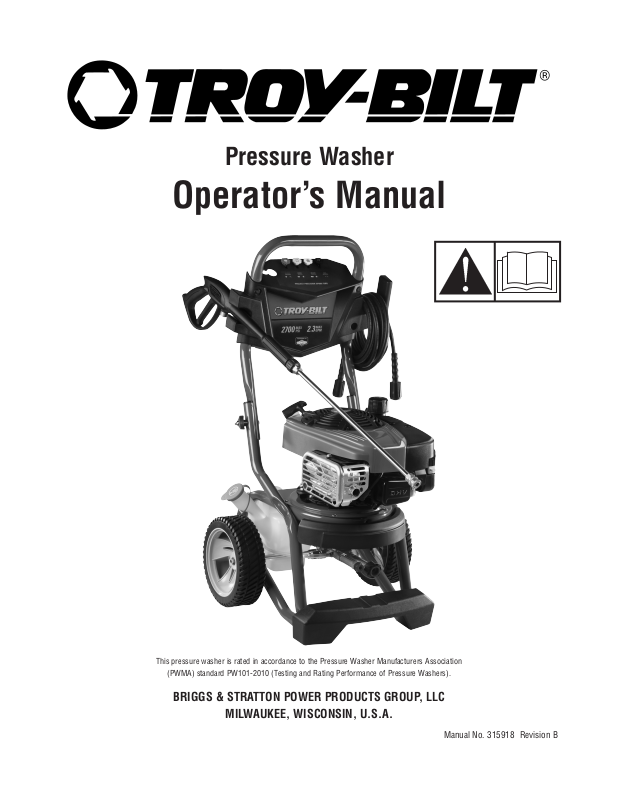

Pressure Washer
Operator’s Manual
This pressure washer is rated in accordance to the Pressure Washer Manufacturers Association
(PWMA) standard PW101-2010 (Testing and Rating Performance of Pressure Washers).
2 www.troybilt.com
Thank you for purchasing this quality-built Troy-Bilt pressure washer. We are pleased that you’ve placed your confidence in
the Troy-Bilt brand. When operated and maintained according to the instructions in this manual, your Troy-Bilt pressure
washer will provide many years of dependable service.
This manual contains safety information to make you aware of the hazards and risks associated with pressure washers and
how to avoid them. Because Troy-Bilt does not necessarily know all the applications this pressure washer could be used for, it
is important that you read and understand these instructions thoroughly before attempting to start or operate this equipment.
Save these original instructions for future reference.
This pressure washer requires final assembly before use. Refer to the Assembly section of this manual for instructions on
final assembly procedures. Follow the instructions completely.
Where to Find Us
You never have to look far to find Briggs & Stratton support and service for your pressure washer. Consult your Yellow Pages.
There are over 30,000 Briggs & Stratton authorized service dealers worldwide who provide quality service. You can also
contact Troy-Bilt Customer Service by phone at (888) 611-6708, or on the Internet at www.troybilt.com.
Pressure Washer
Model Number
Revision
Serial Number
Engine
Model Number
Type Number
Code Number
Date Purchased
Copyright © 2013. Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved.
TROY-BILT is a registered trademark of MTD.
Used under license.
3
Table of Contents
Operator Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Equipment Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Important Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Unpack Pressure Washer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Attach Handle and Accessory Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Add Engine Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Add Fuel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Lubricate O-Rings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Connect Hose and Water Supply to Pump. . . . . . . . . . . . . . . . . . . . . . . . . 10
Features and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Pressure Washer Location. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
How to Start Your Pressure Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
How to Stop Your Pressure Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
How to Use Accessory Tray. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
How to Use Spray Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Applying Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Pressure Washer Rinsing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Automatic Cool Down System (Thermal Relief). . . . . . . . . . . . . . . . . . . . . 15
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Maintenance Schedule. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Pressure Washer Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Engine Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
After Each Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Winter Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Long Term Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Warranties. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Emissions Control System Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Pressure Washer Owner Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Product Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Common Service Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Operator Safety
Equipment Description
Read this manual carefully and become familiar
with your pressure washer. Know its applications,
its limitations, and any hazards involved.
This pressure washer operates at a maximum of 2,700 PSI
(186.1 BARS) and a flow rate of up to 2.3 gallons per minute
(8.7 liters per minute). This high quality residential system
features 10” (25.4 cm) wheels, axial cam pump with
stainless steel pistons, automatic cool down system,
cleaning tank system, quick connect spray tips, heavy duty
25’ (7.6 m) hose, and more.
Every effort has been made to ensure that information in this
manual is accurate and current. However, we reserve the
right to change, alter, or otherwise improve the product and
this document at any time without prior notice.
The Emission Control System for this pressure washer is
warranted for standards set by the Environmental Protection
Agency and the California Air Resources Board.
Important Safety Information
Safety Symbols and Meanings
The safety alert symbol indicates a potential personal
injury hazard. A signal word (DANGER, WARNING, or
CAUTION) is used with the alert symbol to designate a
degree or level of hazard seriousness. A safety symbol may
be used to represent the type of hazard. The signal word
NOTICE is used to address practices not related to personal
injury.
DANGER indicates a hazard which, if not avoided, will
result in death or serious injury.
WARNING indicates a hazard which, if not avoided,
could result in death or serious injury.
CAUTION indicates a hazard which, if not avoided, could
result in minor or moderate injury.
NOTICE address practices not related to personal injury.
4 www.troybilt.com
Fire
Explosion
Toxic Fumes
Hot Surface
Moving Parts
Electrical Shock
Slippery Surface
Fall
Kickback
Flying Objects
Fluid Injection
Operator’s Manual
Chemical Burn
Projectile
WARNING POISONOUS GAS HAZARD. Engine
exhaust contains carbon monoxide, a poisonous
gas that could kill you in minutes. You CANNOT
smell it, see it, or taste it. Even if you do not
smell exhaust fumes, you could still be exposed to carbon
monoxide gas.
Some chemicals or detergents could be harmful if inhaled
or ingested, resulting in death, serious injury, nausea,
fainting or poisoning.
• Operate this product ONLY outside far away from windows,
doors and vents to reduce the risk of carbon monoxide gas
from accumulating and potentially being drawn towards
occupied spaces.
• Install battery-operated carbon monoxide alarms or plug-in
carbon monoxide alarms with battery back-up according to the
manufacturer’s instructions. Smoke alarms cannot detect
carbon monoxide gas.
• DO NOT run this product inside homes, garages, basements,
crawlspaces, sheds, or other partially-enclosed spaces even if
using fans or opening doors and windows for ventilation.
Carbon monoxide can quickly build up in these spaces and can
linger for hours, even after this product has shut off.
• ALWAYS place this product downwind and point the engine
exhaust away from occupied spaces.
If you start to feel sick, dizzy, or weak while using this product,
shut it off and get to fresh air RIGHT AWAY. See a doctor. You
may have carbon monoxide poisoning.
• Use a respirator or mask whenever there is a chance that
vapors may be inhaled when using chemicals.
• Read all instructions with mask so you are certain the mask will
provide the necessary protection against inhaling harmful
vapors when using chemicals.
5
WARNING The engine exhaust from this product
contains chemicals known to the State of California to
cause cancer, birth defects, or other reproductive harm.
WARNING This product contains lead and lead
compounds, known to the State of California to cause
birth defects or other reproductive harm. Wash your
hands after handling this product.
WARNING Fuel and its vapors are extremely flammable
and explosive which could cause burns,
fire or explosion resulting in death or
serious injury.
WHEN ADDING OR DRAINING FUEL
• Turn pressure washer engine OFF and let it cool at least 2
minutes before removing fuel cap. Loosen cap slowly to relieve
pressure in tank.
• Fill or drain fuel tank outdoors.
• DO NOT overfill tank. Allow space for fuel expansion.
• If fuel spills, wait until it evaporates before starting engine.
• Keep fuel away from sparks, open flames, pilot lights, heat, and
other ignition sources.
• Check fuel lines, tank, cap and fittings frequently for cracks or
leaks. Replace if necessary.
• DO NOT light a cigarette or smoke.
WHEN STARTING EQUIPMENT
• Ensure spark plug, muffler, fuel cap, and air cleaner are in place.
• DO NOT crank engine with spark plug removed.
WHEN OPERATING EQUIPMENT
• DO NOT operate this product inside any building, carport,
porch, mobile equipment, marine applications, or enclosure.
• DO NOT tip engine or equipment at angle which causes fuel to
spill.
• DO NOT spray flammable liquids.
WHEN TRANSPORTING, MOVING OR REPAIRING EQUIPMENT
• Transport/move/repair with fuel tank EMPTY or with fuel shutoff
valve OFF.
• DO NOT tip engine or equipment at angle which causes fuel to
spill.
• Disconnect spark plug wire.
WHEN STORING FUEL OR EQUIPMENT WITH FUEL IN TANK
• Store away from furnaces, stoves, water heaters, clothes
dryers, or other appliances that have pilot light or other ignition
source because they could ignite fuel vapors.
WARNING Risk of electrocution.
Contact with power source could cause electric
shock or burn resulting in death or serious injury.
• NEVER spray near power source.
WARNING Use of pressure washer could create
puddles and slippery surfaces causing
you to fall resulting in death or serious
injury.
Kickback from spray gun could cause you to fall resulting
in death or serious injury.
• Operate pressure washer from a stable surface.
• The cleaning area should have adequate slopes and drainage to
reduce the possibility of a fall due to slippery surfaces.
• Be extremely careful if you must use the pressure washer from
a ladder, scaffolding, or any other similar location.
• Firmly grasp spray gun with both hands when using high
pressure spray to avoid injury when spray gun kicks back.
WARNING Starter cord kickback (rapid retraction) will
pull hand and arm toward engine faster than you
can let go which could cause broken bones,
fractures, bruises, or sprains resulting in serious
injury.
• NEVER pull starter cord without first relieving spray gun
pressure.
• When starting engine, pull cord slowly until resistance is felt
and then pull rapidly to avoid kickback.
• After each starting attempt, where engine fails to run, always
point spray gun in safe direction, press red button and squeeze
spray gun trigger to release high pressure.
• Firmly grasp spray gun with both hands when using high
pressure spray to avoid injury when spray gun kicks back.
WARNING Chemical Burn Hazard.
Chemicals could cause burns resulting in death
or serious injury.
• DO NOT use caustic liquid with pressure washer.
• Use ONLY pressure washer safe detergents/soaps. Follow all
manufacturers instructions.
WARNING Exhaust heat/gases could ignite
combustibles, structures or damage fuel
tank causing a fire, resulting in death or
serious injury.
Contact with muffler area could cause burns resulting in
serious injury.
• DO NOT touch hot parts and AVOID hot exhaust gases.
• Allow equipment to cool before touching.
• Keep at least 5 feet (1.5 m) of clearance on all sides of pressure
washer including overhead.
• It is a violation of California Public Resource Code, Section
4442, to use or operate the engine on any forest-covered,
brush-covered, or grass-covered land unless the exhaust
system is equipped with a spark arrester, as defined in Section
4442, maintained in effective working order. Other states or
federal jurisdictions may have similar laws.
Contact the original equipment manufacturer, retailer, or dealer
to obtain a spark arrester designed for the exhaust system
installed on this engine.
• Replacement parts must be the same and installed in the same
position as the original parts.
NOTICE High pressure spray could damage fragile items
including glass.
• DO NOT point spray gun at glass when using red (0°) spray tip.
• NEVER aim spray gun at plants.
NOTICE Improper treatment of pressure washer could
damage it and shorten its life.
• If you have questions about intended use, ask dealer or contact
qualified service center.
• NEVER operate units with broken or missing parts, or without
protective housing or covers.
• DO NOT by-pass any safety device on this machine.
• DO NOT tamper with governed speed.
• DO NOT operate pressure washer above rated pressure.
• DO NOT modify pressure washer in any way.
• Before starting pressure washer in cold weather, check all parts of
the equipment to be sure ice has not formed there.
• NEVER move machine by pulling on hoses. Use handle provided
on unit.
• This equipment is designed to be used with Briggs & Stratton
Power Products authorized parts ONLY. If equipment is used with
parts that DO NOT comply with minimum specifications, user
assumes all risks and liabilities.
6 www.troybilt.com
WARNING The high pressure stream of water that
this equipment produces could cut through skin
and its underlying tissues, resulting in serious
injury and possible amputation.
Spray gun traps high water pressure, even when engine is
stopped and water is disconnected, which could result in
serious injury.
• If cut by fluid, call physician immediately. DO NOT treat as a
simple cut.
• DO NOT allow CHILDREN to operate pressure washer.
• NEVER repair high pressure hose. Replace it.
• NEVER repair leaking connections with sealant of any kind.
Replace o-ring or seal.
• NEVER connect high pressure hose to nozzle extension.
• Keep high pressure hose connected to pump and spray gun
while system is pressurized.
• ALWAYS point spray gun in safe direction, press red button
and squeeze spray gun trigger to release high pressure, every
time you stop engine.
• NEVER aim spray gun at people, animals, or plants.
• DO NOT secure spray gun in open position.
• DO NOT leave spray gun unattended while machine is running.
• NEVER use a spray gun which does not have a trigger lock or
trigger guard in place and in working order.
• Always be certain spray gun, nozzles and accessories are
correctly attached.
WARNING Unintentional sparking could cause fire or
electric shock resulting in death or
serious injury.
WHEN ADJUSTING OR MAKING REPAIRS TO YOUR PRESSURE
WASHER
• Disconnect the spark plug wire from the spark plug and place
the wire where it cannot contact spark plug.
WHEN TESTING FOR ENGINE SPARK
• Use approved spark plug tester.
• DO NOT check for spark with spark plug removed.
WARNING Starter and other rotating parts could
entangle hands, hair, clothing, or accessories
resulting in serious injury.
• NEVER operate pressure washer without protective housing or
covers.
• DO NOT wear loose clothing, jewelry or anything that could be
caught in the starter or other rotating parts.
• Tie up long hair and remove jewelry.
CAUTION
Excessively high operating speeds could
result in minor injury.
Excessively low speeds impose a heavy load.
• DO NOT tamper with governor spring, links or other parts to
increase engine speed. Pressure washer supplies correct rated
pressure and flow when running at governed speed.
• DO NOT modify pressure washer in any way.
WARNING Risk of eye or bodily injury.
Spray could splash back or propel
objects resulting in serious injury.
• Always wear indirect vented (chemical splash) safety goggles
marked to comply with ANSI Z87.1 when using or in vicinity of
this equipment.
• NEVER substitute safety glasses or dry-condition goggles for
indirect vented safety goggles.
• Always wear protective clothing such as a long-sleeved shirt,
long pants and close-toed shoes.
• NEVER operate pressure washer when barefoot or wearing
sandals or shorts.
Assembly
Read entire operator’s manual before you attempt
to assemble or operate your new pressure washer.
Your pressure washer requires some assembly and is ready
for use after it has been properly serviced with the
recommended oil and fuel.
If you have any problems with the assembly of your pressure
washer, please call the pressure washer helpline at
(888) 611-6708. If calling for assistance, please have the
model, revision, and serial number from the identification
label available.
Unpack Pressure Washer
1. Remove the parts bag, accessories, and inserts
included with pressure washer.
2. Open carton completely by cutting each corner from
top to bottom.
3. Ensure you have all included items prior to assembly.
Items in the carton include:
• Main Unit with Cleaning Tank
• Handle
• High Pressure Hose
• Spray Gun
• Nozzle Extension with Quick Connect Fitting
• Plastic Accessory Tray
• Oil Pouch
• Parts Bag (which includes the following):
• Operator’s Manual
• Owner’s Registration Card
• Bag containing 4 Multi–Colored Spray Tips
• Handle Fastening Hardware Kit (which includes):
• Handle Bolts (2)
• Plastic Knobs (2)
• Tree Clips (4)
To prepare your pressure washer for operation, you will
need to perform these tasks:
1. Fill out and send in registration card.
2. Attach handle and accessory tray to main unit.
3. Add oil to engine crankcase.
4. Add fuel to fuel tank.
5. Connect high pressure hose to spray gun and pump.
6. Connect water supply to pump.
7. Attach nozzle extension to spray gun.
8. Select/attach quick connect spray tip to nozzle
extension.
Attach Handle and Accessory Tray
1. Place handle (A) onto handle supports connected to
main unit. Make sure holes in handle align with holes
on handle supports.
2. Insert handle carriage bolts (B) through holes from
inside of unit and attach a plastic knob (C) from outside
of unit. Tighten by hand.
NOTICE By loosening both knobs to the middle section of
the attachment bolt, the upper handle can fold forward to
store flat atop the cold engine. DO NOT fold the handle down
while the engine is hot.
3. Place accessory tray (D) over holes (E) on handle
(viewing from front of unit). Push tree clips (F) into
holes until they sit flat against accessory tray.
4. Insert multi–colored spray tips and other supplied
accessories in spaces provided in accessory tray. See
How to Use Accessory Tray.
7
F
D
E
C
B
A
8 www.troybilt.com
Add Engine Oil
1. Place pressure washer on a flat, level surface.
2. Clean area around oil fill and remove yellow oil fill
cap/dipstick.
3. Hold neck of supplied oil pouch and remove cap.
4. Slowly pour contents of oil pouch into oil fill opening.
Checking oil level frequently, fill to FULL mark (top
hole) on dipstick.
NOTICE Pause to permit oil to settle. Wipe dipstick clean
each time oil level is checked. DO NOT overfill.
NOTICE Improper treatment of pressure washer could
damage it and shorten its life.
• DO NOT attempt to crank or start the engine before it has been
properly serviced with the recommended oil. This could result in
an engine failure.
5. Replace oil fill cap/dipstick and fully tighten.
Add Fuel
Fuel must meet these requirements:
• Clean, fresh, unleaded gasoline.
• A minimum of 87 octane/87 AKI (91 RON). For high
altitude use, see High Altitude.
• Gasoline with up to 10% ethanol (gasohol) is
acceptable.
NOTICE Use of unapproved fuels could damage generator
and voids warranty.
• DO NOT use unapproved gasoline such as E15 and E85.
• DO NOT mix oil in gasoline or modify engine to run on alternate
fuels.
To protect the fuel system from gum formation, mix in a fuel
stabilizer when adding fuel. See Storage. All fuel is not the
same. If you experience starting or performance problems after
using fuel, switch to a different fuel provider or change brands.
This engine is certified to operate on gasoline. The emission
control system for this engine is EM (Engine Modifications).
1. Clean area around fuel fill cap, remove cap.
2. Slowly add regular unleaded fuel (A) to fuel tank (B). Be
careful not to overfill. To allow for fuel expansion, do
not fill above the bottom of the fuel tank neck.
3. Install fuel cap and let any spilled fuel evaporate before
starting engine.
High Altitude
At altitudes over 5,000 feet (1524 meters), a minimum
85 octane / 85 AKI (89 RON) gasoline is acceptable. To
remain emissions compliant, high altitude adjustment is
required. Operation without this adjustment will cause
decreased performance, increased fuel consumption, and
increased emissions. See an Authorized Briggs & Stratton
dealer for high altitude adjustment information. Operation of
the engine at altitudes below 2,500 feet (762 meters) with
the high altitude kit is not recommended.
B
A
WARNING Fuel and its vapors are extremely flammable
and explosive which could cause burns,
fire or explosion resulting in death or
serious injury.
WHEN ADDING FUEL
• Turn pressure washer engine OFF and let it cool at least 2
minutes before removing fuel cap. Loosen cap slowly to relieve
pressure in tank.
• Fill fuel tank outdoors.
• DO NOT overfill tank. Allow space for fuel expansion.
• If fuel spills, wait until it evaporates before starting engine.
• Keep fuel away from sparks, open flames, pilot lights, heat, and
other ignition sources.
• Check fuel lines, tank, cap and fittings frequently for cracks or
leaks. Replace if necessary.
• DO NOT light a cigarette or smoke.
Full
Add
9

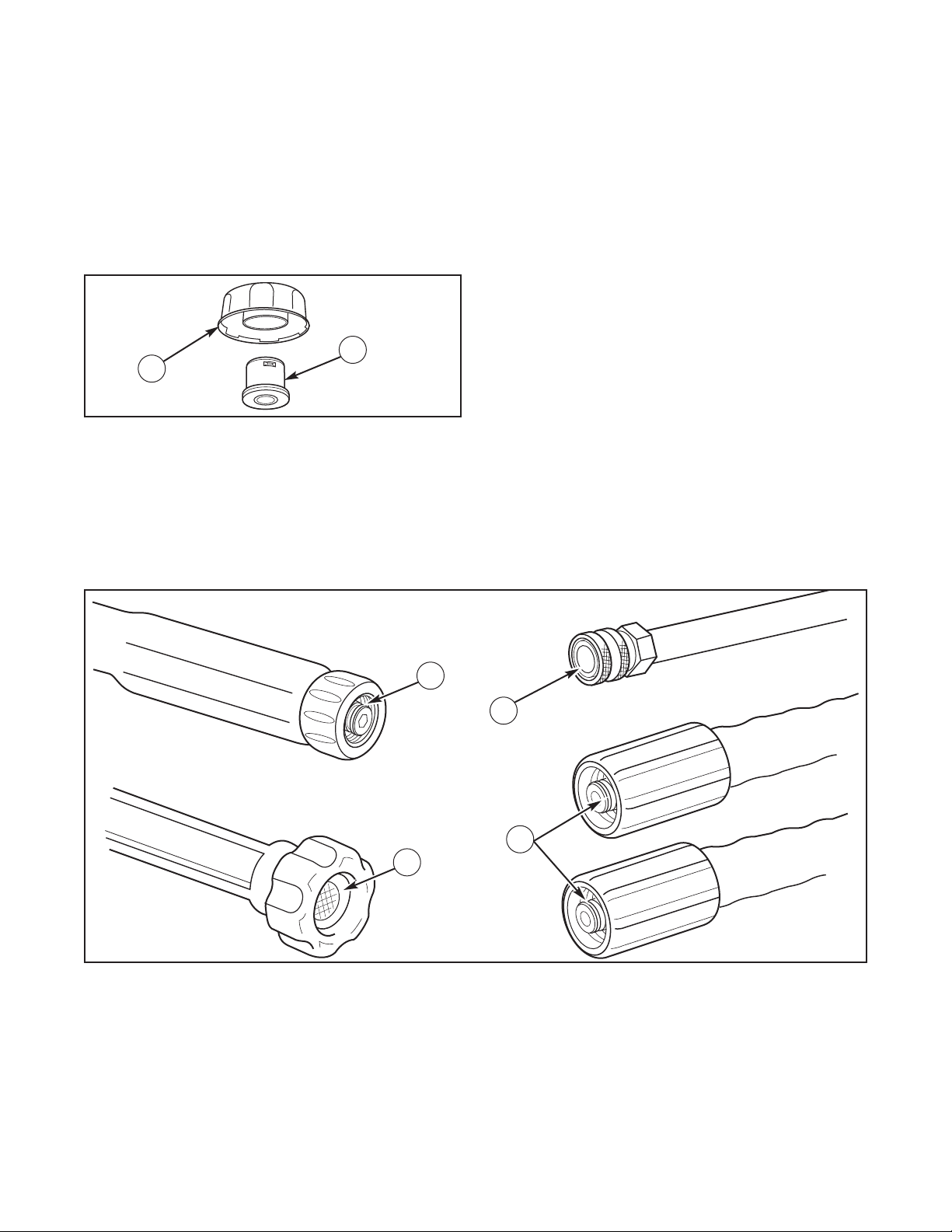

Fresh Start® Fuel Cap
The Fresh Start® fuel cap (A) is designed to hold a
cartridge (B) which contains fuel preserver. Adding fuel
preserver helps keep fuel fresh and carburetors clean for
easier starting all season long. The Fresh Start® fuel cap, if
equipped with a cartridge, automatically drips concentrated
fuel preserver into your fuel tank so you don’t have to add it
yourself.
NOTICE Fresh Start® fuel preserver cartridge is available as
an optional accessory. It is not included with the pressure
washer. Contact the original equipment manufacturer,
retailer, or dealer to obtain a cartridge designed for the Fresh
Start® fuel cap installed on this engine.
Read and follow all instructions and warnings given in the
Fresh Start® fuel preserver cartridge package.
Lubricate O-Rings
Lubrication of o-rings is extremely important for installation
and operation. The use of a lubricant (petroleum or synthetic
grease) during assembly helps seat o-rings properly and
provides an improved seal. It also helps protect the o-ring
from damage by abrasion, pinching or cutting and extends
the life of the o-ring.
NOTICE ALWAYS apply a small amount of lubricant on
o-rings prior to assembling the garden hose to the pump (C),
high pressure hose (D), spray gun (E), and nozzle
extension (F).
Lubricate all connections shown below, following these
instructions:
1. Inspect and clean connecting surfaces prior to
lubrication and assembly.
2. Use lubricants sparingly during assembly; a light film is
all that is required.
3. Use a small brush or cotton swab to apply grease
directly to o-rings where they are not accessible (QC
fitting, M22 fitting).
A
B
F
E
C
D
10 www.troybilt.com
Connect Hose and Water Supply to Pump
NOTICE DO NOT run the pump without the water supply
connected and turned on.
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
NOTICE Remove and discard the shipping caps from the
pump’s high pressure outlet and water inlet before attaching
hoses.
1. Uncoil high pressure hose and attach one end of hose
to base of spray gun. Tighten by hand.
2. Attach other end of high pressure hose to high
pressure outlet on pump. Tighten by hand.
3. Before connecting garden hose to water inlet, inspect
inlet screen (A). Clean screen if it contains debris or
have it replaced if damaged. DO NOT run pressure
washer if inlet screen is damaged.
4. Run water through your garden hose for 30 seconds to
clean out any debris.
NOTICE DO NOT siphon standing water for the water
supply. Use ONLY cold water (less than 100°F (38°C)).
NOTICE Using a One Way Valve (vacuum breaker or check
valve) at pump inlet could cause pump or inlet connector
damage.
• There MUST be at least ten feet of unrestricted garden hose
between the pressure washer inlet and any device, such as a
vacuum breaker or check valve.
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
5. Connect the garden hose (not to exceed 50 feet (15 m)
in length) to the water inlet. Tighten by hand.
6. Turn ON the water, press red button (B) on the gun and
squeeze the trigger to purge the pump system of air and
impurities.
Checklist Before Starting Engine
Review the unit’s assembly to ensure you have performed all
of the following.
1. Be sure to read Operator Safety and Operation before
using pressure washer.
2. Make sure handle is in place and secure.
3. Check that oil has been added to proper level in the
engine crankcase.
4. Add proper fuel to fuel tank.
5. Check for properly tightened hose connections.
6. Check to make sure there are no kinks, cuts, or damage
to high pressure hose.
7. Provide a proper water supply at an adequate flow.
B
A
WARNING The high pressure stream of water that
this equipment produces could cut through skin
and its underlying tissues, resulting in serious
injury and possible amputation.
• NEVER connect high pressure hose to nozzle extension.
• Keep high pressure hose connected to pump and spray gun
while system is pressurized.
• Always be certain spray gun, nozzles and accessories are
correctly attached.
WARNING Risk of eye injury.
Spray could splash back or propel objects
resulting in serious injury.
• Always wear indirect vented (chemical splash) safety goggles
marked to comply with ANSI Z87.1 when using or in vicinity of
this equipment.
• NEVER substitute safety glasses or dry-condition goggles for
indirect vented safety goggles.
11
Features and Controls
Read this Operator’s Manual and safety rules before operating your pressure washer.
Compare the illustrations with your pressure washer, to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.
A - Spray Gun — Controls the application of water onto
cleaning surface with trigger device. Includes trigger lock.
B - Recoil Starter — Used for starting the engine manually.
C - Oil Fill/Dipstick — Check and fill with oil here.
D - Nozzle Extension with Quick Connect — Allows you to
switch between four different spray tips.
E - Engine Identification — Provides model, type and code
of engine. Please have these readily available if calling for
assistance.
F - Cleaning Tank — Use to hold up to one half gallon
(1.9 l) of pressure washer detergent.
G - High Pressure Outlet — Connection for high pressure
hose.
H - Identification Label (under foot) — Provides model and
serial number of pressure washer. Please have these
readily available if calling for assistance.
J - Water Inlet — Connection for garden hose.
K - Pump — Develops high pressure.
L - Automatic Cool Down System — Cycles water through
pump when water reaches 125°-155°F (51°C-68°C).
Warm water will discharge from pump onto ground. This
system prevents internal pump damage.
M - Engine Rocker Switch — Push this switch to on
position (I or ON) before using recoil starter. Push
switch to off position (O or OFF) for shutting off engine.
N - Air Filter — Protects engine by filtering dust and debris
out of intake air.
P - Fuel Tank — Fill tank with regular unleaded fuel. Always
leave room for fuel expansion.
R - High Pressure Hose — Connect one end to water pump
and the other end to spray gun.
S - Accessory Tray — Provides convenient storage for
standard and optional accessories, such as brushes,
turbo wands, etc.
T - Spray Tips — Detergent, 0°, 15° and 40°: for various
high pressure cleaning applications.
Items Not Shown:
Warning/Operating Instructions Tag — Identifies hazards
and proper procedure to start/stop pressure washer.
E
F
A
J
C
D
S
B
P
R
N
T
G
M
L
,
K
H
12 www.troybilt.com
Operation
If you have any problems operating your pressure washer,
please call the pressure washer helpline at (888) 611-6708.
Pressure Washer Location
Carbon Monoxide Poisoning
Risk of Fire Clearances
How to Start Your Pressure Washer
To start your pressure washer for the first time, follow these
instructions step-by-step. This starting information also
applies if you have let the pressure washer sit idle for at least
a day.
1. Place pressure washer near an outside water source
capable of supplying water at a flow rate greater than
3.3 gallons per minute (12.5 liters per minute) and no
less than 20 PSI (1.38 BARS) at pressure washer end
of garden hose. DO NOT siphon supply water.
2. Check that high pressure hose is tightly connected to
spray gun and pump. See Assembly section.
3. Make sure unit is in a level position.
4. Connect garden hose to water inlet on pressure washer
pump.
NOTICE DO NOT run the pump without the water supply
connected and turned on.
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
5. Turn ON water, point spray gun in a safe direction,
press red button and squeeze trigger to purge pump
system of air and impurities.
6. Attach nozzle extension to spray gun. Tighten by hand.
7. Choose spray tip you want to use, pull back on collar of
nozzle extension, insert spray tip and release collar. Tug
on spray tip to make sure it is securely in place. See
How to Use Spray Tips.
8. Push engine rocker switch (A) to on position (I or ON).
WARNING Exhaust heat/gases could ignite
combustibles, structures or damage fuel tank
causing a fire, resulting in death or serious injury.
• Keep at least 5 ft. (1.5 m) clearance on all sides of pressure
washer including overhead.
WARNING POISONOUS GAS HAZARD. Engine
exhaust contains carbon monoxide, a poisonous
gas that could kill you in inutes. You CANNOT
smell it, see it, or taste it. Even if you do not
smell exhaust fumes, you could still be exposed
to carbon monoxide gas.
• Operate this product ONLY outside far away from
windows,doors and vents to reduce the risk of carbon
monoxide gas from accumulating and potentially being drawn
towards occupied spaces.
• Install battery-operated carbon monoxide alarms or plugincarbon monoxide alarms with battery back-up according to
the manufacturer’s instructions. Smoke alarms cannot detect
carbon monoxide gas.
• DO NOT run this product inside homes, garages,
basements,crawlspaces, sheds, or other partially-enclosed
spaces even if using fans or opening doors and windows for
ventilation. Carbon monoxide can quickly build up in these
spaces and can linger for hours, even after this product has
shut off.
• ALWAYS place this product downwind and point the engine
exhaust away from occupied spaces.
If you start to feel sick, dizzy, or weak while using this
product, shut it off and get to fresh air RIGHT AWAY. See
a doctor. You may have carbon monoxide poisoning.
A
Exhaust Port
Pointed away from
occupied spaces
13
NOTICE Before starting the pressure washer, be sure you
are wearing safety goggles as described below.
NOTICE This unit is equipped with a ReadyStart® engine. A
ReadyStart® engine means there is no priming or choking
required.
9. When starting engine, position yourself as
recommended and grasp starter grip handle and pull
slowly until you feel some resistance. Then pull rapidly
to start engine.
10. Return starter grip handle slowly. DO NOT let rope
“snap back” against starter.
How to Stop Your Pressure Washer
1. Release spray gun trigger and let engine idle for two
minutes.
2. Push engine rocker switch to off position (O or OFF).
3. ALWAYS point gun in a safe direction and press red
button and squeeze spray gun trigger to release
retained high water pressure.
WARNING Risk of eye injury.
Spray could splash back or propel objects
resulting in serious injury.
• Always wear indirect vented (chemical splash) safety goggles
marked to comply with ANSI Z87.1 when using or in vicinity of
this equipment.
• NEVER substitute safety glasses or dry-condition goggles for
indirect vented safety goggles.
WARNING Starter cord kickback (rapid retraction) will
pull hand and arm toward engine faster than you
can let go which could cause broken bones,
fractures, bruises, or sprains resulting in serious
injury.
• NEVER pull starter cord without first relieving spray gun
pressure.
• When starting engine, pull cord slowly until resistance is felt
and then pull rapidly to avoid kickback.
• After each starting attempt, where engine fails to run, always
point spray gun in safe direction, press red button and squeeze
spray gun trigger to release high pressure.
• Firmly grasp spray gun with both hands when using high
pressure spray to avoid injury when spray gun kicks back.
WARNING The high pressure stream of water that
this equipment produces could cut through skin
and its underlying tissues, resulting in serious
injury and possible amputation.
Spray gun traps high water pressure, even when engine is
stopped and water is disconnected, which could result in
serious injury.
• DO NOT allow CHILDREN to operate pressure washer.
• Keep high pressure hose connected to pump and spray gun
while system is pressurized.
• NEVER aim spray gun at people, animals, or plants.
• DO NOT secure spray gun in open position.
• DO NOT leave spray gun unattended while machine is running.
• NEVER use a spray gun which does not have a trigger lock or
trigger guard in place and in working order.
• Always be certain spray gun, nozzles and accessories are
correctly attached.
WARNING Exhaust heat/gases could ignite
combustibles, structures or damage fuel
tank causing a fire, resulting in death or
serious injury.
Contact with muffler area could cause burns resulting in
serious injury.
• DO NOT touch hot parts and AVOID hot exhaust gases.
• Allow equipment to cool before touching.
• Keep at least 5 feet (1.5 m) of clearance on all sides of pressure
washer including overhead.
• It is a violation of California Public Resource Code, Section
4442, to use or operate the engine on any forest-covered,
brush-covered, or grass-covered land unless the exhaust
system is equipped with a spark arrester, as defined in Section
4442, maintained in effective working order. Other states or
federal jurisdictions may have similar laws.
Contact the original equipment manufacturer, retailer, or dealer
to obtain a spark arrester designed for the exhaust system
installed on this engine.
• Replacement parts must be the same and installed in the same
position as the original parts.
WARNING The high pressure stream of water that
this equipment produces could cut through skin
and its underlying tissues, resulting in serious
injury and possible amputation.
Spray gun traps high water pressure, even when engine is
stopped and water is disconnected, which could result in
serious injury.
• Keep high pressure hose connected to pump and spray gun
while system is pressurized.
• ALWAYS point spray gun in safe direction, press red button
and squeeze spray gun trigger to release high pressure, every
time you stop engine.
14 www.troybilt.com
How to Use Accessory Tray
The unit is equipped with an accessory tray with places to
store your spray gun, nozzle extension, high pressure hose
and quick connect spray tips.
1. Place spray gun through notches on left side of
accessory tray as shown.
2. Place nozzle extension in hole on left side of accessory
tray as shown.
3. Insert multi–colored spray tips in spaces provided in
accessory tray.
4. Hang high pressure hose on hook attached to the right
side of the accessory tray as shown.
How to Use Spray Tips
The quick–connect on the nozzle extension allows you to
switch between four different quick connect spray tips. Spray
tips can be changed while pressure washer is running once
spray gun trigger lock is engaged. The spray tips vary the
spray pattern as shown.
Follow these instructions to change spray tips:
1. Pull back collar on quick–connect and pull current
spray tip off. Store spray tips in holder provided on the
accessory tray.
2. Select desired spray tip:
• For delicate rinse, for gentle cleaning of cars/trucks,
boats, RV’s, patio furniture, lawn equipment, etc.,
select white 40° spray tip.
• For general rinsing, ideal for most all purpose
cleaning such as home siding, brick patios, wood
decks, driveways and sidewalks, garage floors, etc.,
select yellow 15° spray tip.
• For maximum rinsing, for stubborn or hard to reach
surface such as second story surfaces, paint
removal, oil stains, rust removal or other stubborn
substances (tar, gum, grease, wax, etc.), select red
0° spray tip.
• To apply detergent, applies project specific cleaners
to help break down stubborn dirt and grime on a
variety of surfaces, select black detergent spray tip.
3. Pull back on collar, insert new spray tip and release
collar. Tug on spray tip to make sure it is securely in
place.
Usage Tips
• For most effective cleaning, keep spray tip from 8 to
24 inches (20 to 61 cm) away from cleaning surface.
• If you get spray tip too close, especially using a high
pressure spray tip, you may damage surface being
cleaned.
• DO NOT get closer than 6 inches (15 cm) when
cleaning tires.
40° White
2100 PSI
2.3 GPM
15° Yellow
2300 PSI
2.2 GPM
0° Red
2700 PSI
2.1 GPM
Low Pressure
Black
Use to apply
detergent
High Pressure
WARNING The high pressure stream of water that
this equipment produces could cut through skin
and its underlying tissues, resulting in serious
injury and possible amputation.
• NEVER exchange spray tips without the trigger lock being
engaged on the spray gun.
• DO NOT twist spray tips while spraying.
15
Applying Detergent
To apply detergent, follow these steps:
1. Review use of spray tips.
2. Prepare detergent solution as required by job.
3. Pour detergent into cleaning tank.
NOTICE The cleaning tank holds one half gallon.
4. Make sure black detergent spray tip is installed.
NOTICE Detergent cannot be applied with the high pressure
spray tips (White, Yellow or Red).
5. Make sure garden hose is connected to water inlet.
Check that high pressure hose is connected to spray
gun and pump. Turn on water.
NOTICE You must attach all hoses before you start the
engine.
• Starting the engine without all the hoses connected and without
the water turned ON could damage the pump.
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
6. Start engine following instructions How to Start Your
Pressure Washer.
7. Apply detergent to a dry surface, starting at lower
portion of area to be washed and work upward, using
long, even, overlapping strokes.
8. Allow detergent to "soak in" for 3-5 minutes before
washing and rinsing. Reapply as needed to prevent
surface from drying. DO NOT allow detergent to dry on
(prevents streaking).
Pressure Washer Rinsing
For Rinsing:
1. Remove black detergent spray tip from nozzle
extension.
2. Select and install desired high pressure spray tip
following instructions How to Use Spray Tips.
3. Keep the spray gun a safe distance from the area you
plan to spray.
4. Apply a high pressure spray to a small area, then check
the surface for damage. If no damage is found, it is
okay to continue cleaning.
5. Start at the top of the area to be rinsed, working down
with same overlapping strokes as you used for washing
and applying detergent.
Automatic Cool Down System (Thermal Relief)
If you run the engine on your pressure washer for
3-5 minutes without pressing the trigger on the spray gun,
circulating water in the pump can reach temperatures above
125°F (51°C). The system engages to cool the pump by
discharging the warm water onto the ground.
WARNING Chemical Burn Hazard.
Chemicals could cause burns resulting in death
or serious injury.
• DO NOT use caustic liquid with pressure washer.
• Use ONLY pressure washer safe detergents/soaps. Follow all
manufacturers instructions.
WARNING Kickback from spray gun could cause you
to fall resulting in death or serious injury.
• Operate pressure washer from a stable surface.
• Be extremely careful if you must use the pressure washer from
a ladder, scaffolding, or any other similar location.
• Firmly grasp spray gun with both hands when using high
pressure spray to avoid injury when spray gun kicks back.
16 www.troybilt.com
Maintenance
Maintenance Schedule
Follow the hourly or calendar intervals, whichever occurs
first. More frequent service is required when operating in
adverse conditions noted below.
1
Clean if clogged. Replace if perforated or torn.
2
Service more often under dirty or dusty conditions.
General Recommendations
Regular maintenance will improve the performance and
extend the life of the pressure washer. See any qualified
dealer for service.
The pressure washer’s warranty does not cover items that
have been subjected to operator abuse or negligence. To
receive full value from the warranty, the operator must
maintain the pressure washer as instructed in this manual,
including proper storage as detailed in Winter Storage and
Long Term Storage.
NOTICE Should you have questions about replacing
components on your pressure washer, please call
(888) 611-6708 for assistance.
Some adjustments will need to be made periodically to
properly maintain your pressure washer.
All service and adjustments should be made at least once
each season. Follow the requirements in the Maintenance
Schedule chart above.
NOTICE Once a year you should clean or replace the spark
plug, clean or replace the air filter, and check the spray gun
and nozzle extension assembly for wear. A new spark plug
and clean air filter assure proper fuel-air mixture and help
your engine run better and last longer.
Pump Oil
DO NOT attempt any oil maintenance on this pump. The
pump is pre-lubricated and sealed from the factory, requiring
no additional maintenance for the life of the pump.
Emissions Control
Maintenance, replacement, or repair of the emissions
control devices and systems may be performed by any
non-road engine repair establishment or individual.
However, to obtain ”no charge” emissions control service,
the work must be performed by a factory authorized dealer.
See the Emissions Warranty.
Before Each Use
1. Check engine oil level.
2. Clean debris.
3. Check water inlet screen for damage.
4. Check high pressure hose for leaks.
5. Check detergent siphoning tube/tank for damage.
6. Check spray gun and nozzle extension assembly for
leaks.
7. Rinse out garden hose to flush out debris.
Pressure Washer Maintenance
Clean Debris
Daily or before use, clean accumulated debris from pressure
washer. Keep linkage, spring and controls clean. Keep area
around and behind muffler free from any combustible debris.
Inspect cooling air slots and openings on the pressure
washer. These openings must be kept clean and
unobstructed.
Pressure washer parts should be kept clean to reduce the
risk of overheating and ignition of accumulated debris.
• Use a damp cloth to wipe exterior surfaces clean.
NOTICE Improper treatment of pressure washer could
damage it and shorten its life.
• DO NOT insert any objects through cooling slots.
• Use a soft bristle brush to loosen caked on dirt, oil, etc.
• Use a vacuum cleaner to pick up loose dirt and debris.
Check and Clean Inlet Screen
Examine the screen on the pump’s water inlet. Clean it if the
screen is clogged or replace it if screen is damaged.
First 5 Hours
• Change engine oil
Every 8 Hours or Daily
• Check/clean water inlet screen
1
• Check high pressure hose
• Check detergent siphoning tube/tank
• Check spray gun and assembly for leaks
• Clean debris
• Check engine oil level
Every 50 Hours or Yearly
• Clean engine air cleaner
2
• Change engine oil
2
• Inspect muffler and spark arrester
Every 200 Hours or Yearly
• Replace engine air cleaner
2
Yearly
• Replace spark plug
• Clean cooling system
2
Loading...
