Product Overview

TV-IP851WC TV-IP851WIC

Package Contents

In addition to your camera, the package includes:

• Multi-Language Quick Installation Guide

• CD-ROM (Utility & User’s Guide)

• Network cable (1.5m / 5ft)

• Power adapter (12V DC, 1.25A)

• Camera mounting kit

If any package contents are missing or damaged, please contact the retail store, online retailer, or reseller/distributor that the item was purchased.

Features

TV-IP851WC

The Wireless PTZ Internet Camera, model TV-IP851WC, provides security over a large area. Pan the camera side-to-side a remarkable 340 degrees and tilt up-and-down 115 degrees from any Internet connection.

Wireless n technology provides unsurpassed wireless coverage and improved streaming video quality. Add this camera to your wireless network at the touch of a button with Wi-Fi Protected Setup (WPS).

Record 640 x 480 pixel (VGA) video at up to 20 frames per second (fps). Manage up to 32 TRENDnet cameras with the included complimentary camera management software. Advanced features include adjustable motion detection recording areas, email alerts, scheduled recording sessions, pan/tilt Auto-Patrol, date-and-time overlays, one-way audio, an adjustable lens, and four times digital zoom. A wall/ceiling mounting kit is included and the camera’s off white housing blends into most environments.

TV-IP851WIC

The Wireless Day/Night PTZ Internet Camera, model TV-IP851WIC, provides day and night security over a large area. Pan the camera side-to-side a remarkable 340 degrees and tilt up-and-down 115 degrees from any Internet connection.

Record indoor video in complete darkness for distances of up to 7.5 meters. Wireless n technology provides unsurpassed wireless coverage and improved streaming video quality. Add this camera to your wireless network at the touch of a button with Wi-Fi Protected Setup (WPS).

Record 640 x 480 pixel (VGA) video at up to 20 frames per second (fps). Manage up to 32 TRENDnet cameras with the included complimentary camera management software. Advanced features include adjustable motion detection recording areas, email alerts, scheduled recording sessions, pan/tilt Auto-Patrol, date-and-time overlays, one-way audio, an adjustable lens, and four times digital zoom. A wall/ceiling mounting kit is included and the camera’s off white housing blends into most environments.

TV-IP851WC / TV-IP851WIC

1

TRENDnet User’s Guide

Product Hardware Features

Rear Panel View

WPS button

LAN port

Front Panel View

IR LED

Antenna

Focus Ring

TV-IP851WC / TV-IP851WIC

Microphone

Light Sensor

Camera Lens

• LAN Port – Connect Ethernet cables to your wired network devices.

• Power Port – Connect the included power adapter from your camera to an

available power outlet.

Note: Use only the adapter that came with your camera.

• Reset Button – Use an item such as a paperclip to push and hold this button for

3 seconds and release to reset your camera to its factory defaults.

• WPS (Wi-Fi Protected Setup) – Push and hold this button for 3 seconds to

activate WPS. The button LED is blinking green when WPS is activated.

• Antenna – 2dBi detachable antenna

Power port

Reset button

• IR LED – Built-in 4 IR LED for night vision uses. (for TV-IP851WIC)

• Light Sensor – Detects the light source to turn IR on or off.

• Focus Ring – Turn to adjust the focus of the camera.

• Microphone – Built-in microphone for audio can be turn on or off.

• Privacy button – Press the privacy button to redirect the camera’s viewing

position to a downward and obscured view. To return the camera to the previous viewing position, wait 5 seconds and then press the privacy button again.

• Power - This LED indicator is solid blue when your camera is powered on.

Otherwise if this LED indicator is off, there is no power to your camera.

Privacy button

• Link – This LED indicator is blinking orange when there is connection/data to

your camera.

Power/Link LED

2

TRENDnet User’s Guide

Application Diagram

TV-IP851WC / TV-IP851WIC

3

TRENDnet User’s Guide

Installation Option Description*

Wired Connection

1. Connect the Ethernet Cable

If you intend to use the network camera as a wired device, connect one end of the included Ethernet cable into the Ethernet port on the rear panel of the camera and connect the other end to an available port on your network. If you prefer to use the camera on a wireless network, see below for instructions on connecting the power adapter.

2. Attach the Power Supply

Attach the included power supply to the DC 12V 1.25A receptor on the rear panel of the camera and then connect it to a wall outlet or power strip. A blue LED will light up under the lens indicating that the camera has power.

WPS Connection

An alternative method of connecting your camera to your network is by using WPS. WPS is a quick, simple and secure method of adding devices to a network. If you have a router which supports WPS follow the steps below, otherwise, please use the wired mode of setting up the camera.

1. Attach the Power Supply

2. Press the WPS button on your wireless device then press the WPS button on

the camera.

TV-IP851WC / TV-IP851WIC

*The Install wizard CD inside the package box will guide you step-by-step of wired

or wireless options with the TRENDnet Cloud Service of installation; please refer to the

page 8.

4

TRENDnet User’s Guide

Wall mount installation

To attach the metal plates carry out the following:

• Remove the two rubber pads under the base of the Camera.

• Slide the metal plate onto the base of the camera, making sure that the two

holes on the base of the camera align with the two screw holes on the base of the camera.

• Secure the metal plate to the base of the Camera with the two screws

provided.

• The camera can now be mounted to the ceiling or a wall. See the diagram

below for more information.

TV-IP851WC / TV-IP851WIC

5

TRENDnet User’s Guide

TRENDnet Cloud Service

Note: (Before beginning, make sure you are connected to the Internet and the camera is accessible to the web).

1. Take a look for a similar URL to this (11223344.cam.trendnetcloud.com) at the

label on the back of the camera.

2. Connect the power cable to the camera.

There are two methods to connect to the Internet, wired and wireless. For wireless, follow the instructions from Image A below. For wired, follow the instructions from

Image B below.

Image A (connecting using WPS)

Image B (wired connection)

3. Open your browser, type the URL listed at the back of your camera and hit

Enter to connect to the camera’s live stream. Please note: you can also use this URL to connect to the camera from any location or computer.

There are three modes when connecting your TV-IP851WC/TV-IP851WIC to the web. This is visible through the “cloud” at the top right side of the web interface.

TV-IP851WC / TV-IP851WIC

Blue Mode

The Blue Mode indicates the camera is connecting directly to the internet or local network. This mode offers configuration and management options.

6

TRENDnet User’s Guide

TV-IP851WC / TV-IP851WIC

Red Mode

The Red Mode indicates the camera is connecting to the Internet or local network through a firewall. This mode doesn’t offer configuration and management options – just live streaming for 60 seconds. The firewall settings limits live streaming for each user. The “red” notification at the bottom of the viewing area warns users of the limited time. Refresh this screen continuously if you wish to view your camera’s live stream.

Green Mode

The Green Mode indicates the camera is connecting to media in a peer-to-peer fashion to the Internet or local network. This mode doesn’t offer configuration and management options – only live streaming.

7

TRENDnet User’s Guide

Install the Camera

Insert the included CD-ROM into your CD/DVD drive. The Install Wizard program will run automatically.

Note: If the Install Wizard does not run, you may have autorun disabled on your machine. In this case, browse to the CD drive and run InstallWizard.exe to begin the installation wizard.

Begin by selecting Install Camera and follow the on-screen steps to continue the installation.

1. This is TRENDnet’s Terms of Use. Click Agree to continue.

2. The next step references information on the camera itself. Go to your camera

and check the details at the back of the device. Click Next to continue, Back to go to the previous screen or Home to return to the Main Menu.

3. The most important part of the setup process is the network connection type.

There are three options:

a. Connect camera to your wireless network using Wi-Fi Protected Setup

(WPS) button (Verify your router has a WPS button. If not, select the next option).

b. Connect camera to your wireless network manually c. Connect camera to your network using a network cable.

TV-IP851WC / TV-IP851WIC

8

TRENDnet User’s Guide

4. The basic connection type is “C” using a network cable. Let’s begin the

installation process using the network cable connection first. Click this radio button and click Next to continue, Back to go to the previous screen or Home to return to the Main Menu.

5. Follow the instructions in the next screen to Power up the Camera. Click Next

to continue, Back to go to the previous screen or Home to return to the Main Menu.

6. Connect one end of the network cable to your camera and the other end to

your router. Click Next to continue, Back to go to the previous screen or Home to return to the Main Menu.

7. The wizard searches the network for your camera.

TV-IP851WC / TV-IP851WIC

9

TRENDnet User’s Guide

8. If you only have one camera on your network, the wizard will automatically

select it (as shown below). Otherwise, if you have more than one camera, it provides several options from the list. The wizard provides the Model Name and MAC Address of the camera. If you do not see any of your camera(s) in the wizard, click Retry to scan for the camera again. Click Next to continue, Back to go to the previous screen or Home to return to the Main Menu.

10. The wizard configures your parameters.

TV-IP851WC / TV-IP851WIC

9. Password Settings. Follow the instructions on the screen. Remember to change

the password with an 8 bit preset. The default username and password is admin. Tick the Change Password checkbox to enter the new password details. The password should be between 8 and 16 characters. Click Next to continue, Back to go to the previous screen or Home to return to the Main Menu.

10

TRENDnet User’s Guide

11. The initial setup is complete. The main feature is the Cloud Access accessibility

feature. Click the link(s) or icon below to create a shortcut on your desktop. Also, below the icon is a warning. This warning is only shown when the internet connection is inactive or the Cloud server cannot be found. Make sure the internet connection is active, click Retry. When the Cloud server isn’t found, the server may be busy or under maintenance. Under these circumstances, click Retry later again. If there is no warning, click Next.

12. The mobile option allows the user to download the TRENDnet CloudView App

in either Apple™ or Google™ android format. To use this feature, the user must have a QR Scanner App on their mobile device. This is also available from the Apple™ App Store or Google’s Play Store. You are now ready to use your camera. Click Home to the main menu, or Finish to exit.

Connecting to your TV-IP851WC/TV-IP851WIC with a Mobile App

Please refer to the page 19 for mobile apps download through the QR code option.

TV-IP851WC / TV-IP851WIC

11

TRENDnet User’s Guide

TV-IP851WC / TV-IP851WIC

Configure Wireless Settings

Using WPS

2. Follow the instructions and click Next to continue. If you wish to go to the

previous screen, click Back or Home to return to the main menu.

• Find the access point (AP) or wireless router you wish to connect to from the

Available AP drop down menu.

• In most cases you should leave the Channel set to Auto as the AP will

determine the channel of operation.

• Select the type of authentication and encryption required by the access point

and enter the Key required to connect.

Click Next to continue, Back to go to the previous screen or Home to return to the Main

Menu.

Please read the next steps carefully as it pertains to the WPS feature on your router and camera.

1. Follow the instructions in the screen to Power up the Camera. Click Next to

continue, Back to go to the previous screen or Home to return to the Main Menu.

3. The camera now searches for the settings you chose.

12

TRENDnet User’s Guide

4. If you only have one camera on your network, the wizard will automatically

select it (as shown below). Otherwise, if you have more than one camera, it provides several options from the list. The wizard provides the Model Name and MAC Address of the camera. If you do not see any of your camera(s) in the wizard, click Retry to scan for the camera again. Click Next to continue, Back to go to the previous screen or Home to return to the Main Menu.

5. Password Settings. Follow the instructions on the screen. The default

username and password is admin. Tick the Change Password checkbox to enter the new password details. The password should be between 8 and 16 characters. Click Next to continue, Back to go to the previous screen or Home to return to the Main Menu.

6. The wizard configures your parameters.

TV-IP851WC / TV-IP851WIC

13

TRENDnet User’s Guide

7. The initial setup is complete. The main feature is the Cloud Access accessibility

feature. Click the link(s) or icon below to create a shortcut on your desktop. Also, below the icon is a warning. This warning is only shown when the internet connection is inactive or the Cloud server cannot be found. Make sure the internet connection is active, click Retry. When the Cloud server isn’t found, the server may be busy or under maintenance. Under these circumstances, click Retry later again. If there is no warning, click Next.

8. The mobile option allows the user to download the TRENDnet CloudView App

in either Apple™ or Google™ android format. To use this feature, the user must have a QR Scanner App on their mobile device. This is also available from the Apple™App Store or Google’s Play Store. You are now ready to use your camera. Click Home to the main menu, or Finish to exit.

Connecting to your TV-IP851WC/TV-IP851WIC with a Mobile App

Please refer to the page 19 for mobile apps download through the QR code option.

TV-IP851WC / TV-IP851WIC

14

TRENDnet User’s Guide

TV-IP851WC / TV-IP851WIC

Connecting Wireless Network Manually

1. Follow the instructions in the next screen to Power up the Camera. Click Next

to continue, Back to go to the previous screen or Home to return to the Main Menu.

3. The wizard searches the network for your camera.

4. If you only have one camera on your network, the wizard will automatically

select it (as shown below). Otherwise, if you have more than one camera, it provides several options from the list. The wizard provides the Model Name and MAC Address of the camera. If you do not see any of your camera(s) in the

2. Connect one end of the network cable to your camera and the other end to

your router. Click Next to continue, Back to go to the previous screen or Home to return to the Main Menu.

wizard, click Retry to scan for the camera again. Click Next to continue, Back to go to the previous screen or Home to return to the Main Menu.

15

TRENDnet User’s Guide

5. Password Settings. Follow the instructions on the screen. Remember to change

the password with an 8 bit preset. The default username and password is admin. Tick the Change Password checkbox to enter the new password details. The password should be between 8 and 16 characters. Click Next to continue, Back to go to the previous screen or Home to return to the Main Menu.

7. Once your wireless network is discovered, the wizard provides you with an

option to select the Available Wireless Network and also to provide a Wireless

Network Password. If you do not see your wireless network details, click the Rescan link to scan the network again.

TV-IP851WC / TV-IP851WIC

6. The wizard configures your parameters.

16

TRENDnet User’s Guide

8. The wizard searches for wireless Access Points.

9. Next, you are prompted to disconnect your network cable from the

camera/router. Click Next to continue, Back to go to the previous screen or Home to return to the Main Menu.

11. The initial setup is complete. The main feature is the Cloud Access accessibility

feature. Click the link(s) or icon below to create a shortcut on your desktop. Also, below the icon is a warning message. This warning message is only shown when the internet connection is inactive or the cloud server cannot be found. Make sure the internet connection is active, click Retry. When the Cloud server isn’t found, the server may be busy or under maintenance. Under these circumstances, click Retry later again. If there is no warning, click Next.

TV-IP851WC / TV-IP851WIC

10. The camera is connecting to the wireless network.

17

TRENDnet User’s Guide

12. The mobile option allows the user to download the TRENDnet CloudView App

in either Apple™ or Google™ android format. To use this feature, the user must have a QR Scanner App on their mobile device. This is also available from the Apple™ App Store or Google’s Play Store. You are now ready to use your camera. Click Home to the main menu, or Finish to exit.

TV-IP851WC / TV-IP851WIC

Connecting to your TV-IP851WC/TV-IP851WIC with a Mobile App Please refer to the page 19 for mobile apps download through the QR code option.

18

TRENDnet User’s Guide

TV-IP851WC / TV-IP851WIC

Mobile Apps

TRENDnet Cloud Services also offers mobile connectivity. Access the iPhone App by going to the Apple™ App Store and downloading “TRENDnet CloudView” App. Alternatively, if you are using the Google™ Android service, go to the Google Play™ Store and download the app from there. Currently, TRENDnet does not support Blackberry™ or the Windows™ App stores.

Mobile Apps, QR code Download Option

The mobile option allows the user to download the TRENDnet CloudView App in either Apple or Google android format. To use this feature, the user must have a QR Scanner App on their mobile device. This is also available from the Apple App Store or Google’s Play store. The QR codes of Apple and Android are presented on the last page of the Install wizard.

The app copies the QR link and provides a HTML link to the TRENDnet app. Click on the link.

Using your mobile device, in this example it is an Android phone, touch the Bar Code scanning app on your phone. Hold it up to the QR Code on the wizard that reads, Android, and snap to scan the image. The Bar Code app will read the QR Code and record it.

You will be directed to the Google Play Storefront to download the app.

19

TRENDnet User’s Guide

The TRENDnet icon will appear on your android device screen.

Touch the icon to activate it.

TV-IP851WC / TV-IP851WIC

Download the app, install it and use the app on your mobile device to view the TRENDnet camera.

20

TRENDnet User’s Guide

Enter the settings and touch the check icon. You are now able to have a live view from your camera.

Here is Apple iTunes version

Scan the QR Code using one of iOS’s QR Code apps. The app automatically creates an HTML link to the iTunes App Store. Link the link.

TV-IP851WC / TV-IP851WIC

You are immediately directed to the iTunes App Store. Click the link to download.

21

TRENDnet User’s Guide

TV-IP851WC / TV-IP851WIC

Configuration

After completing the AutoRun Wizard, you are ready to use your camera. The camera’s built-in Web configuration utility is designed to allow you to easily access and configure your TV-IP851WC or TV-IP851WIC camera. Open a web browser such as Internet Explorer® and enter the IP address of your camera (Default IP Address: http://192.168.10.30). To log in, use the User name admin and the password you created in the Setup Wizard. If you did not create a password, the default password is admin. After entering your password, click OK.

The Change Your Password page appears. Configure all the information and click OK. This page only appears at the first time log in.

If you did not use the AutoRun Wizard to set up your camera, the following page appears when you first login.

When log in at the first time, the TRENDnet Cloud Terms of Use appears. Tick the Accept check box and click Next.

22

TRENDnet User’s Guide

The Congratulations page appears. Click Login to go to the Login page again. To log in, enter the Username admin and the newly created password. This page only appears at the first time log in.

The home page for the TV-IP851WC or TV-IP851WIC appears.

Viewing Video

Click VIEW VIDEO | ACTIVEX or VIEW VIDEO | JAVA to begin viewing live video from your camera.

VIEW VIDEO | ACTIVEX Windows users who do not have Java installed can choose ActiveX mode to view video.

Internet Explorer will prompt you to install ActiveX when you click on the VIEW VIDEO |

ACTIVEX link. Mac users must use the Java mode to view video.

TV-IP851WC / TV-IP851WIC

23

TRENDnet User’s Guide

VIEW VIDEO | JAVA

Please make sure that you have the latest version of Java installed on your machine to ensure proper operation when viewing video in Java mode. The Java application can be downloaded from Sun’s website free of charge (http://www.java.com

Viewing Camera Settings

)

To view camera settings:

1. Login to the camera

2. Click ADMINISTRATION. The system status screen appears.

From the menu on the left side of the screen, select an option under the STATUS heading.

TV-IP851WC / TV-IP851WIC

.

24

TRENDnet User’s Guide

System

This screen shows the Camera Name, Location, Model, Firmware Version, MAC Address, IP Address, Ethernet Link Status, Speed and Duplex type.

Video

This screen shows the details of the video capture settings including Video Resolution, Compression Rate, Frame Rate, Frame Size and Light Frequency.

Audio

This screen shows whether audio is enabled and the volume level of the audio.

Wireless

This screen shows the connection mode, link status, SSID name, channel and encryption status.

TV-IP851WC / TV-IP851WIC

25

TRENDnet User’s Guide

Network

This screen shows various network statistics related to your camera including IP Address, Subnet Mask and Default Gateway.

Cloud Link

This screen shows the Cloud server URL and its status.

Active Users

This screen shows whether there are any active users logged on to the camera viewing live video.

TV-IP851WC / TV-IP851WIC

26

TRENDnet User’s Guide

Configuring Camera Settings

The TV-IP851WC/TV-IP851WIC allows you to make configuration changes from anywhere by connecting to the camera using a standard web browser.

To configure camera settings:

1. Login to the camera as described in the section Using the web-based

configuration interface.

2. Click ADMINISTRATION. The system status screen appears.

3. Click CONFIGURATION from the menu on the left side of the screen. The

System configuration screen is displayed. You can then click any of the menu items on the left of the screen under the Configuration menu to modify settings.

System

• Camera Name: This is the name used to identify your camera on your network.

• Location: You can enter a description of the place where the camera is.

• Admin: In this field you can change the administrator user name and password.

(Max. password length is 8 characters)

• LED Control: Setting this to Normal will display the lights on the front of the

camera indicating power and network activity. Setting this to OFF will turn off both lights on the front of the camera.

• Privacy button: When privacy feature is enabled, you can turn on and off the

privacy mode by pressing the Privacy button for 5 seconds. When privacy feature is disabled, the privacy button will not take action.

TV-IP851WC / TV-IP851WIC

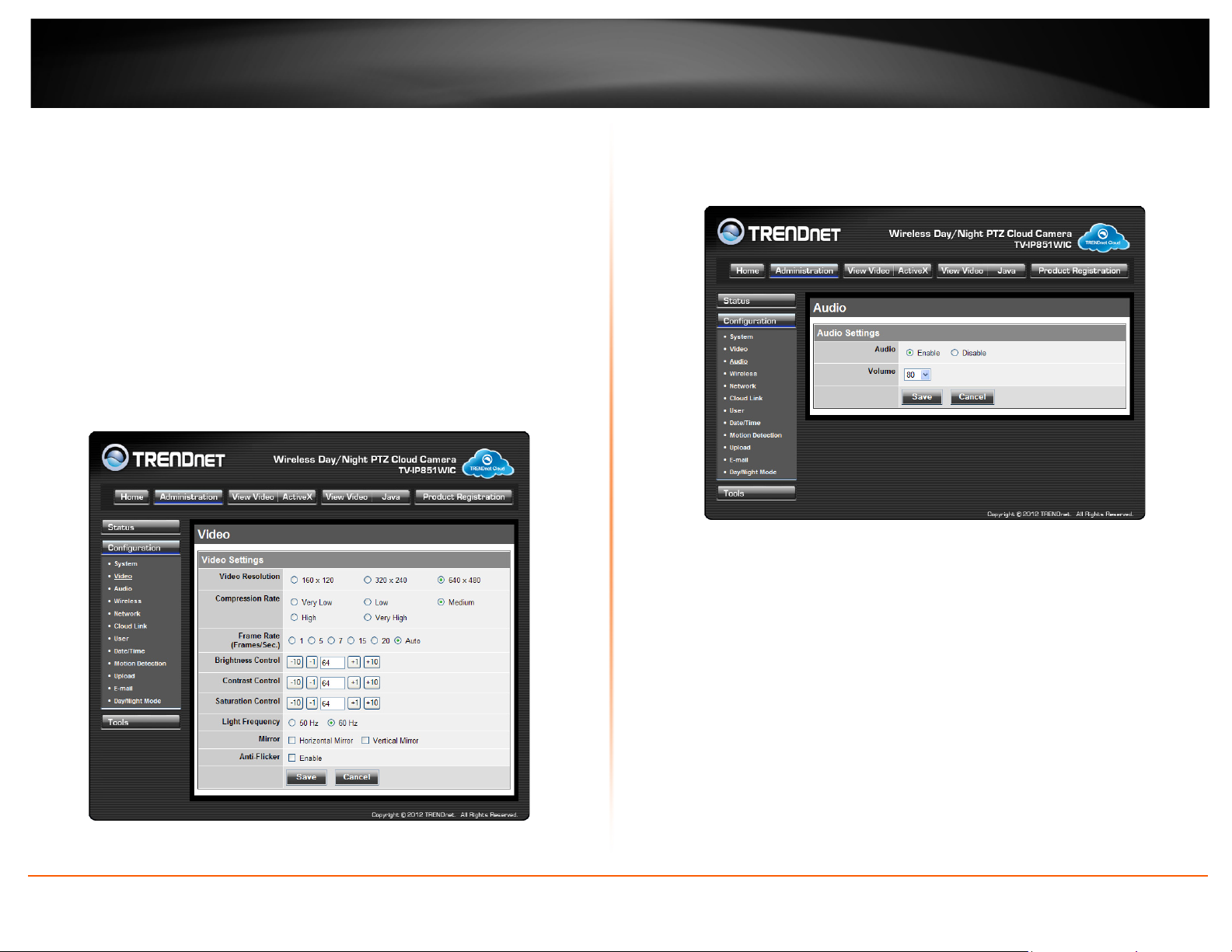

Video

• Video Resolution: Select from one of the three resolutions. Higher values

provide better quality but at the expense of higher bandwidth requirements on

your network or Internet connection.

• Compression Rate: Select a compression rate. Higher rates of compression will

reduce network load at the expense of lower image quality.

27

TRENDnet User’s Guide

• Frame Rate (Frames/Sec.): Select the number of frames per second you would

like for your video. Higher rates provide smoother video but require more bandwidth on your network or Internet connection.

• Brightness Control: Allows you to control the brightness level. Enter a value

between 1 and 128.

• Contrast Control: Allows you to control the contrast level. Enter a value

between 1 and 128.

• Saturation Control: Allows you to control the saturation level. Enter a value

between 1 and 128.

• Light Frequency: Select the correct frequency (50Hz/60Hz) to reduce the

amount of flicker.

• Mirror: Choose whether to mirror the image horizontally or vertically.

• Anti-Flicker: Check the box to enable anti-flicker.

Audio

• Audio: Choose whether to Enable or Disable the camera audio feed.

• Volume: Select the volume percentage level.

TV-IP851WC / TV-IP851WIC

28

TRENDnet User’s Guide

Wireless

• Connection Mode: Infrastructure is a wireless connection using an access point

as a transmission point of all wireless devices. Ad-Hoc is a wireless connection used without an access point, where your TV-IP851WC or TV-IP851WIC is directly connected to your PC. This is done using the on-board wireless adapter on the TV-IP851WC or TV-IP851WIC connected to a wireless adapter on the PC.

• SSID: Service Set Identifier. This is an identifier for your network. Manually

enter the SSID of your wireless network or select it from the drop down menu. You can click Site Survey to see a list of wireless networks within range and further details of their settings.

• Wireless Channel: When using Infrastructure mode, the channel is specified by

the access point and the channel will not be selectable on this menu. When using Ad-Hoc mode, you can specify on which channel you want to communicate with the camera.

• Encryption Type: It is highly recommended that you encrypt the connection. In

Infrastructure mode, select an encryption type and enter details where applicable as you have specified on the access point. If you intend to use AdHoc mode, you can specify here the encryption type and preshared key that you want to use to connect from the PC.

TV-IP851WC / TV-IP851WIC

29

TRENDnet User’s Guide

Network

• IP Address Mode: Choose a method to assign an IP address to your camera.

o Fixed IP – If you want to assign a static or fixed IP address to the

camera, you may do so here. Your network administrator should be able to provide you with the necessary details to complete this section.

o Dynamic IP (DHCP) – Allows a DHCP server to automatically assign the

camera a network address.

o PPPoE – If you are using a PPPoE connection, enter your user name

and password here

• DNS IP Address: Enter the Domain Name Server addresses which translate

names to IP addresses.

• Dynamic DNS: The Dynamic DNS feature allows you to host a server (e.g. web

server, FTP or Game server) using a domain that you own with a dynamically assigned IP address. Many ISPs assign IP addresses dynamically i.e. the IP address changes each time you connect and disconnect. Using a Dynamic DNS service provider, you can connect to your camera no matter what your IP address. Enter the details of your dynamic DNS service provider here.

• HTTP Port: You may configure a second HTTP port that will allow you to

connect to the camera using a standard web browser. The port can be set to a number other than the default TCP ports 80. A corresponding port must be opened on the router. For example, if the port is changed to 1010, users must type “http://192.168.0.100:1010” instead of only “http://192.168.0.100”.

• UPnP & UPnP Port Forwarding: Enable these to set your camera as a universal

plug n play device on your network.

TV-IP851WC / TV-IP851WIC

30

TRENDnet User’s Guide

Cloud Link

• Cloud Link: Click the radio button to Enable or Disable cloud server syncing.

User

• User Access Control: Enable this to allow user accounts to connect to the

camera. This option also enable/disable the authentication for direct view. For Java mode: http://camera_ip_address/tvjview.htm For ActiveX mode: http://camera_ip_address/tvaview.htm (eg. http://192.168.10.30/tvaview.htm to view the camera live image directly)

• Define Users: You can create new user accounts here. Enter a user name and

password and select whether the user is allowed to upload or email an image from the camera.

• Delete User: Select a user from the drop down menu and click the Delete

button to remove a user account from the camera.

TV-IP851WC / TV-IP851WIC

31

TRENDnet User’s Guide

Date/Time

• Synchronized with Time Server: If you have an Internet time server or have an

NTP server designated on your network, you can specify the IP address of it here. Ensure that you select the correct time zone for the camera also.

• Set Manually: If you prefer to manually set the time for the camera, select this

mode. You can check the box Synchronized with Computer Time to set the time on the camera to be the same as the computer you are on.

Motion Detection

• Motion Detection: Select whether to Enable or Disable motion detection. This

will allow your camera to perform different functions when activity has been detected in the parts of the screen that you specify.

• Sensitivity: Set a percentage level to determine how sensitive the camera is to

activity.

• Detection Areas: From the live image shown on this screen, you can left-click

on blocks of the grid shown to indicate which parts of the screen you would like to monitor for motion.

TV-IP851WC / TV-IP851WIC

32

TRENDnet User’s Guide

Upload

On this screen you can enter details of an FTP Server that you want to upload images from the camera to.

• Host Address: The IP address of the FTP Server

• Port Number: The port number to connect to the FTP on, default port is 21.

• User Name: The user name of the FTP account.

• Password: The password for the user account on the FTP.

• Directory Path: The path you want the files to be uploaded to on the FTP.

• Passive Mode: If the camera is behind a firewall, you might wish to enable

Passive mode to allow the camera to upload the pictures.

• Time Schedule: Check Enable upload image to FTP server to enable the Upload

function.

o Always: Selecting this option allows snapshots to be uploaded to your

FTP as soon as you click Save.

o Schedule: Selecting this option allows you to configure specific times

when you want the snapshots to be uploaded to your FTP server.

o Motion Detection: Selecting this option sets the camera to upload

images upon detection of motion.

o Manual Operation: Selecting this option means the user is responsible

for taking a snapshot from the camera to upload.

• Image Interval: Users can select in frames per second (1, 2, 3 or auto, in auto

this could go to 4). The user can also select a duration for each frame from 1 to 65535 seconds.

• Base File Name: Enter the prefix for the filename of each snapshot taken by the

camera.

• File: If Overwrite is selected, only a few images will be constantly refreshed,

depending on how many snapshots you choose to have sent. Select Date/Time

Suffix and the pictures will be named with a date and time also. Select a Sequence Number Suffix up to 1024 and all the pictures will be numbered from

1-1024. Up to 1024 pictures can be configured. Picture number 1025 will reset to number 1.

TV-IP851WC / TV-IP851WIC

33

TRENDnet User’s Guide

E-mail

This section allows you to configure the email notification settings of your camera.

• SMTP Server Address: The domain name or IP address of your external mail

server.

• SMTP Port Number: The port number of your mail server, usually this is port

25.

• Sender’s Email Address: The e-mail address of the person sending the camera

snapshots.

• Recipient’s E-mail Address: The e-mail address of the person receiving the

camera snapshots.

• User Name: The user name of the sender’s email account for SMTP

authentication.

• Password: The password of the sender’s account for SMTP authentication.

• Use SSL-TLSS/STARTTLS: If your mail server supports SSL-TLSS or STARTTLS, you

can select one of these methods to create an encrypted connection to the mail server.

• Time Schedule: Check Enable e-mail image to e-mail account to enable the

time schedule function.

o Always: Selecting this option will allow snapshots to be emailed when

you click Save.

o Schedule: Selecting this option allows you to configure specific times

when you want the snapshots to be emailed.

o Motion Detection: Selecting this option sets the camera to e-mail

images upon detection of motion.

o Manual Operation: Selecting this option means the user is responsible

for taking a snapshot from the camera to e-mail.

TV-IP851WC / TV-IP851WIC

34

TRENDnet User’s Guide

Day/Night Mode (for TV-IP851WIC)

This section lets you configure the Day/Night vision modes on the IP camera.

• Auto: The camera automatically detects the level of light and selects night

vision or normal mode.

• Manual: Night mode can be selected on the view video ActiveX and Java tabs.

• Always Day Mode: Day mode is always selected.

• Always Night Mode: Night mode is always selected. This option is best used

areas of low lighting.

• Day Mode Schedule: using the time tabs 00:00 ~ 00:00, it is possible to select

times for normal mode. Times outside this will be in night mode. The times need to be entered in a 24 hour format. For example, 08:00 ~ 18:30.

Tools

The TV-IP851WC/TV-IP851WIC provides useful .tools to detect the connection, restart the camera, upgrade firmware, and backup and restore files.

To use camera tools:

1. Login to the camera as described in the section Using the web-based

configuration interface.

2. Click ADMINISTRATION. The system status screen appears.

3. Click Tools from the menu on the left side of the screen. The Tools screen

is displayed. You can then click any of the menu items on the left of the screen under the Tools menu.

TV-IP851WC / TV-IP851WIC

35

TRENDnet User’s Guide

FTP Server Test

When you have set up the FTP Server in the configuration section, you can use this screen to test that the FTP Server settings are correct. Pressing the Test button will make a connection to the FTP Server and upload a file called test_date_time.jpg to the FTP. If the file is not there, you should check that you have entered the FTP details correctly in the configuration section.

E-mail Test

When you have set up an e-mail account in the configuration section, you can use this screen to test that the E-mail settings are correct. Pressing the Test button will make the camera send a test e-mail to the address specified in the configuration section. If you do not receive the test e-mail, you should check that you have entered the e-mail details correctly in the configuration section.

Restart

If you should need to restart the IP camera, you can do this from this screen. Clicking Yes will initiate a reboot sequence on the camera. When you restart the camera you will lose your connection to it. Wait 1 minute before attempting to reconnect to the camera so that it has time to go through its boot up sequence. Restarting the camera will retain the configuration settings you have entered.

TV-IP851WC / TV-IP851WIC

36

TRENDnet User’s Guide

Factory Reset

If you should need to restore the camera to the factory settings, you can do it from this screen. Clicking Yes will initiate a reboot sequence on the camera. When the camera restarts, you will lose your connection to it. The username and password will also both be set back to the default admin. Wait 1 minute before attempting to reconnect to the camera so that it has time to go through its boot up sequence.

Note: Factory reset will erase the current configuration settings on the camera. You should back up the settings first if you wish to keep them. See the Backup and Restore section for more information.

Firmware Upgrade

Click the Browse button and locate the firmware file you saved on your computer and choose Open. When you are ready, click the Upgrade button to begin the firmware upgrade. Note: Upgrading the firmware is a sensitive process. Be sure that you have the correct firmware for your model of camera and do not disconnect the power during the upgrade process.

Backup and Restore

When you have set up the camera and you are satisfied with the settings, you can backup the settings to a file for future reference. If you should change the settings and want to revert back to the previous settings, you can do so on this page. To backup the configuration, click Backup and select a location to save the file, then choose Save. To restore settings from a configuration file, click Browse and locate the backup configuration file on your hard drive then click OK. Click Restore to complete the process.

TV-IP851WC / TV-IP851WIC

37

TRENDnet User’s Guide

TV-IP851WC / TV-IP851WIC

How to setup/access the camera remotely

You can either setup the Dynamic DNS connection via camera itself or your home router. An account from any of the listed DDNS providers is required prior to this operation.

Configure DDNS on your Camera

1. Go to Camera’s DDNS Setting page, click Enable to activate the feature. Then

select a DDNS provider from the list.

2. Enter your DDNS’s the Host Name, User Name and Password.

5. Go to Virtual Server* section and create a new entry.

Enable: Click Enable Name: Enter the application name (eg. CameraName) Protocol: Select TCP Private Port: The HTTP port that you assign on your Camera. Public Port: The port used on remote side to access to your Camera. LAN Server: The local IP address of your Camera.

3. In the Port Number section, assign an HTTP port of the camera. The default

HTTP Port on the camera is 80. The example shows above is using port number

9000.

4. Open another web browser and go to your Router’s Web Configuration page.

(In the example, TRENDnet’s TEW-651BR Wireless N router is used)

38



TRENDnet User’s Guide

Then click Add to add the application.

* Please refer to your router’s user’s manual for detail Virtual Server setting. Some router might use Port Forwarding or Special applications for this function. The setup steps should be very similar.

7. Camera’s login page will appear.

Configure DDNS on your router

1. Go to Camera’s DDNS

camera and click Apply.

2. Login to your router’s web configuration page.

3. Find the Dynamic DNS configuration section.

Ports Number section, assign a HTTP port for your

TV-IP851WC / TV-IP851WIC

6. Open another web browser and enter your DDNS domain and camera’s port

number.

http://yourDomainName:PortNumber

39

TRENDnet User’s Guide

4. Enable DDNS, fill out the following information and then click Apply.

5. Go to Virtual Server* section and create a new entry.

Enable: Click Enable Name: Enter the application name (eg. Camera Name) Protocol: Select TCP Private Port: The HTTP port that you assign on your Camera. Public Port: The port used on remote side to access to your Camera. LAN Server: The local IP address of your Camera.

6. Open another web browser and enter your DDNS domain and camera’s port

number.

http://yourDomainName:PortNumber

7. The camera login page will appear.

TV-IP851WC / TV-IP851WIC

Click Add to add the application.

* Please refer to your router’s user’s manual for detail Virtual Server setting. Some router might use Port Forwarding or Special applications for this function. The setup steps should be very similar.

40

TRENDnet User’s Guide

TV-IP851WC / TV-IP851WIC

Technical Specifications

TV-IP851WC

Camera

General Sensor: 1/5” CMOS Sensor

Board Lens Focal Length: 4 mm F/No: 1.5 Minimum illumination: 1 lux Focus Depth: 20 cm ~ infinity View: Horizontal: 38.0° Vertical: 28.7° Diagonal: 46.5° Digital Zoom: 4x

Audio Built-in omni-directional microphone

Sensitivity: -38 dB +/- 3 dB (5 meters max) Frequency: 10~20000 Hz S/N: >60 dB Format: PCM

Pan & Tilt Pan: -170° ~ +170°

Tilt: up 90°and down 25° Auto-Patrol preset positions: 24

Hardware

Network IEEE 802.3u 10/100 Mbps Auto-MDIX Fast Ethernet

LED Power, Link/Act

WPS Button Push to enable WPS

Reset Button Reset to factory default

Privacy Button Privacy mode on/off

Power Consumption Max 6.1 watts

Power Input: 100~240V, 50/60 Hz, 0.5A

Dimension 113 x 113 x 130 mm (4.5 x 4.5 x 5.1 in.)

Weight 503 g (1.1 lbs.)

Temperature

Humidity Max 90% (non-condensing)

Certifications CE, FCC

Requirement

Management Interface

To Run software Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)

SecurView Pro Software

Network Protocols IPv4, ARP, TCP, UDP, ICMP

Wireless

Standard IEEE 802.11b, 802.11g, and 802.11n

Frequency 2.4 ~ 2.497 GHz ISM band

Antenna 1 x detachable 2 dBi dipole antennas (Reverse-SMA connector)

Date Rate 802.11b: up to 11 Mbps

Security 64/128-bit WEP, WPA/WPA2-PSK

Output: 12V, 1.25A external power adapter

Operating: 0°C ~ 40°C (32°F ~ 104°F) Storage: -25°C ~ 70°C (-13°F ~ 158°F)

Internet Explorer 7.0 or higher Firefox 3.5 or higher Safari 4.0 or higher Google Chrome 19.0 or higher

Windows Server 2003, 2008

Channel: supports up to 32 cameras Record / Playback / Motion Detection / Audio

DHCP Client, NTP Client, DNS Client, DDNS Client, SMTP Client FTP Client HTTP PPPoE UPnP

802.11g: up to 54 Mbps

802.11n: up to 150 Mbps

41

TRENDnet User’s Guide

TV-IP851WC / TV-IP851WIC

Output Power 802.11b: 18 dBm (typical)

802.11g: 15 dBm (typical)

802.11n: 15 dBm (typical)

Receiving Sensitivity 802.11b: -85 dBm at 11 Mbps

802.11g: -76 dBm at 54 Mbps

802.11n: -65 dBm at 150 Mbps

Channels 1~11 (FCC), 1~13 (ETSI)

Management

Accounts Up to 64 user accounts

Remote Login Remote management supported

Backup / Restore Save/retrieve configuration files

Cloud Link Display status and URL, enable / disable, refresh

Settings

Image Brightness, contrast, saturation, light frequency, flip, mirror (horizontal /

vertical)

Video Setting Encoding: MJPEG

- Resolution and frame rate: VGA @ 20fps, QVGA @ 30fps,

QQVGA @ 30fps

- JPEG quality: Very Low, Low, Medium (default), High, Very High

Recording Event based (motion detection) and scheduled

Snapshot Trigger event: motion detection

Action: send alert email and/or upload to FTP Real time snapshot

Port Settings HTTP port: 80 (default)

Time Synchronize with NTP server or PC, or set time / date manually

TV-IP851WIC

Camera

General Sensor: 1/5” CMOS Sensor

Board Lens Focal Length: 4 mm F/No: 1.5 Minimum illumination: 0 lux (IR on) Focus Depth: 20 cm ~ infinity View: Horizontal: 38.0° Vertical: 28.7° Diagonal: 46.5° Digital Zoom: 4x

Audio Built-in omni-directional microphone

Sensitivity: -38 dB +/- 3 dB (5 meters max) Frequency: 100~20000 Hz S/N: >60 dB Format: PCM

Pan & Tilt Pan: -170° ~ +170°

Tilt: up 90°and down 25° Auto-Patrol preset positions: 24

Day / Night Built-in ICR

Indoor night vision (IR) for distances up to 7.5 meters

Hardware

Network IEEE 802.3u 10/100 Mbps Auto-MDIX Fast Ethernet

LED Power, Link/Act

WPS Button Push to enable WPS

Reset Button Reset to factory default

Privacy Button Privacy mode on/off

Power Consumption Max 7.2 watts

42

TRENDnet User’s Guide

TV-IP851WC / TV-IP851WIC

Power Input: 100~240V, 50/60 Hz, 0.5A

Output: 12V, 1.25A external power adapter

Dimension 113 x 113 x 130 mm (4.5 x 4.5 x 5.1 in.)

Weight 505 g (1.1 lbs.)

Temperature

Humidity Max 90% (non-condensing)

Certifications CE, FCC

Requirement

Management Interface

To Run software Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)

SecurView Software Channel: supports up to 32 cameras

Network Protocols IPv4, ARP, TCP, UDP, ICMP

Wireless

Standard IEEE 802.11b, 802.11g, and 802.11n

Frequency 2.4 ~ 2.497 GHz ISM band

Antenna 1 x detachable 2 dBi dipole antenna (Reverse-SMA connector)

Operating: 0°C ~ 40°C (32°F ~ 104°F) Storage: -25°C ~ 70°C (-13°F ~ 158°F)

Internet Explorer 7.0 or higher Firefox 3.5 or higher Safari 4.0 or higher Google Chrome 19.0 or higher

Windows Server 2003, 2008

Record / Playback / Motion Detection / Audio

DHCP Client, NTP Client, DNS Client, DDNS Client, SMTP Client FTP Client HTTP PPPoE UPnP

Security 64/128-bit WEP, WPA/WPA2-PSK

Output Power 802.11b: 18 dBm (typical)

802.11g: 15 dBm (typical)

802.11n: 15 dBm (typical)

Receiving Sensitivity 802.11b: -85 dBm at 11 Mbps

802.11g: -76 dBm at 54 Mbps

802.11n: -65 dBm at 150 Mbps

Channels 1~11 (FCC), 1~13 (ETSI)

Management

Accounts Up to 64 user accounts

Remote Login Remote management supported

Backup / Restore Save / retrieve configuration files

Cloud Link Display status and URL, enable / disable, refresh

Settings

Image Brightness, contrast, saturation, light frequency, flip, mirror (horizontal /

vertical)

Video Setting Encoding: MJPEG

- Resolution and frame rate: VGA @ 20fps, QVGA @ 30fps,

QQVGA @ 30fps

- JPEG quality: Very Low, Low, Medium (default), High, Very High

Recording Event based (motion detection) and scheduled

Snapshot Trigger event: motion detection

Action: send alert email and / or upload to FTP Real time snapshot

Port Settings HTTP port: 80 (default)

Time Synchronize with NTP server or PC, or set time / date manually

Date Rate 802.11b: up to 11 Mbps

802.11g: up to 54 Mbps

802.11n: up to 150 Mbps

43

TRENDnet User’s Guide

Troubleshooting

1. The Power LED and Ethernet Activity LED do not light up.

The power supply or camera might be faulty. Check that the connection to both the power source and the terminal on the back of the camera are secure and that you are using the provided power supply. If the camera is otherwise functioning correctly, the LEDs might have been disabled in the configuration. See the section of this guide on Configuration of System settings.

2. The camera can’t be accessed or access is slow

There might be a problem with the network cable. To confirm that the cables are working, ping the address of a known device on the network. If the cabling is OK and your network is reachable, you should receive a reply similar to the following (…bytes = 32 time = 2 ms).

Another possible problem may be that the network device such as a hub or switch utilized by the Network Camera is not functioning properly. Please confirm the power for the devices are well connected and functioning properly.

3. The camera can be accessed locally but not remotely

This might be caused by a firewall. Check the Internet firewall with your system administrator. The firewall may need to have some settings changed in order for the Network Camera to be accessible outside your local LAN. For more information, please refer to the section about installing your camera behind a router.

Make sure that the Network Camera isn’t conflicting with any Web server you may have running on your network.

The default router setting might be a possible reason. Check that the configuration of the router settings allow the Network Camera to be accessed outside your local LAN.

4. White vertical lines appear on the image from the camera

to sunlight or halogen lights. Reposition the Network Camera into a more shaded area immediately as prolonged exposure to bright lights will damage the CMOS sensor.

5. The camera images are ‘noisy’

Often if the camera is in a low-light environment, the images can contain a lot of noise. Try enabling Night mode and see if that improves the image quality. Otherwise, try to use the camera in a location where there is a bit more light.

6. The camera images are of poor quality.

Make sure that your computer’s display properties are set to at least 16-bit color. Using 16 or 256 colors on your computer will produce dithering artifacts in the image, making the image look as if it is of poor quality.

Try also adjusting the brightness, contrast, saturation, light frequency and antiflicker controls on the Video Settings under the Configuration menu. You may also consider adjusting the resolution of the camera and the compression rate to improve the image.

7. Video can’t be viewed through the web browser interface.

ActiveX might be disabled. If you are viewing the images from Internet Explorer make sure ActiveX has been enabled in the Internet Options menu. You may also need to change the security settings on your browser to allow the ActiveX plugin to be installed.

If you are using Internet Explorer with a version number lower than 6, then you will need to upgrade your Web browser software in order to view the streaming video transmitted by the Network Camera. Try also viewing the video using Java. Ensure that you have the latest version of Java installed before you do. Go to www.java.com

TV-IP851WC / TV-IP851WIC

for more information.

It could be that the CMOS sensor (a square panel situated behind the lens that measures the light signals and changes it into a digital format so your computer can present it into an image that you are familiar with) has become overloaded when it has been exposed to bright lights such as direct exposure

44

TRENDnet User’s Guide

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1 through 11.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC.

The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC:

EN 60950-1:2006+A11:2009+A1:2010+A12:2011 Safety of Information Technology Equipment EN 62311: 2008 Assessment of electronic and electrical equipment related to human exposure

restrictions for electromagnetic fields (0 Hz-300 GHz) (IEC 62311:2007 (Modified)) EN 300 328 V1.7.1: (2006-10) Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband

Transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using spread spectrum modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive

EN 301 489-1 V1.9.2: 2011 Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic

Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements

EN 301 489-17 V2.1.1 (2009-05) Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic

Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems

This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France and Italy where restrictive use applies.

In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or network services.

This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France.

TV-IP851WC / TV-IP851WIC

45

saistītajiem noteikumiem.

TRENDnet User’s Guide

TV-IP851WC / TV-IP851WIC

Česky

[Czech]

Dansk

[Danish]

Deutsch

[German]

Eesti

[Estonian]

English Hereby, TRENDnet, declares that this TV-IP851WC / TV-IP851WIC

Español

[Spanish]

Ελληνική

[Greek]

Français

[French]

Italiano

[Italian]

Latviski

[Latvian]

TRENDnet tímto prohlašuje, že tento TV-IP851WC / TV-IP851WIC

je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.

Undertegnede TRENDnet erklærer herved, at følgende udstyr TVTV-IP851WC / TV-IP851WIC overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.

Hiermit erklärt TRENDnet, dass sich das Gerät TV-IP851WC / TVIP851WIC in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.

Käesolevaga kinnitab TRENDnet seadme TV-IP851WC / TVIP851WIC vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.

is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Por medio de la presente TRENDnet declara que el TV-IP851WC / TV-IP851WIC cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.

ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ TRENDnet ΔΗΛΩΝΕΙ ΟΤΙ TV-IP851WC / TVIP851WIC ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.

Par la présente TRENDnet déclare que l'appareil TV-IP851WC / TVIP851WIC est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.

Con la presente TRENDnet dichiara che questo TV-IP851WC / TVIP851WIC è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.

Ar šo TRENDnet deklarē, ka TV-IP851WC / TV-IP851WIC atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to

Lietuvių

[Lithuanian]

Nederlands [Dutch]

Malti

[Maltese]

Magyar

[Hungarian]

Polski

[Polish]

Português

[Portuguese]

Slovensko

[Slovenian]

Slovensky

[Slovak]

Suomi

[Finnish]

Svenska

[Swedish]

Šiuo TRENDnet deklaruoja, kad šis TV-IP851WC / TV-IP851WIC atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.

Hierbij verklaart TRENDnet dat het toestel TV-IP851WC / TVIP851WIC in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.

Hawnhekk, TRENDnet, jiddikjara li dan TV-IP851WC / TVIP851WIC jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.

Alulírott, TRENDnet nyilatkozom, hogy a TV-IP851WC / TVIP851WIC megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.

Niniejszym TRENDnet oświadcza, że TV-IP851WC / TV-IP851WIC

jest zgodny z zasadniczymi wymogami oraz pozostałymi

stosownymi postanowieniami Dyrektywy 1999/5/EC.

TRENDnet declara que este TV-IP851WC / TV-IP851WIC está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE.

TRENDnet izjavlja, da je ta TV-IP851WC / TV-IP851WIC v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.

TRENDnet týmto vyhlasuje, že TV-IP851WC / TV-IP851WIC spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice

1999/5/ES.

TRENDnet vakuuttaa täten että TV-IP851WC / TV-IP851WIC tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.

Härmed intygar TRENDnet att denna TV-IP851WC / TV-IP851WIC står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.

46

TRENDnet User’s Guide

Limited Warranty

TRENDnet warrants its products against defects in material and workmanship, under normal use and service, for the following lengths of time from the date of purchase.

TV-IP851WC / TV-IP851WIC – 3 Years Warranty

AC/DC Power Adapter, Cooling Fan, and Power Supply carry 1 year warranty.

If a product does not operate as warranted during the applicable warranty period, TRENDnet shall reserve the right, at its expense, to repair or replace the defective product or part and deliver an equivalent product or part to the customer. The repair/replacement unit’s warranty continues from the original date of purchase. All products that are replaced become the property of TRENDnet. Replacement products may be new or reconditioned. TRENDnet does not issue refunds or credit. Please contact the point-of-purchase for their return policies.

TRENDnet shall not be responsible for any software, firmware, information, or memory data of customer contained in, stored on, or integrated with any products returned to TRENDnet pursuant to any warranty.

There are no user serviceable parts inside the product. Do not remove or attempt to service the product by any unauthorized service center. This warranty is voided if (i) the product has been modified or repaired by any unauthorized service center, (ii) the product was subject to accident, abuse, or improper use (iii) the product was subject to conditions more severe than those specified in the manual.

Warranty service may be obtained by contacting TRENDnet within the applicable warranty period and providing a copy of the dated proof of the purchase. Upon proper submission of required documentation a Return Material Authorization (RMA) number will be issued. An RMA number is required in order to initiate warranty service support for all TRENDnet products. Products that are sent to TRENDnet for RMA service must have the RMA number marked on the outside of return packages and sent to TRENDnet prepaid, insured and packaged appropriately for safe shipment. Customers shipping from outside of the USA and Canada are responsible for return shipping fees. Customers shipping from outside of the USA are responsible for custom charges, including but not limited to, duty, tax, and other fees.

WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, THE CUSTOMER’S SOLE REMEDY SHALL BE, AT TRENDNET’S OPTION, REPAIR OR REPLACE. THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. TRENDNET NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION MAINTENANCE OR USE OF TRENDNET’S PRODUCTS.

TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR OR MODIFY, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.

LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE PAID, AT TRENDNET’S OPTION. THIS DISCLAIMER OF LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.

Governing Law: This Limited Warranty shall be governed by the laws of the state of California.

Some TRENDnet products include software code written by third party developers. These codes are subject to the GNU General Public License ("GPL") or GNU Lesser General Public License ("LGPL").

Go to http://www.trendnet.com/gpl or http://www.trendnet.com and look for the desired TRENDnet product to access to the GPL Code or LGPL Code. These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of the developers. TRENDnet does not provide technical support for these codes. Please go

http://www.gnu.org/licenses/gpl.txt or http://www.gnu.org/licenses/lgpl.txt for

to specific terms of each license.

Limited Warranty

Download section

V1.0R / 08.06.2012

47

TRENDnet TV-IP851WC, TV-IP851WIC User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Product Overview

Package Contents

Features

Product Hardware Features

Application Diagram

Installation Option Description*

Wired Connection

WPS Connection

Wall mount installation

TRENDnet Cloud Service

Image A (connecting using WPS)

Image B (wired connection)

Blue Mode

Red Mode

Green Mode

Install the Camera

Configure Wireless Settings

Using WPS

Connecting Wireless Network Manually

Mobile Apps

Mobile Apps, QR code Download Option

Configuration

Viewing Video

Viewing Camera Settings

System

Video

Audio

Wireless

Network

Cloud Link

Active Users

Configuring Camera Settings

System

Video

Audio

Wireless

Network

Cloud Link

User

Date/Time

Motion Detection

Upload

Day/Night Mode (for TV-IP851WIC)

Tools

FTP Server Test

E-mail Test

Restart

Factory Reset

Firmware Upgrade

Backup and Restore

How to setup/access the camera remotely

Technical Specifications

Troubleshooting
