Quick Installation Guide
TV-IP410
TV-IP410W
H/W: A1.0R
Page 2
Table of Contents
Table of Contents
English ......................................................................................................
1. Before You Start
2. Hardware Installation .........................................................................
3. Configure the Internet Camera ..........................................................
Troubleshooting ........................................................................................
.................................................................................
1
1
3
4
9
Version 05.28.2008
Page 3
1. Before You Start
Package Contents
TV-IP410 / TV-IP410W
?
?Utility CD-ROM
?Multi-Language Quick Installation
Guide
?1 x 2dBi Detachable Antenna
TV-IP410W)
(
?GPIO Adapter
RJ-45 Cable
?
?Mounting Kit
?Power Adapter (12VDC, 1.5A)
System Requirements
?
10/100Mbps Ethernet
?Wireless router or access point (TV-IP410W)
?
CPU: 1GHz processor or above
?
Memory: 256MB RAM or above / 512MB RAM or above (Windows Vista)
Windows 2000/XP/Vista
?
VGA Resolution: 800 x 600 or above
?
Web Brower: Internet Explorer (6.0 or higher)
?
1
English
Page 4
Application
Home Monitoring
(TV-IP410)
Property Monitoring
(TV-IP410W)
Wireless 54Mbps
100Mbps
Home Monitoring
(TV-IP410W)
Internet
Family Monitoring
Wireless N Gigabit Router
(TEW-633GR)
Cable/DSL
Modem
Family Monitoring
(TV-IP410)
Business Monitoring
(TV-IP410W)
(TV-IP410W)
Property Monitoring
(TV-IP410)
Wireless 54Mbps
Wireless N Gigabit Router
(TEW-633GR)
Internet
100Mbps
English
2
Cable/DSL
Modem
Business Monitoring
(TV-IP410)
Page 5
2. Hardware Installation

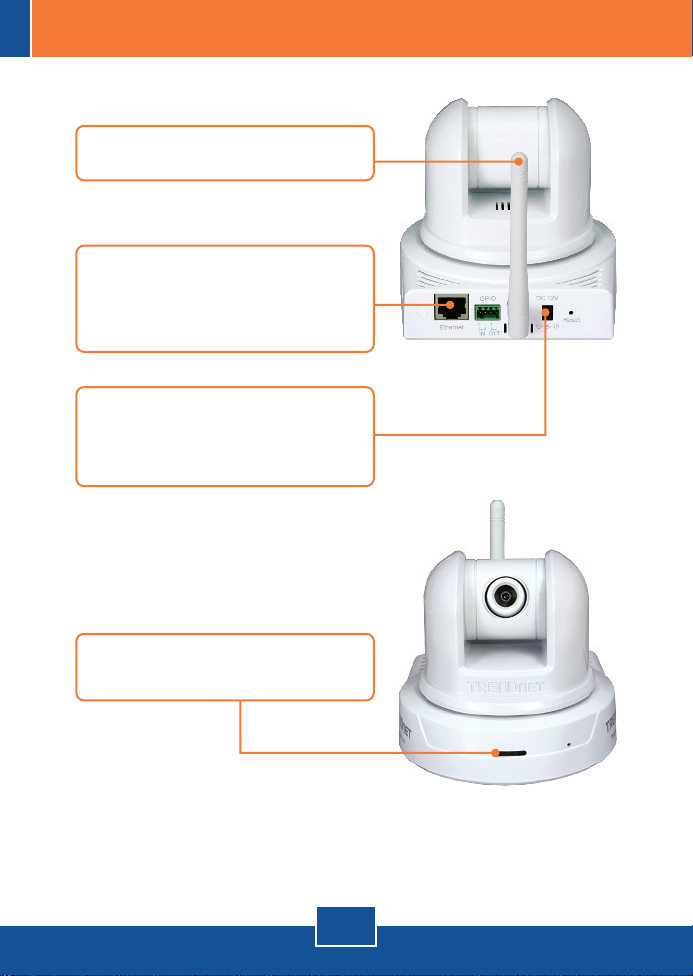

1. Attach the Antenna. (TV-IP410W)
2. Connect a RJ-45 network cable
from a Switch/Router to the
Ethernet port of the Internet
Camera Server.
3. Connect the AC Power Adapter to
the Internet Camera Server and
then to a power outlet.
4. Verify the Power and Link LEDs
are on.
English
3
Page 6
3. Configure the Internet Camera
Note:
1. It is recommended that you configure the Internet Camera from a wired
computer.
2. If you would like to use SecurView software, please refer to the User's Guide
on the CD for more information.

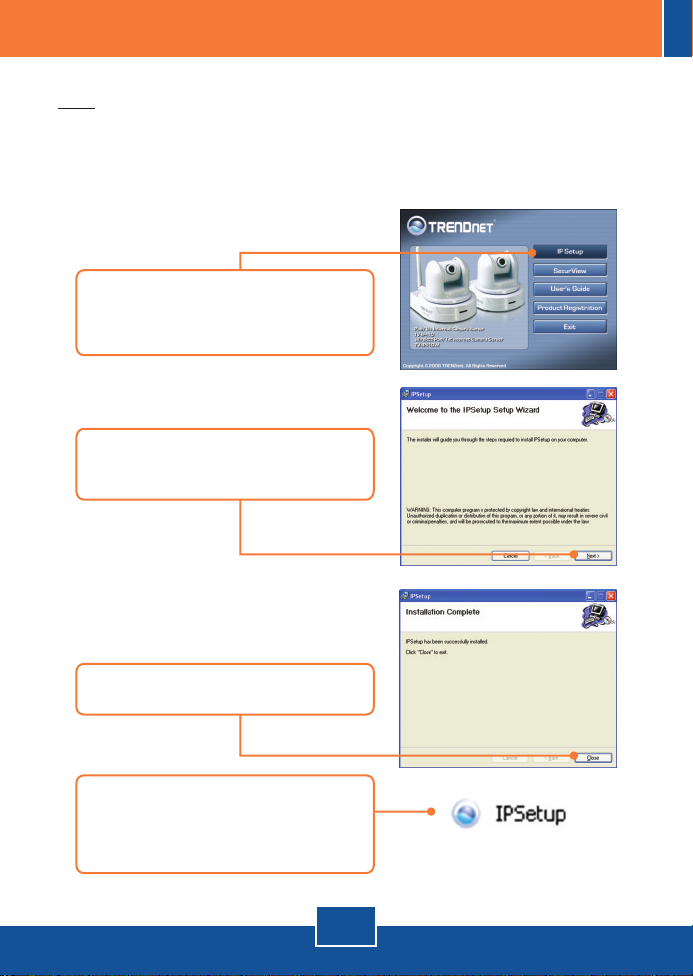

1. Insert the Utility CD-ROM into your
CD-ROM drive and then click IP
Setup.
2. Follow the IPSetup Setup Wizard
instructions and then click Next.
3. Click Close.
4. Go to Start -> Programs ->
TRENDnet -> IPSetup and click
IPSetup.
4
English
Page 7
Note: By default, the IP setting on the TV-IP410/TV-IP410W is set to DHCP.
Please skip to step 9. If you want to give the TV-IP410/TV-IP410W static IP
address, continue on to step 5.

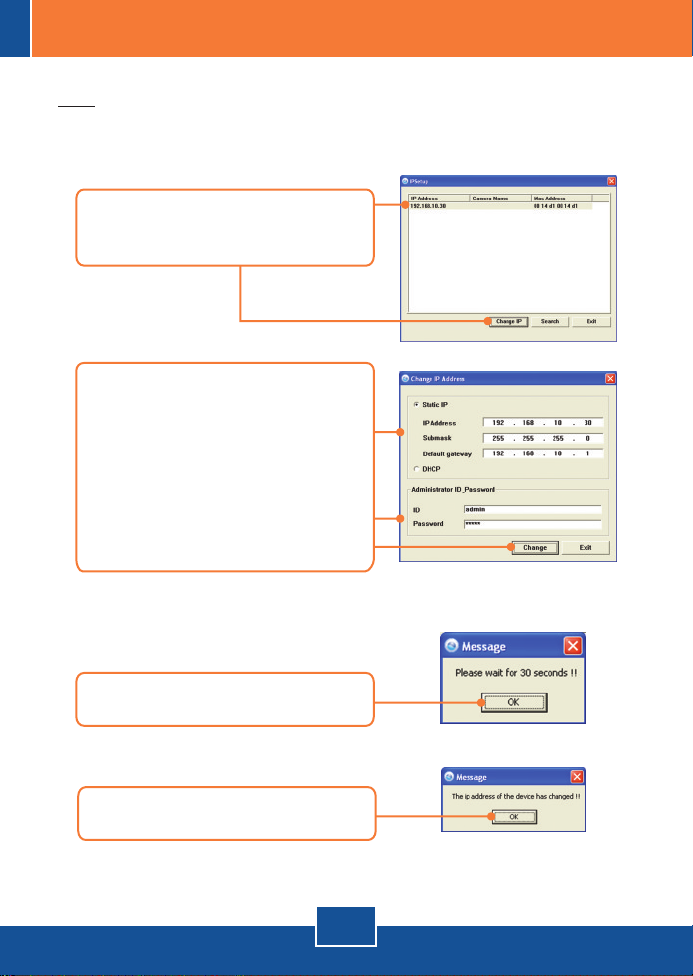

5. Select the camera server and click
Change IP.
6. Configure the IP address to be in
the same subnet as your network,
type in the Administrator ID and
Password and click Change.
By default:
ID: admin
Password: admin
7. Click OK and wait 30 seconds.
8. Click OK.
5
English
Page 8

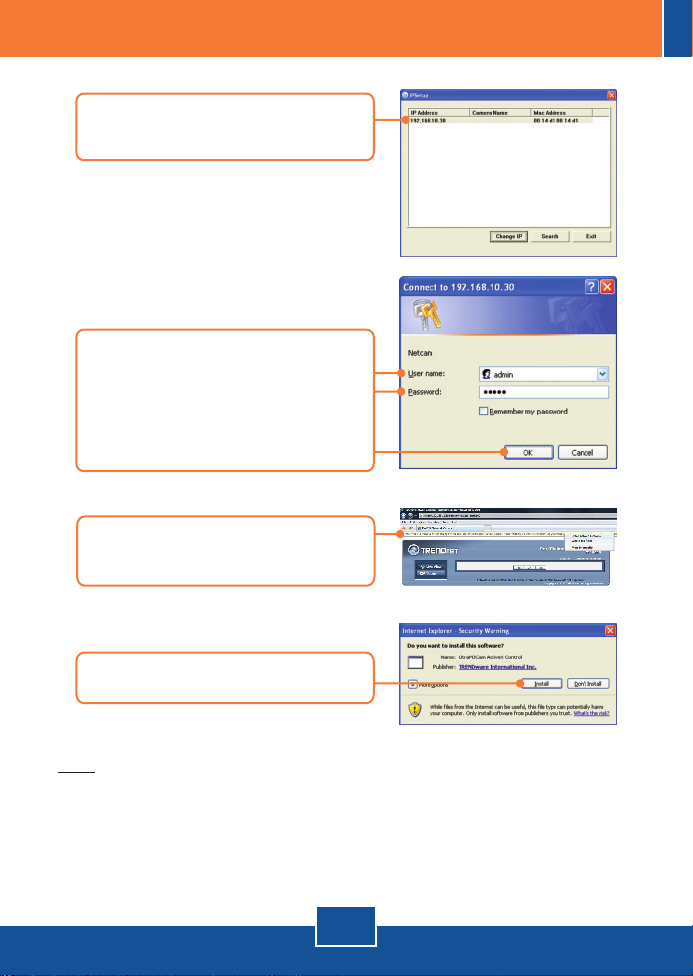

9. Double click the camera server to
access the browser configuration.
10. Enter the User name and
Password, and then click OK.
By default:
User Name: admin
Password: admin
11. Right click and select Install
ActiveX Control.
12. Click Install.
Note: If you have the TV-IP410W, continue on to step 13. If you have the
TV-IP410, skip to step 16.
6
English
Page 9

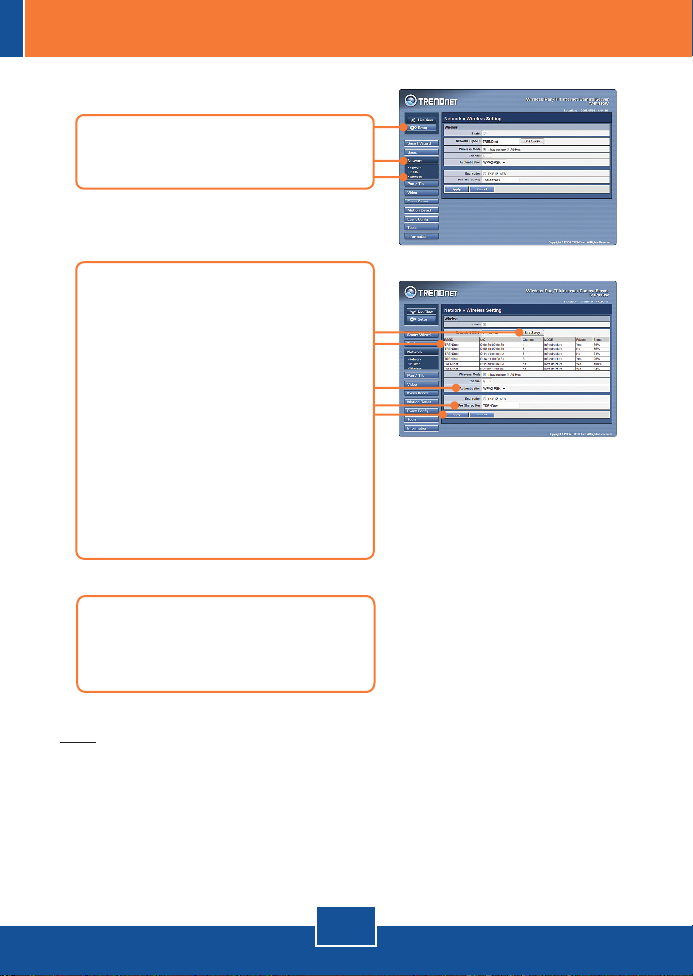

13. Click Setup, Network and then
click Wireless. (TV-IP410W only).
14. Click Site Survey. Select your
wireless network. If encryption
is enabled, select the proper
Authentication type, enter the
Pre-Shared Key and then click
apply. (Example shows
WPA2-PSK. If your wireless
network does not support WPA,
select open or shared instead.
Contact your network
administrator for more
information) (TV-IP410W only).
15. Disconnect the RJ-45 cable and
unplug the power. Then plug the
power back in (TV-IP410W).
Note: The TV-IP410W will not work wirelessly until you disconnect the Ethernet
cable from the back of the camera.
7
English
Page 10
16. Verify the Power and Link LEDs
are on.

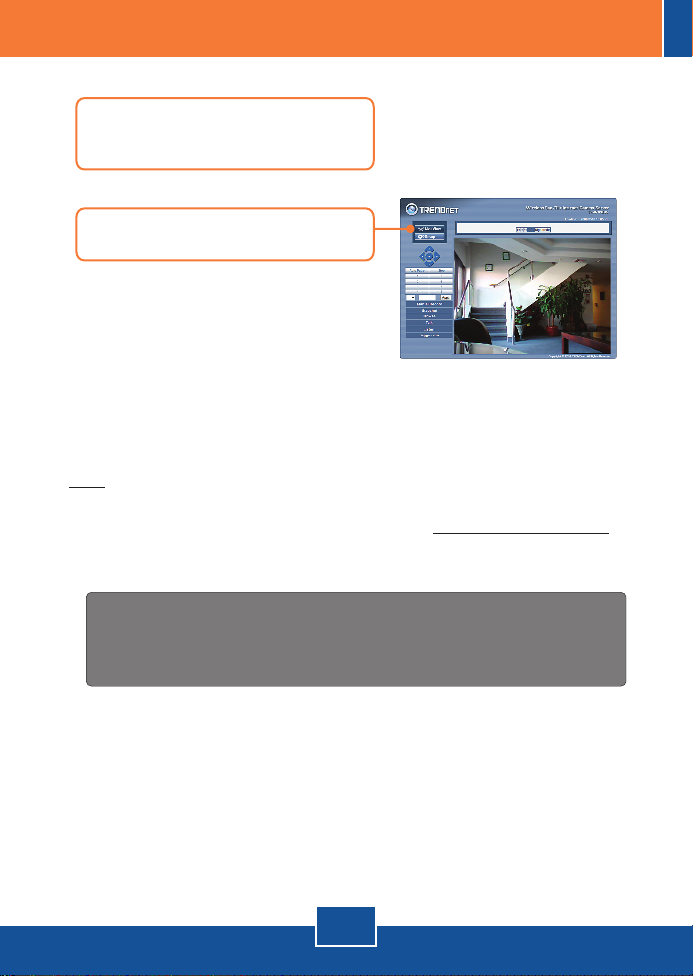

17. Click Live View.
Your installation is now complete.
Note: For detailed information regarding the TV-IP410/ 410W configuration
TV-IP
and advanced settings, please refer to the Troubleshooting section, User's Guide
on the Utility CD-ROM, or TRENDnet's website at http://www.trendnet.com.
Register Your Product
To ensure the highest level of customer service and support, please take a moment to
register your product Online at: www.trendnet.com/register
Thank you for choosing TRENDnet
8
English
Page 11
Troubleshooting
IP Setup is unable to detect my camera. What should I do?
Q1:
Q2:
configure the TV-IP410/W. What should I do?
Q3:
Q4:
Q5:
Q6:
can not connect to the camera.
First, verify that you have followed all the steps in the Section 2: Hardware Installation.
A1:
Second, disable any software firewall programs such as ZoneAlarm or Norton Internet
Security. If you are using Windows XP or Windows Vista, disable the built in firewall. Third,
click on Search in the IPSetup setup wizard.
I do not have a DHCP server or DHCP is disabled on my network and I am unable to
First, go to the TCP/IP settings on your computer and assign a static IP address on your
A2:
computer's network adapter in the subnet of 192.168.10.x. Since default IP address of the
TV-IP410/TV-IP410W is 192.168.10.30, do not assign a static IP address of 192.168.10.30
on your computer's network adapter. Second, run the IPSetup program and double click on
the TV-IP410/TV-IP410W to access the browser configuration.
The Image is blurry. How can I adjust the focus on the Internet camera?
You can adjust the Internet Camera's focus by rotating the lens.
A3:
When I click on Live View the image does not load?
First, make sure that you are using a browser that supports ActiveX. Second, make
A4:
sure that you added ActiveX. See step 10 and 11 in Section 2: Configure the Internet
Camera.
How do I connect the TV-IP410W to my wireless router or access point?
Make sure that you configure the camera to have the same SSID, encryption mode and
A5:
key (if enabled). Follow the instructions in section 2 to configure the camera with the SSID
and encryption key.
:After I successfully configured the TV-IP410W to match my wireless network settings, I
First, verify that the wireless settings match your wireless network settings. Second,
A6:
verify in the wireless section of the browser configuration that the Enable option is checked.
Third, make sure to disconnect the Ethernet cable from the camera and verify that the LINK
LED is blinking green.
I forgot my password. What should I do?
Q7:
Take a pin or paperclip and press the reset button on the back of the unit for 15 seconds.
A7:
This will return settings back to factory defaults. Open up the IPSetup program to find out
the IP address of the camera (see step 5 in Section 3: Configure the Internet camera).
The default administrator ID and password is admin.
If you still encounter problems or have any questions regarding the TV-IP410/TV-IP410W, please
contact TRENDnet's Technical Support Department.
